New Holland E55B Service Manual — Wiring Diagrams

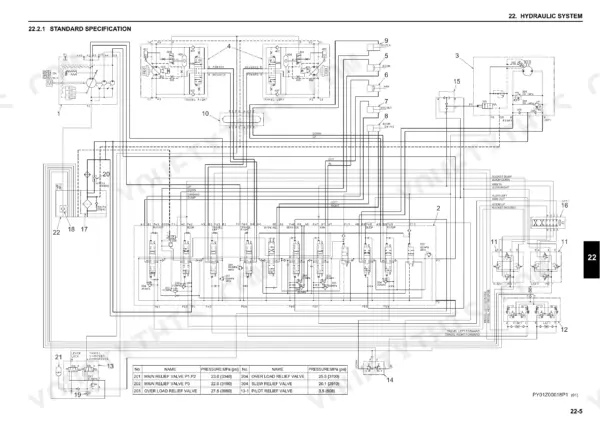

A boom that drifts down when the machine is parked usually traces to a leaking overload relief valve or worn cylinder seals. The System Section gives the overload relief valve pressure as 27.5 MPa {3990 psi}, so you can gauge the circuit against a published figure before pulling a cylinder.

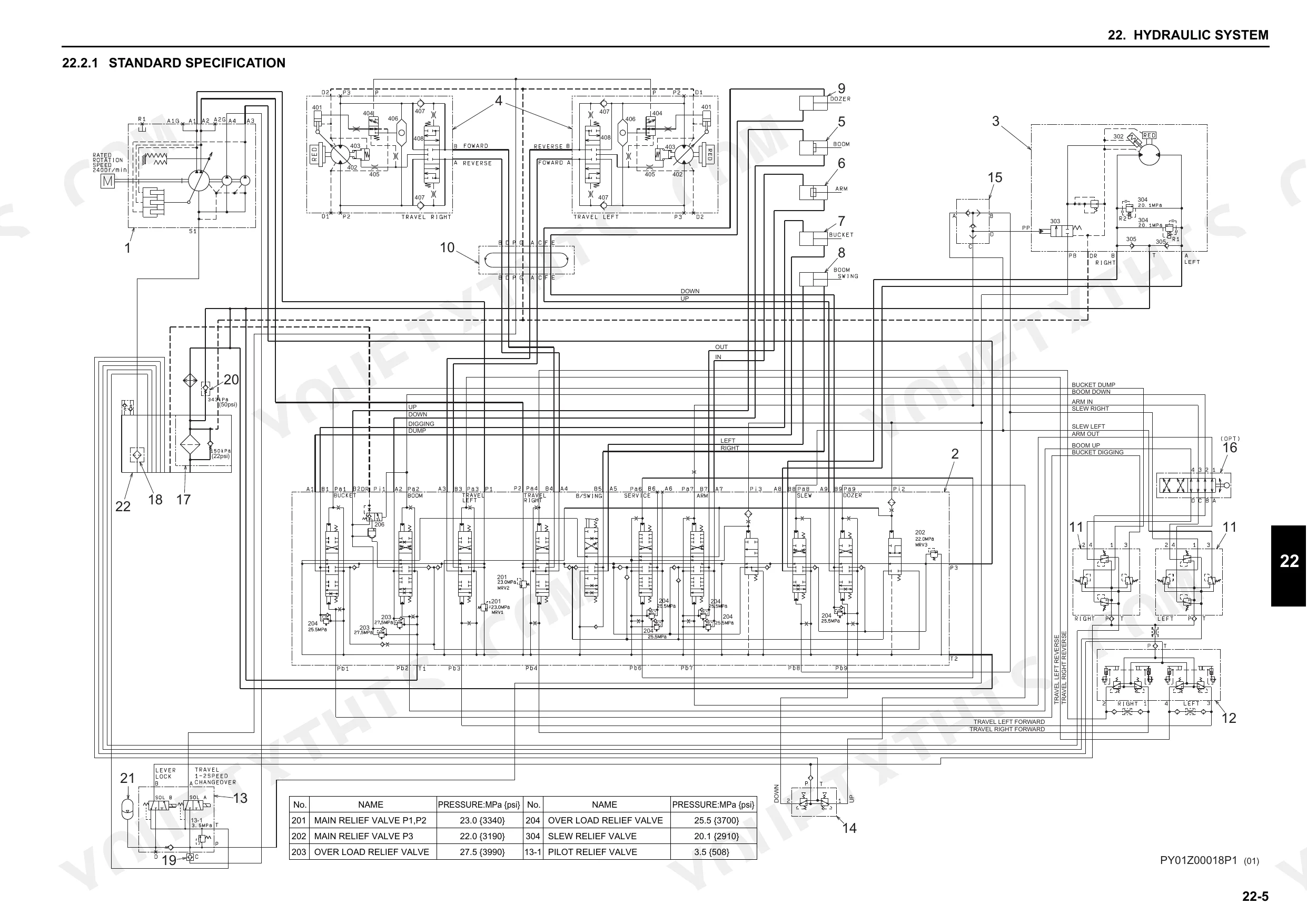

Weak slew that stalls on a slope points at slew relief pressure that has dropped off or a swing motor starting to pass oil. The Maintenance Section lists the slew relief valve pressure as 20.1 ± 0.3 MPa (2915 ± 44 psi) for comparison against your reading.

When the machine crabs in a straight pull, internal travel motor leakage is a common cause, and it gets blamed on track tension far too often. The Maintenance Section carries the travel standards used to check it, so a suspicion becomes a measurement.

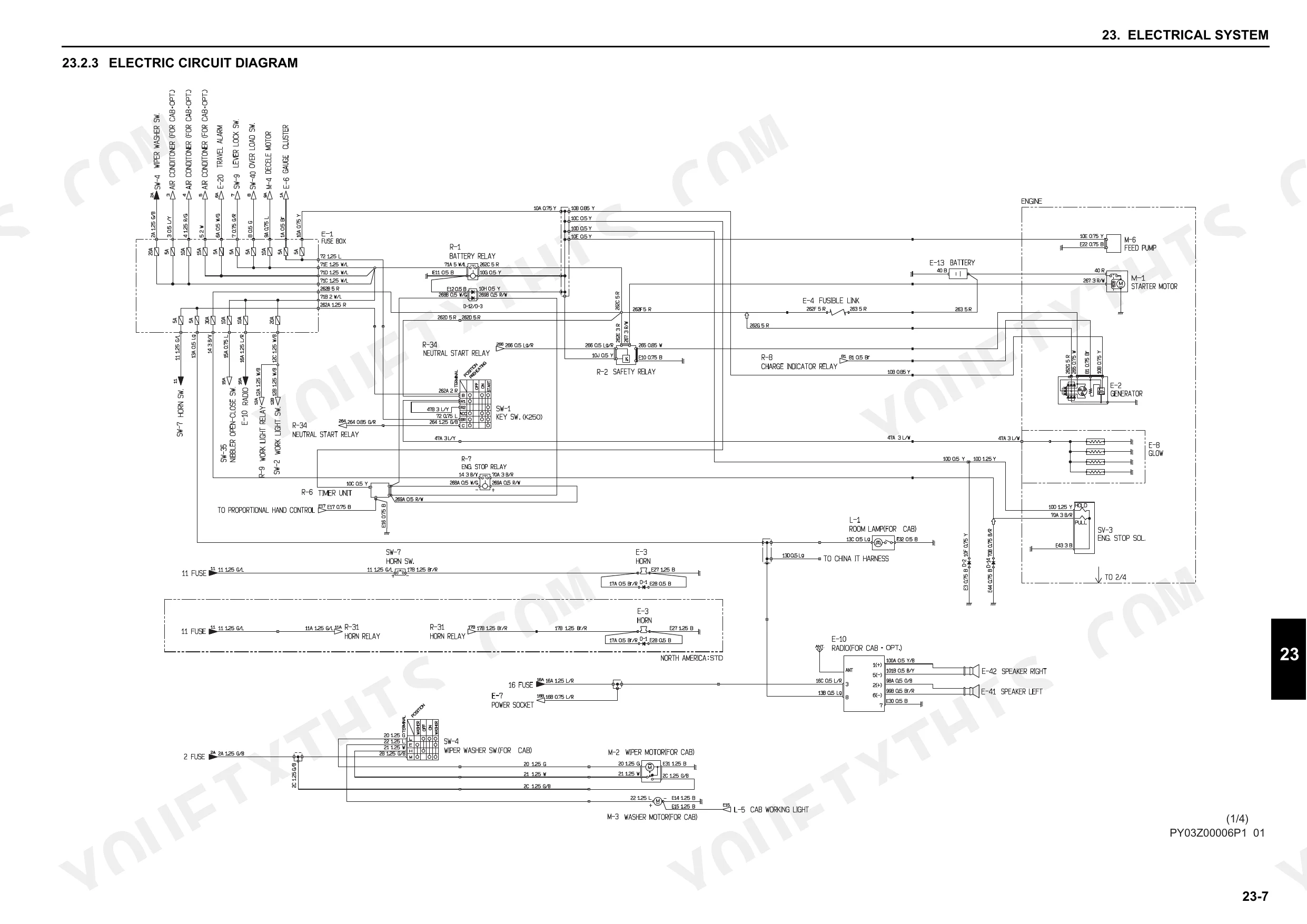

Vague joystick response, a dead function, or a machine that behaves as though an interlock is holding it back often starts in the pilot control circuit rather than the main pumps. The System Section covers the hydraulic and electrical circuits together so you can follow pilot supply and solenoid feeds through to the control valve.

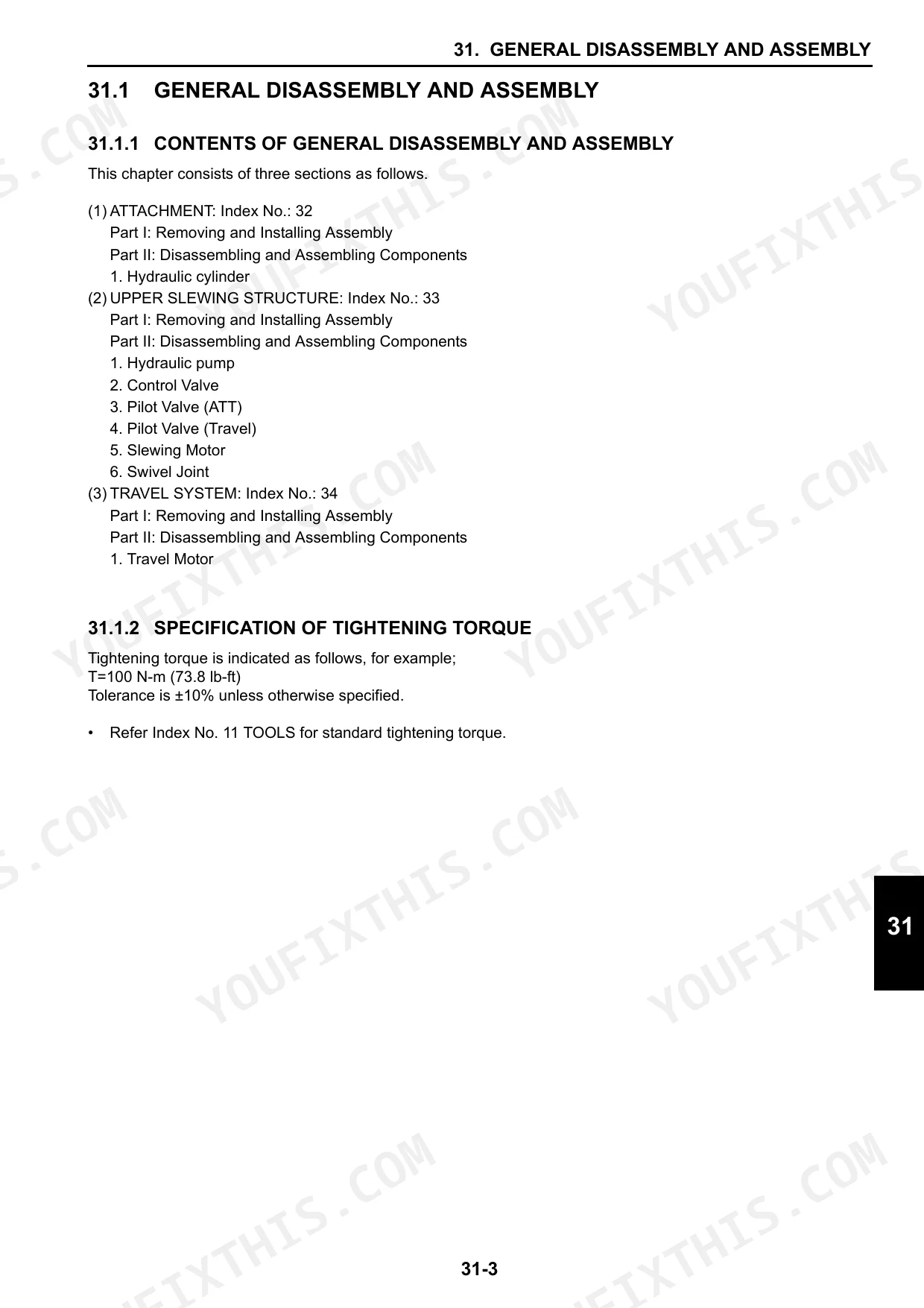

Worn bucket pins and bushings show up as rattle at the end of the arm and uneven bucket wear, and left alone they egg out the bores. The Disassembly Section walks the attachments apart in order, including the boom and arm cylinders, so the pins come out without damaging the linkage.

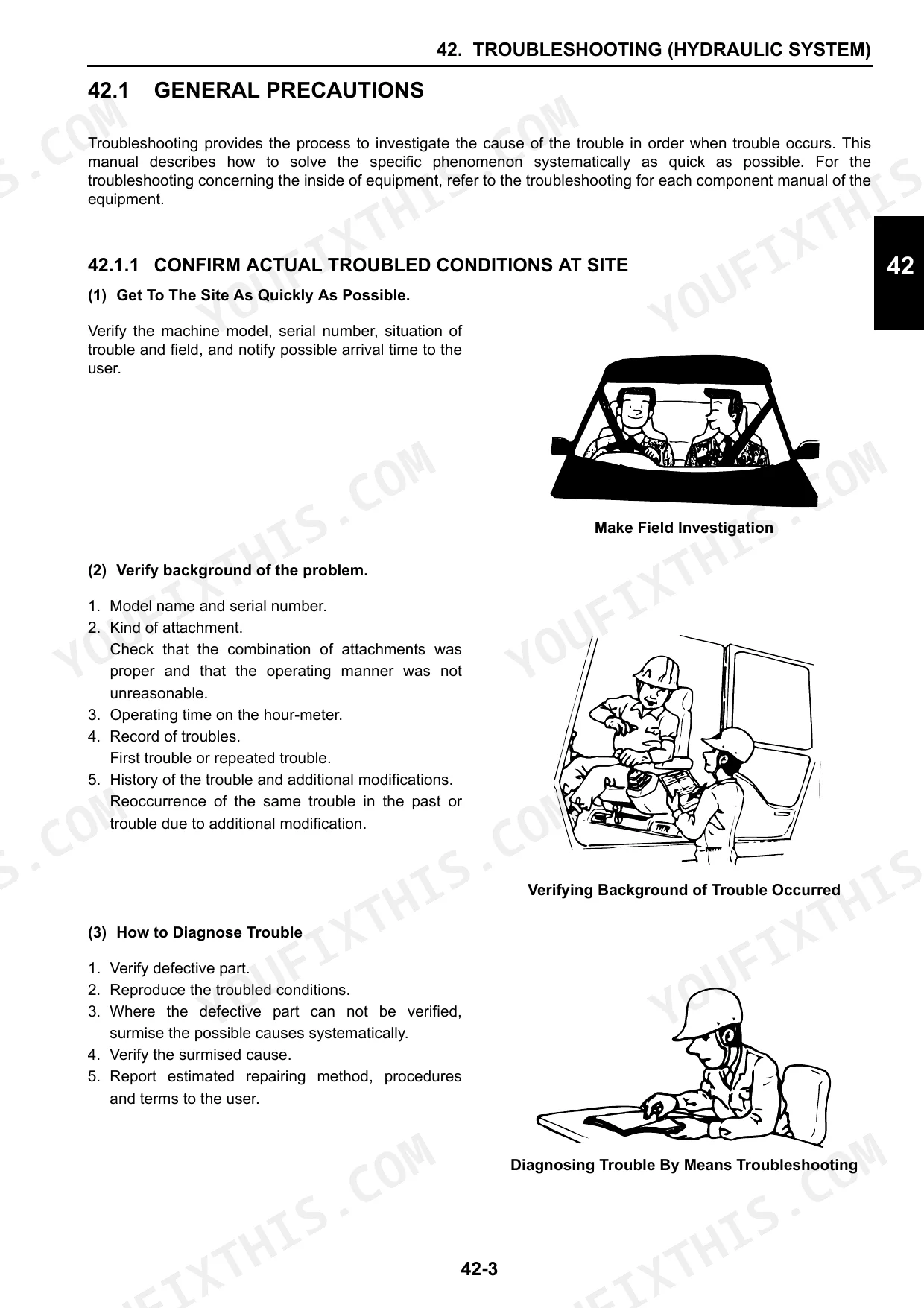

Several unrelated electrical symptoms at once often trace to one shared circuit rather than several failed parts. The Troubleshooting section splits diagnosis into hydraulic, electrical and engine paths so you can isolate the circuit instead of replacing parts in sequence.

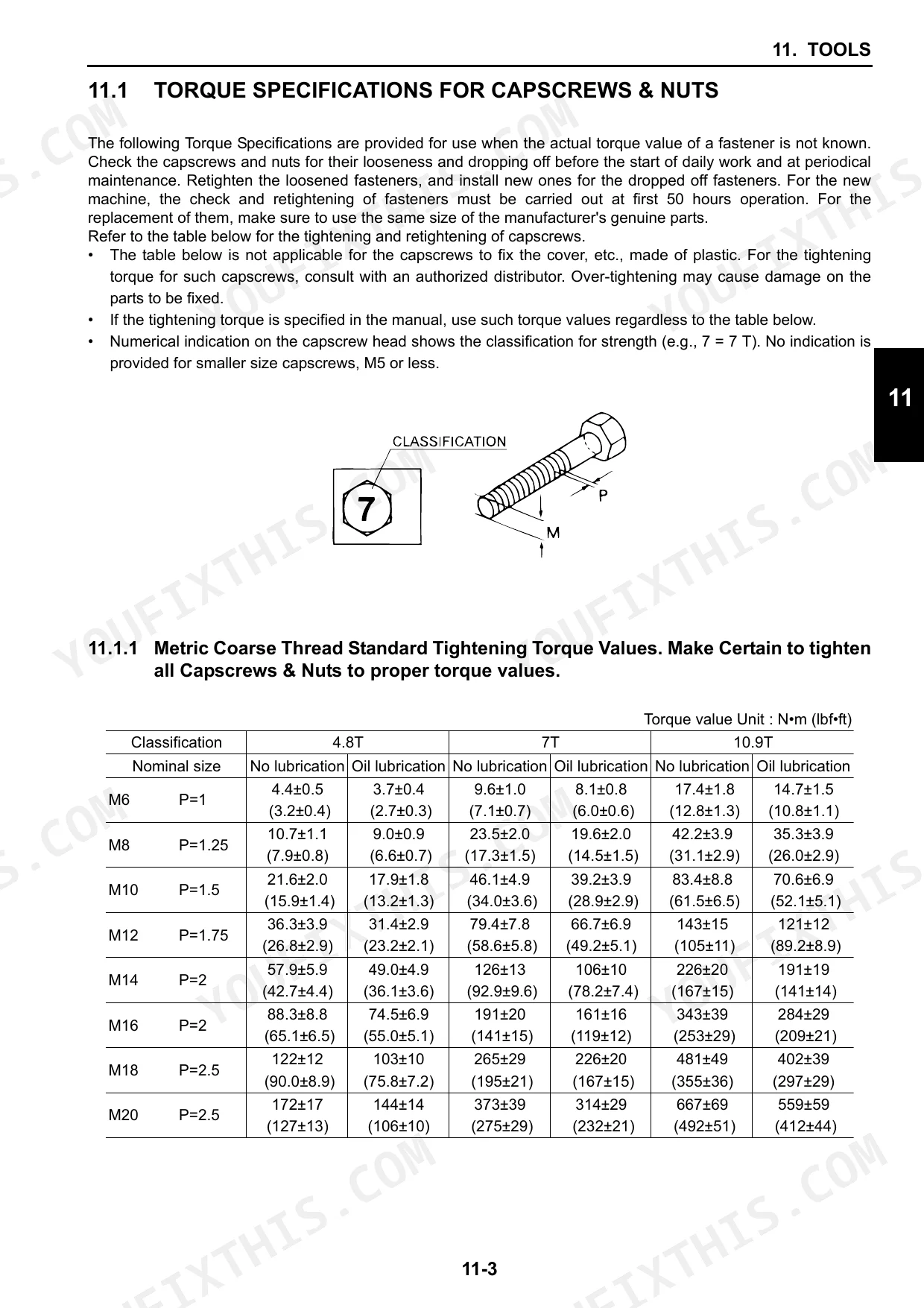

Bolts run down by guess either back out under vibration or strip the casting, which is an expensive mistake on a slewing structure or final drive. The Specifications Section carries the standard metric thread torque table, for example 88.3 ± 8.8 N·m for an M16 4.8T fastener with no lubrication.
