Need the factory manual for your New Holland L465, Lx465, or Lx485 skid-steer? This 808-page repair manual (OEM #86587274) covers every system on your machine, from the engine block to the boom lock pin. Inside you get full wiring diagrams for the electrical system, hydraulic schematics for the hydrostatic drive and boom circuits, and a dedicated troubleshooting section for the axles, brakes, and hydraulic pump. Page after page of torque tables backs up the teardown and reassembly steps, and the labor guide gives you real shop times. Set the boom circuit relief valve to 186 ± 3 bar on early models, 241 ± 3 bar on later ones, and check the radiator cap holds 7 PSI before you button up the cooling system. No more chasing electrical gremlins with a test light and a hunch. Bookmarked by section, so you jump straight to the system you're fixing.
What's Inside This New Holland L465, LX465, LX485 Repair Manual

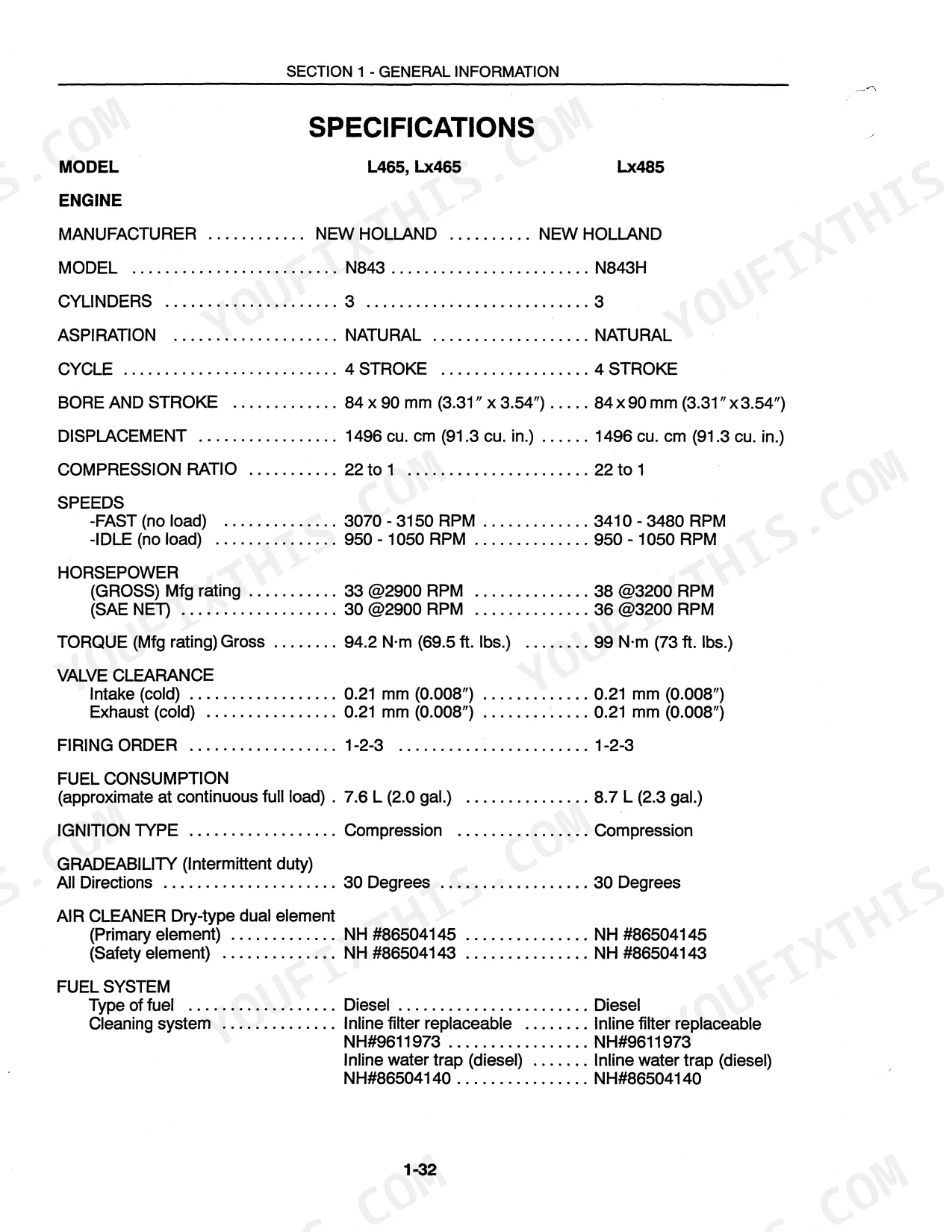

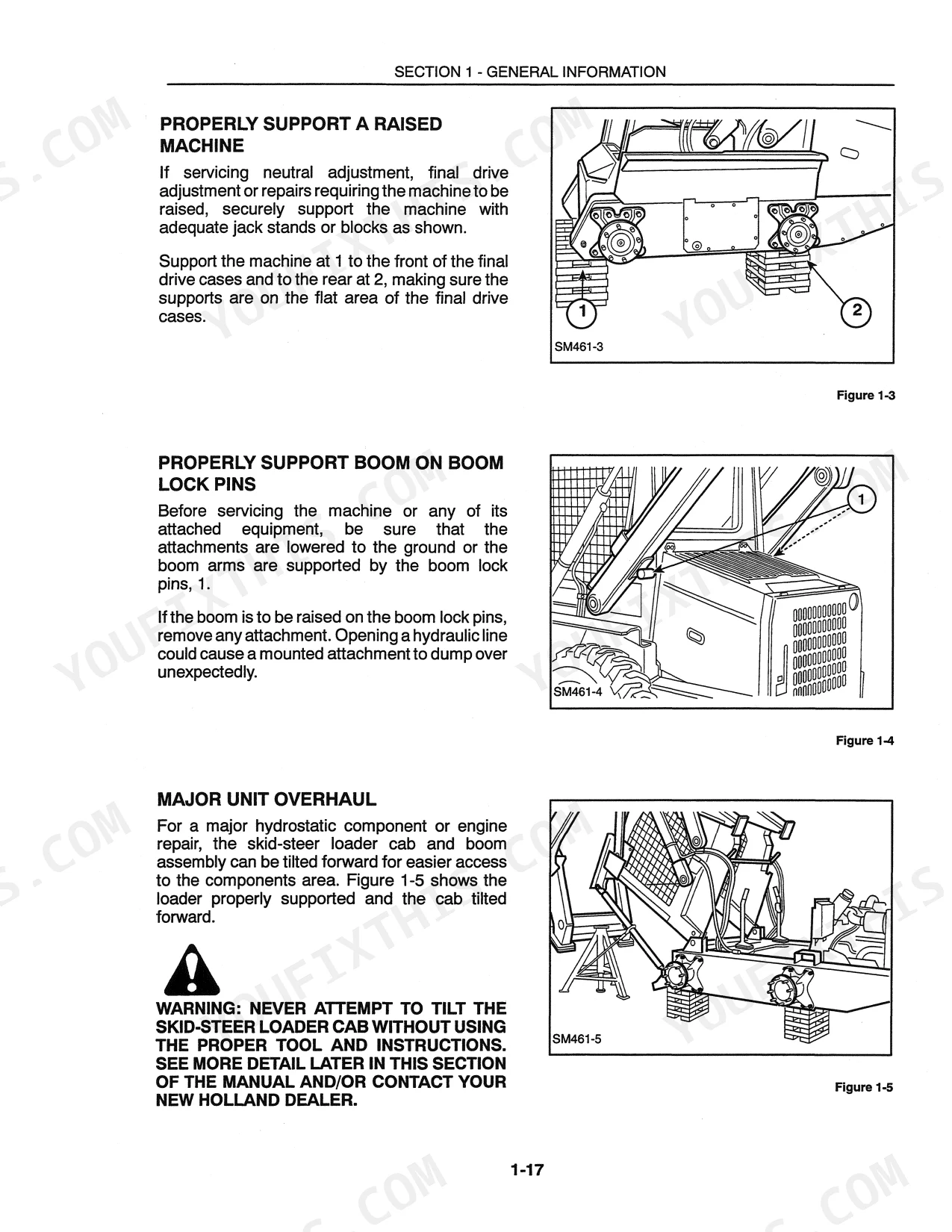

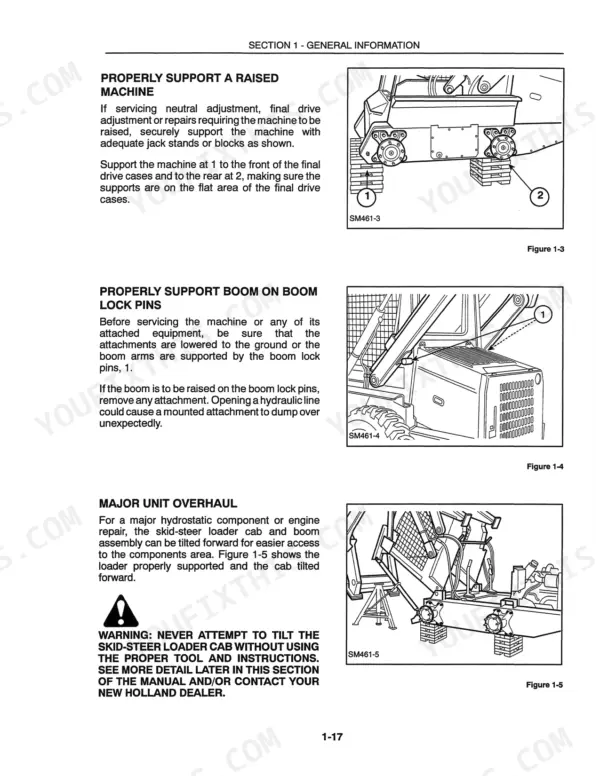

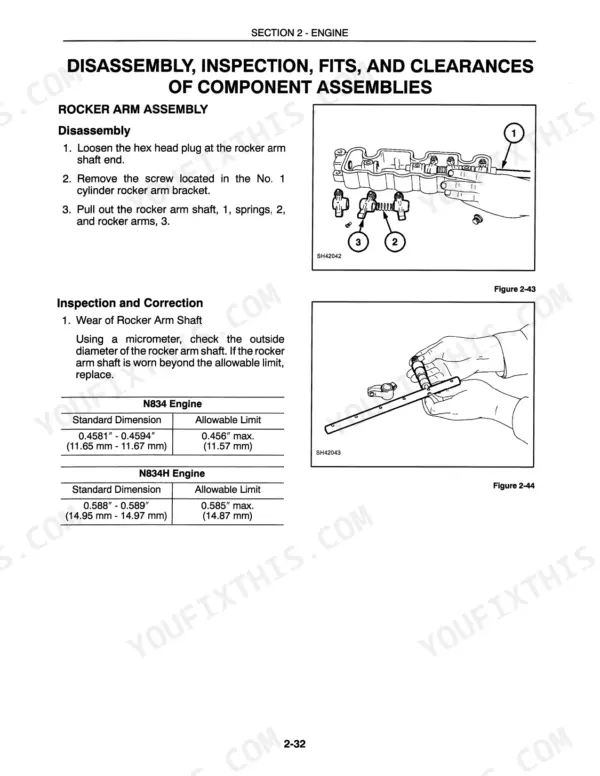

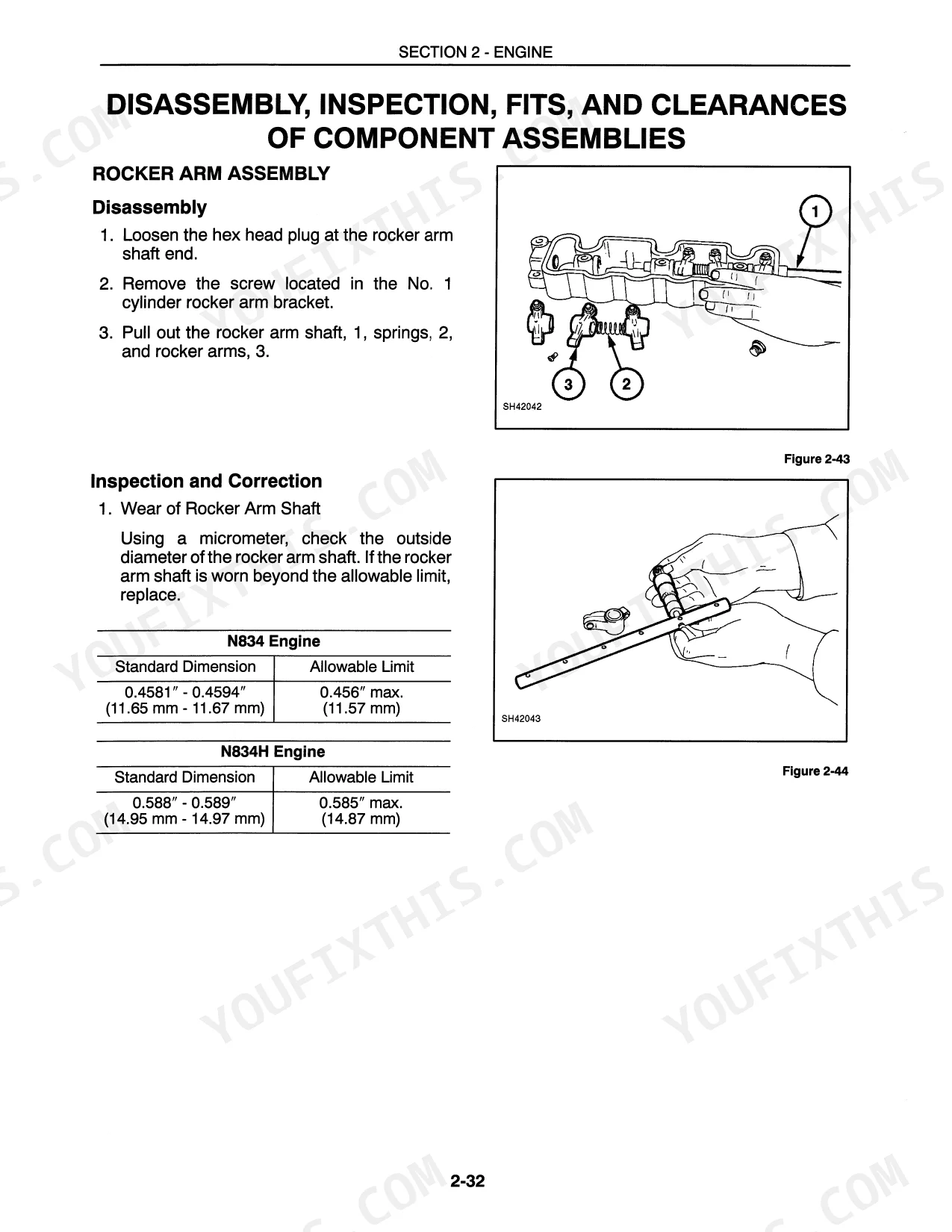

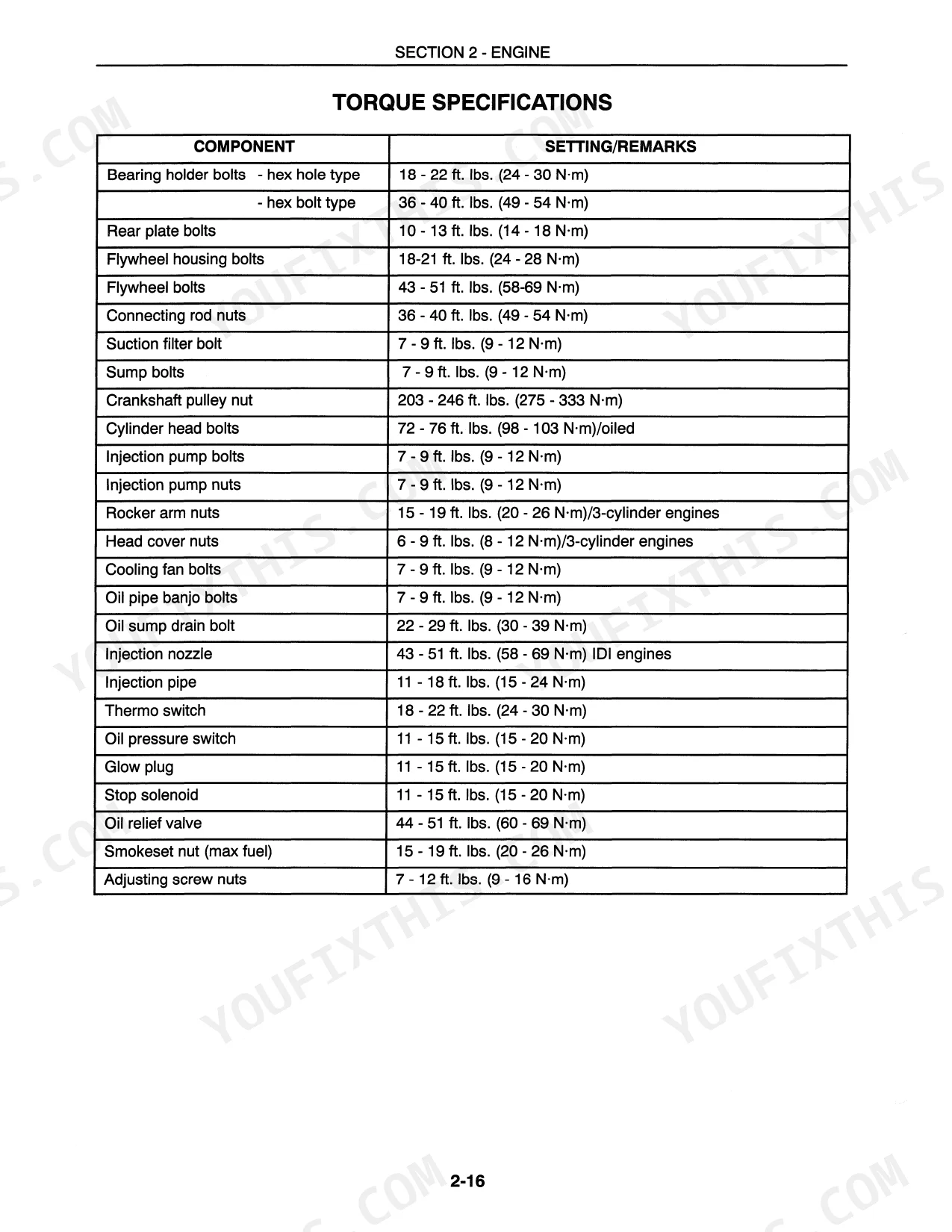

| System | Pages | Key Topics |
|---|---|---|
| General Information | 5-44 | Machine Model and Serial Number Location, Engine Model and Serial Number Location, Hardware Torque Specifications Chart, Hydraulic Tube and Fitting Torque Specifications |
| Engine | 45-196 | Engine Model and Serial Number Location, Specifications, Torque Specifications, Engine Dismantling Sequence, Engine Reassembly, Cooling System |

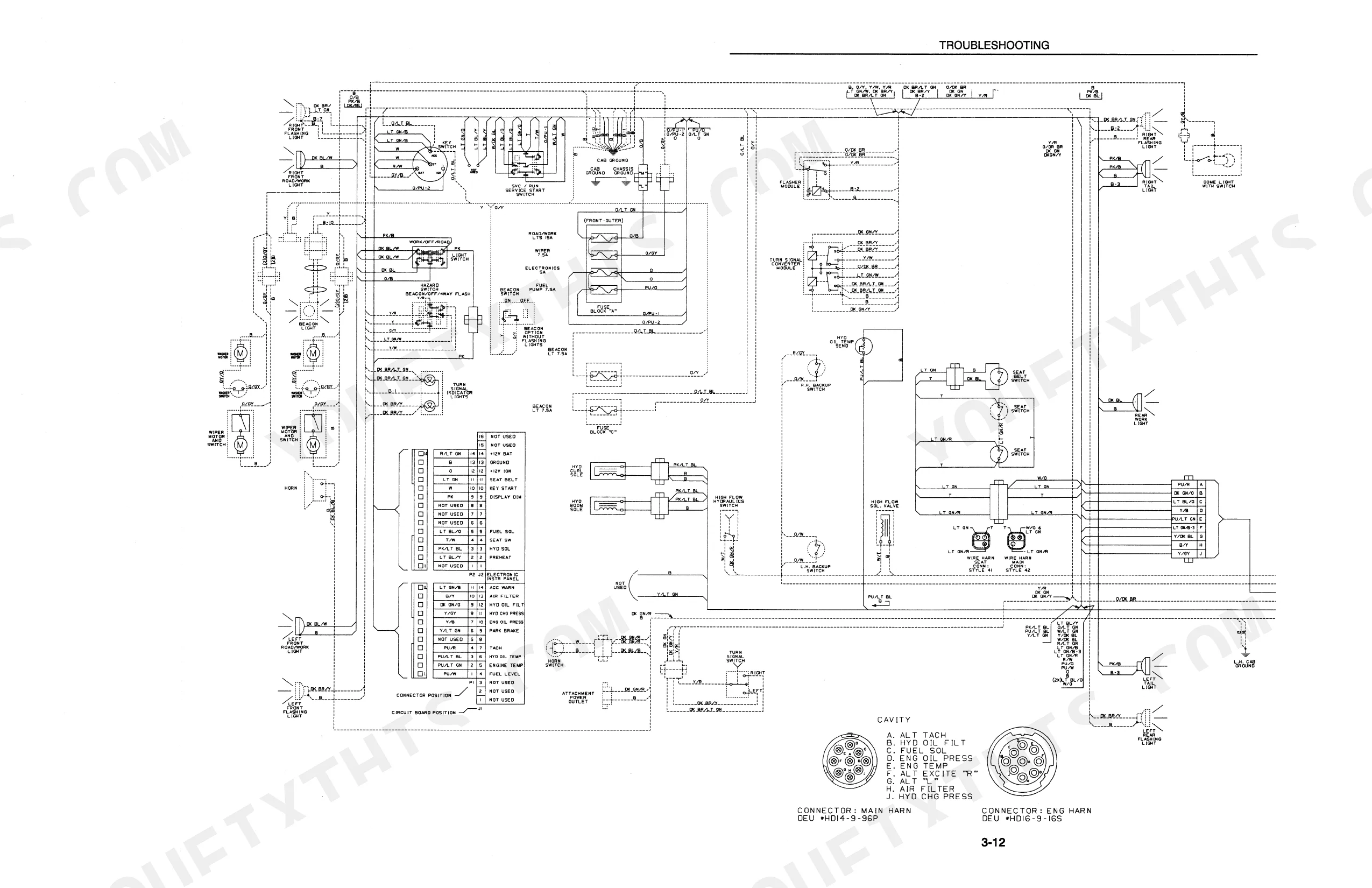

| Electrical System | 197-396 | Specifications, Wiring Diagram, Advanced Warning System, Electrical Circuits, Alternator, Starter |
| Final Drive, Axles, Brakes | 397-452 | Specifications, Troubleshooting, Axles, Final Drive, Parking Brake, Labor Guide |
| Hydrostatic System and Steering System | 453-552 | Specifications, Troubleshooting, Hydrostatic Drive System Testing, Hydrostatic Pump Overhaul, Hydrostatic Motor Overhaul, Steering System |
| Hydraulic System | 553-664 | Specifications, Troubleshooting, Hydraulic System Testing, Control Valve, Hydraulic Pump, Cylinders, Boom and Bucket |
| Seat, Cab, ROPS, Boom Lock, Boom, Attachment Mounting Plate | 665-730 | Seat, Cab and ROPS, Boom Lock Pin/Linkage, Boom Upper and Lower Link, Attachment Mounting Plate, Labor Guide |
| Optional Equipment | 731-808 | Specifications, Rear Counterweights, Auxiliary Boom Hydraulics, Block Heater, Buckets, Heater/Defroster |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic Pump (25000 Series) R&R Time | 1.5 hrs. | p. 618 |
| Hydraulic Pump (26000 Series) R&R Time | 1.5 hrs. | p. 618 |
| Hydraulic System Boom Circuit Relief Valve Setting (early models) | 186 ± 3 bar (2700 ± 50 PSI) | p. 584 |
| Hydraulic System Boom Circuit Relief Valve Setting (later models) | 241 ± 3 bar (3500 ± 50 PSI) | p. 584 |
| Engine Cooling System Radiator Cap Pressure | 7 PSI (48.3 KPa) | p. 126 |
| Engine Cooling System Thermostat Opening Temperature | 176° F - 183° F (80° C - 84° C) | p. 126 |
| Fuel Tank Capacity | 37.8 L (10 gal.) | p. 37 |
| Hydraulic System Capacity | 18.9 L (5 gal.) | p. 37 |
| Alternator Normal Output | 12 V - 40 A | p. 59 |
| Wheel Bolt Torque | 170 N·m (125 ft. lbs.) | p. 400 |
| Tire Pressure (7.00 x 15 Chevron tread) | 414 kPa (60 PSI) | p. 790 |
New Holland L465, LX465, LX485 Common Problems This Manual Covers
New Holland L465 loses hydraulic pressure, boom won't lift and steering feels weak
Check the hydraulic troubleshooting section starting. Verify oil level in the tank first, then test the boom circuit relief valve; it's factory set at 186 ± 3 bar (2700 ± 50 PSI) on early models. If pressure reads low at the test port, the valve is likely stuck open from debris and needs to be pulled, cleaned, and reseated.
Manual Section: Hydraulic System Troubleshooting (General)Steering goes erratic and drive feels jerky or hesitates under load
Work through the hydrostatic drive testing procedures beginning. Check charge pressure at the test port and measure pump case drain flow; contaminated fluid or worn pump components will show up as low charge pressure and excessive case drain. Drain and replace the hydraulic fluid (system holds 18.9 L / 5 gal.) and cut open the old filter to check for metal shavings before condemning the pump.
Manual Section: Hydrostatic Drive System TestingEngine runs hot and loses power under load, especially in summer heat
Follow the engine troubleshooting flow for overheating and low power complaints. Pressure test the radiator cap; it should hold 7 PSI (48.3 kPa) and if it won't hold pressure, replace it. Check the thermostat too since it should start opening between 176°F and 183°F (80°C to 84°C) and be fully open by 201°F (94°C); a stuck-closed unit will cause rapid overheating.
Manual Section: Engine Troubleshooting (General)EIC panel shows ERR02 fault code.
Reference the EIC troubleshooting section to identify the fault code. ERR02 indicates an output circuit to the fuel solenoid has shorted/opened. Check the fuel solenoid wiring and connections as described in the Electrical System section.
Manual Section: Electrical System EIC Troubleshooting p. 228Battery voltage low warning pops up and machine struggles to hold a charge
Check the alternator troubleshooting procedures. Confirm the alternator is putting out its rated 12V-40A at moderate RPM using a multimeter across the battery terminals; anything noticeably below that with the engine running points to a failing alternator or worn brushes. Inspect belt tension and battery terminal corrosion first since loose connections mimic a bad alternator.
Manual Section: Alternator System Testing and TroubleshootingDrive wheels won't turn or axle has excessive play when jacked up
Go to the final drive troubleshooting page to isolate whether the issue is in the axle or the hydrostatic motor feeding it. Check for excessive axle end play by hand and inspect the outer bearing for wear or pitting. When reinstalling the wheel, torque the wheel bolts to 170 N·m (125 ft. lbs.) in a star pattern to seat the rim evenly.
Manual Section: Final Drive System TroubleshootingFrequently Asked Questions
What are the recommended service intervals?
The manual specifies service intervals for certain components. For the in-line fuel filter, it should be replaced every 250 hours of operation. The muffler should be cleaned every 250 hours of use. p. 51
What fluids and capacities does this machine require?
The machine requires SAE 10W-30 API service SG-CE oil for the engine, hydrostatic system, and hydraulic system. Engine crankcase capacity with filter is 4.7 L (5 qt.) for early models and 5.7 L (6 qt.) for later models. The cooling system capacity is 10.3 L (10.8 qts.), and the hydraulic reservoir capacity is 18.9 L (5 gal.). p. 50

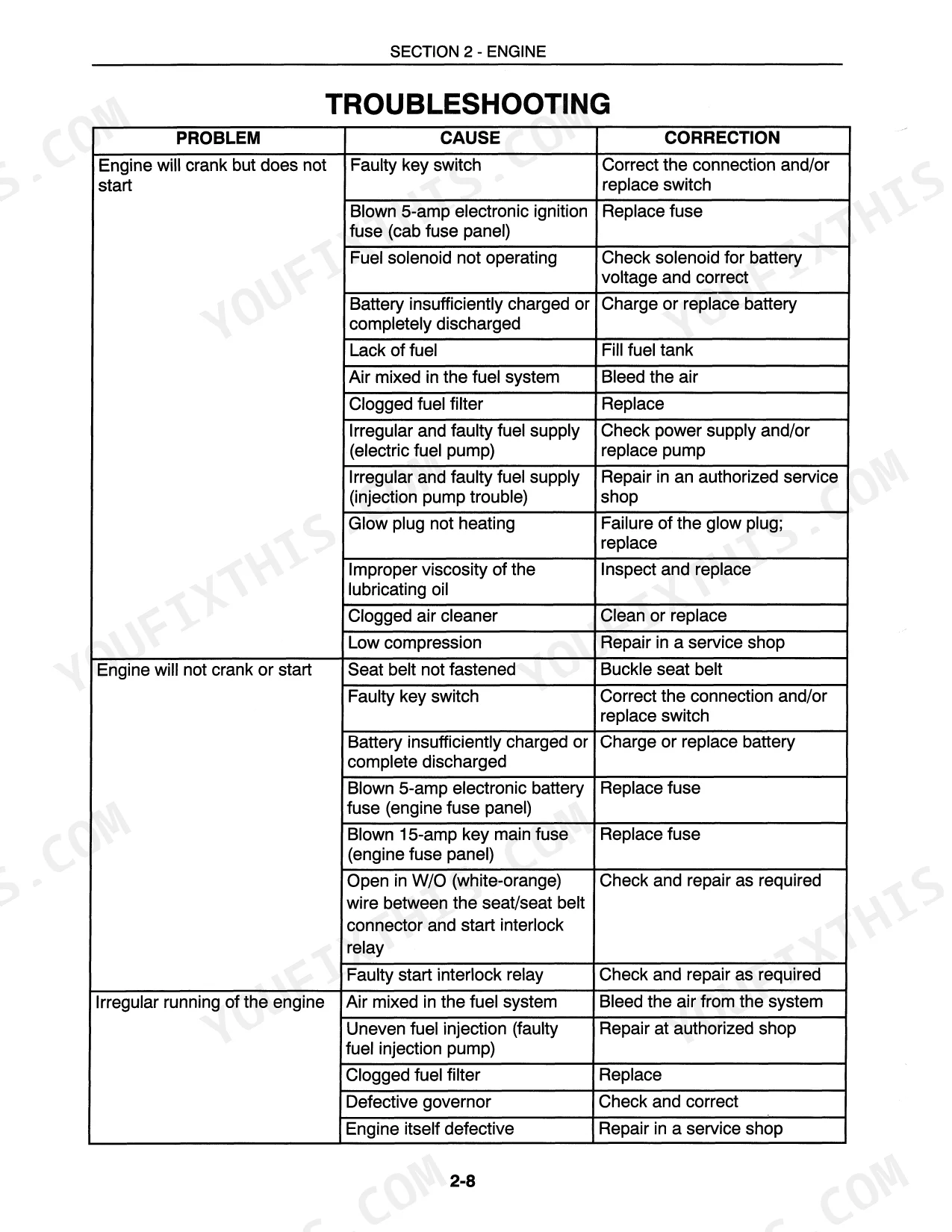

How to troubleshoot engine won't start?
If the engine won't start, possible causes include a faulty key switch, a blown 5-amp electronic ignition fuse, a non-operating fuel solenoid, or an insufficiently charged battery. Other issues could be lack of fuel, a clogged fuel filter, air in the fuel system, or a faulty engine function. p. 52
What are the valve clearance specifications?
The valve clearance for both intake and exhaust valves is specified as 0.2 mm (0.0078"). This adjustment should be made using the adjusting screw. p. 57
How quickly can I access this New Holland L465, Lx465, Lx485 manual after?
A 808-page Repair Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this New Holland L465, Lx465, Lx485 Repair Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Are there hydraulic schematics in this New Holland L465, Lx465, Lx485 manual?

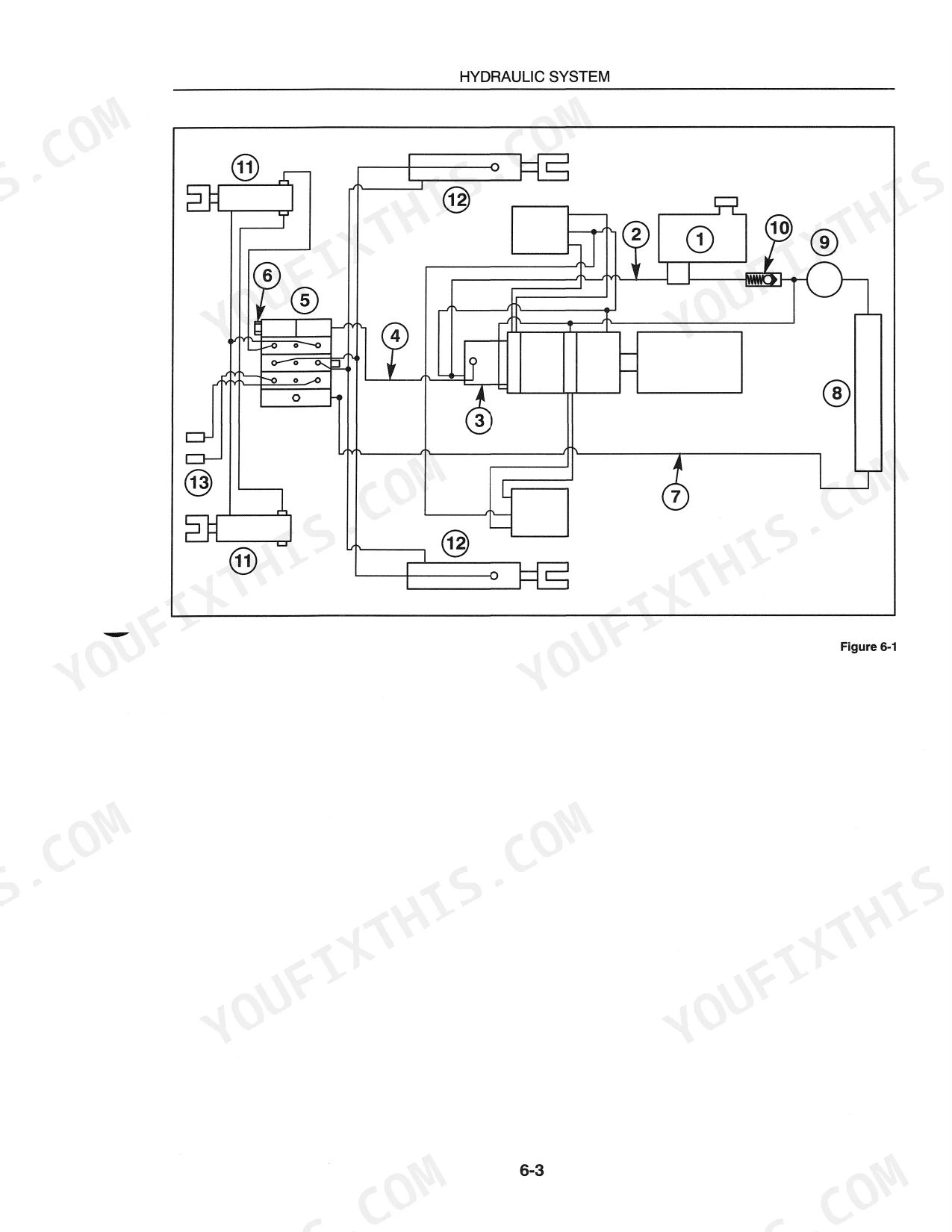

Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
