Need the factory teardown for your New Holland TC31DA or TC34DA? This 814-page repair manual (OEM #87531021) covers both models start to finish, from the diesel engine and HST transmission down to the last dash panel bolt. Inside: complete wiring harness diagrams with grounds and fuse locations, hydraulic schematics for the lift cylinder and remote valve circuits, and a full troubleshooting section for the hydrostatic transmission and steering system. You also get every torque spec table for engine, chassis, and metric hardware, plus fluid capacity charts so you're not guessing on a refill. Set hydraulic line pressure to 147 bar (2130 psi) and check that shim thickness holds at 0.2 mm before you button the valve back up. Your multimeter and a prayer aren't a repair strategy. This PDF is bookmarked by section, so pull it up on your tablet in the shop and jump straight to the job.
What's Inside This New Holland TC31DA, TC34DA Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 41-68 | Precautionary Statements, Personal Safety, Machine Safety, Information |

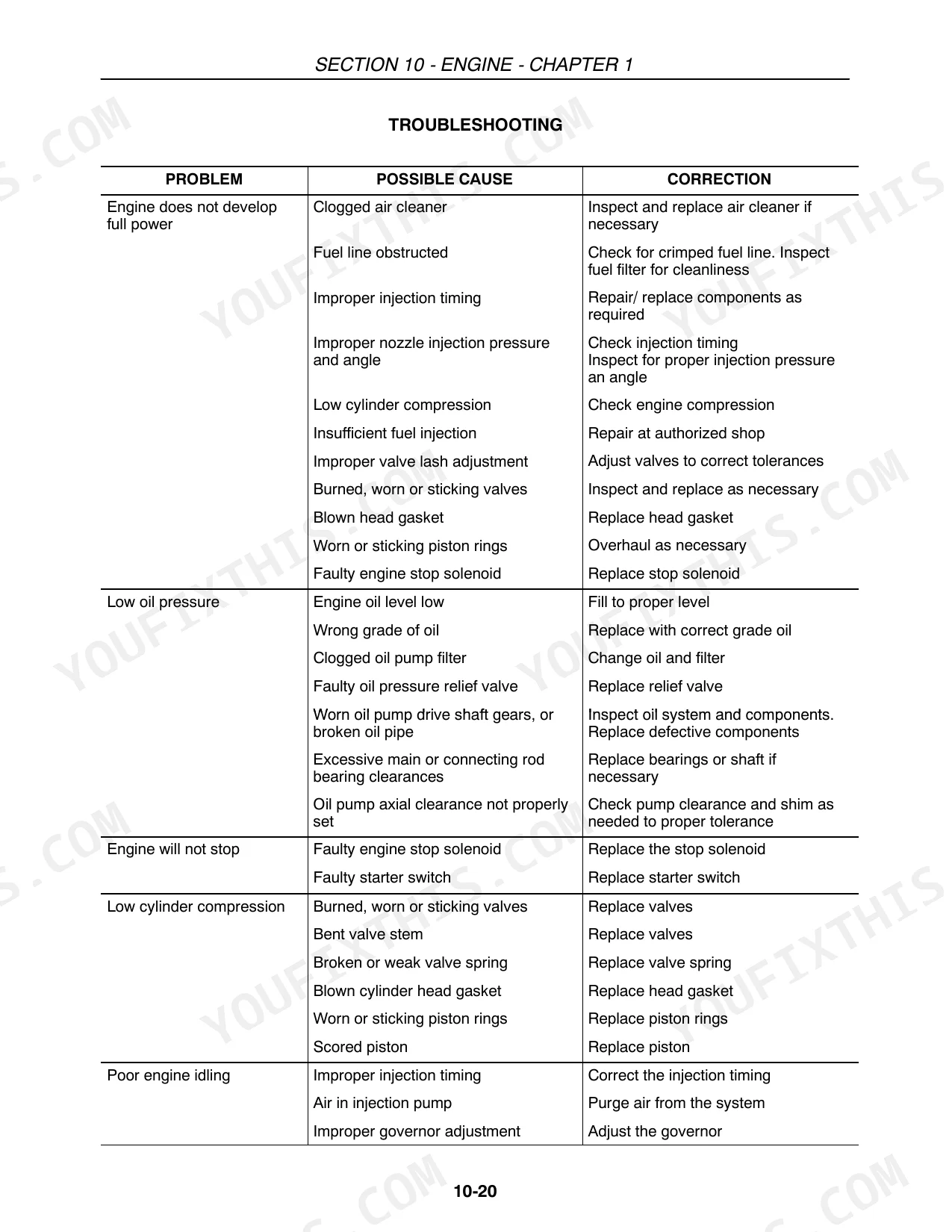

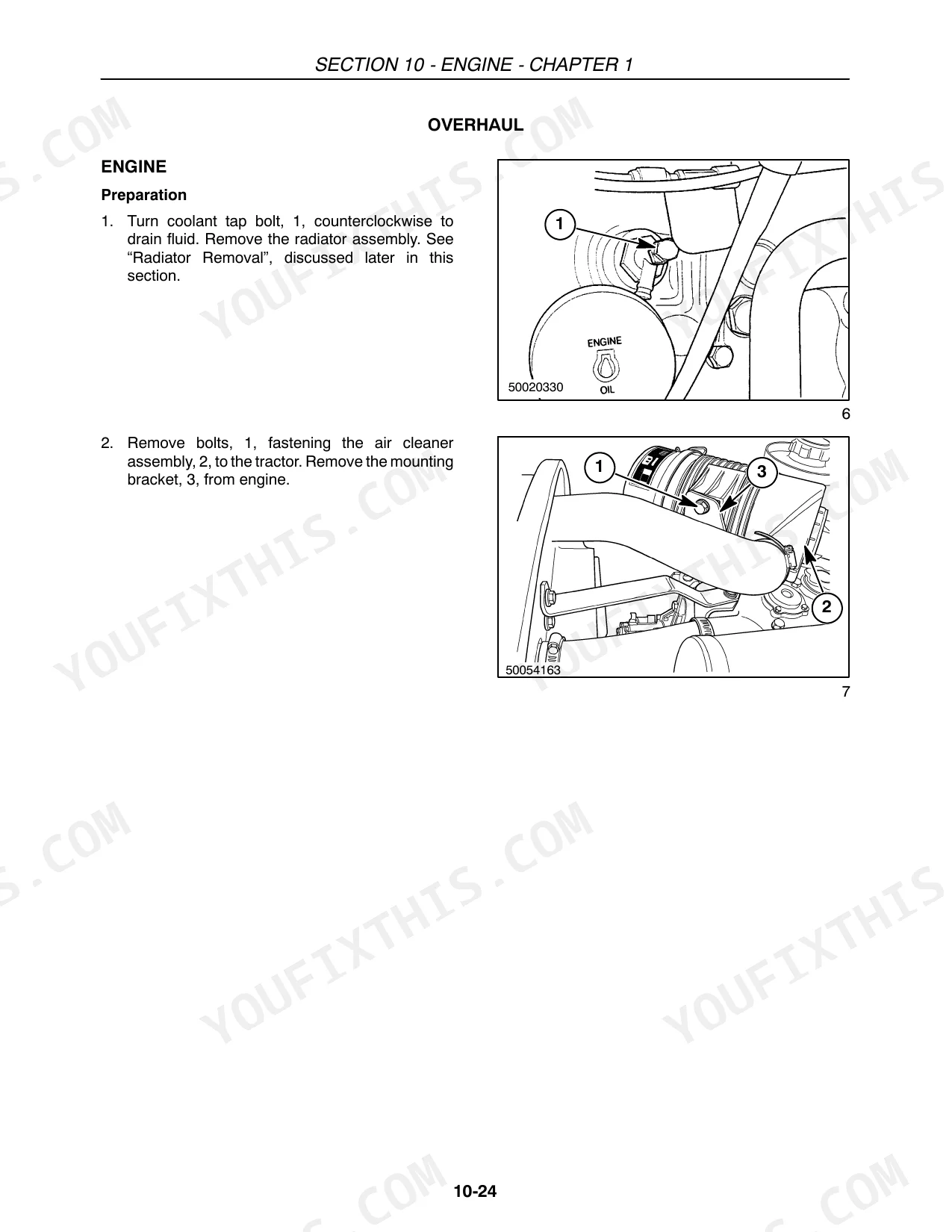

| Engine | 69-190 | Specifications, Engine Bolt Torque Specifications, Engine Fuel System Bolt Torque Specifications, Metric Bolt Torque Specifications, Special Tools (Compression Test and Tools) |
| Clutch | 191-212 | Troubleshooting, Specifications, Special Tools, Operation -- Single Clutch (HST Transmission), Adjustments (Free-Play), Overhaul (Single Clutch, Removal, Inspection, Installation) |
| Gear Transmission | 213-260 | Specifications, Special Tools, Operation, Powerflow (Initial Power Flow -- Transmission Input, Initial Power Flow -- PTO Input, FWD Power Flow) |

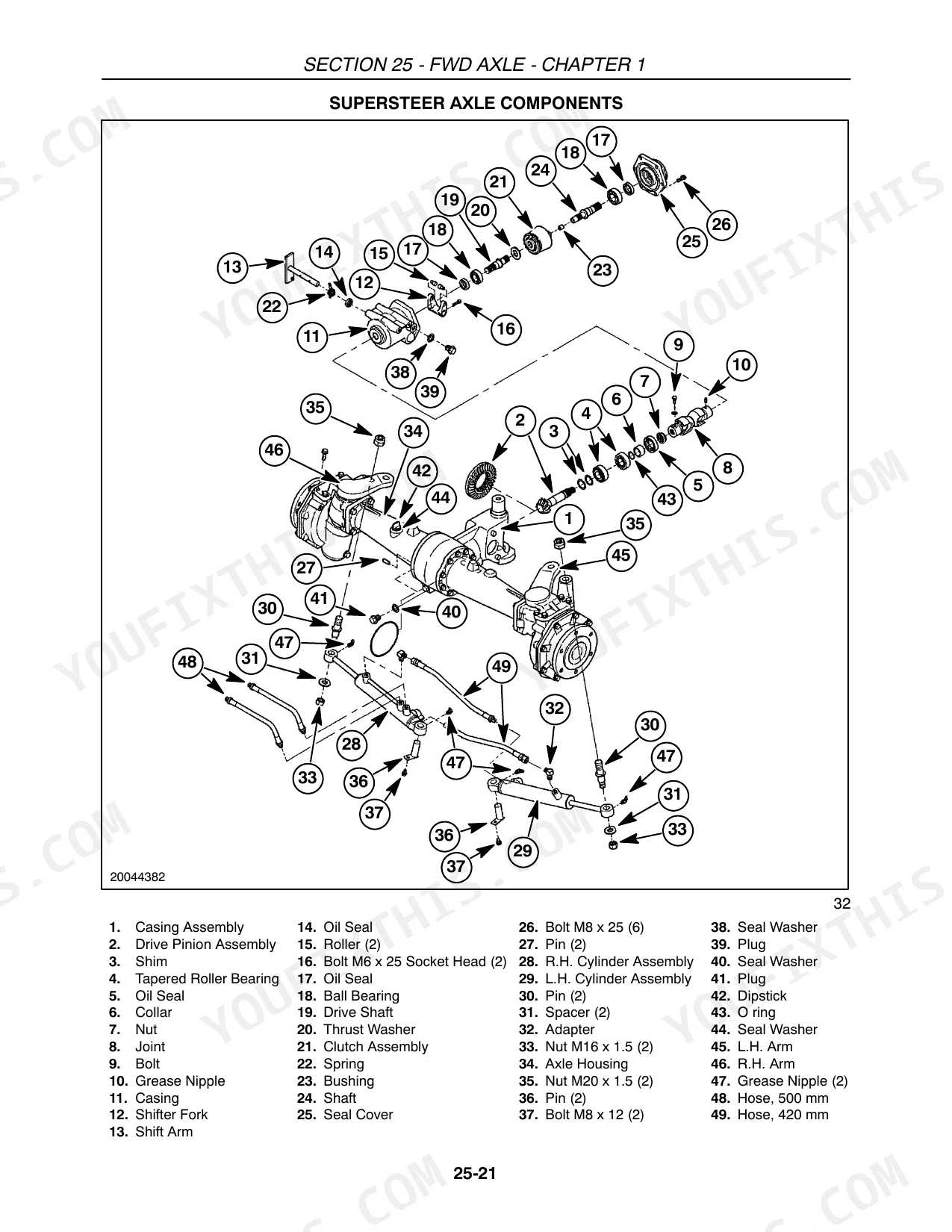

| FWD Axle | 261-320 | Specifications, Torque Specifications, Front to Rear Axle Ratio, Special Tools, Operation -- SuperSteer |
| Differential, Rear Axle | 321-344 | Specifications, Ring Gear and Pinion Gear Pattern Specification and Adjustment, Bolt Torque Specifications, Special Tools, Introduction, Operation -- Differential Assembly |
| Hydrostatic Transmission | 345-418 | Specifications, Bolt Torques, Minimum Hardware Tightening Torques, Special Tools, Troubleshooting |
| Power Take-Off Systems | 419-436 | Operation -- Live Power Take-Off, Live Power Take-Off, Power Take-Off Drive -- Hydrostatic Transmission, Overhaul -- Power Take-Off, Power Take-Off (Removal) |
| Brakes | 437-448 | Operation, Parking Brake, Overhaul, Specifications |

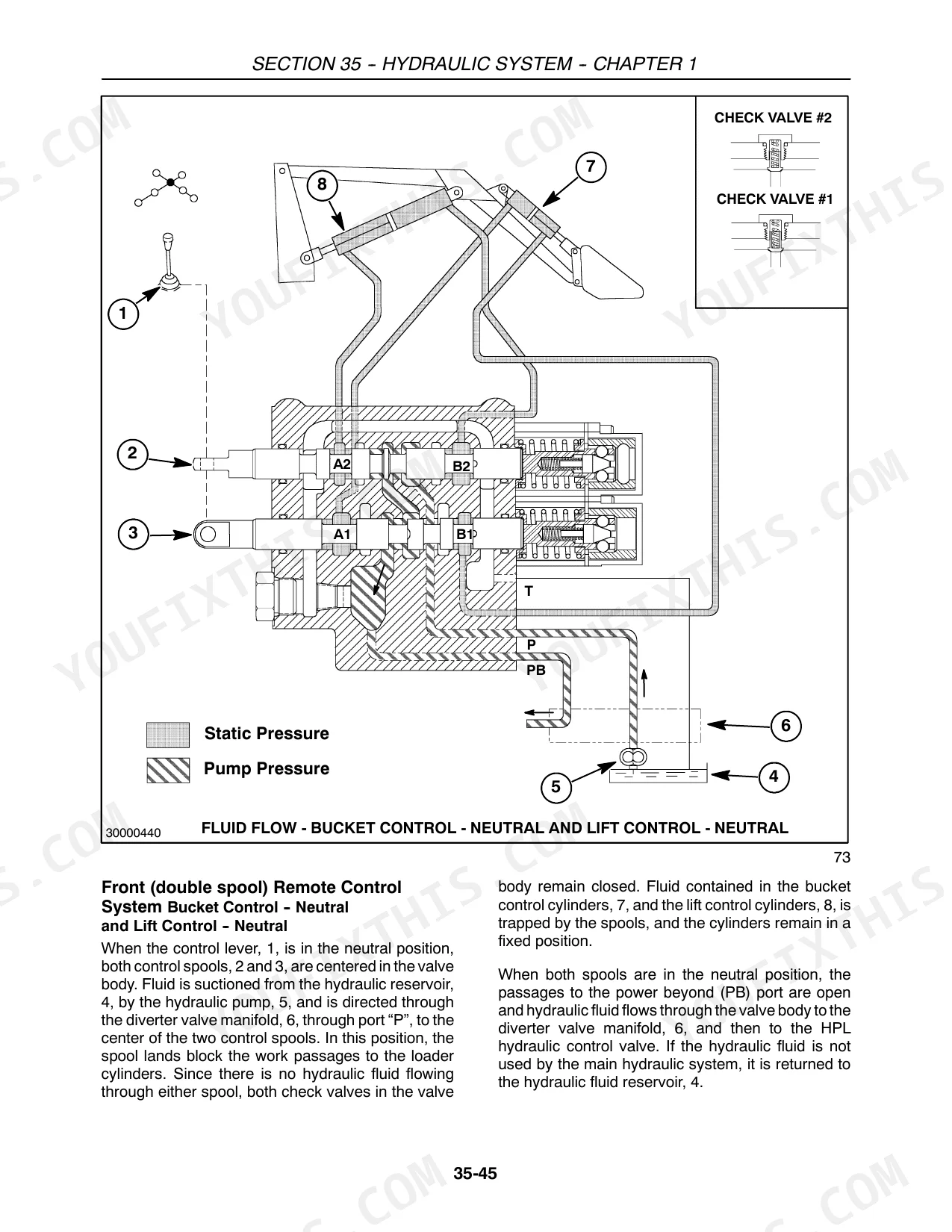

| Hydraulic System | 449-504 | Specifications, Bolt Torque Specifications, Special Tools |
| Steering Systems | 505-562 | Specifications, Metric Bolt Torque Specifications, Special Tools, Operation -- Power Steering System, Operation -- SuperSteer, Power-Steering Control Motor, Power Steering Pump |
| Wheels and Tires | 563-570 | FWD Tread Setting, Front Wheel Settings, Rear Wheel Settings, Rear Axle Tread Setting, Tractor Weighting, Weighting for Stability, Weighting Limitations |

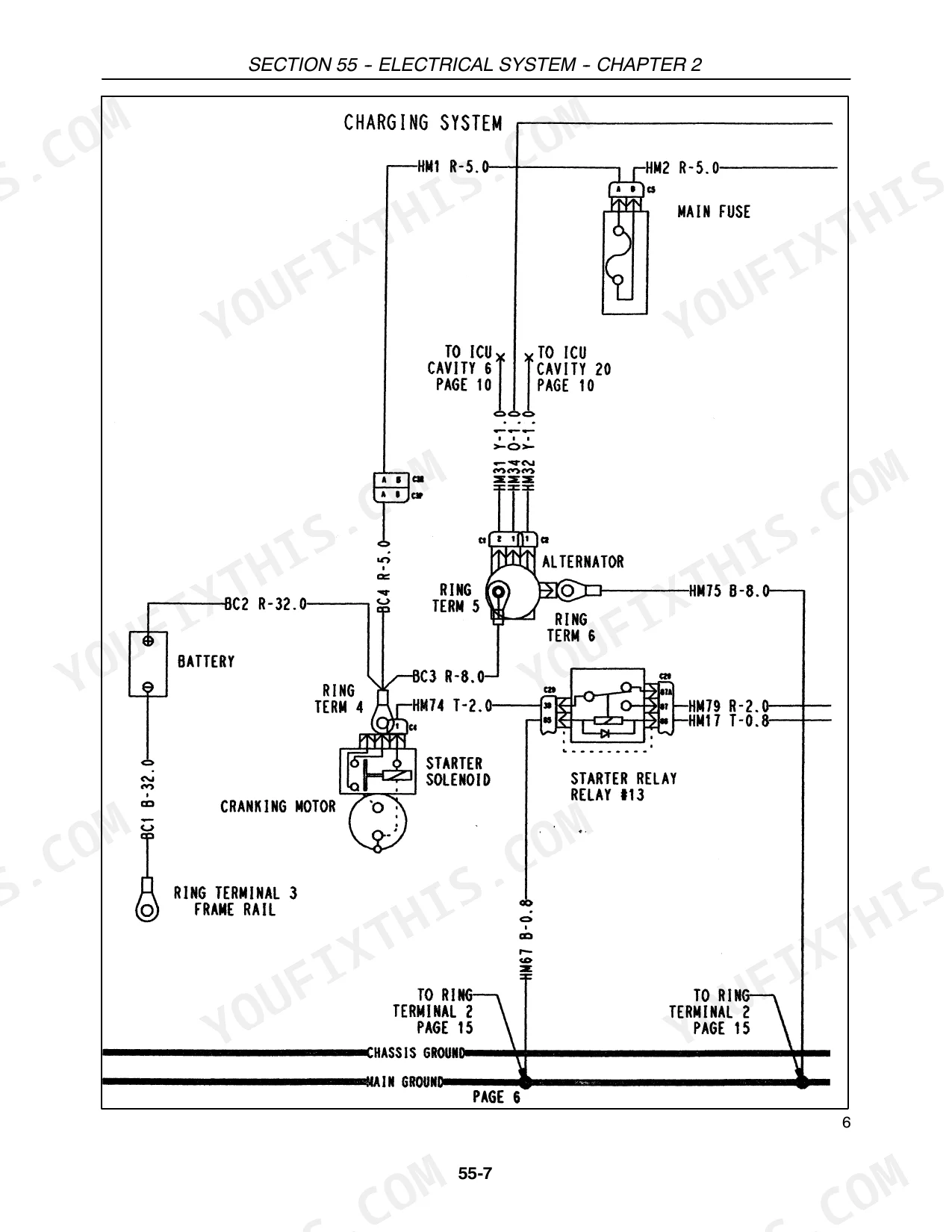

| Electrical System | 571-788 | Component Location and Function, Wiring Harnesses, Grounds, Battery and Fuses |
| Platform | 789-814 | Hood (Removal, Installation), Rear Hood Panels (Removal, Dash Console (Removal, Seat (Removal, Disassembly, Inspection, Assembly) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Bolt Torque Specifications | 14 | p. 3 |

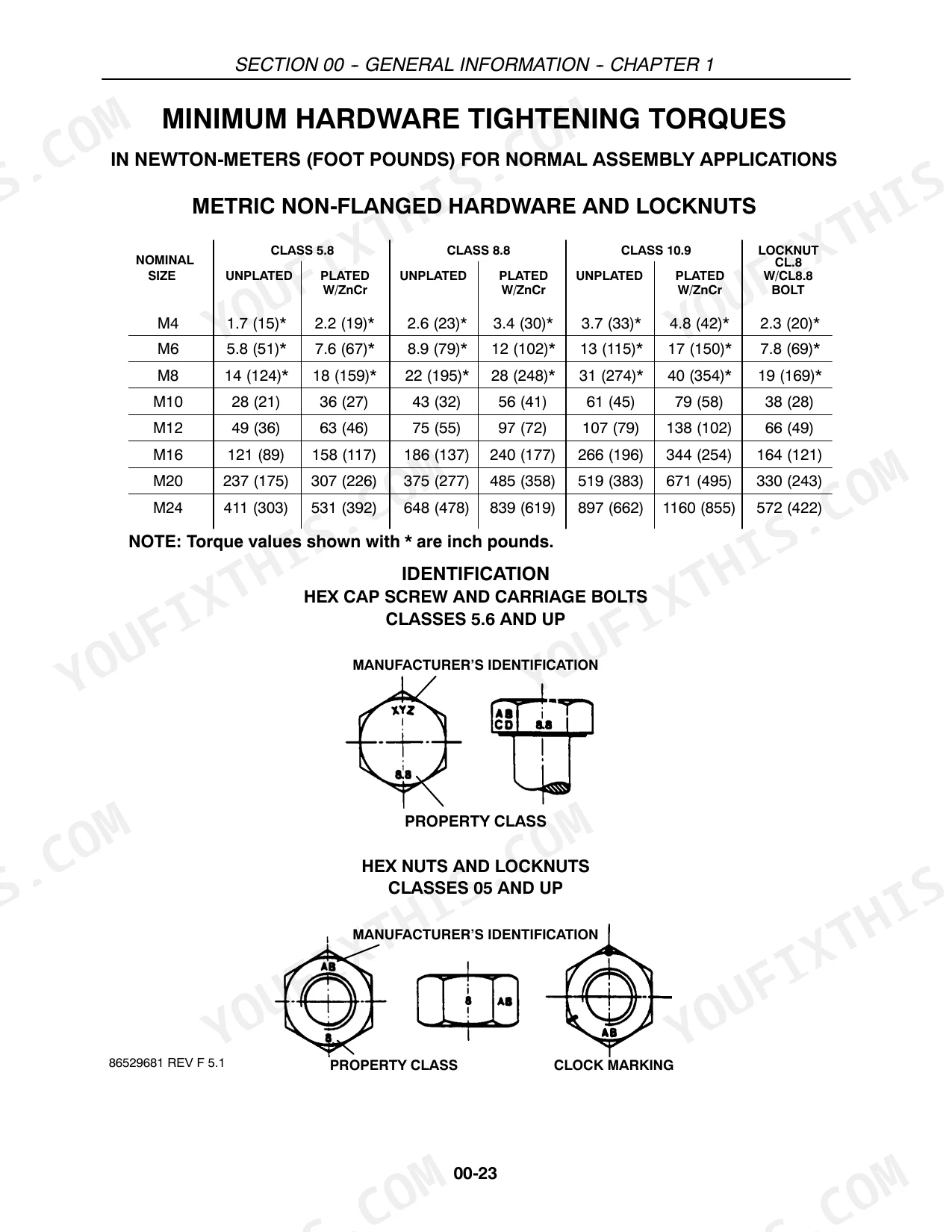

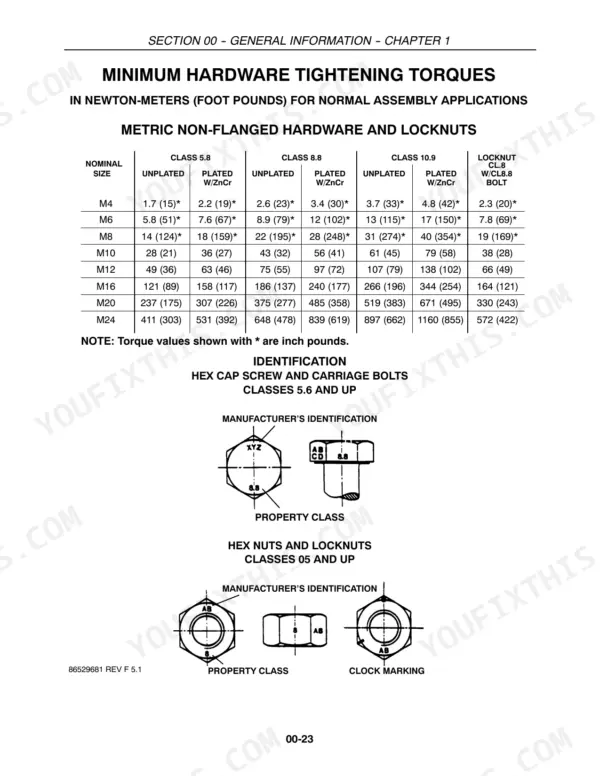

| MINIMUM HARDWARE TIGHTENING TORQUES IN NEWTON-METERS (FOOT POUNDS) FOR NORMAL ASSEMBLY APPLICATIONS METRIC NON-FLANGED HARDWARE AND LOCKNUTS CLASS 5.8 UNPLATED M4 | 1.7 (15)* | p. 63 |
| Hydraulic line pressure | 147 ± 5 bar (2130 ± 70 psi) | p. 468 |
| Shim thickness for pressure adjustment | 0.2 mm (0.008") | p. 468 |
| Engine Crankcase Capacity (With Filter) | 4.0 liters/4.2 U.S. qts. | p. 54 |
| Radiator Cap Pressure | 0.9 bar (13 PSI) | p. 81 |
| Clutch Pedal Free-Travel | 19 - 30 mm (3/4 - 1-3/16″) | p. 55 |
| Gear Transmission Gear Backlash | 0.04 - 0.16 mm (0.0016- 0.006″) | p. 215 |
| FWD Axle Drive Pinion Bearing Preload | 10.7 - 13.3 kg (23.6 - 29.4 lbs.) | p. 263 |
| Hydrostatic Transmission High Pressure Relief Valve | 320 (± 3.5) bar (4550 ± 50 psi) | p. 349 |
| PTO Shaft End Play | 0.05 - 0.18 mm (0.002 - 0.007) | p. 435 |
| Hydraulic Pump Capacity | 26.5 L/min (7 gpm) | p. 452 |
New Holland TC31DA, TC34DA Common Problems This Manual Covers
New Holland TC31DA radiator air flow blocked constantly by debris despite regular clearing
Remove the debris screen and shroud, then blow out the radiator fins from the engine side outward with low-pressure air. Check the radiator cap rating referenced on page 81; it must hold at 0.9 bar (13 PSI) and release cleanly. A cap that won't seal lets hot air recirculate through the core and airflow blockage returns within days.
Manual Section: Engine General TroubleshootingBrake light indicator on dash stays on continuously even when pedal isn't pressed
Pull the brake pedal switch and check the plunger for sticking or corroded contacts with a multimeter across the terminals. When reinstalling, torque the switch mounting bracket bolt to 8.9 N·m (79 in-lbs) per the M6 class 8.8 hardware chart on page 63. Trace the harness back to the dash for a chafed wire shorting to ground before swapping the switch.
Manual Section: Brakes p. 437Hydraulic line at the radiator failed suddenly during routine operation, spraying fluid everywhere
Inspect the hydraulic line fitting at the radiator for chafing against the shroud, frame rail, or fan blade. Hook up a gauge and verify system pressure reads 147 ± 5 bar (2130 ± 70 psi) per the hydraulic specifications on page 468. Replace the damaged section with an OEM-rated hose and reroute it clear of vibration points before repressurizing.
Manual Section: Hydraulic System p. 449Air filter case components wearing out fast, needing replacement well before scheduled service
Pull the air filter case and check the mounting screws for backing out; torque them to 2.6 N·m (23 in-lbs) per the M4 class 8.8 spec on page 63. Inspect the case seal and inlet snorkel for cracks letting dust bypass the element, and follow the maintenance interval chart on page 49 to confirm you're not overdue on the filter swap.
Manual Section: General Information p. 49Coolant seeping from cooling system seals near the radiator after a fresh coolant fill
Drain the cooling system and inspect every hose clamp and seal around the radiator for hardening, cracking, or weeping. Pressure test the system to the radiator cap's 0.9 bar (13 PSI) rating specified on page 81 to confirm each seal holds; one that won't sustain that pressure will seep coolant slowly. Replace any hardened seal before refilling.
Manual Section: Engine General Troubleshooting p. 81Frequently Asked Questions
What are the torque specifications for the engine bolts on New Holland TC31DA?
The manual provides a table of engine bolt torque specifications for the TC31DA/TC34DA models. For instance, the Connecting Rod Cap Nuts should be torqued to 49-54 N·m (36-40 ft. lbs.), and the Cylinder Head Bolts to 98-103 N·m (72-76 ft. lbs.). p. 82

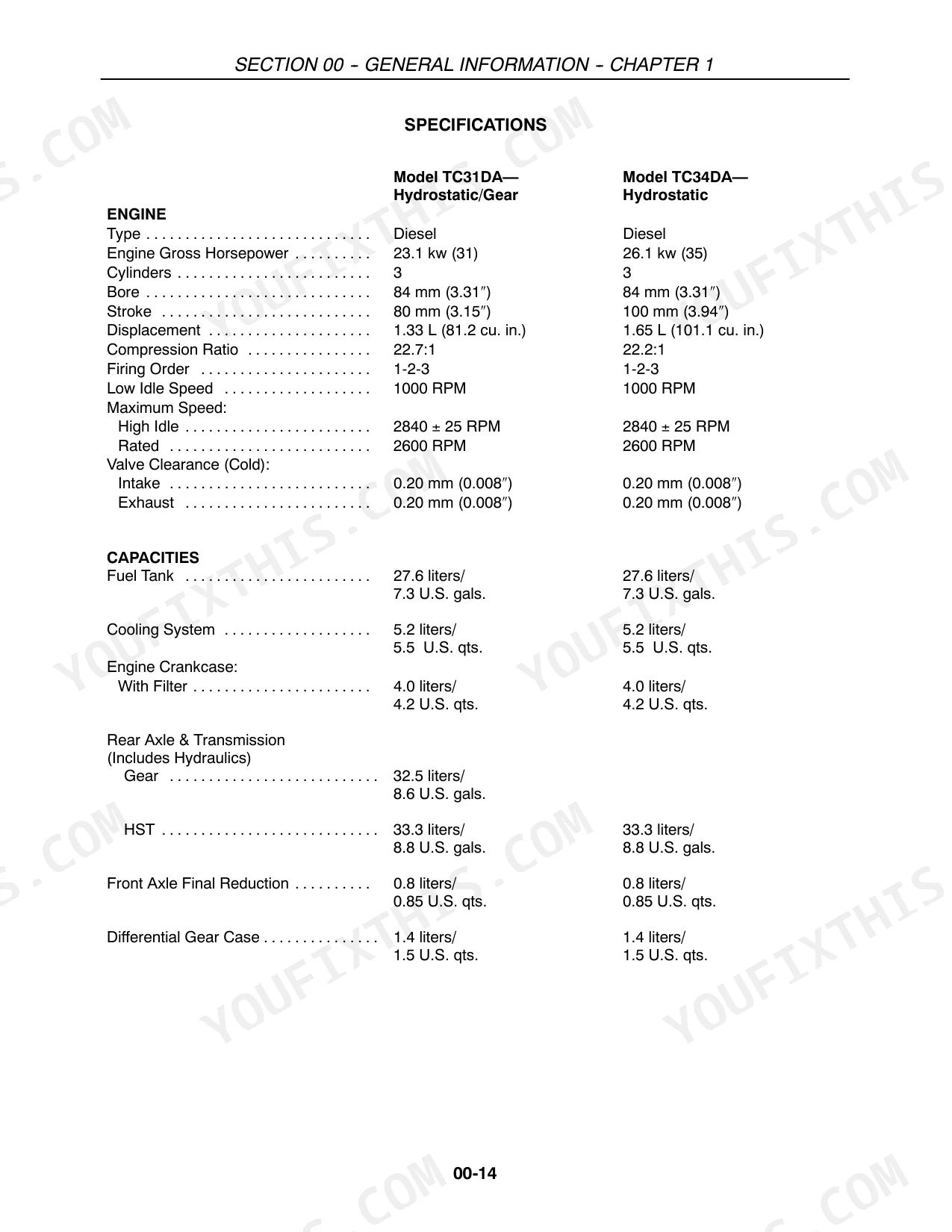

What is the fuel tank capacity for the New Holland TC31DA and TC34DA models?
The fuel tank capacity for both New Holland TC31DA and TC34DA models is 27.6 liters (7.3 U.S. gallons). This information is found in the specifications section of the manual. p. 54
What is the recommended engine oil capacity with filter for the New Holland TC31DA and TC34DA?
The recommended engine oil capacity with the filter for both New Holland TC31DA and TC34DA models is 4.0 liters (4.2 U.S. quarts). This is specified in the capacities section of the manual. p. 54
What is the standard valve clearance for intake and exhaust valves (cold) for the New Holland TC31DA and TC34DA engines?
The standard valve clearance for both intake and exhaust valves, when the engine is cold, is 0.20 mm (0.008″) for both New Holland TC31DA and TC34DA models. This is a critical specification for engine maintenance. p. 54
What do I get after purchasing this New Holland TC31DA, TC34DA manual?
Immediate download of the complete 814-page searchable Repair Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this New Holland TC31DA, TC34DA Repair Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.

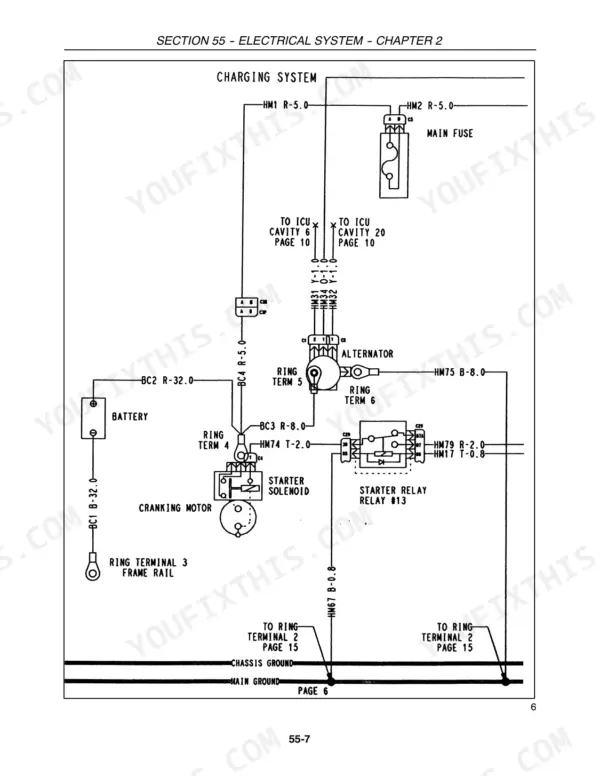

Does this New Holland TC31DA, TC34DA manual include wiring diagrams?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
