New Holland issued this book as publication 48064954: the complete TD65F, TD75F, and TD85F service manual PDF, 613 pages of factory repair data for all three tractors. The transmission section runs deepest, covering the mechanical gearbox through creeper, reverser, and differential, while wiring diagrams map the alternator, starting circuit, and cab HVAC harnesses. Hydraulic schematics trace the remote valves, three-point hitch control valve, and regulated low-pressure circuit, and the front axle chapters take final drive hubs and steering knuckles down to the bevel gears. Set main clutch release sleeve clearance to 0.050 to 0.151 mm, and bench-test a reconditioned steering pump for 19 dm³/min at 1450 RPM and 172 bar before you bolt it back in. Guessing gets expensive. One wrong clearance means a wasted part and a second teardown. Print the pages your job needs, let them get dirty on the bench, and keep the bookmarked PDF clean for planting season.
What's Inside This New Holland TD65F, TD75F, TD85F Manual

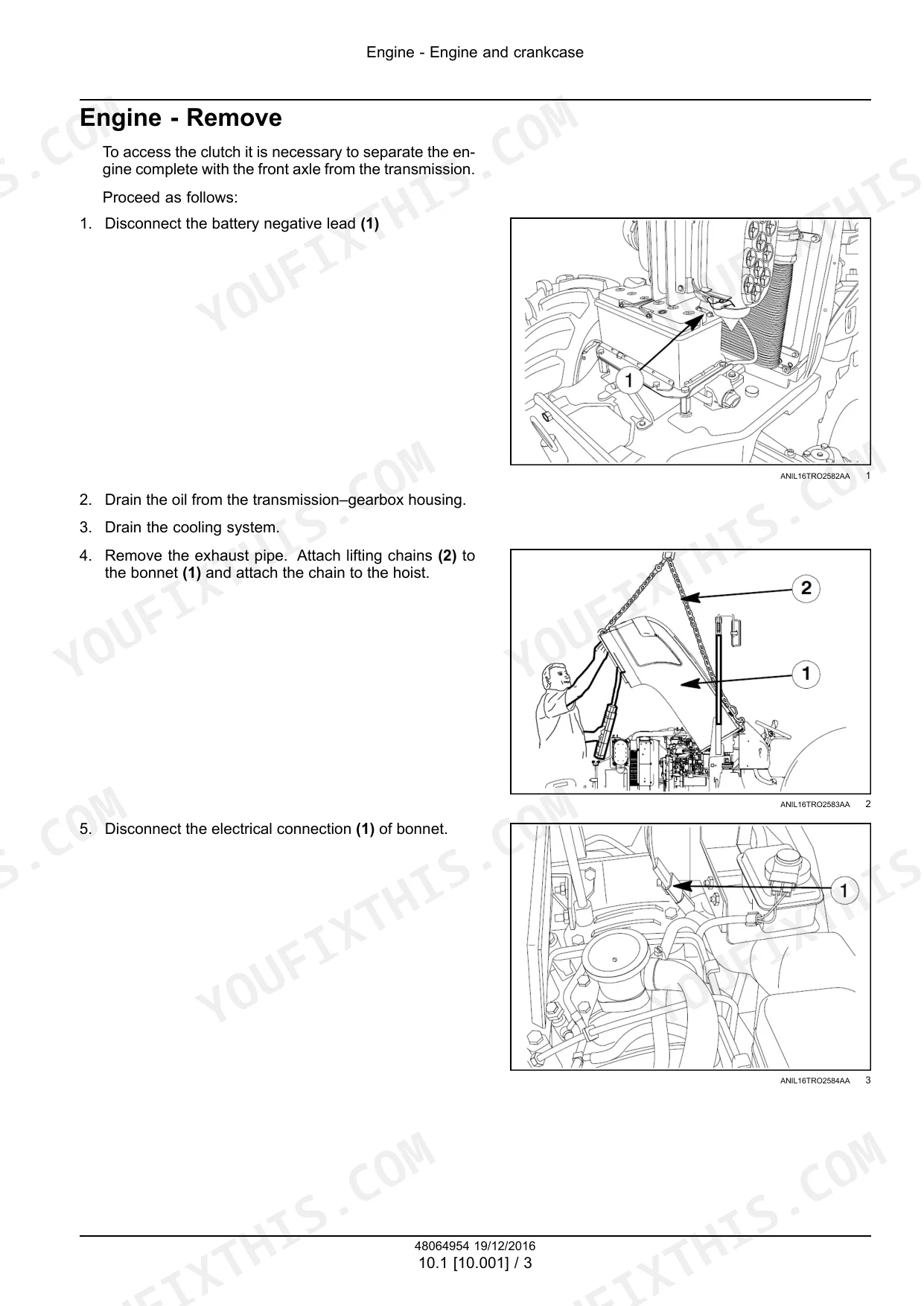

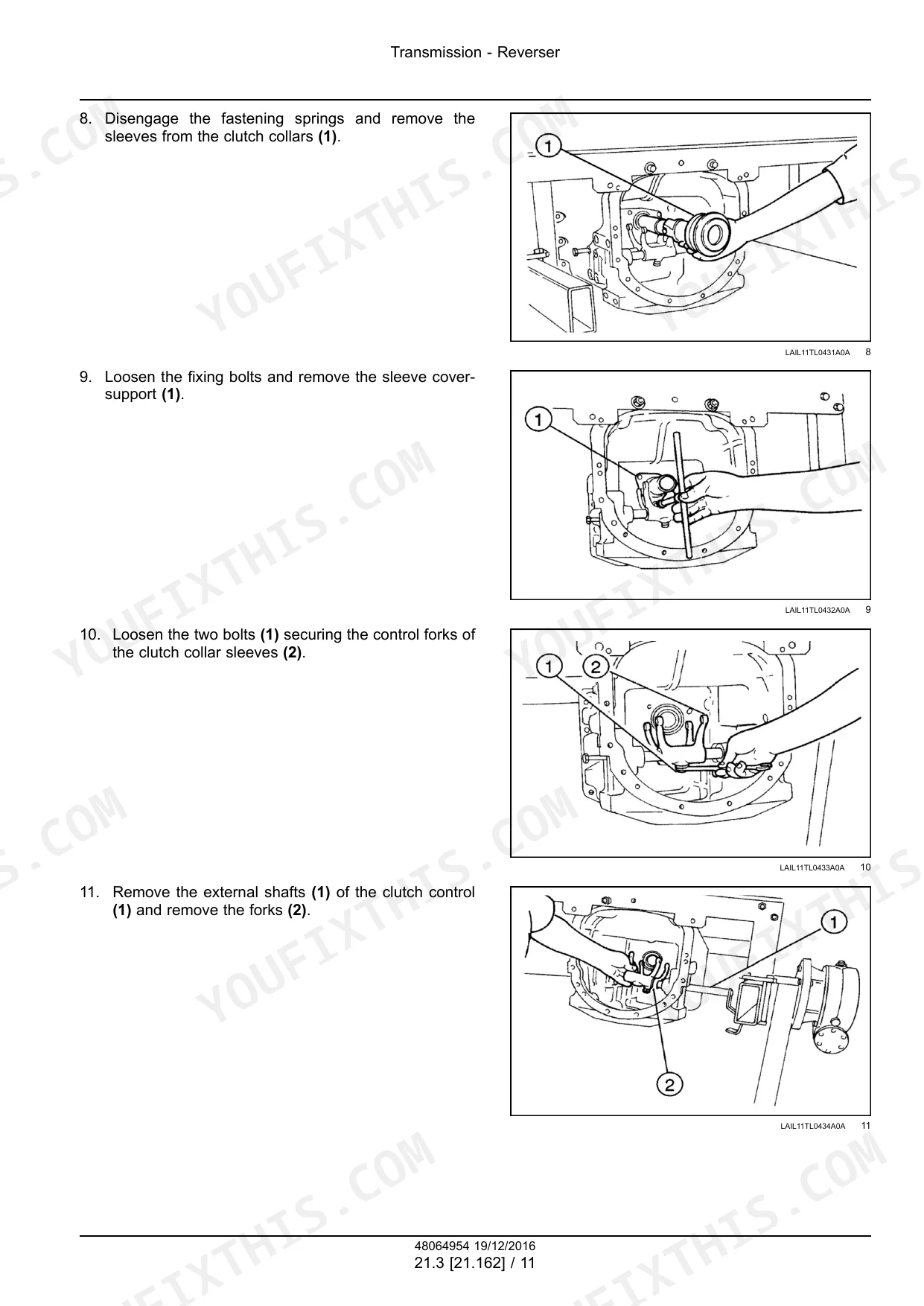

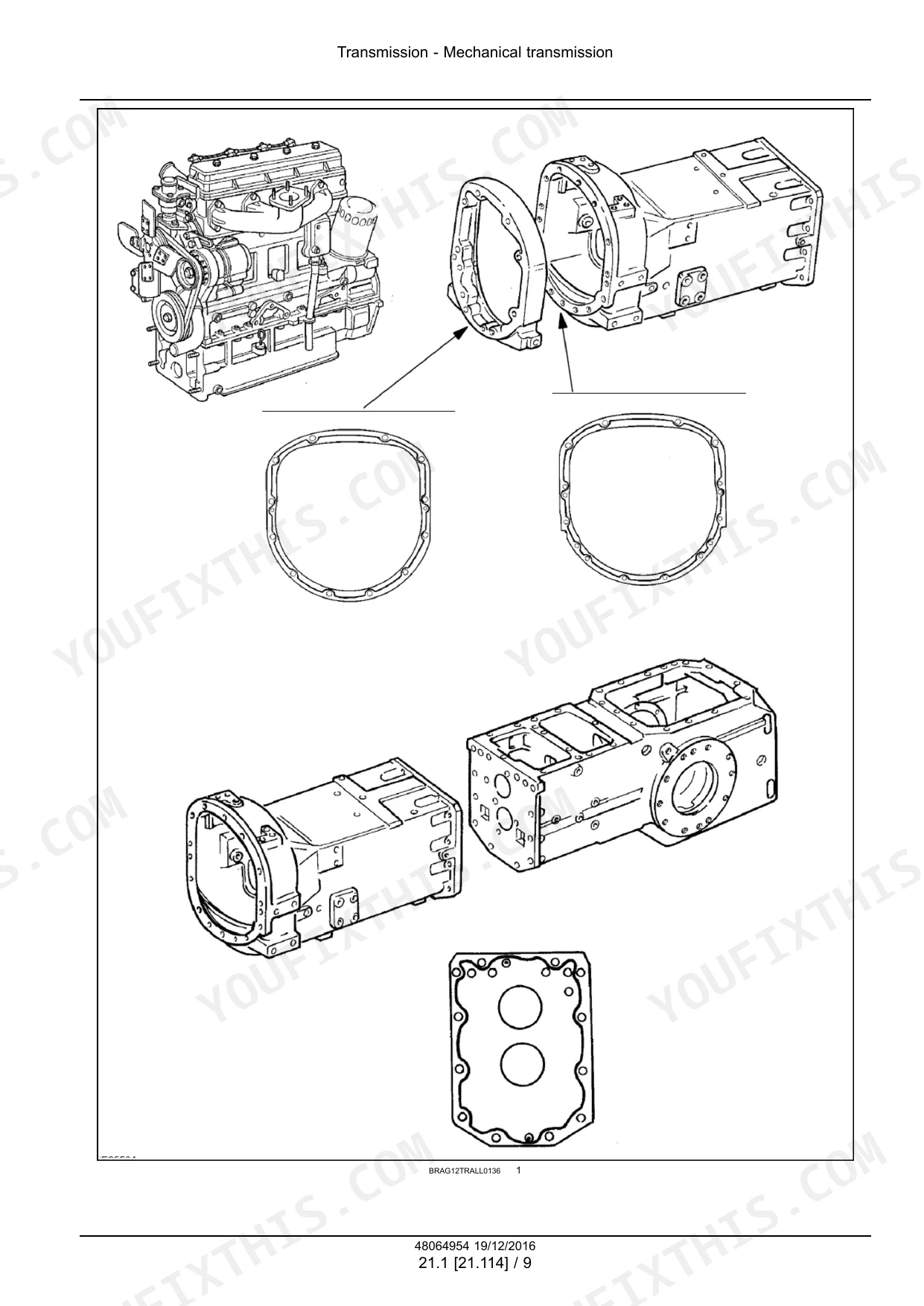

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 6-37 | Safety Rules, Health and Safety |
| Engine | 38-55 | Engine and Crankcase |
| Clutch | 56-85 | Clutch and Components |
| Transmission | 86-167 | Mechanical Transmission, Creeper, Reverser, Differential |
| Four-Wheel Drive (4WD) System | 168-185 | Electro-Hydraulic Control, Four-Wheel Drive Gearbox |
| Front Axle System | 186-249 | Powered Front Axle, Front Bevel Gear Set and Differential, Final Drive Hub, Steering Knuckles, And Shafts, Final Drives |
| Rear Axle System | 250-279 | Powered Rear Axle, Rear Bevel Gear Set and Differential |
| Power Take-Off (PTO) | 280-301 | Rear Mechanical Control |
| Brakes and Controls | 302-333 | Trailer Brake Hydraulic Control, Hydraulic Service Brakes |
| Hydraulic Systems | 334-375 | Remote Control Valves, Three-Point Hitch Control Valve, Regulated/Low Pressure System |
| Hitches, Drawbars, and Implement Couplings | 376-411 | Rear Three-Point Hitch |
| Steering | 412-465 | Pump, Cylinders, Hydraulic Control Components |
| Electrical Systems | 466-579 | Alternator, Engine Starting System, Cab Heating, Ventilation, And Air-Conditioning, Cab Hitch Controls, Warning Indicators, Alarms |
| Platform, Cab, Bodywork, and Decals | 580-613 | Cab Doors and Hatches, Cab Interior |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine flywheel clutch fixing bolts | 25 N·m (18 lb ft) | p. 60 |
| Collar control shaft fixing bolts | 157 N·m (116 lb ft) | p. 60 |
| Clearance between main clutch release sleeve and housing | 0.050 – 0.151 mm | p. 60 |
| Clearance between PTO clutch release sleeve and housing | 0.050 – 0.151 mm | p. 60 |
| Bench output at 1450 RPM and pressure of 172 bar (175 kg/cm²) - for a new or reconditioned pump | 19 dm³/min (1159.5 in.³/min) | p. 371 |
| Bench output at 1450 RPM and pressure of 172 bar (175 kg/cm²) - for a used pump | 13.3 dm³/min (811.6 in.³/min) | p. 371 |
| Relief valve pressure (Rear wheel drive models only) | 100 bar (1450.37 psi) | p. 436 |
| Relief valve pressure (Front wheel drive models) | 125 bar (1812.96 psi) | p. 436 |
| Minimum brush length | 7.0 mm (0.2756 in) | p. 496 |
| Minimum switch diameter | 42 mm (1.6535 in) | p. 496 |
| Fuel Tank Capacity | 80.0L | p. 35 |
| Crankcase Sump Oil Capacity (with filter) | 7.3L | p. 35 |
New Holland TD65F, TD75F, TD85F Common Problems This Manual Covers
New Holland TD75F starter clicks or cranks slowly with a fully charged battery
Test the battery under load and clean both ground connections before blaming the starter. If it still drags, remove the starter and disassemble it. Measure brush length and replace any brush under 7.0 mm (0.2756 in), the minimum on page 496. Check field coil continuity, expect 1 ohm per page 508. Torque the mounting bolts to 34 N·m (25 lb ft) on reinstall.
Manual Section: Electrical Systems p. 496Clutch slips under load in high range or pedal engages right at the top
Split the tractor and pull the clutch following the procedure that starts on page 56. Measure the main driven plate against the 9.6 to 10.4 mm thickness spec on page 60 and replace anything thinner. Check release sleeve to housing clearance, 0.050 to 0.151 mm. Torque the engine clutch fixing bolts to 98 N·m (72 lb ft) on reassembly.
Manual Section: Clutch p. 60Steering heavy at idle, wheel keeps turning past the stops with no resistance
Test steering relief pressure before condemning the hydrostatic unit: front wheel drive models should hold 125 bar (1812.96 psi), rear wheel drive 100 bar, per the chart on page 436. If pressure checks good but steering stays heavy, the unit is worn internally; overhaul it using the steering section starting on page 412 and torque its fixing bolts to 44 N·m.
Manual Section: Steering p. 436Three-point hitch lifts slowly with a mounted implement or drops once the oil warms
Check rear transmission oil level first; the housing holds 45.0 L and low oil starves the hitch pump. If the level is right, bench test the pump at 1450 RPM and 172 bar: a used pump must deliver 13.3 dm³/min minimum, per page 371. Remember the hitch is rated for 3000 kg with horizontal arms; weigh the implement before tearing into the pump.
Manual Section: Hydraulic Systems p. 371Brake pedal slowly sinks to the floor or tractor pulls hard to one side
Bleed both brake circuits until the pedal firms up, then check the fluid for contamination. If the pedal still fades or the tractor pulls, remove the brake assemblies and measure disc thickness against the 4 mm spec on page 316. Replace discs in pairs on each side so braking stays even on the road between fields.
Manual Section: Brakes and Controls p. 316Frequently Asked Questions
What are the torque specifications for the engine flywheel clutch fixing bolts on the TD65F, TD75F, and TD85F tractors?
The torque specification for the engine flywheel clutch fixing bolts (11 in/ 11 in) is 25 N·m (18 lb ft). p. 60
What is the rear transmission, gearbox, and hydraulic lift oil capacity on the New Holland TD65F, TD75F, TD85F?
The capacity for the rear transmission (bevel gear pair – lateral final drives and brakes), gearbox, and hydraulic lift is 45.0 L (11.9 US gal). p. 35

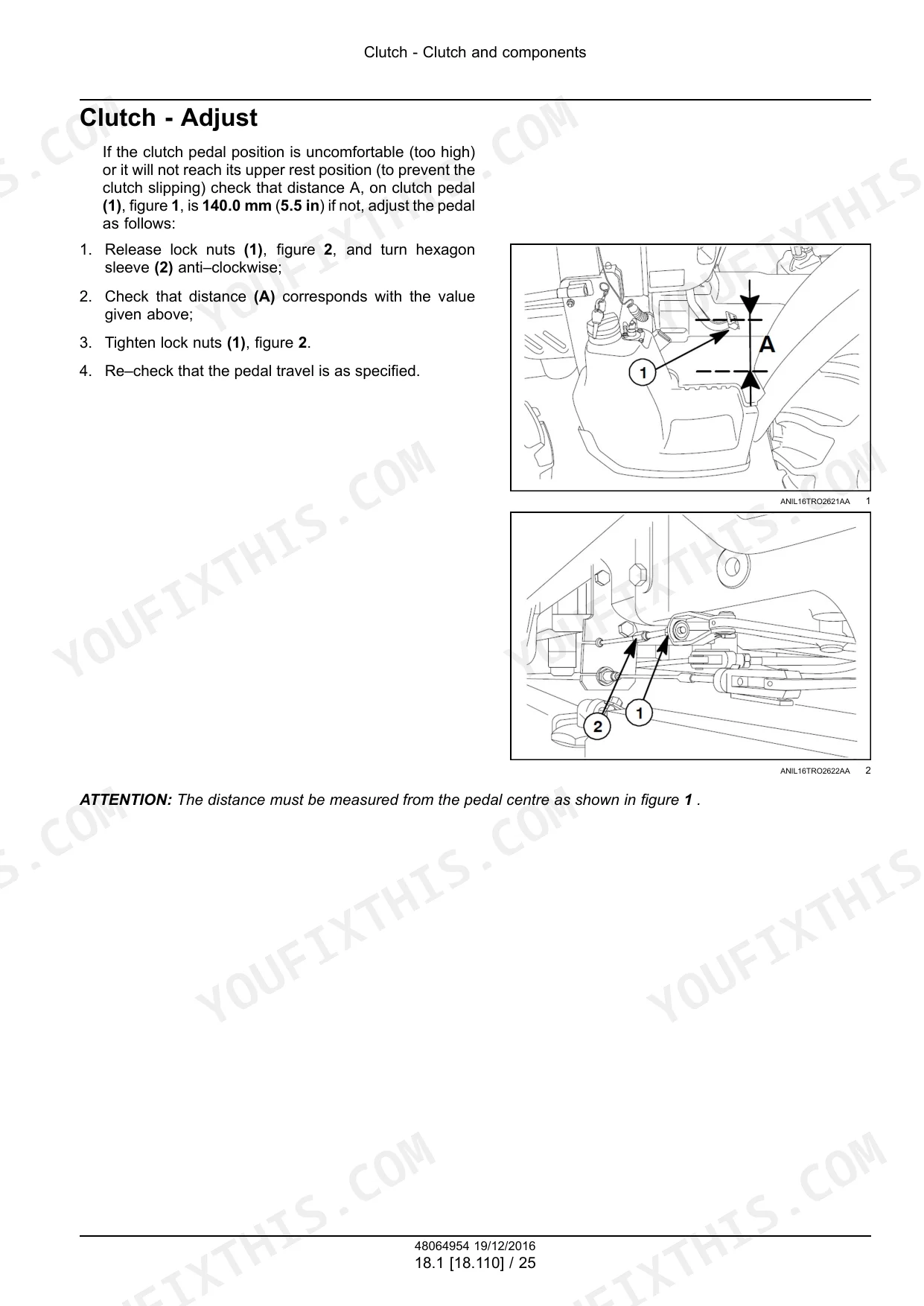

How do I adjust the clutch pedal free travel on the tractor?
The clutch pedal free travel should be 140.0 mm (5.5 in). To adjust, release the lock nuts and turn the hexagon sleeve anti-clockwise until the specified distance is reached, then tighten the lock nuts. p. 82
What is the procedure for bleeding the front brake hydraulic system?
Depress the LH brake pedal slowly to the end of its travel, keep it depressed, and undo the bleed screw by half a turn to allow oil and air to escape. Retighten the screw and repeat until the oil is free of air bubbles, then repeat for the RH brake pedal. p. 327
What is the torque for the front axle support to engine retaining bolt (C11) on the New Holland TD65F, TD75F, TD85F?
The torque for the front axle support to engine retaining bolt (C11) is 314 N·m (231.6 lb ft). p. 193
How will I receive this New Holland TD65F Service Manual?
Delivery is instant: a 613-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Can I print just the pages I need from this New Holland TD65F manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
