New Holland part number 51679678 is the factory service manual for the E17C mini excavator, Canopy version, with the Kubota D902 diesel. That applicability is printed on every subsection title, so you know which machine each procedure was written for.

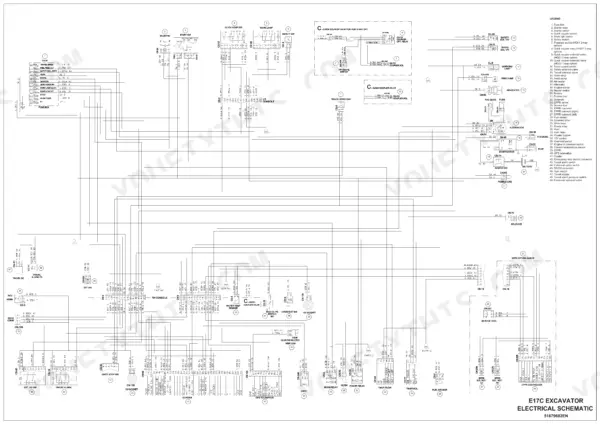

It covers engine overhaul, the main pump and control valve, the pilot circuit, swing and travel motors, cylinders, quick coupler, rubber tracks and wiring. Large foldout electrical and hydraulic schematics are at the end of the file.
Troubleshooting tables in the engine, pump, travel motor and instrument cluster chapters give a cause and a remedy for each symptom.
What's Inside This New Holland E17C Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Specifications | 1-49 | Applicability, Safety, Identification, Machine Specifications, Dimensions, Fluids and Lubricants, Special Torques, Hydraulic Contamination |
| Engine | 50-177 | Engine and Crankcase, Oil Pan, Valve Drive and Gears, Cylinder Heads, Connecting Rods and Pistons, Crankshaft and Flywheel, Compression Testing, Engine Troubleshooting |
| Engine Fuel, Air Intake and Exhaust | 178-233 | Fuel Tank, Fuel Lines, Fuel Filters, Injection Pump, Injection Nozzles, Air Cleaner, Intake and Exhaust |
| Engine Cooling and Lubrication | 234-287 | Coolant Service, Radiator Leak Testing, Water Pump, Thermostat, Fan and Belt, Lubrication System, Oil Cooler |
| Hydraulic Systems | 288-361 | Hydraulic Circuit Diagrams, Circuit Operation, System Troubleshooting, Pressure Release, Dig Function Drift, Oil Reservoir, Oil Cooler |
| Main Pump and Main Control Valve | 362-449 | Main Pump, Pump Sectional Views, Pump Overhaul, Pump Adjustment and Testing, Main Control Valve, Valve Cleaning and Inspection, Troubleshooting |
| Pilot System and Controls | 450-539 | Pilot Solenoid Block, Pattern Change Valve, Accumulator, Safety Switch, Hand Controls, Dozer Lever, Pedal Controls, Shuttle Valve |
| Hydraulic Swing System | 540-597 | Swing Motor, Parking Brake Variant, Reduction Motor, Disassembly and Assembly, Performance Testing, Swing Troubleshooting |
| Hydraulic Travel System | 598-673 | Travel Motor, Planetary Reduction Gear, Travel Brake Valve, Motor Overhaul, Two-Speed Control, Performance Testing, Hydraulic Swivel |
| Track Widening, Boom, Dipper and Bucket Cylinders | 674-737 | Track Widening Cylinder, Boom Cylinder, Internal Leakage Testing, Dipper Cylinder, Bucket Cylinder, Hydraulic Lines, Pin and Bushing Limits |
| Quick Coupler and Auxiliary Hydraulics | 738-773 | HQ01 Quick Coupler, Coupler Solenoid Valve, Hydraulic Breaker, Auxiliary Circuits, EPPR Valves, Hammer and Shears Selection, Stop Valves |
| Swing Arm and Blade Cylinders | 774-805 | Swing Cylinder, Blade Lifting Cylinder, Extension Cylinder, Sectional Views, Disassembly, Assembly, Testing, Pin and Bushing Limits |
| Frames and Ballasting | 806-817 | Counterweight Removal, Counterweight Installation, Additional Counterweight, Mounting Bolt Torques |
| Tracks and Track Suspension | 818-859 | Sprocket, Rubber Track, Track Adjustment, Recoil Spring, Idler Wheel, Track Rollers, Wear Limits |
| Electrical Systems and Circuits | 860-939 | Component Identification, Power Circuit, Starting Circuit, Charging Circuit, Work Lights, Monitoring Circuit, Pre-Heating, EPPR Circuits |
| Harnesses, Connectors and Electrical Schematic Sheets | 940-1035 | Harness Locations, Electrical Schematic Sheets, Connector Diagrams, Pin Assignments, Wire Colors, Fuse Box, Relays |
| Engine Controls, Starting, Charging and Instruments | 1036-1149 | Engine Speed Control, Starting System, Alternator, Battery, Glow Plugs, Engine and Fuel Sensors, Instrument Cluster, Lighting and Safety Solenoids |
| Booms, Dippers and Buckets | 1150-1191 | Boom Pivot Support, Boom, Dipper, Bucket, Linkage, Pin and Bushing Limits, Linkage Dimensions |
| Dozer Blade and Arm | 1192-1201 | Pin and Bushing Limits, Blade Removal, Blade Installation, Lifting Cylinder Connection |
| Platform, Cab, Bodywork and Decals | 1202-1257 | Service Menu, Console Trim, Canopy Protections, Operator Seat, Engine Hood, Side Panels, Shields and Guards |
| Electrical and Hydraulic Schematics (Foldouts) | 1258-1260 | Electrical Component Legend, Hydraulic Component Legend, Proportional Control Option, Quick Coupler Option, Accumulator, Travel Alarm and Parking Brake, Pattern Change Valve |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine model | Kubota D902 | p. 20 |
| Piston displacement | 898 cm³ (54.8 in³) | p. 20 |
| Rated gross horse power (SAE J1995) | 12.1 kW (16.5 Hp) at 2400 RPM | p. 20 |
| Maximum torque at 1900 RPM | 53.54 N·m (39.49 lb ft) | p. 20 |
| Engine oil quantity | 3.7 L (1.0 US gal) | p. 20 |
| High idling speed | 2550 - 2650 RPM | p. 20 |
| Low idling speed | 1400 - 1500 RPM | p. 20 |
| Main pump (P1 / P2) rated oil flow | 2 x 18.8 L/min (5.0 US gpm) | p. 20 |
| Overload relief valve pressure | 22553 kPa (3271 psi) | p. 20 |
| Total hydraulic system capacity | 23 L (6.1 US gal) | p. 40 |
| Hydraulic oil tank capacity | 13.0 L (3.4 US gal) | p. 373 |
| Travel reduction gear oil fill | 0.33 L (0.09 US gal) | p. 627 |
| Pilot solenoid block max working pressure | 60 bar (870 psi) | p. 452 |
| Maximum digging reach (boom 1.80 m, arm 0.96 m) | 3900 mm (153.5 in) | p. 24 |
| Maximum digging depth (boom 1.80 m, arm 0.96 m) | 2200 mm (86.6 in) | p. 24 |
| Rubber track shoe width | 230 mm (9.1 in) | p. 21 |
| Rubber track ground pressure | 27.44 kPa (3.98 psi) | p. 21 |
| Counterweight weight | 185 kg (407.9 lb) | p. 813 |
| Main pump mounting bolt torque (M12 × 1.75) | 122.4 - 165.6 N·m (90.3 - 122.1 lb ft) | p. 17 |
| Counterweight mounting bolt torque (M20 × 2.5) | 482.8 - 653.2 N·m (356.1 - 481.8 lb ft) | p. 17 |
New Holland E17C Common Problems This Manual Covers
Engine does not start
The engine troubleshooting table in the Engine section lists no fuel as a cause, and the remedy is to replenish fuel. If the tank is full, the Engine Fuel, Air Intake and Exhaust section covers the fuel lines, filters, injection pump and nozzles. The Engine section also covers compression testing.
Manual Section: Engine - Troubleshooting p. 94Oil leaking at the main hydraulic pump
The Main Pump and Main Control Valve section traces pump oil leakage to a damaged O-ring or packing, and the fix is to replace it. Use the pump sectional views and overhaul steps to find the leaking seal. When the pump goes back on, torque the M12 × 1.75 mounting bolts to 122.4 - 165.6 N·m (90.3 - 122.1 lb ft).
Manual Section: Pump - Troubleshooting p. 395Travel motor doesn't start
The travel motor troubleshooting table in the Hydraulic Travel System section traces this to a defect in the reducer or damaged inner parts. The fix is to replace the damaged part as a kit. The same section covers the planetary reduction gear, travel brake valve, motor overhaul and performance testing. On assembly the procedure fills 0.33 L (0.09 US gal) gear oil in the body of the travel reduction gear.
Manual Section: Travel motor - Troubleshooting p. 657Fuel gauge malfunction
If the gauge moves up and down at lamp check, turn the starter switch OFF and disconnect harness connector CN-56. Measure the resistance between terminal 18 and ground. If it reads more than 1 kΩ, the wiring harness is broken, so find the break and repair it. This procedure is under instrument cluster troubleshooting. The Harnesses section has the connector diagrams and wire colors.
Manual Section: Instrument cluster - Service instruction - Troubleshooting p. 1125Frequently Asked Questions
Which machine does the New Holland E17C service manual cover?
It covers the E17C mini excavator, Canopy version, with the Kubota D902 engine. That applicability is printed on every subsection title. The manual gives no serial range, so match your machine by model and canopy configuration. The New Holland part number is 51679678. p. 2
What engine and power rating does the New Holland E17C use?
The engine is a Kubota D902 with 898 cm³ (54.8 in³) displacement. Rated gross power is 12.1 kW (16.5 Hp) at 2400 RPM under SAE J1995. Maximum torque is 53.54 N·m (39.49 lb ft) at 1900 RPM. High idle is 2550 - 2650 RPM and low idle is 1400 - 1500 RPM. p. 20
How much engine oil and hydraulic oil does the New Holland E17C take?
The engine takes 3.7 L (1.0 US gal) of oil. The hydraulic oil tank holds 13.0 L (3.4 US gal), and the whole hydraulic system holds 23 L (6.1 US gal). The travel reduction gear oil fill is 0.33 L (0.09 US gal). p. 20
What is the digging depth, reach and track width of the New Holland E17C?
With the 1.80 m boom and 0.96 m arm, maximum digging reach is 3900 mm (153.5 in). Maximum digging depth is 2200 mm (86.6 in). The rubber track shoes are 230 mm (9.1 in) wide and give a ground pressure of 27.44 kPa (3.98 psi). p. 24
Does the New Holland E17C manual include electrical and hydraulic schematics?

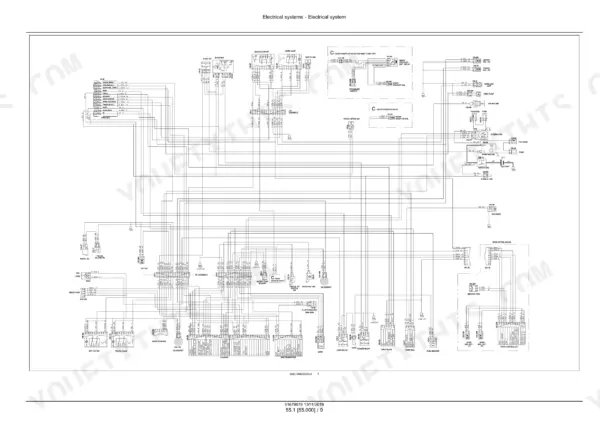

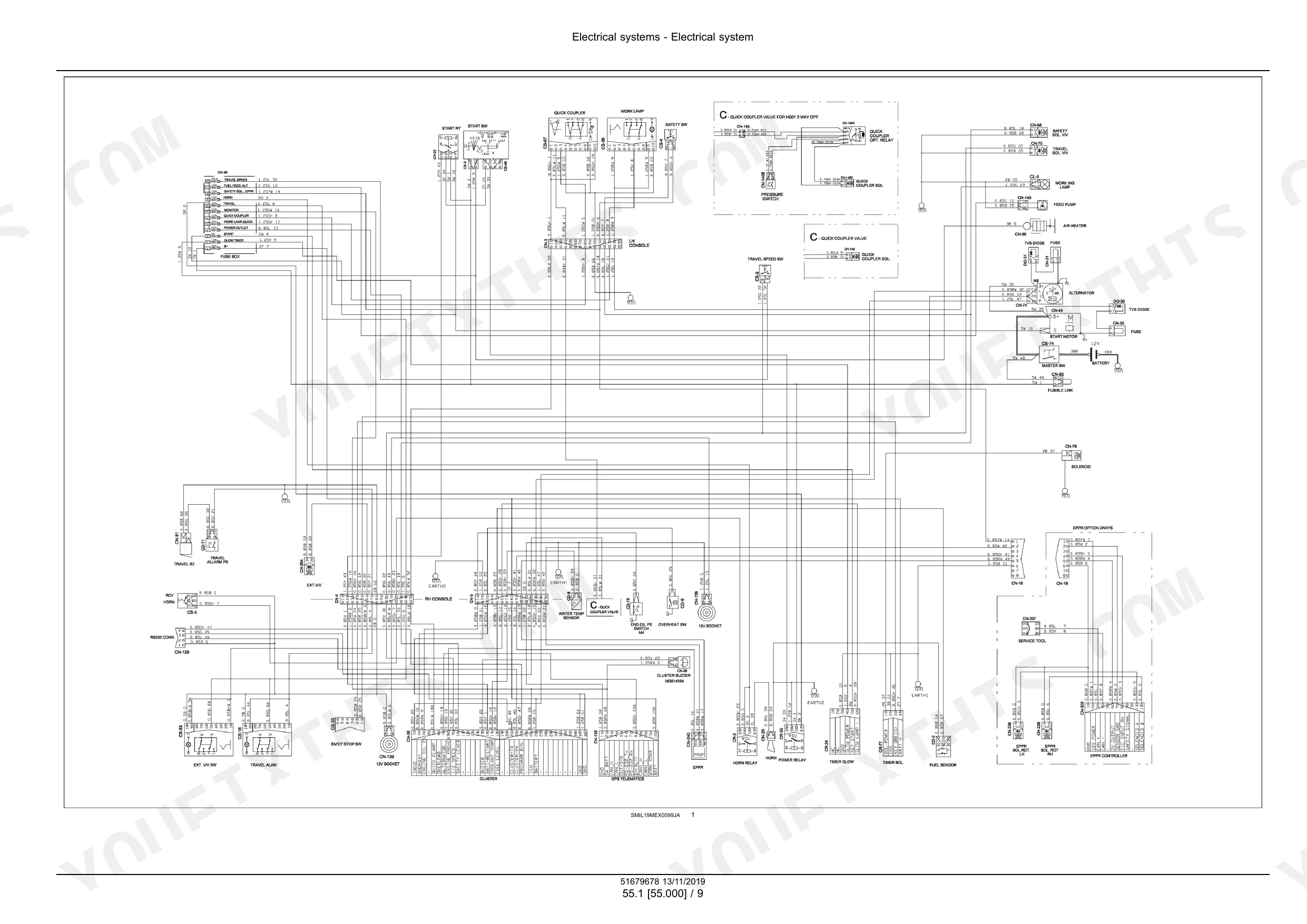

Yes. The Hydraulic Systems section has circuit diagrams, including the pilot circuit. The Electrical section has the power, starting, charging and pre-heating circuits plus numbered schematic sheets. Large foldout electrical and hydraulic schematics are at the end of the file. The harness chapter adds connector diagrams. p. 914
