Part of the New Holland Repair Manuals.
This is the factory repair manual for the New Holland T4030F, T4040F and T4050F orchard and vineyard tractors. It is split the way New Holland numbers the tractor: engine, clutch, transmissions, drive lines, axles, PTO, brakes, hydraulics, steering, wheels, air conditioning, electrical and cab. The engine section carries the full specifications and clearances for the 4-cylinder 4485 cm3 unit, and the electrical section runs from page 541 to page 1330, most of it circuit drawings for each build along with the fault-code tables and the calibration routines.
What's Inside This New Holland T4030F, T4040F, T4050F Repair Manual

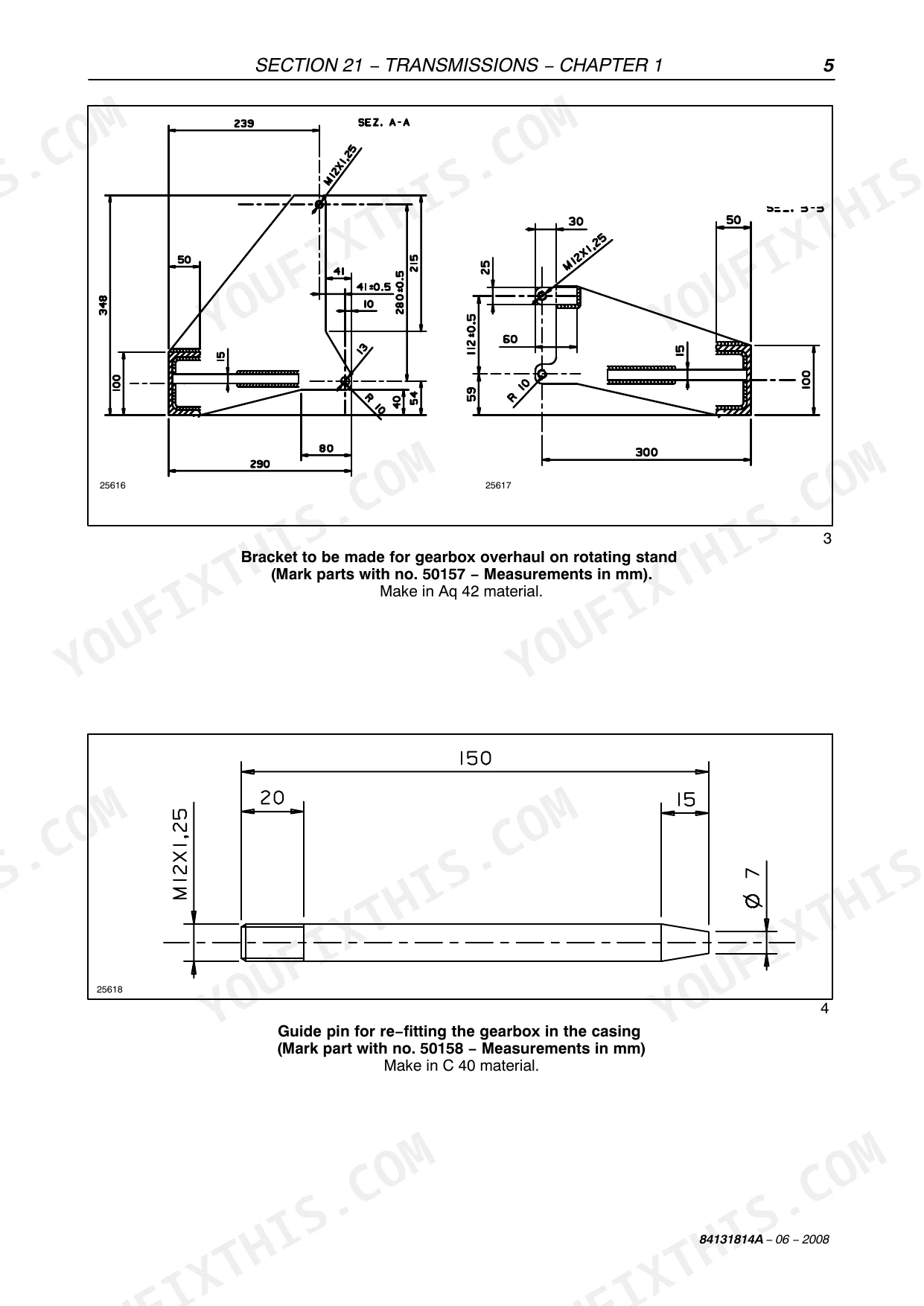

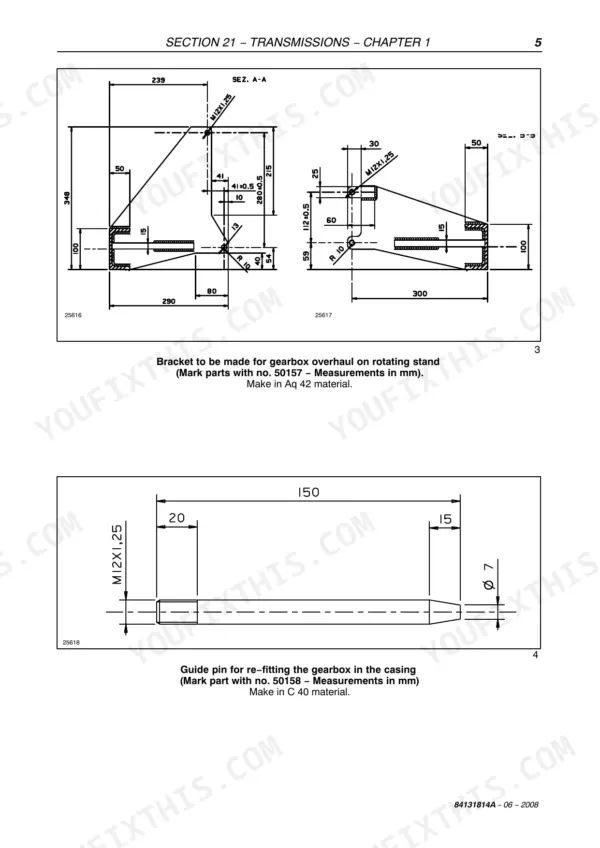

| System | Pages | Key Topics |
|---|---|---|
| General Guidelines | 11-16 | Shop Safety, Standard Tightening Torques, Approved Fluids and Consumables, How the Manual Is Updated |
| Engine | 17-126 | Fpt F4CE 4-Cylinder 4485 Cm3 Diesel with Bosch Injection, General Specifications and Clearances, Cylinder Head and Valve Train, Crankshaft and Pistons, Lubrication and Cooling, Fuel System, Engine Overhaul |
| Clutch | 127-148 | Clutch Assembly and Release Mechanism, Pedal Free Play, Clutch Removal and Refitting |
| Transmissions | 149-214 | Gearbox, Shuttle and Range Units, Synchronisers and Shift Forks, Control Valves and Clutch Packs, Transmission Overhaul |
| Drive Lines | 215-226 | Drive Shafts and Couplings, Universal Joints, Drive Line Removal and Service |
| Front Axle Mechanical Transmission | 227-272 | Driven Front Axle, Bevel Drive and Differential, Hub Reducers, Steering Knuckles, Axle Rebuild |
| Rear Mechanical Drive | 273-302 | Rear Bevel Gear Pair and Differential, Differential Lock, Final Drives, Bearing Preload and Backlash |
| Mechanical Power Take-Off | 303-316 | PTO Clutch and Brake, Speed Selection and Output Shaft Change, PTO Control Linkage, PTO Overhaul |
| Brakes | 317-336 | Wet Disc Service Brakes, Parking Brake, Pedal Adjustment, Bleeding the Brake Circuit |
| Hydraulic Systems | 337-446 | Hydraulic Pump and Supply Circuit, Rear Lift and Draft Control, Remote Control Valves, Three-Point Linkage, Hydraulic Schematics and Pressure Testing |

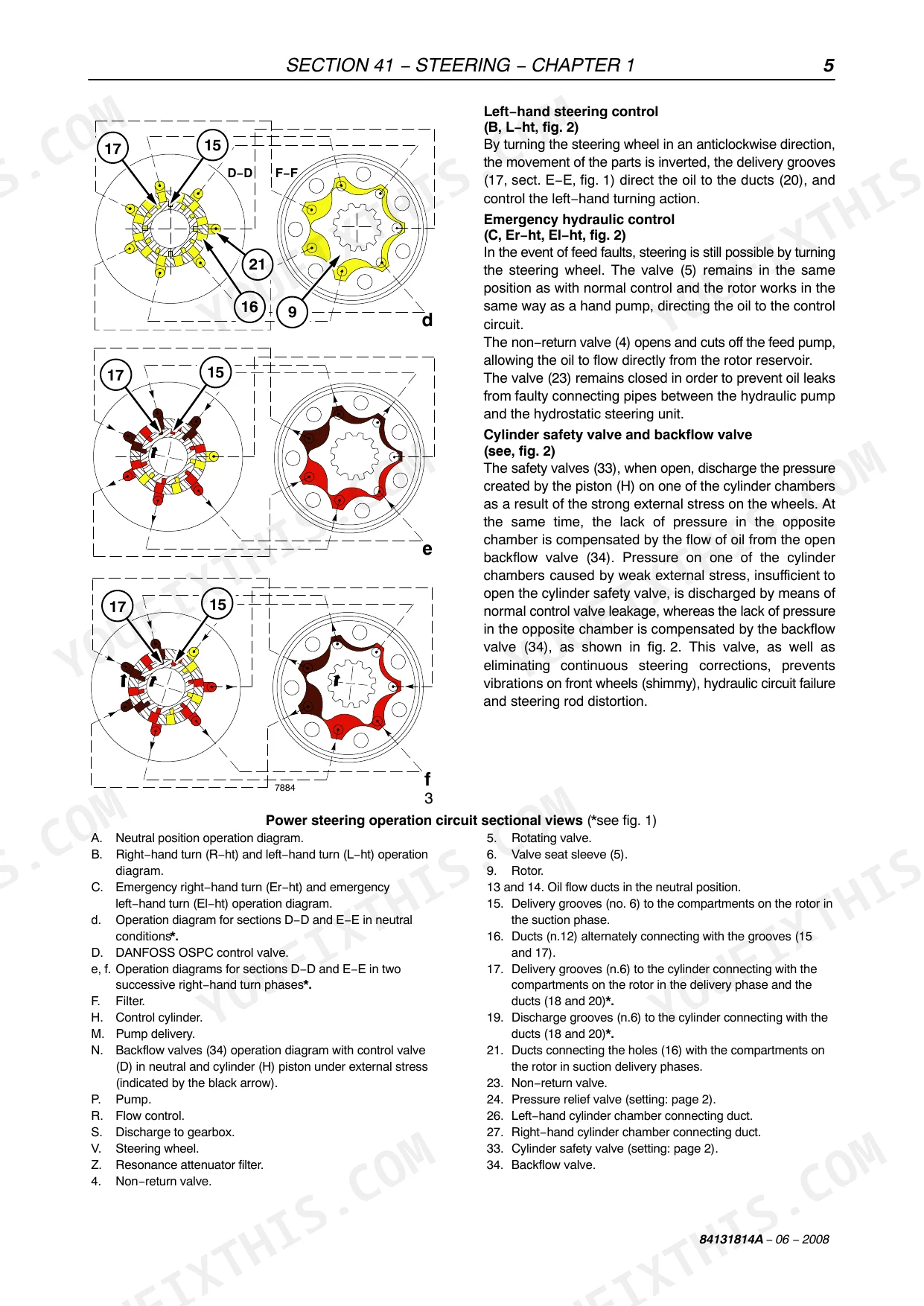

| Steering | 447-484 | Hydrostatic Steering Unit, Steering Control Valve and Cylinder, Steering Column, Steering Circuit Fault Finding |
| Axles and Wheels | 485-502 | Front Axle Hubs and Stub Axles, Wheel Track Adjustment for Narrow and Orchard Work, Wheel Nut Torques |
| Cab Air Conditioning System | 503-540 | Compressor, Condenser, Filter Dryer and Expansion Valve, Refrigerant Handling, A/C Charging and Leak Testing |
| Electrical System: Components and Instruments | 541-606 | Starting and Charging Systems, Alternator and Starter Motor, Battery, Instrument Cluster, Switches and Sensors |
| Electrical System: Circuits and Schematics | 607-1074 | Complete Electrical Circuit Drawings for Each Build and Option Combination, Harness Routing and Connector Views, Fuses and Relays |
| Electrical System: Electronic Modules and Tests | 1075-1166 | Electronic Control Modules, Component Test Procedures, Circuit Measurements |
| Electrical System: Fault Codes and Calibrations | 1167-1330 | Fault-Code Tables and Their Diagnostic Procedures, Clutch and Transmission Calibration Routines |
| Cab | 1331-1348 | Cab and Platform Assembly, Bodywork, Hood and Grille, Glazing, Component Removal |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All models | ||
| Engine | 4-cylinder in-line, 4485 cm3, direct injection, 4-stroke diesel with BOSCH pump | |
| Bore and stroke | 104 mm x 132 mm | |
| Compression ratio | 17.5:1 | |
| Number of main bearings | 5 | |
| T4050F, engine type F4CE9484M*J603 | ||
| Maximum power output | 71 kW (97 Hp) at 2300 rpm | |
| Maximum torque | 418 Nm at 1300 rpm | |
| Injection pump | ||
| Minimum fuel flow rate at 1800 rpm pump shaft speed | 127.6 l/h | |
New Holland T4030F, T4040F, T4050F Common Problems This Manual Covers
The engine is down on power, smokes, or will not hold rated speed.
Work the engine section against its own numbers. Rated power comes at 2300 rpm and peak torque at 1300 rpm, so a tractor that dies below 1300 rpm behaves differently from one that never reaches rated speed. Check the injection pump delivery, since the manual gives a minimum fuel flow rate of 127.6 l/h with the pump shaft turning at 1800 rpm. The section then carries the cylinder head, valve train, crankshaft and piston clearances for a full overhaul.
Manual Section: SECTION 10 - ENGINEAn electrical fault, a stored code, or a function that behaves differently from the tractor next to it.
Find your build first, because the circuit drawings from page 607 to page 1074 are drawn separately for each build and option combination. Read the code and work the fault-code tables at pages 1167 to 1330, then follow the correct circuit drawing to the connector and test it there. If a clutch or transmission function is out of step rather than dead, run the calibration routines in the same chapter before you strip anything.
Manual Section: SECTION 55 - ELECTRICAL SYSTEM: Fault Codes and CalibrationsThe rear lift is slow, will not hold a load, or the remote valves fade as the oil warms.
Measure the circuit before you open it. The hydraulic section gives the pump and supply circuit specifications with the pressure test points, so you can tell a tired pump from a lift or a remote valve that has drifted out of adjustment. It then covers the rear lift and its draft control, the remote control valves and the three-point linkage, with the schematics and the overhaul procedures for the pump and the lift housing.
Manual Section: SECTION 35 - HYDRAULIC SYSTEMSFrequently Asked Questions
Which tractors does this manual cover?
The T4030F, T4040F and T4050F, the F-series orchard and vineyard tractors. They share the chassis, the transmissions, the axles, the hydraulics and the electrical architecture, so almost every procedure applies across the three. The engine specification chapter tabulates the T4050F engine, type F4CE9484M*J603 with the BOSCH pump; the block, bore and stroke are common across the family.
What power does the engine make?
The manual gives the figure for the T4050F, engine type F4CE9484M*J603: 71 kW (97 Hp) at 2300 rpm, with a maximum torque of 418 Nm at 1300 rpm. All three tractors run the same 4-cylinder 4485 cm3 block with a 104 mm bore, a 132 mm stroke, a 17.5:1 compression ratio and five main bearings; the lower models are rated below the T4050F.
Does it include the full wiring diagrams and fault codes?
Yes. The electrical section runs from page 541 to page 1330. Circuits and schematics for each build and option combination occupy pages 607 to 1074, the electronic modules and their test procedures pages 1075 to 1166, and the fault-code tables with the clutch and transmission calibration routines pages 1167 to 1330.
Are the hydraulic and steering circuits covered?
Both, with their own sections. Hydraulics runs pages 337 to 446 and covers the pump and supply circuit, the rear lift with draft control, the remote control valves and the three-point linkage, along with the schematics and the pressure test procedure. Steering runs pages 447 to 484 and covers the hydrostatic steering unit, the control valve and cylinder and the circuit fault finding.
How big is the manual and can I search it?
It is 1348 pages in English, a searchable and printable PDF. Search the text, print the pages you need for the bench, and keep the rest on a laptop in the workshop.
What do I get after purchasing this New Holland T4030F, T4040F, T4050F manual?
Instant PDF download (38 MB). You get the full 1348-page searchable Repair Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this New Holland T4030F, T4040F, T4050F manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
