Part number 47888352 is the factory service book New Holland issued in July 2016 for the T4030V and T4040V. It is in English, written for the Latin America market, and covers tractors with and without cab, Model Year 2012 versions included. Engine codes are F5AE9484B for the T4030V and F5AE9484G for the T4040V.
It gives the rear hydraulic lift pressure relief valve setting as 180 bar (2610.000 psi), the side auxiliary valve calibration as 190 - 195 bar (2755 - 2827 psi) and the transmission casing prescribed quantity as 44 l (11.62 US gal).
Sectional views, electrical schematic sheets, fault code cards and a special tool index round out the book.
What's Inside This New Holland T4030V, T4040V Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 1-20 | Applicability, Engine Codes, Markets, Contents, Safety Rules, Consumables |
| Engine Removal and Installation | 21-32 | Engine Removal, Engine Installation, Radiator Connections, Fuel Tank Connections, Steering Hydraulic Pipes, Transmission Oil Draining |

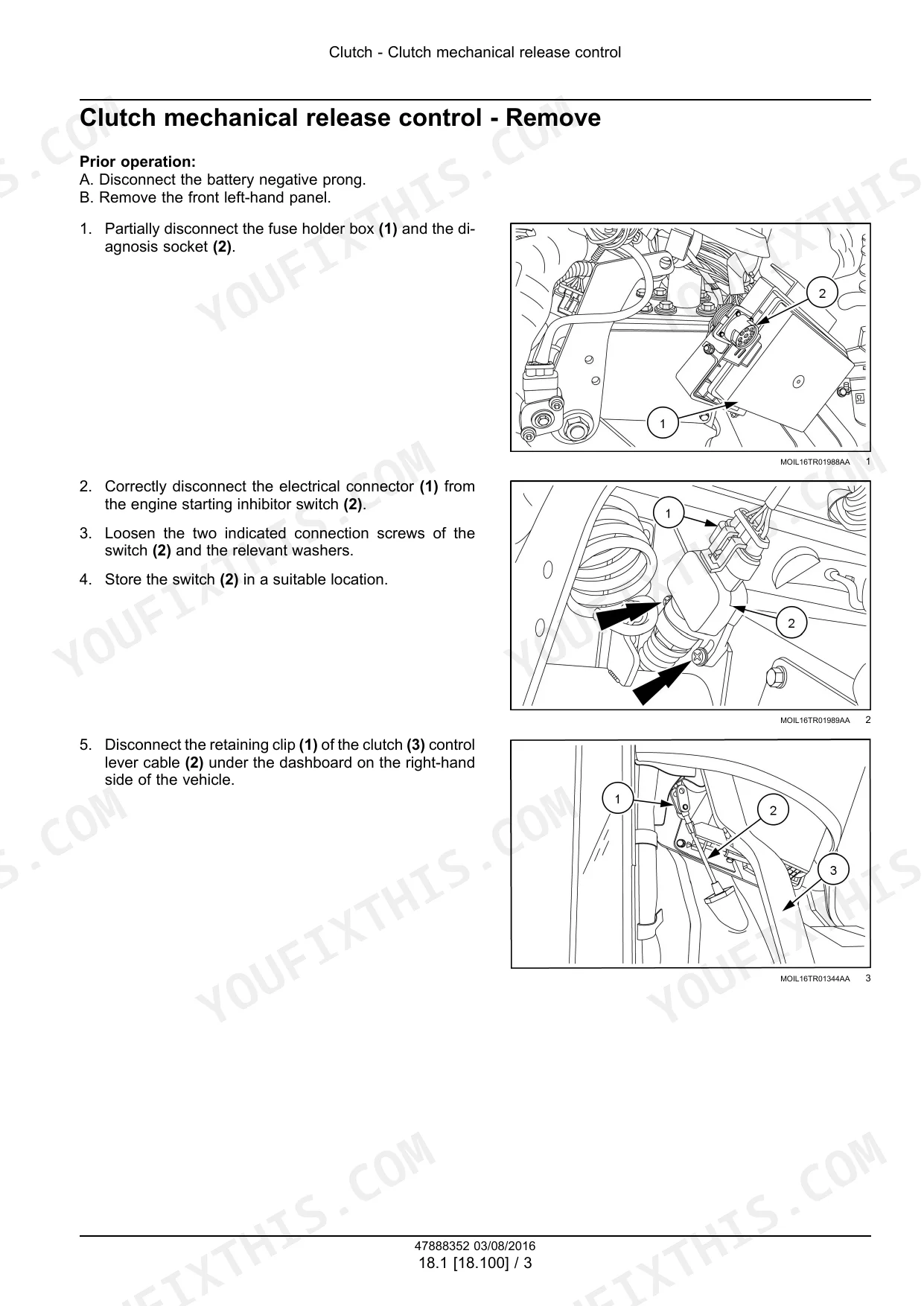

| Clutch | 33-72 | Mechanical Release Control, Hydraulic Release Travel, Clutch Removal and Installation, Alignment, Wear Checks, Troubleshooting |
| Transmission | 73-206 | Mechanical Transmission, Power Shuttle, External Controls, Internal Components, Creeper, Reverser, Hi-Lo Unit, Differential |
| Four-Wheel Drive (4WD) System | 207-254 | Electro-Hydraulic Engagement, Control Diagrams, Gearbox Removal and Assembly, Parking Lock Controls, Drive Shaft, Troubleshooting |
| Front Axle System | 255-376 | Powered Front Axle, Bevel Gears, Differential Lock, Planetary Hubs, Steering Knuckles, Axle Suspension Cylinder, Final Drives, Non-Powered Axle |
| Rear Axle System | 377-424 | Powered Rear Axle, Torque Settings, Bevel Gear Adjustment, Differential, Differential Lock, Planetary and Spur Gear Final Drives, Troubleshooting |
| Power Take-Off (PTO) | 425-452 | 540, 540E and 1000 RPM PTO, Synchronized PTO, Sectional Views, Shaft Assembly, Servo-Control Adjustment, Troubleshooting |

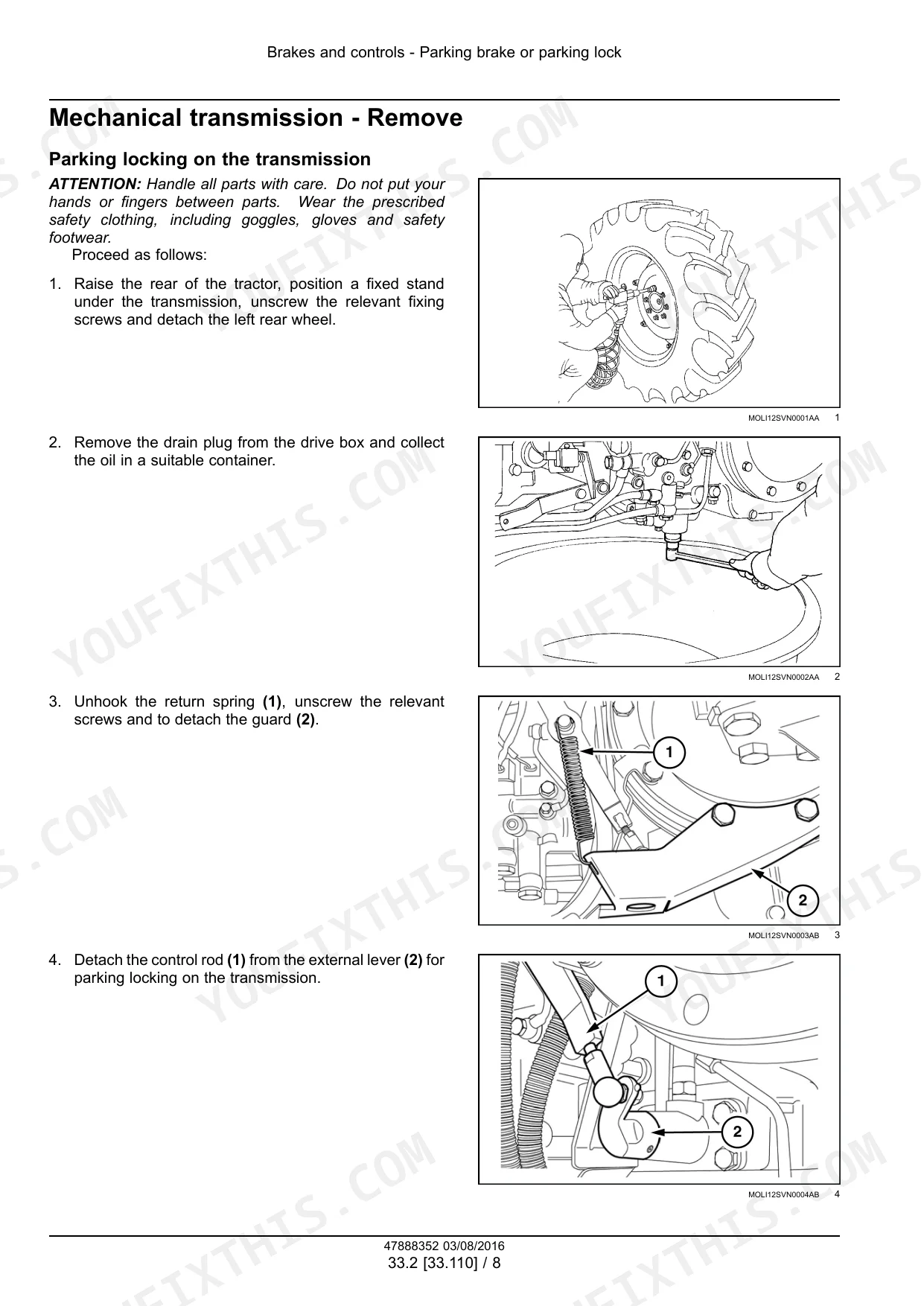

| Brakes and Controls | 453-514 | Hydraulic Service Brakes, Brake Pedals, Circuit Bleeding, Parking Brake, Trailer Brake Valve, Pressure Tests, Hydraulic Schema, Troubleshooting |
| Hydraulic Systems | 515-670 | Hydraulic Schematics, Reservoir, Cooler and Filters, Fixed Displacement Pumps, Remote Control Valves, High Flow Hydraulics, Main Lift System, Hitch Control Valve |
| Hitches, Drawbars and Implement Couplings | 671-748 | Rear Three-Point Hitch, Mechanical and Electronic Lift Data, Sectional Views, Lift Assembly, External Control Adjustment, Troubleshooting |
| Steering | 749-794 | Steering Wheel Replacement, Hydrostatic Steering, Plumbing Schema, Control Valve Assembly and Testing, Relief Valve Checks, Troubleshooting |
| Wheels | 795-802 | Front Wheel Alignment, Camber Check, Toe-In Measurement, Tyre Pressure for Alignment, Steering Tie-Rod Adjustment |

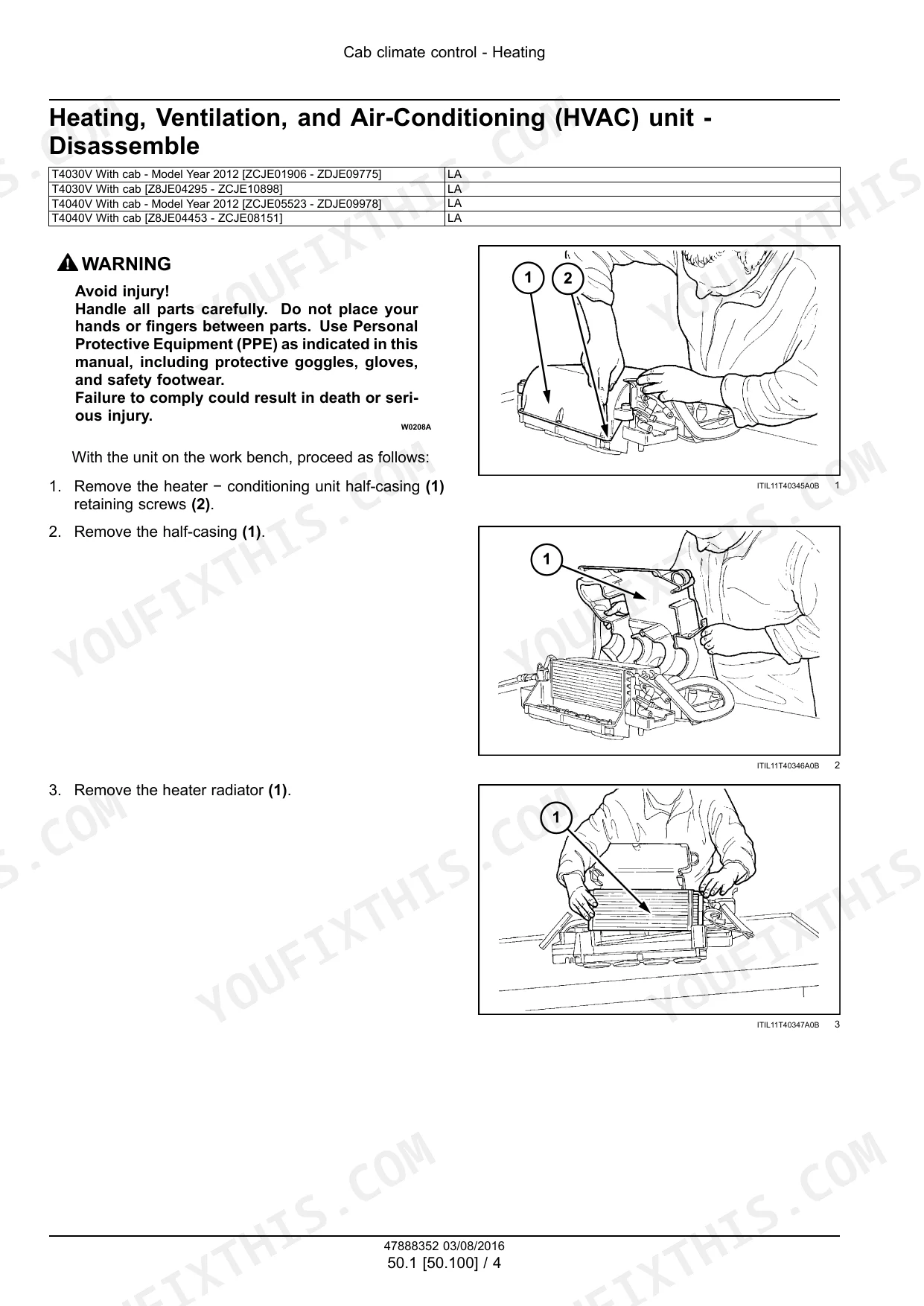

| Cab Climate Control | 803-870 | Heating Unit, Ventilation, Air Filter, Refrigerant Specifications, Compressor, Recovery and Charging, Leakage Tests |

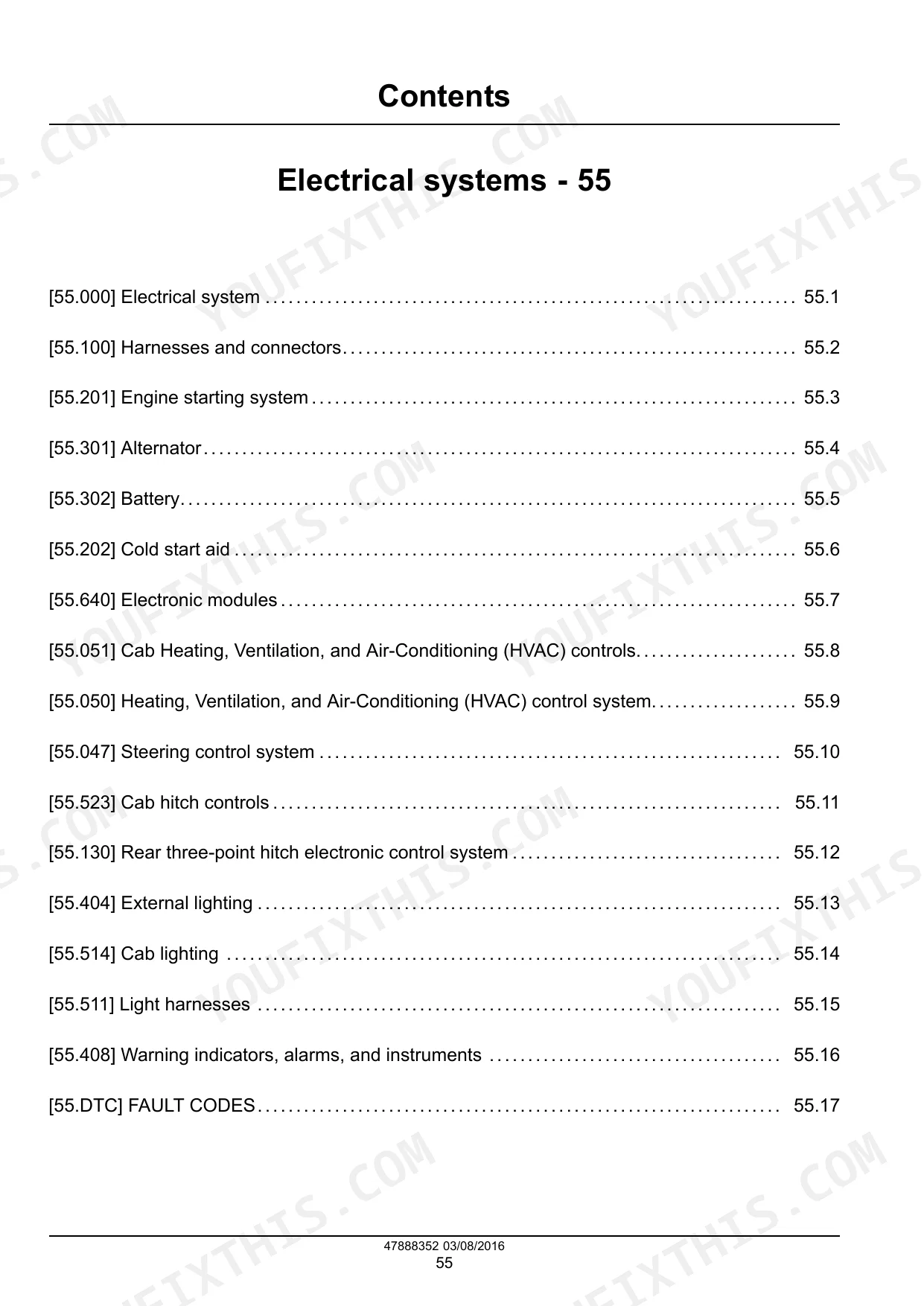

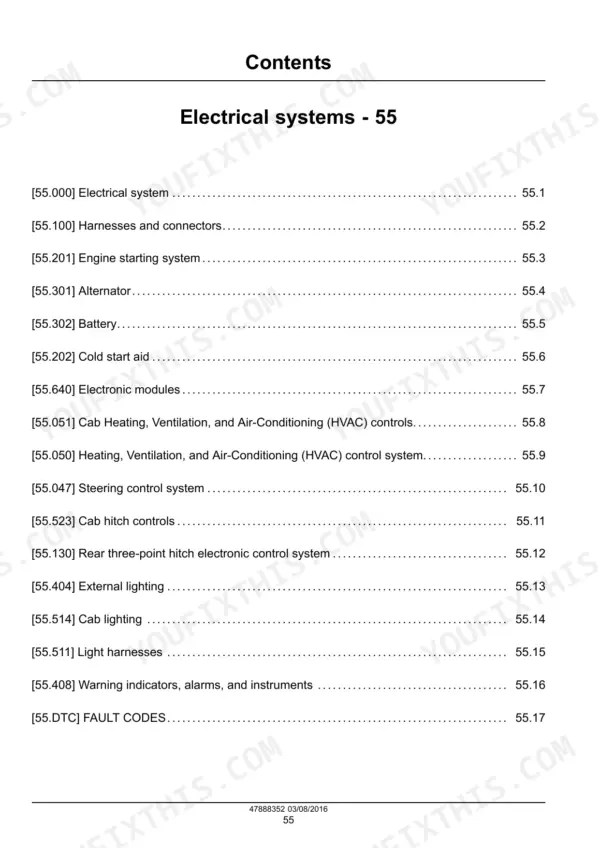

| Electrical Systems | 871-897 | Electrical Circuit Identification, Component Identification, Ground Location Points, Transmitters, Sensors, Switches |
| Harnesses, Connectors and Wiring Diagrams | 898-1363 | Harness Localization, Electrical Schematic Sheets, Power Supplies, Brakes and Differential Lock, Instruments and Sensors, Lighting, Power-Shuttle and Cab Circuits |
| Wiring Diagrams: 4WD, Model Year 2012, CAN and Connectors | 1364-1883 | Automatic 4WD Circuits, Model Year 2012 Wiring, Power-Shuttle Circuits, Digital Instruments and CAN, Mid-Mount Valve ECU Wiring, Connector Pinouts, Component Diagrams |
| Starting and Charging | 1884-1939 | Engine Starter, Ignition Switch, Starter Testing, Alternator, Belt Tensioner, Battery, Cold Start Aid, Troubleshooting |

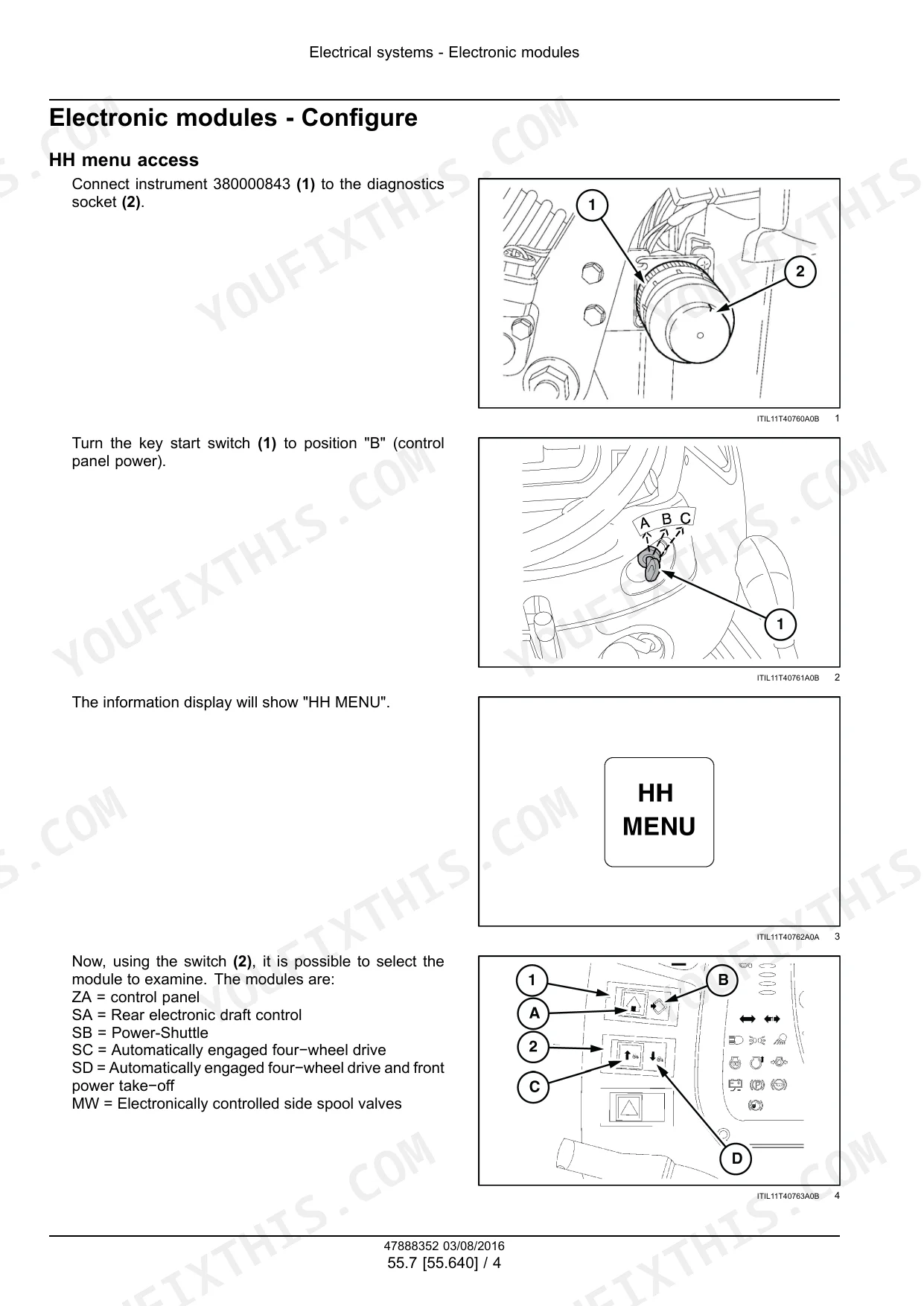

| Electronic Modules, Controls and Lighting | 1940-2069 | Controller Configuration, H1-HF Diagnostics, HVAC Controls, Steering and Hitch Controls, External and Cab Lighting, Warning Indicators and Instruments |

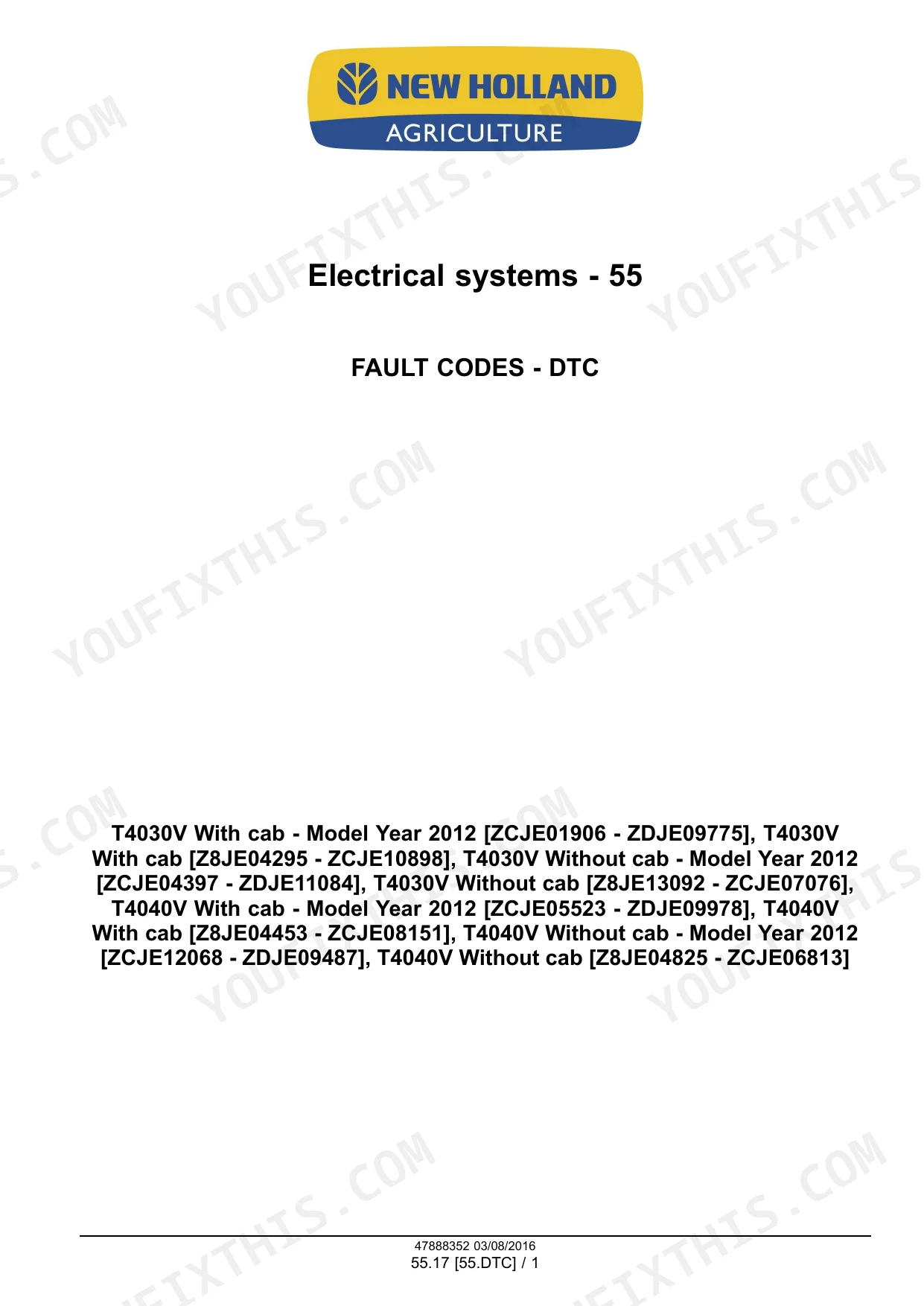

| Fault Codes (DTC) | 2070-2440 | Rear Lift Fault Codes, Power-Shuttle Fault Codes, Mid-Mount Valve Fault Codes, Connector Checks, Switch Testing, Voltage Measurements, Fault Rectification |
| Platform, Cab, Bodywork and Decals | 2441-2503 | Operator Platform, Operator Protections, Cab Frame, Cab Interior, Doors and Hatches, Hood, Side Shields, Interior Trim |
| Special Tool Index | 2504-2515 | Clutch, Transmission, Axle, Brake, Hydraulic, Steering, Air-Conditioning and Diagnostic Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine code, T4030V | F5AE9484B | p. 3 |
| Engine code, T4040V | F5AE9484G | p. 3 |
| Transmission casing oil, prescribed quantity | 44 l (11.62 US gal) | p. 24 |
| Engine speed with PTO at 540 RPM | 2196 RPM | p. 428 |
| Engine speed with PTO at 540E RPM | 1535 RPM | p. 428 |
| Engine speed with PTO at 1000 RPM | 2260 RPM | p. 429 |
| Power Shuttle and services transmission working pressure | 15.7 bar (227.65 psi) | p. 126 |
| Hydraulic service brakes working pressure | 17.6 bar (255.20 psi) | p. 456 |
| A 25 hydraulic pump rated output | 28.19 l/min | p. 534 |
| A 31 XRP2 hydraulic pump rated output | 34.77 l/min | p. 535 |
| C 42 high-flow pump rated output | 47.36 l/min | p. 626 |
| Side auxiliary valves, maximum pressure valve calibration | 190 - 195 bar (2755 - 2827 psi) | p. 545 |
| Rear hydraulic lift pressure relief valve setting | 180 bar (2610.000 psi) | p. 675 |
| Rear hydraulic lift cylinder safety valve setting | 210 - 215 bar (3045.000 - 3117.500 psi) | p. 675 |
| Pump control coupling hub locknut torque | 29 N·m (21.39 lb ft) | p. 535 |
| Auxiliary control valve retaining bolts torque | 59 N·m (43.52 lb ft) | p. 545 |
| Side remote control valves, pressure relief valve (C2) torque | 30 N·m (22 lb ft) | p. 547 |
| HFC R134A refrigerant quantity | 0.75 kg (1.653 lb) | p. 821 |
| Front tyre pressure for toe-in check | 2.5 bar (36 psi) | p. 798 |
New Holland T4030V, T4040V Common Problems This Manual Covers
Excessive noise from the creeper
The creeper troubleshooting in the Transmission section traces this noise to worn or defective internal components. The fix is to remove the clutch casing to reach them, then replace the damaged parts. The creeper procedures sit in the Transmission section with the reverser and Hi-Lo unit.
Manual Section: Transmission - Creeper - Troubleshooting p. 177PTO slips and loses speed at the grooved PTO shaft terminal
The rear mechanical PTO control troubleshooting in the Power Take-Off (PTO) section lists two causes. Either the clutch disk or the engine flywheel pressure plate is worn, or the PTO clutch lever is out of adjustment. Check the data, replace the worn parts, then adjust the clutch lever.
Manual Section: Power Take-Off (PTO) - Rear mechanical control - Troubleshooting p. 448Brake pedal stroke too long
The hydraulic service brakes troubleshooting in the Brakes and Controls section points to air in the brake circuit. Follow the circuit bleeding procedure in the same section to purge it. Once the pedal firms up, use the pressure tests to confirm the system against the 17.6 bar (255.20 psi) working pressure for the hydraulic service brakes.
Manual Section: Brakes and controls - Hydraulic service brakes - Troubleshooting p. 477Three-point hitch lift does not rise
The rear three-point hitch troubleshooting in the Hitches, Drawbars and Implement Couplings section blames a clogged oil filter. Replace the filter, which is covered under reservoir, cooler and filters in the Hydraulic Systems section. If the lift still will not rise, check the 180 bar (2610.000 psi) lift relief valve setting before you strip the lift assembly.
Manual Section: Hitches, drawbars, and implement couplings - Rear three-point hitch - Troubleshooting p. 736Frequently Asked Questions
Which New Holland tractors does this service manual cover?
It covers the T4030V and T4040V, with cab and without cab, including Model Year 2012 versions. The book is New Holland part number 47888352, in English, dated July 2016 and written for the Latin America market. Engine codes are F5AE9484B for the T4030V and F5AE9484G for the T4040V. p. 2
What engine speeds give the rated PTO speeds?
Run the engine at 2196 RPM for 540 RPM at the PTO shaft. The 540E setting needs only 1535 RPM at the engine. The optional 1000 RPM PTO calls for 2260 RPM. p. 428
What hydraulic pressures and pump outputs are listed?
The maximum pressure valve on the side auxiliary valves is calibrated at 190 - 195 bar (2755 - 2827 psi). The rear hydraulic lift pressure relief valve is set at 180 bar (2610.000 psi). Rated output depends on which pump is fitted. The A 25 gives 28.19 l/min, the A 31 XRP2 gives 34.77 l/min and the C 42 high-flow pump gives 47.36 l/min. p. 545
How much transmission oil and A/C refrigerant are specified?
The engine removal procedure gives the prescribed quantity for the transmission casing as 44 l (11.62 US gal). On cab versions the climate control system takes 0.75 kg (1.653 lb) of HFC R134A refrigerant. p. 24
Does the manual include wiring diagrams, hydraulic schematics and fault codes?
Yes. The harnesses and connectors section has numbered electrical schematic sheets. Sheet 01 covers the battery cut-out, power socket and wiper/washer pumps circuit, and sheet 14 covers the engine, sensors and transmitters circuit. Component diagrams are included too. The hydraulic systems section has hydraulic schemas for mechanical and Power Shuttle transmission tractors and for the remote control valves. The fault codes DTC section has diagnostic cards such as 1008-Fast up/down switch failure and 2021-Transmission harness disconnected. p. 923
