This is the factory repair manual for the New Holland TR89 and TR99 twin-rotor combines. It is split into five sections that follow the machine: the electrical system, which is the largest and runs from page 2 to page 389 with schematics and connector views, the hydraulic and hydrostatic systems, the drive systems, the feeding and threshing components, and clean grain handling. The hydraulic section carries the numbers a real diagnosis needs, including the priority and secondary system pressures and where to check each of them.
What's Inside This New Holland TR89, TR99 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Electrical System | 2-389 | Wiring Schematics and Harness Routing, Connector Views, Fuses and Relays, Charging and Starting Circuits, Monitors and Sensors, Lighting, Circuit Fault Finding |
| Hydraulic and Hydrostatic Systems | 390-661 | Main Pump and Flow Divider, Priority Steering Circuit and Secondary Function Circuit, Relief Valve Pressures and How to Check Them, Hydrostatic Pump and Motor, Case Drain and Oil Cooler Circuit, Reel and Header Lift Valves, Valve Overhaul |
| Drive Systems | 662-980 | Engine Drive and Belt Layouts, Hydrostatic Ground Drive, Final Drives and Axles, Variable Speed Drives, Gearboxes, Drive Shaft and Bearing Service |
| Feeding and Threshing Components | 981-1180 | Header and Feeder House, Twin-Rotor Threshing and Separation, Concaves and Rotor Speed, Beater and Discharge Beater, Straw Chopper and Residue Handling |
| Clean Grain Handling | 1181-1298 | Cleaning Shoe, Sieves and Chaffer, Cleaning Fan, Clean Grain and Tailings Elevators, Grain Tank and Unloading Auger |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Priority (steering) circuit | ||
| System pressure | 138 bar +7/-0 (2000 PSI +100/-0), relief valve not adjustable | |
| Secondary circuit (all functions except steering) | ||
| System pressure | 155 bar +7/-0 (2250 PSI +100/-0), relief valve not adjustable | |
| Main hydraulic system | ||
| Flow divider, steering / electrohydraulic split | 15 L/min (4 GPM) / up to 53 L/min (14 GPM) | |
| Hydrostatic pump and motor | ||
| Case drain flow | Up to 26.5 L/min (7 GPM) through the oil cooler circuit | |
| Oil cooler circuit | ||
| Check valve | 15 PSI | |
| Secondary circuit | ||
| Secondary circuit test point | Reel lift quick coupler | |
| TR89 / TR99 | ||
| Threshing type | Twin rotor axial-flow | |
New Holland TR89, TR99 Common Problems This Manual Covers
Steering is heavy or slow while the rest of the hydraulics work normally.
Check the priority circuit before you touch the steering box. It should hold 138 bar (2000 PSI) and it takes the first 15 L/min from the flow divider, so a steering complaint with healthy secondary functions points at the divider or the priority relief. Neither relief valve is adjustable, so if the pressure is low the fix is a valve or a pump, not a turn of a screw. The hydraulic section gives the test port and the procedure.

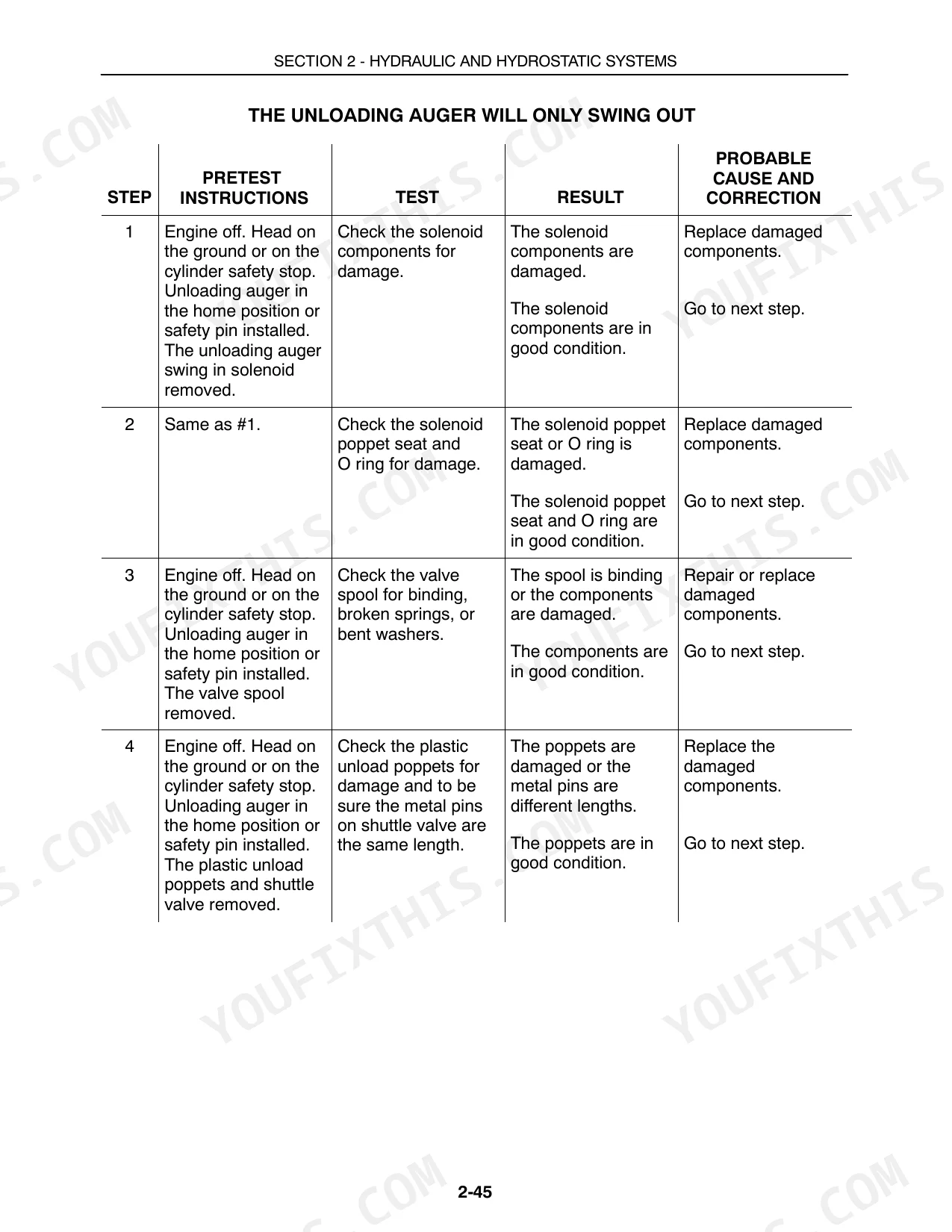

Manual Section: Section 2 - Hydraulic and Hydrostatic SystemsHeader, reel or unloading functions are slow, weak, or fade when the oil warms.
Tap the secondary circuit at the reel lift quick coupler, which the manual names as the most convenient test point. It should read 155 bar (2250 PSI). A secondary system that goes over relief under load points at a restriction or a failing pump rather than the function you are watching. Check the case drain flow too, since up to 26.5 L/min should be passing through the oil cooler circuit past its 15 PSI check valve.
Manual Section: Section 2 - Hydraulic and Hydrostatic SystemsAn electrical fault, a monitor reading that makes no sense, or a circuit that will not respond.

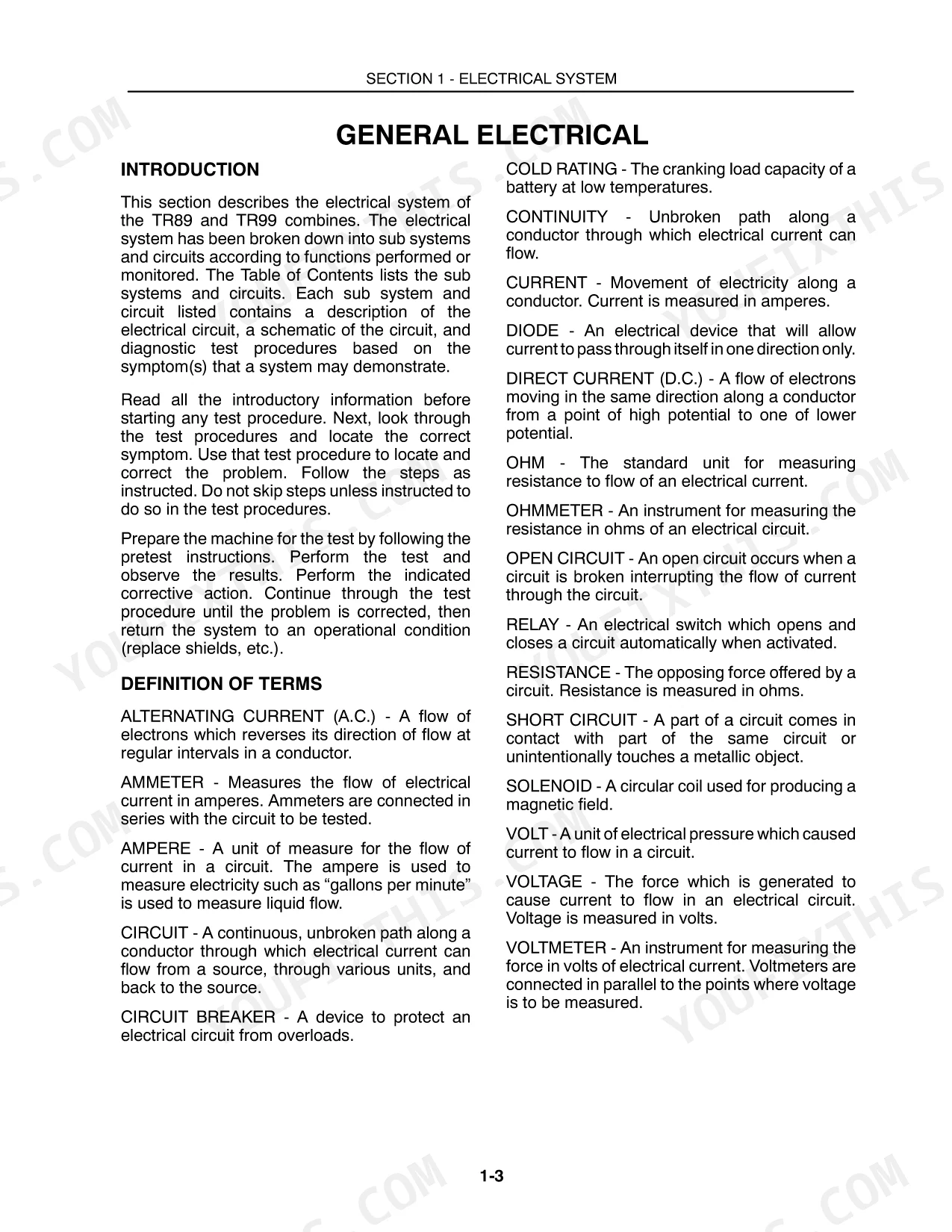

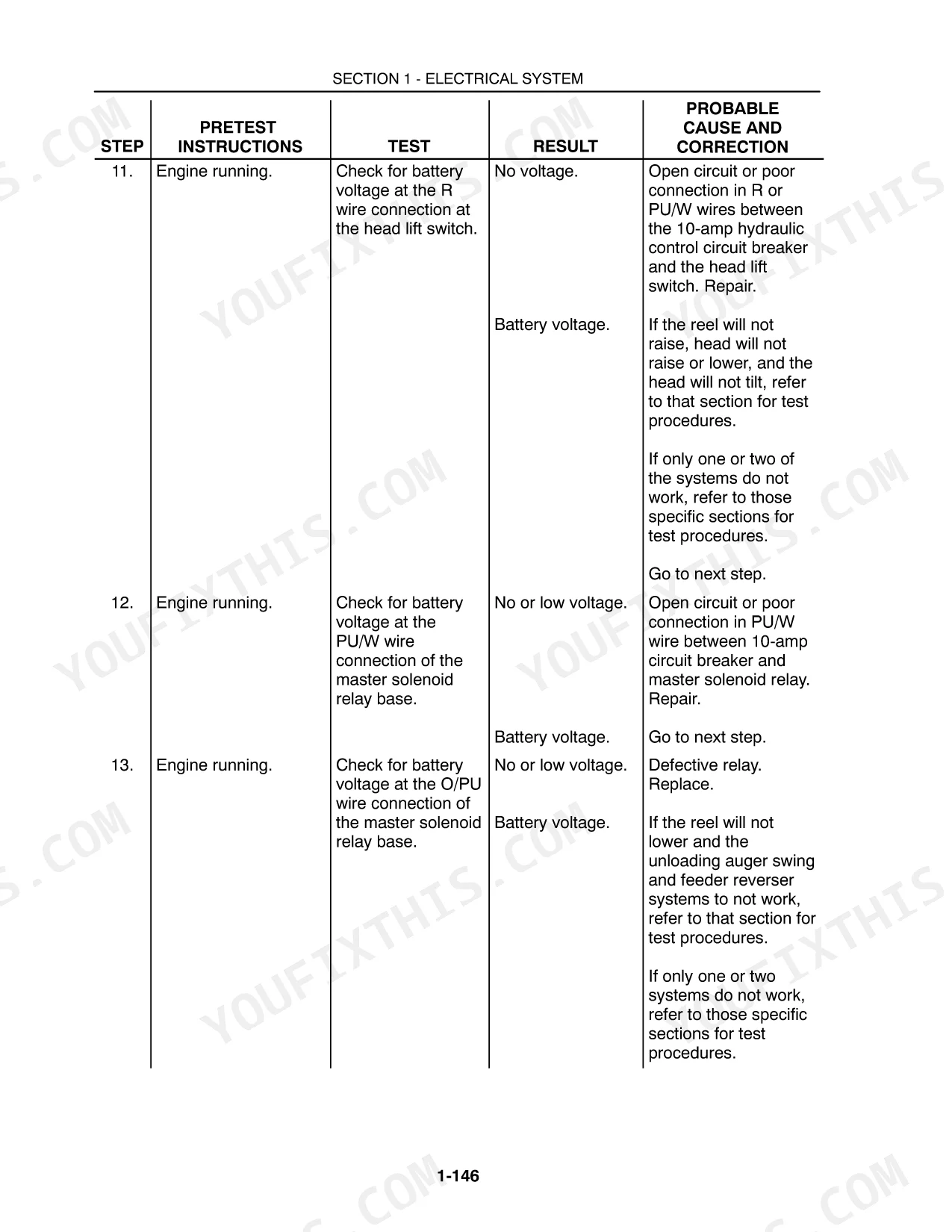

Start in the electrical section, which runs from page 2 to page 389 with schematics, harness routing and connector views. Find the circuit, trace it to the connector the drawing names, and test it there rather than replacing sensors. Check the charging system first when several unrelated monitor faults appear together, because low system voltage upsets sensors across the machine.
Manual Section: Section 1 - Electrical SystemFrequently Asked Questions
Which combines does this manual cover?
The TR89 and the TR99, both twin-rotor axial-flow machines. They share the electrical architecture, the hydraulic and hydrostatic systems, the drives and the grain handling, so the manual treats them together and calls out the model where a component differs.
What hydraulic pressures should the machine make?
Two figures matter. The priority circuit, which feeds the steering, should read 138 bar +7/-0 (2000 PSI +100/-0). The secondary circuit, which is everything except steering, should read 155 bar +7/-0 (2250 PSI +100/-0), and the most convenient place to check it is the reel lift quick coupler. Neither relief valve is adjustable, so a pressure that is out means a valve or a pump problem, not a setting.
How is the hydraulic flow split?
The flow divider sends the first 15 L/min (4 GPM) to the steering system and the remaining flow, up to 53 L/min (14 GPM), to the electrohydraulic circuit. Case drain oil from the hydrostatic pump and motor, up to 26.5 L/min (7 GPM), passes through the oil cooler circuit, which carries a 15 PSI check valve.

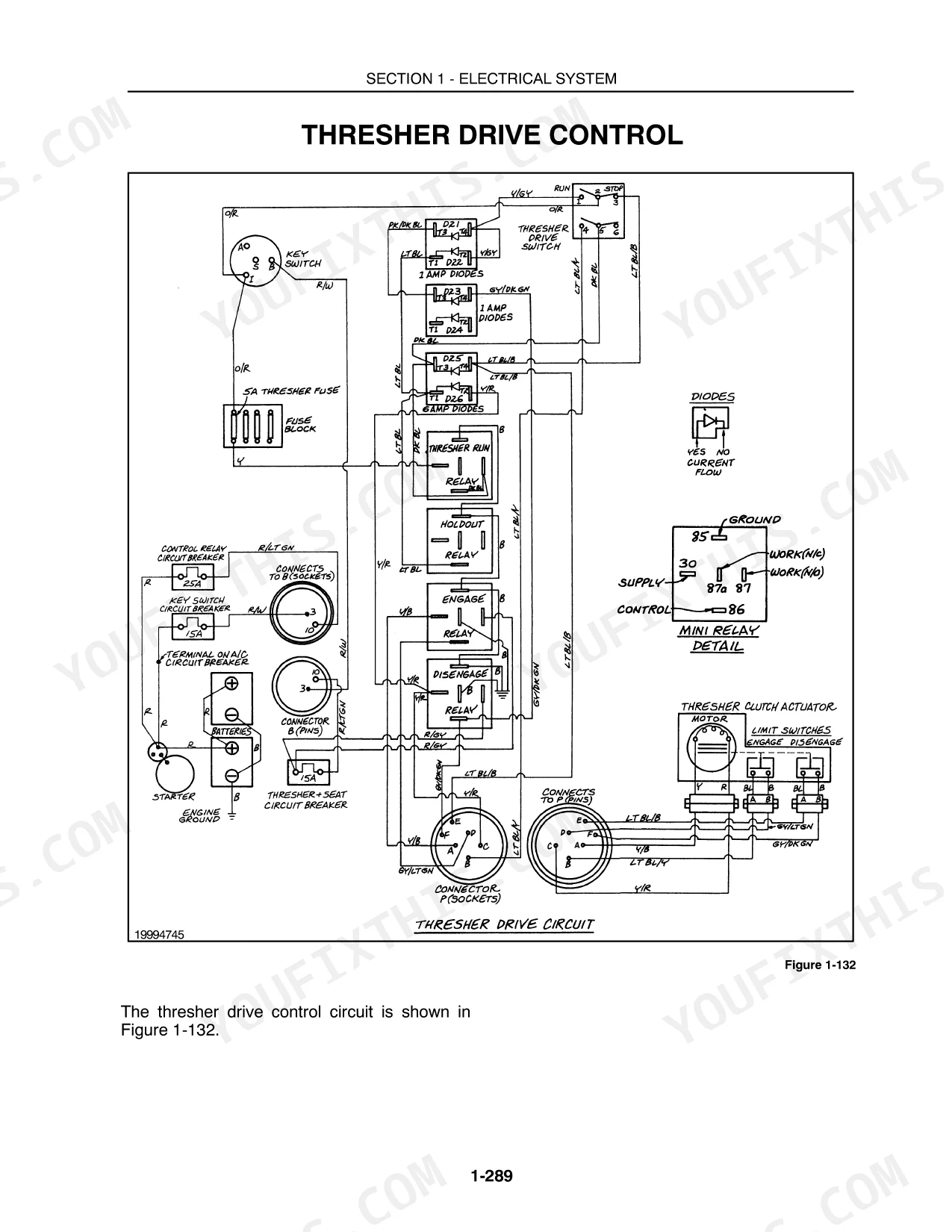

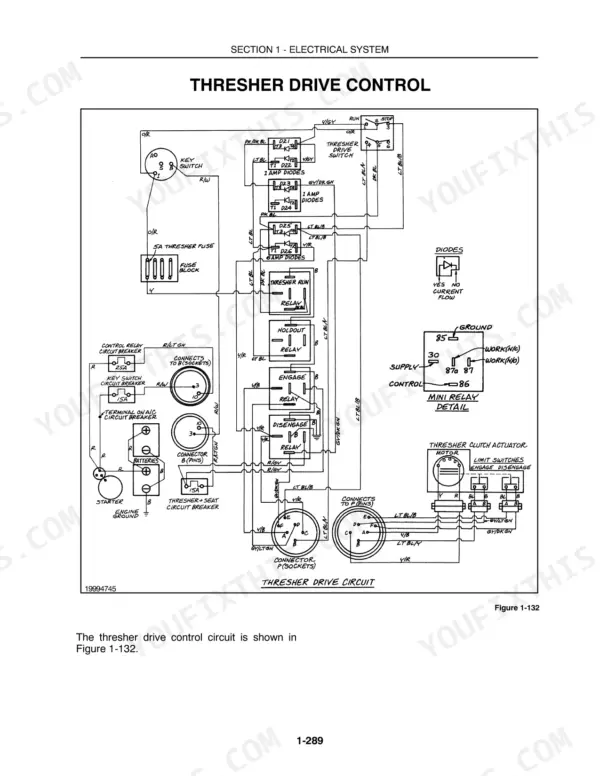

Does it include the full wiring diagrams?
Yes, and they take up the largest part of the book. The electrical section runs from page 2 to page 389 with the wiring schematics, harness routing and connector views, the charging and starting circuits, the monitors and sensors, the fuses and relays, and the circuit fault-finding procedures.
How big is the manual and can I search it?
It is 1298 pages in English, a printable PDF. Most of it carries a searchable text layer, though some scanned schematic pages are images. Print the pages you need for the bench and keep the rest on a laptop in the workshop.
How quickly can I access this New Holland TR89, TR99 manual after buying?
A 1298-page Repair Manual in scanned PDF format (79 MB), available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this New Holland TR89, TR99 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
