An hour from now you could be purging air out of the hydro drive with the New Holland G5030, G5035 service manual PDF propped open beside the machine: 190 pages of factory service data for both zero-turn mower variants, filed under OEM ID 84218042. Hydraulic schematics trace the Hydro-Gear P Series pump circuit line by line, while wiring diagrams walk the start, kill, and PTO engagement circuits with terminal-by-terminal switch tests. Deck work gets the same coverage: drive belt routing, blade spindle rebuilds, and side-to-side leveling. Fill the hydro system with 3.8 liters (1 gallon) of fresh fluid, change it yearly or every 250 hours, and replace the filter after the first 50. A guessed torque wrecks a spindle bearing; a guessed relief pressure wrecks a pump. Buy this bookmarked, text-searchable PDF once and it belongs to you and this mower for good.
What's Inside This New Holland G5030, G5035 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 3-34 | Description, Hydrostatic Drive, Parking Brake, Steering |
| Engine | 35-42 | Engine Identification, Kawasaki FX751V and FX850V Engine Service Manual, Air Cleaner Service, Fuel System Service, Spark Plug Service, Cooling System Cleaning, Throttle/Choke Cable |

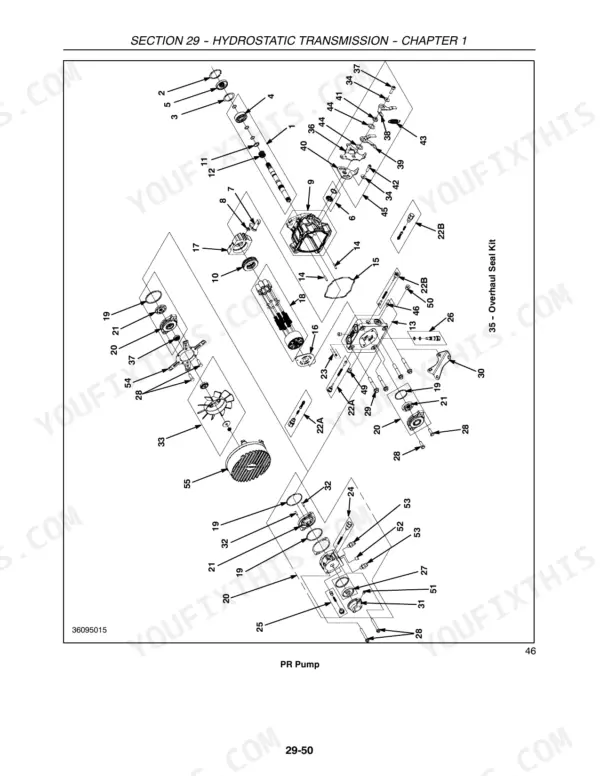

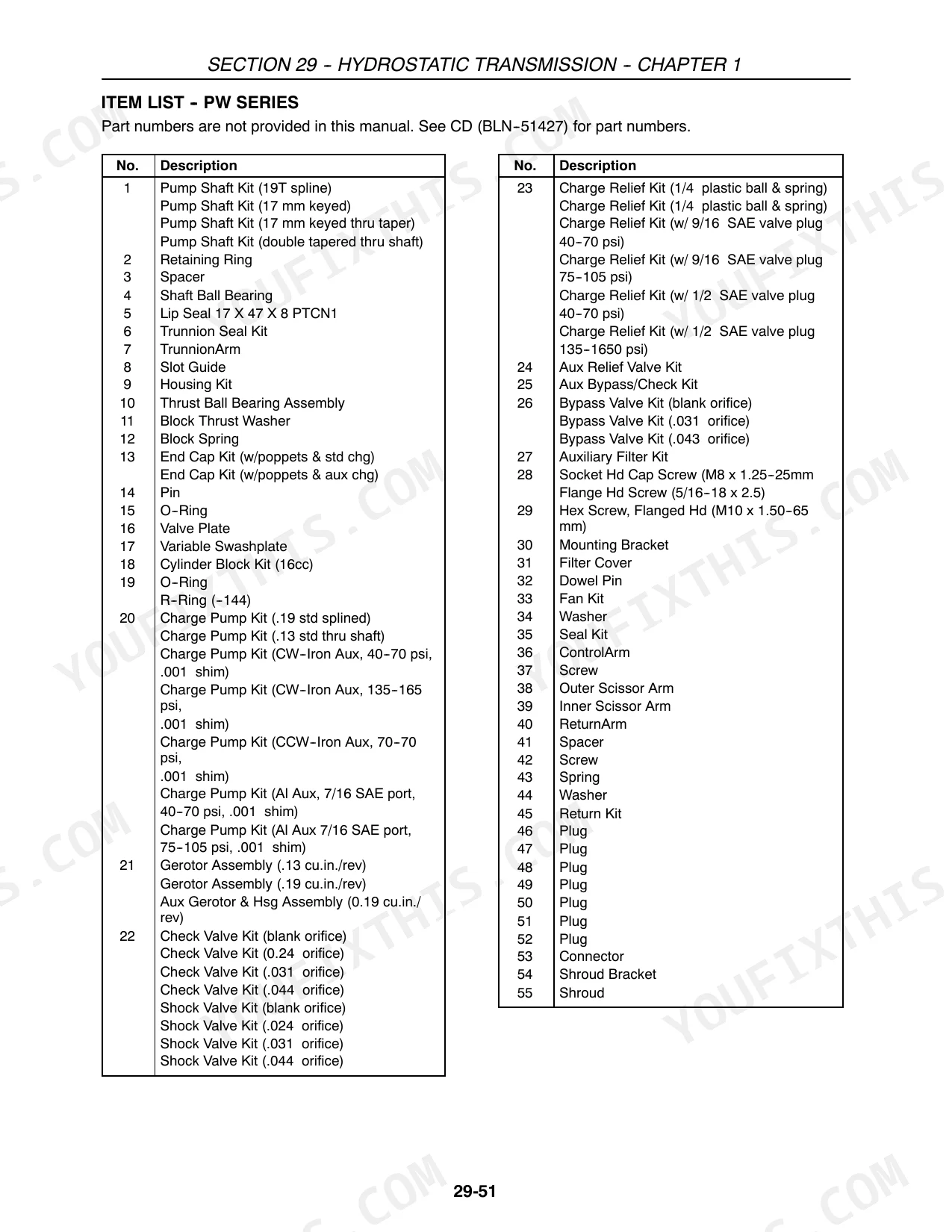

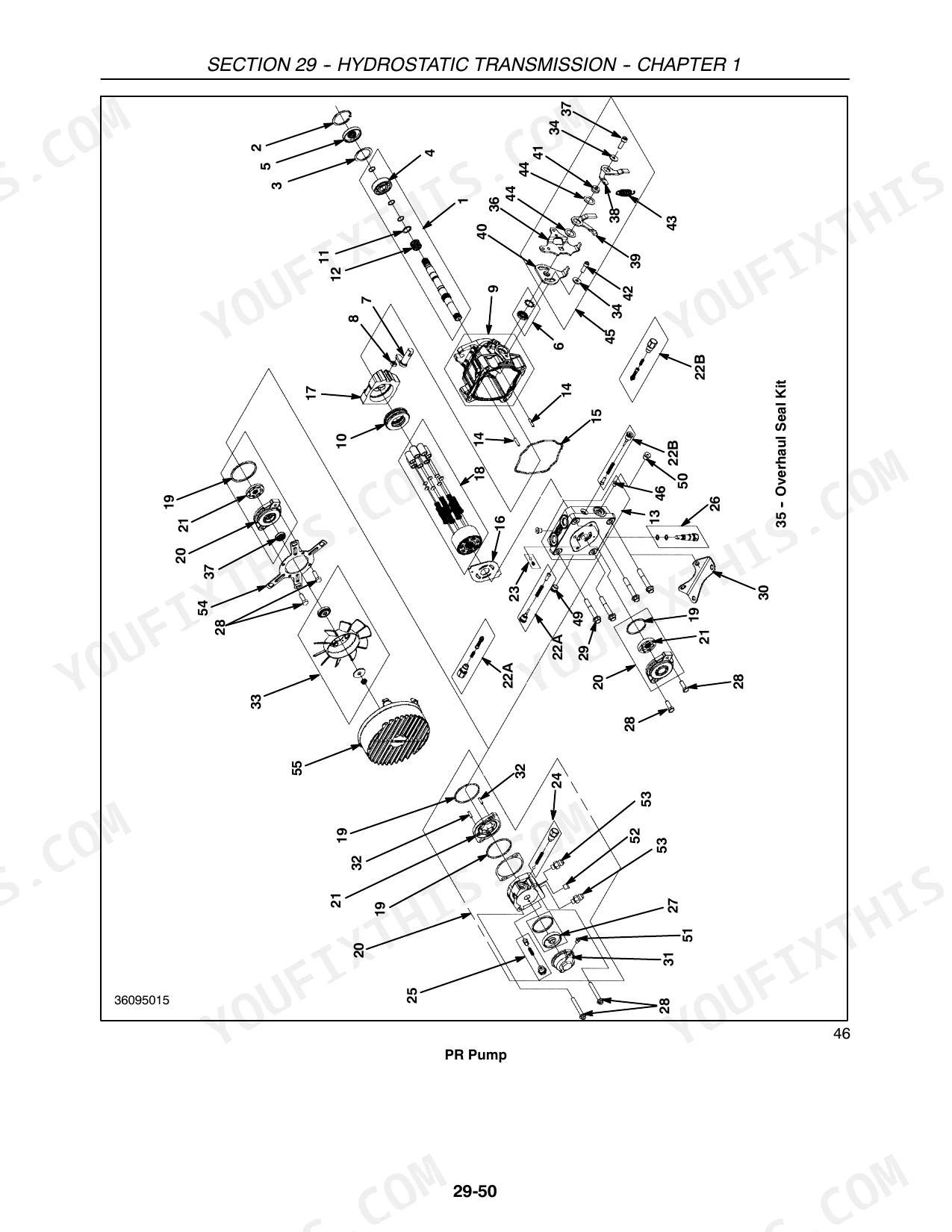

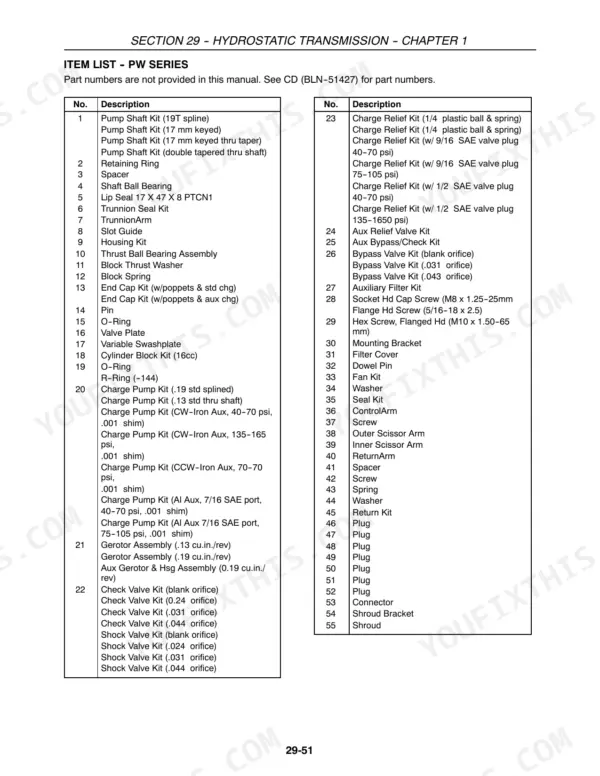

| Hydrostatic Transmission | 43-114 | Hydrostatic Maintenance, Bleeding Purging the Hydraulics, Hydro Gear Pump P Series |
| Power Take-Off (PTO) | 115-124 | PTO Drive Belt, PTO Removal and Replacement, PTO Clutch Replacement (Removal, Installation) |
| Brakes | 125-128 | Parking Brake (Adjustment) |
| Electrical System | 129-160 | Electrical Components (Electrical Component Locations, Battery Maintenance, Installing the Battery, Removing the Battery, Charging the Battery, Cleaning Battery and Terminals, Ignition Switch, Removal, Terminal Identification, Testing, Installation, PTO Switch, Hour Meter, Left and Right Transmission Safety Switches, Seat Safety Switch, Relays, Relay Operation, Fuses) |
| Mower Deck | 161-190 | Deck Drive Belt, Blade Spindle Servicing |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Battery | 12 volt, 400 CCA | p. 25 |
| Hydraulic System Capacity | 3.8 L (1 gal) | p. 27 |
| Hydraulic oil filter change interval | initially after the first 50 hours | p. 50 |
| Hydraulic system fluid change interval | yearly or every 250 hours | p. 50 |
| Acceptable gpm flow droop (PR) | 2.5 gpm (9.5 l/min) | p. 71 |
| Engine Oil Capacity (with filter change) | 2.3 L | p. 27 |
| Fuel Tank Capacity | 44.8 L | p. 27 |
| Rear Wheel Bolt Torque | 101 N⋅m | p. 27 |
| Mowing Blade Bolt Torque | 125 lb ft | p. 18 |
| Spindle Pulley Nut Torque | 80 lb ft | p. 18 |
| G5030 | ||
| Engine Gross Horsepower | 27 Hp | p. 27 |
| G5035 | ||
| Engine Gross Horsepower | 31 Hp | p. 27 |
New Holland G5030, G5035 Common Problems This Manual Covers
New Holland G5030 sat all winter, now the starter just clicks and engine will not crank
Test the battery first; it must hold 12 volts and deliver 400 CCA, the spec listed on page 25. Clean both terminals and the ground cable to bare metal, then check the seat and transmission safety switches before condemning the starter. Battery and terminal cleaning steps start in the Electrical System section on page 129.
Manual Section: Electrical System p. 129Engine cranks strong but will not fire even with fresh gas in the tank
Pull the spark plugs and check for spark and fouling; gap new plugs to 0.75 mm per the specs on page 27. Replace the fuel filter and drain stale fuel from both 22.4 L tanks (44.8 L total) if it sat over winter. Engine fuel system and spark plug service procedures begin on page 39.
Manual Section: Engine p. 39Hydrostatic drive weak and jerky, mower whines and will not climb slight grades
Check hydraulic oil level and condition first; the system holds 3.8 L and the fluid should be changed yearly or every 250 hours per page 50. Change the filter, then bleed and purge air from the hydraulics following the Hydrostatic Transmission procedures starting on page 43. Whining with jerky drive usually means aerated fluid.
Manual Section: Hydrostatic Transmission p. 43PTO switch on but blades will not engage, no clunk from the clutch
Verify battery voltage at the PTO clutch connector with the switch on; check the fuse and seat switch if there is none. The wiring diagram on page 148 traces the clutch circuit. If the clutch checks bad, replace it following the PTO section starting on page 115 and torque the clutch bolt to 45 lb ft.
Manual Section: Power Take-Off (PTO) p. 115Deck shakes badly at full throttle and leaves uncut streaks between blade passes

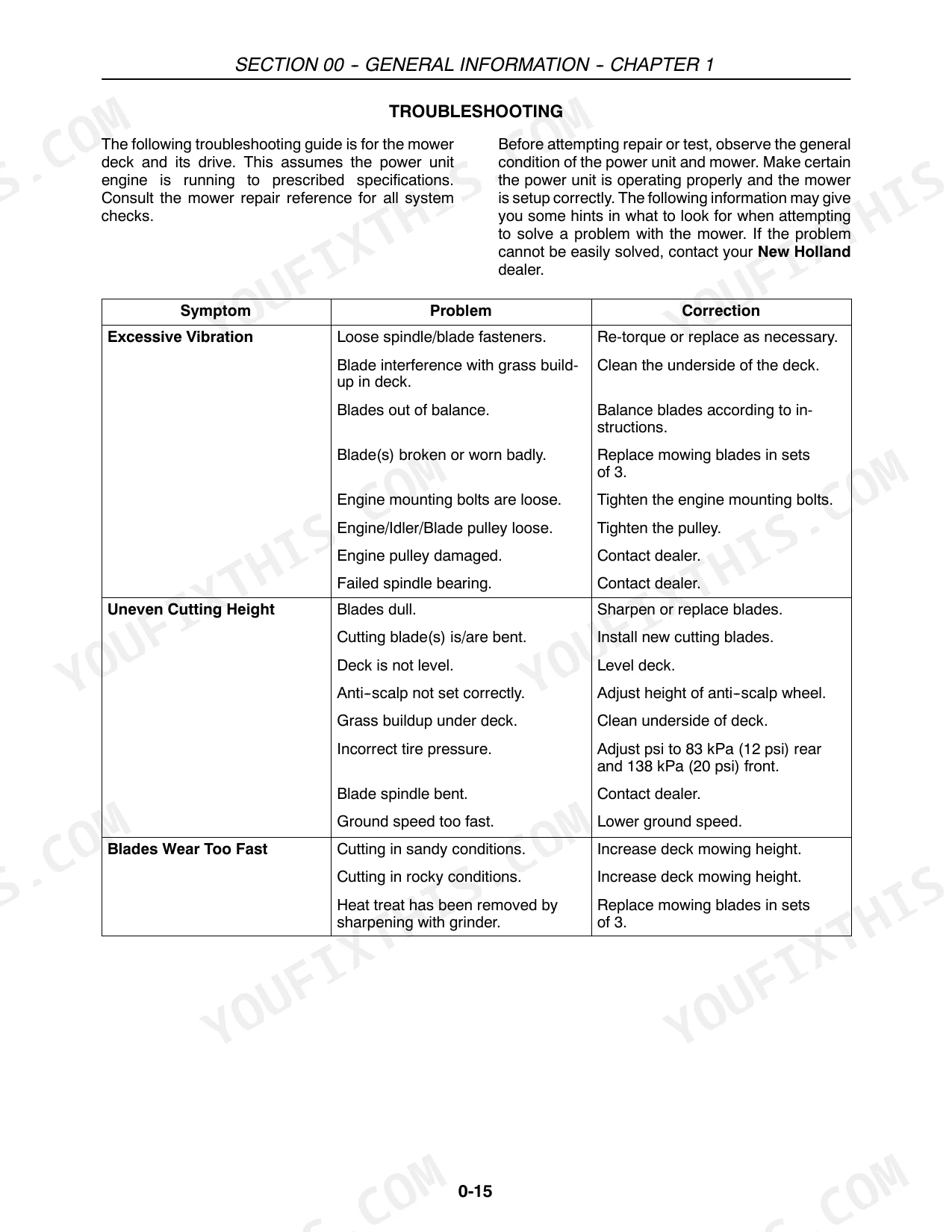

Inspect the blades for bends and the spindle bearings for play; the deck troubleshooting chart on page 29 covers vibration and streaking. Replace worn spindle bearings following the deck section starting on page 161, then torque blade bolts to 125 lb ft and spindle pulley nuts to 80 lb ft per page 18.
Manual Section: Mower Deck p. 161Frequently Asked Questions
What is the torque specification for the mowing blade bolt on the New Holland G5030 and G5035?
The mowing blade bolt (9/16-12 x 1 3/4 Grade 8) must be torqued to 125 lb ft (170 N⋅m). p. 18
What are the replacement specifications for the battery on the G5030 and G5035?
The original battery is a 12 volt, 400 CCA maintenance-free battery. p. 131
What is the engine oil capacity for the G5030 and G5035?
The engine crankcase holds 2.3 L (2.4 US quarts) with a filter change and 2.1 L (2.2 US quarts) without one. p. 27
How often should the hydraulic oil and filter be changed?
The hydraulic oil and filter should be changed yearly or every 250 hours, whichever occurs first. p. 19
What is the correct spark plug gap for the Kawasaki engines on the New Holland G5030, G5035 zero-turn mowers?
The correct spark plug gap for the Kawasaki FX751V and FX850V engines is 0.75 mm (0.030 in). p. 27
