From the precautionary statements up front to the delivery report checks at the back, this 126-page New Holland TC48DA, TC55DA operator manual PDF (OEM 87301120) walks both tractors through safety, operation, lubrication and maintenance, and specifications end to end. Factory wiring diagrams trace the electrical circuits, while the controls and instruments coverage explains every lever, dashboard indicator, and the tractor hydraulics before you ever start the engine. Lubrication and maintenance fills close to a third of the book, laying out fuel and lubricant service procedures and the intervals that carry a small diesel through a full season. Fill the 51.0-liter fuel tank, then torque the wheel hardware, front and rear, to 125 ft. lbs. (169 N·m) when the schedule calls for it. Every hour spent hunting a number is an hour the field waits. Bookmarked and text-searchable, it downloads once and stays yours for as long as you run these tractors.
What's Inside This New Holland TC48DA, TC55DA Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 8-21 | Precautionary Statements, Operating the Tractor |
| General Information | 22-25 | Minimum Hardware Tightening Torques |

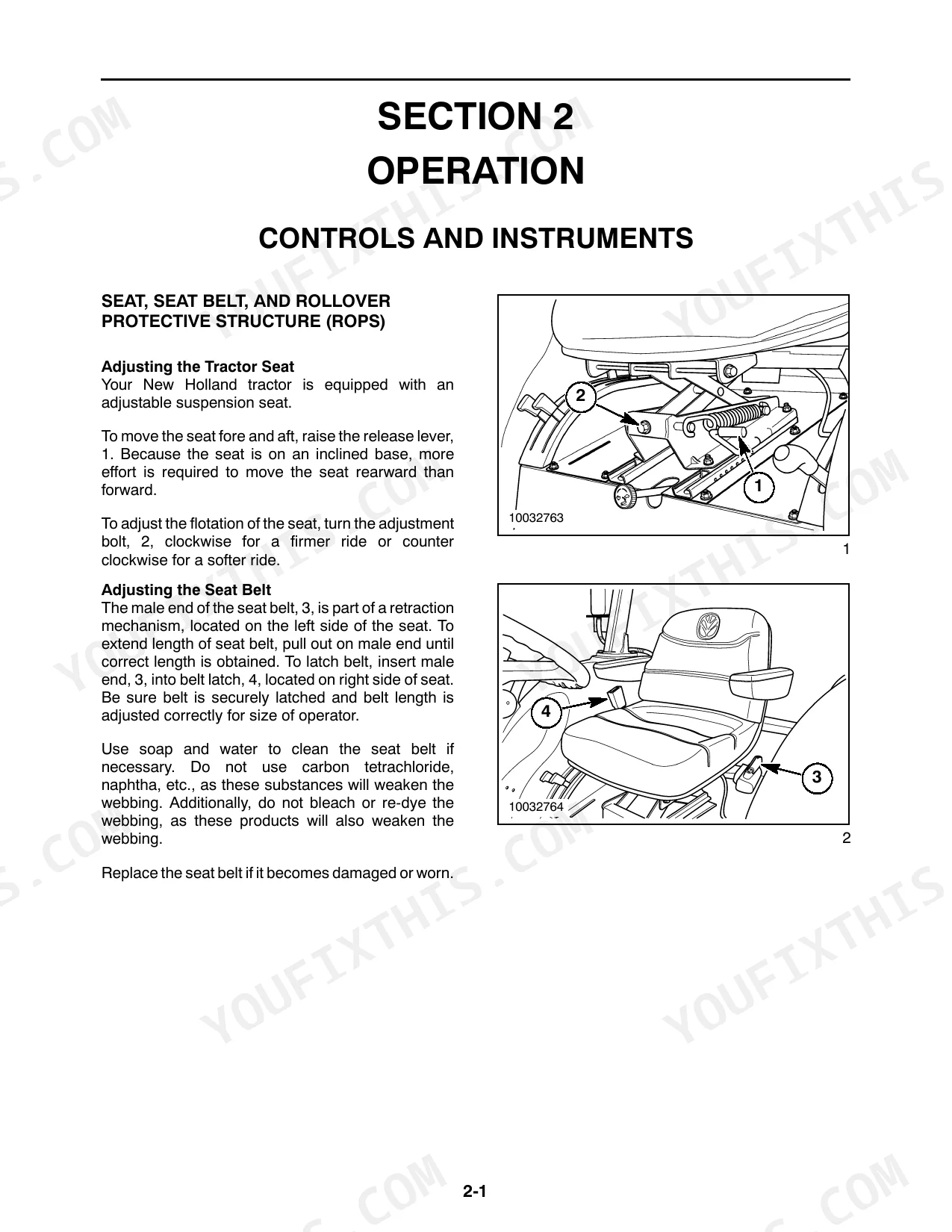

| Operation | 26-65 | Controls and Instruments, Starting the Engine, Lighting, Tractor Hydraulics |

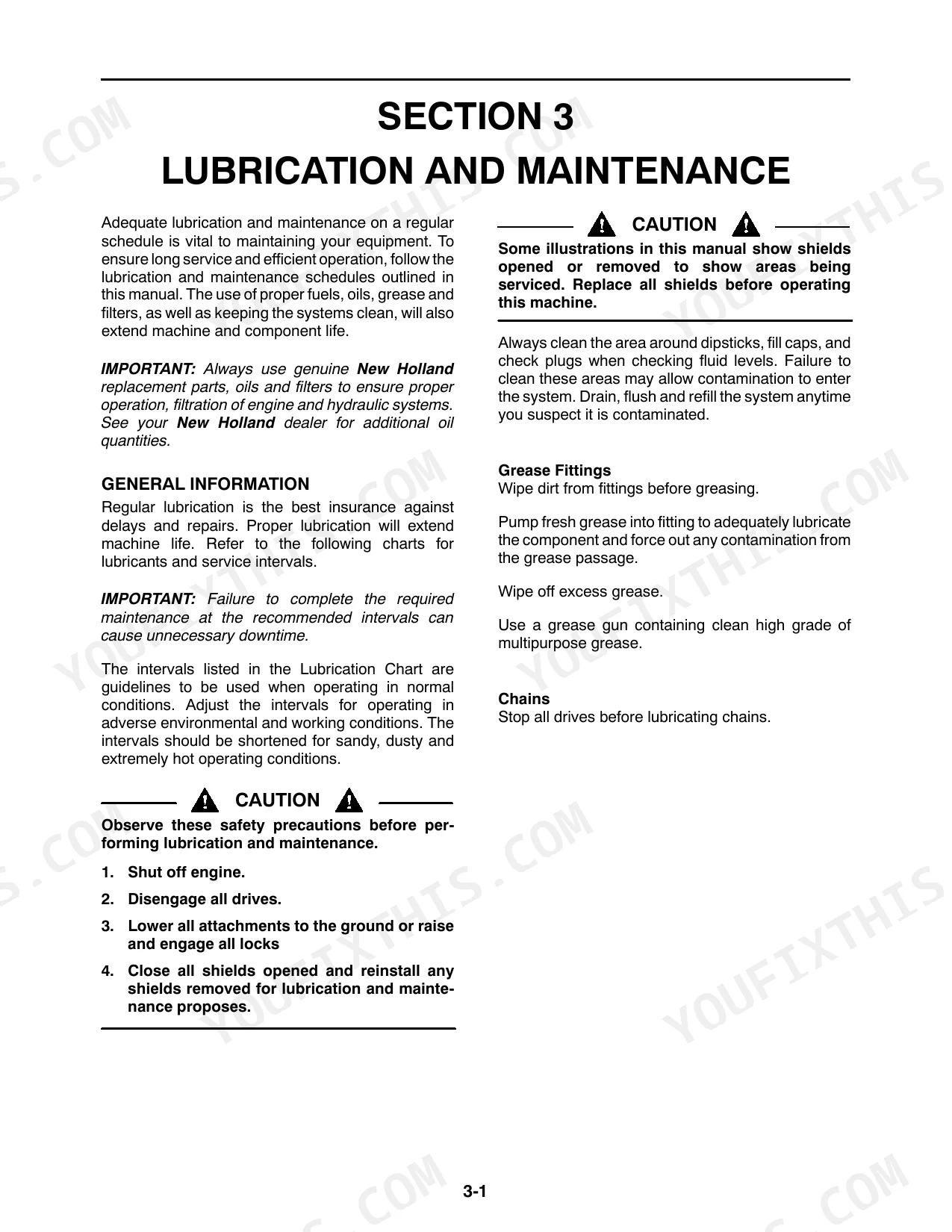

| Lubrication and Maintenance | 66-105 | Fuel and Lubricant Service Procedures, General Maintenance |
| Specifications | 106-119 | Engine, Cooling System, Brakes |
| Delivery Report | 122-126 | Inoperative Service Checks, Safety Items Checks, Operative Service Checks, Fluid Levels, Bolt Torque |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Injector line fitting torque | 18-22 ft. lbs. (24-29 N⋅m) | p. 75 |
| Front Wheel Torque | 125 ft. lbs. (169 N⋅m) | p. 95 |
| Rear Wheel Torque | 125 ft. lbs. (169 N⋅m) | p. 95 |
| Brake Disc Diameter (per axle) | 175 mm x 143 mm (6.9″ x 5.6″) | p. 108 |
| Fuel Tank Capacity | 51.0 liters | p. 106 |
| Engine Crankcase Oil Capacity (with filter) | 7.0 liters | p. 106 |
| Rear Axle & Transmission Oil Capacity | 42.0 liters | p. 106 |
| Front Axle Final Reduction/Differential Gear Case Oil Capacity | 5.8 liters | p. 106 |
| Front Wheel Bolt Torque | 125 ft. lbs. | p. 93 |
| Rear Wheel Bolt Torque | 125 ft. lbs. | p. 93 |
| Rear Disc Torque | 180 ft. lbs. | p. 93 |
| ROPS Mounting Bolt Torque (bolts) | 55 ft. lbs. | p. 84 |
| Main spring length | 77 mm | p. 53 |
New Holland TC48DA, TC55DA Common Problems This Manual Covers
New Holland TC48DA fuel cap lets rain water into the tank, engine sputters and dies
Drain the fuel filter sediment bowl until clear fuel runs, then inspect the cap seal and replace it if cracked or missing. If the tank took on serious water, drain it completely and refill; capacity is 51.0 liters (page 106). Bleed the system, then snug injector line fittings to 18-22 ft. lbs. (24-29 N⋅m) as listed on page 75.
Manual Section: Fuel System p. 75PTO lever sticks or will not disengage after running a mower or implement
Drop the engine to low idle, push the clutch pedal to the floor, and work the lever; never leave the seat with the PTO turning. Review PTO control operation in the Operation section on page 26. Clean and oil the linkage pivots. If the clutch keeps dragging, change old transmission oil at the 300 hour interval shown on page 78.
Manual Section: Operation p. 26Three-point hitch and rear remote hydraulics suddenly stop working during field work
Check the transmission and hydraulic oil level before anything else; low oil starves the pump on hillsides and the hitch drops first. Top up to the full mark; the rear axle and transmission sump holds 42.0 liters (page 106). If the level is good, replace a plugged hydraulic filter and confirm the remote levers are in neutral, not detented.
Manual Section: Hydraulic SystemEngine cranks slowly in cold weather and glow plug light stays on too long
Hold the key in the preheat position until the light goes out; the cold-start procedure is in the Operation section, page 26. If cranking is slow, change to fresh oil; the crankcase takes 7.0 liters with a filter (page 106). A light that never goes out points to the glow plug relay; trace it on the wiring diagram, page 103.
Manual Section: Engine StartingFront wheels wobble or wheel bolts keep working loose during loader work
Torque front and rear wheel bolts to 125 ft. lbs. (169 N⋅m) as listed on page 93, and recheck after the first hour of loader work. Loose bolts wallow out the disc holes fast on soft ground. Add wheel bolt checks to your daily walk-around during loader season, alongside the maintenance schedule on page 66.
Manual Section: Lubrication and Maintenance p. 93Frequently Asked Questions
What are the torque specifications for the front wheel bolts on the New Holland TC48DA?
The front wheel bolts for the New Holland TC48DA must be tightened to a torque of 125 ft. lbs. (169 N⋅m). This torque specification applies to both 2WD and FWD axle configurations. p. 93
What is the hydraulic pump capacity for the New Holland TC48DA?
The hydraulic pump capacity for the New Holland TC48DA is 45.5 lpm (12.0 U.S. gpm). p. 108
What is the recommended engine oil change interval for the New Holland TC48DA and TC55DA?
After the initial 50-hour break-in period, the engine oil and filter should be changed every 100 hours. If the tractor is operated under severe conditions, the interval should be shortened to 70 hours. p. 71
What is the correct fan belt tension for the New Holland TC48DA and TC55DA?
When 20-25 lbs. (9-11 kg) of thumb pressure is applied midway between the belt pulleys, a correctly tightened fan belt should deflect 7/16 inch to 9/16 inch (10 mm to 15 mm). p. 83
What is the fuel tank capacity for the New Holland TC48DA and TC55DA?
The fuel tank capacity for both the TC48DA and TC55DA models is 51.0 liters, which is equivalent to 13.5 U.S. gallons. p. 106
What format is this New Holland TC48DA manual in?
One searchable PDF covering 126 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Is this New Holland TC48DA manual print-friendly?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
