Working on a New Holland W110 or W130 wheel loader? This 712-page New Holland W110, W130 Service Manual PDF (OEM #6-81160) walks you through every system on both machines, from engine and transmission to steering, brakes, and loader hydraulics. You get full electrical schematic foldouts, hydraulic schematics covering the load travel stabilization valve, fan drive motor, and pump circuits, plus troubleshooting charts for the transmission, brakes, and air conditioning. Inside: pressure checks, stall test procedures, and page after page of torque tables. Refill the hydraulic reservoir with 68.5 litres after a filter change, and torque 1/4-inch Grade 8 hardware to 16 to 20 Newton metres. Forum threads won't tell you your pilot pressure spec. This bookmarked PDF will; download it, open it on any device, and put your loader back to work.
What's Inside This New Holland W110, W130 Manual

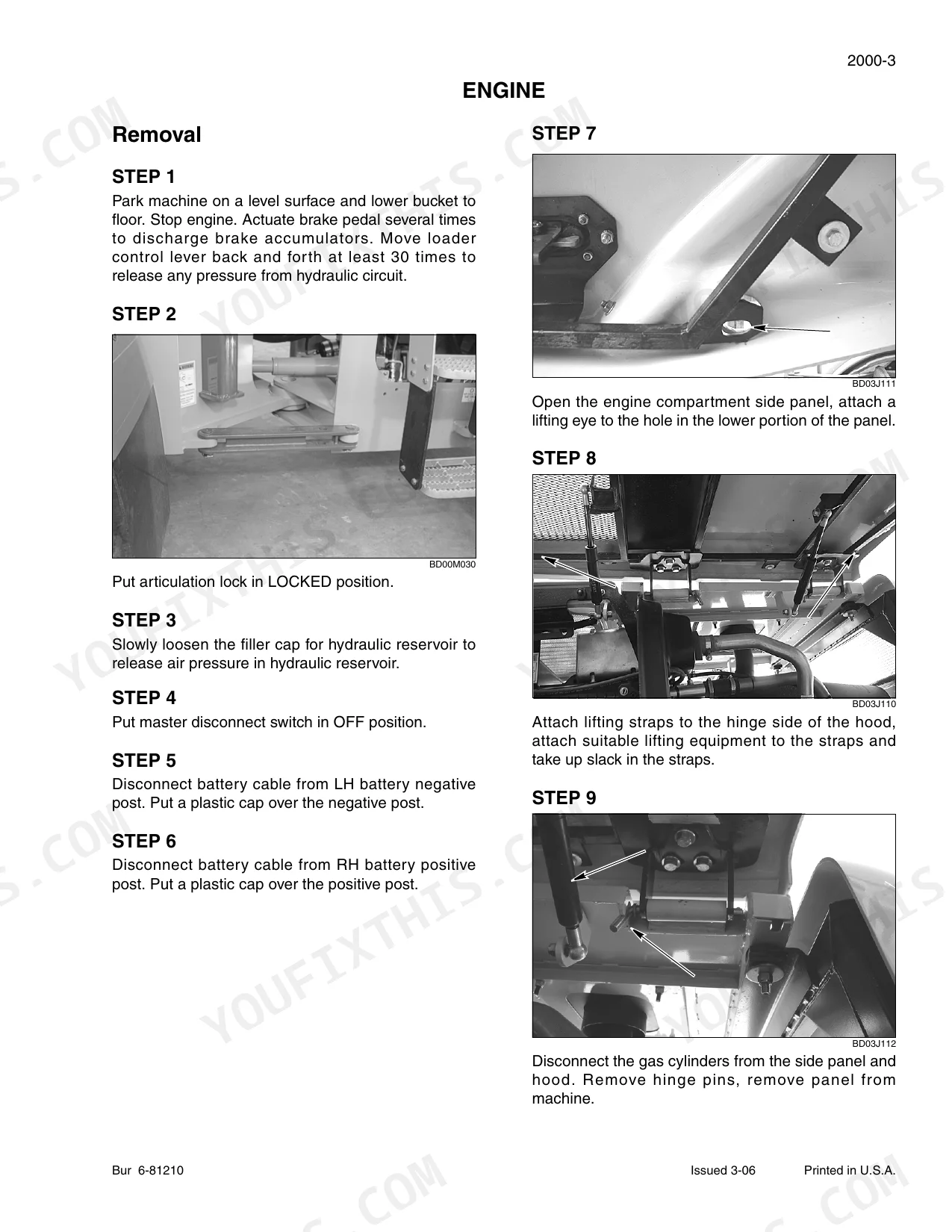

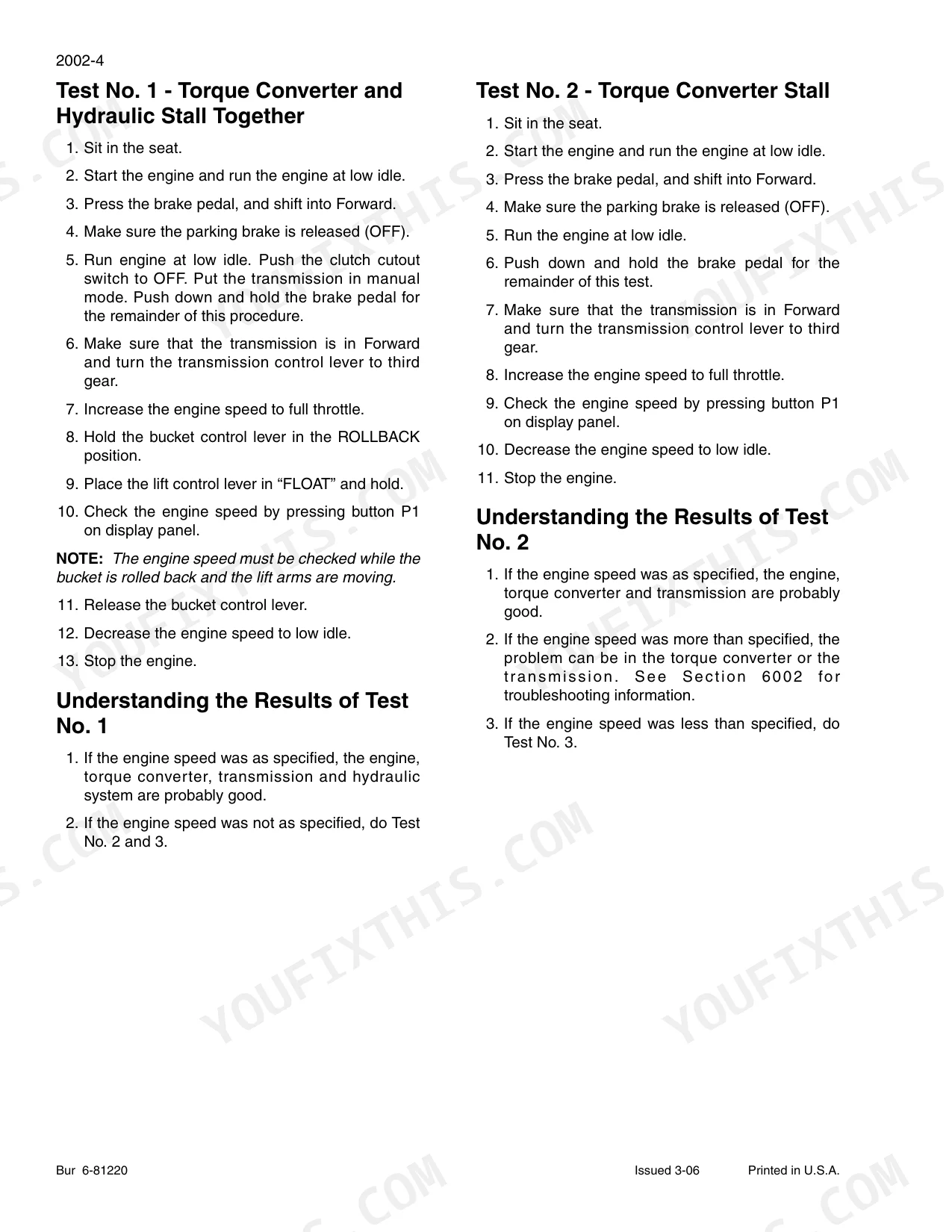

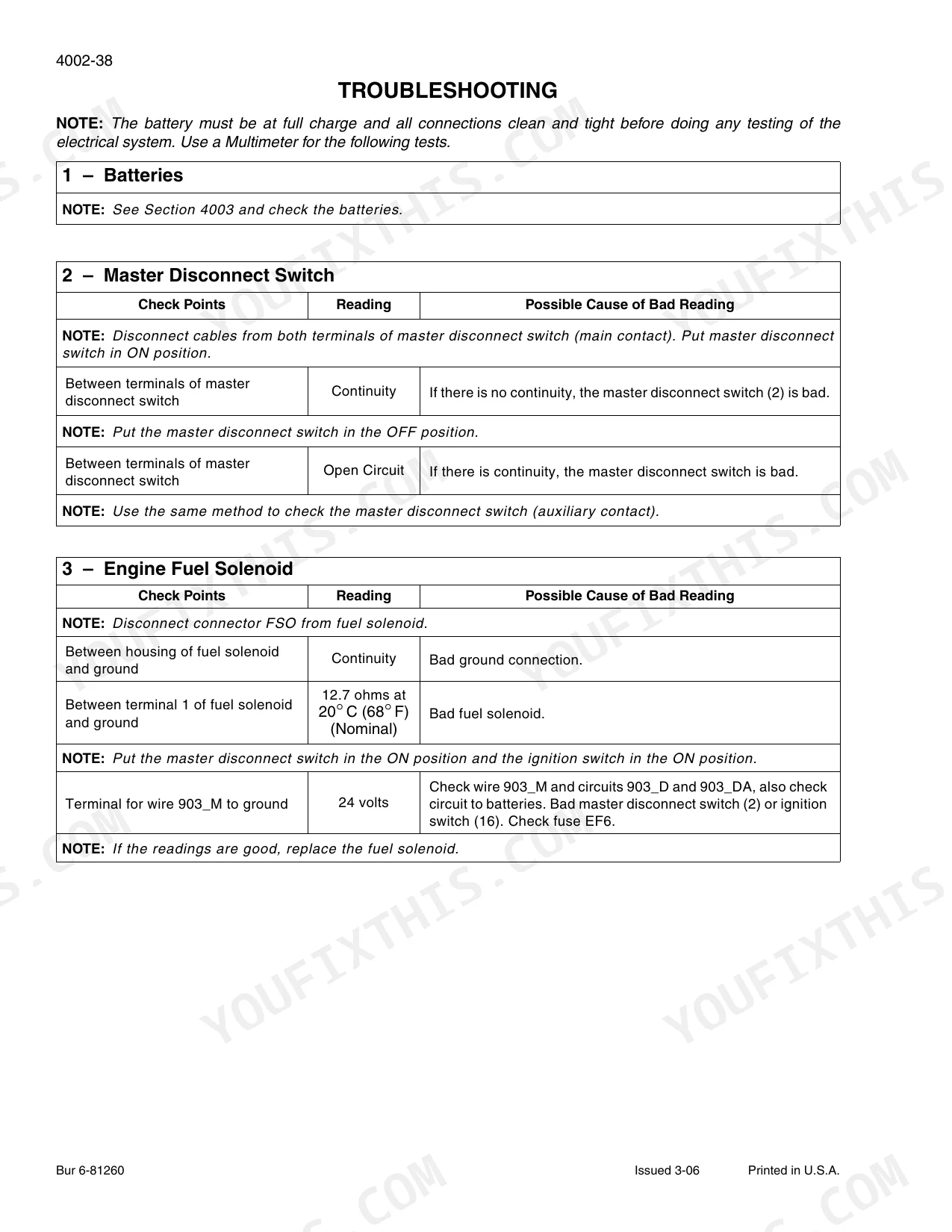

| System | Pages | Key Topics |
|---|---|---|
| General | 5-24 | Section Index - General (Standard Torque Specifications, Fluids and Lubricants, Metric Conversion Chart) |
| Engines | 25-56 | Section Index - Engines (Engine and Radiator Removal and Installation, Stall Tests) |
| Fuel System | 57-58 | Section Index - Fuel System |
| Electrical | 59-200 | Section Index - Electrical (Removal and Installation of Starter and Alternator, Electrical Specifications and Troubleshooting, Batteries, Instrument Cluster and Digital Display) |
| Steering | 201-260 | Section Index - Steering (Removal and Installation of Steering Components, Steering Specifications, Pressure Checks, And Troubleshooting, Steering Control Valve, Auxiliary Steering Priority Valve, Steering Cylinders, Center Pivot, Auxiliary Steering Motor and Pump) |
| Power Train | 261-466 | Section Index - Power Train (Removal and Installation of Power Train Components, Transmission Specifications, Pressure Checks, And Troubleshooting, Transmission, Front Axle, Rear Axle, Drive Shafts, Center Bearing, And Universal Joints, Wheels and Tires, Transmission Control Valve) |
| Brakes | 467-500 | Section Index - Brakes (Removal and Installation of Brake Components, Hydraulic Brake Troubleshooting, Brake Accumulators, Parking Brake) |
| Hydraulics | 501-614 | Section Index - Hydraulics (Removal and Installation of Hydraulic Components, Hydraulic Specifications, Troubleshooting, And Pressure Checks, Cleaning the Hydraulic System, Loader Control Valve, Cylinders, Coupler Solenoid Locking Valve, Pilot Pressure Accumulator and Ride Control Accumulator, Ride Control Valve) |
| Mounted Equipment | 615-704 | Section Index - Mounted Equipment (Pedal and Levers, Air Conditioning Troubleshooting and System Checks, Air Conditioner System Service, Removal and Installation of Air Conditioning and Heater Components, Loader, ROPS Cab and ROPS Canopy, Cab Glass Installation) |

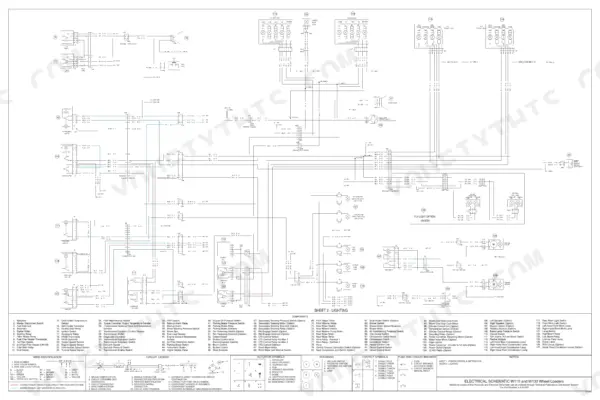

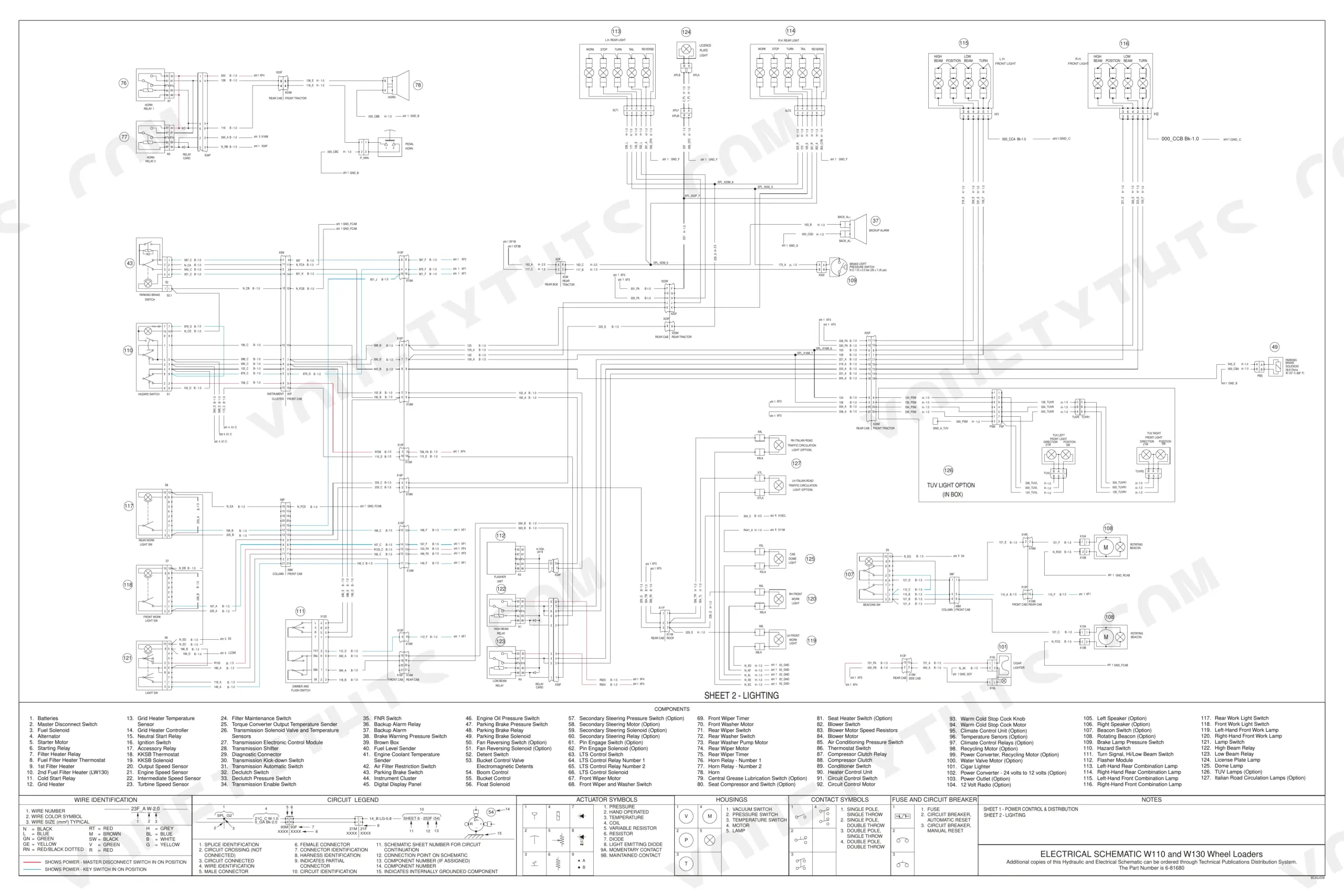

| Electrical Schematics | 705-710 | Full-Page Wiring Schematics, Six Sheets: Lighting and Rear Lamp Circuits, Transmission Kick-Down Switch, Harness and Connector Identification (X-Series), Fuse and Relay Layout |

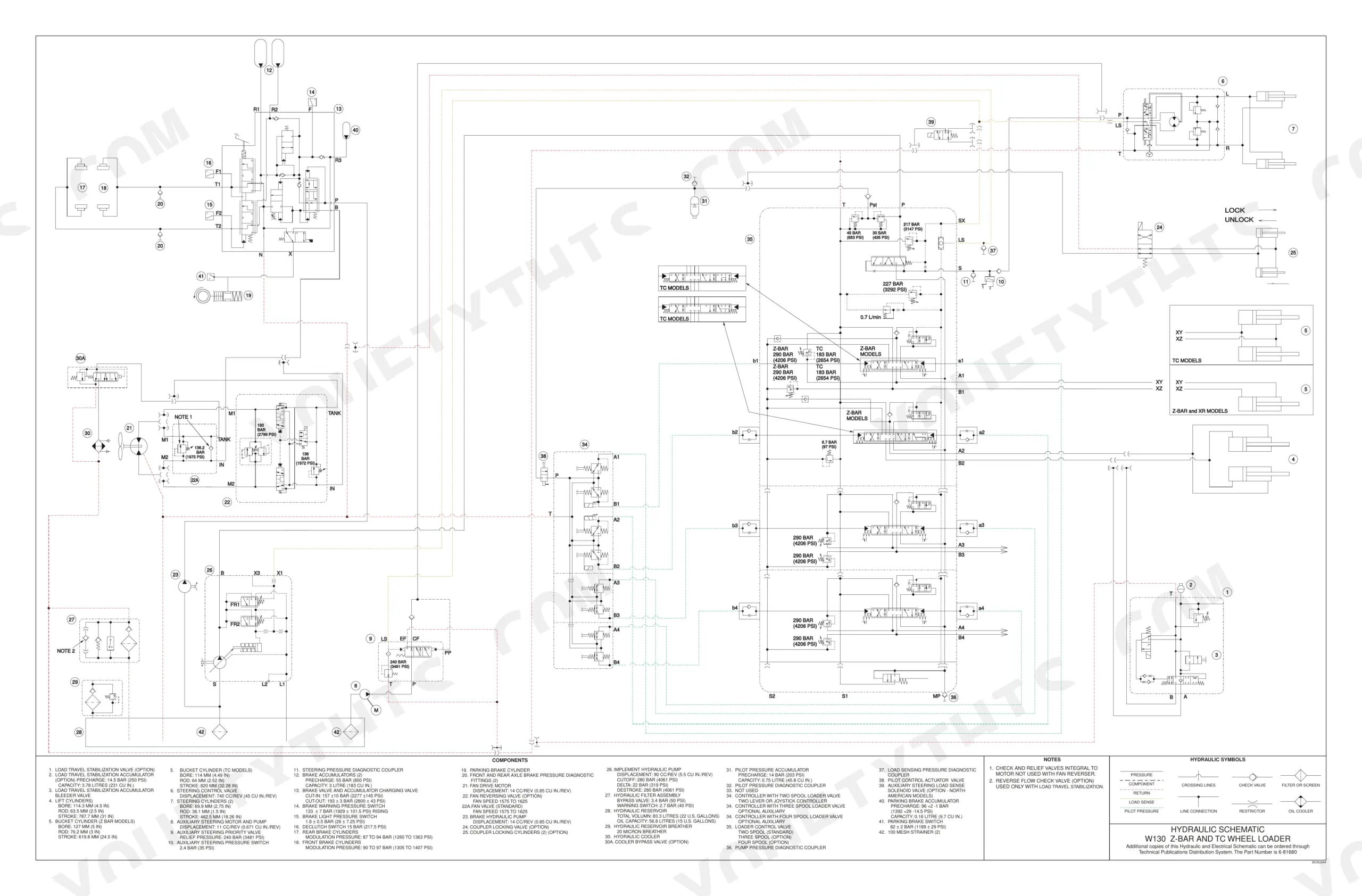

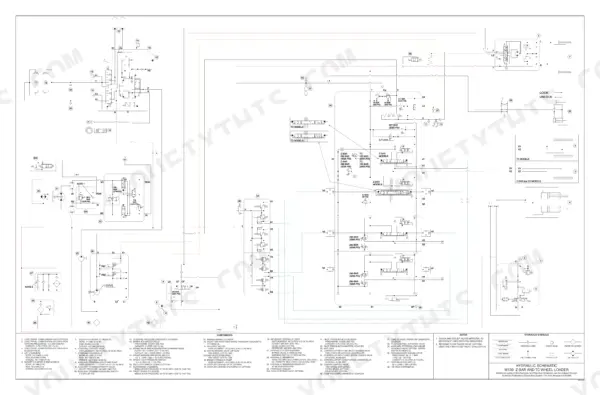

| Hydraulic Schematics | 711-712 | Load Travel Stabilization Valve, Steering Control Valve, Brake Accumulators, Fan Drive Motor, Hydraulic Pump, Hydraulic Reservoir |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

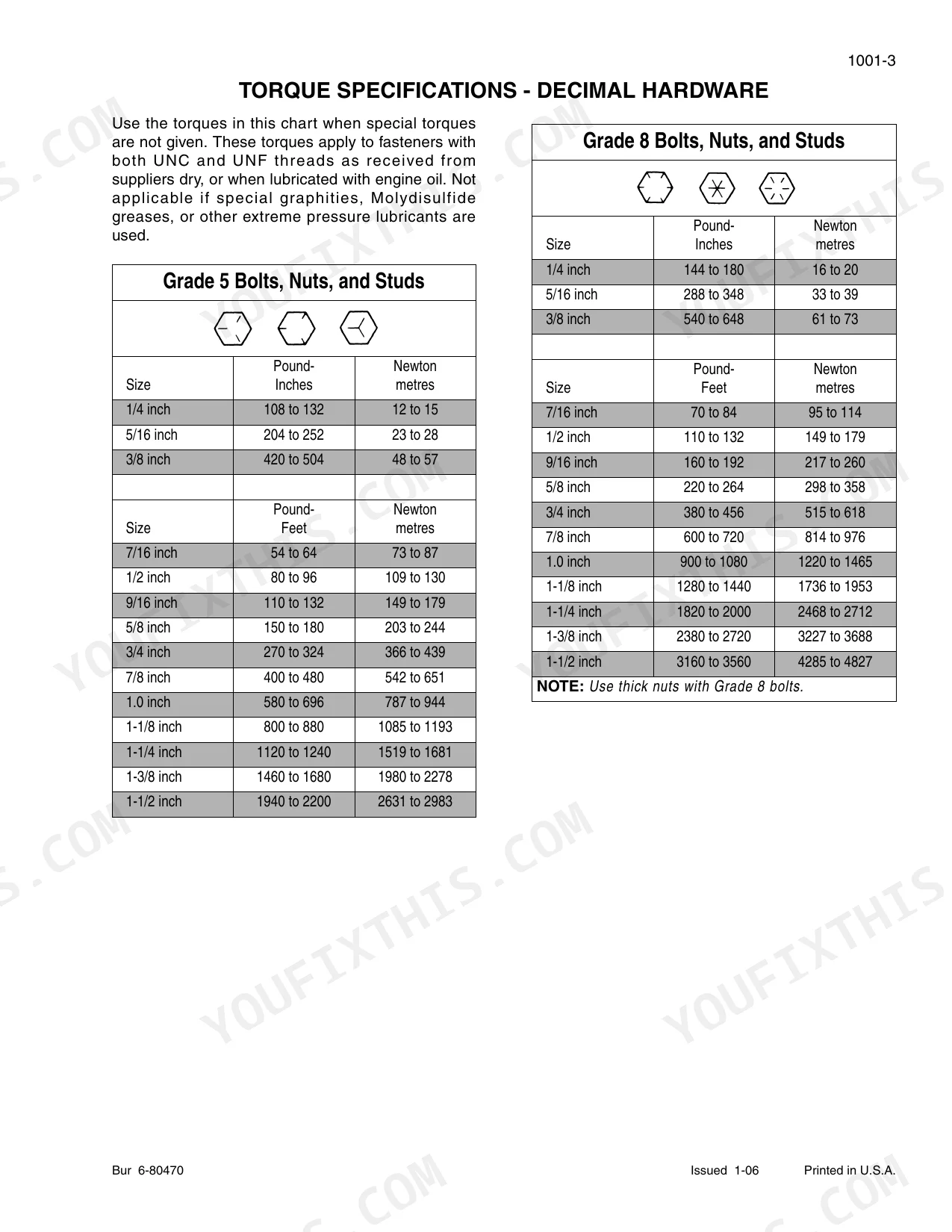

| General Torque Specifications - Grade 5 Bolts, Nuts, and Studs (1/4 inch) | 108 to 132 Pound-Inches (12 to 15 Newton metres) | p. 9 |
| General Torque Specifications - Grade 8 Bolts, Nuts, and Studs (1/4 inch) | 144 to 180 Pound-Inches (16 to 20 Newton metres) | p. 9 |
| Hydraulic Reservoir Refill Capacity with Filter Change | 68.5 litres (18 U.S. gallons) | p. 15 |

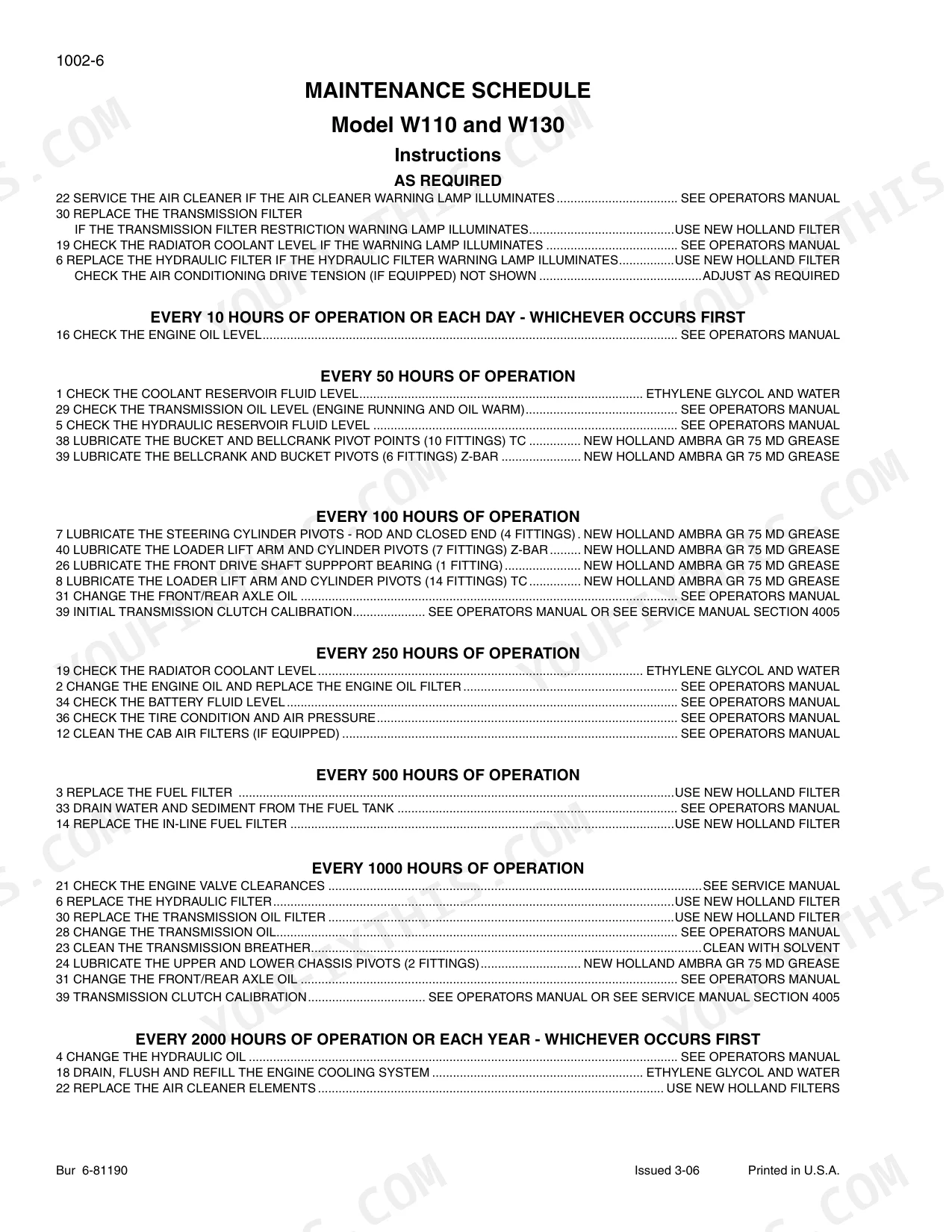

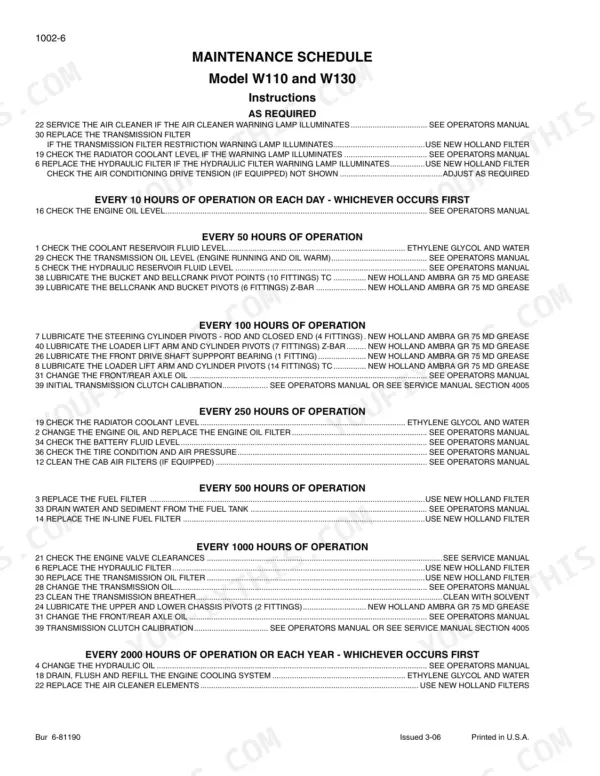

| Fuel Filter Replacement Interval | Every 500 hours of operation | p. 18 |
| Air Cleaner Element Replacement Interval | Every 2000 hours of operation or each year | p. 18 |
| Hydraulic reservoir capacity | 68.5 liters (18 gallons) | p. 34 |
| Air cleaner intake hose clamp torque | 3.6 to 4.5 Nm | p. 44 |
| First Fuel Filter Heater resistance | 1.9 ohms | p. 106 |
| Transmission pump socket head screws torque | 46 Nm (407 pound-inches) | p. 350 |
| Wheel nut torque | 640 to 720 Nm (475 to 530 pound-feet) | p. 457 |
| W110 | ||
| Engine Oil Capacity (W110) | 11.3 litres | p. 15 |
| W130 | ||
| Engine Oil Capacity (W130) | 16.1 litres | p. 15 |
New Holland W110, W130 Common Problems This Manual Covers
CNH W110 transmission delayed engagement, weak drive, low torque converter charge pressure when warm
Check transmission oil level and condition before condemning hardware. Run converter out and clutch pressure checks per the Power Train section beginning on page 261. Low charge pressure with good oil points to the transmission pump; replace it and torque the pump socket head screws to 46 Nm (407 pound-inches), shown on page 350.
Manual Section: Transmission Troubleshooting p. 261Loader hydraulics slow and weak, bucket lifts poorly, cycle times drag once oil warms up
Verify hydraulic oil level and look for milky or dark oil in the reservoir. Test main relief pressure against the 248 to 252 bar spec on page 541 before blaming the pump. If the filter is due, change it and refill the reservoir to 68.5 litres (18 gallons), page 34, then retest under full load.
Manual Section: Hydraulic Troubleshooting p. 541Engine overheating under load, temperature warning repeats even with the fan running
Check coolant level cold and inspect the radiator and coolers for packed debris; blow the fin cores out from the fan side. Replace the air cleaner element every 2000 hours of operation or each year per the maintenance schedule on page 18, and retorque the intake hose clamps to 3.6 to 4.5 Nm, page 44.
Manual Section: Engines p. 25Brake pedal goes soft after shutdown, brake warning light comes on during repeated stops
Test the accumulator nitrogen charge before opening the hydraulic side; spec is 55 bar (797.7 psi), listed on page 477. A dead accumulator bleeds down fast under repeated pedal applies. Run the brake pump output and modulation pressure tests in the Brakes section starting on page 467, then recharge or replace any accumulator that will not hold.
Manual Section: Brake Hydraulic Troubleshooting p. 477Hard starting in cold weather, cranks slow, fuel filter heater seems dead
Load-test the batteries and clean both terminals before chasing sensors. Measure resistance across the first fuel filter heater; a good element reads 1.9 ohms, page 106, and check the second heater the same way on page 107. Verify the fuel filter is fresh; replace it every 500 hours of operation per the schedule on page 18.
Manual Section: Electrical TroubleshootingFrequently Asked Questions
What are the torque specifications for the wheel nuts on a CNH W110/W130 wheel loader?
The wheel nuts must be tightened to an initial torque of 298 Nm (220 pound-feet) in the specified sequence. After this, they must be tightened to a final torque of 640 to 720 Nm (475 to 530 pound-feet) in the same sequence. p. 457
What is the replacement specification for the hydraulic filter on a W110/W130 wheel loader?
The hydraulic filter should be replaced every 1000 hours of operation, or immediately if the hydraulic filter warning lamp illuminates. p. 18
What is the engine oil capacity for a W110 wheel loader with a filter change?
The engine oil capacity for the W110 model with a filter change is 11.3 litres (12 U.S. quarts). p. 15
What is the torque specification for the main relief valve on the loader control valve?
The main relief valve pressure setting is 248 to 252 bar (3596 to 3654 psi). p. 567
How do I adjust the steering relief valve pressure?
To adjust the steering relief valve, turn the adjusting screw clockwise to increase pressure or counterclockwise to decrease it. Note that a 1/4 turn of the adjusting screw changes the pressure by approximately 35 bar (500 psi). p. 223
What exactly do I receive with this New Holland W110 Service Manual?
A 712-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this New Holland W110 manual?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
