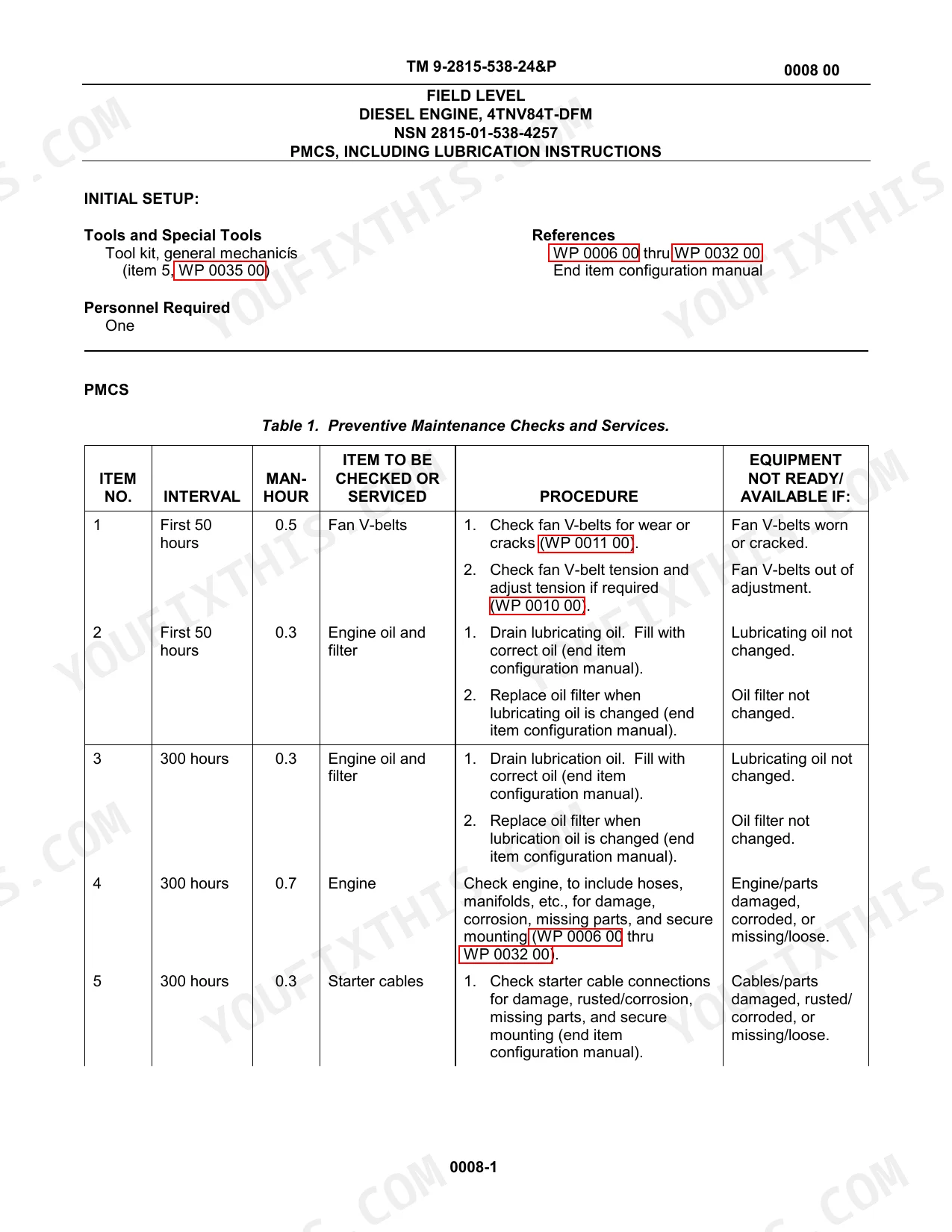

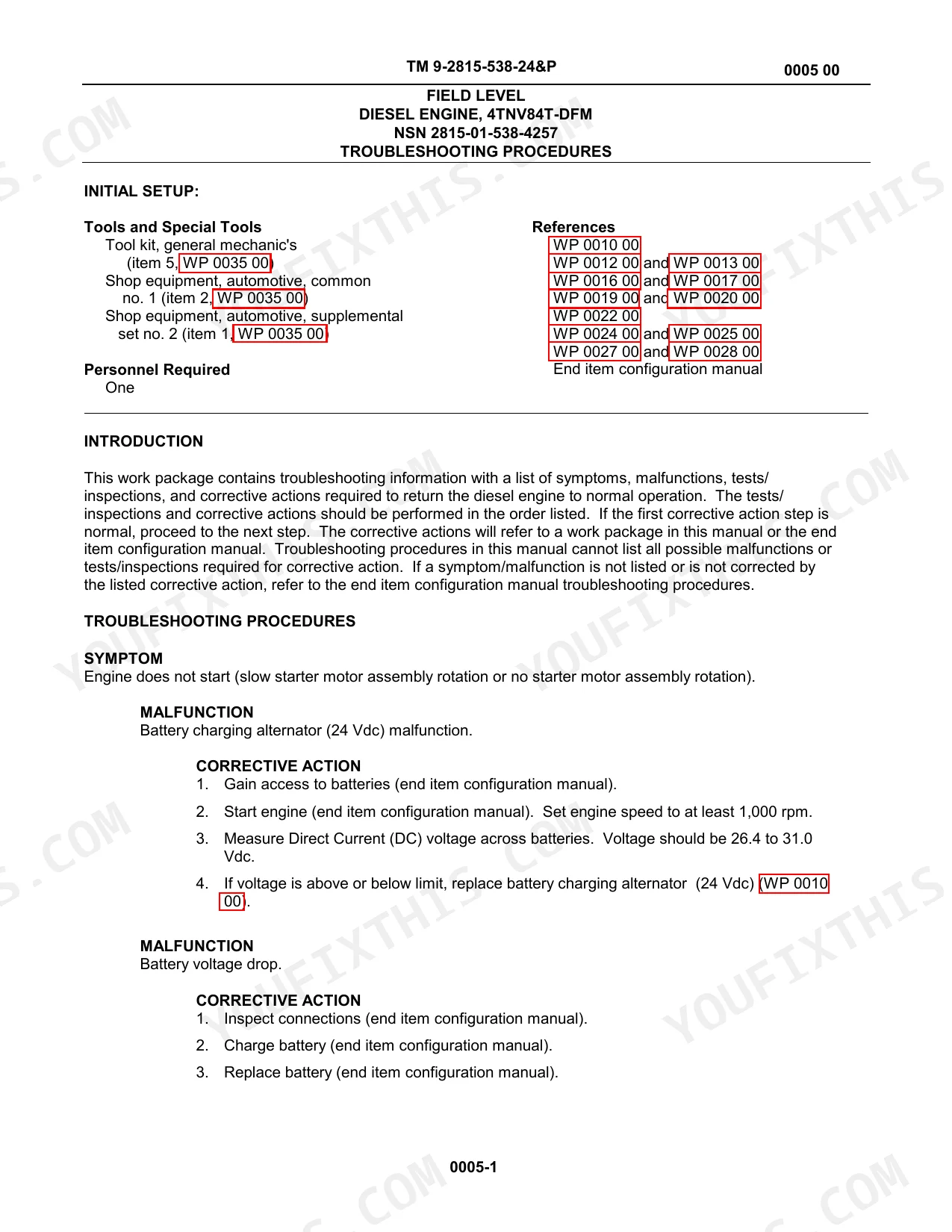

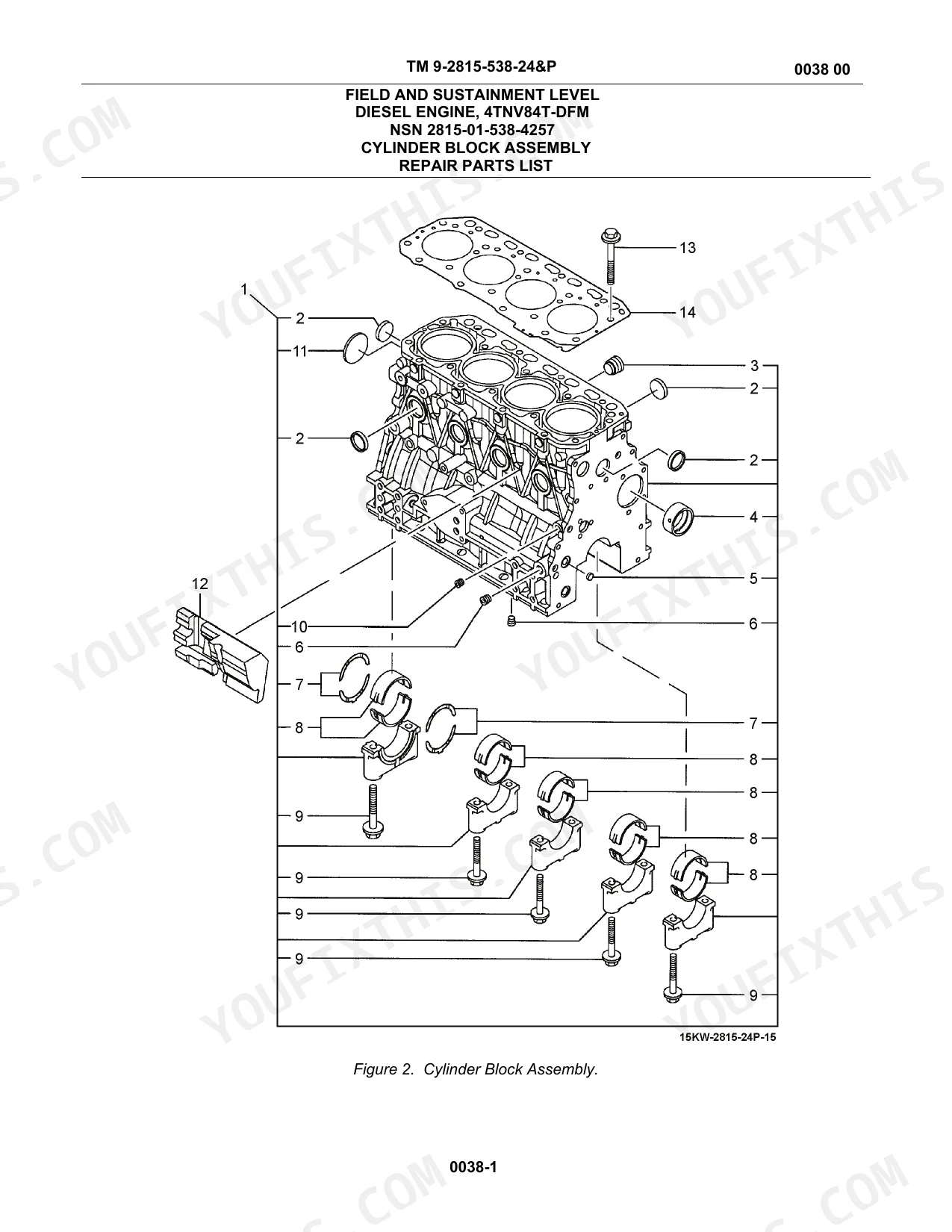

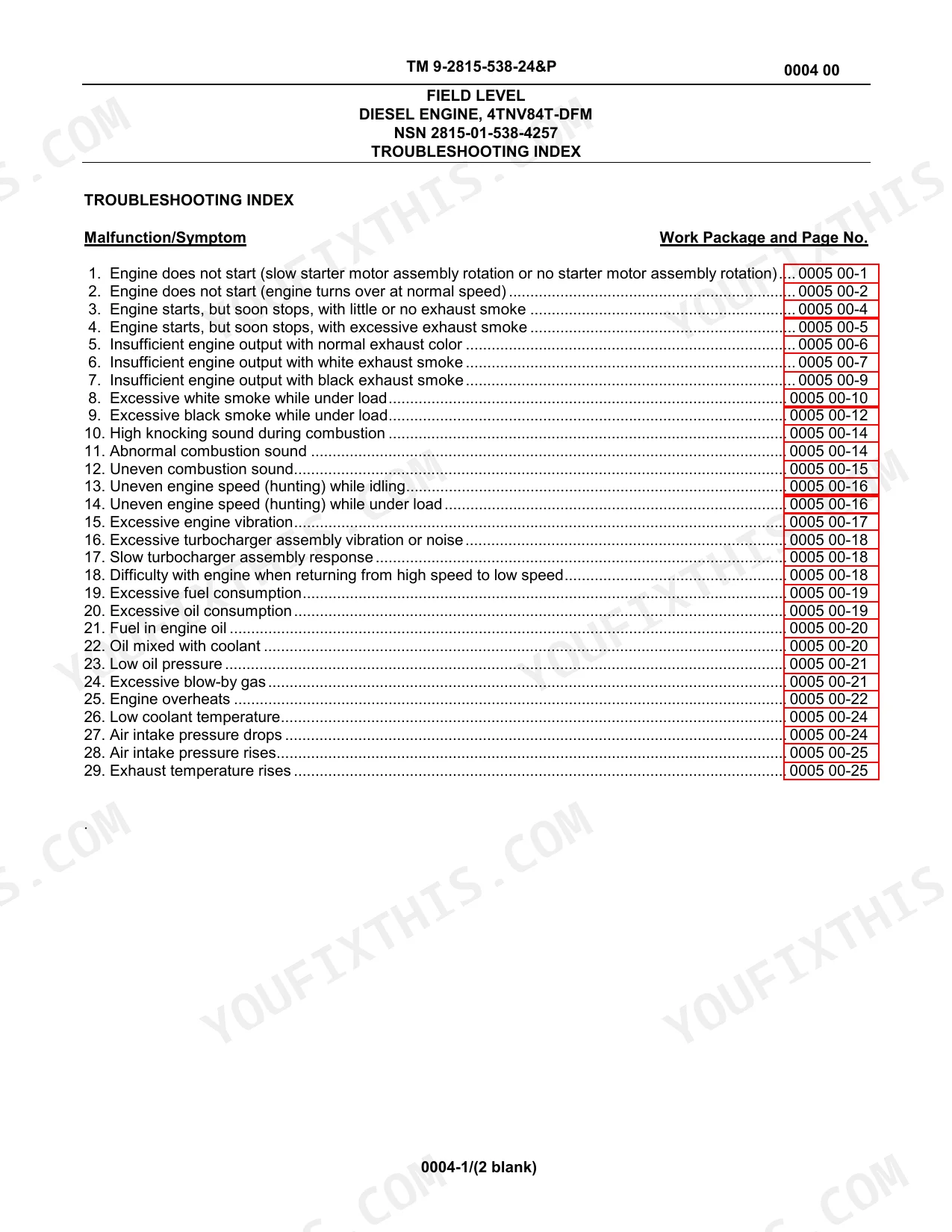

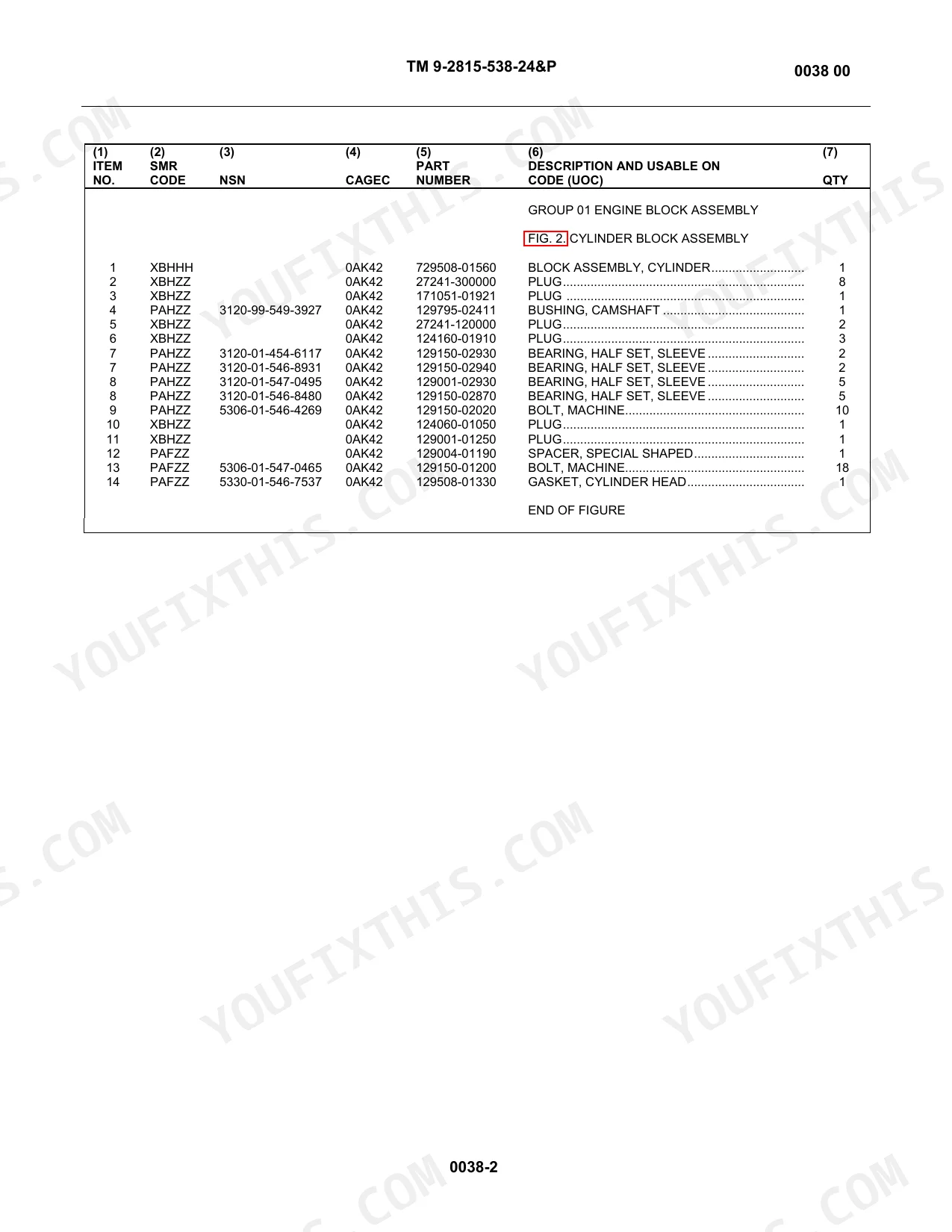

Need the factory rebuild procedures for your Yanmar 4TNV84T-DFM diesel engine? This 300-page technical manual (OEM #TM 9-2815-538-24&P) walks you from valve lash adjustment through full turbocharger teardown, built to U.S. Army field-level maintenance standards. Chapter 2 gives you a complete troubleshooting index: starting malfunctions, exhaust smoke diagnosis, combustion sound faults, and overheating, each walking through isolation steps down to component-level decisions. Inside the procedures section: fuel injector nozzle pressure testing, cylinder head R&R, compression checks, turbocharger axial play measurement, and flywheel assembly, backed by exploded-view figures and a full PMCS schedule. Torque your 18 head bolts in sequence: 30.31 to 34.60 lb-ft on the initial pass, then 62.91 to 67.19 lb-ft final. Any injector with nozzle pressure below 3,133 psi gets replaced. Your engine is down. Bookmarked chapters put you on the right spec in seconds; open it on your phone, walk to the machine, and get to work.

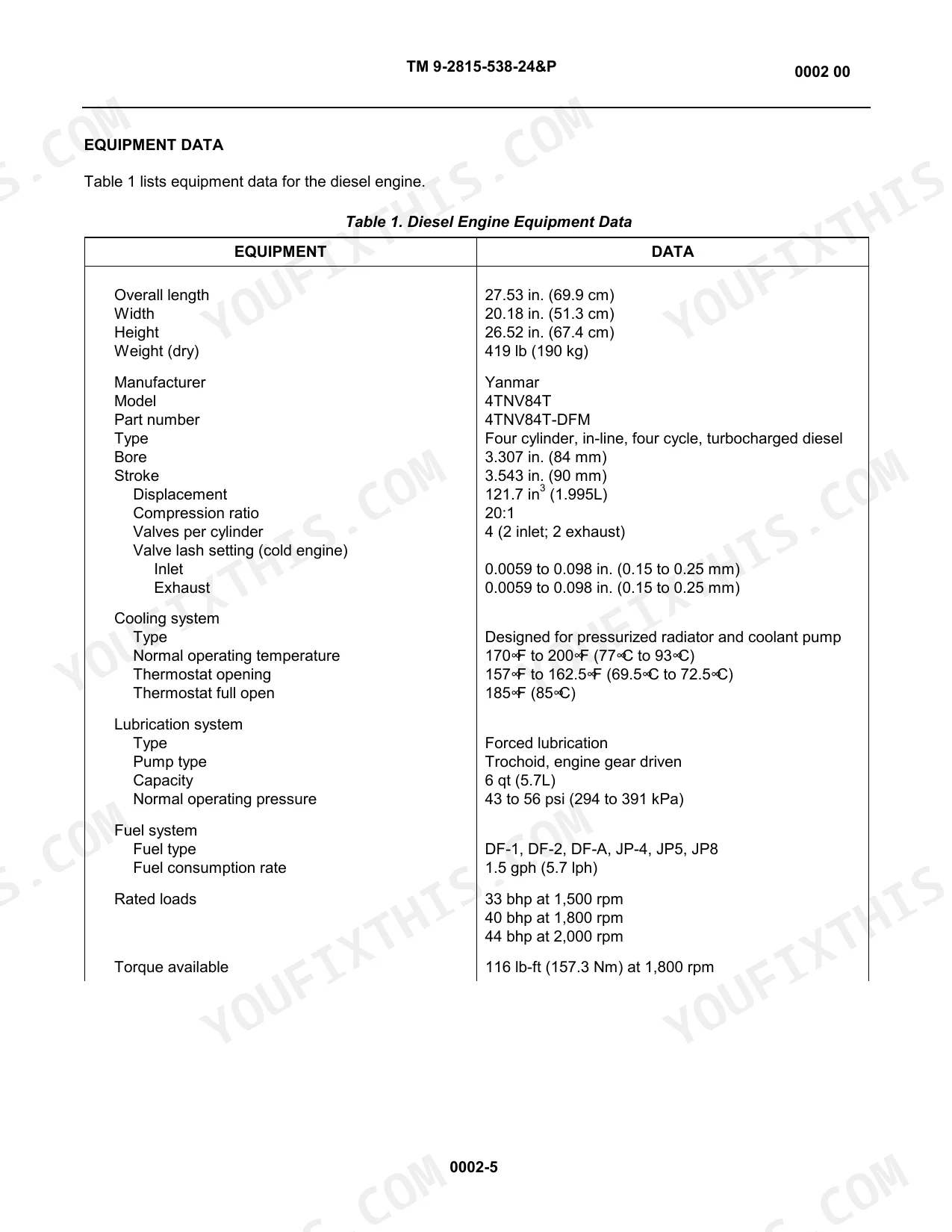

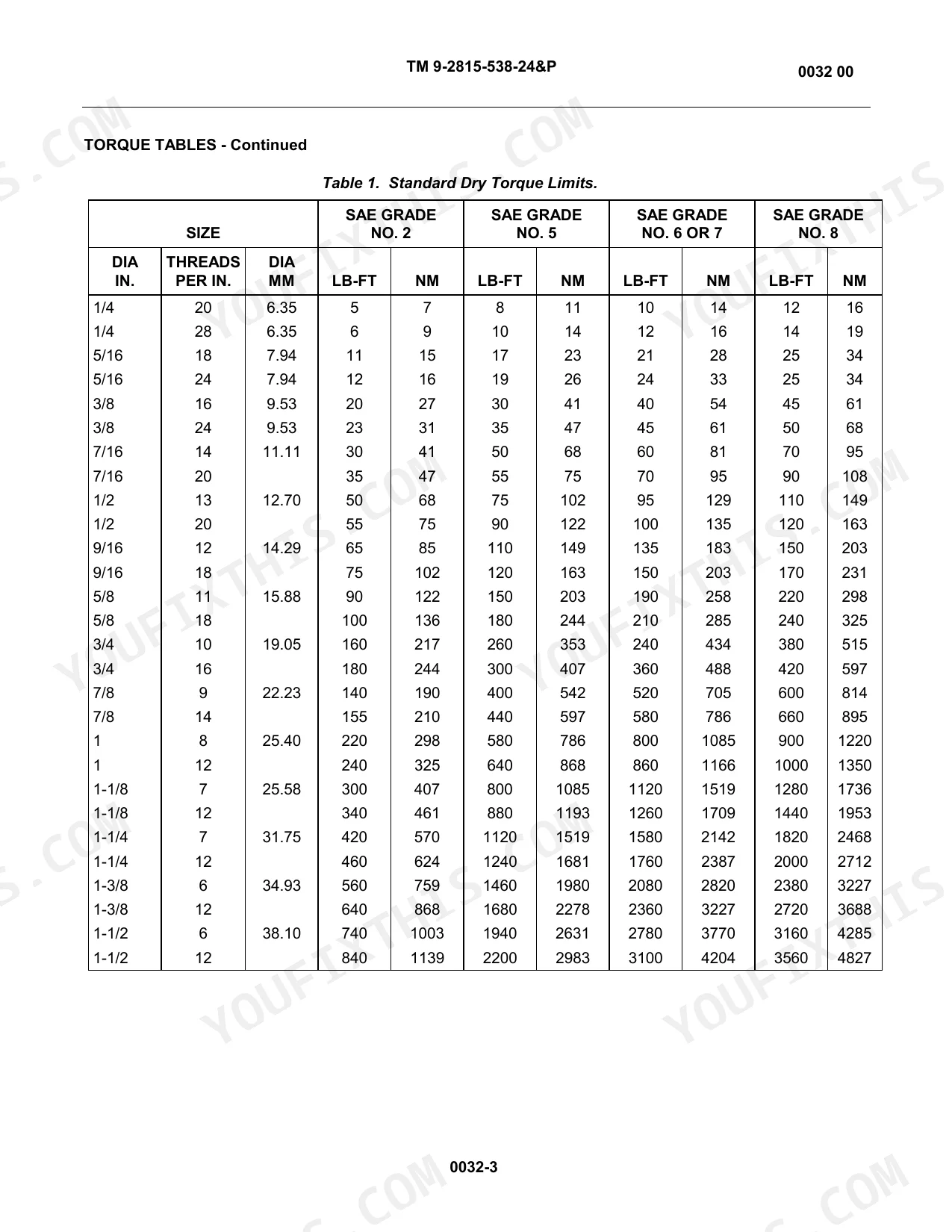

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head bolts initial torque | 30.31 to 34.60 lb-ft (41.1 to 46.9 Nm) | p. 160 |
| Cylinder head bolts final torque | 62.91 to 67.19 lb-ft (85.3 to 91.1 Nm) | p. 160 |
| Exhaust manifold bolts torque | 16.7 to 21.0 lb-ft (22.6 to 28.4 Nm) | p. 177 |
| Fuel injection pump assembly drive gear nut torque | 57.5 to 64.9 lb-ft (78 to 88 Nm) | p. 129 |
| Fuel injector nozzle pressure replacement threshold | Less than 3,133 to 3,278 psi (21.6 to 22.6 MPa) | p. 151 |
| Fuel injector nozzle case nut torque | 28.9 to 32.5 lb-ft (39.2 to 44.1 Nm) | p. 151 |
| Valve stem seal part number | 119717-11340 | p. 222 |
| Engine Oil Capacity | 6 qt (5.7L) | p. 35 |
| Normal Operating Oil Pressure | 43 to 56 psi (294 to 391 kPa) | p. 35 |
| Valve Lash Setting (cold engine) Inlet | 0.0059 to 0.098 in. (0.15 to 0.25 mm) | p. 35 |
| Normal Operating Coolant Temperature | 170°F to 200°F (77°C to 93°C) | p. 35 |
| Fuel Consumption Rate | 1.5 gph (5.7 lph) | p. 35 |
Yanmar 4TNV84T-DFM / -DEM Common Problems This Manual Covers
YANMAR 4TNV84T-DFM engine failure with water intrusion in cylinders and wet exhaust smoke p. 177
Inspect the exhaust elbow for corrosion and replace it if water is bypassing the riser. Torque the exhaust manifold bolts to 16.7 to 21.0 lb-ft (22.6 to 28.4 Nm) as instructed on page 177. Check for cylinder head damage if seawater entered the system.
Manual Section: Wp 0028 00Insufficient engine output accompanied by thick white exhaust smoke under heavy load p. 129
Verify the fuel injection pump assembly timing on page 129. Late timing causes unburned fuel to exit as white smoke. Secure the drive gear and torque the retaining nut to 57.5 to 64.9 lb-ft (78 to 88 Nm). Test the engine under load to confirm power restoration.
Manual Section: Wp 0016 00Engine turns over at normal cranking speed but fails to start spontaneously p. 151
Test the fuel injector nozzle opening pressure on page 151. Replace the injector if pressure drops below 3,133 to 3,278 psi (21.6 to 22.6 MPa). If fuel leaks from the top, torque the nozzle case nut to 28.9 to 32.5 lb-ft (39.2 to 44.1 Nm) and retest.
Manual Section: Wp 0022 00Engine experiences starting failure accompanied by significant compression loss and weak valve seats p. 154
Measure engine compression using the procedure on page 154. Verify readings fall between 440.913 and 411.907 psi (3.04 to 2.84 MPa). If pressure drops below limits, remove the cylinder head to inspect the valve seats and check for leaking head seals.
Manual Section: Wp 0023 00Frequently Asked Questions
What are the torque specs for the cylinder head bolts on a YANMAR 4TNV84T-DFM?
To install the 18 cylinder head bolts, first torque them to an initial torque of 30.31 to 34.60 lb-ft (41.1 to 46.9 Nm) following the sequence shown in Figure 2. Then, torque the bolts again to 62.91 to 67.19 lb-ft (85.3 to 91.1 Nm) using the same sequence. The tightening sequence is illustrated in Figure 2, Cylinder Head Bolts, on page 159.
How do I adjust valve clearance on a YANMAR 4TNV84T-DFM?
To adjust valve clearance, first determine if cylinder no. 1 or no. 4 is at Top Dead Center (TDC) by aligning the crankshaft pulley timing mark with the arrow on the engine block (Figure 1, page 162). Ensure both rocker arms for the selected cylinder are loose. Then, loosen the lock nut (Figure 2, page 162), push down and hold the selected rocker arm, adjust the clearance to zero, and finally tighten the lock nut using an adjustable wrench to hold the valve bridge. The recommended valve lash setting for a cold engine is 0.0059 to 0.098 inches (0.15 to 0.25 mm) for both inlet and exhaust valves.
How do you fix YANMAR 4TNV84T-DFM engine failure with water intrusion in cylinders and wet exhaust smoke?
Inspect the exhaust elbow for corrosion and replace it if water is bypassing the riser. Torque the exhaust manifold bolts to 16.7 to 21.0 lb-ft (22.6 to 28.4 Nm) as instructed on page 177. Check for cylinder head damage if seawater entered the system.
How do you fix insufficient engine output accompanied by thick white exhaust smoke under heavy load?
Verify the fuel injection pump assembly timing on page 129. Late timing causes unburned fuel to exit as white smoke. Secure the drive gear and torque the retaining nut to 57.5 to 64.9 lb-ft (78 to 88 Nm). Test the engine under load to confirm power restoration.
How will I receive this Yanmar 4TNV84T-DFM, Diesel Engine?
Immediate download of the complete 300-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this Yanmar 4TNV84T-DFM?
Yes - no DRM restrictions at all. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
