Rebuilding the industrial diesel engine on your Yanmar L48EE, L70EE, or L100EE requires the right data, and this 136-page Yanmar L100EE Service Manual PDF (OEM #M9961-H11310) provides exactly that. Open the file to find complete electrical wiring diagrams, high-quality exploded views of the fuel system, and step-by-step disassembly instructions for the crankshaft. You get a massive troubleshooting section covering everything from sudden output drops to unexpected reverse rotation at startup. Lock down the FO injection nozzle to 6.9-9.8 Nm and make sure you swap out the air cleaner element every 500 hours to keep compression tight. Stop relying on guesswork when a motor is scattered. Grab this bookmarked download, open it on your tablet, and get your power plant running right.
What's Inside This Yanmar L48–L100 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Revision History List | 3-4 | Document Name, Product Name, Revision No., Revision Date, Reason for Revision, Revision Outline |
| For Safe Servicing | 8 | Danger, Warning, Caution |
| Precautions for Safe Servicing | 9-12 | Service Shop (Place), Working Wear, Tools to Be Used, Use of Genuine Parts, Oil and Grease, Electrical Parts |

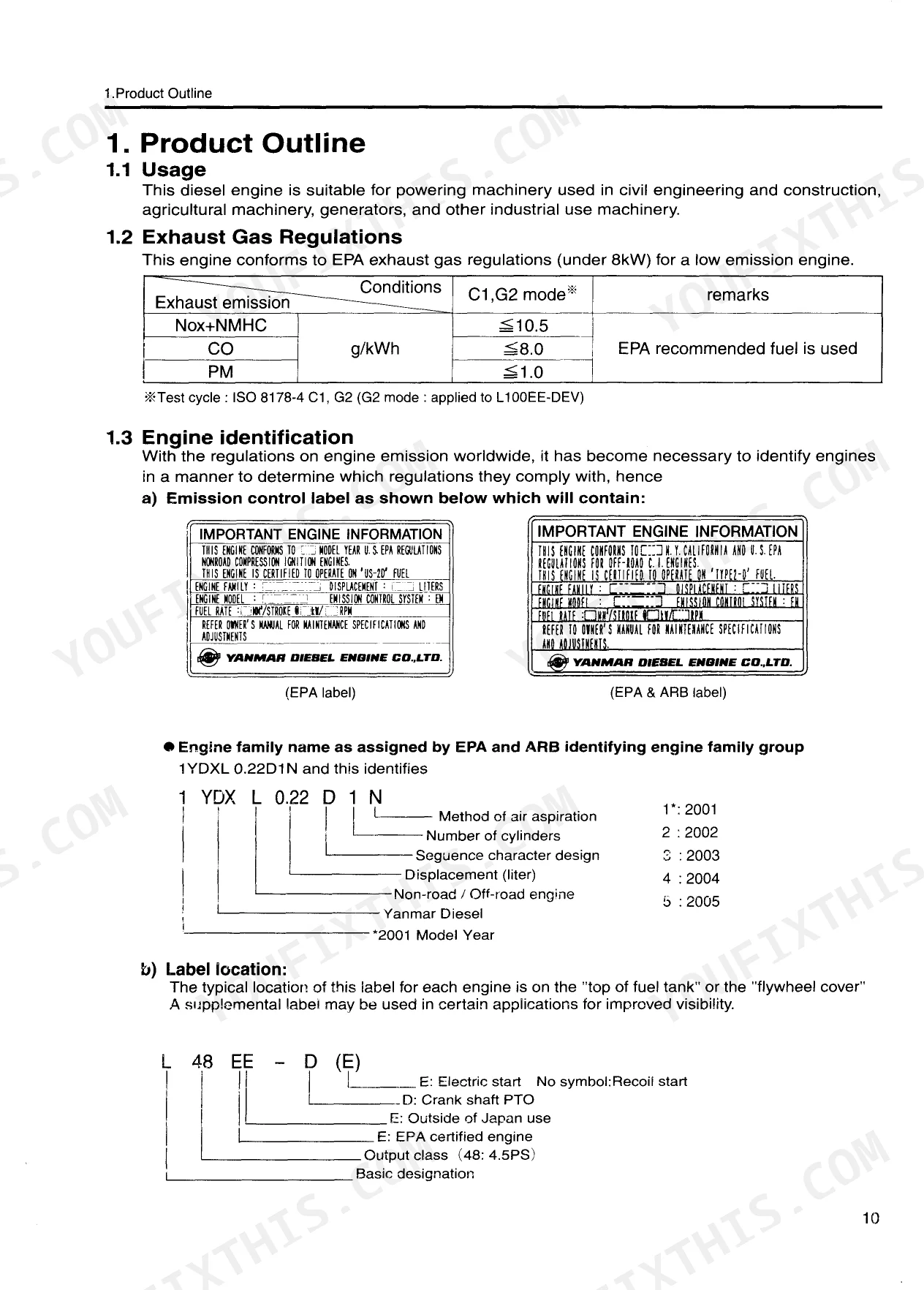

| Product Outline | 13 | Usage, Exhaust Gas Regulations, Engine Identification |
| Differences with L-A Model | 13 | Fuel Injection Nozzle, Cylinder Head, Piston, Rocker Arm, Fuel Injection Pump, Cam Shaft |
| Conditions to Insure Compliance with Emission Standards | 14 | Warranty Condition for Emission Standards, Handling of Emission Related Parts |
| Specifications | 15 | - |
| Sectional Views | 16-18 | Cross Sectional View, Longitudinal Section View, Plane View |
| Service Standards | 19-28 | Intake/exhaust Valve Seats, Intake/exhaust Valves & Valve Guides, Valve Spring, Piston, Connecting Rod, Crankshaft and Main Bearing |
| Tightening Torques | 29 | Valve Rocker Arm Support, Flywheel End Nuts, Crankcase Cover Bolts, Head Stud Bolts, Fo Nozzle Case Nut, Connecting Rod Bolts & Nuts |
| Maintenance Schedule | 30 | Check and Retighten All Bolts and Nuts, Change Engine Oil, Clean Air Cleaner Element, Check Injection Nozzle, Adjust Valve Clearance, Replace Piston Ring |

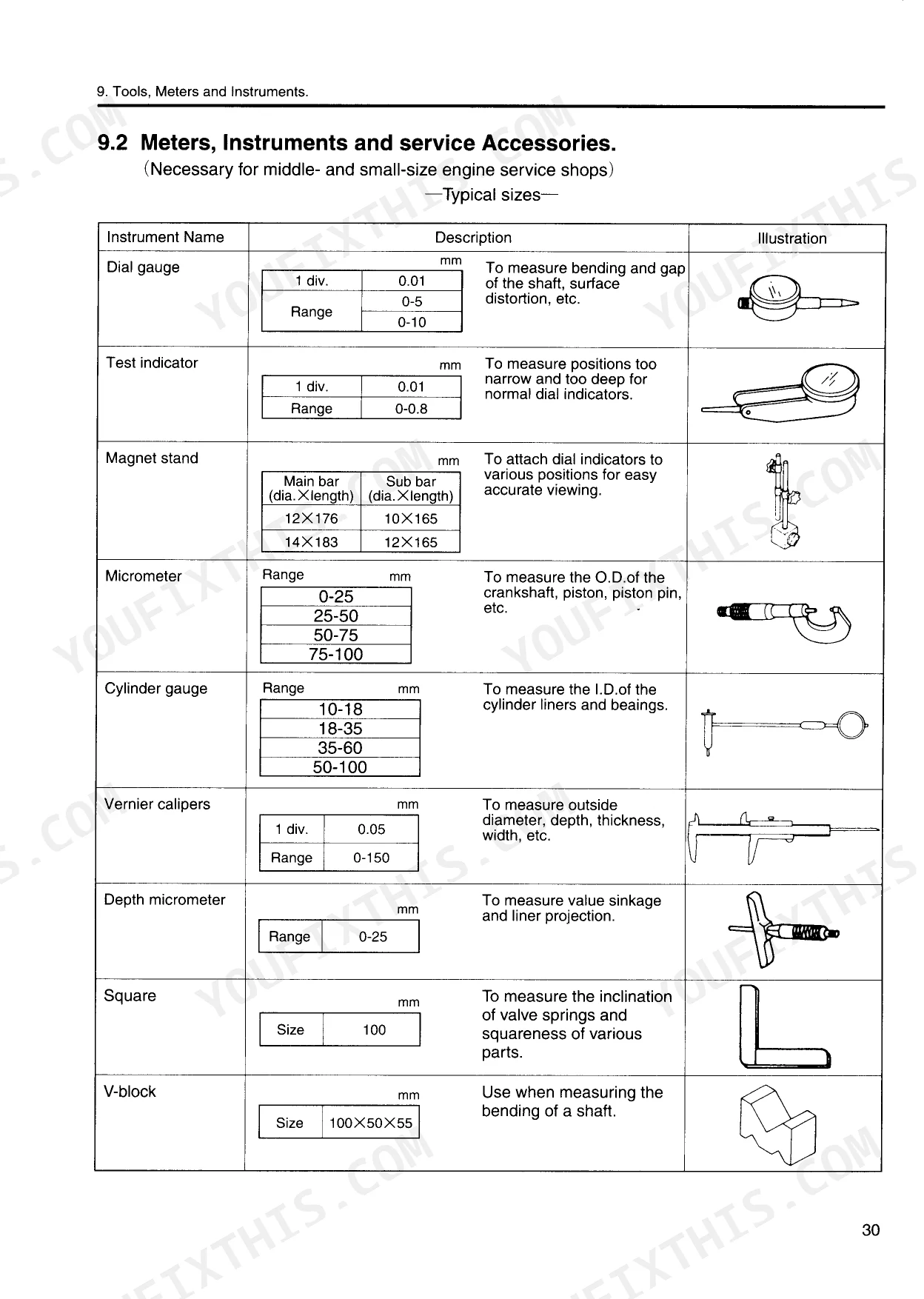

| Tools, Meters and Instruments. | 31-35 | Tools, Meters, Instruments and Service Accessories, Instruments |

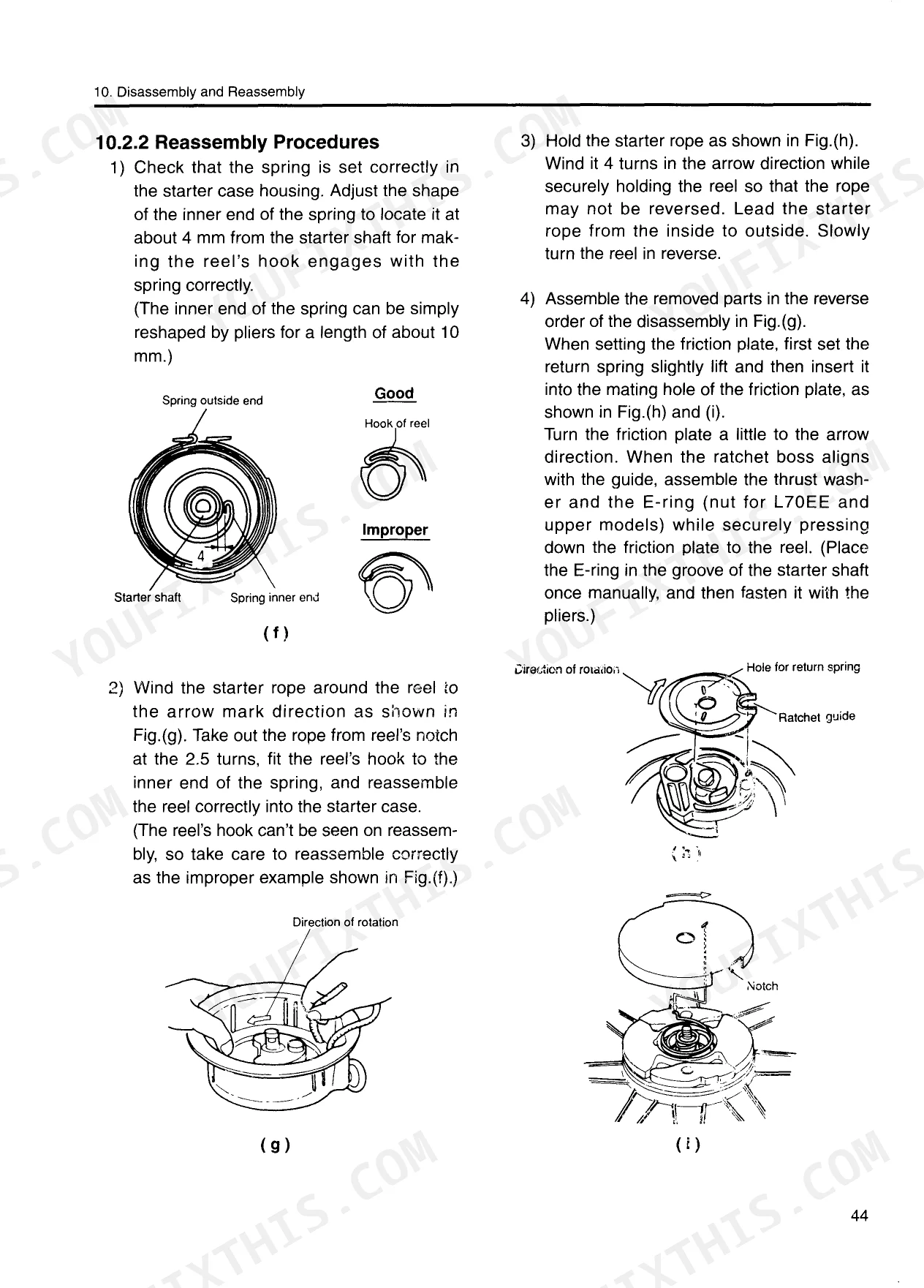

| Disassembly and Reassembly | 36-48 | Engine, Recoil Starter |
| Piston and Piston Pin | 50-53 | Piston, Piston Pin, Checking Piston Pin Hole, Piston Rings |
| Connecting Rod | 54-57 | Checking Connecting Rod, Checking Crank Pin Metals, Connecting Piston and Connecting Rod |
| Crankshaft, Main Bearing and Flywheel | 58-59 | Crankshaft, Main Bearing, Flywheel |
| Camshaft and Tappet | 60 | Camshaft Clearance, Camshaft Measurement, Tappet Contact Point, Tappet Surface |
| Timing Gears | 61 | Checking Timing Gears, Cam Gear, Balancer Gear, Crank Gear |

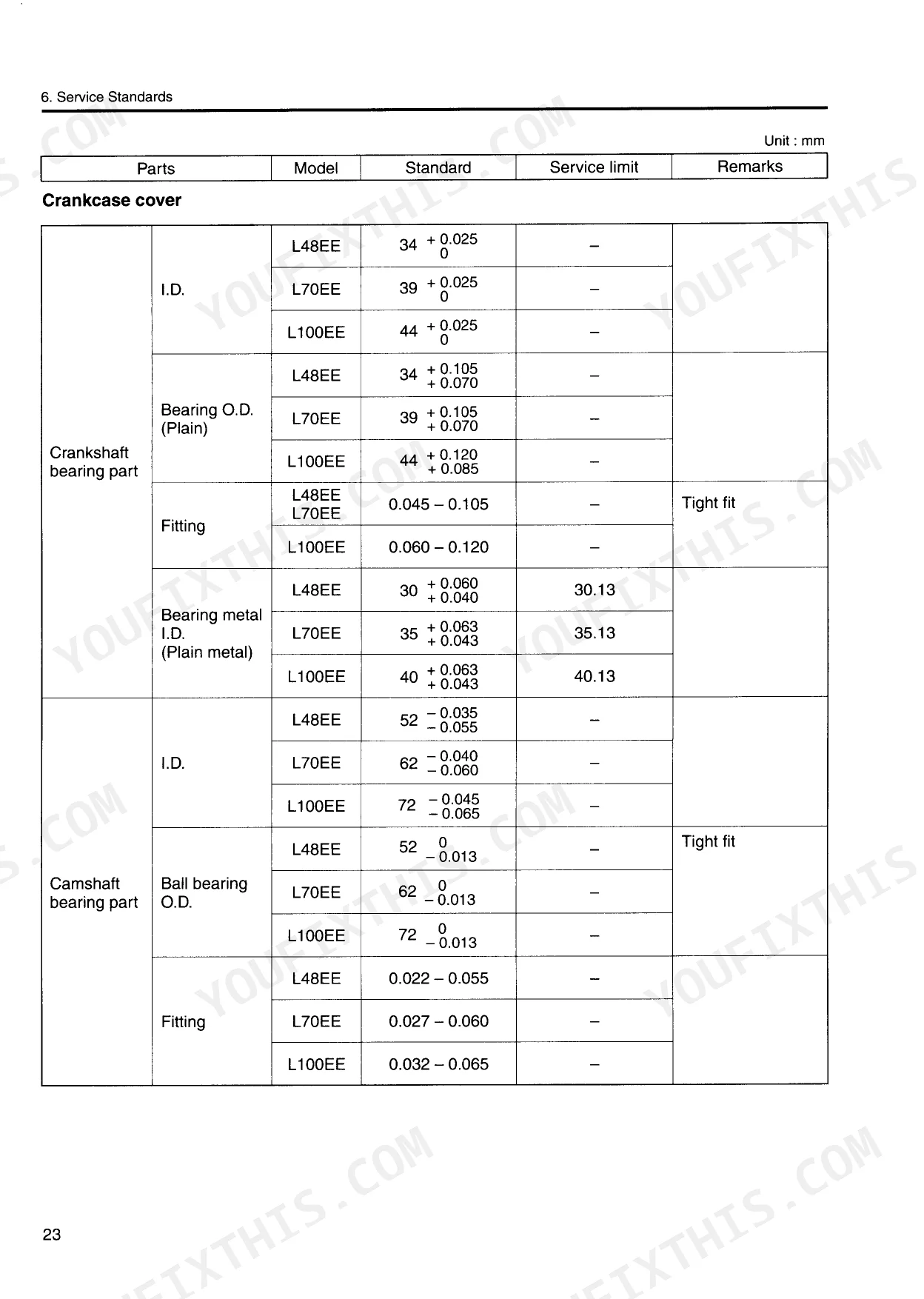

| Crankcase Cover | 62 | Cleaning, Checking, Crankshaft Bearing Part, Camshaft Bearing Part |
| Cylinder Sleeve and Cylinder Block | 63 | Cylinder Sleeve I.D., Cylinder Block I.D., Crankshaft Ball Bearing, Camshaft Bearing Part |
| Lubrication System | 64-65 | Lubricating Oil Pump, Outer Rotor, Inner Rotor, Oil Pump Clearance, Oil Pump Installation |
| Fuel System | 66-70 | Fuel Injection Pump, Fuel Injection Valve, Fuel Filter |
| Speed Control Device | 71-72 | Position of Governor Spring Hole, Type of Speed Control Device, Regulator Lever, Governor Spring, No-Load Max. Revolutions Set Bolt, Lock Lever |

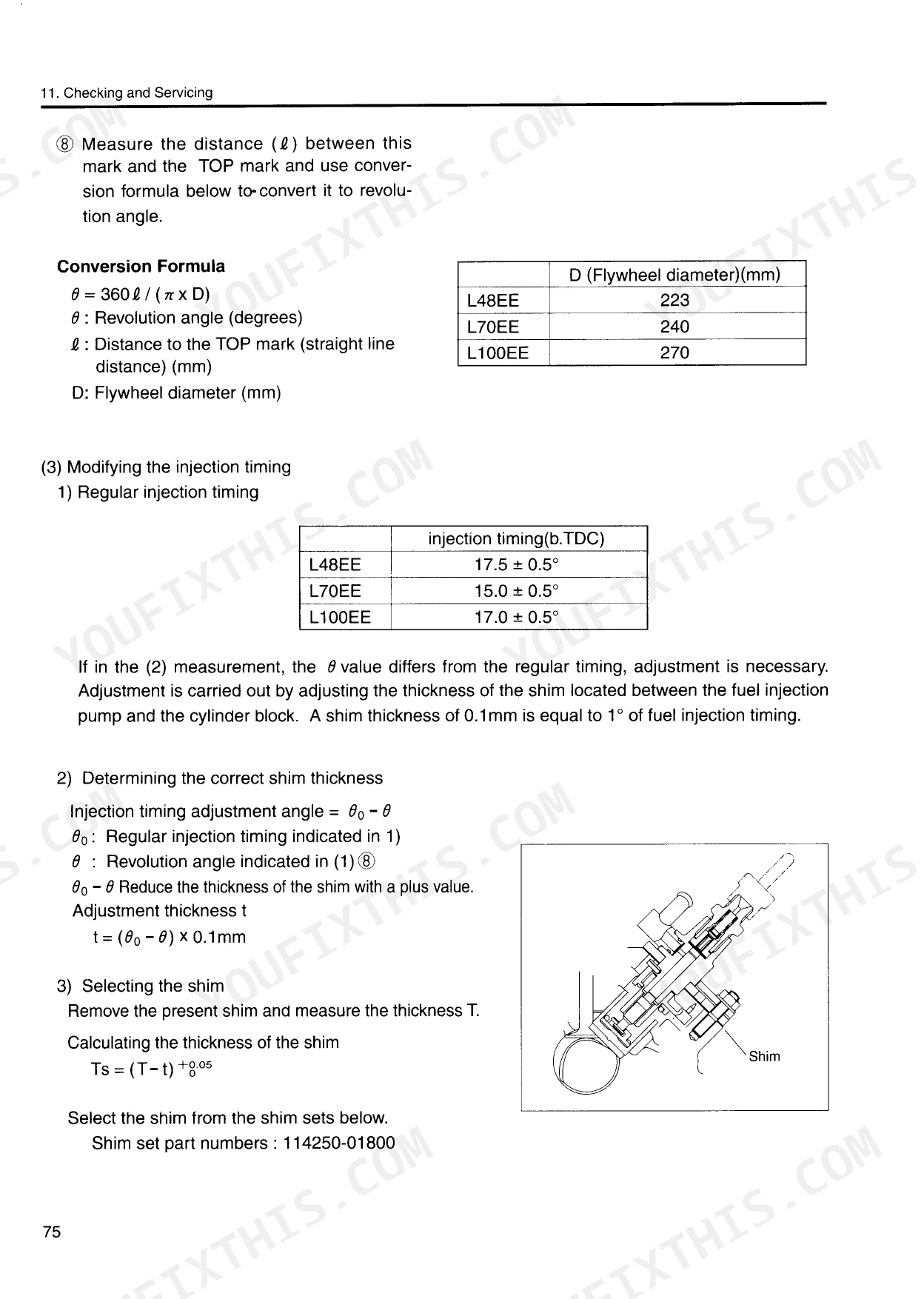

| Adjustment | 73-77 | Fuel Injection Timing, Flywheel, Injection Timing Adjustment Angle, Shim, Bleeding Air From Fuel System, Intake/exhaust Valve Head Clearance |

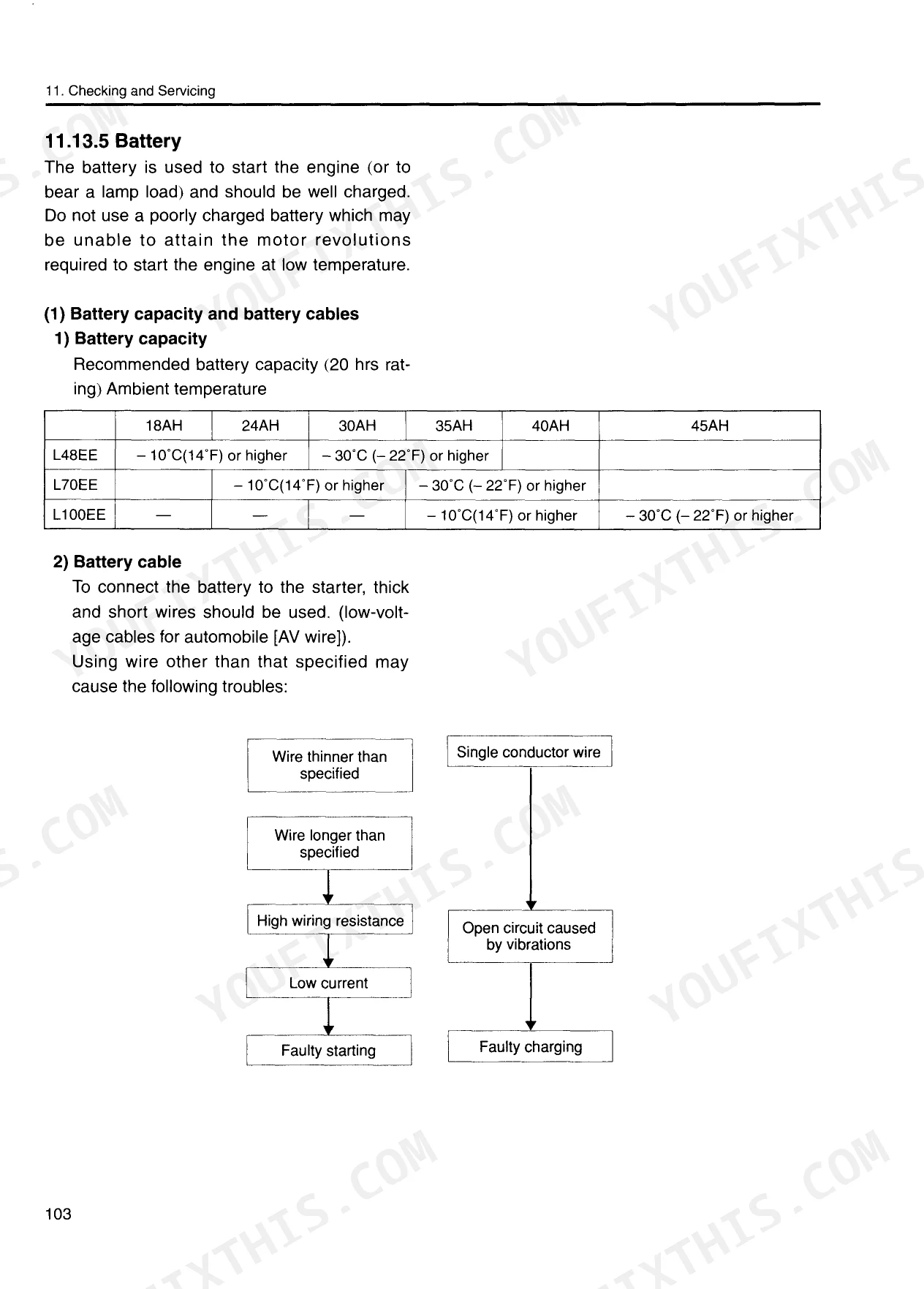

| Electrical System | 78-105 | Wiring Diagram, Starter Motor, Generator, Regulator, Rectifier, Battery |
| Troubleshooting | 106-108 | No Fuel Injection Sound, Low Compression Pressure, Leak in Crankcase, Recoil Too Heavy, Failure of Starter Motor, Abnormal Exhaust Color |
| Troubleshooting | 109-125 | Unexpected Reverse Rotation at Start, Racing, Uneven Rotation, Output Drops, Sudden Stops During Operation |
| Test Run | 126-128 | Before Starting, Starting, Operation, Stopping |
| Helical Inserting Part for Repair | 129-131 | Size of Helical Inserting Part, Procedure for Using Helical Inset Part |
| Appendix Detail of Special Tools | 132-135 | Details of Special Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Air cleaner element (replacement interval) | every 500 hours | p. 30 |
| FO injection nozzle (STD) tightening torque | 6.9-9.8 Nm | p. 4 |
| FO injection nozzle (Stamper/Rammer) tightening torque | 9.8-11.8 Nm | p. 4 |
| Intake and exhaust valve clearance | 0.15 ± 0.05 mm | p. 19 |
| L48EE | ||
| Rocker arm support tightening torque | 10 Nm | p. 4 |
| FO injection nozzle (Stamper application) tightening torque | 9.8 Nm | p. 4 |
| Flywheel tightening torque | 138-147 Nm | p. 4 |
| Cylinder head tightening torque | 29.4-33.4 Nm | p. 4 |
| Connecting rod tightening torque | 22.5-27.5 Nm | p. 4 |
| L48EE-L70EE | ||
| Flywheel end nuts tightening torque | 11770-12750 N·cm | p. 29 |
| L100EE | ||
| Cylinder head nuts tightening torque | 5296-5688 N·cm | p. 29 |
Yanmar L48–L100 Series Common Problems This Manual Covers
Yanmar L48EE L70EE L100EE engine cranks over slowly or fails to start in freezing conditions p. 19
Check intake and exhaust valve clearance on page 19 and adjust to 0.15 ± 0.05 mm. Bleed air from the fuel system and test the battery. If low compression persists, remove the cylinder head to inspect the valve seats and guides for wear.
Manual Section: 6. Service StandardsEngine blows excessive black smoke under heavy load and lacks normal operating power p. 30
Replace the air cleaner element if it exceeds the 500 hours service interval listed on page 30. Clean carbon deposits from the intake. Inspect the fuel injection nozzle spray pattern and verify the injection timing is set correctly to prevent unburned fuel.
Manual Section: 8. Maintenance ScheduleEngine starts but runs rough, surges constantly, or stalls abruptly under heavy operating loads p. 66
Torque the standard FO injection nozzle to 6.9-9.8 Nm as specified on page 4. Inspect the fuel injection pump and delivery valve. Drain contaminated diesel from the tank, replace the main filter, and bleed the high-pressure lines completely to eliminate misfires and stalling.
Manual Section: Fuel SystemSevere engine vibration and excessive shaking visible on the frame during normal operation or deceleration p. 29
Inspect the flywheel and main bearings for wear. For L48EE and L70EE models, torque the flywheel end nuts to 11770-12750 N·cm as directed on page 29. Check the motor mounts for delamination or oil contamination and replace them if the rubber is deteriorated.
Manual Section: 7. Tightening TorquesFrequently Asked Questions
What are the torque specifications for the cylinder head bolts on Yanmar L48EE, L70EE, and L100EE engines?
The cylinder head bolts require a two-step tightening process. For the L48EE model, the first tightening torque is 1471 N·cm (150 kgf·cm), and the final torque is 2942-3334 N·cm (300-340 kgf·cm). For the L70EE, the first torque is 2157 N·cm (220 kgf·cm) and the final torque is 4119-4511 N·cm (420-460 kgf·cm). For the L100EE, the first torque is 2942 N·cm (300 kgf·cm) and the final torque is 5296-5688 N·cm (540-580 kgf·cm).
What are the replacement specifications for fuel filters on Yanmar L48EE, L70EE, L100EE engines?
The fuel filter has a nominal filter particle diameter of 5µ. The maintenance schedule indicates that the fuel filter should be cleaned, with replacement occurring "if necessary" when breakage, separation, or damage is detected. There is no fixed replacement interval specified, but rather a condition-based replacement.
What are the tightening torque specifications for the connecting rod bolts on Yanmar L48EE, L70EE, and L100EE engines?
The connecting rod tightening torque for L48EE and L70EE models is 2256-2746 N·cm (230-280 kgf·cm). For the L100EE model, the tightening torque is 3993-4217 N·cm (400-430 kgf·cm).
What is the standard valve clearance for intake and exhaust valves on Yanmar L48EE, L70EE, and L100EE engines?
The standard valve clearance for both intake and exhaust valves on all L48EE, L70EE, and L100EE models is 0.15 ± 0.05 mm when the engine is cold. This clearance is crucial for proper engine operation and should be adjusted if necessary.
Is this Service Manual a digital download?
Immediate download of the complete 136-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Is this Yanmar L48–L100 Series Service Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are there wiring harness diagrams in this Yanmar L48–L100 Series manual?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Yanmar L48–L100 Series.
Document Quality
This document is a scanned PDF with an optical character recognition (OCR) layer, allowing you to search and copy text throughout. The text quality is consistently crisp and easy to read on all pages. Diagrams and illustrations are clear raster images, with all labels being fully readable. The pages are clean, free from scan artifacts, stains, or skewed content, and there are no notable blank or filler pages.
