Looking for the exact factory procedures to rebuild your Yanmar TNV series industrial engine? All 392 pages of this Yanmar 3TNV88-U service manual PDF (OEM #0BTNV-G00101) focus entirely on bringing your 3TNV82A, 3TNV84, 4TNV88, and other variants back to factory condition. Inside, you get complete electrical wiring diagrams, extensive troubleshooting charts mapped by compression pressure, and step-by-step teardown instructions for the fuel injection pump. Open the engine section to find massive torque charts and clearance specifications for every rotating assembly. Set intake and exhaust valve clearance to 0.006 - 0.010 inches (0.15 - 0.25 mm) for most models, or 0.010 - 0.014 inches (0.25 - 0.35 mm) for 4TNV106 and 4TNV106T models, and torque the cylinder head bolts to the model-specific spec in the engine section. Stop rebuilding blocks on guesswork and outdated forum advice. Download this cleanly bookmarked file, pull it up on your shop tablet, and get the job done right.
What's Inside This Yanmar TNV Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7-8 | - |
| Yanmar Warranties | 9-16 | Yanmar Limited Warranty, Emission System Warranty |
| Safety | 17-40 | - |

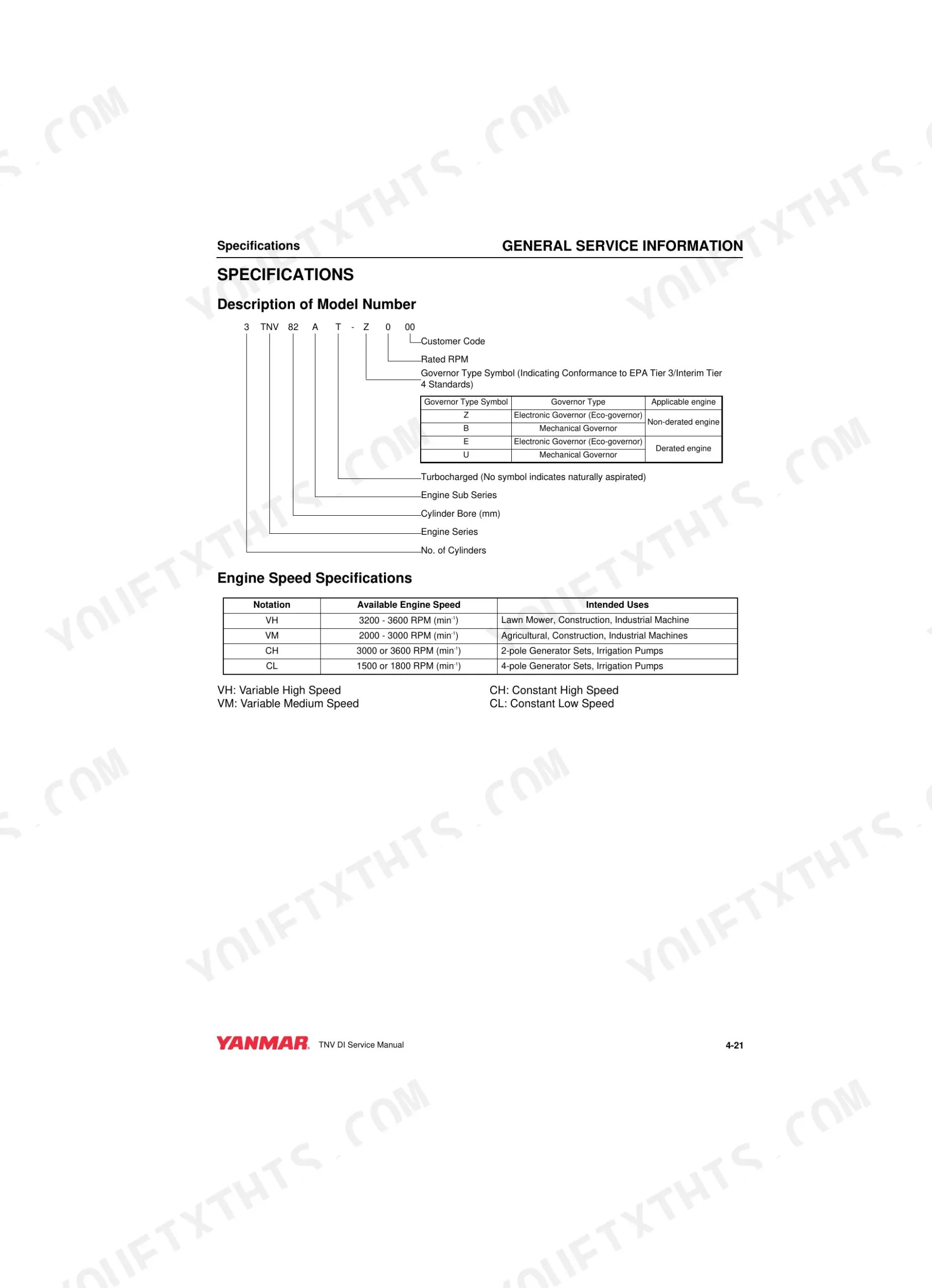

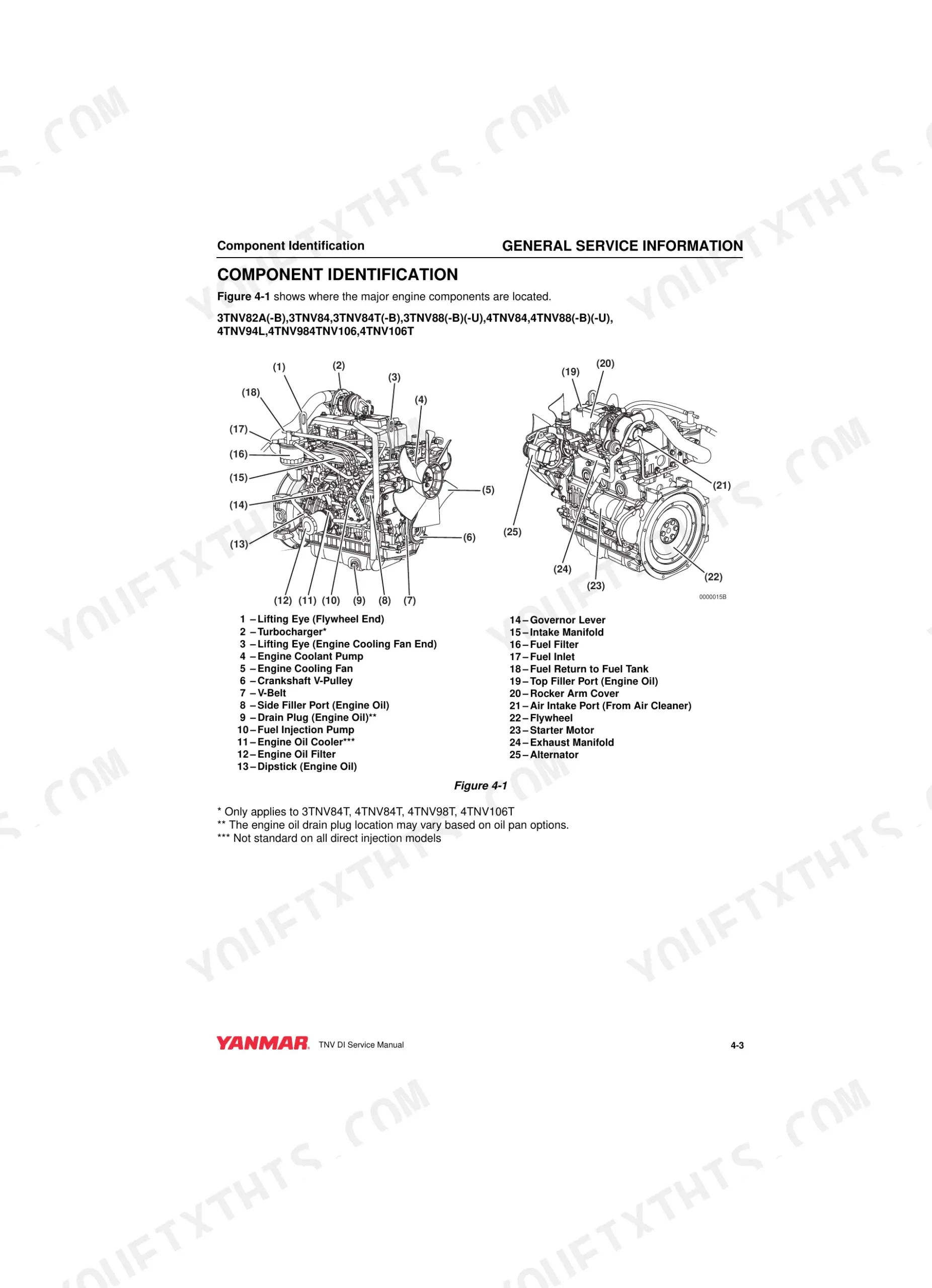

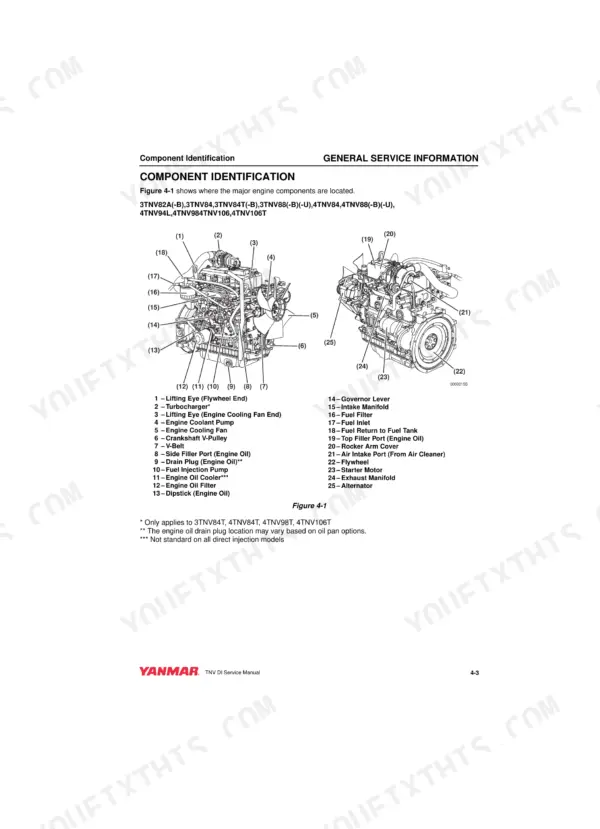

| General Service Information | 41-90 | Diesel Fuel, Engine Oil, Engine Coolant, Specifications |

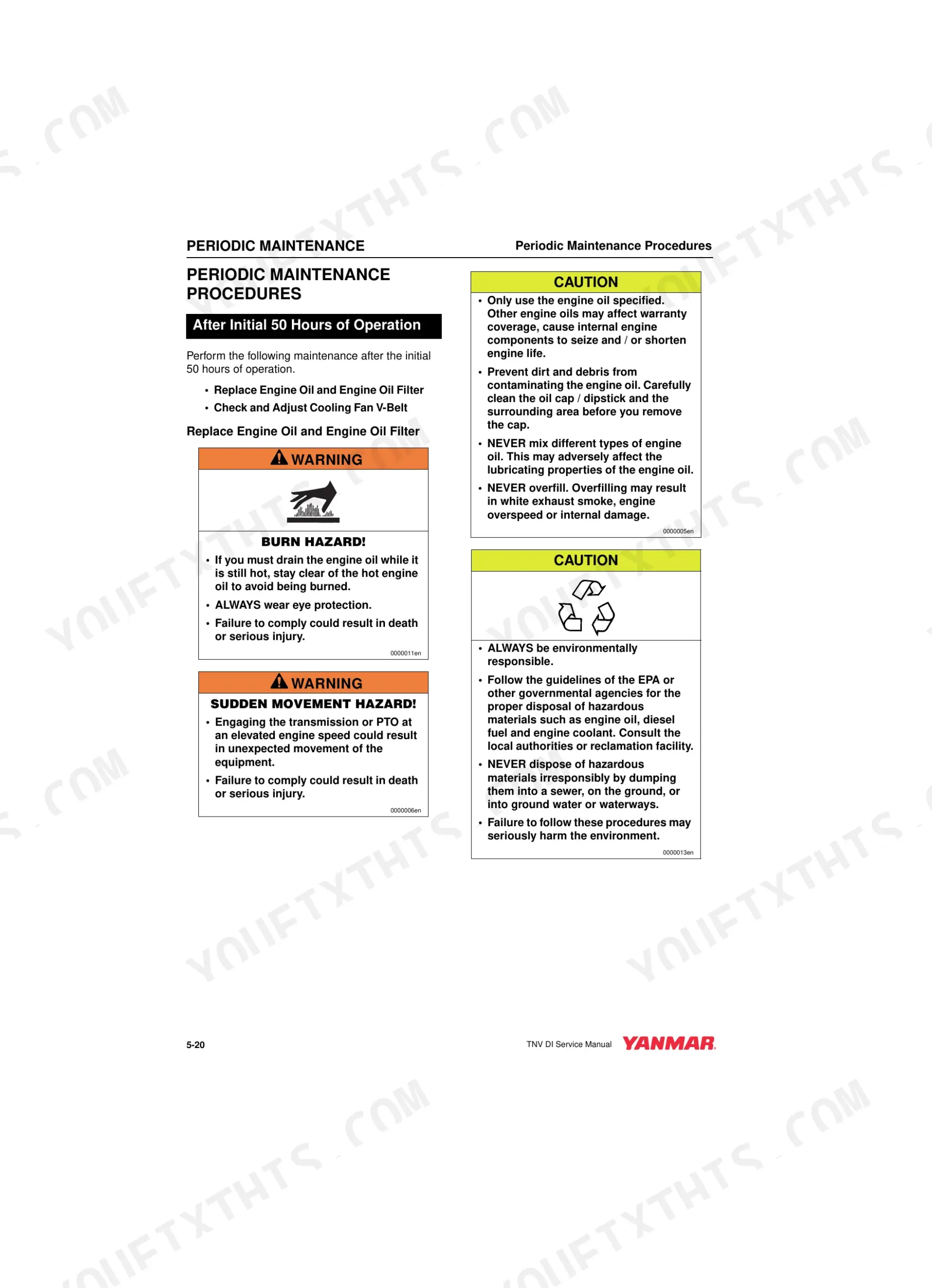

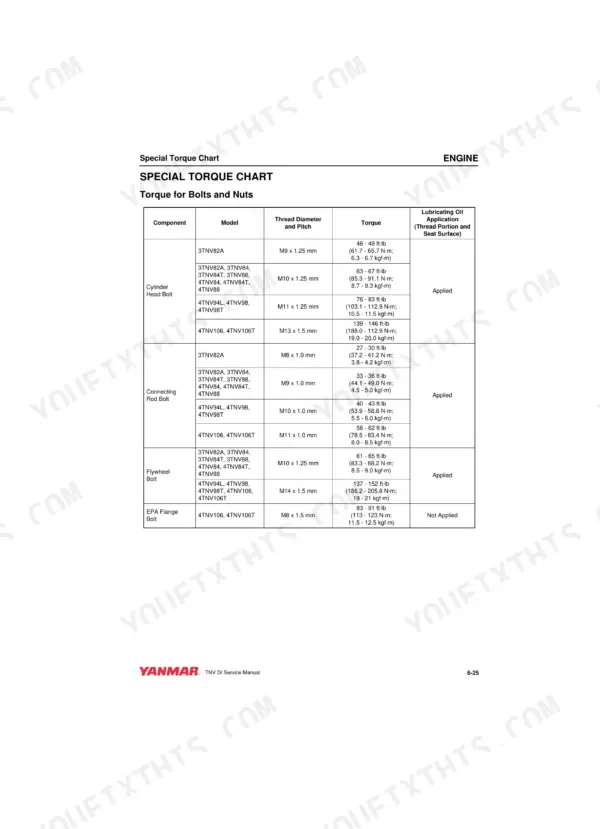

| Periodic Maintenance | 91-132 | Before You Begin Servicing, Periodic Maintenance Schedule, Periodic Maintenance Procedures |
| Engine | 133-240 | Before You Begin Servicing, Cylinder Head Specifications, Camshaft and Timing Gear Train Specifications, Crankshaft and Piston Specifications, Special Torque Chart |

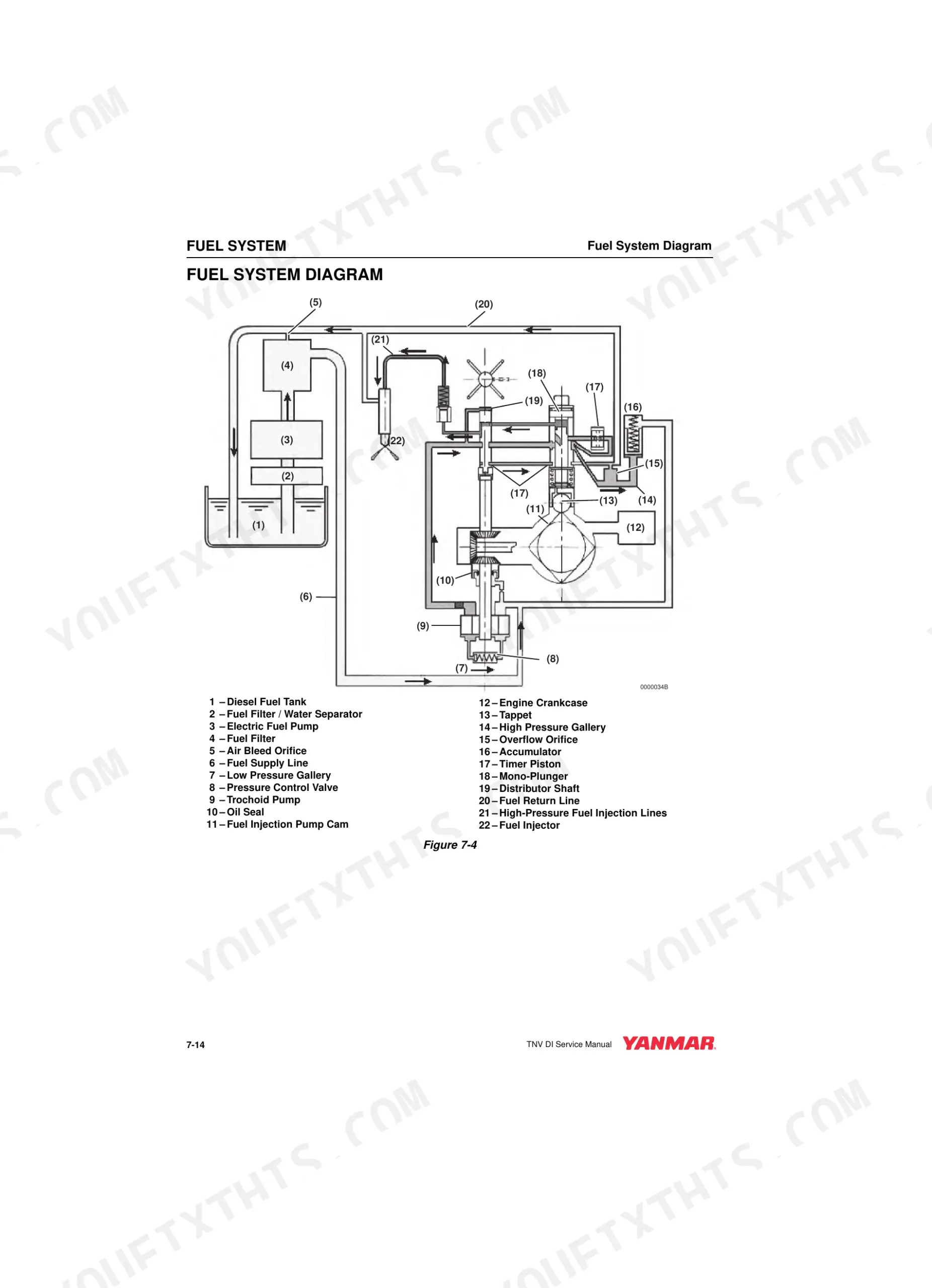

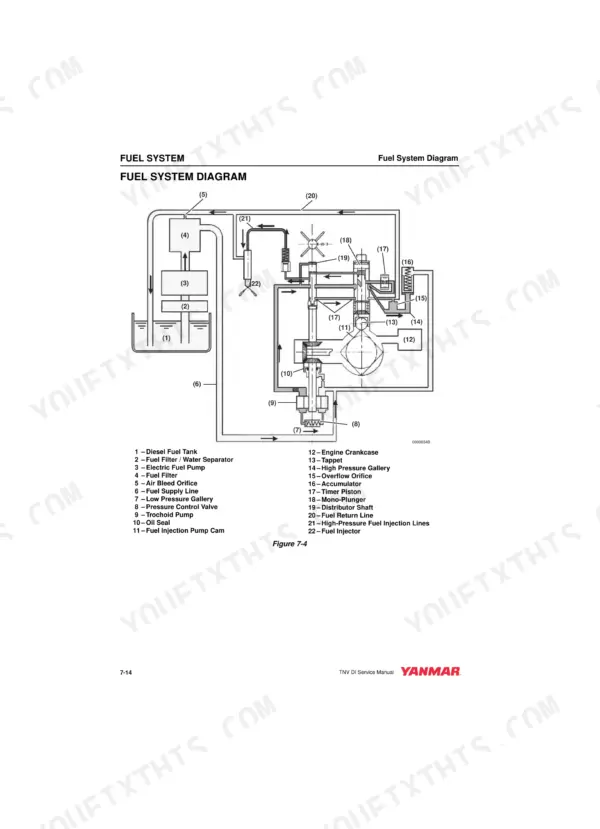

| Fuel System | 241-284 | Before You Begin Servicing, Fuel System Components, Fuel Injection Pump, Fuel Injectors |
| Cooling System | 285-298 | Before You Begin Servicing, Engine Coolant Pump |
| Lubrication System | 299-318 | Oil Pump Service Information, Trochoid Oil Pump |
| Turbocharger | 319-334 | Periodic Inspection |
| Starter Motor | 335-354 | Removal of Starter Motor, Disassembly of Starter Motor, Cleaning and Inspection, Reassembly of Starter Motor, Check Pinion Projection Length, No-Load Test |
| Alternator | 355-376 | Before You Begin Servicing, Dynamo |

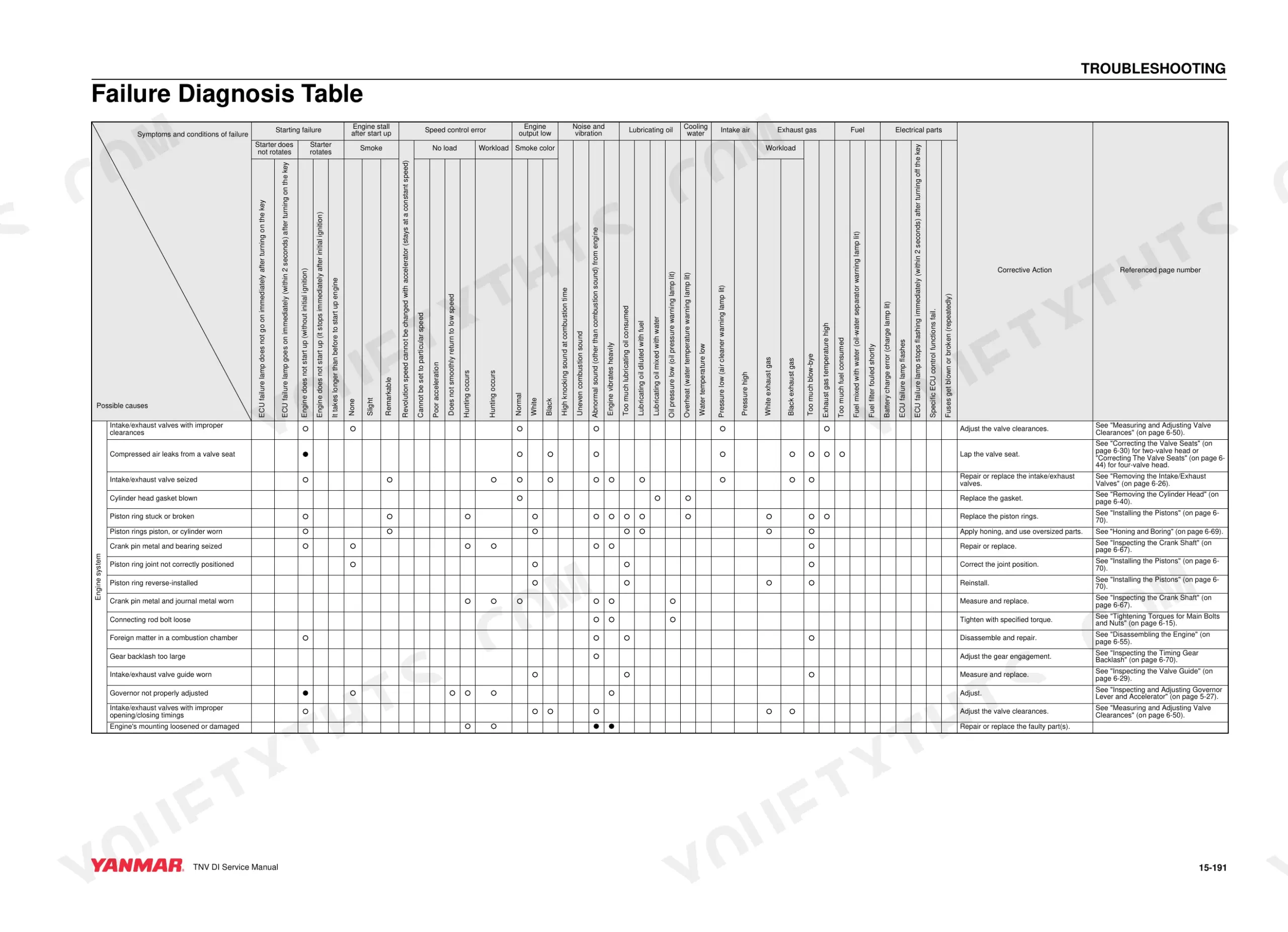

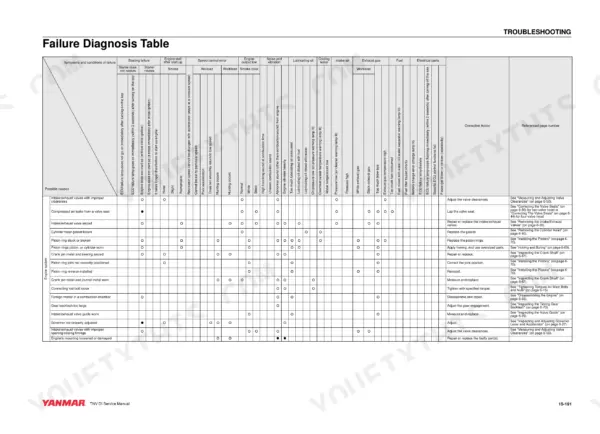

| Troubleshooting | 377-388 | Troubleshooting by Measuring Compression Pressure, Quick Reference Table for Troubleshooting |

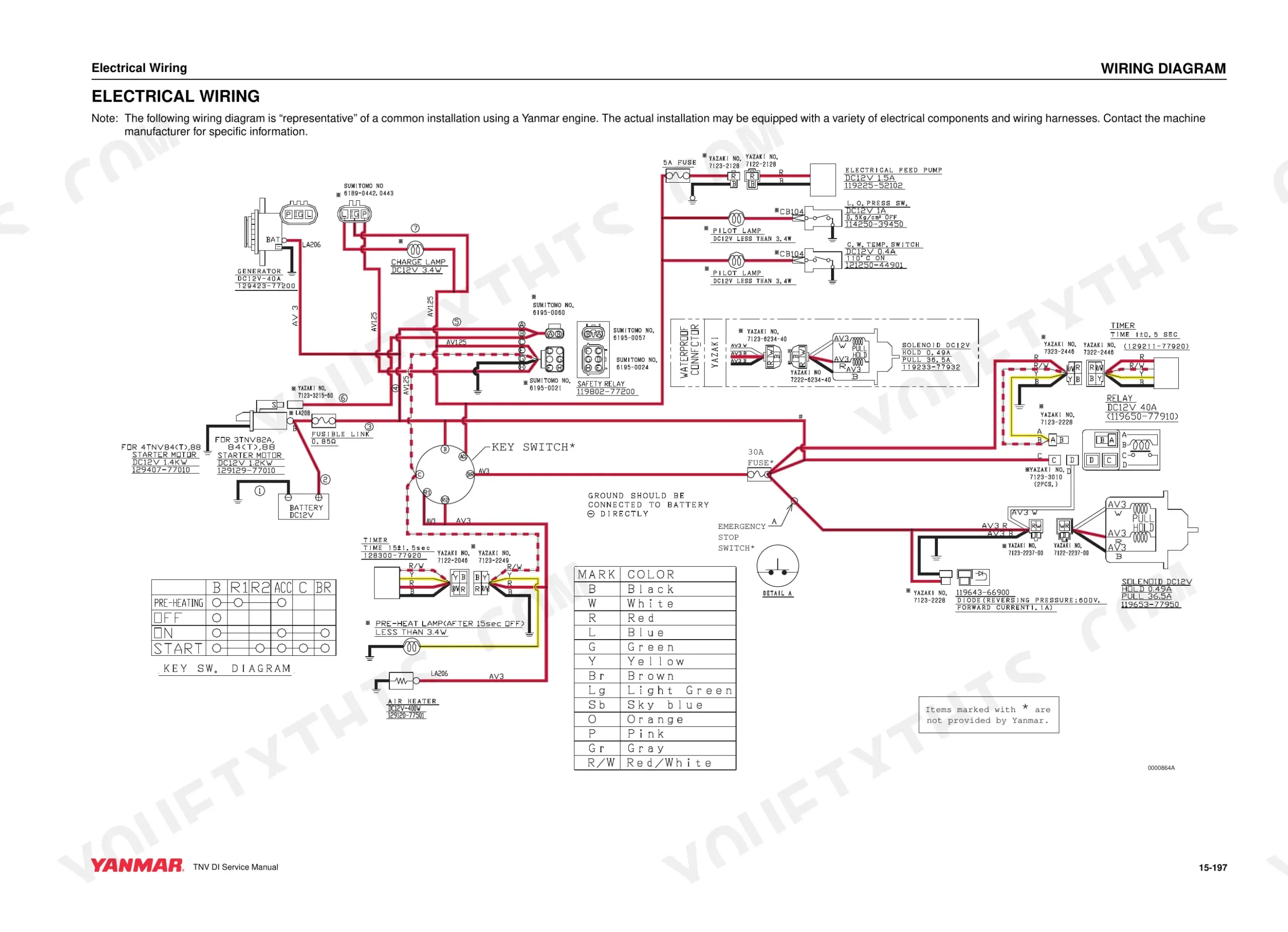

| Electric Wiring | 389-392 | - |
Quick Reference Specifications

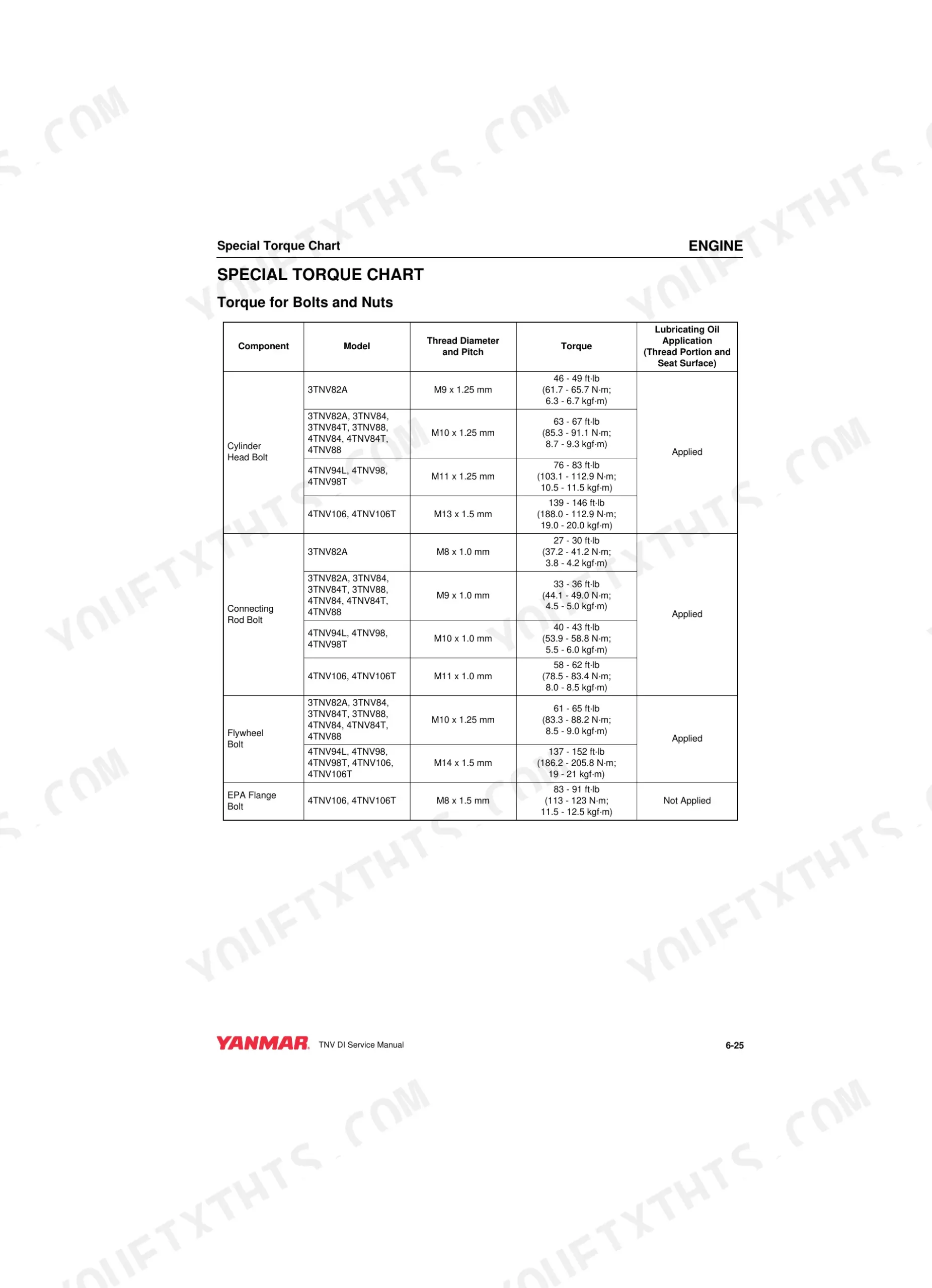

| Specification | Value | Page |
|---|---|---|
| 3TNV82A, 3TNV84, 3TNV84T, 3TNV88, 4TNV84, 4TNV84T, 4TNV88 | ||
| Cylinder Head Bolt Torque | 63 - 67 ft·lb (85.3 - 91.1 N·m; 8.7 - 9.3 kgf·m) | p. 157 |
| All Models | ||
| Fuel Injector Retainer Bolt Torque | 29 ft·lb (39.2 N·m; 4 kgf·m) | p. 251 |
| Normal Oil Pressure at Low Idle Speed | 0.06MPa (0.6kgf/cm2) or greater | p. 303 |
| Fuel Injection Pump Mounting Nuts Torque | 17 - 21 ft·lb (23 - 28 N·m; 2.3 - 2.9 kgf·m) | p. 251 |
| Engine Coolant Pump Replacement | Replace as an assembly if abnormal noise, sticking, excessive play, or water leakage are present. | p. 292 |
| Thermostat Valve Opening Temperature (Standard) | 157°F - 163°F (70°C - 73°C) | p. 85 |
| 4TNV106, 4TNV106T | ||
| Intake/Exhaust Valve Clearance | 0.010 - 0.014 in. (0.25 - 0.35 mm) | p. 138 |
| Intake / Exhaust Valve Clearance (4TNV106, 4TNV106T) | 0.25 - 0.35 mm | p. 85 |
| 3TNV82A-B, 3TNV88-B,-U, 4TNV88-B,-U | ||
| Glow Plug Torque | 133 - 177 in·lb (15 - 20 N·m; 1.53 - 2.04 kgf·m) | p. 159 |
| 3TNV82A(-B) | ||
| Engine Oil Capacity (Upper Limit) | 5.5 L | p. 57 |
| Engine Coolant Capacity | 1.8 L | p. 60 |
| All models except 4TNV106, 4TNV106T | ||
| Intake / Exhaust Valve Clearance (All models except 4TNV106, 4TNV106T) | 0.15 - 0.25 mm | p. 85 |
Yanmar TNV Series Common Problems This Manual Covers
Yanmar 3TNV82A engine cranks but will not start after overhaul with only white smoke present. p. 377
Measure compression pressure to verify cylinder sealing. Ensure readings on page 85 reach the standard 3.06 to 3.26 MPa. Check valve timing and inspect the injection pump drive gear nut, torquing it to 58 to 65 ft·lb (page 251). Bleed all air from the fuel system.
Manual Section: TroubleshootingEngine overheating, fluctuating temperature, or visible coolant leaks near the water pump housing. p. 292
Inspect the coolant pump for abnormal noise or excessive play. Replace the pump as an assembly per page 292 if you find sticking or leaks. Test the thermostat in heated water to confirm the valve opening temperature is exactly 70°C to 73°C (page 85).
Manual Section: Cooling SystemEngine starts and idles but triggers the low oil pressure alarm or bogs down. p. 303
Test the oil pressure at low idle speed. Verify the pressure reads 0.06MPa (0.6kgf/cm2) or greater, as specified on page 303. Inspect the oil pressure switch and check for a faulty sending unit. Drain and refill the engine oil if contaminated.
Manual Section: Lubrication SystemExcessive white smoke during operation along with a noisy valvetrain after routine top end maintenance. p. 85
Remove the valve cover and measure the intake and exhaust valve clearance. Adjust the clearance to 0.15 to 0.25 mm for most models, checking page 85 for exact specifications. Inspect valve guides for wear and torque the fuel injector retainer bolts to 29 ft·lb (page 251).
Manual Section: EngineFrequently Asked Questions
What are the torque specifications for Yanmar TNV cylinder head bolts?
The torque specifications for Yanmar TNV cylinder head bolts vary by model. For 3TNV82A, the torque is 46 - 49 ft·lb (61.7 - 65.7 N·m). For 4TNV106 and 4TNV106T, the torque is 139 - 146 ft·lb (188.5 - 198.0 N·m). The bolts should be tightened in two steps, following a specific sequence.
What are the replacement specifications for Fuel filters?
Fuel filters require periodic replacement every 500 hours. For 3TNV82A to 4TNV98 models, the standard fuel filter part number is 119802-55801. For 4TNV98T, 4TNV98T-Z, and 4TNV106T models, the standard part number is 123907-55801.
What is the engine oil capacity for the Yanmar 3TNV82A(-B) engine?
The engine oil capacity for the Yanmar 3TNV82A(-B) engine is 5.8 / 3.8 qt (5.5 / 3.6 L). This capacity is associated with a 'deep standard' oil pan, and actual capacity may vary based on optional oil pan configurations.
What is the recommended interval for replacing the engine oil filter?
The engine oil filter should be replaced every 250 hours of operation. This is a critical maintenance item to ensure proper engine lubrication and prevent contaminants from affecting engine performance.
What is the standard intake valve clearance for all Yanmar TNV models except 4TNV106 and 4TNV106T?
For all Yanmar TNV models except 4TNV106 and 4TNV106T, the standard intake valve clearance is 0.006 - 0.010 in. (0.15 - 0.25 mm). This clearance is crucial for proper engine operation and should be checked and adjusted as needed.
What is the recommended V-belt deflection for a used V-belt in position A?
For a used V-belt, the proper deflection at position A is 3/8 - 1/2 in. (10 - 14 mm) when pressed with a force of approximately 22 lbf (98 N; 10 kgf). Maintaining correct V-belt tension is essential to prevent alternator slippage and engine overheating.
What is the normal oil pressure at rated engine speed for the 3TNV82A engine?
For the 3TNV82A engine, the normal oil pressure at a rated engine speed of 1500 - 1800 min⁻¹ is 0.34 - 0.49 MPa (3.5 - 5.0 kgf/cm²). At 2900 - 3000 min⁻¹, the pressure is 0.39 - 0.54 MPa (4.0 - 5.5 kgf/cm²).
What is the standard valve opening temperature for the thermostat in all models?
The standard valve opening temperature for the thermostat in all models is 157°F - 163°F (70°C - 73°C). The thermostat should be replaced if it does not meet this specification to ensure proper engine cooling.
How quickly can I access this manual after buying?
This is a 392-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Service Manual?
No copy protection at all. The PDF is DRM-free, so print whatever sections you need to take to the shop. Standard letter or A4 paper works.
