Need the factory Yanmar v100 service manual pdf for your wheel loader? You found it: 778 pages of OEM documentation spanning the TCD 2.9 L4 Tier 4 diesel engine, Hydromatik travel hydraulics, machine electrics, and full diagnosis. Open to the hydraulics chapter and you get a complete set of circuit diagrams: standard routing, Z-kinematics, and 4th control circuit with high-flow variants, all drawn to factory spec. Inside the electrics section: every cable color, fuse assignment, and relay map for both CRT and DOC project variants, backed by the full SerDia 2010 SPN/FMI error code reference. Torque M18x2 piston nuts to 200 Nm, scaling to 3,500 Nm at M100x3; DKO hydraulic hose fittings run from 18 Nm to 380 Nm by line size. Your machine is down. Get the factory number on the first try. Bookmarked and searchable, pull up any section on your phone or tablet and get back to work.
What's Inside This Yanmar V100 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 3-46 | Introduction / User Notice, Safety and Accident Prevention, Symbol and Hazard Descriptions, Tightening Torques for Pistons or Piston Nuts, Tightening Torques for Guide Bushings |

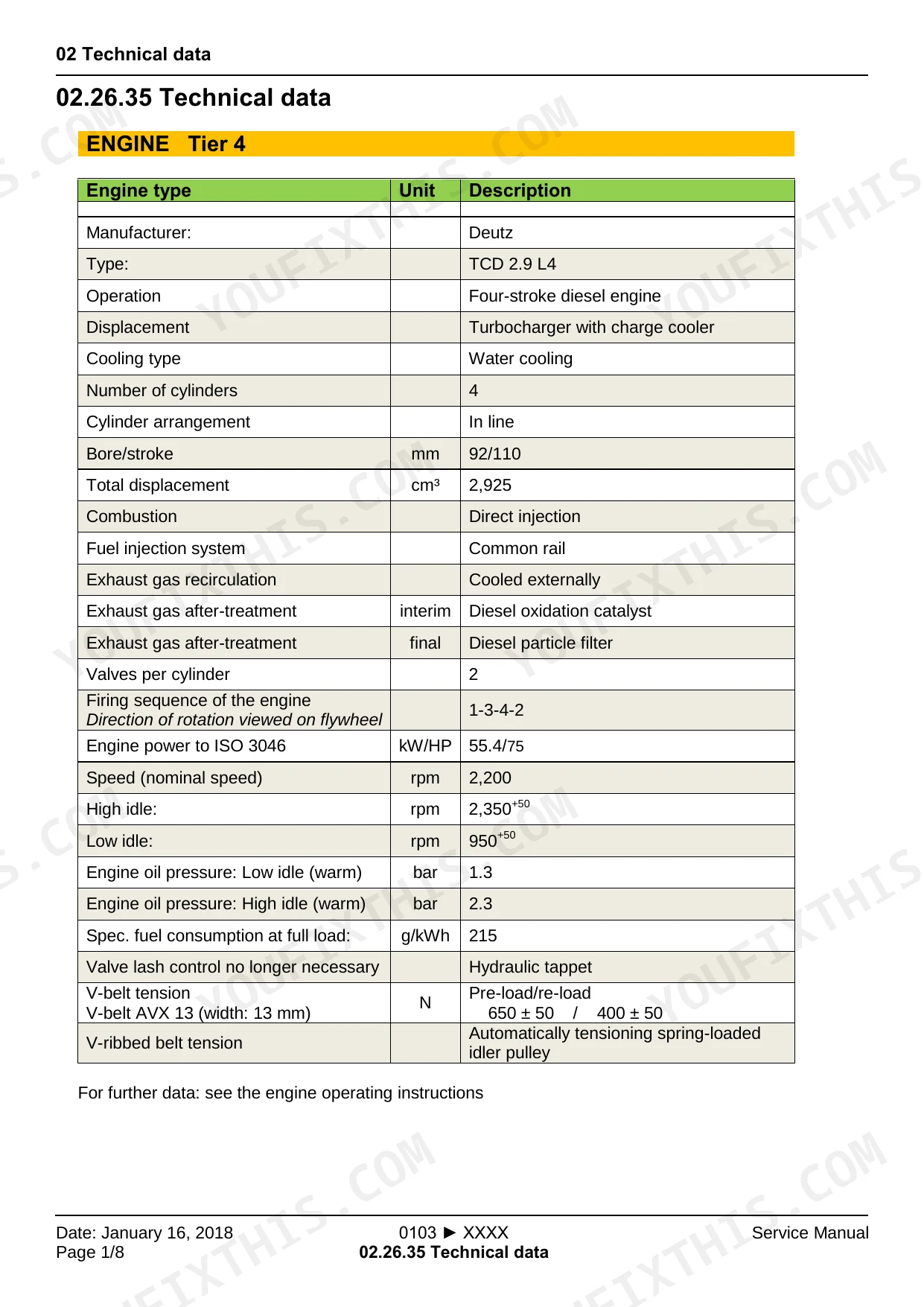

| Technical Data | 47-58 | Drift Values |

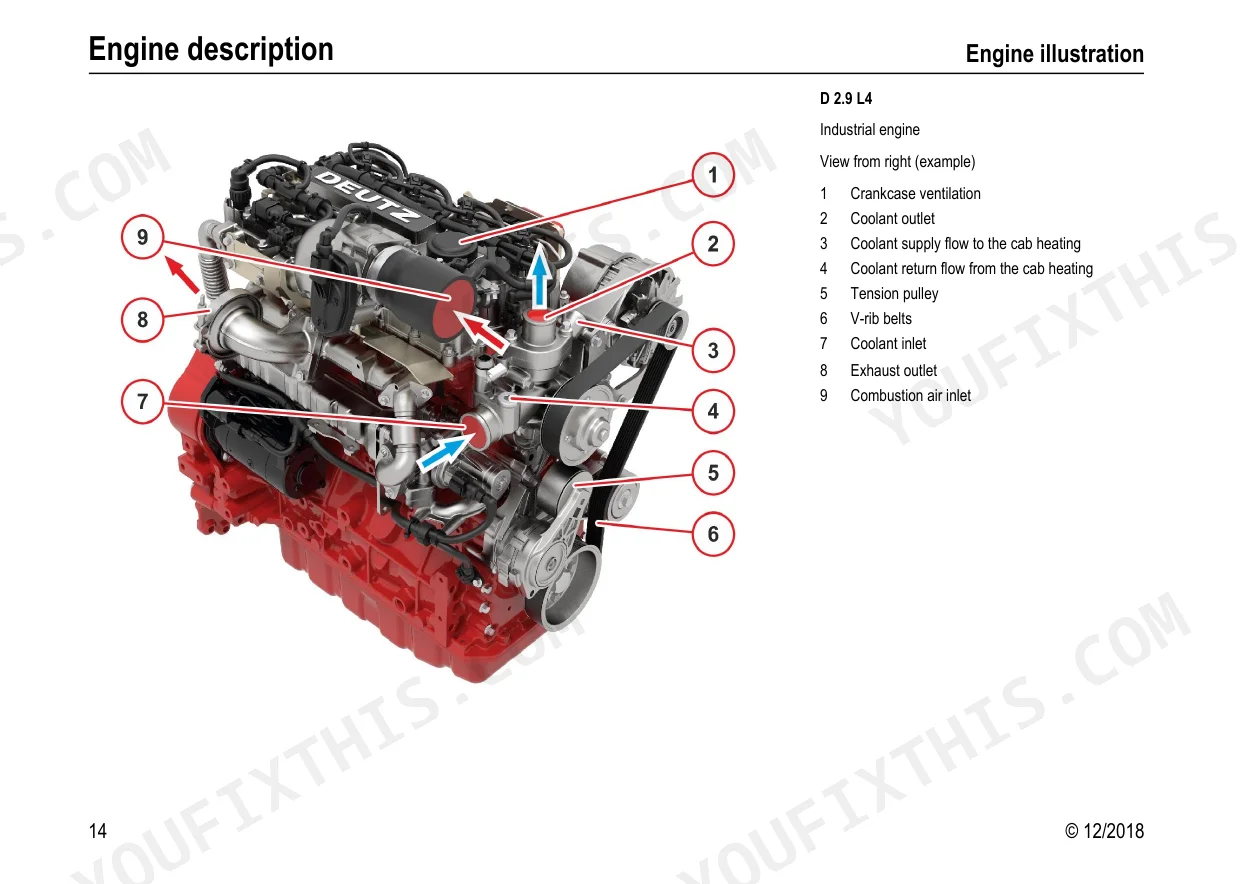

| Diesel Engine | 59-370 | Tcd 2.9 L4 Tier 4 Operating Manual, Workshop Manual, Fuel System Bleeding, Engine Repair Procedures |

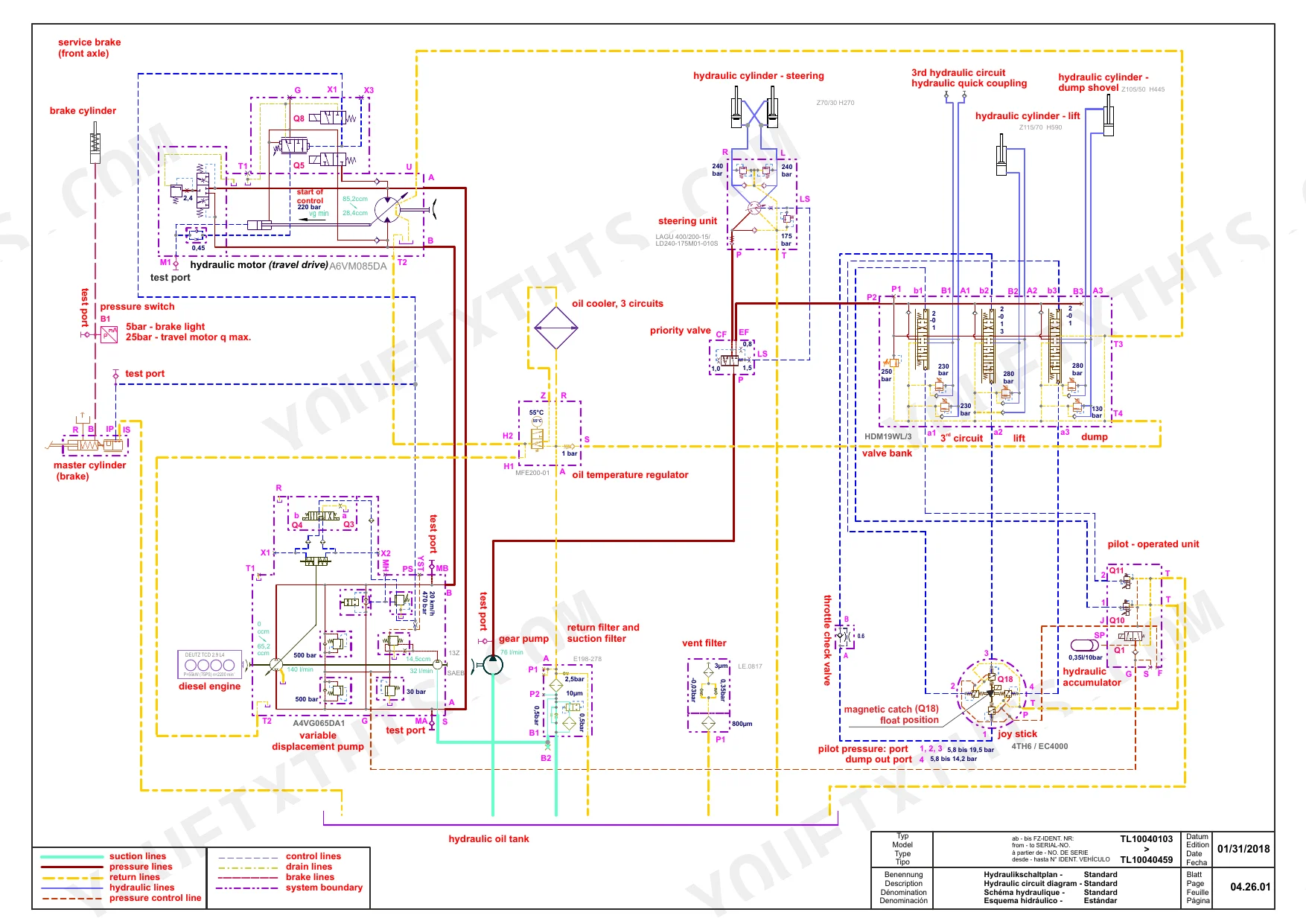

| Hydraulics | 371-384 | Hydraulic Circuit Diagram Standard, Z-Kinematics Circuit Diagram, 4th Control Circuit High-Flow Variants |

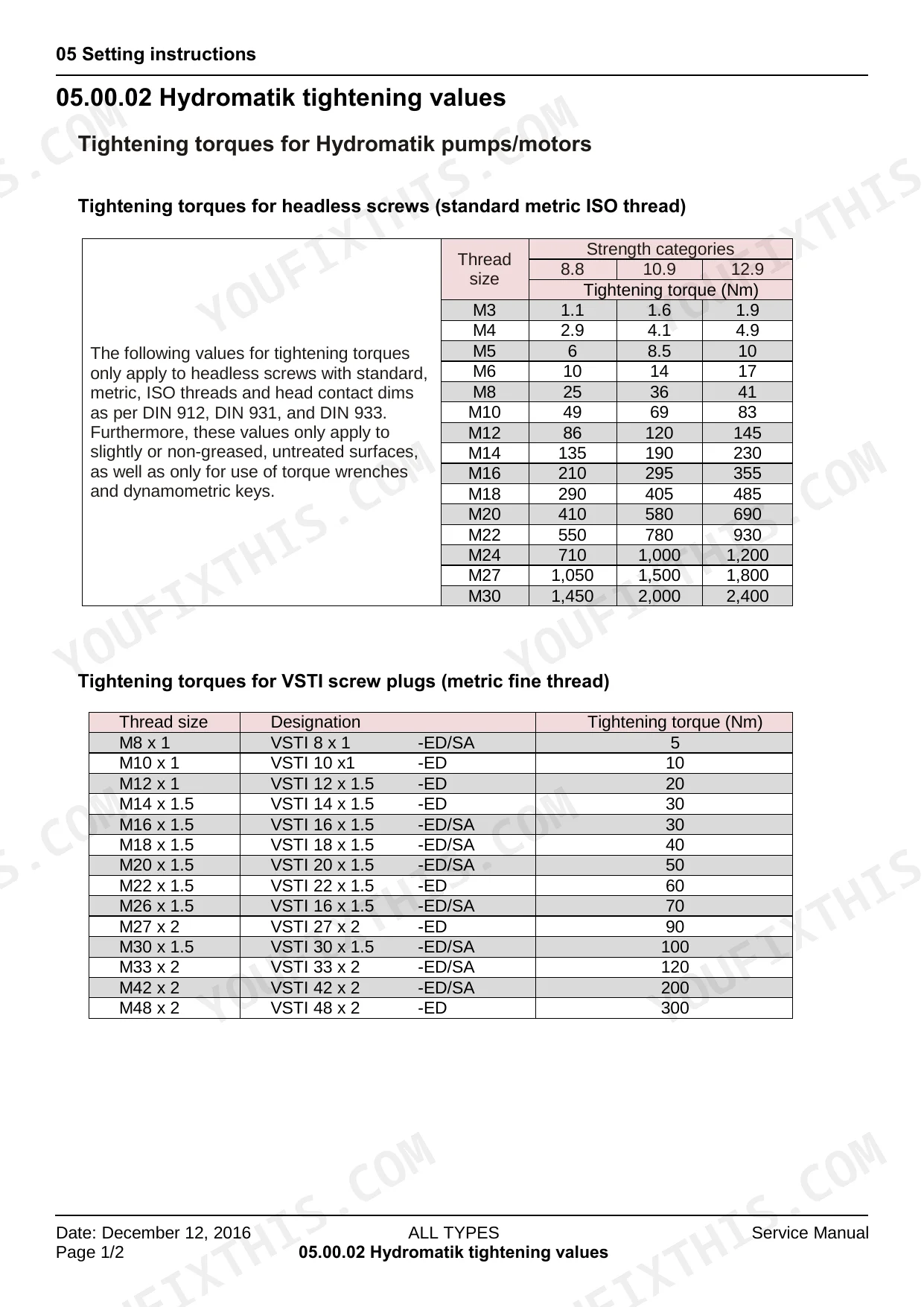

| Setting Instructions | 385-410 | Hydromatik Tightening Values, HDM19WL Valve Description, A4VG065DA1 Displacement Pump, Displacement Motor A6VM, Travel Hydraulics Setting Instructions |
| Functional Description | 411-414 | Pilot Control Device 4TH6, Handle Options, Control Circuit Functions |

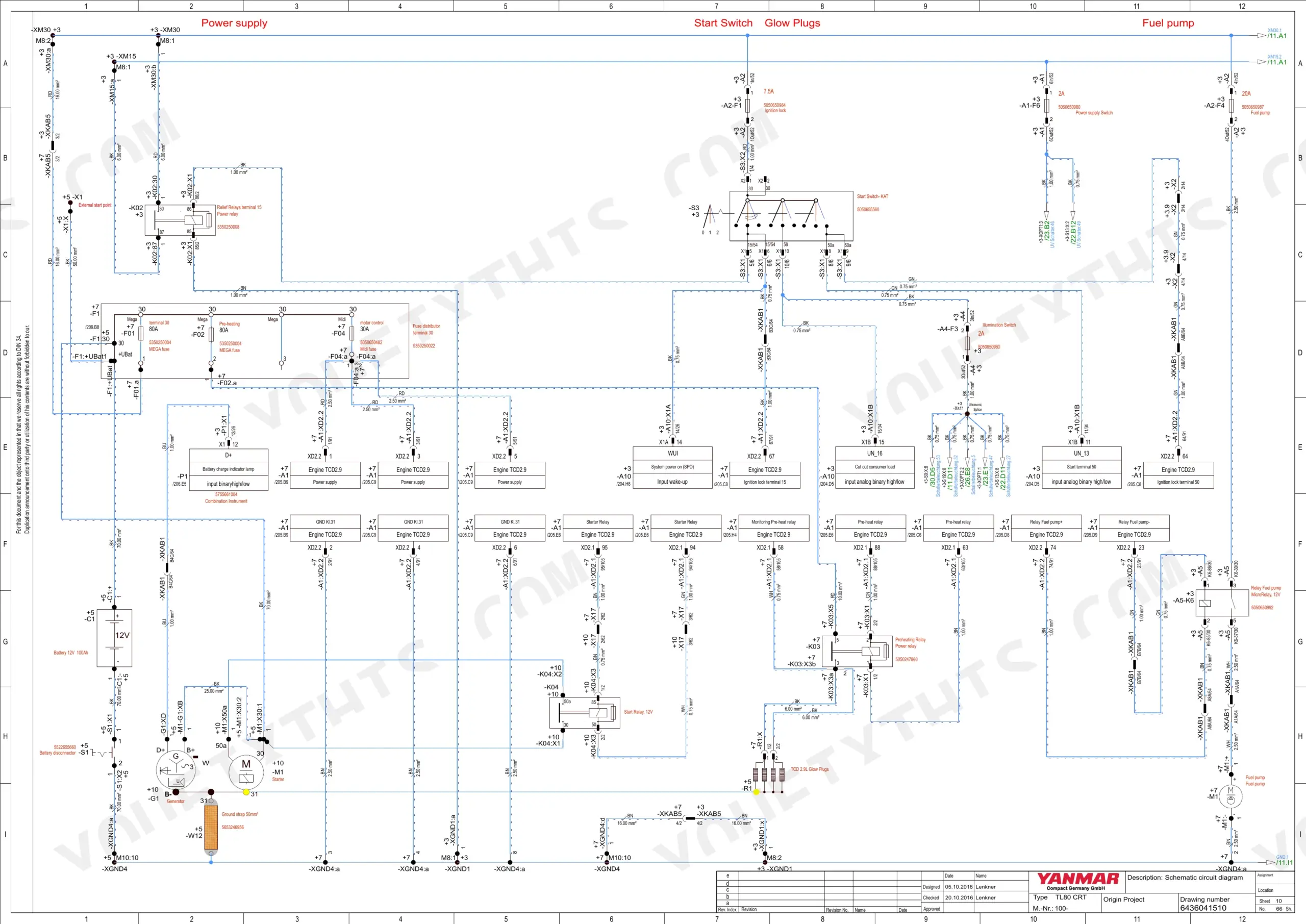

| Electrics | 415-564 | Cable Colors Overview, Vehicle Electrics Crt and DOC Project Variants, Fuse Assignment, Relay Assignment, SerDia 2010 SPN/FMI Error Codes |
| Maintenance | 565-574 | Fuel, Lubricant, And Coolant Specifications, Inspection Plan, Service Intervals |
| Operation | 575-642 | Keypad Operation, Combo-Tool Instructions, Serdia Diagnostic Tool Usage, DPF Regeneration Procedure |
| Options | 643-652 | Diesel Particulate Filter Replacement, DPF Exhaust After-Treatment System |
| Repair Instructions | 653-676 | Hydraulic Screw Connections, Dko Hose Fittings Torque Values, Cab Window Adhesive Kit, Ride Control System Rcs |

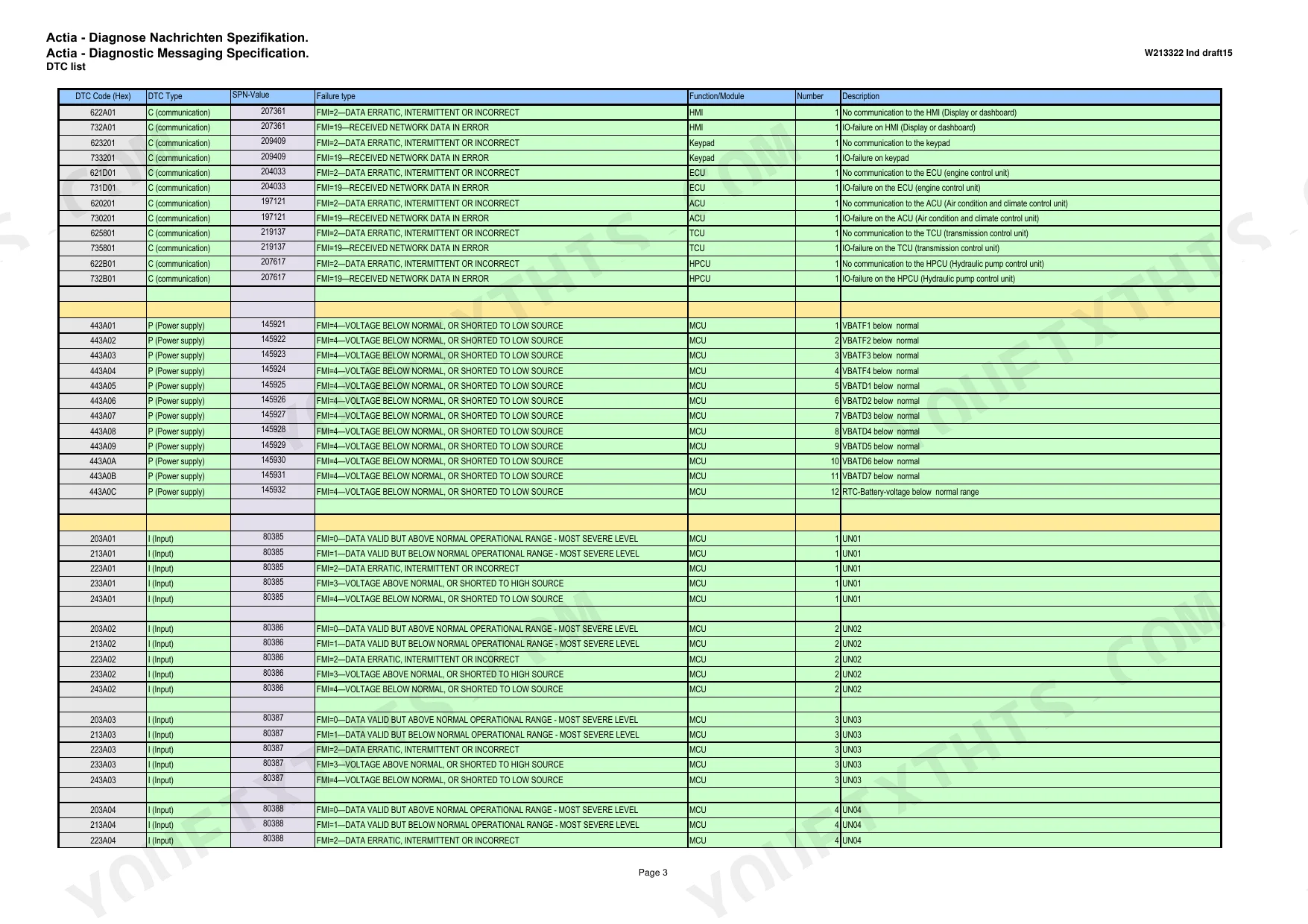

| Diagnosis / Tools | 677 | Special Tools Purchased Parts, Actia Diagnostic Messaging Specification, Dashboard Error Codes Software Variants, SerDia 2010 Diagnostic and Error Codes SPN/FMI |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Tightening torques for pistons or piston nuts (M18x2 to M100x3) | 200 Nm to 3500 Nm | p. 25 |
| Tightening torques for guide bushings (M50x2 to M130x2) | 200 - 230 Nm to 690 - 795 Nm | p. 26 |
| Tightening path/torque for DKO hose (L6 M12 x 1.5 to L42 M52 x 2.0) | 18 Nm to 380 Nm | p. 664 |
| Dimensions of straight pipe end | > double the nut height | p. 659 |
| Hydraulic oil viscosity limit at 100°C | min 8 mm2/s (cSt) | p. 49 |
| Coolant cold protection (min. 35% agent) | -22 °C | p. 119 |
| Coolant cold protection (40% agent) | -28 °C | p. 119 |
| Maximum spray pressure for steam jet cleaning | 60 bar | p. 134 |
| Maximum steam temperature for steam jet cleaning | 90 °C | p. 134 |

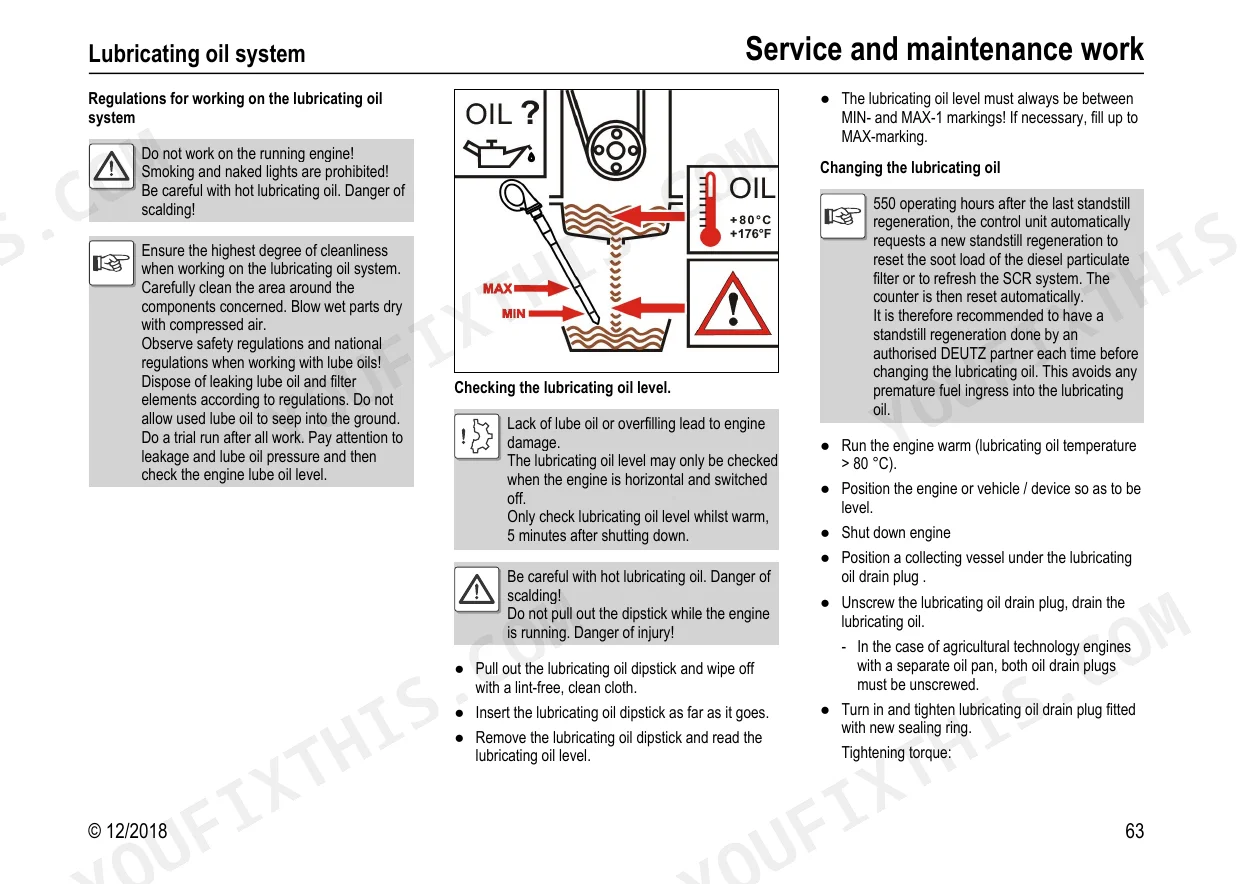

| Lubricating oil filter tightening torque | 10 Nm - 12 Nm | p. 126 |
| Fuel pre-filter insert tightening torque | 17 Nm - 18 Nm | p. 130 |
| Brake inching start/end pressure (20 km/h version) | 5–13 bar | p. 53 |
Yanmar V100 Common Problems This Manual Covers
Yanmar V100 hydraulic pump sluggish, bucket won't lift or steering drags under load p. 54
Check hydraulic oil level and inspect all hoses for seepage first. Verify main relief valve reads 250+5 max. bar at high idle (page 54) and steering pressure holds 175+3-5 bar (page 51). If pressure drops under load, pull the circuit diagram on page 373; the gear pump should deliver 76 l/min at operating speed.
Manual Section: HydraulicsDrive function weak, machine barely moves or stalls in travel at full throttle p. 53
Verify travel hydraulic pressures against the specs on page 53: pressure cut-off should be 470 bar, hydrostatic brake sensor triggers at 25 bar, and brake inching range is 5-13 bar. If any reading is off, work through the Travel Hydraulics setting procedure for the full adjustment sequence on the A4VG065 displacement pump.
Manual Section: Setting InstructionsEngine temperature warning repeating, coolant gauge climbing toward red zone in operation p. 152
Clean the radiator and fan area first; steam cleaning is allowed up to 60 bar at 90°C, nozzle at least 1 meter away (page 134). Permissible continuous coolant temperature is max. 110°C, thermostat opens at 86-90°C and should be fully open by 99-102°C (page 152). Verify coolant concentration: 40% agent protects to -28°C (page 119).
Manual Section: Engine Faults and Corrective MeasuresEngine cranks but won't fire, or loses power immediately after fuel filter service p. 130
Replace the fuel pre-filter and torque the insert to 17-18 Nm; torque the drain plug to 1.6 Nm +/-0.3 Nm (page 130). Then bleed the fuel system per the Diesel Engine section. Air in the lines after filter work is the most common reason the engine cranks without firing. Check battery voltage: nominal system voltage is 12 V (page 50).
Manual Section: Bleeding the Fuel SystemHydraulic hose weeping oil at fittings, visible seepage after replacement or reconnection p. 664
Inspect every hose for dry rot, pinhole weeps, and loose fittings before pressurizing the system. When reinstalling DKO connections, torque to the size-correct value on page 664: 18 Nm for M12x1.5 up to 380 Nm for M52x2.0. Verify the straight pipe end protrudes more than double the nut height before final tightening (page 659).
Manual Section: Hydraulic Screw Connections RepairFrequently Asked Questions
How to reset Yanmar V100 error codes?
The manual indicates that some error codes, such as those displayed by the diagnostics lamp, may clear automatically after rectification and switching off the ignition for approximately 30 seconds. For specific system errors, like those related to the diesel particulate filter (DPF), the soot and ash content stored in the ECU must be reset using a specialized service tool (SERDIA) after replacing the filter.
How to reset the service light on a Yanmar V100?
To reset the dry air filter maintenance indicator, after completing maintenance work, push the reset button on the service gauge to make it ready for operation again. For the regeneration lamp, which indicates DPF service, it will go out once the regeneration process has been successfully completed, typically lasting 35 to 40 minutes.
How to clear a Yanmar V100 fault code?
Some fault codes, particularly those indicated by the diagnostics lamp, may clear automatically once the underlying errors are rectified and the ignition is switched off for approximately 30 seconds. For more complex system faults, such as those related to the diesel particulate filter (DPF), clearing the fault code and resetting stored data in the ECU requires the use of a specialized service tool (SERDIA) after component replacement.
How to reset hydraulic settings on a Yanmar V100?
To reset hydraulic settings, you can access the "Factory settings" option within the combo-tool's basic settings menu. Confirming this option will reset all values to their factory defaults. If individual settings to units and components are changed for other measurements, the original settings must be restored after completing the work.
How quickly can I access this manual after buying?
You get a 778-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Yanmar V100 Service Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Can I find hydraulic circuit diagrams in this Yanmar V100 manual?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Yanmar V100.
