Part of the Yanmar Repair Manuals.
All 405 pages of the Yanmar ViO12 Service Manual are organized around one machine: the ViO12 compact excavator, from general maintenance cautions through engine, electrical, and hydraulic systems. Inside: a full hydraulic circuit schematic with circuit-by-circuit breakdowns for boom, arm, bucket, swing, and boom swing, plus a wiring diagram section that walks through alarm sensor performance, engine start/stop logic, and battery charge fault diagnosis. You also get a complete troubleshooting section, a tightening torque list for both machine and engine fasteners, and exploded engine views with step-by-step measurement and reassembly procedures. Set your M12 track roller mounting bolts to 78.4-98 N•m and the M10 sprocket bolts to 44.1-58.8 N•m. Stop guessing at undercarriage specs. Bookmarked and searchable, this PDF opens on any device; pull it up on your tablet and walk straight to the machine.

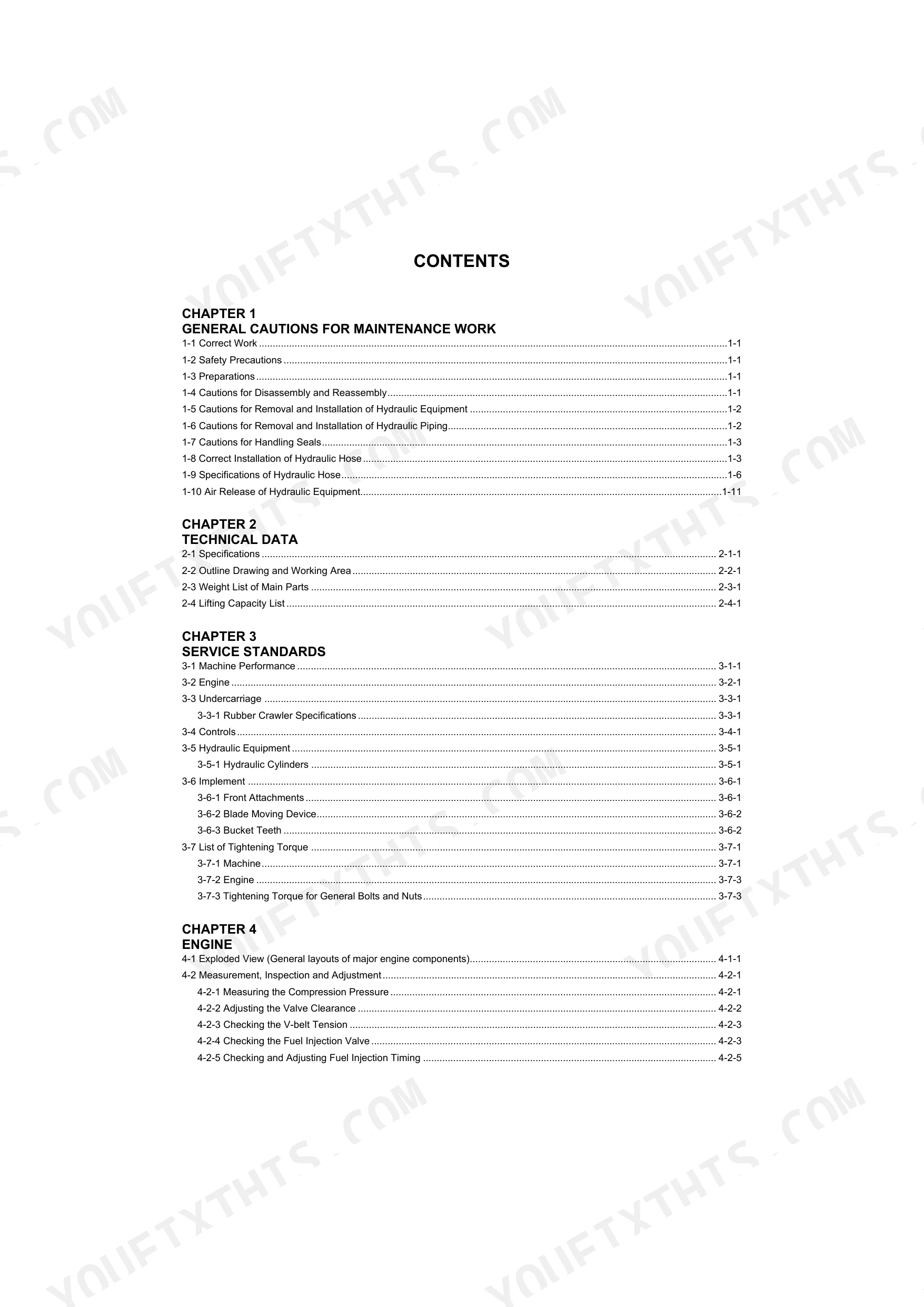

What's Inside This Yanmar ViO12 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 0 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment, Cautions for Removal and Installation of Hydraulic Piping, Cautions for Handling Seals, Correct Installation of Hydraulic Hose, Specifications of Hydraulic Hose, Air Release of Hydraulic Equipment |

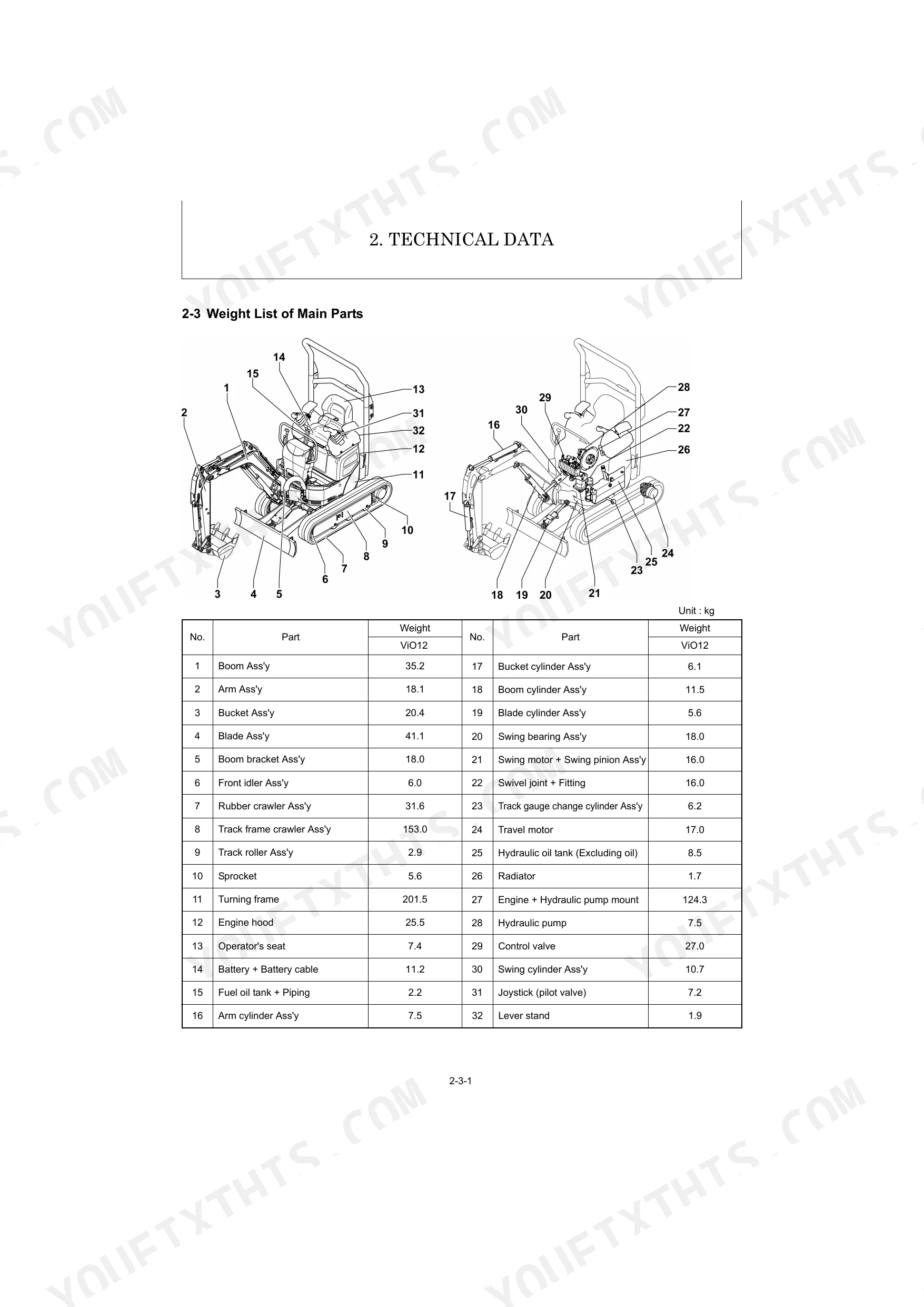

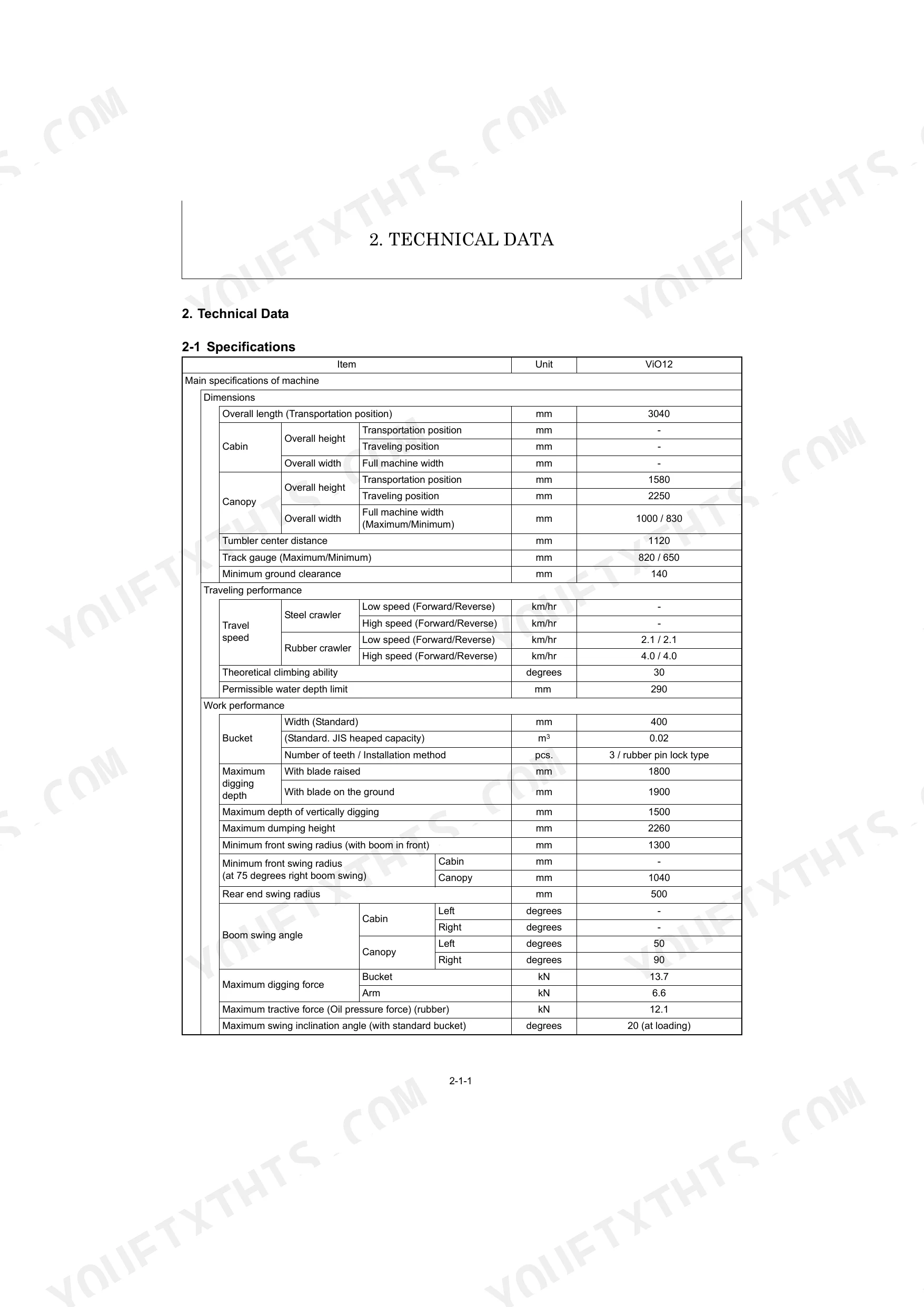

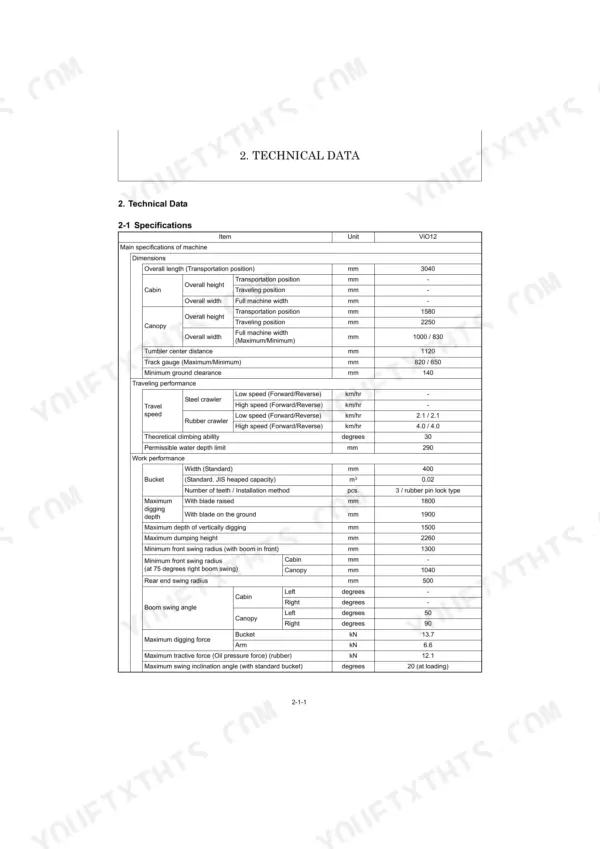

| Technical Data | 0 | Specifications, Outline Drawing and Working Area, Weight List of Main Parts, Lifting Capacity List |

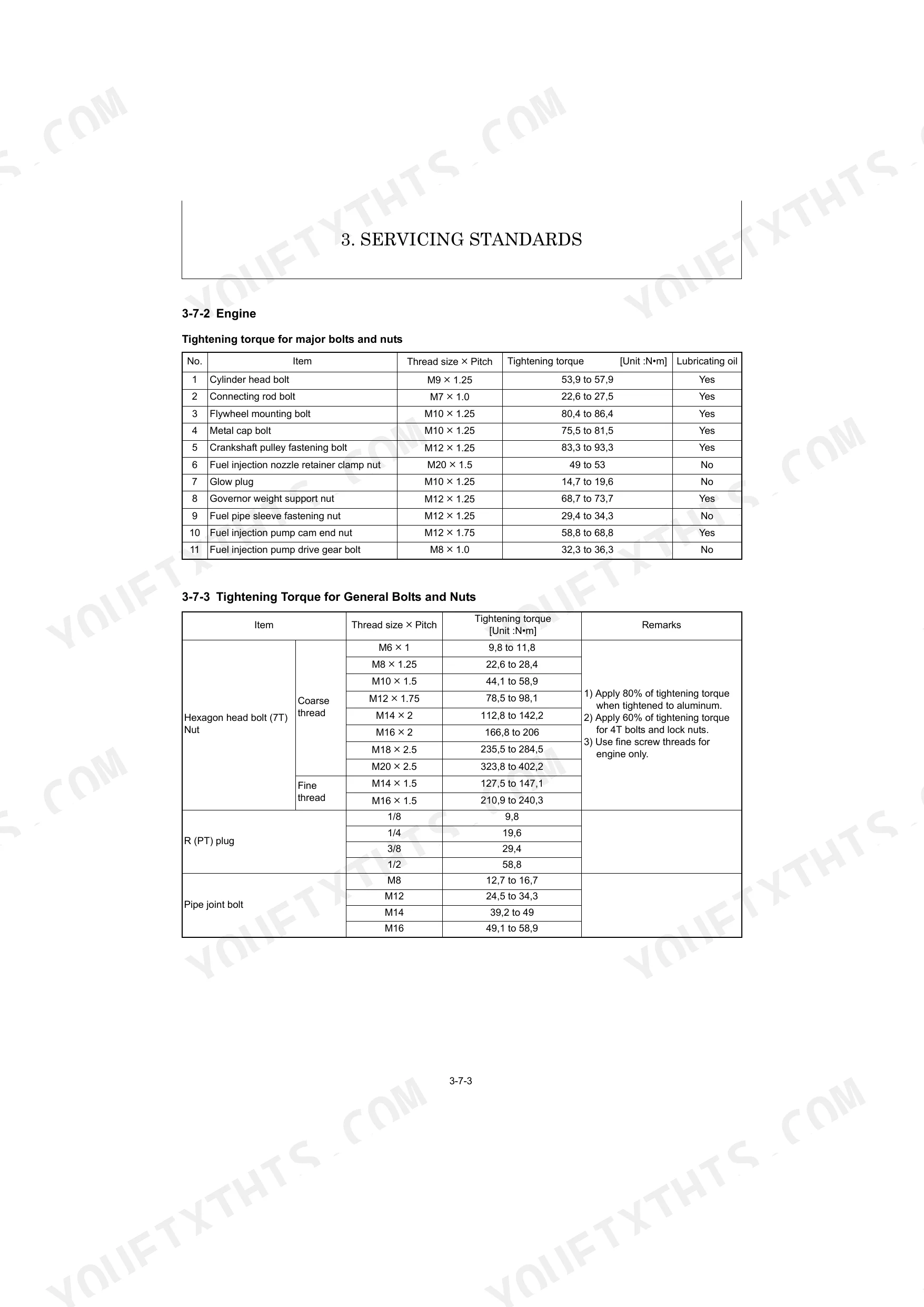

| Service Standards | 0 | Machine Performance, Engine, Undercarriage, Controls, Hydraulic Equipment, Implement, List of Tightening Torque |
| Engine | 0 | Measurement, Inspection and Adjustment, Measurement Procedure, Service Data and Corrective Action, Precautions for Reassembly, Electrical Equipment |

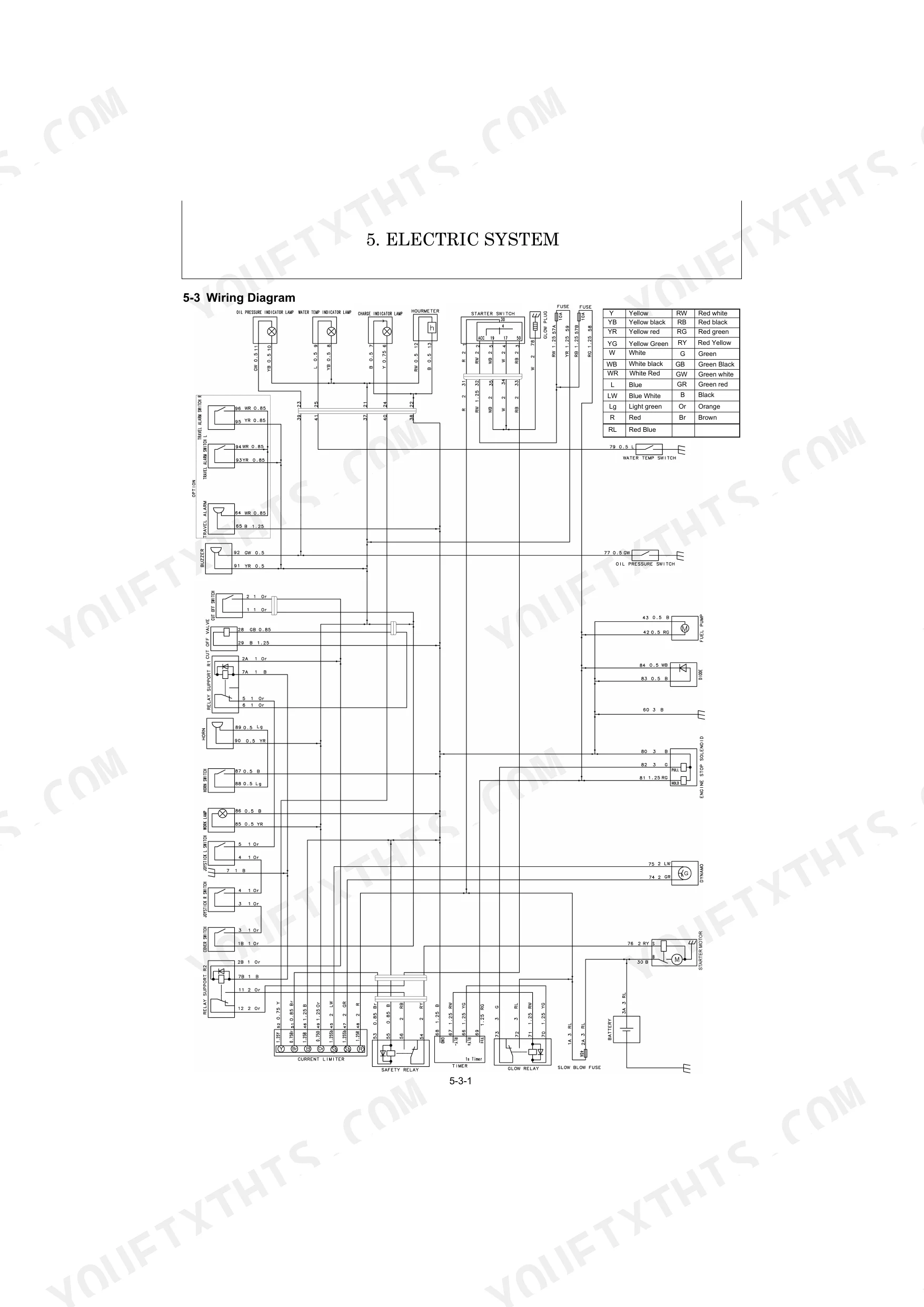

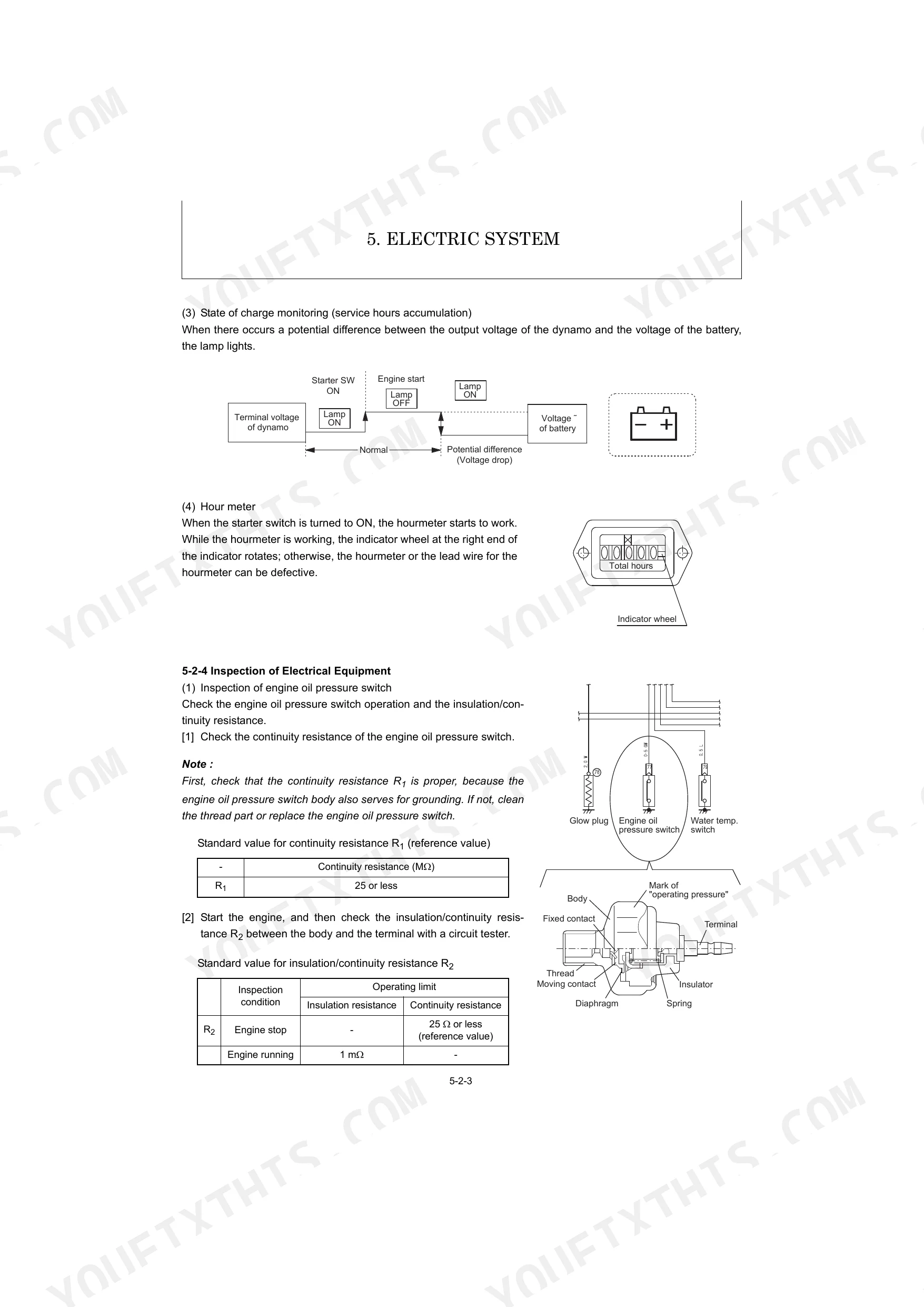

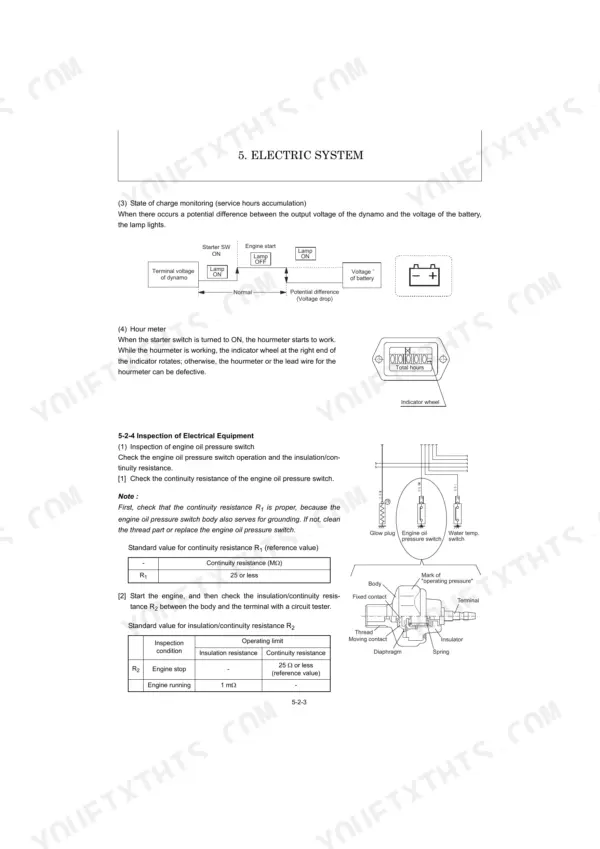

| Electric System | 0 | Parts Layout of Electrical Equipment, Monitor and Alarm Systems, Wiring Diagram, Circuit Description of Engine Start and Stop |

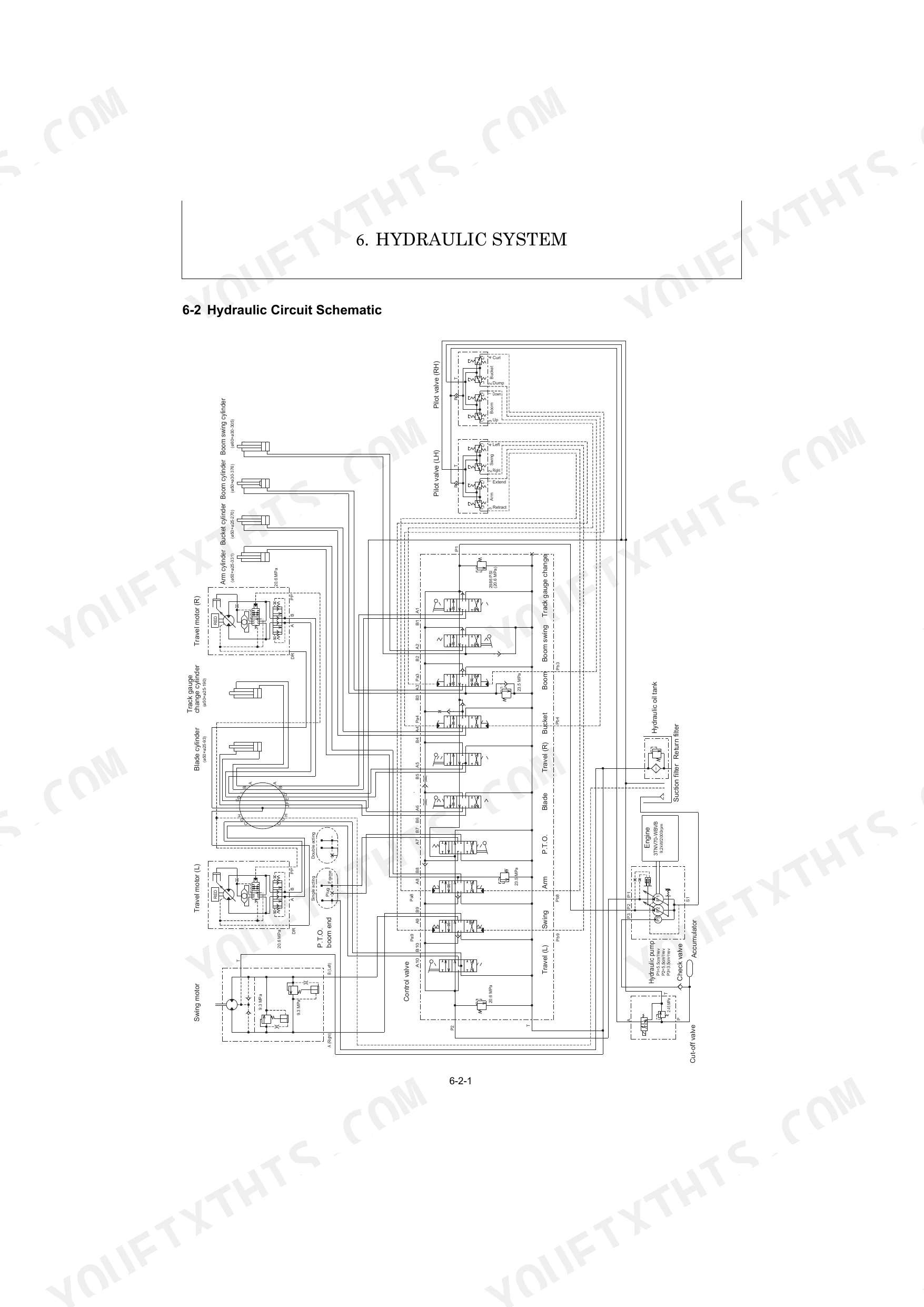

| Hydraulic Equipment | 0 | Outline, Hydraulic Circuit Schematic, Circuit Operation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Track roller mounting bolt (M12) tightening torque | 78.4 to 98 N•m | p. 52 |
| Sprocket Hexagon socket head bolt M10 tightening torque | 44.1 to 58.8 N•m | p. 52 |
| Rubber hose (SAE J517, 100R1) 02 working pressure | 2489 (17.2) PSI (MPa) | p. 16 |
| Fuel filter filtration area | 430 cm2 | p. 29 |
| LO filter filtration area | 800 cm2 | p. 29 |
| LO filter valve opening pressure | 0.08 to 0.12 kPa | p. 29 |
| Air cleaner filtration area | 0.9 m2 | p. 30 |
| Radiator hose band tightening torque | 2.9 N•m | p. 52 |
| Overall length (Transportation position) | 3040 mm | p. 24 |
| Engine Rated output / engine speed | 9.2/2000 KW/rpm | p. 28 |
| Hydraulic oil tank capacity | 14.3 L | p. 27 |
| System relief set pressure (P1, P2) | 20.6 MPa | p. 26 |
Yanmar ViO12 Common Problems This Manual Covers
Yanmar ViO12 hydraulic functions slow, weak, or jerky immediately after hose replacement or component service p. 10
Bleed the hydraulic circuit before returning the machine to work. With the engine idling, stroke each cylinder from end to end at least five times, then open the air bleed fitting on the hydraulic tank. Top the tank to 14.3 L and re-check the sight glass. Review the bleeding procedure on page 10 before calling the repair complete.
Manual Section: 1-5 Cautions for Removal and Installation of Hydraulic EquipmentEngine temperature climbs into the red zone or water temp alarm sounds during operation
Check coolant level first: the radiator holds 2.1 L and even a partial loss triggers overheating. Clear debris from the radiator fins and engine bay. Inspect coolant hoses for cracks or softness at the clamp bands, tightened to 2.9 N•m. If the system was drained recently, bleed any trapped air from the top hose before running.
Manual Section: Engine TroubleshootingHard start, intermittent stall, or rough idle after machine sits overnight or refuels p. 29
Drain the fuel water separator bowl before every start if the machine sat overnight. Look for visible water or dark sediment in the bottom. The fuel filter has 430 cm2 of filtration area (page 29) and clogs fast on bad diesel. Replace the separator element and fuel filter together if the machine has been rough-running for more than one shift.
Manual Section: Engine TroubleshootingMachine drifts or pulls to one side on travel, tracks wear unevenly p. 52
Inspect track tension on both sides independently before suspecting the travel circuit. A 180 mm rubber crawler pulls toward whichever side runs loose, and unequal tension mimics a motor fault. Re-torque loose track roller mounting bolts to 78.4 to 98 N•m (page 52) and recheck tension after 30 minutes: rubber tracks settle and usually need a second adjustment.
Manual Section: Hydraulic Travel System TroubleshootingOil drips under the machine at hose fittings or connections after hydraulic work p. 12
Verify every hose fitting is seated and torqued before pressurizing. Check routing against the minimum bending radius requirements on page 12: a kinked or twisted hose fails under load. Mark hoses with a stripe before installation to confirm no twist crept in during tightening. Inspect all connections at full system relief pressure of 20.6 MPa for seep or spray.
Manual Section: 1-8 Correct Installation of Hydraulic HoseFrequently Asked Questions
What are the torque specs for YANMAR ViO12 track tension or undercarriage bolts?
For undercarriage components, the track roller mounting bolts (M12) require a tightening torque of 78.4 to 98 N•m. Similarly, the idler mounting bolts (M12) also require 78.4 to 98 N•m. The stopper bolt and stopper nut (M16) for the track gauge change cylinder should be tightened to 166.7 to 205.9 N•m.
How to reset YANMAR ViO12 hydraulic system
To reset the hydraulic system after disassembly or parts replacement, perform an air release. Run the engine at medium speed and activate the respective circuits for about 10 to 15 minutes. For hydraulic cylinders, set the engine speed at low idling range, then extend and retract the cylinder up to 50 to 100 mm from each stroke end slowly 4 or 5 times, followed by fully extending and retracting 3 or 4 times.
What are the replacement specifications for hydraulic hoses?
Yanmar hydraulic hoses are identified by an 11-digit part code indicating material, type, nominal length, nominal diameter, and fittings combination. For example, a high-pressure rubber hose (SAE J517,100R1) with a 0.25 inch (6.3 mm) inner diameter has a working pressure of 2489 PSI (17.2 MPa). A nominal length code of '065' corresponds to a full length of 25.6 inches (65 cm).
How do you fix yanmar ViO12 hydraulic functions slow, weak, or jerky immediately after hose replacement or component service?
Bleed the hydraulic circuit before returning the machine to work. With the engine idling, stroke each cylinder from end to end at least five times, then open the air bleed fitting on the hydraulic tank. Top the tank to 14.3 L and re-check the sight glass. Review the bleeding procedure on page 10 before calling the repair complete.
How quickly can I access this manual after buying?
Immediate download of the complete 405-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

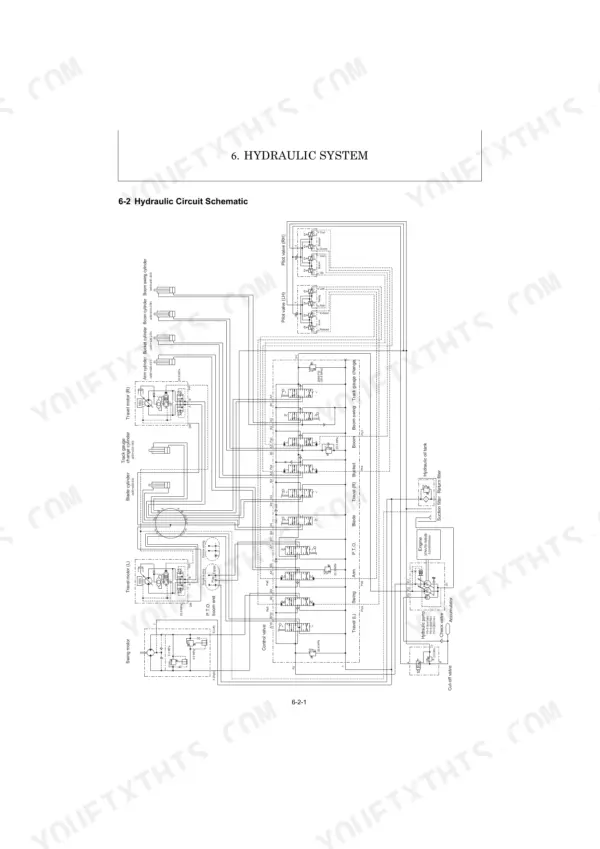

Can I find hydraulic circuit diagrams in this Yanmar ViO12 manual?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
