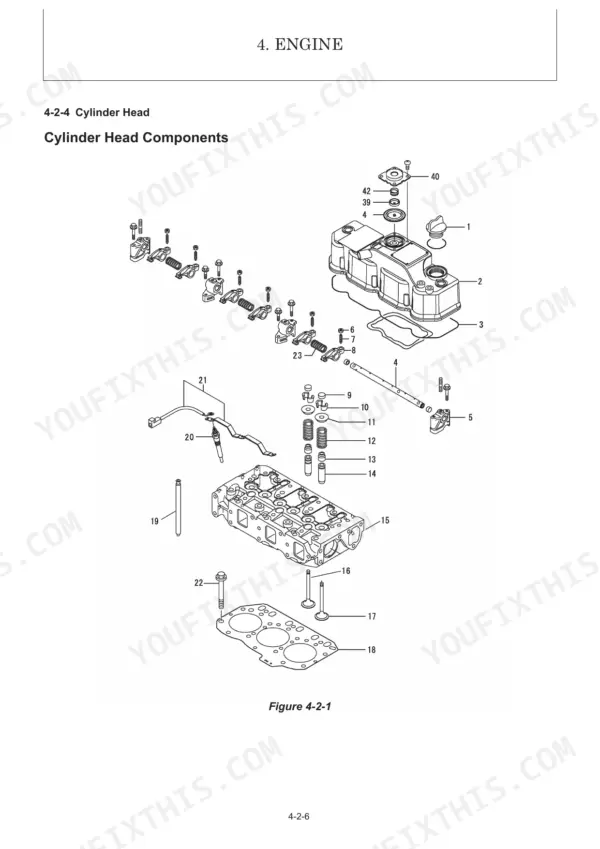

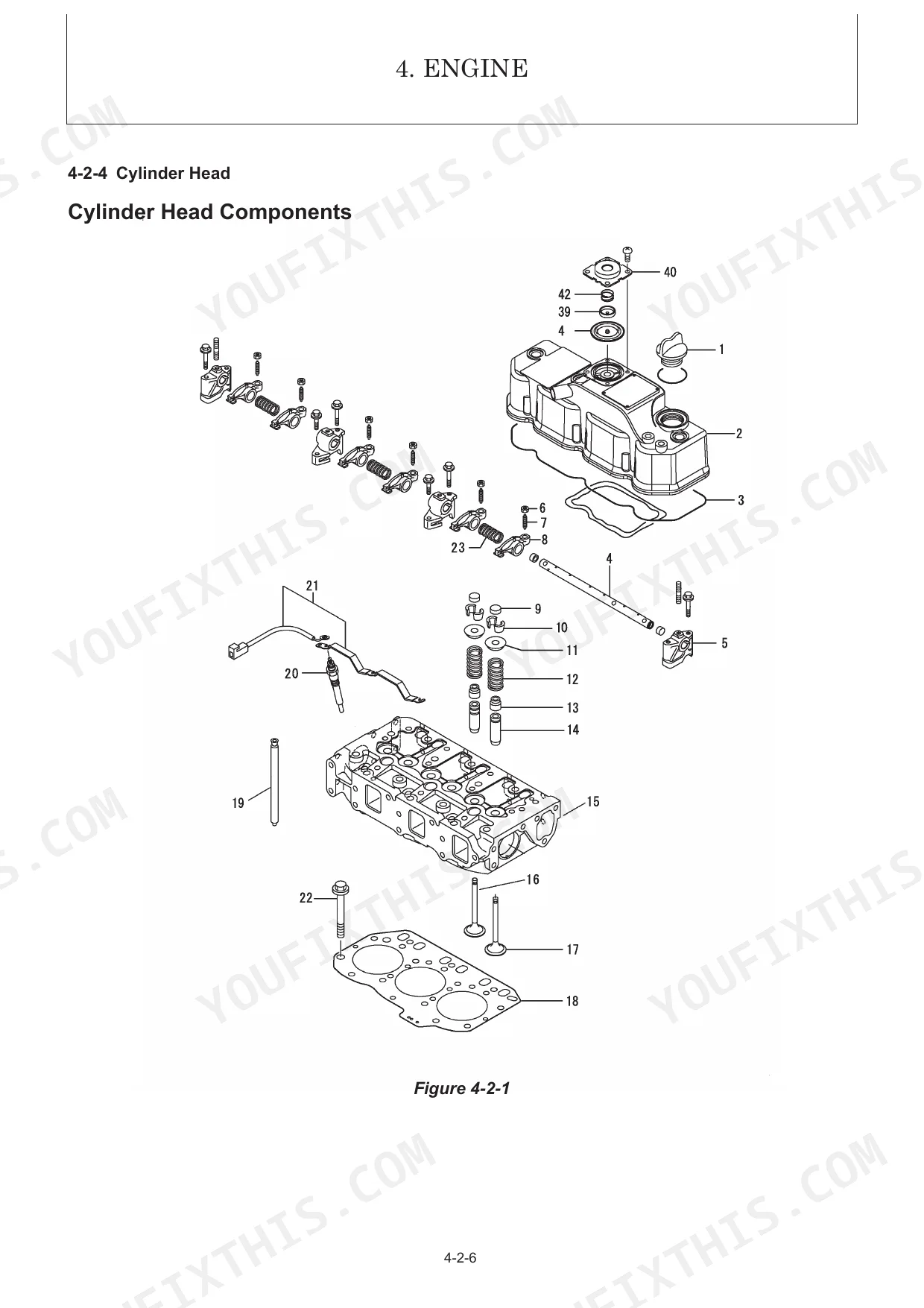

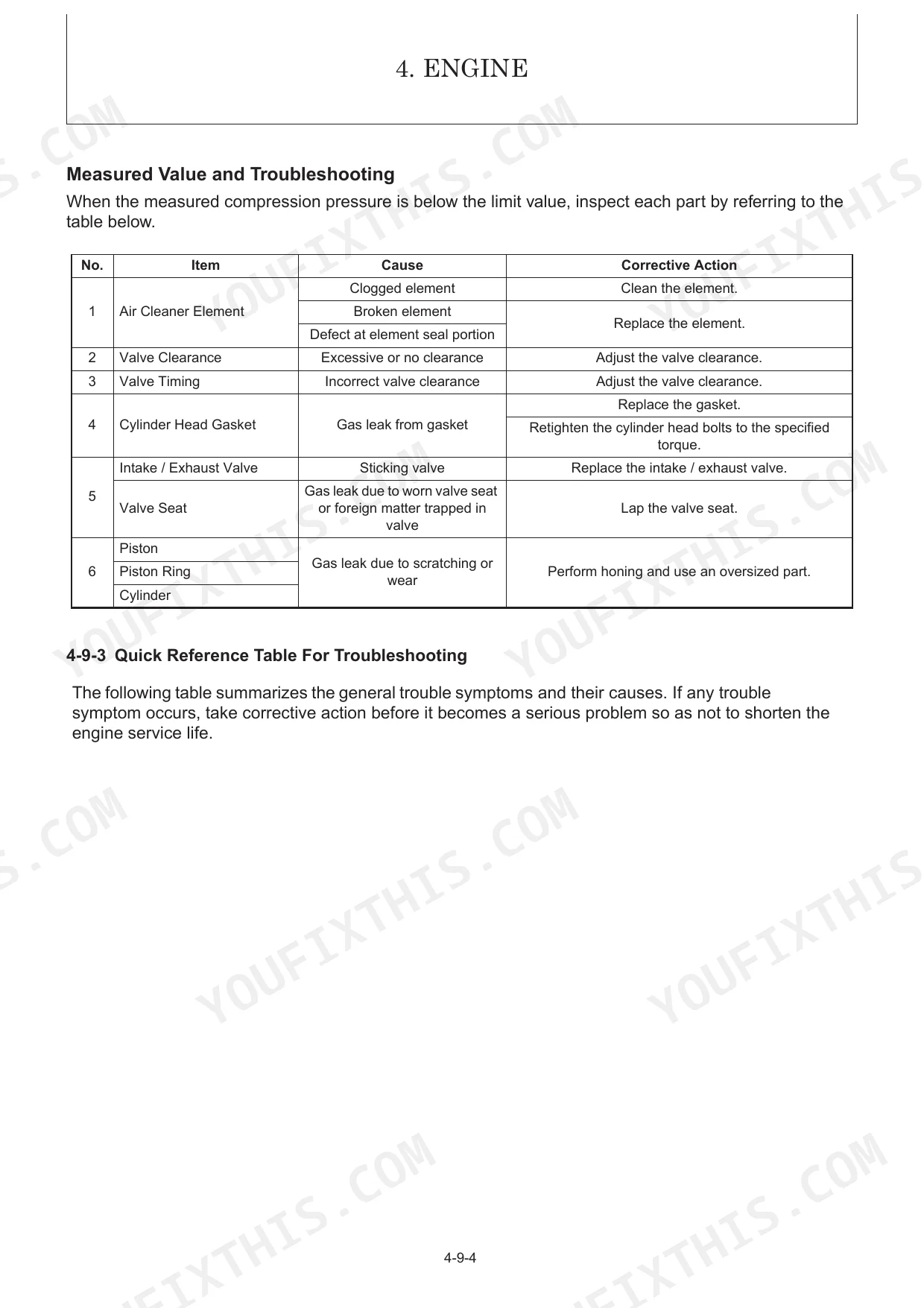

All 469 pages of this Yanmar ViO33U Service Manual focus on one machine: the ViO33U compact excavator, with factory procedures covering engine, hydraulic system, electrical, and undercarriage from the ground up. You get hydraulic circuit schematics with full circuit operation and pressure adjustment, wiring diagrams for the alternator, starter motor, and complete machine electrics, plus a detailed troubleshooting section and exploded-view drawings across every major assembly. Open to the Service Standards chapter and you'll find torque tables, clearance specs, machine performance benchmarks, and hydraulic cylinder data all in one place. Torque the track roller M16 bolts to 291-339 N·m, set engine oil pressure between 0.34 and 0.49 MPa, and top the hydraulic tank to its 60 L capacity. No more hunting spec forums at midnight. Bookmarked and keyword-searchable; pull it up on your tablet at the machine and start wrenching.
What's Inside This Yanmar ViO33U Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 8-17 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |

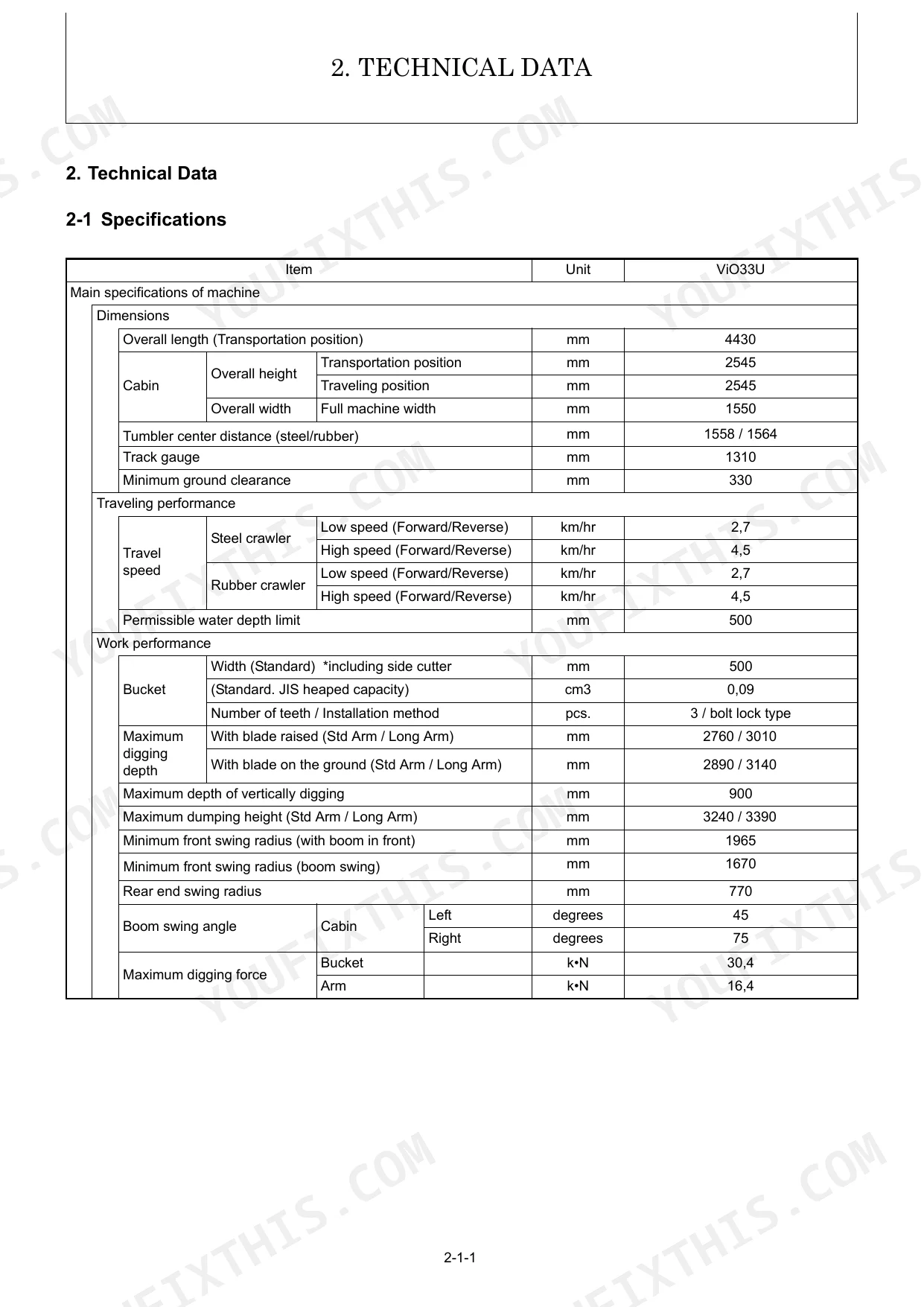

| Technical Data | 18-31 | 2-1 Specifications, 2-2 Outline Drawing and Working Area, 2-3 Weight List of Main Parts, 2-4 Lifting Capacity List |
| Service Standards | 32-55 | Machine Performance, Engine, Undercarriage (Rubber Crawler Specifications, Steel Crawler Specifications, Common Specifications of Steel & Rubber Crawlers), Controls |

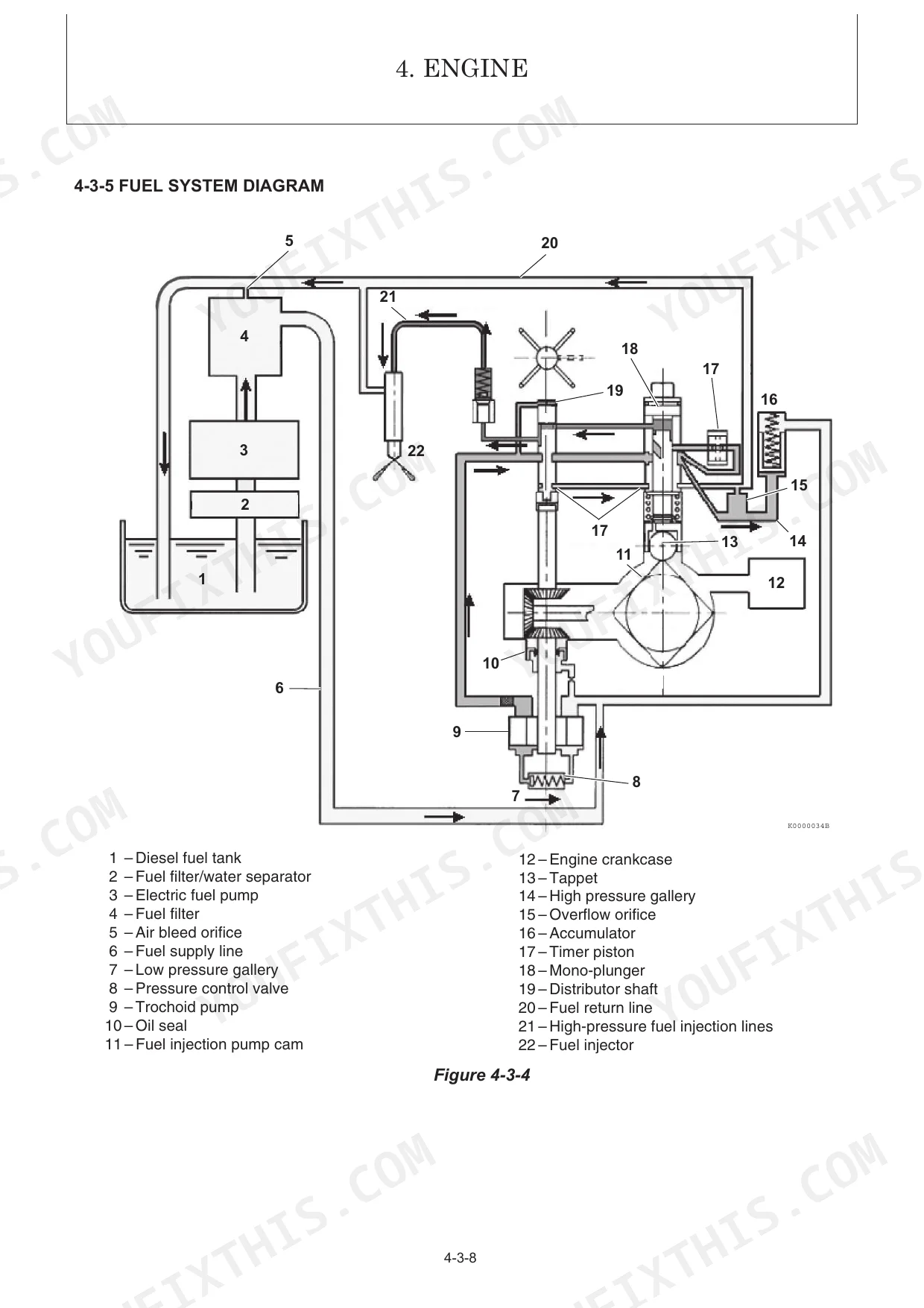

| Engine | 56-199 | 4-1 Safety, 4-2 Engine, 4-3 Fuel System, 4-4 Cooling System, 4-5 Lubrication System, 4-6 Starter Motor, 4-7 Alternator, 4-8 Electric Wiring |
| Electric System | 200-211 | 5-1 Electric Equipment of Machine, 6-2 Hydraulic Circuit Schematic |
| Hydraulic System | 212-379 | 6-1 Outline, 6-3 Circuit Operation, 6-4 Pressure Adjustment, 6-5 Hydraulic Pump, 6-6 Control Valve, 6-7 Pilot Valve, 6-8 Swing Motor, 6-9 Travel Motor |

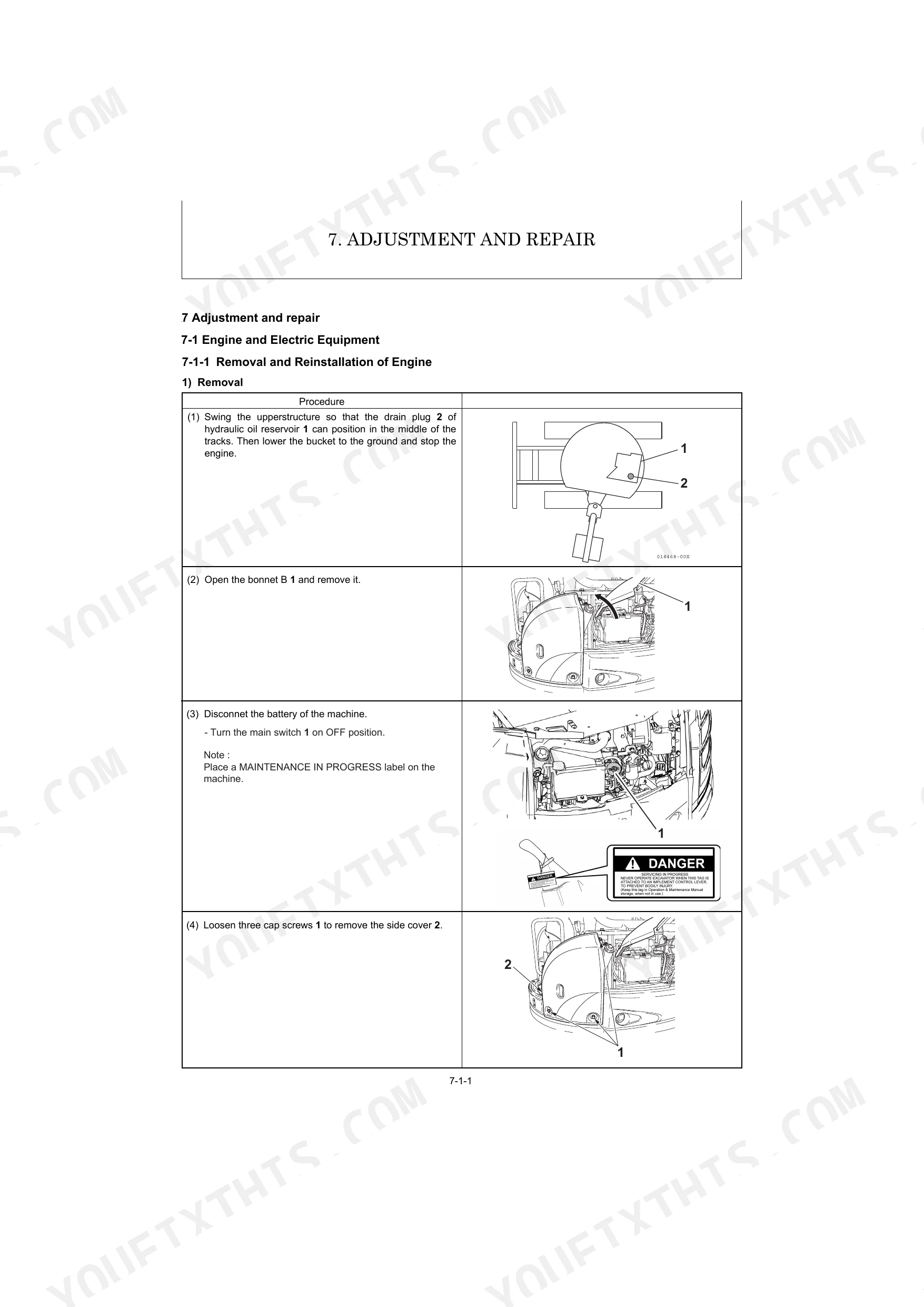

| Adjustment and Repair | 380-469 | 7-1 Engine and Electric Equipment, 7-2 Undercarriage, 7-3 Controls, 7-4 Swing Bearing, 7-5 Hydraulic Equipment, 7-6 Work Implements, 7-7 Cabin |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

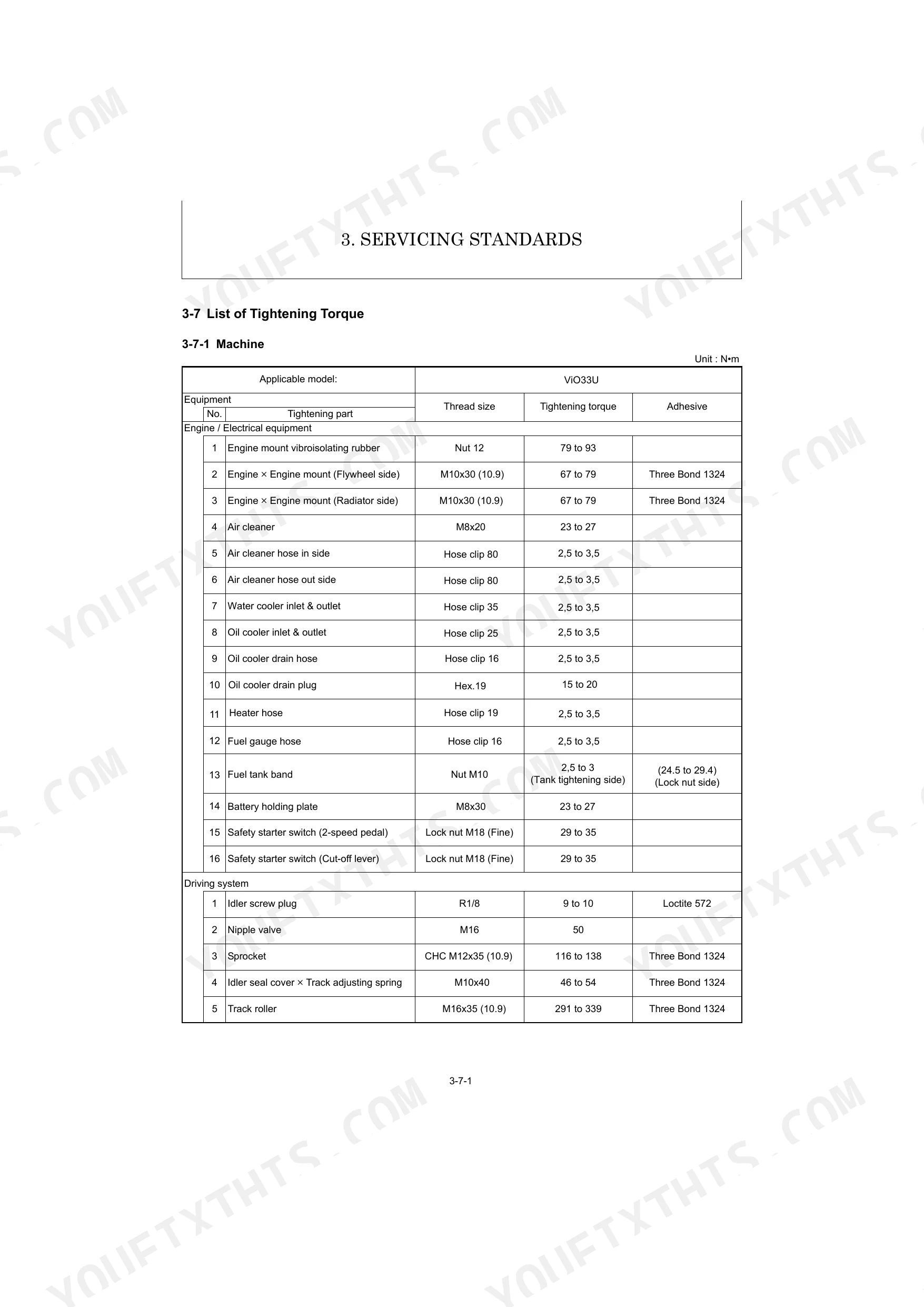

| Tightening torque for Track roller bolts | 291 to 339 N·m | p. 49 |
| Tightening torque for Hydraulic hose with parallel pipe thread (1/8) | 12 to 14 N·m | p. 54 |
| Hydraulic oil tank capacity | 60 L | p. 23 |
| Engine oil pressure at rated engine RPM (3TNV82A) | 0.34 - 0.49 MPa | p. 157 |
| Fuel filter filtration area | 2000 cm² | p. 25 |
| Tightening torque for Safety starter switch (2-speed pedal) lock nut | 29 to 35 N·m | p. 49 |
| Headlight voltage-wattage rating | 12-55 V-W | p. 26 |
| Engine Model | 3TNV82A-NBV2A | p. 24 |
| Total Engine Displacement | 1331 cm3 | p. 24 |
| Rated Engine Output | 18.9 kW at 2500 rpm | p. 24 |
| System Relief Set Pressure (P1, P2) | 20.6 MPa | p. 21 |
| Intake Valve Clearance (Cold engine) | 0.15 to 0.25 mm | p. 25 |
Yanmar ViO33U Common Problems This Manual Covers
Yanmar ViO33U hydraulic performance drops, bucket feels weak or machine moves sluggishly
Check the hydraulic sight glass first. Retract all cylinders fully before reading the level, then top up to the full mark; tank capacity is 60 L (page 23). Inspect every hose and fitting for weeping or wet spots. Torque any suspect 1/8-thread fittings to 12 to 14 N·m (page 54). If level is correct, pull the hydraulic pump troubleshooting chart and verify system relief pressure reads 20.6 MPa (page 21) before chasing internal pump wear.
Manual Section: Hydraulic SystemEngine overheats or temperature gauge climbs into the red during normal digging
Stop work immediately and let the engine cool before opening the cooling system. Inspect all coolant hoses for cracks, soft spots, and collar rot; squeeze-test each one. Check every clamp for looseness or corrosion and snug any that move. Verify the thermostat opens between 70 and 73 °C (page 25). If coolant is low, identify the source before refilling. Walk through the full cooling system diagnosis starting to rule out head gasket failure or restricted flow.
Manual Section: EngineEngine cranks but won't fire, or starter turns over too slowly to start
Verify battery terminals are clean and tight before touching anything else. Check engine oil pressure spec is 0.34 to 0.49 MPa at rated RPM (page 157) — low oil pressure trips a no-start protection on some conditions. Work through the starter motor troubleshooting flowchart to isolate whether the fault is in the starter itself, the safety starter switch circuit, or battery voltage drop under load. Inspect the safety starter switch lock nut torque at 29 to 35 N·m (page 49) if the switch feels loose or intermittent.
Manual Section: EngineMachine tracks to one side, or one travel motor feels weaker than the other
Check track tension on both sides before suspecting the hydraulic circuit. Uneven tension alone will pull the machine off-line under load. If tension is equal and the pull persists, open the travel motor troubleshooting section and measure relief pressure at each motor port; a reading significantly below the 20.6 MPa system spec (page 21) points to a worn motor or stuck relief valve on the weak side. Compare left and right motor drain flow to confirm before committing to a rebuild.
Manual Section: Hydraulic SystemDisplay shows no readings, or toggle switches and work lights respond intermittently p. 208

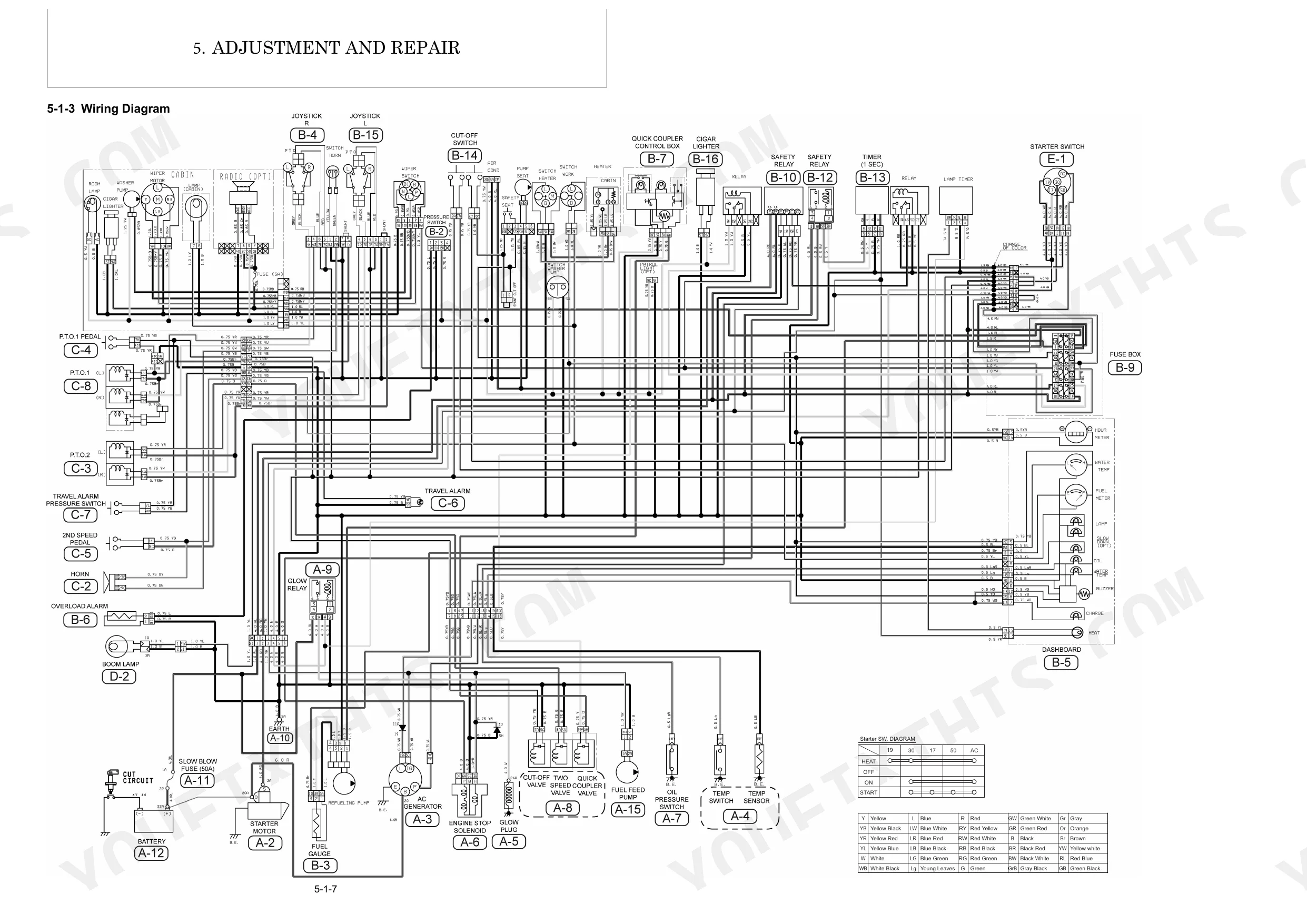

Start at the switch panel and cycle each toggle individually while a second person watches the circuit response. Verify the work light bulb rating is 12 V, 55 W (page 26) before replacing a bulb that keeps burning out. Pull the wiring diagram on page 208 and trace the affected circuit for corroded connectors or chafed insulation where harnesses cross the boom pivot or frame welds. Clean any oxidized terminals with electrical contact cleaner, re-seat connectors, and retest. If the display itself is erratic, check ground continuity from the display harness back to the chassis.
Manual Section: Electric SystemFrequently Asked Questions
What are the replacement specifications for Hydraulic hoses?
The replacement specifications for hydraulic hoses are determined by their part descriptions, which include material, working pressure, nominal diameter, fitting type, length, and hose protector. For example, a hose with part description 'P 2 06 AB 075 W' indicates a plastic material, a working pressure of 17.2 to 20.6 MPa, a nominal diameter of 3/8", a taper pipe thread R (PT) and straight pipe thread G (PF) fitting with male 30 degrees seat, a length of 750 mm, and a coil spring hose protector.
What are the replacement specifications for Hose clamps?
The replacement specifications for hose clamps are primarily defined by their tightening torque. For various applications, the tightening torque for hose clips is specified as 2.5 to 3.5 N·m. This applies to components such as the air cleaner hose, water cooler inlet & outlet, oil cooler inlet & outlet, oil cooler drain hose, heater hose, fuel gauge hose, suction hose to hydraulic pump, suction hose to hydraulic tank, and return hose to swing motor.
How do you fix yanmar ViO33U hydraulic performance drops, bucket feels weak or machine moves sluggishly?
Check the hydraulic sight glass first. Retract all cylinders fully before reading the level, then top up to the full mark; tank capacity is 60 L (page 23). Inspect every hose and fitting for weeping or wet spots. Torque any suspect 1/8-thread fittings to 12 to 14 N·m (page 54). If level is correct, pull the hydraulic pump troubleshooting chart and verify system relief pressure reads 20.6 MPa (page 21) before chasing internal pump wear.
How do you fix engine overheats or temperature gauge climbs into the red during normal digging?
Stop work immediately and let the engine cool before opening the cooling system. Inspect all coolant hoses for cracks, soft spots, and collar rot; squeeze-test each one. Check every clamp for looseness or corrosion and snug any that move. Verify the thermostat opens between 70 and 73 °C (page 25). If coolant is low, identify the source before refilling. Walk through the full cooling system diagnosis starting to rule out head gasket failure or restricted flow.
How quickly can I access this manual after buying?
Immediate download of the complete 469-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Can I find wiring schematics in this Yanmar ViO33U manual?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
