Looking for the exact factory procedures for your compact excavator? This 465-page Yanmar ViO40-1 Service Manual PDF (OEM #42399010) breaks down every engine, hydraulic, and undercarriage component on the machine. Inside, you get full hydraulic circuit schematics, complete wiring diagrams, and extensive troubleshooting charts for both the engine and control systems. Open up the hydraulic equipment section to find step-by-step rebuild procedures for the main pump, control valves, and travel motors. Verify your engine rebuild by checking the piston pin and bushing oil clearance to a strict 0.025 to 0.051 mm tolerance before final assembly. Don't waste another hour chasing a ghost in the hydraulic system. Grab this bookmarked PDF on your tablet, walk right out to the shop floor, and get your excavator digging again.
What's Inside This Yanmar ViO40-1 Manual

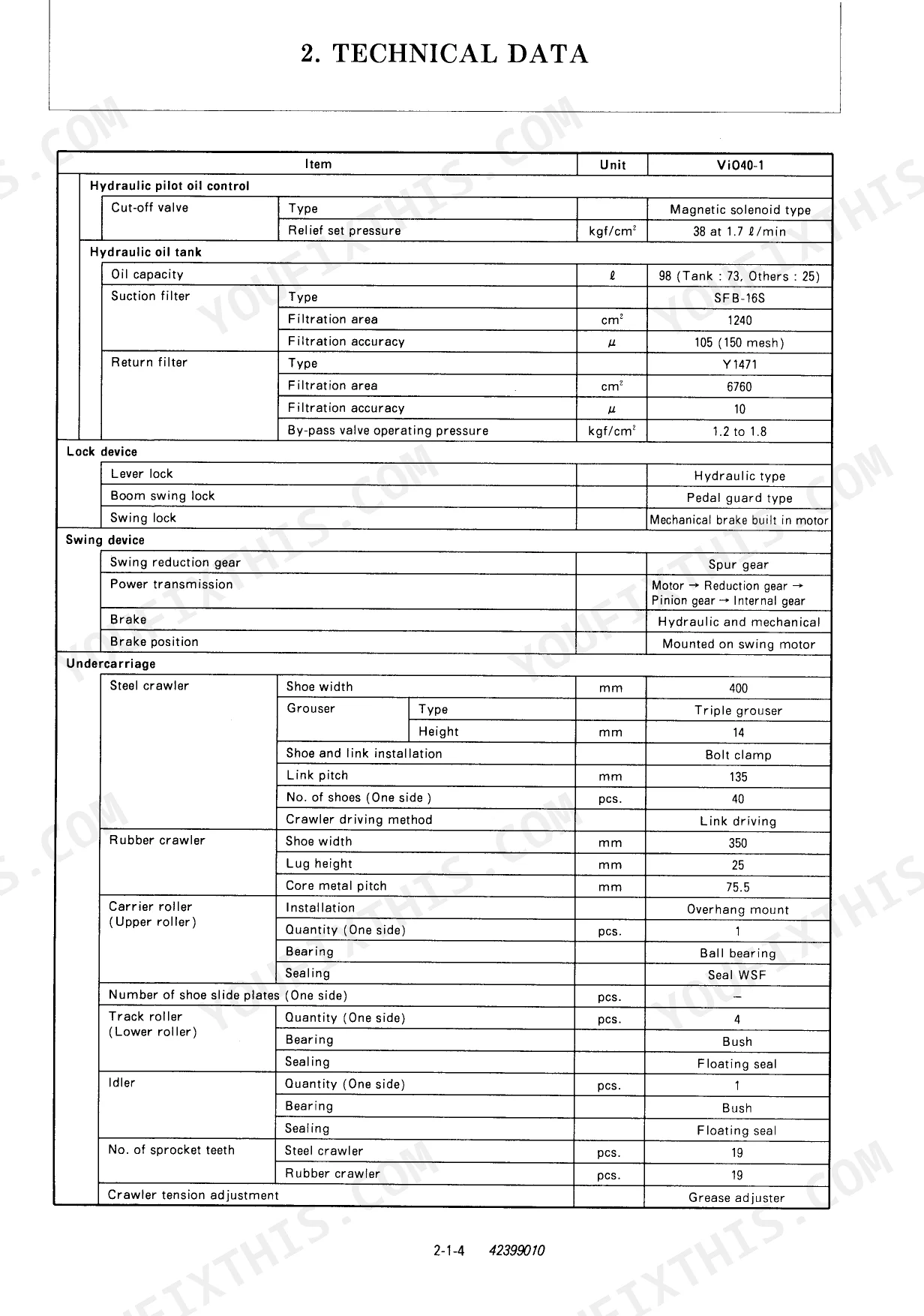

| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 6-15 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |
| Technical Data | 16-27 | Specifications, Machine Dimensions and Working Ranges (Canopy Type, Cabin Type), Component Weights, Lifting Capacities |
| Service Standards | 28-45 | 3-1 Machine Performance, 3-2 Engine, 3-3 Undercarriage, 3-4 Controls Devices, 3-5 Hydraulic Equipment, 3-6 Work Implements, 3-7 List of Tightening Torque |

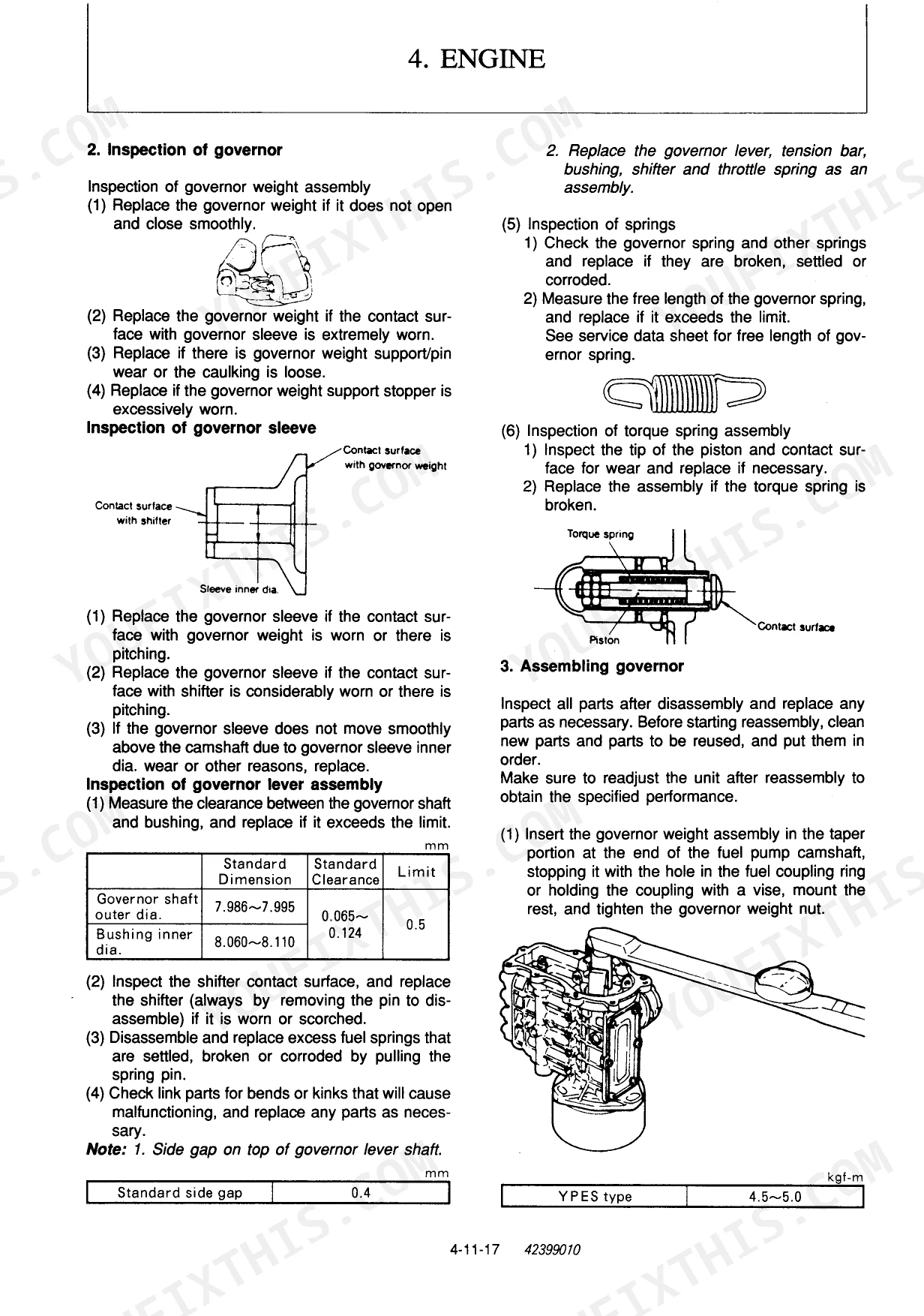

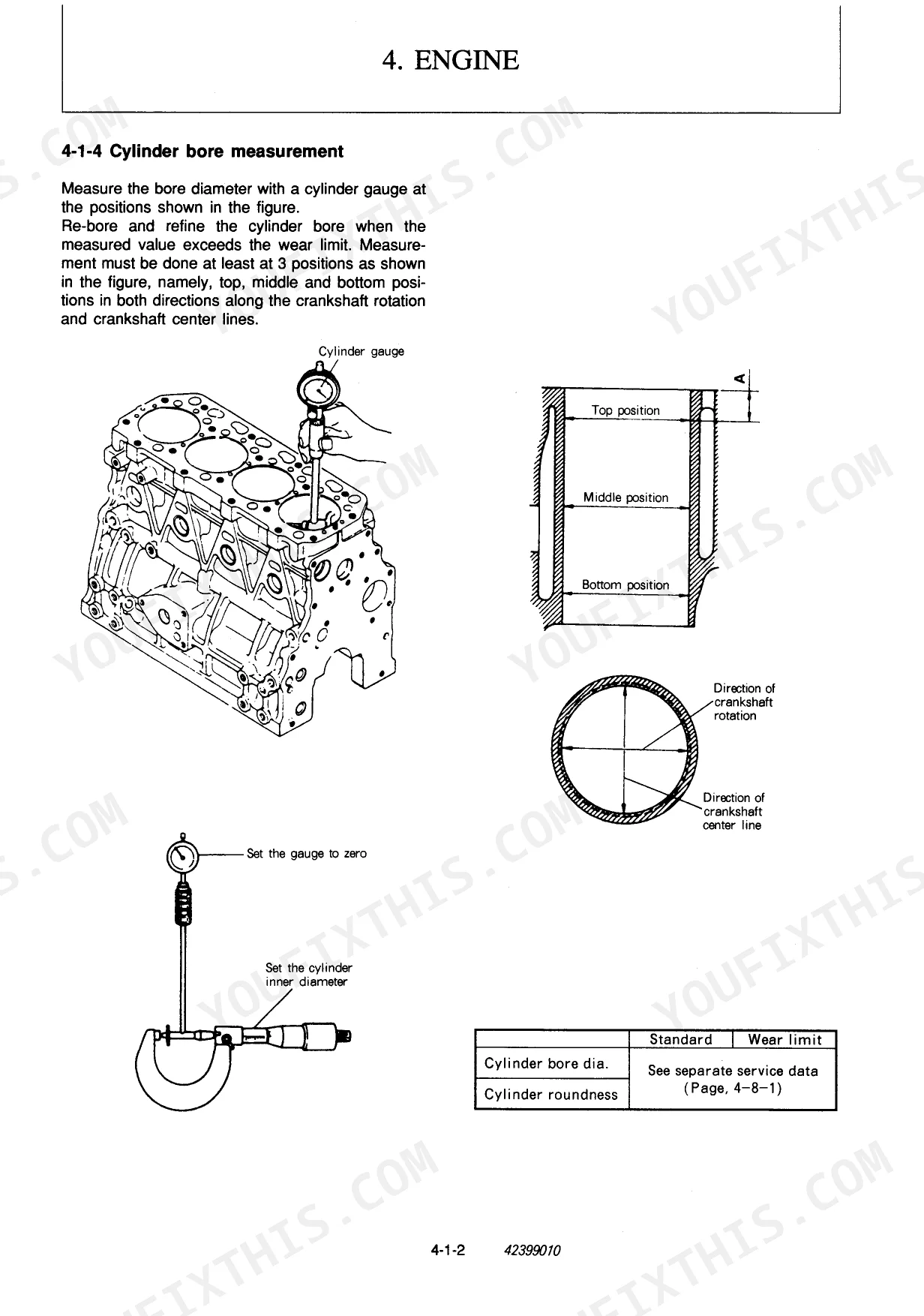

| Engine | 46-166 | 4-1 Cylinder Block, 4-2 Cylinder Head, 4-3 Piston and Piston Pin, 4-4 Connecting Rod, 4-5 Crankshaft and Main Bearing, 4-6 Camshaft and Tappets, 4-7 Timig Gear, 4-8 Service Data |

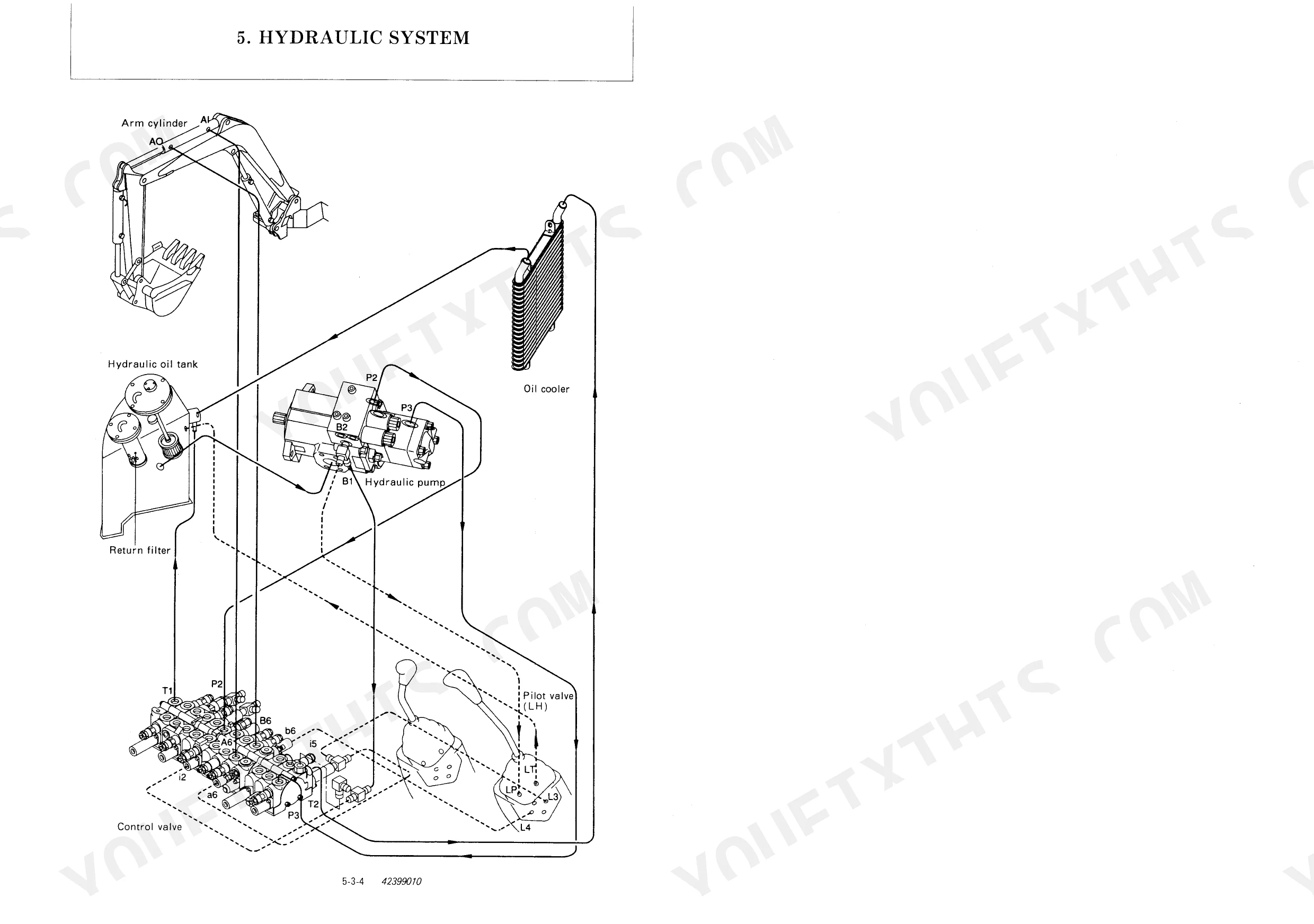

| Hydraulic System | 167-207 | 5-1 Outline, 5-2 Hydaulic Circuit Schematic, 5-3 Circuit Operation, 5-4 Pressure Adjustment |

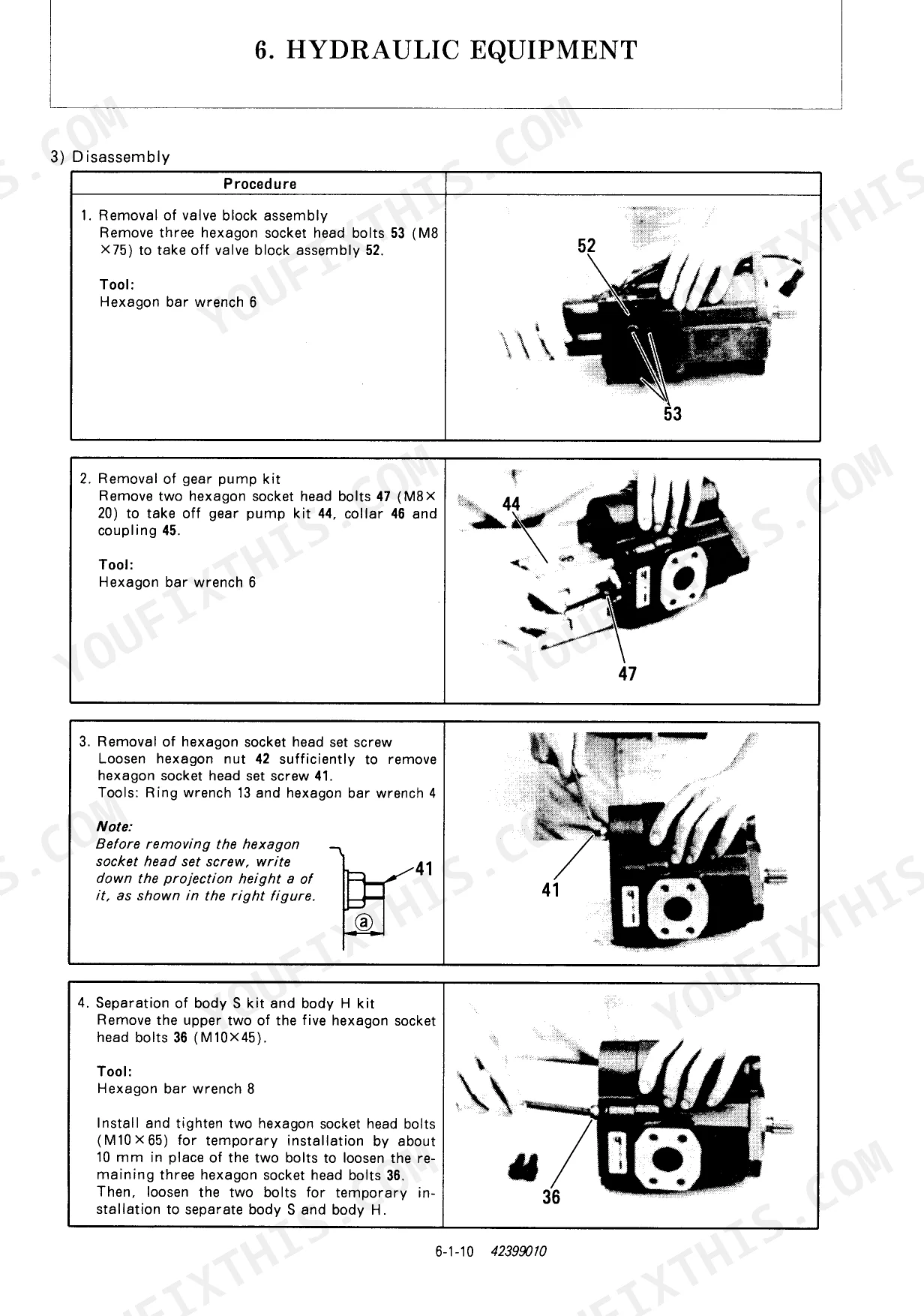

| Hydraulic Equipment | 208-353 | 6-1 Hydraulic Pump, 6-2 Control Valve, 6-3 Pilot Valve, 6-4 Swing Motor, 6-5 Travel Motor |

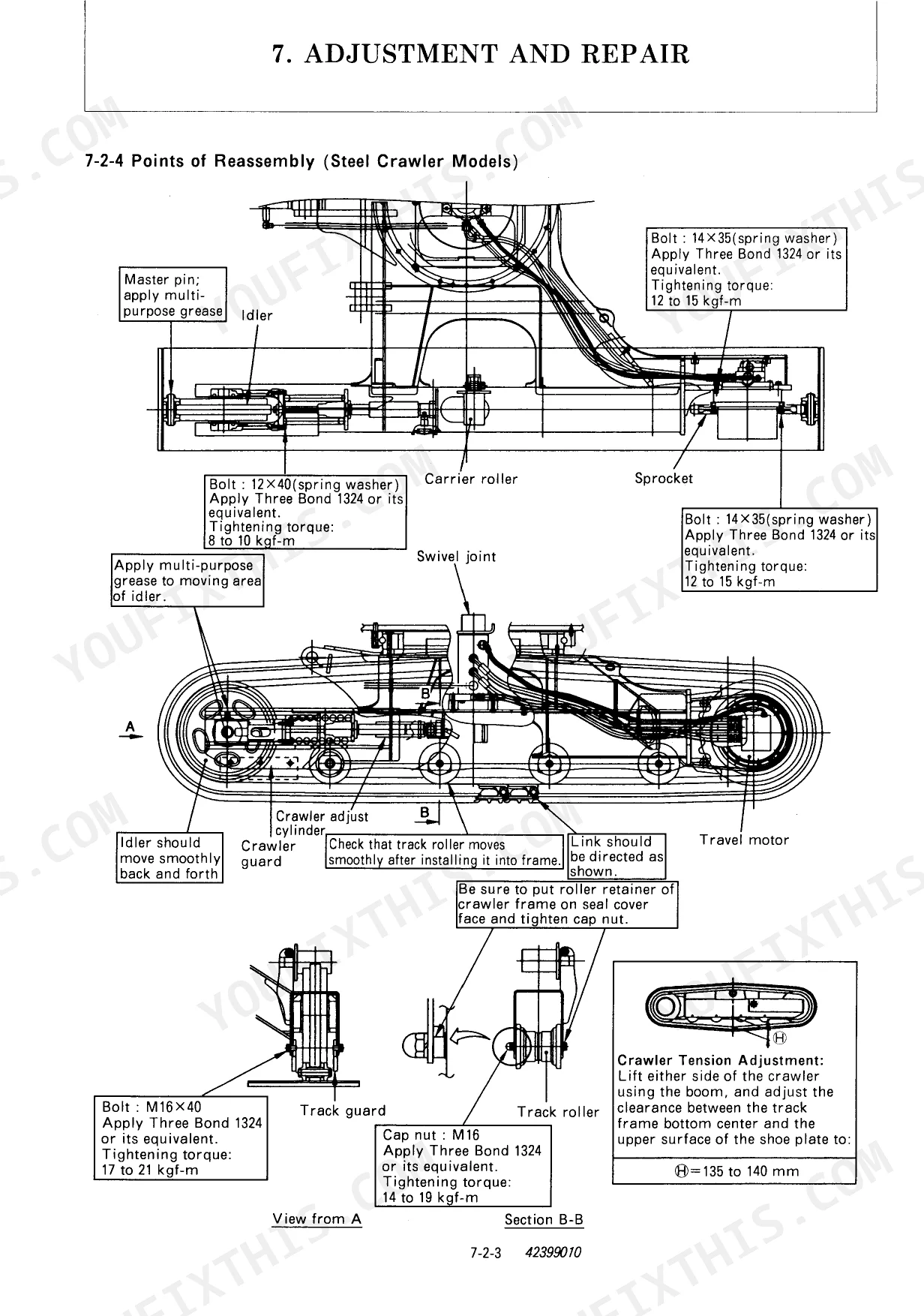

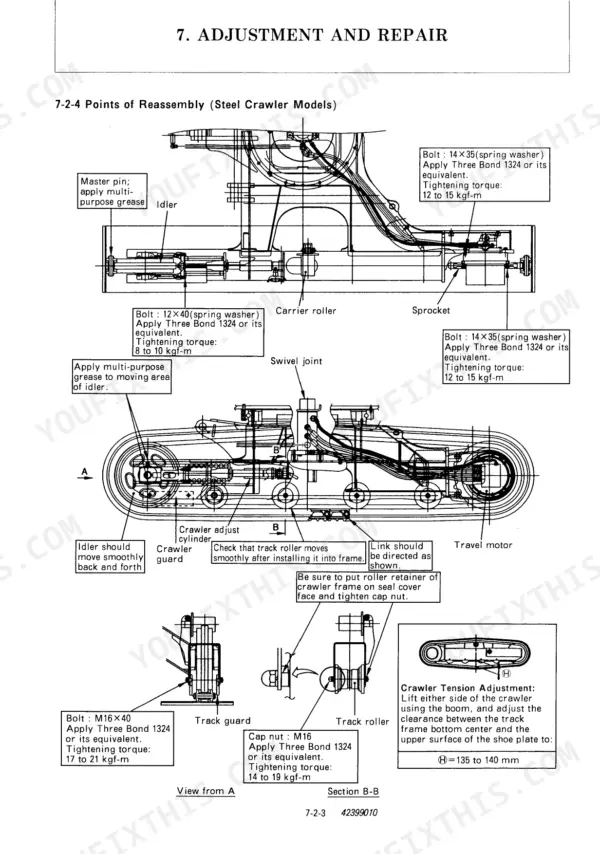

| Adjustment and Repair | 354-421 | 7-1 Electric Equipment of the Machine, 7-2 Undercarriage, 7-3 Controls, 7-4 Swing Bearing, 7-5 Hydraulic Equipmennt, 7-6 Engine Hoodand Cabin |
| Periodic Inspection and Servicing | 422-424 | List of Periodic Inspection and Servincing |
| Fuel, Lube Oil and Grease Recommended | 425-426 | Fuel, Lube Oil and Grease Recommneded by Yanmar |

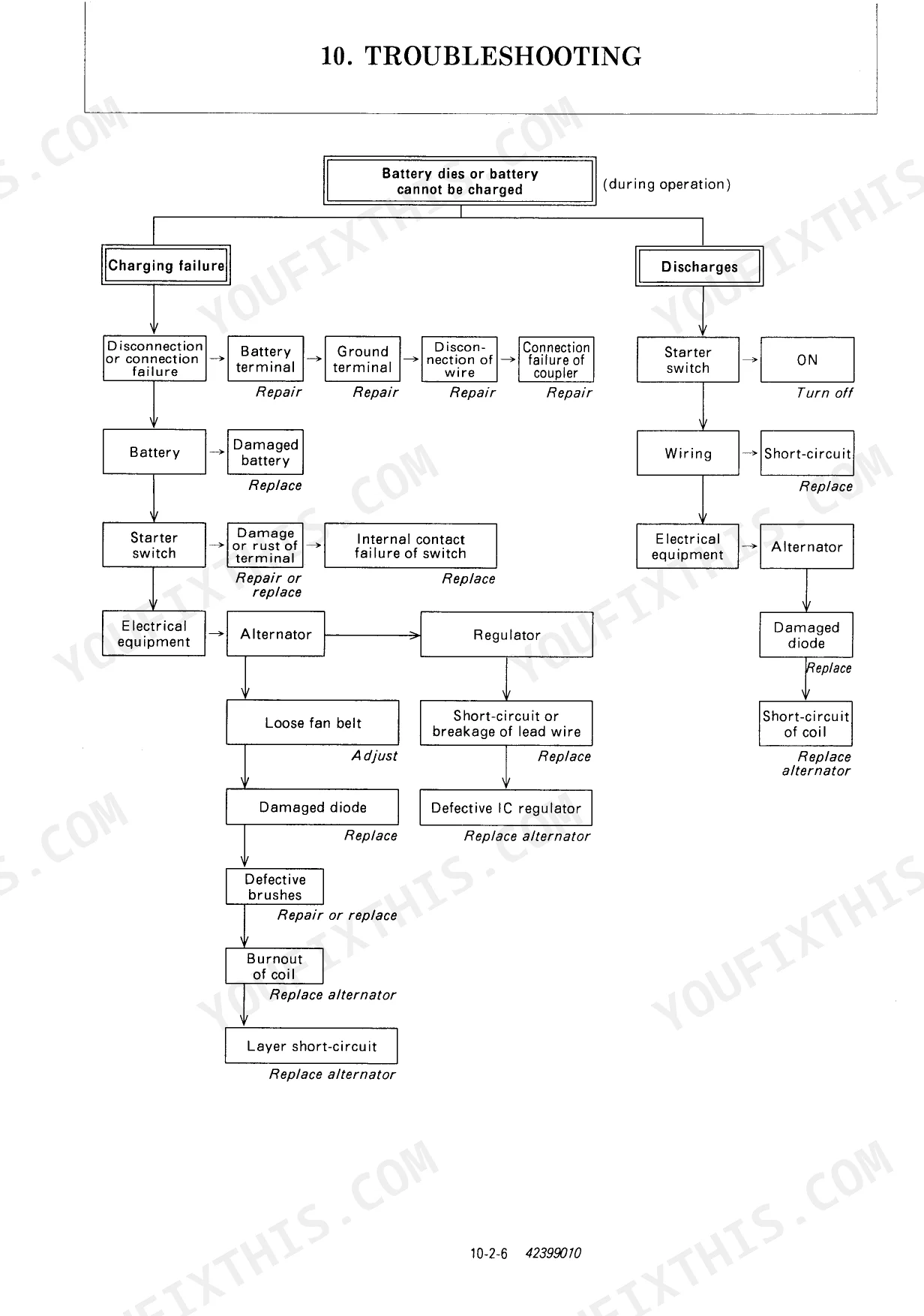

| Troubleshooting | 427-463 | 10-1 Non-Breakdowns, 10-2 Troubleshooting |
| Reference Data | 464-465 | 11-1 Specifications for Attachment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Piston pin and bushing oil clearance | 0.025 to 0.051 mm | p. 74 |
Yanmar ViO40-1 Common Problems This Manual Covers
Yanmar ViO40-1 excavator hydraulic functions become extremely weak and the machine loses all digging power. p. 203
Inspect the pilot pressure lines and measure the system relief valve pressure. Refer to the hydraulic procedures on page 203 to verify the piston pump P1 maintains exactly 210 kgf/cm². If pressure is low, tighten any loose hose clamps to a torque of 0.8 to 1.2 kgf-m.
Manual Section: 5 Hydraulic SystemEngine runs hot under heavy load with low output and abnormal knocking noise from the cylinder block. p. 74
Drain the crankcase and check the engine oil capacity is exactly 7.3 L as specified on page 426. Remove the cylinder head and measure the piston pin and bushing oil clearance. Verify the clearance falls between 0.025 to 0.051 mm according to the specs on page 74.
Manual Section: 4 EngineHigh speed travel mode fails to engage when tracking across the site or machine will not travel straight. p. 45
Test the travel motors and verify the high travel speed reaches 4.5 km/hr on flat ground. Inspect the track tension and check for hydraulic leaks. Torque the general mounting bolts to 6.5 to 7.5 kgf-m as shown on page 45 to prevent alignment shifts during operation.
Manual Section: 3 Serving StandardsBoom swing operates sluggishly during side trenching and fails to meet standard cycle times. p. 31
Time the swing movement to confirm the boom swing speed is exactly 6.2 sec as listed on page 31. Check the control valve for internal bypass. Measure the boom cylinder stroke to ensure it extends fully to 837 mm according to the data on page 19.
Manual Section: 3 Serving StandardsFrequently Asked Questions
What are the torque specifications for the hydraulic pump bolts on the Yanmar ViO40-1?
The tightening torque for the hydraulic pump bolts, specifically the Hexagon socket head bolt M10, is specified as 1.0 to 1.5 kgf-m. This information is found in the List of Tightening Torque section of the manual.
What are the replacement specifications for hydraulic hoses on the Yanmar ViO40-1?
Hydraulic hoses are specified by their material, hose diameter, hose length, and fitting combinations. Detailed tables on pages 11-14 provide these specifications for various hose types and fittings.
What are the replacement specifications for seals on the Yanmar ViO40-1?
When replacing seals, use new O-rings and seals, ensuring they are clean, free from dust, and lubricated with clean grease or hydraulic oil before installation. Specific procedures for installing floating seals are detailed on page 375.
What is the recommended engine oil capacity for the Yanmar ViO40-1?
The recommended engine oil capacity for the Yanmar ViO40-1 is 7.3 liters. The manual specifies Engine oil SAE10W30 (Class CD) as the appropriate type for the engine.
What is the total hydraulic oil capacity for the Yanmar ViO40-1?
The total hydraulic oil capacity for the Yanmar ViO40-1 is 98 liters. This includes 73 liters in the inside tank and an additional 25 liters for other sections. The recommended hydraulic oil type is VG 56 or its equivalent.
What is the tightening torque for the cylinder head bolts on the Yanmar ViO40-1 engine?
The cylinder head bolts should be tightened in two stages. The initial tightening (First) requires a torque of 3.5 to 4.3 kgf-m, followed by a final tightening (Final) to 8.7 to 9.3 kgf-m.
What are the periodic inspection intervals for the fuel system on the Yanmar ViO40-1?
For the fuel system, the fuel filter element should be checked daily and replaced every 500 hours. The fuel injection valve requires checking and adjustment every 1000 hours.
What is the standard valve head clearance for the Yanmar ViO40-1 engine?
The standard intake and exhaust valve head clearance for the Yanmar ViO40-1 engine is 0.2 mm. This clearance is adjusted using the adjusting screw on the rocker arm to ensure correct valve operation.
