All 776 pages of this Yanmar ViO80 Service Manual PDF are built around one machine: your zero tail-swing excavator, from 4-valve engine internals to hydraulic circuit operation to full cabin teardown. Inside you get hydraulic circuit schematics covering US, AS/NZ, KR, and AYR configurations, complete wiring diagrams with circuit descriptions for engine start/stop and battery charging, and a troubleshooting section that walks swing drift, travel deviation, and slow implement speed through step-by-step inspection trees. Torque tables cover everything from general hardware to hydraulic fittings, with fluid capacity specs for every system on the machine. Set the engine mount M16 to 264.8\xe2\x80\x93304 N\xc2\xb7m; confirm the cooling water hose clip at 2.5\xe2\x80\x933.4 N\xc2\xb7m before buttoning the cooling system back up. Chasing an excavator fault without the factory schematic is expensive. Download now, bookmarked by chapter so you jump straight to what you need.
What's Inside This Yanmar ViO80 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 11-24 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |

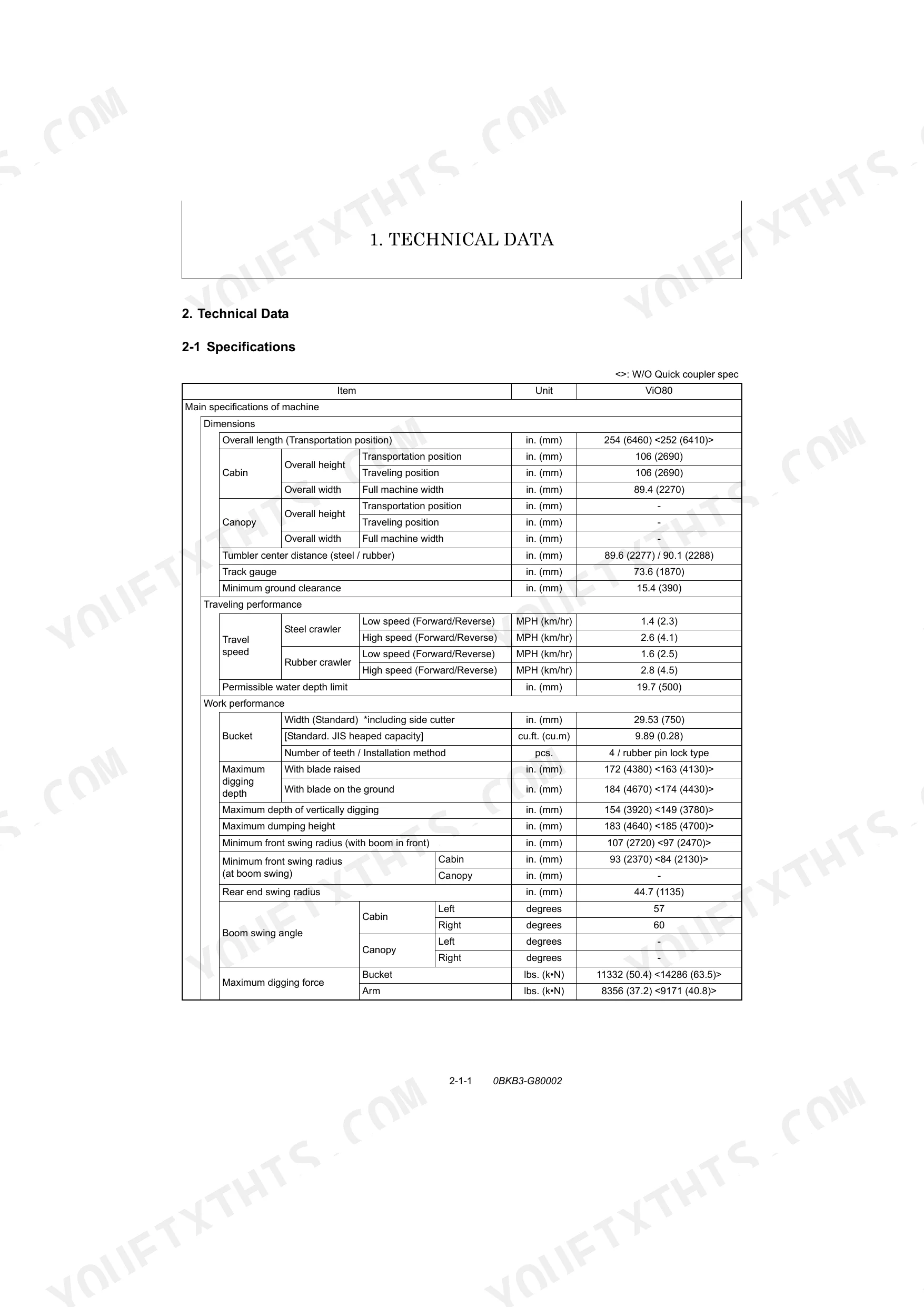

| Technical Data | 25-42 | Specifications, Outline Drawing and Working Area (Quick Coupler, W/O Quick Coupler), Weight List of Main Parts |
| Service Standards | 43-66 | Machine Performance, Engine, Undercarriage (Rubber Crawler Specifications, Steel Crawler Specifications, Common Specifications of Steel & Rubber Crawlers), Controls |

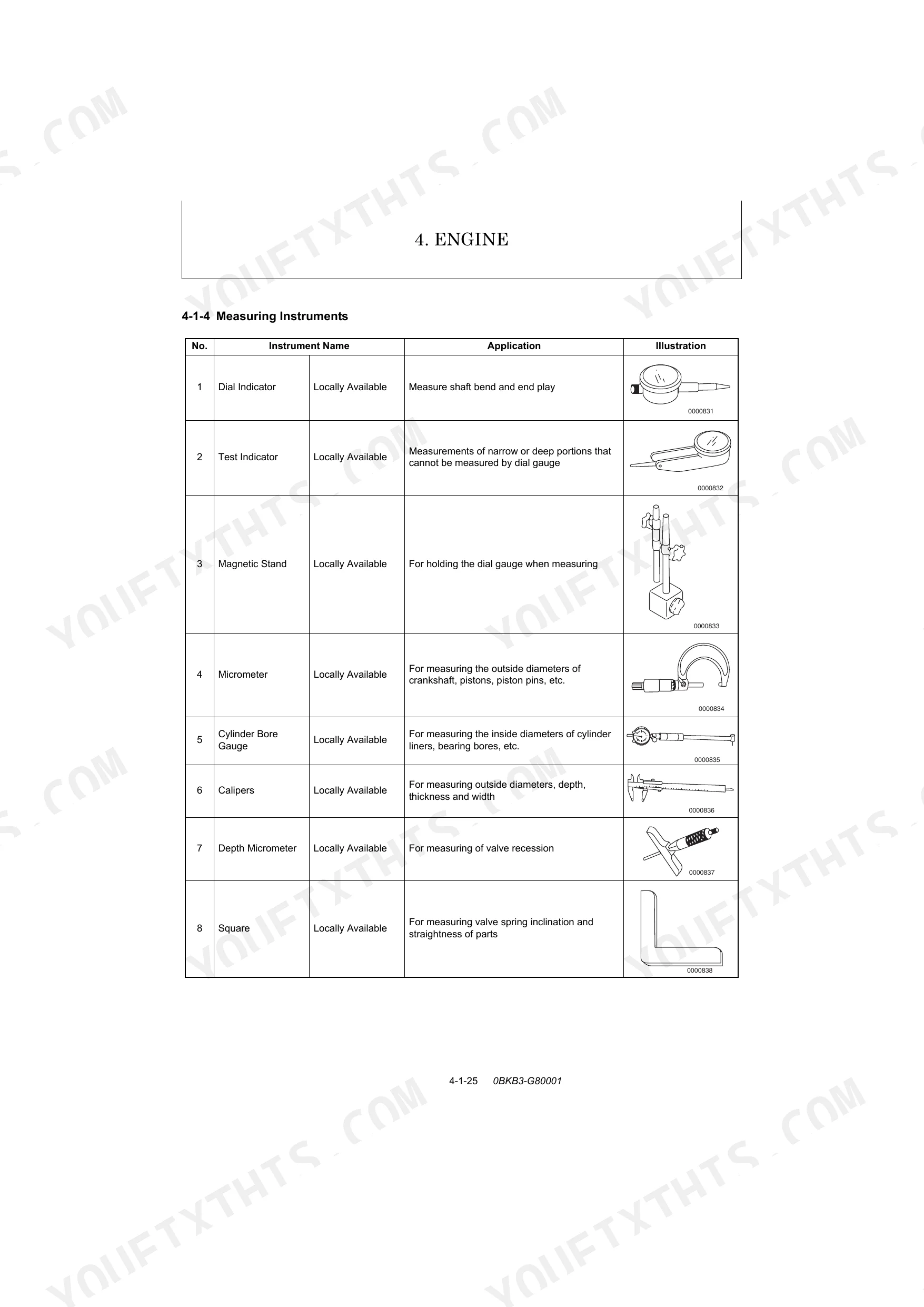

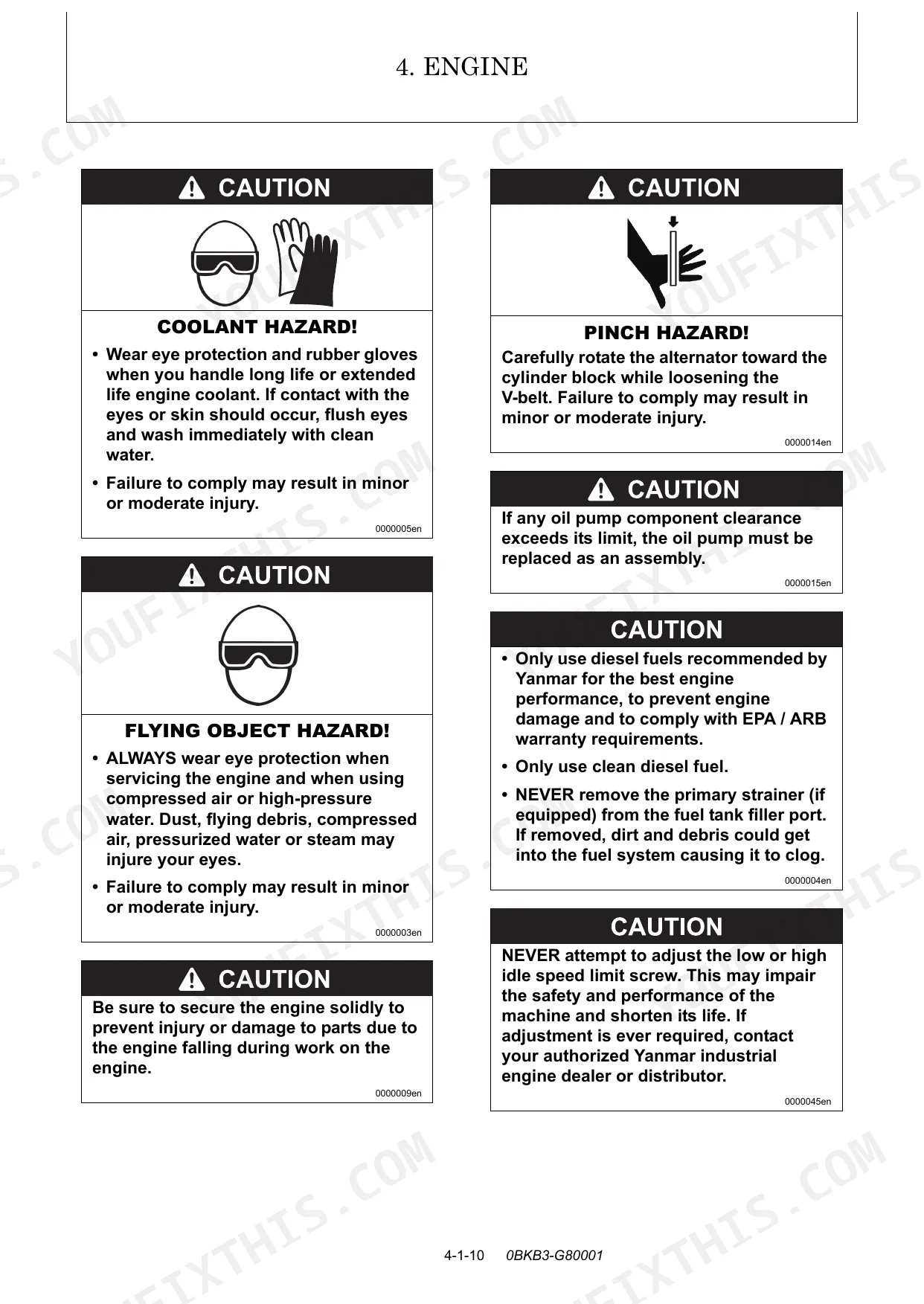

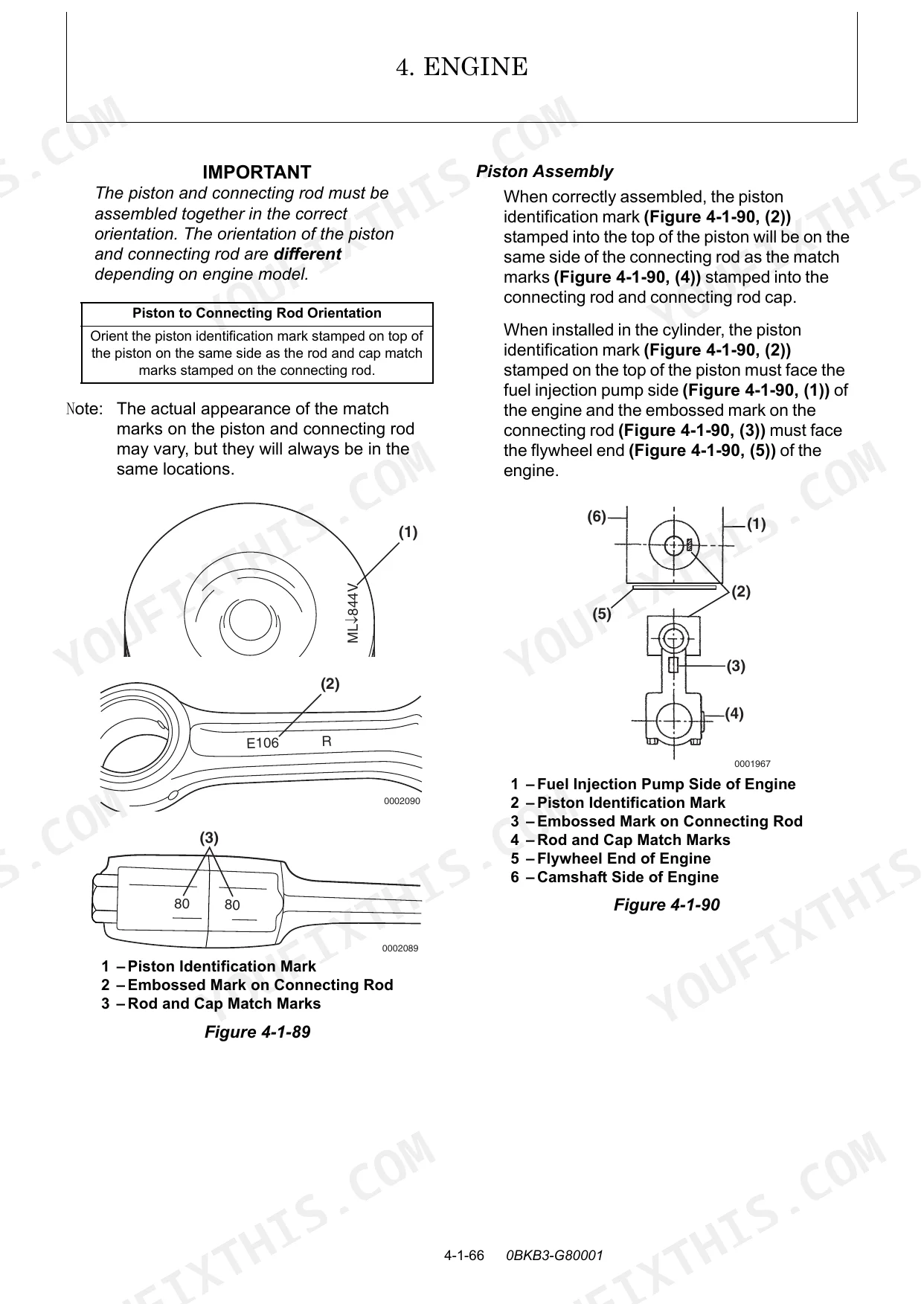

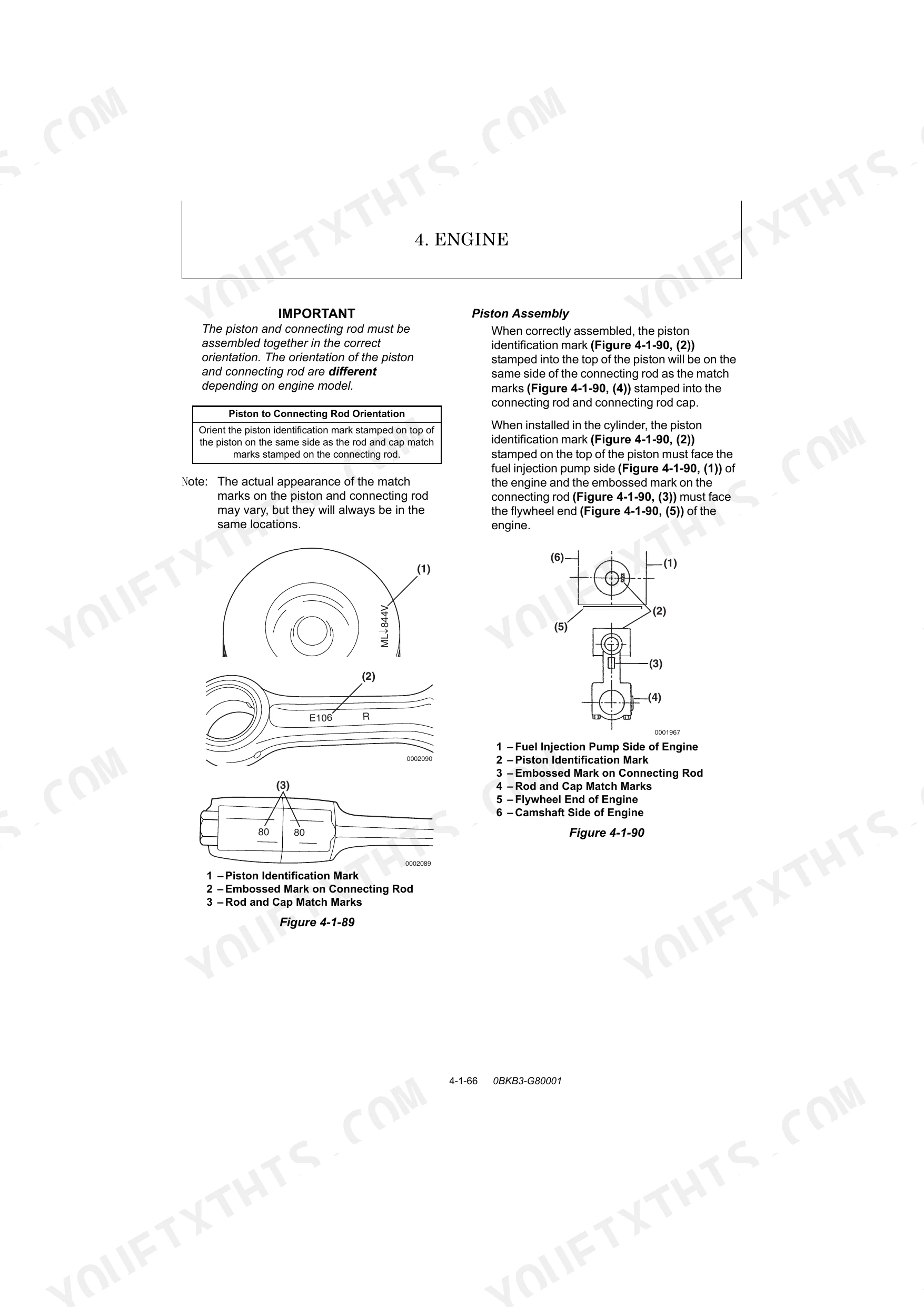

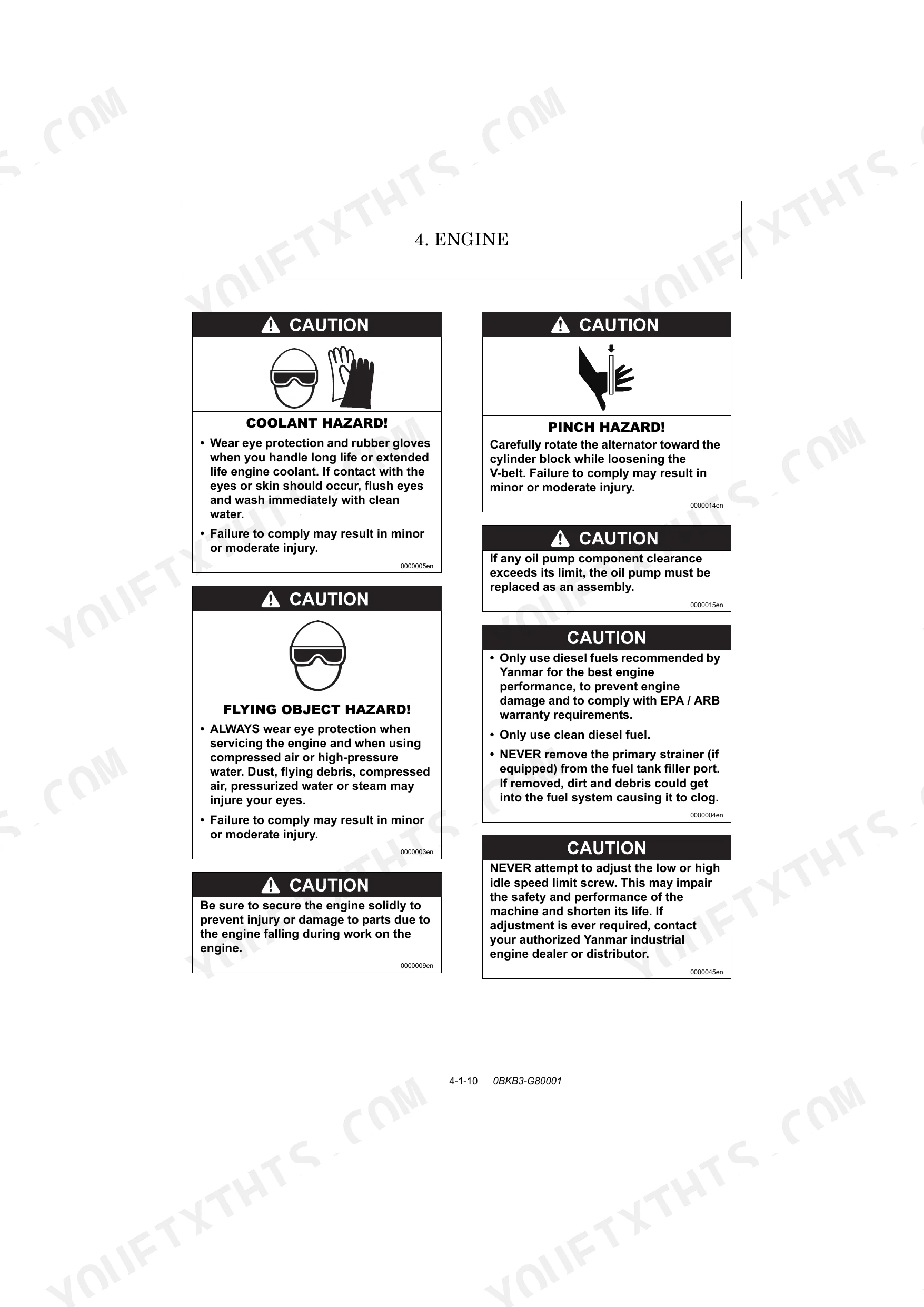

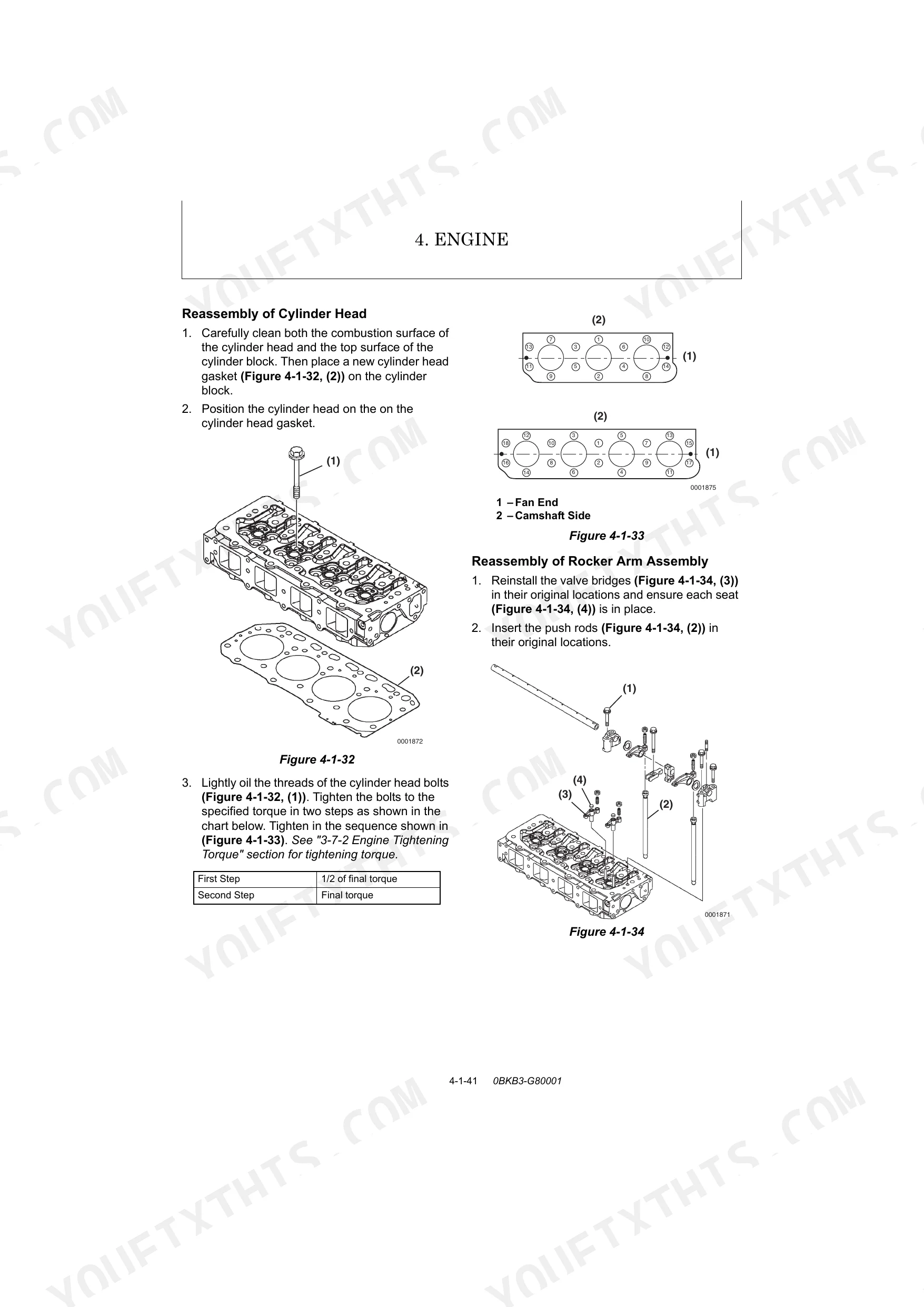

| Engine | 67-242 | Safety Precautions, Introduction, Special Service Tools, Measuring Instruments, 4-Valve Cylinder Head, Measuring and Adjusting Valve Clearance, Crankshaft and Camshaft Components |
| Hydraulic System | 243-276 | Outline (Control Valve Operation, Additional Operation of Control Valve), Hydraulic Circuit Schematic (Us Spec., AS/NZ Spec., Kr Spec., Ayr Spec.) |
| Hydraulic Equipment | 277-534 | Hydraulic Pump, Control Valve (Main Control Valve, Disassembly, Cleaning, Checking, Reassembly, Servicing Procedure for Relief Valve, Installation, Running, Troubleshooting) |
| Adjustment and Repair | 535-722 | Electric Equipment of the Machine (Parts Layout of Electrical Equipment, Monitor and Alarm Systems, Wiring Diagram, Circuit Description of Engine Start, Stop and Battery Charging, Electronic Control, Removal and Reinstallation of Engine, Removal and Reinstallation of Starter Motor, Removal and Reinstallation of Radiator and Oil Cooler, Removal and Reinstallation of Fan Belt and Compressor Driving Belt, Removal and Reinstallation of Fuel Injection Pump, Removal and Reinstallation of ECU) |
| Periodic Inspection and Servicing | 723-726 | List of Periodic Inspection and Servicing |
| Fuel, Lube Oil and Grease Recommended | 727-730 | Fuel, Lube Oil and Grease Recommended, Mixture Ratio of Cooling Water and Antifreeze |
| Troubleshooting | 731-770 | Non-Breakdowns, Natural Release of Bucket, Discontinuous Arm Movement, Thermal Shock of Travel Motor, Time Lag on Travel Speed Switching, Operation of Quick Coupler Cylinder, Machine and Engine, How to Use the Charts |
| Reference Data | 771-776 | Specifications for Attachment, ViO80 Service Manual (Published by, Edited by, Finished by) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

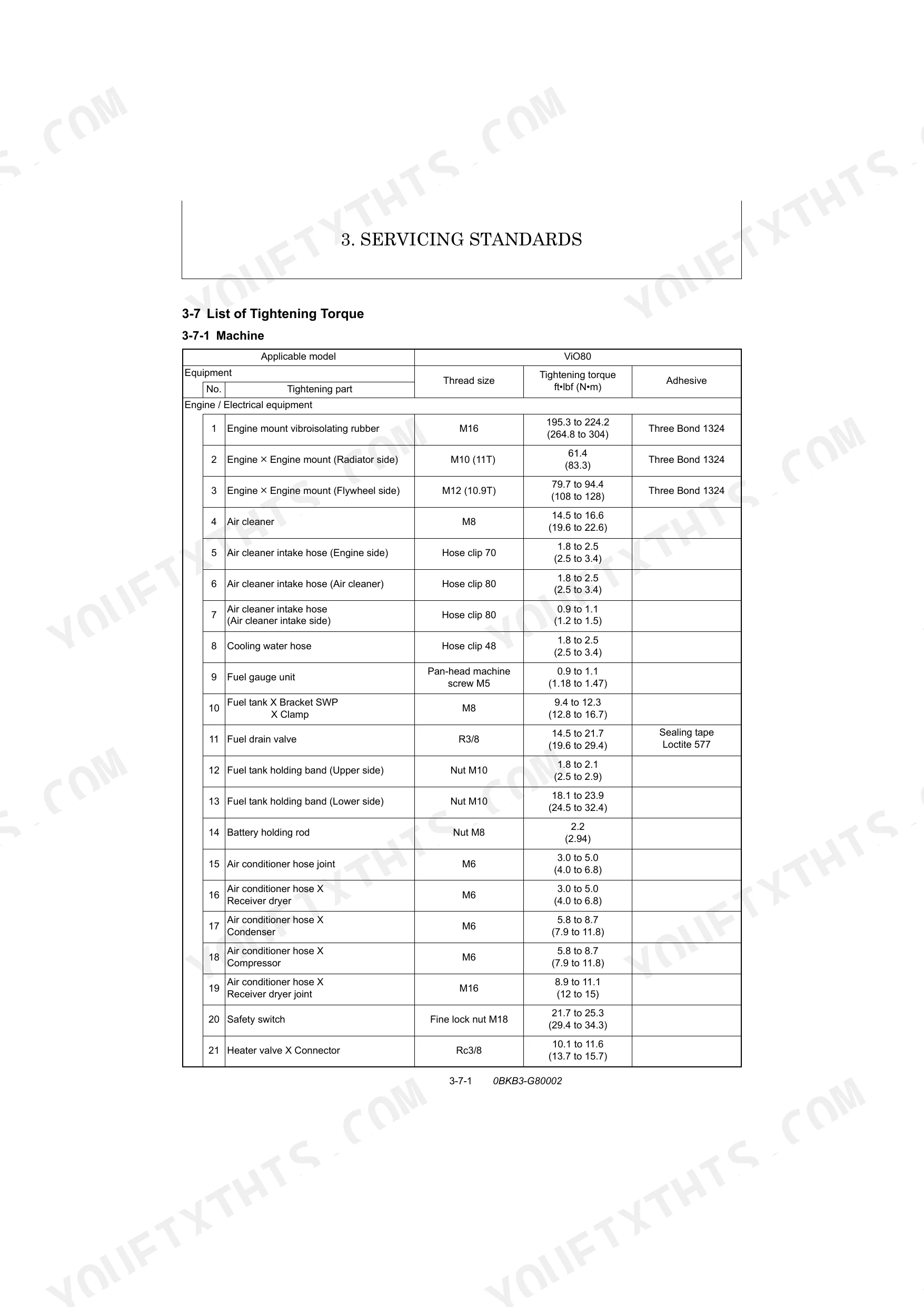

| Engine mount vibroisolating rubber M16 tightening torque | 195.3 to 224.2 ft•lbf (264.8 to 304 N•m) | p. 60 |
| Return filter Filtration accuracy | 10 µ | p. 30 |
| Fuel filter filtration area | 775 (5000) sq.in. (sq.cm) | p. 32 |
| Air cleaner Filtration area | 11.8 (1.1) sq.ft. (sq.m) | p. 33 |
| Cooling water hose clip 48 tightening torque | 1.8 to 2.5 ft•lbf (2.5 to 3.4 N•m) | p. 60 |
| SAE J517, 100R1 Hose dia. 02 working pressure | 2489 (17.2) PSI (MPa) | p. 19 |
| Track roller & shaft A wear limit | Ø1.56 (Ø39.5) in. (mm) | p. 55 |
| Hydraulic pump insufficient discharge volume corrective action | Replace | p. 743 |
| Engine Model | 4TNV98-ZWBV1 | p. 31 |
| Rated Output / Engine Speed | 54.6 HP / 2000 rpm | p. 31 |
| Hydraulic Oil Tank Capacity | 29.59 Gals | p. 30 |
| System Relief Set Pressure (P1, P2) | 3698 PSI | p. 29 |
Yanmar ViO80 Common Problems This Manual Covers
Yanmar ViO80 hydraulic pump grinding noise, bucket lifts slow and digging force drops
Check hydraulic oil level first: tank capacity is 29.59 gals, top off before anything else. Inspect the return filter (10 µ filtration accuracy) for contamination. Verify system relief pressure at both P1 and P2 circuits reaches 3698 PSI; low pressure points to pump wear or a bypassing relief valve. Work through the pump troubleshooting procedures for abnormal noise and insufficient flow. If flow volume is still low after filter and pressure checks, the corrective action per page 743 is pump replacement.
Manual Section: Hydraulic Pump TroubleshootingEngine hard to start, stalls under load, or loses power digging
Drain the fuel water separator first: water in the fuel system is the most common cause on this machine. Check the air filter; filtration area is 11.8 sq.ft. and a plugged element starves the 4TNV98-ZWBV1 engine at load. Verify intake valve clearance on a cold engine is 0.0059 in.; out-of-spec valves kill compression and cause hard starting. Run through engine troubleshooting starting, then cross-reference fuel system and cooling checks on pages 84 and 83 respectively.
Manual Section: Engine General TroubleshootingTemperature warning light on, coolant loss visible, machine runs hot under normal load p. 535
Verify coolant level immediately and check all hoses for cracks or seeping fittings. When reinstalling cooling hoses, torque the clip-48 clamps to 1.8-2.5 ft•lbf (2.5-3.4 N•m): under-torqued clamps are a frequent source of coolant loss. Clean the radiator core and oil cooler passages; blocked fins are the primary cause of thermal shutdowns on this machine. Removal and reinstallation procedures for the radiator and oil cooler are in the Adjustment and Repair section starting page 535.
Manual Section: Adjustment and RepairMachine pulls to one side during travel, or both tracks feel slow and weak
Inspect track tension and undercarriage wear before touching the travel motor. Measure track roller shaft diameter at the A-point: wear limit is Ø1.56 in. (Ø39.5 mm); rollers below this pull tracking off. Verify track deviation stays at 11.8 in. or less per service standards on page 46. If undercarriage checks out, move to travel motor troubleshooting on for slow rotation and 2-speed switching faults. Check hydraulic pilot supply pressure as well: a weak pilot signal causes exactly this symptom.
Manual Section: Travel Motor TroubleshootingHydraulic hoses seeping at fittings, or sudden pressure loss at an attachment p. 11
Inspect every hose against the rated working pressure: SAE J517, 100R1 dia. 02 hose is rated 2489 PSI (17.2 MPa) per page 19; hoses showing surface cracking or fitting weepage at operating pressure must come off. Review disassembly and reassembly cautions on page 11 before breaking any hydraulic line. After reinstalling, cycle the attachment through full stroke and hold for two minutes at system relief (3698 PSI) watching for seeps before returning the machine to service.

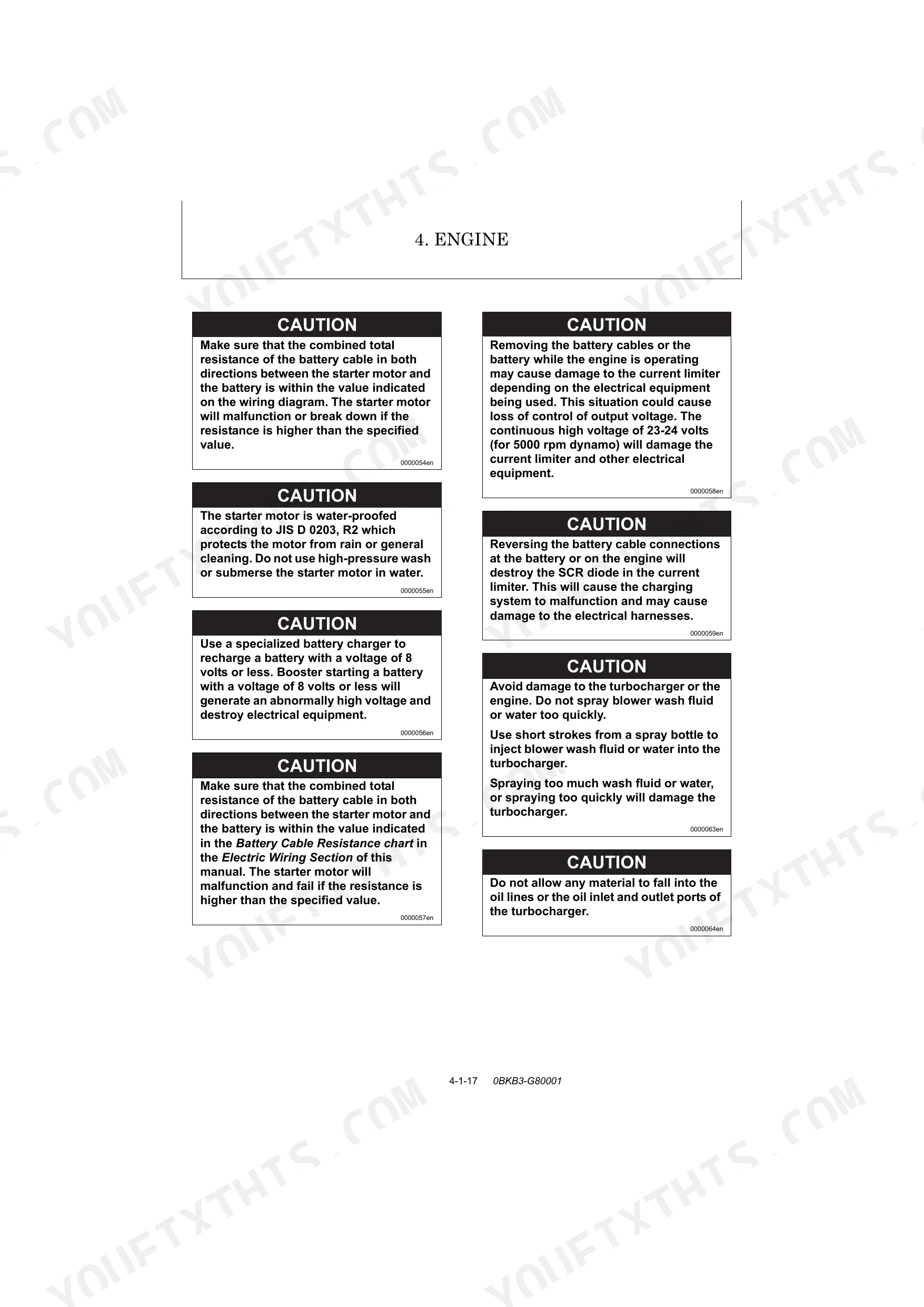

Manual Section: General Cautions for Maintenance WorkElectrical fault: starter cranks slowly or not at all, battery charge alarm on monitor p. 47
Test battery voltage under load; spec is 12 V at 92 Ah (5-hour rate). A 12 V battery that drops below 10.5 V under starter load needs replacement, not a charge. Verify alternator output reaches 12 V / 55 A at rated engine speed before blaming the charging circuit. For starter motor and alternator removal, follow the procedures in the Adjustment and Repair section starting on page 535. Electrical troubleshooting for the starter, alternator, and monitor alarm lamps is covered on pages 47 and 63.
Manual Section: Engine Electrical System TroubleshootingFrequently Asked Questions
What does the Yanmar ViO80 fault code mean?
The manual provides a "Detected failure list" on page 78, which correlates the "Lamp Number of flash" with specific "Item" (e.g., 4 flashes for Coolant temperature sensor failure, 5 flashes for Accelerator sensor failure, 1-3 flashes for EGR valve failure) and describes the "Failure detection conditions" and "Operation when failure occurs". For example, 5 flashes indicate an Accelerator sensor failure when the sensor voltage is 4.6 V or more, or 0.2 V or less, and the speed immediately before is held.
What are the torque specs for Yanmar ViO80 track bolts?
The tightening torque for the track shoe bolts (M14 x 1.5) on the Yanmar ViO80 is 162.8 to 198.9 ft·lbf (221 to 270 N·m). This information is found in the "7-2-9 Disassembly and Reassembly of Track Shoe Link" section on page 124.
What are the replacement specifications for hydraulic filters?
The hydraulic system uses a "Suction filter" of type Wire gauze with a filtration accuracy of 105 µ and a "Return filter" of type Filter paper with a filtration accuracy of 10 µ. The suction filter should be cleaned every 250 hours (or 1st time), and the return filter should be replaced every 500 hours (or 1st time).
What are the replacement specifications for fuel filters / water separator element?
The fuel filter is of type Filter paper with an automatic air release device and a filtration area of 775 sq.in. (5000 sq.cm). The fuel filter element should be replaced every 250 hours.
Is this Service Manual a digital download?
A 776-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this Yanmar ViO80 Service Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Yanmar ViO80 manual include wiring diagrams?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
