The crew is standing around a machine that will not crank, or the boom sagged overnight, and every hour on the meter is money going the wrong way. This is the Case factory service manual for the 1085C Cruz-Air wheeled excavator, issued May 1990, covering the 6-590, 6T-590, and 6TA-590 diesel engines.
Everything on this machine is mechanical. No ECU, no fault codes, nothing to plug a laptop into. Faults trace with a pressure gauge, a multimeter, and the five fold-out wiring schematic plates. The Hydraulics section carries its own fold-out schematics.
The specs are printed, not guessed. A guessed rod bolt torque costs an engine, and a guessed relief pressure cooks a pump. Follow the book and order the right part the first time.
What's Inside This Case 1085C Manual

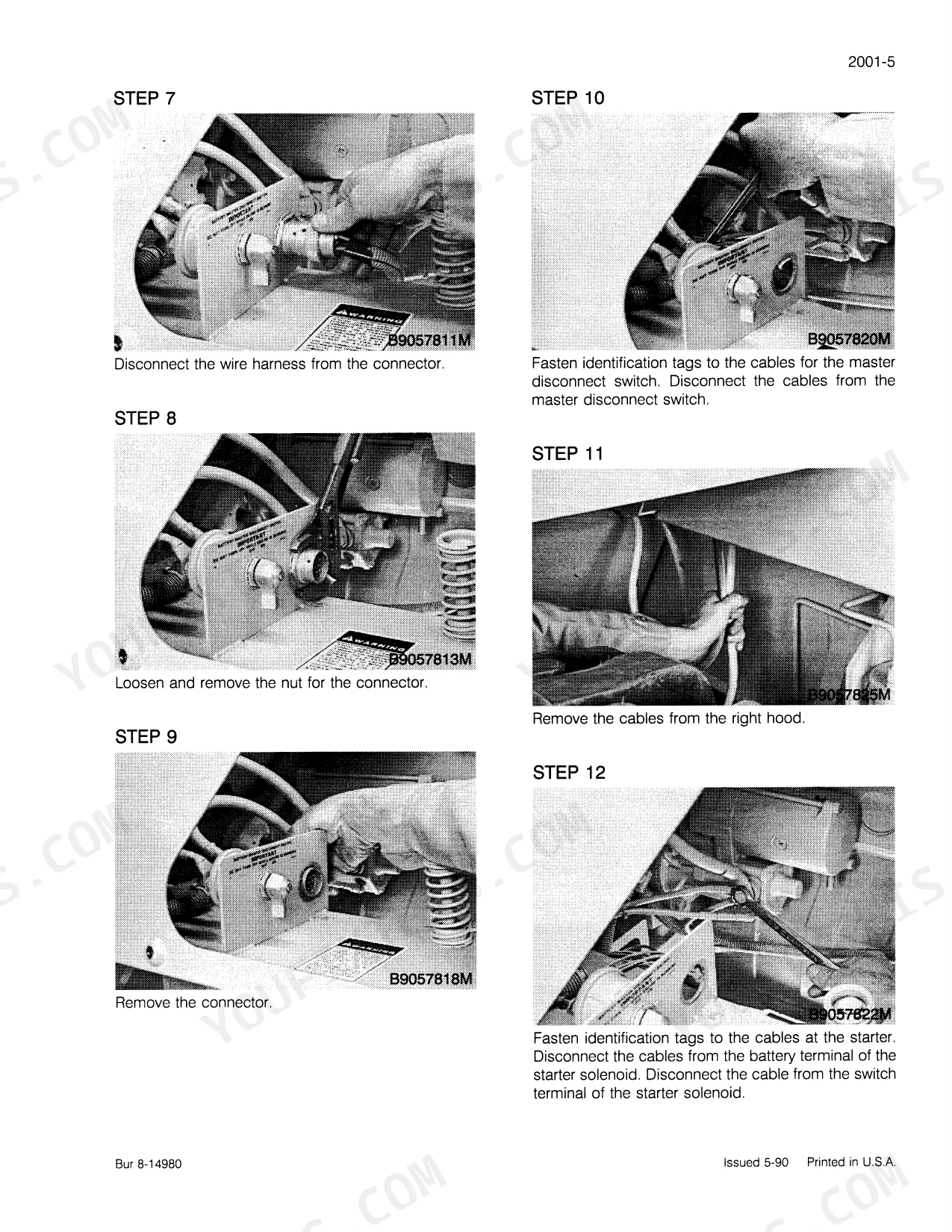

| System | Pages | Key Topics |
|---|---|---|
| General | 4-29 | Standard Torque Specifications, Fluids and Lubricants, Detailed Engine Specifications |
| Engines | 30-282 | Engine and Radiator Removal and Installation, Stall Tests, Cylinder Head and Valve Train, Lubrication System, Turbocharger Failure Analysis |

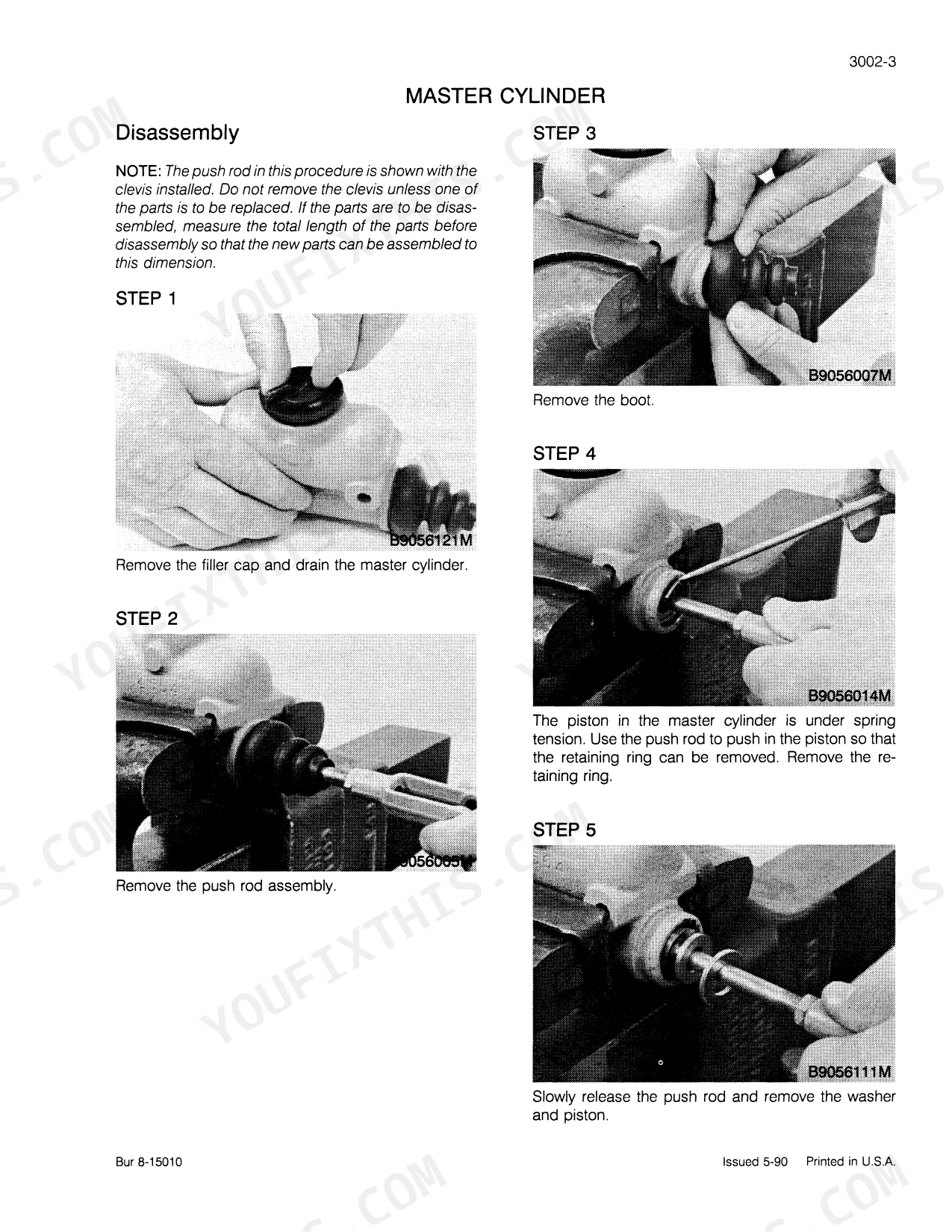

| Fuel System | 283-368 | Accelerator Master Cylinder, Fuel System and Filters, Pump Drive Gear and Timing, Fuel Injectors |
| Electrical System | 369-486 | Starter and Alternator, Batteries, Electric Swivel, Gauges |
| Steering | 487-581 | Steering Control Valve, Steering Selector Valve, Front Axle, Steering Cylinder |

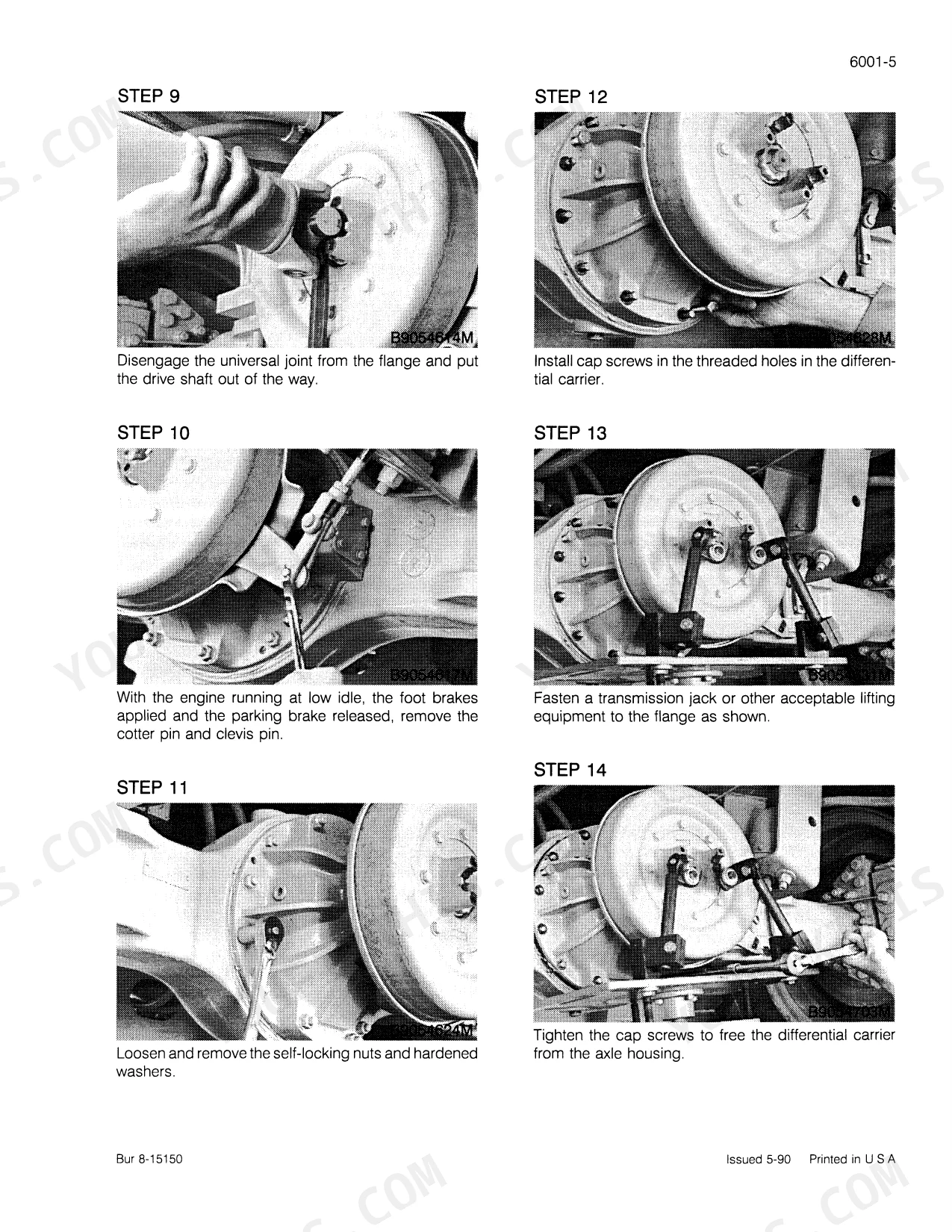

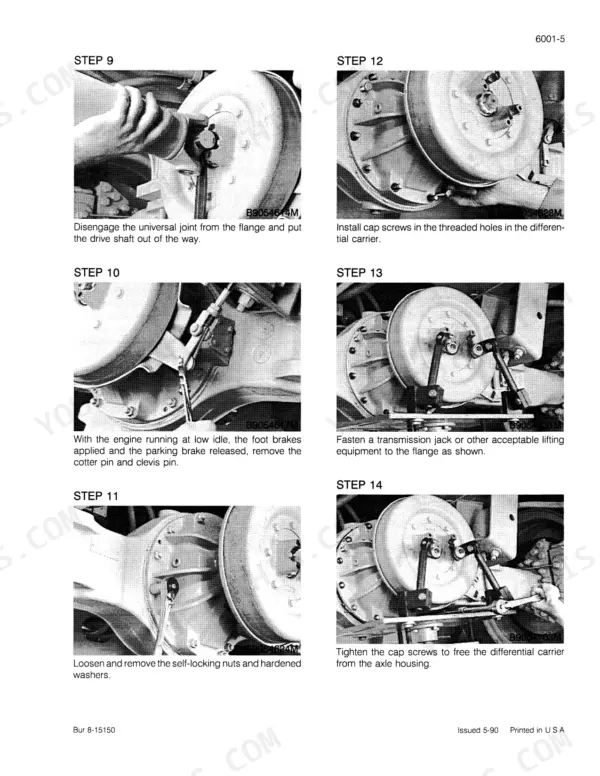

| Power Train | 582-799 | Transmission, Drive Shafts and Universal Joints, Differential and Planetary, Wheels and Tires |
| Brakes | 800-884 | Brake Specifications and Adjustments, Parking Brake, Accumulator, Swing Brake |

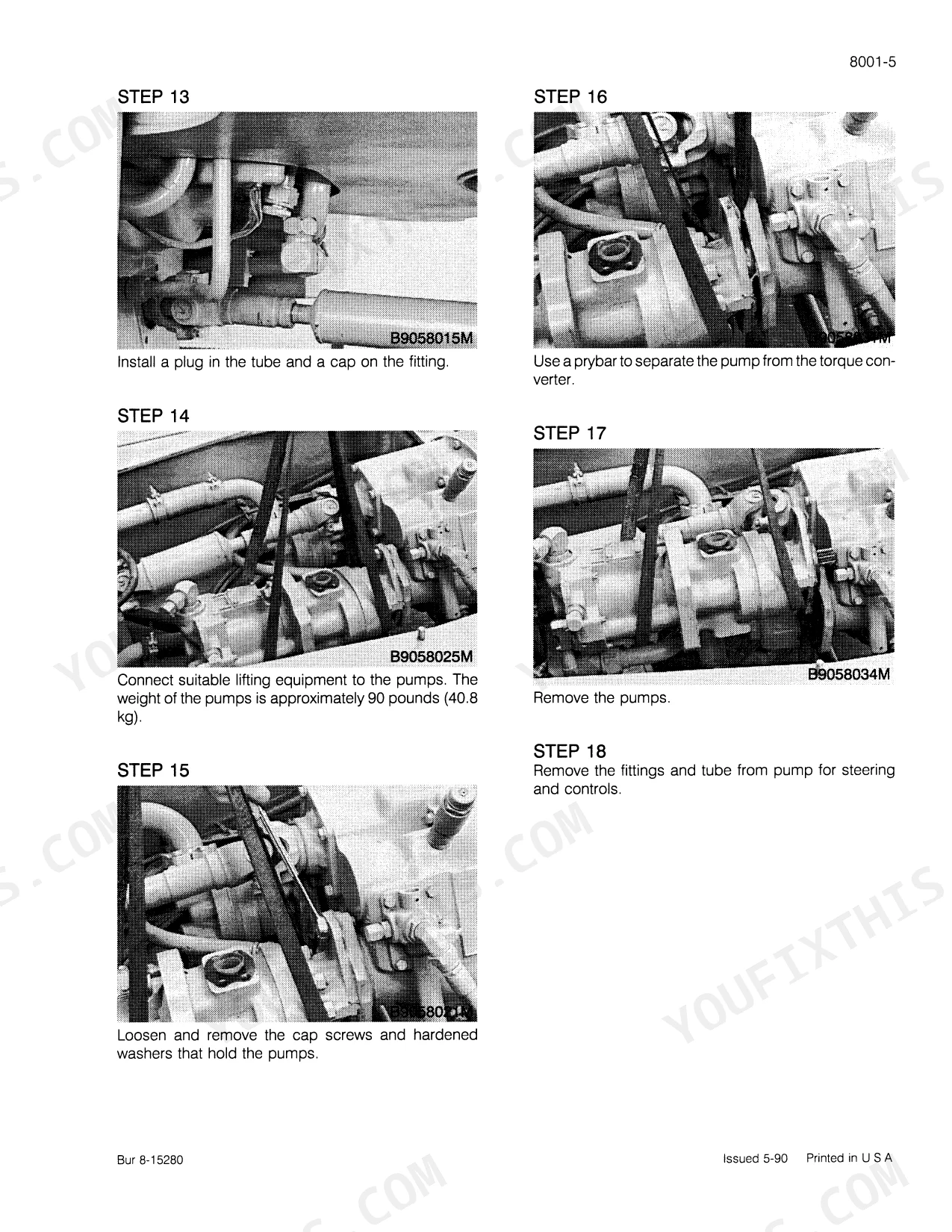

| Hydraulics | 885-1175 | Hydraulic Schematics, Main Control Valves, Remote Control Valves, Swing Motor, Hydraulic Swivel |

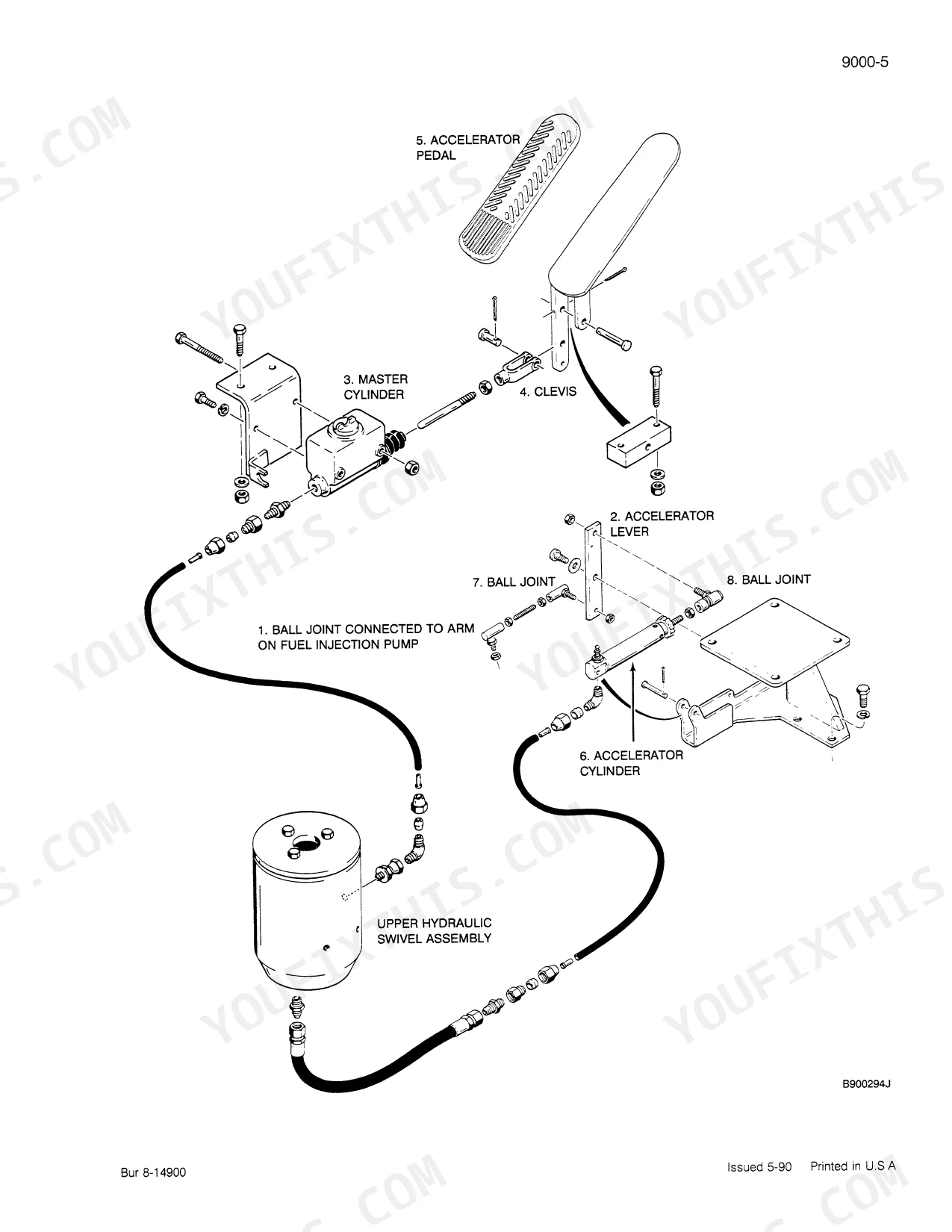

| Mounted Equipment | 1176-1247 | Pedals and Levers, Swing Gearbox, Boom and Arm, Turntable Bearing |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Oil Capacity with Filter Change | 17 U.S. quarts (16.1 litres) | p. 14 |
| Engine Cooling System Capacity | 8.5 U.S. gallons (32 litres) | p. 14 |
| Fuel Tank Capacity | 75 U.S. gallons (284 litres) | p. 14 |
| Hydraulic Reservoir Refill Capacity | 36 U.S. gallons (136 litres) | p. 14 |
| Transmission Capacity with Filter Change | 22.5 U.S. quarts (21.3 litres) | p. 14 |
| Connecting Rod Bolts torque | 74 lb ft (100 Nm) | p. 26 |
| Flywheel Retaining Bolts torque | 101 lb ft (137 Nm) | p. 26 |
| Flywheel Housing Bolts torque | 45 lb ft (60 Nm) | p. 26 |
| Exhaust Manifold Bolts torque | 32 lb ft (43 Nm) | p. 26 |
Case 1085C Common Problems This Manual Covers
Slow crank, no crank, or weak charging
Work through the Starter and Alternator and Batteries procedures in the Electrical System section, which give bench test specs for both units. Then chase voltage drops on the five fold-out wiring plates before you buy a starter the machine may not need.
Manual Section: Electrical System - Starter and Alternator p. 369Hydraulic leaks, cylinder drift, or weak breakout
Use the fold-out hydraulic schematics and pressure test procedures in the Hydraulics section to isolate the failed circuit, then the Main Control Valves service data. Boom and arm cylinder removal and resealing is covered under Mounted Equipment, so worn seal kits go in correctly.
Manual Section: Hydraulics - Main Control Valves p. 885Transmission or torque converter overheating, sluggish travel
Run the stall test procedure in the Engines section first, since it separates a tired engine from a slipping converter while watching converter oil temperature. Then the Power Train section covers transmission teardown, drive shafts, and the 22.5 quart refill with filter change.
Manual Section: Power Train - Transmission p. 582Heavy, wandering, or dead steering on the road
The Steering section carries service and adjustment procedures for the steering control valve, the steering selector valve, the front axle, and the steering cylinder. Pressure checks there tell you whether the pump, valve, or cylinder is at fault before anything comes apart.
Manual Section: Steering - Steering Control Valve p. 487Frequently Asked Questions
Does this manual have the torque specs for the 6-590 / 6T-590 / 6TA-590 engines?
Yes. Standard torque tables plus per-fastener values: connecting rod bolts 74 lb ft (100 Nm), flywheel bolts 101 lb ft (137 Nm), flywheel housing 45 lb ft (60 Nm), exhaust manifold 32 lb ft (43 Nm). Head bolt torque and sequence are in the Cylinder Head and Valve Train section. p. 26
Are wiring diagrams included, and does it cover error codes?
Five fold-out wiring schematic plates are included. There are no error codes to cover. This is a 1990 mechanical machine with no ECU, so every electrical fault traces to a wire, relay, switch, or ground. The plates plus a test light will find it. p. 385
My boom drifts down overnight. Will this book tell me if it is the valve or the cylinder?
Yes. The Hydraulics section has fold-out schematics, main control valve service, and pressure tests that isolate a leaking valve section from bypassing cylinder seals. Cylinder work is under Boom and Arm. Doing that test before ordering parts is the reason to own the book. p. 925
Does it cover the Case 1085C swing system and the swivels?
Yes: swing motor, swing brake, swing gearbox, and turntable bearing, plus both the hydraulic swivel and the electric swivel. Those swivels are the odd parts of a Cruz-Air, and this is where Case documented them. p. 885
What are the fluid capacities on the Case 1085C?
They are in the Fluids and Lubricants section. Engine oil is 17 U.S. quarts with a filter change, cooling system 8.5 gallons, fuel tank 75 gallons, hydraulic reservoir refill 36 gallons, transmission 22.5 quarts with filter. p. 14
