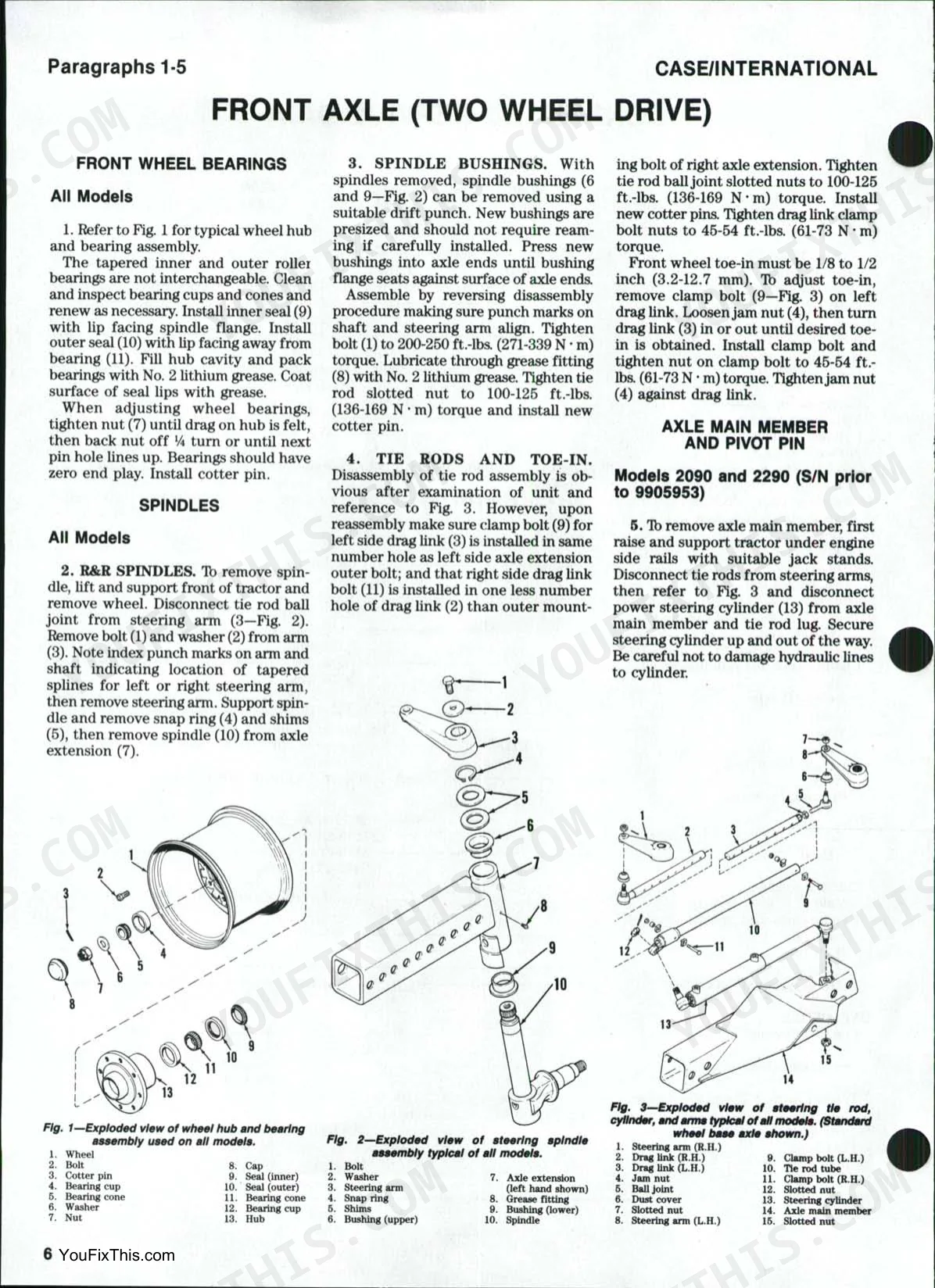

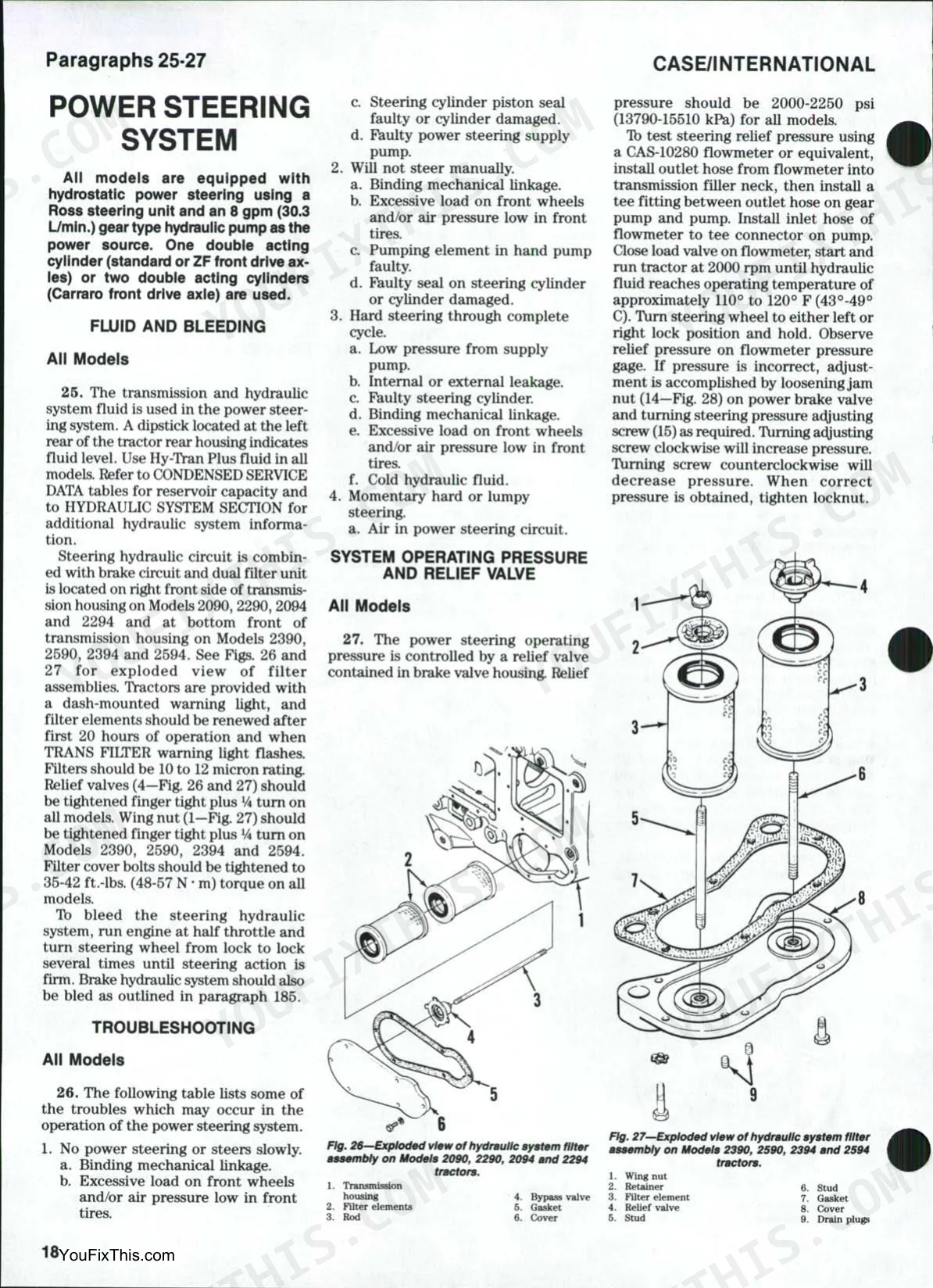

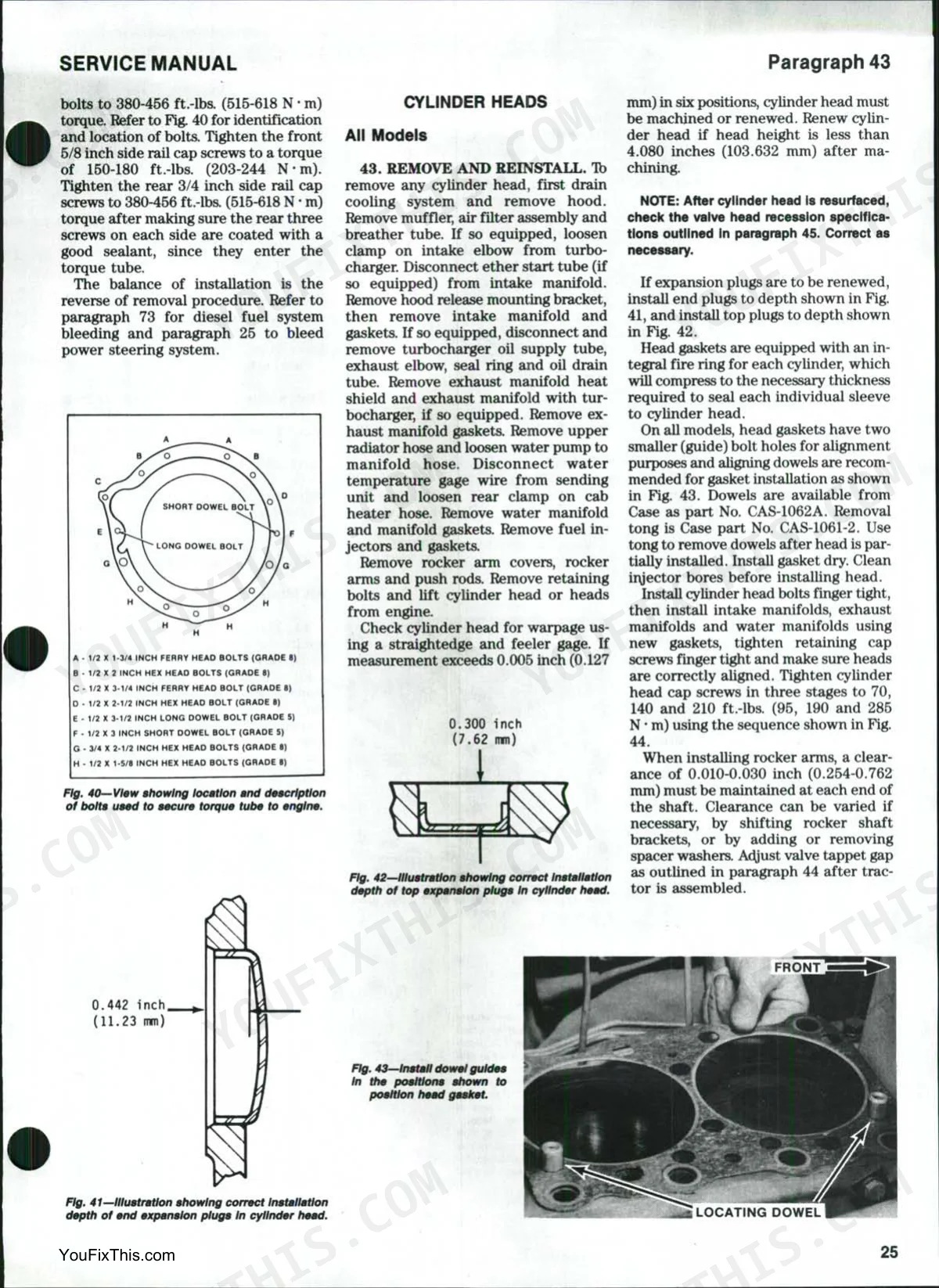

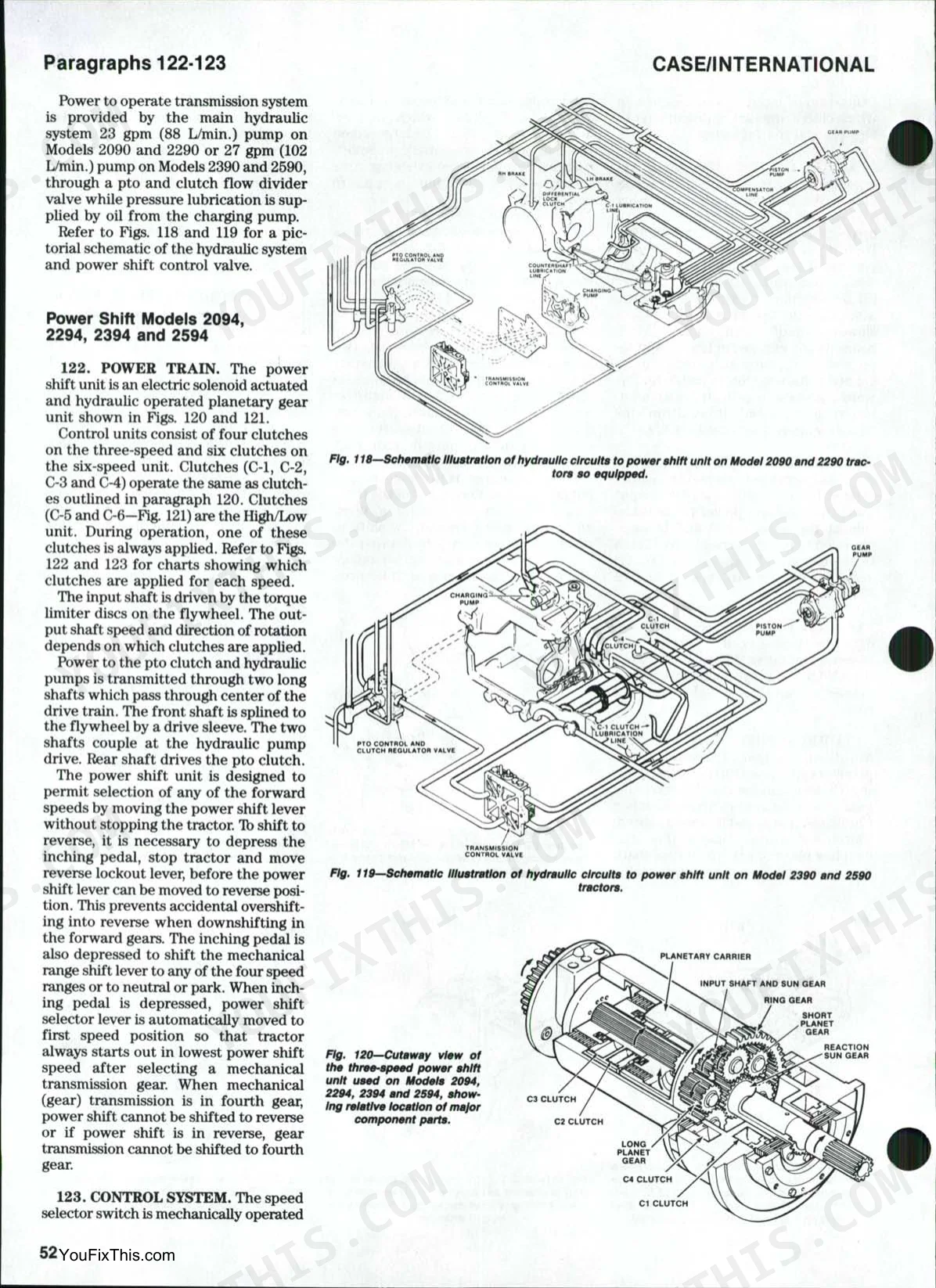

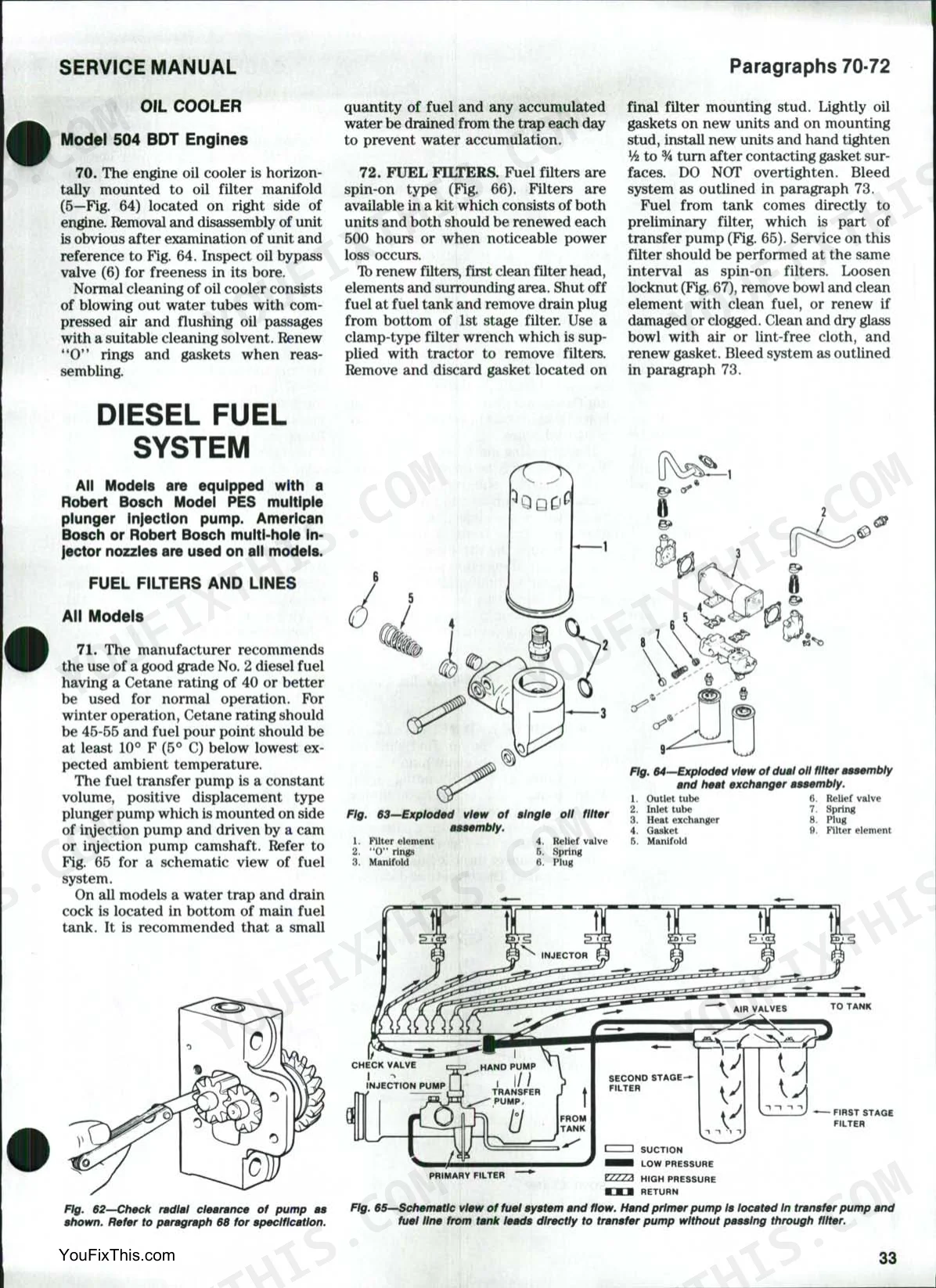

Need the factory specs for your tractor? This 118-page Case/international 2090, 2094, 2290, 2294, 2390, 2394, 2590, 2594 shop manual pdf breaks down every axle, transmission, and hydraulic procedure to get your machine running right. Inside, you get full hydraulic schematics detailing fluid routing through the remote and control valves, plus a complete troubleshooting section for the power steering and hitch systems. Open it up for page after page of exploded views covering the master clutch, transmission splits, and planetary gear sets. Verify your C-5 clutch return spring free length is exactly 1.75 inches, then torque the front spindle bolt to 200-250 ft.-lbs. before rolling it out of the bay. A broken tractor puts the whole operation behind schedule. Download the bookmarked file to your tablet, jump straight to the exact spec you need, and get your equipment back in the dirt.
What's Inside This Case/international 2090 – 2594 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Front Axle (Two Wheel Drive) | 5-6 | Axle Main Member, Front Support, Spindles, Tie Rod & Toe-In, Wheel Bearings |
| Front-Wheel Drive (Carraro Axle) | 7-11 | Drive Axle Assembly and Support, Wheel Hub and Planetary, Stub Axle and Axle Shaft, Pivot Housing, Differential and Bevel Drive Gears, Front Drive Shaft |
| Front-Wheel Drive (Zf Axle) | 12-16 | Drive Axle Assembly and Support, Wheel Hub and Planetary, Pivot Housing and Axle Shaft, Differential and Bevel Drive Gears, Front Drive Shaft, Transfer Gearbox |
| Power Steering System | 17-22 | Fluid and Bleeding, Troubleshooting, System Operating Pressure and Relief Valve, Operational Tests, Hydraulic Pump, Hand Pump |
| Engine and Components | 23 | R&R Engine Assembly, Cylinder Heads, Valves and Seats, Camshaft and Bearings, Pistons, Rings and Sleeves, Crankshaft Seals |
| Diesel Fuel System | 22-31 | Fuel Filters and Lines, Bleeding, Fuel Injection Pump, Injector Nozzles |
| Turbocharger | 36 | Operation, Periodic Inspection, R&R and Overhaul |
| Air Cleaner System | 37 | Air Cleaner, Filter Element, Precleaner |
| Cooling System | 38 | Radiator, Thermostats |
| Electrical System | 39-40 | Alternator & Regulator, Starting Motor |
| Master Hydraulic Clutch | 41-42 | Master Clutch, Torque Limiter Clutch, R&R and Overhaul |
| Mechanical Shift Transmission | 43-48 | Linkage Adjustment, Overhaul Four-Speed, Overhaul Range, Tractor Split, Shift Forks, Neutral Start Switches |
| Power Shift Clutch and Transmission | 49-67 | Power Shift Clutch, Transmission Overhaul, Control Valves, Range Gearbox |
| Gear Transmission (Power Shiftmodels) | 68-74 | Shift Linkage, Overhaul Four-Speed, Shift Forks, Gear Shifter Shafts and Housing |
| Differential and Final Drive | 75-82 | Final Drive, Differential, Bevel Drive Gears, Wheel Hub & Planetary, Stub Axle, Tie Rod & Toe-In |
| Brakes | 83-87 | Bleed System, Brake Cylinders, Linkage Adjustment, Power Brake Valve |
| Power Take-Off | 88-97 | Clutch Overhaul, Control Valve & Flow Divider, Linkage Adjustment, R&R Housing & Gears, PTO Drive Gear |
| Hydraulic System | 98-109 | Pumps, System Filters, Remote Valves, Piston Pump, Charge Pump, Control Valve |
| Hydraulic Hitch System | 110-117 | Troubleshooting, Testing, Sensing Linkage, Draft Arm Full Raise, Hitch Control Valve, Rockshaft and Cylinder |
| Cab | 118 | Remove & Reinstall |

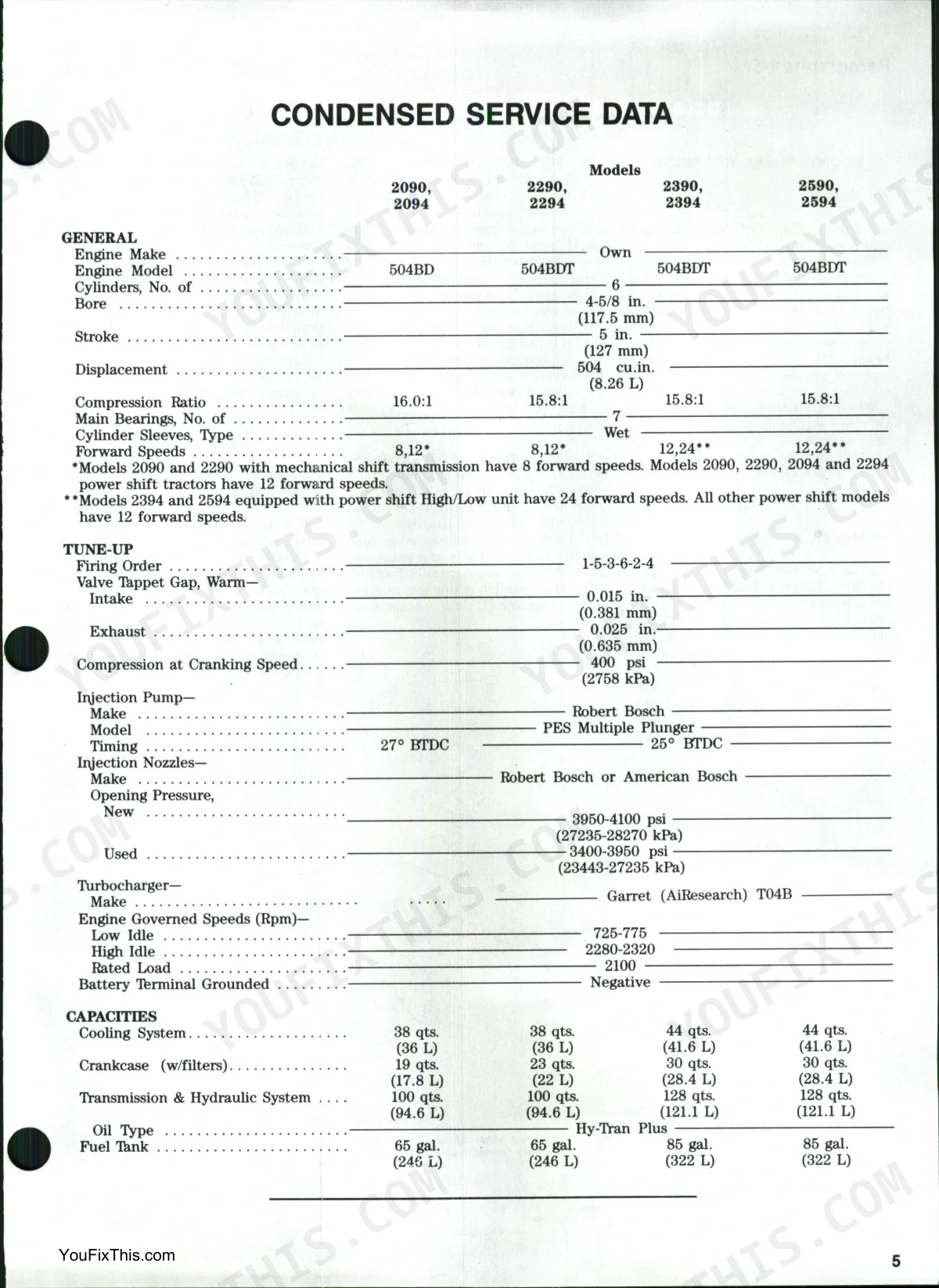

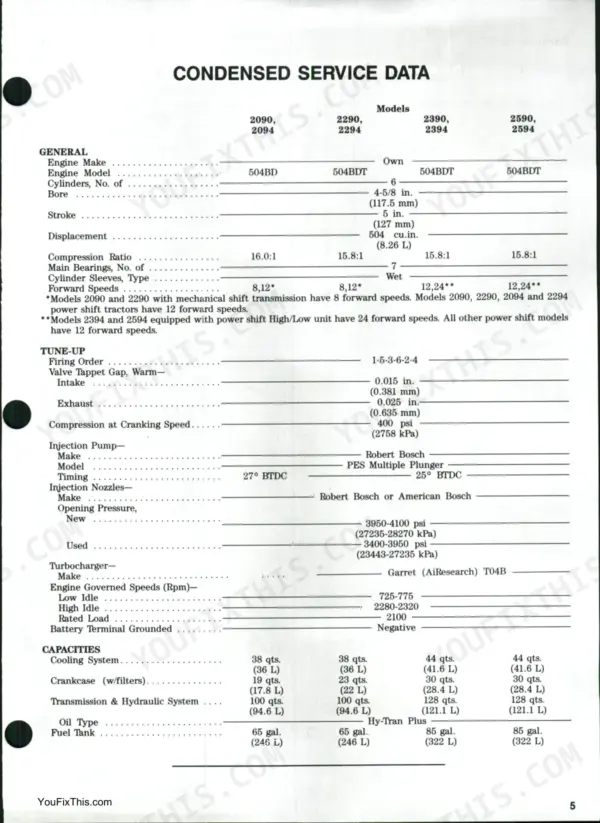

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Spindle bolt (1) torque | 200-250 ft.'lbs. (271-339 N • m) | p. 5 |
| Tie rod slotted nut torque | 100-125 ft.-lbs. (136-169 N • m) | p. 5 |
| Engine Bore | 4-5/8 in. (117.5 mm) | p. 4 |
| Engine Stroke | 5 in. (127 mm) | p. 4 |
| Engine Displacement | 504 cu.in. (8.26 L) | p. 4 |
| Valve Tappet Gap, Warm (Intake) | 0.015 in. (0.381 mm) | p. 4 |
| Valve Tappet Gap, Warm (Exhaust) | 0.025 in. (0.635 mm) | p. 4 |
| 2390, 2590, 2394, 2594 | ||
| C-5 clutch return spring (25) free length | 1.75 inches (44.4 mm) | p. 96 |
| C-5 clutch return spring (25) test load | 78 lbs. (347 N) | p. 96 |
| 2090, 2290, 2094, 2294 | ||
| Park lock lever (10) off position | approximately 9 degrees below horizontal | p. 79 |
| Yoke (9) hole center distance from top end of lower rod | approximately 24.4 inches (619.8 mm) | p. 80 |
| 2090, 2094 | ||
| Compression Ratio | 16.0:1 | p. 4 |
Case/international 2090 – 2594 Series Common Problems This Manual Covers
Case IH 2094 front drive axle assembly won't come off, alignment shifts during removal
Block the rear wheels and confirm the transmission is in PARK before pulling the axle. Reference the Carraro axle procedure on page 7. Torque the spindle bolt to 200-250 ft.-lbs. (271-339 N·m) on reassembly and check front wheel toe-in against 1/8 to 1/2 inch (3.2-12.7 mm) before releasing the machine.
Manual Section: Front-Wheel Drive (Carraro Axle) p. 7Transmission won't hold PARK, lever position feels loose or slips out under load
Check park lock lever (10) sits approximately 9 degrees below horizontal in the off position, detailed on page 79. Inspect the detent spring (10) free length against 1.82 inches (46.2 mm); replace if it tests below 25.1 lbs. (111.0 N) at 2.38 inches. Torque the set screw (6) on the gear stop arm to 15-20 ft.-lbs. (20.4-27.1 N·m) with Loctite 271.
Manual Section: Differential and Final Drive p. 8112-24 speed power shift transmission won't shift through gears or hangs between speeds
Verify inching pedal and shift switch linkage adjustment per pages 52 and 55 before tearing into the clutch pack. Measure output shaft end play against 0.000-0.002 inch (0.000-0.051 mm) and check C-5 clutch return spring (25) free length against 1.75 inches (44.4 mm), replacing any spring testing under 78 lbs. (347 N).
Manual Section: Power Shift Clutch and Transmission p. 96High/Low unit slips or won't engage on 2394/2594 power shift models
Pull the rear cover (27) and check the retaining cap screws are torqued to 35-42 ft.-lbs. (47-57 N·m). Measure bushing (19) reamed ID against 0.8135-0.8145 inch (20.663-20.688 mm) for excessive wear and inspect brake return springs (11), which should measure 1.54 inches (39.1 mm) free length before reassembly.
Manual Section: Power Take-Off p. 97Side frame jack won't hold steady or tips during front wheel lift
Set the jack under the front support per the mounting procedure on page 13, not under the axle housing. Verify front support mounting bolts are torqued to 380-450 ft.-lbs. (515-610 N·m) before loading the jack, and back off wheel hub nuts only after the frame is fully supported and stable.
Manual Section: Front-Wheel Drive (Zf Axle) p. 13Steering goes lumpy or slow to respond, hard to turn at low RPM
Run the troubleshooting chart on page 17 first: check for air in the circuit and confirm fluid level before condemning the pump. Test system operating pressure against 2000-2250 psi (13790-15510 kPa) at the hand pump; low readings point to a worn hydraulic pump or a leaking steering cylinder needing the operational tests on page 18.
Manual Section: Power Steering System Troubleshooting p. 17Frequently Asked Questions
What are the torque specifications for the engine mounting bolts on a Case International 2090 tractor?
For Case International 2090 tractors, the engine mounting bolts have specific torque requirements. The 1/2 inch grade 5 bolts should be tightened to 80-96 ft.-lbs. (109-130 N • m), while the 3/4 inch grade 8 bolts require 380-456 ft.-lbs. (515-618 N • m) of torque. Additionally, cylinder head cap screws are tightened in three stages to 70, 140, and 210 ft.-lbs. (95, 190, and 285 N • m). p. 24
What are the torque specifications for the master clutch mounting bolts on a Case 2090 tractor?
For the Case 2090 master clutch, the mounting bolts should be tightened to 110-132 ft.-lbs. (149-179 N • m) of torque. This ensures proper assembly after splitting the tractor between the engine and torque tube, as outlined in paragraph 41. p. 42
What are the replacement specifications for friction discs in the Front-Wheel Drive (Carraro Axle) differential assembly?
When overhauling the differential and bevel drive gears for models 2094 and 2294, the thickness of each friction disc should be measured. Any friction disc measuring less than 0.070 inch (1.77 mm) must be renewed to ensure proper operation. Shims are also available in thicknesses of 0.004, 0.012, and 0.020 inch (0.1, 0.3, and 0.5 mm) for bearing preload adjustments. p. 10
What are the replacement specifications for the Power Shift High/Low unit clutch return springs?
For the Power Shift High/Low unit, the clutch return spring (25) should have a free length of 1.75 inches (44.4 mm). When compressed to a length of 1.25 inches (31.7 mm), it should test at 78 lbs. (347 N). Springs not meeting these specifications must be renewed, and clutch plates that are worn, scored, warped, or show signs of damage should also be renewed. p. 97
What do I get after purchasing this Case/international 2090 & variants manual?
A 118-page Shop Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this Case/international 2090 & variants manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Case/international 2090 & variants manual cover the hydraulic system?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
