Part of the Case Repair Manuals.
This 82-page J. I. Case 5, 430, 431, 440, 441, 470, 530, 531 Shop Manual walks you through every system on these tractors, from the four-cylinder engine down to the hydrostatic power steering. You get hydraulic schematics for both the assist-type and hydrostatic steering circuits, exploded views of the engine, differential, and final drive, plus a full torque spec section covering cylinder head studs, rocker arm bracket nuts, and manifold hardware. Set your alternator output between 14.5 and 14.7 volts, and confirm firing order runs 1-3-4-2 on the four-cylinder before you chase a miss that isn't there. Your Case-O-Matic or Power Take-Off unit won't wait for a parts run, and this book gets you past the guesswork straight to the fix. Bookmarked by section so you can jump from Trouble Shooting straight to Control Valve overhaul without flipping pages, this PDF opens on your phone, tablet, or shop laptop the moment you download it.}
What's Inside This Case 430 / 431 / 440 / 441 / 470 / 530 / 531 Manual
| System | Pages | Key Topics |
|---|---|---|
| Front Matter & Specifications | 1-5 | Title Page, Series Identification, Serial Number Locations, Paragraph Index, Service Data, Tune-Up Specifications, Torque Values, Fluid Capacities |

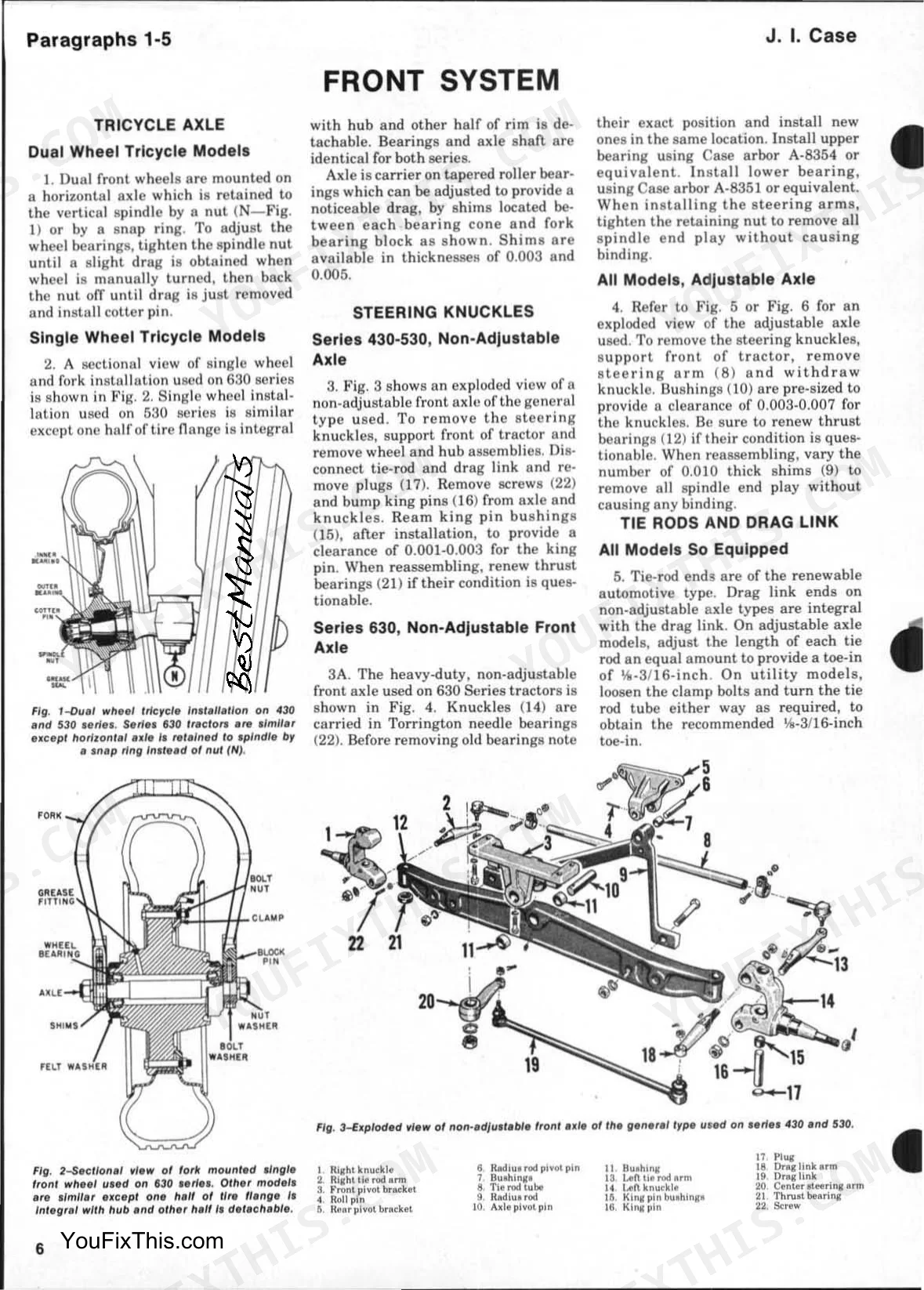

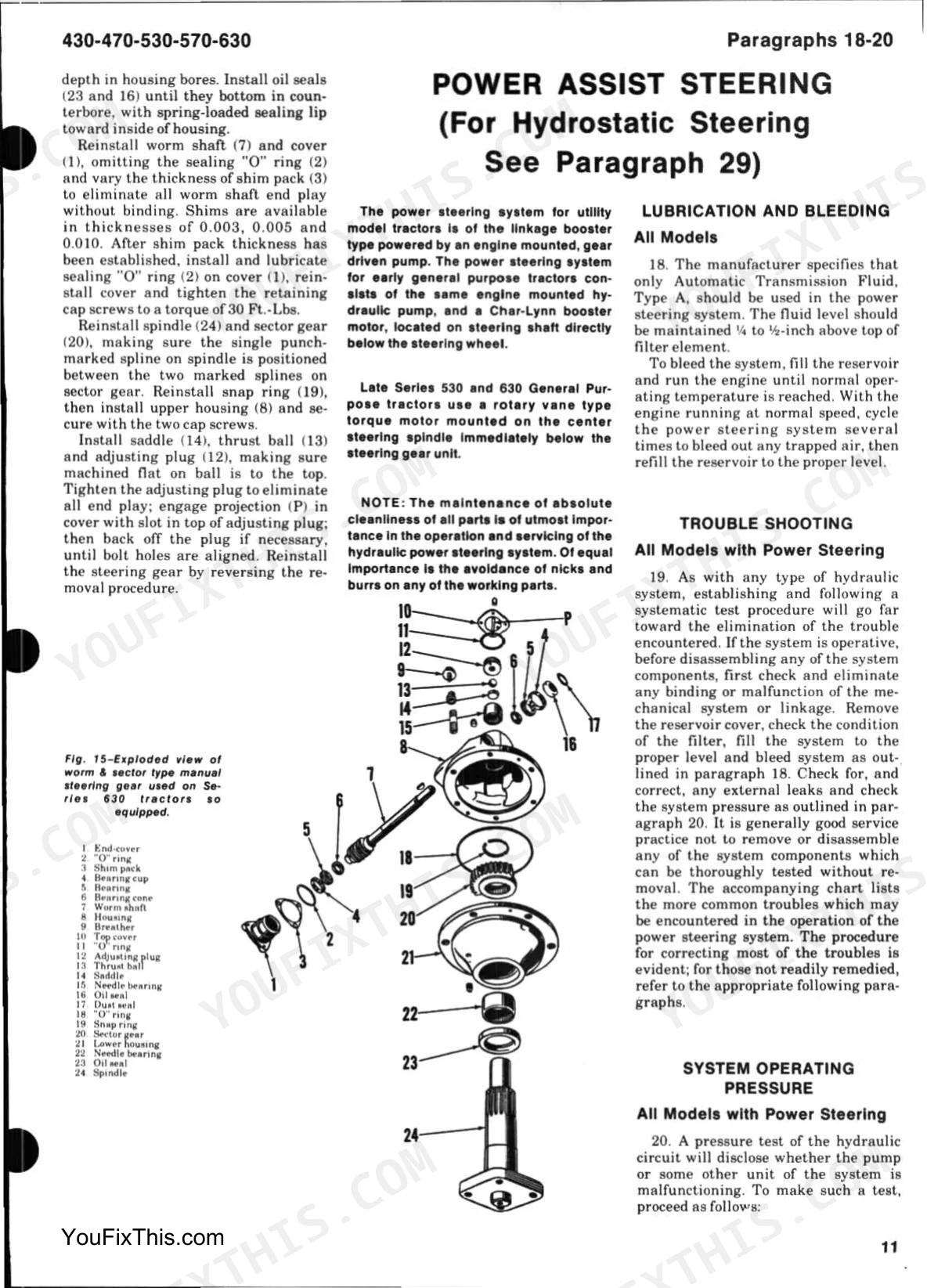

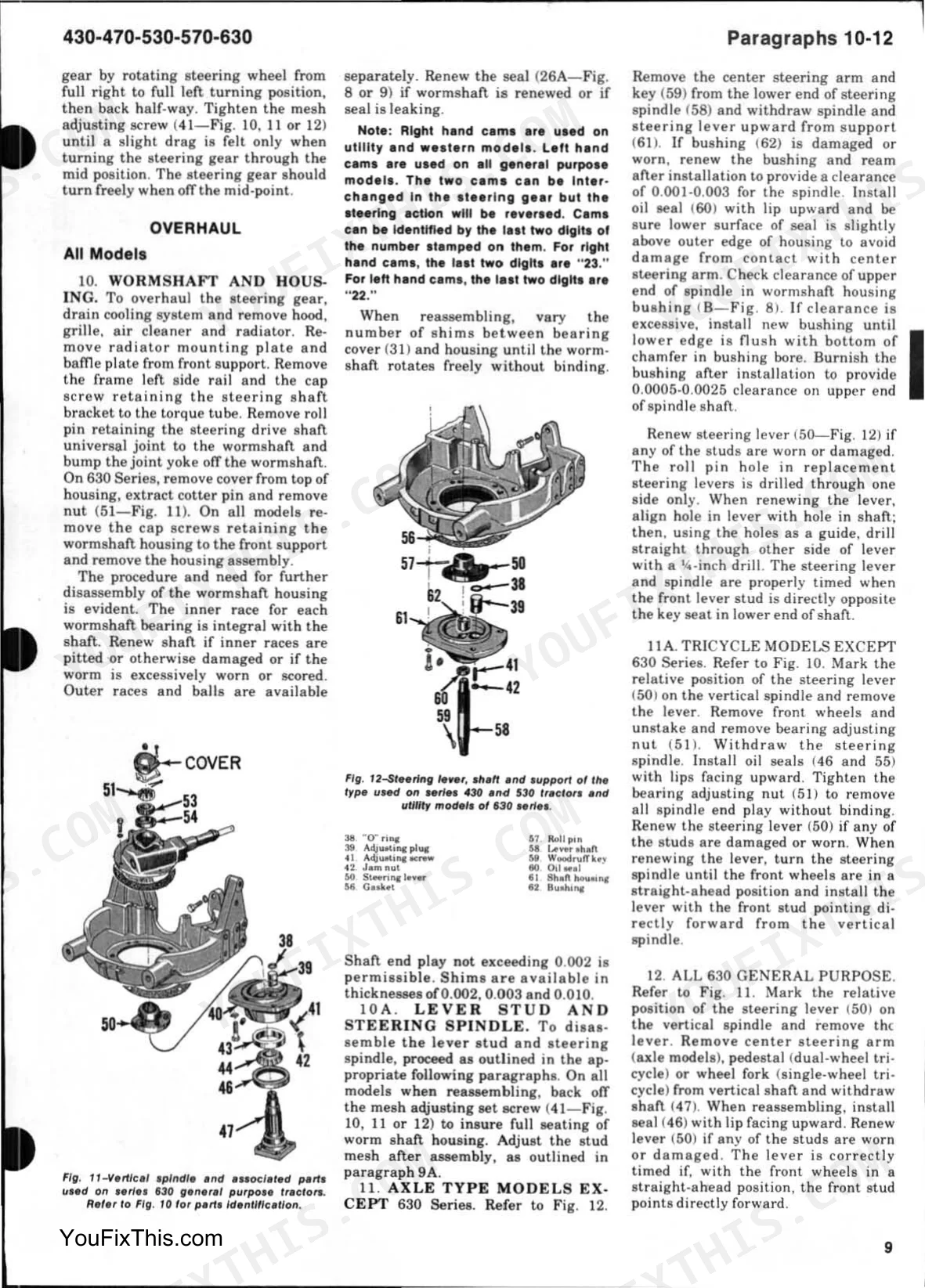

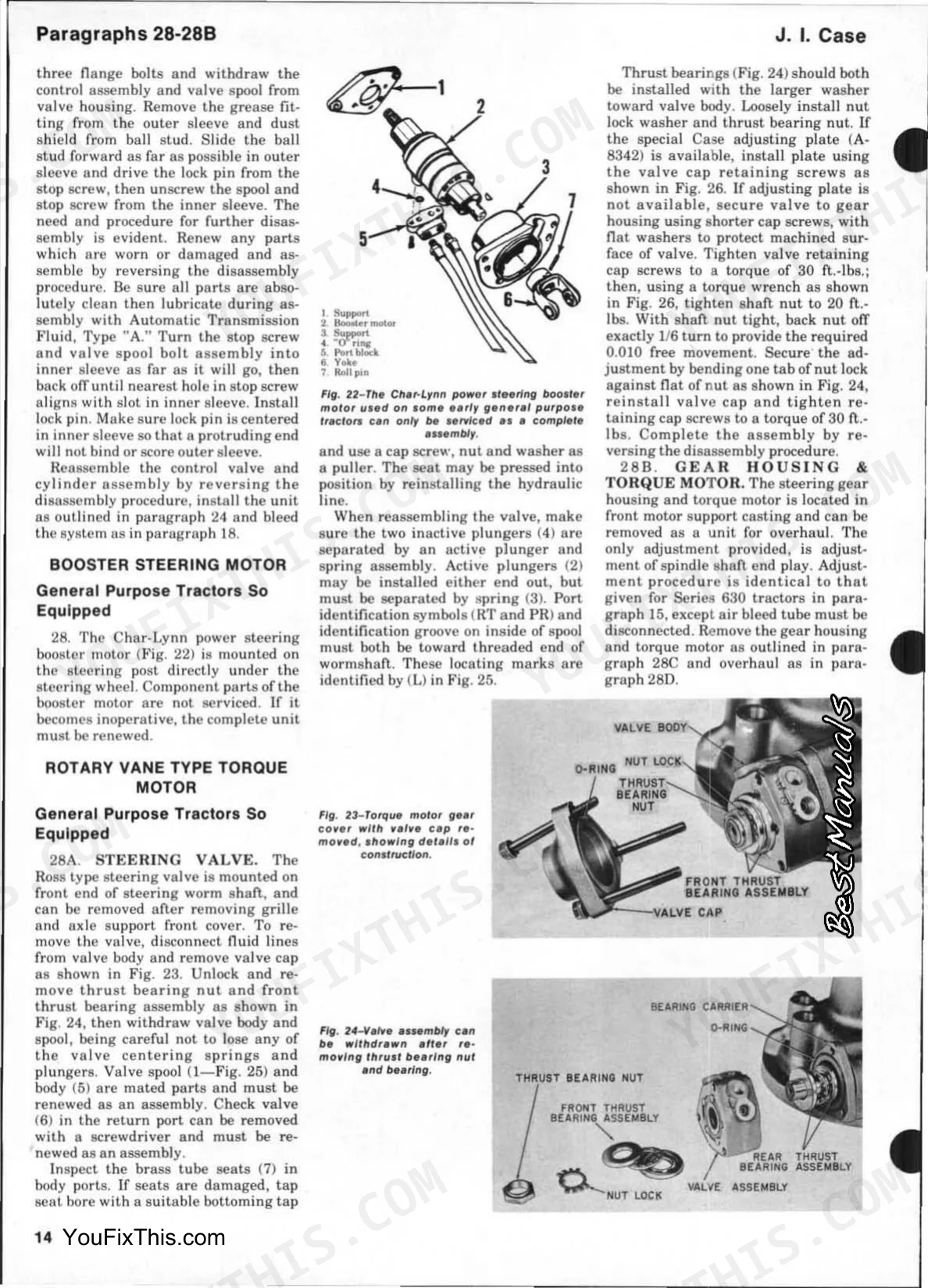

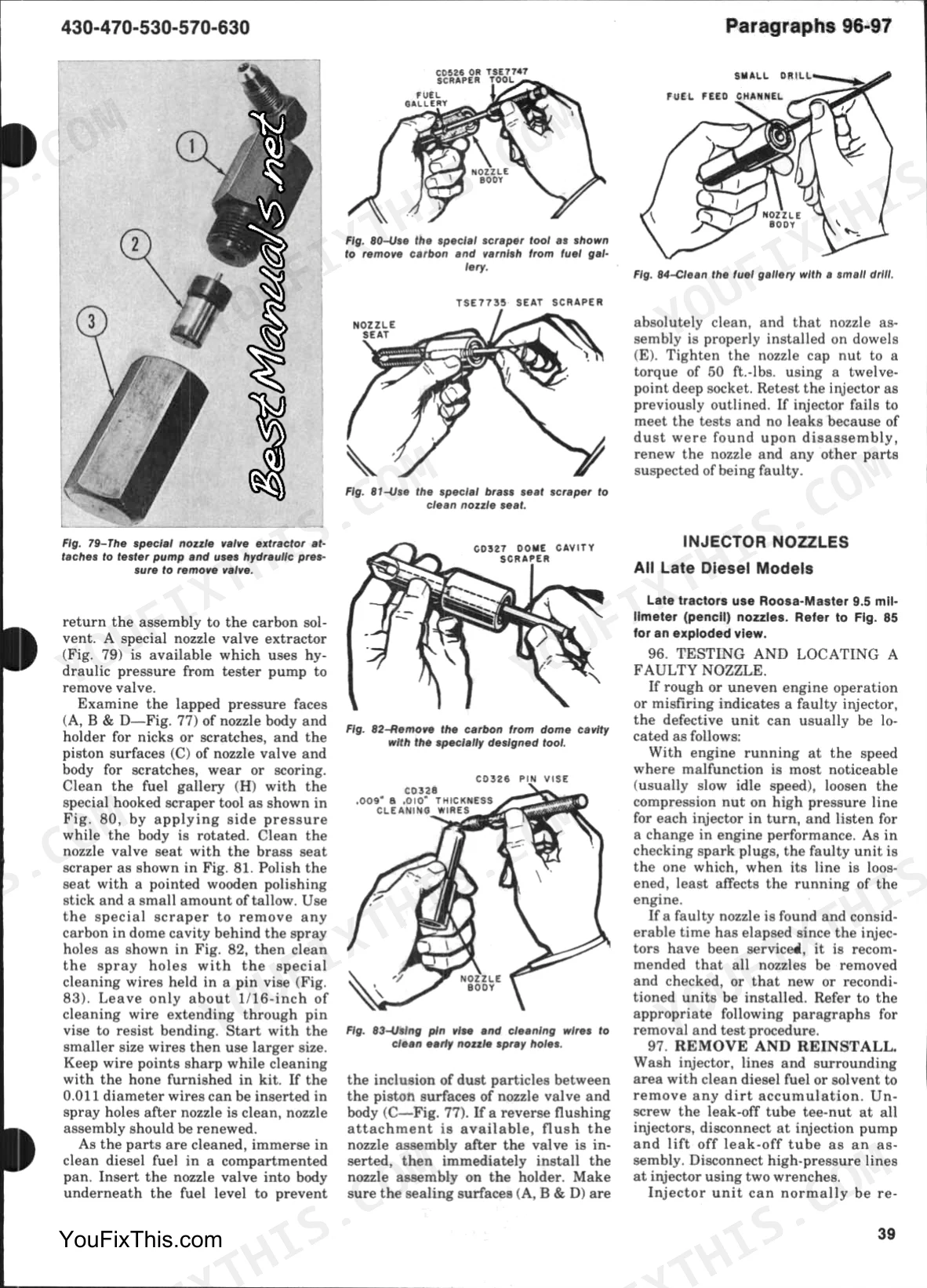

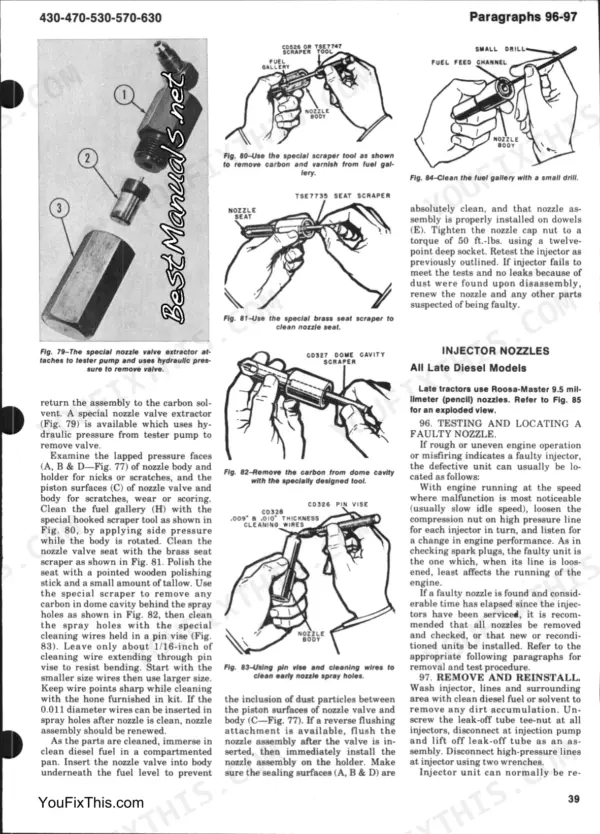

| Front Axle & Steering Systems | 6-19 | Tricycle Front Axle, Steering Knuckles, Axle Pivot Pins and Bushings, Tie Rods and Drag Link, Manual Steering Cam and Lever Type, Manual Steering Worm and Sector Type, Power Steering Booster Motor, Power Steering Control Valve, Power Steering Relief Valve, Hydrostatic Steering Pump and Cylinder |
| Engine Overhaul | 20-29 | Cylinder Head, Valves and Seats, Valve Guides and Springs, Valve Tappets, Camshaft and Bearings, Timing Gears and Cover, Crankshaft and Main Bearings, Connecting Rods and Bearings, Pistons Rings and Pins, Cylinder Sleeves, Flywheel, Oil Pump and Oil Pan, Rocker Arms |
| Fuel Systems - Carburetor, LP-Gas & Diesel Injection | 30-43 | Gasoline Carburetor Adjustment, LP-Gas Carburetor and Vaporizer Regulator, LP-Gas Fuel Tank and Lines, Diesel Fuel Filters and Bleeding, Diesel Injector Nozzles, Diesel Injection Pump, Injection Pump Governor, Diesel Trouble-Shooting Chart |
| Cooling System & Electrical Units | 44-44 | Radiator, Thermostat, Water Pump, Distributor, Generator, Alternator, Voltage Regulator, Starting Motor |
| Engine Clutch & Transmission Clutch | 45-48 | Engine Clutch Adjustment, Clutch Release Bearing, Clutch Shaft R&R, Transmission Clutch Adjustment, Transmission Clutch Removal and Overhaul, Tractor Split Procedure |
| Case-O-Matic Torque Converter Drive | 49-54 | Case-O-Matic Operation, Fluid Breather and Filters, Pressure Test, Linkage Adjustments, Case-O-Matic Clutch, Case-O-Matic Pump, Control Valve, Torque Converter Unit |
| Triple-Range & Shuttle Gear Transmission | 55-57 | Triple-Range Control Cover, Triple-Range Overhaul, Shuttle Gear Control Cover, Shuttle Gear Overhaul, Shuttle Gear Remove and Reinstall |
| Dual-Range & Main Transmission | 58-61 | Dual-Range Control Cover, Dual-Range Overhaul, Transmission Top Cover, Shifter Rails and Forks, Main Shaft, Reverse Idler |
| Differential, Final Drive & Brakes | 62-65 | Bevel Pinion and Countershaft, Differential Bevel Gear, Bull Gears, Bull Pinions, Final Drive, Differential Lock, Brakes, Brake Adjustment, Brake Bands |
| Power Take-Off | 66-70 | Independent PTO Clutch Adjustment, Independent PTO Gear Unit, Standard PTO Clutch, Standard PTO Gear Unit Dry Clutch, Standard PTO Gear Unit Case-O-Matic |
| Hydraulic Lift System & Draft-O-Matic Control | 71-82 | Hydraulic Lift Trouble-Shooting, Hydraulic Pump and Drive Gear, Control Valve, Interlock Assembly, Operating Pressure, Rockshaft and Operating Cylinder, Remote Cylinder, Ring-O-Matic Setting, Draft-O-Matic Linkage, Draft-O-Matic Control Valve Overhaul |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Transmission seals replacement | Renew oil seals (Fig. 126) in carrier if their condition is questionable. | p. 55 |
| Alternator output voltage (normal) | 14.5-14.7 Volts | p. 45 |
| Engine Make | Own | p. 4 |
| Cylinders, Number of | 4 | p. 4 |
| Firing Order | 1-3-4-2 | p. 4 |
| Valve Tappet Gap | 0.014 C | p. 4 |
| 430-470 Diesel, 530-570 Diesel, 630 Diesel | ||
| Main Bearings, Number of | 5 | p. 4 |
| 430-470 Non-Diesel, 530-570 Non-Diesel, 630 Non-Diesel | ||
| Main Bearings, Number of | 3 | p. 4 |
Case 430 / 431 / 440 / 441 / 470 / 530 / 531 Common Problems This Manual Covers
J.I. Case 430 tractor experiencing excessive battery water consumption greater than 1 oz every 60 hours.
Test the electrical system using a multimeter across the battery posts. Verify the alternator output voltage reads between 14.5-14.7 Volts as specified on page 45. Replace the voltage regulator if the system is overcharging and boiling off the electrolyte fluid.
Manual Section: Electrical Units p. 45Engine runs unevenly and lacks power with loud ticking noises coming from the top end.
Remove the valve cover and inspect the rocker arms and cam followers. Adjust the valve tappet gap to exactly 0.014 C on page 4. Verify the 1-3-4-2 firing order is correct if the engine still misfires after setting the clearances.
Manual Section: Engine p. 4Draft-O-Matic hydraulic system fails to lift heavy implements with relief valve pressure dropping below 1450 PSI.
Connect a pressure test gage to the pump pressure line to check the output. Verify the hydraulic system maintains between 1450 PSI and 1550 PSI during operation. Adjust the adjusting plug located in the Hydra-sleuth adapter housing or replace the worn relief valve.
Manual Section: Hydraulic Lift SystemDiesel engine cranks slowly but fails to start or produces heavy knocking during irregular engine operation.
Check the main bearings for excessive wear or scoring. Verify your specific block uses either 3 or 5 main bearings as listed on page 4. Inspect the 4 cylinders for proper compression and bleed the fuel system to remove trapped air.
Manual Section: DIESEL FUEL SYSTEM Trouble Shooting p. 4Frequently Asked Questions
What are the torque specifications for cylinder head stud nuts on J.I. Case 430 models?
For J.I. Case 430 non-diesel models, the cylinder head stud nuts should be tightened to a torque of 95-100 ft.-lbs. For 430 diesel models, the cylinder head stud nuts should also be tightened to 95-100 ft.-lbs., or 110-115 lbs. if capscrews are used, following the sequence shown in Fig. 41. p. 21
What are the replacement specifications for Transmission seals?
The manual instructs to renew oil seals in the carrier if their condition is questionable, and to install new seals with their lips outward and opposed. However, specific dimensions or material specifications for the transmission seals are not provided. p. 56
What are the replacement specifications for the Hydraulic system pump relief valve spring?
The relief valve spring (12) for the hydraulic system pump should have a free length of 1.083 inches and must test 62-68 lbs. when compressed to a height of ¾-inch. If the spring does not meet these specifications, it should be renewed. p. 33
What is the valve tappet gap adjustment for J.I. Case engines?
The valve tappet gap for J.I. Case engines should be adjusted to 0.014 inches cold. This specification is listed in the tune-up data and reiterated for both non-diesel and diesel models. p. 4
What do I get after purchasing this J. I. Case 430-440-470-530-540-570-630-640?
A 82-page Shop Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this J. I. Case?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Can I find hydraulic circuit diagrams in this J. I. Case?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the J. I. Case 430-440-470-530-540-570-630-640 & variants.
