Part of the Case Repair Manuals.
Need the factory repair data for your Case 435, 445CT, or 445 Skid Steer Loader? This 1,174-page repair manual (OEM #87634768) takes you through distribution hydraulics, power production, power train, axles, body and structure, the working arm, and tool couplers. Inside: full wiring schematics across the power and lighting systems, hydraulic diagrams routing the primary, secondary, and high-flow circuits, a complete troubleshooting section, torque tables, and step-by-step rebuild procedures for the hydrostatic transmission, pump drive, and axle assemblies. Set the main hydraulic relief at 21,290 kPa (3,050 psi) at 2,200 RPM; the parking brake releases at 1,500 kPa (218 psi). No more chasing faults with a multimeter and a prayer. Bookmarked by system and keyword-searchable, so you can jump straight to the spec you need.
What's Inside This Case 435, 445CT, 445 Repair Manual
| System | Pages | Key Topics |
|---|---|---|

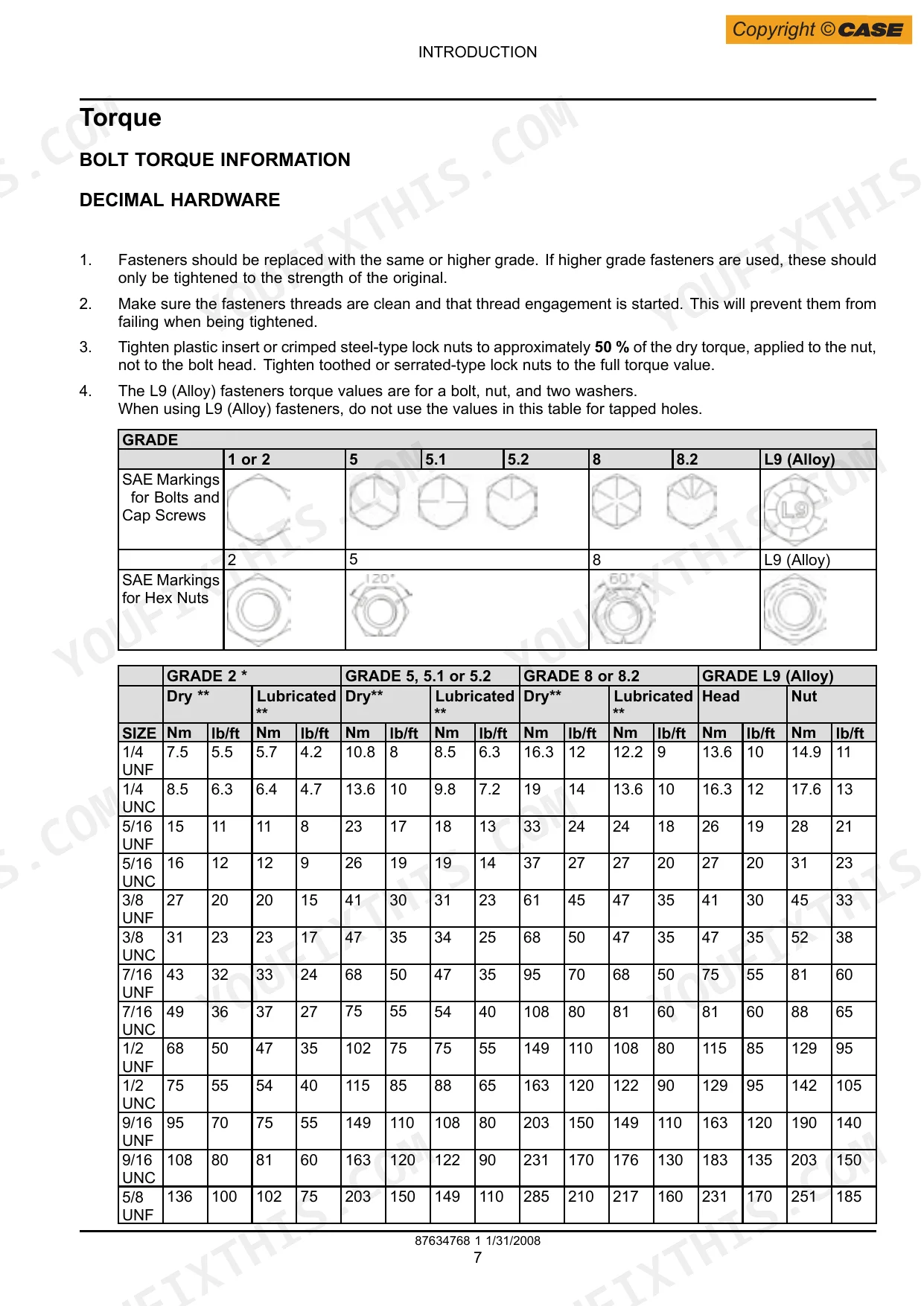

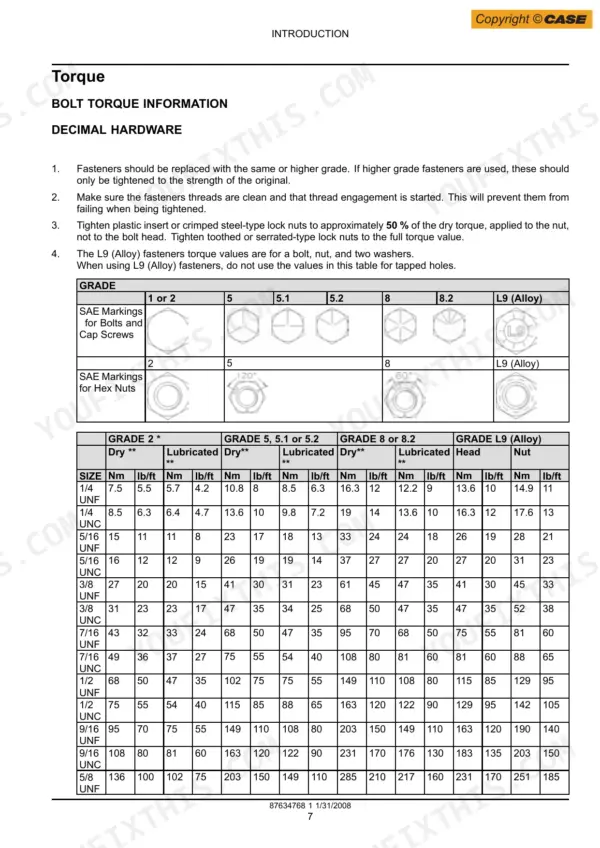

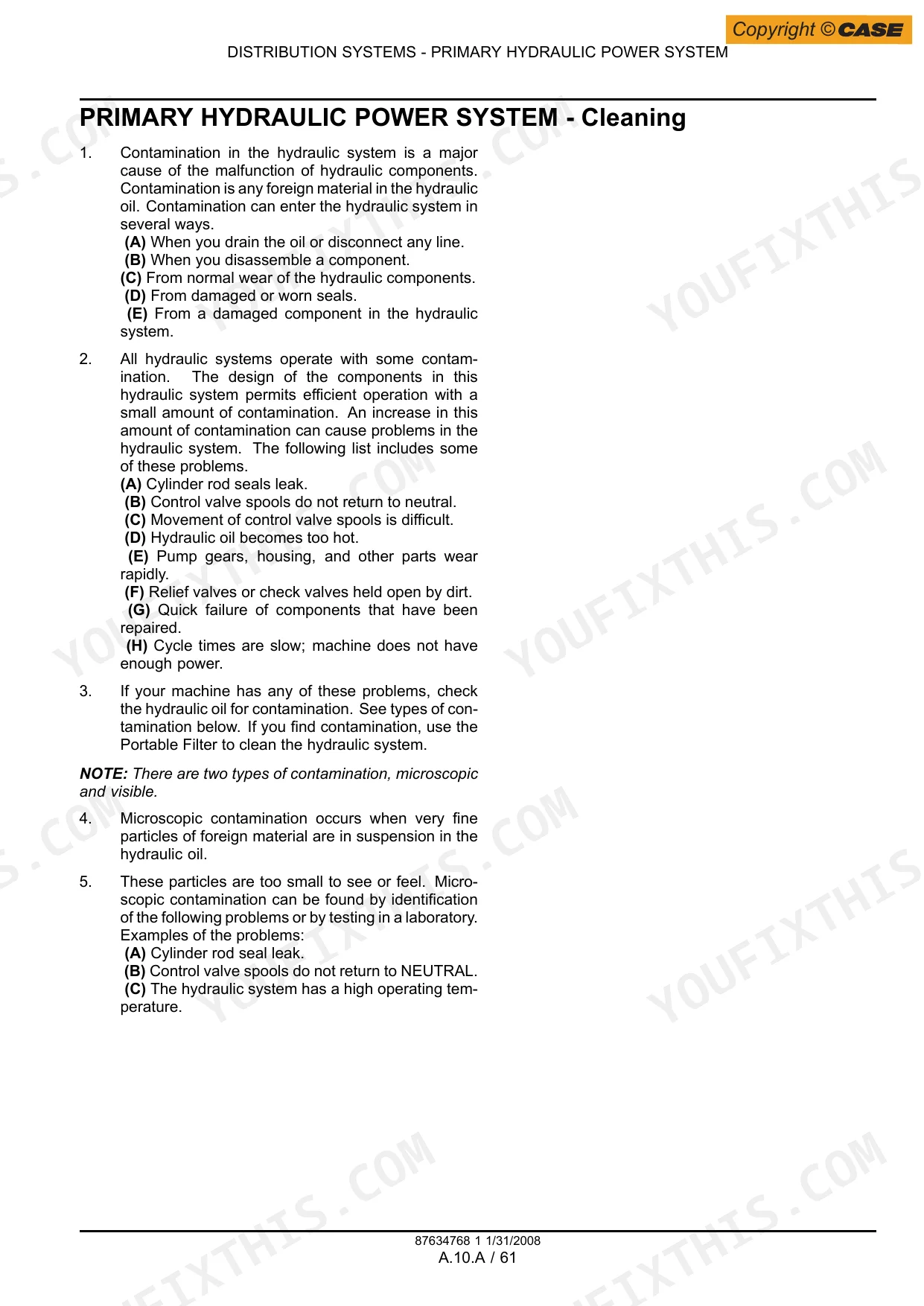

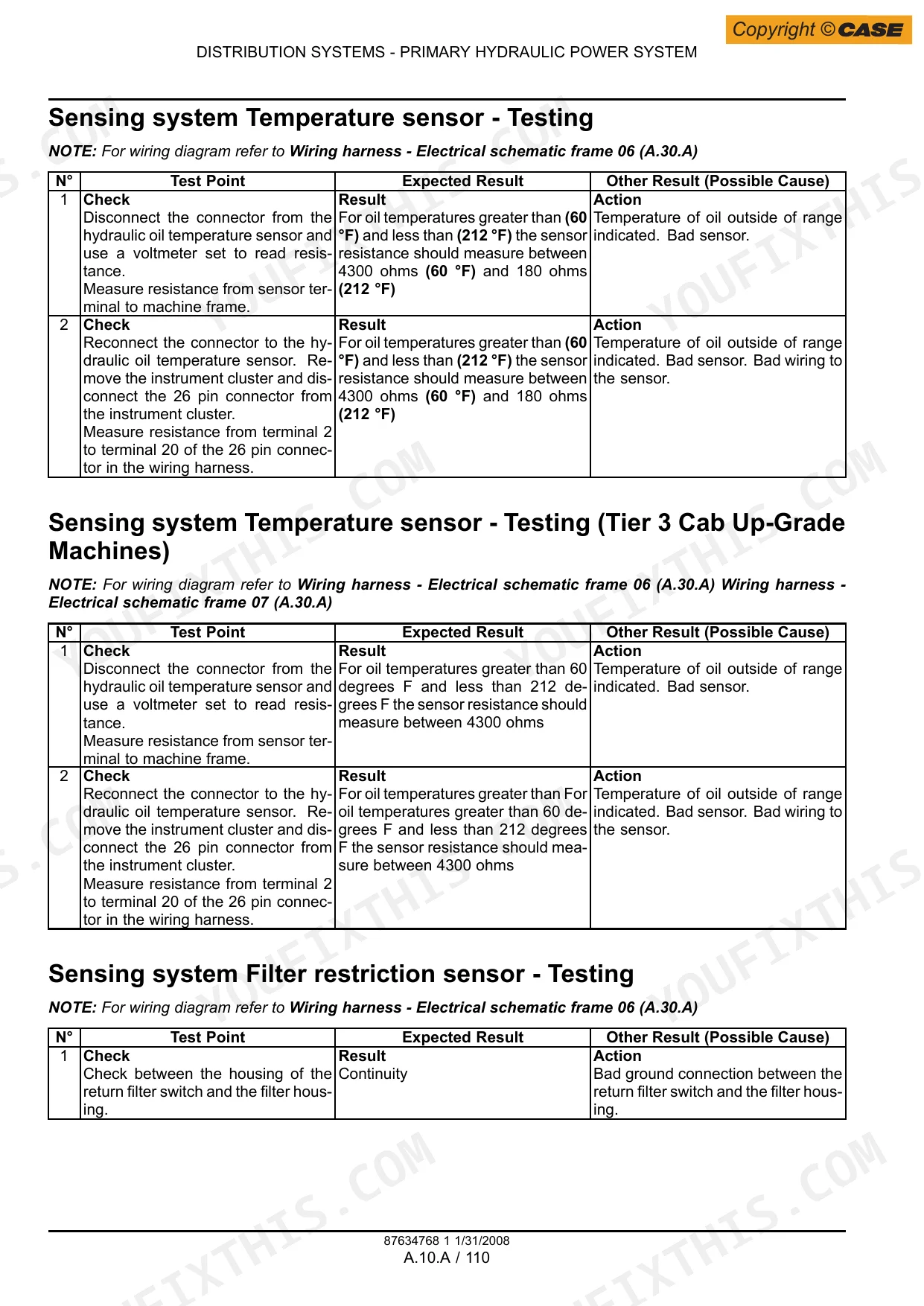

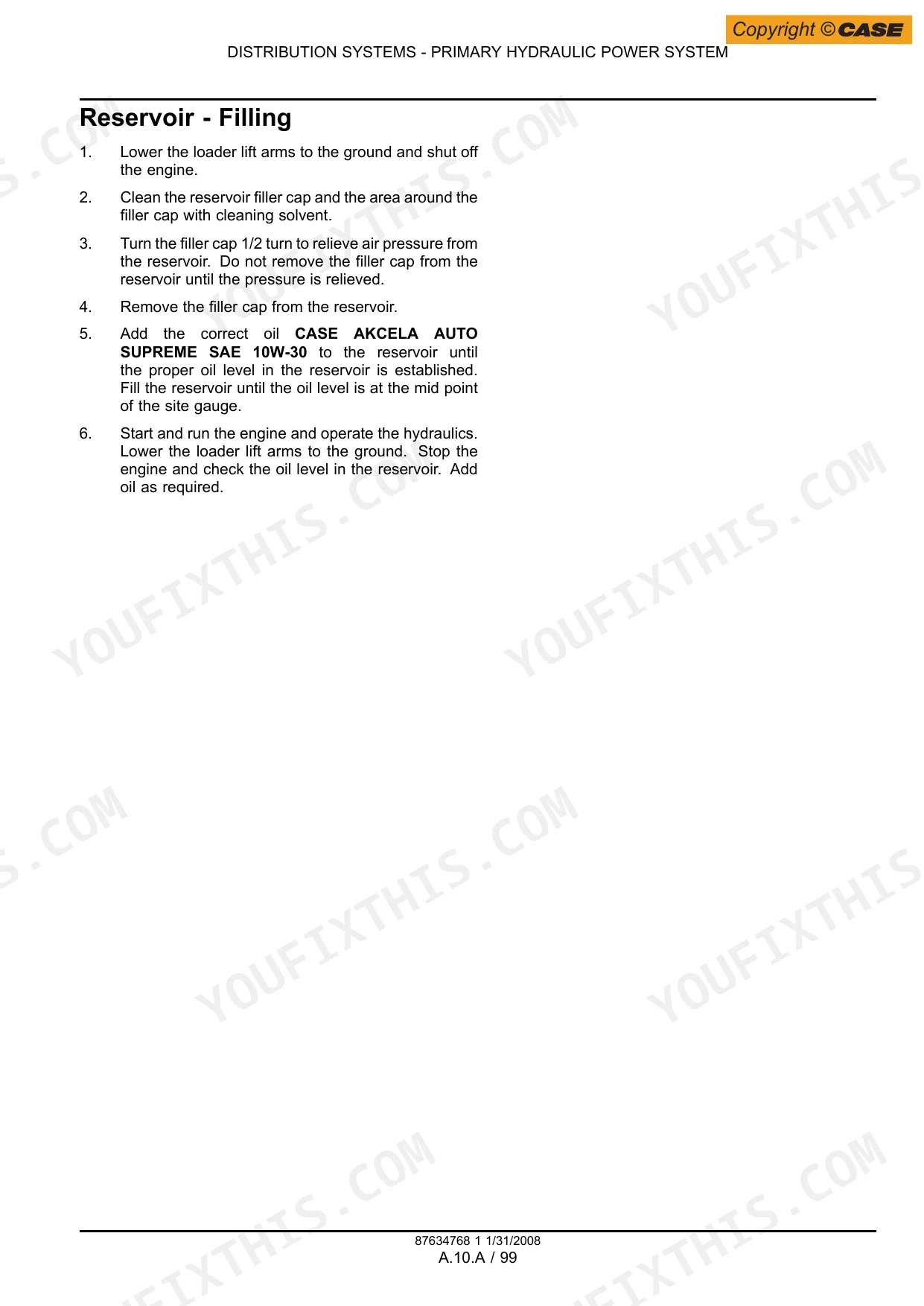

| Introduction | 5-20 | Basic Instructions, Torque, Consumables, Conversion Factors |
| Distribution Systems | 21-368 | Primary Hydraulic Power System, Secondary Hydraulic Power System, High-Flow Hydraulic Power System, Electrical Power System, Lighting System, Hydraulic Command System |
| Power Production | 369-486 | Engine, Engine - Remove, Engine - Remove (Tier 3 Certified Engines), Fuel and Injection System, Air Intake System, Engine Coolant System |
| Power Train | 487-696 | Power Coupling Fixed Coupling, Pump Drive - Remove, Pump Drive - Install, Transmission Hydrostatic, Dynamic Description (Machines Equipped with Iso Pattern Pilot Controls) |
| Travelling | 697-808 | Front Axle, Front Axle - Disassemble, Front Axle - Assemble, Rear Axle, Parking Brake Hydraulic, Wheels and Tracks Tracks, Wheels and Tracks Wheels, Drive Chain - Tension Adjust |
| Body and Structure | 809-1012 | User Controls and Seat, Seat Suspension System - Exploded View, Instrument Panel - Static Description, Seat - Remove, Seat - Remove (Cab Up-Grade Machines), Seat - Install |
| Working Arm | 1013-1132 | Single Arm Lift, Pressure Test Pilot Pressure Test - Checking the Pilot Pressure (Machines Equipped with Pilot Controls), Cleaning, Remove |
| Tools and Couplers | 1133-1174 | Carrying Unarticulated Tools, Coupling Hydraulic Coupling, Mechanical Connector - Disassemble, Mechanical Connector - Assemble, Coupling Mechanical Coupling |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Torque for 37 Degree Flare Fitting, Nom. SAE Dash Size -10 | 77 to 85 Nm (684 to 756 lb/in) | p. 13 |
| Parking brake release pressure | 1500 kPa (15.0 bar) (218 psi) | p. 729 |
| Primary Hydraulic Power System - Relief valve - Main Relief Pressure at 10 gpm | 21290 kPa (210 bar) (3050 + 50/-72.5 psi) at 2200 RPM | p. 29 |
| Engine Coolant System - Capacity | 17 L (18 US qt) | p. 429 |
| Accumulator - Maximum Operating Pressure | 20700 kPa (3000 psi) | p. 1020 |
| 435 | ||
| Primary Hydraulic Power System - Capacity | 41.3 L (10.9 US gal) | p. 27 |
| Engine - Number of Cylinders | 3 | p. 373 |
| 445, 445CT | ||
| Engine - Peak Torque at 1400 rpm | 324 Nm (236 pound-feet) | p. 373 |
| Lubrication System - Capacity - with filter change | 12.0 L (12.7 US qt) | p. 445 |
| Transmission Hydrostatic - Pump - System Relief Pressure (Forward and Reverse) | 34,500 kPa (5003 psi) | p. 509 |
| 435, 445 | ||
| Front Axle - Torque - Nuts for Axle Housings | 223 - 265 Nm (165 - 195 lb ft) | p. 701 |
| 445CT | ||
| Wheels And Tracks Tracks - Drive sprocket - Torque - Bolts for Drive Sprockets | 285 - 320 Nm (208 - 235 lb ft) | p. 12 |
Case 435, 445CT, 445 Common Problems This Manual Covers
Case 435, 445CT, 445 controls lock up when safety locks actuate and throw code E01. p. 729
Test the parking brake release mechanism circuit. Verify the parking brake release pressure reaches 1500 kPa (15.0 bar) (218 psi) as shown on page 729. Inspect the safety lock interlock switch for binding and replace the release button if the fault persists.
Manual Section: Parking Brake HydraulicHydraulic oil leaking near rear fittings with hidden electrical harness faults and intermittent E12 codes. p. 13
Inspect the number 10 JIC 90 fittings for cracks. Torque the 37-degree flare fittings to 77 to 85 Nm (684 to 756 lb/in) following the specifications on page 13. Clean the wiring harness connector in the concealed electrical section to clear the fault.
Manual Section: Distribution SystemsHydrostatic transmission exhibits low power in forward and reverse when operating under heavy load conditions. p. 509
Measure the hydrostatic transmission pump system relief pressure. Verify it reaches 34,500 kPa (5003 psi) for the 445 and 445CT models as detailed on page 509. If pressure is low, inspect the charge circuit and replace damaged pump drive components.
Manual Section: Transmission HydrostaticEngine overheats quickly during operation and coolant temperature sensor reads erratically on the instrument cluster. p. 429
Drain the cooling system and inspect for blockages. Fill the system to the full 17 L (18 US qt) capacity as specified on page 429. Test the coolant temperature sensor circuit for opens or shorts and verify the radiator fins are clear of debris.
Manual Section: Engine Coolant SystemFrequently Asked Questions
How to exit service mode on a CASE 435?
To exit the Setup Menu (which functions as a service mode), you can either leave the loader for three seconds until the EIC automatically powers down, place the ignition key in either the ACC or the ON position, or push and release the auxiliary override button. This procedure is outlined in the 'EIC Special Functions (Setup Menu)' section.
What are the replacement specifications for Hydraulic fitting number 10 JIC 90?
For a Hydraulic fitting with a Nom. SAE Dash Size of -10, which corresponds to a 7/8 - 14 thread size, the torque specifications are 77 to 85 Newton metres (684 to 756 lb/in or 57 to 63 lb/ft). These values apply to 37 Degree Flare Fittings.
How do you fix case 435, 445CT, 445 controls lock up when safety locks actuate and throw code E01?
Test the parking brake release mechanism circuit. Verify the parking brake release pressure reaches 1500 kPa (15.0 bar) (218 psi) as shown on page 729. Inspect the safety lock interlock switch for binding and replace the release button if the fault persists.
How do you fix hydraulic oil leaking near rear fittings with hidden electrical harness faults and intermittent E12 codes?
Inspect the number 10 JIC 90 fittings for cracks. Torque the 37-degree flare fittings to 77 to 85 Nm (684 to 756 lb/in) following the specifications on page 13. Clean the wiring harness connector in the concealed electrical section to clear the fault.
Is this Case 435, 445CT, 445 Repair Manual a digital download?
Instant PDF download. You get the full 1174-page searchable Repair Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

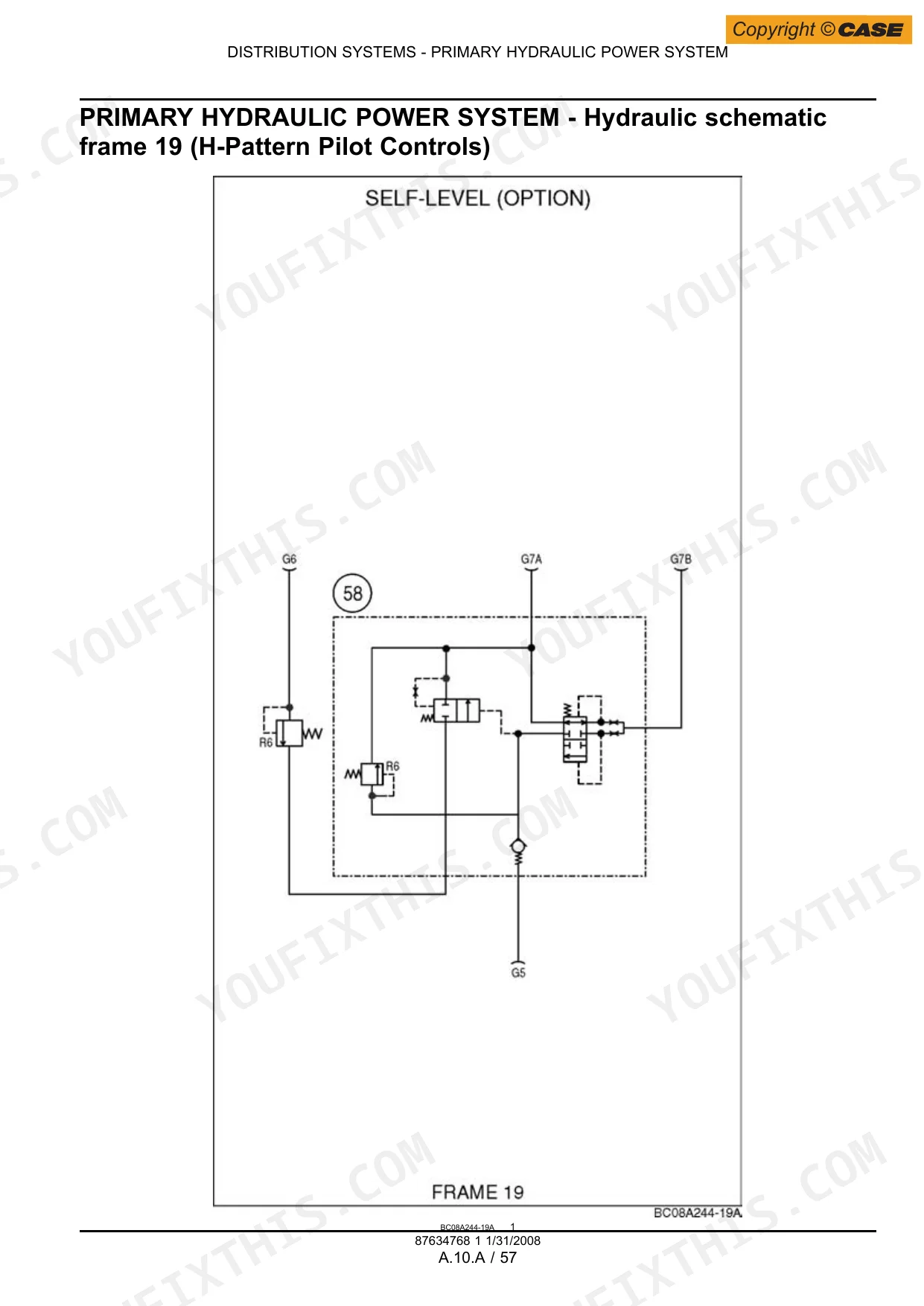

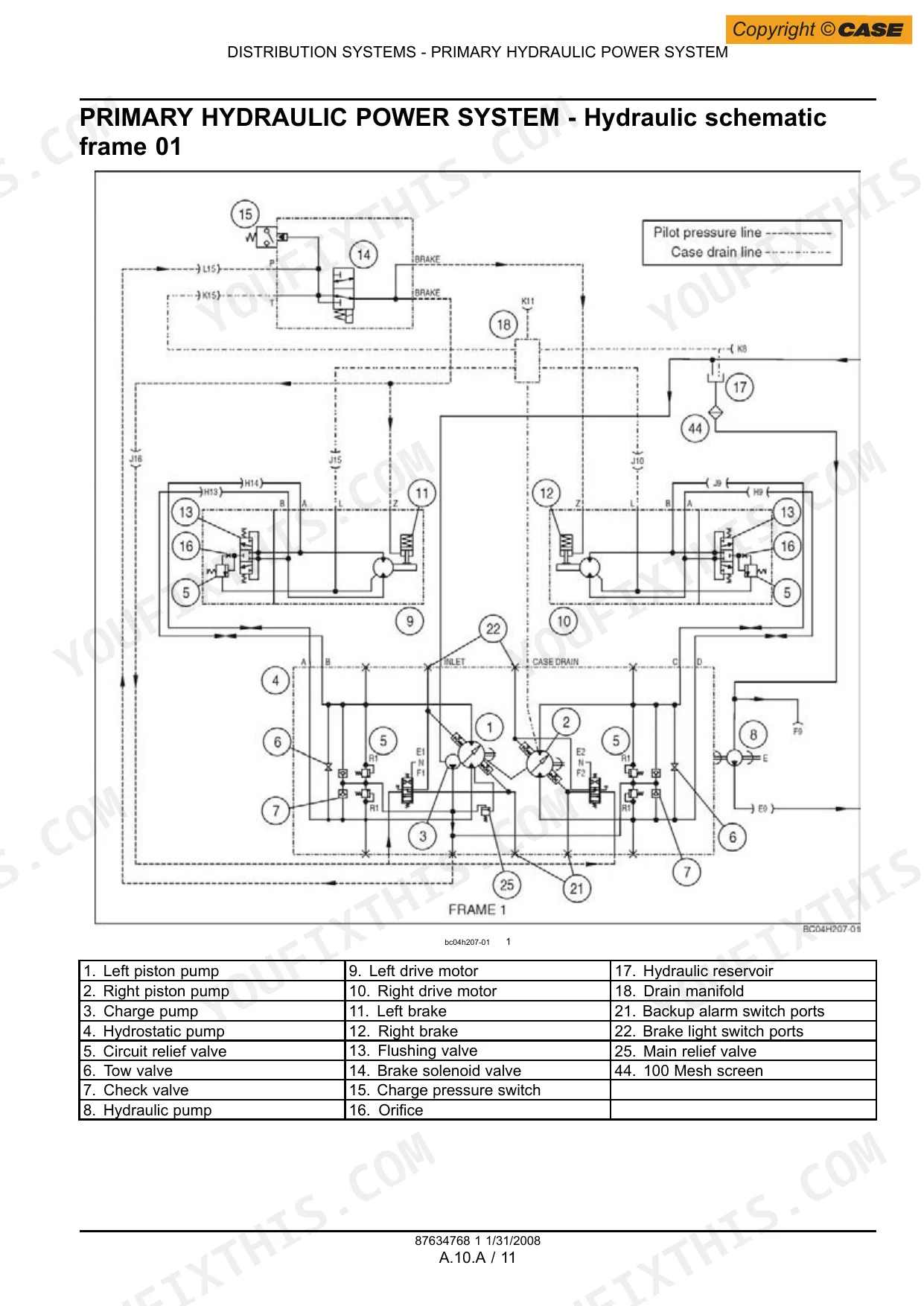

Does this Case 435, 445CT, 445 manual include hydraulic schematics?

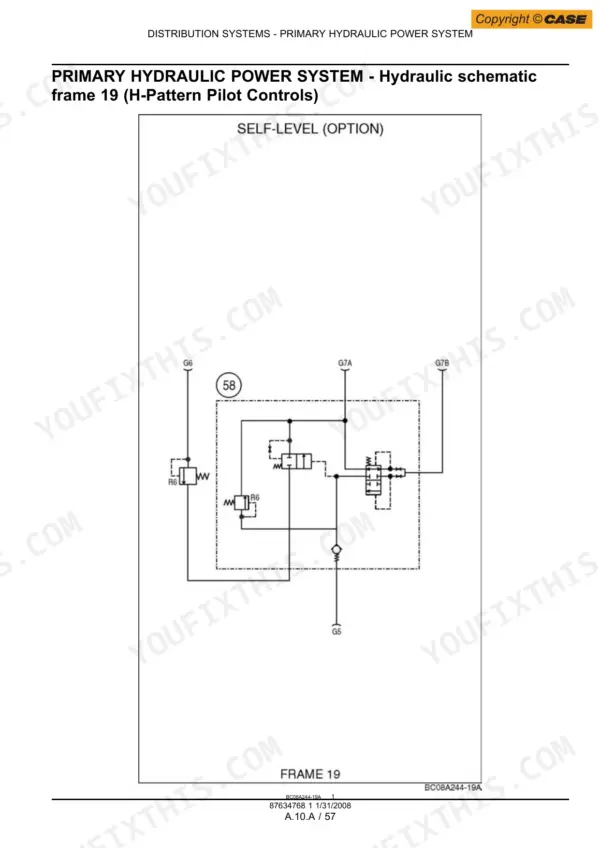

Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Case 435, 445CT, 445.
