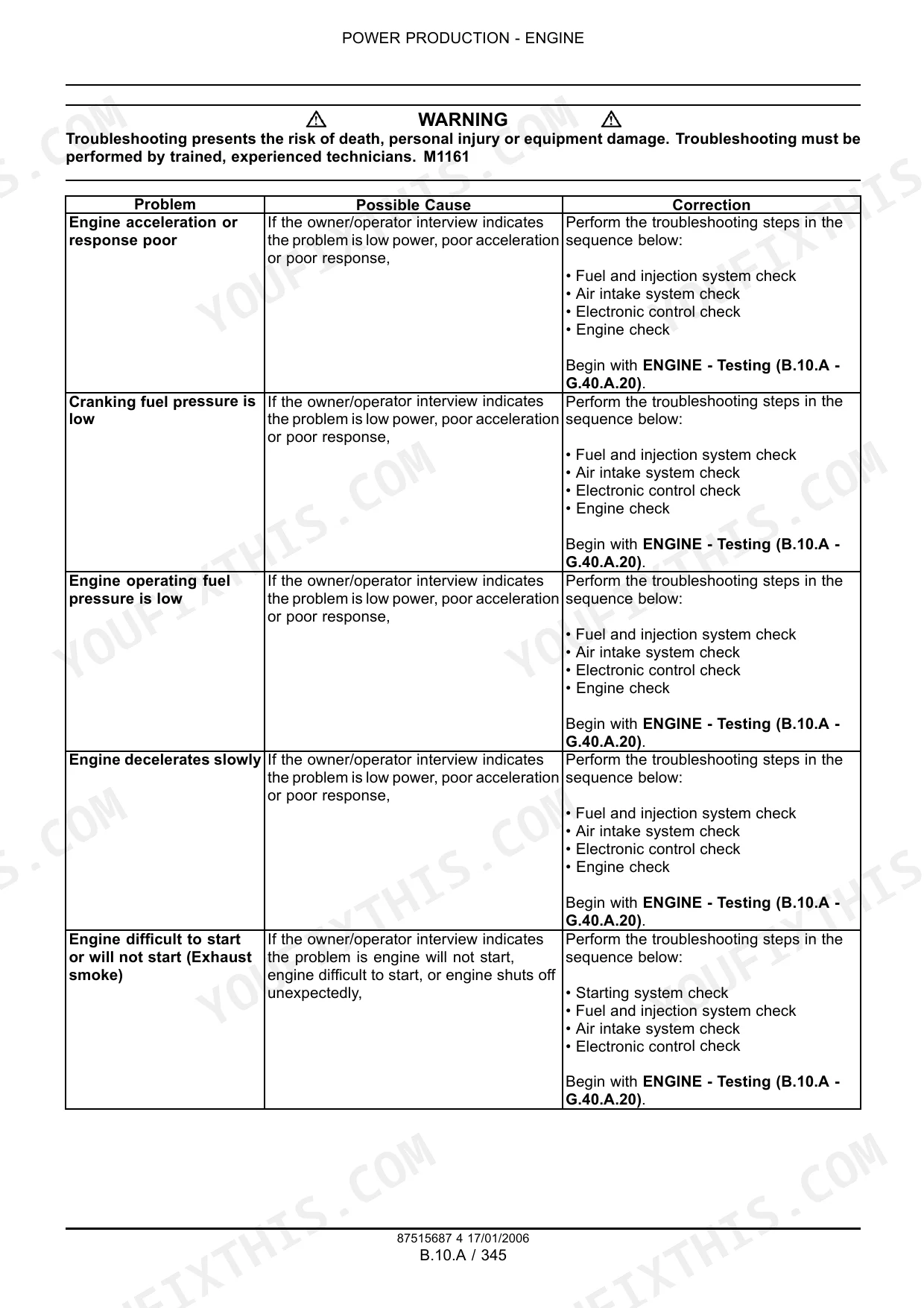

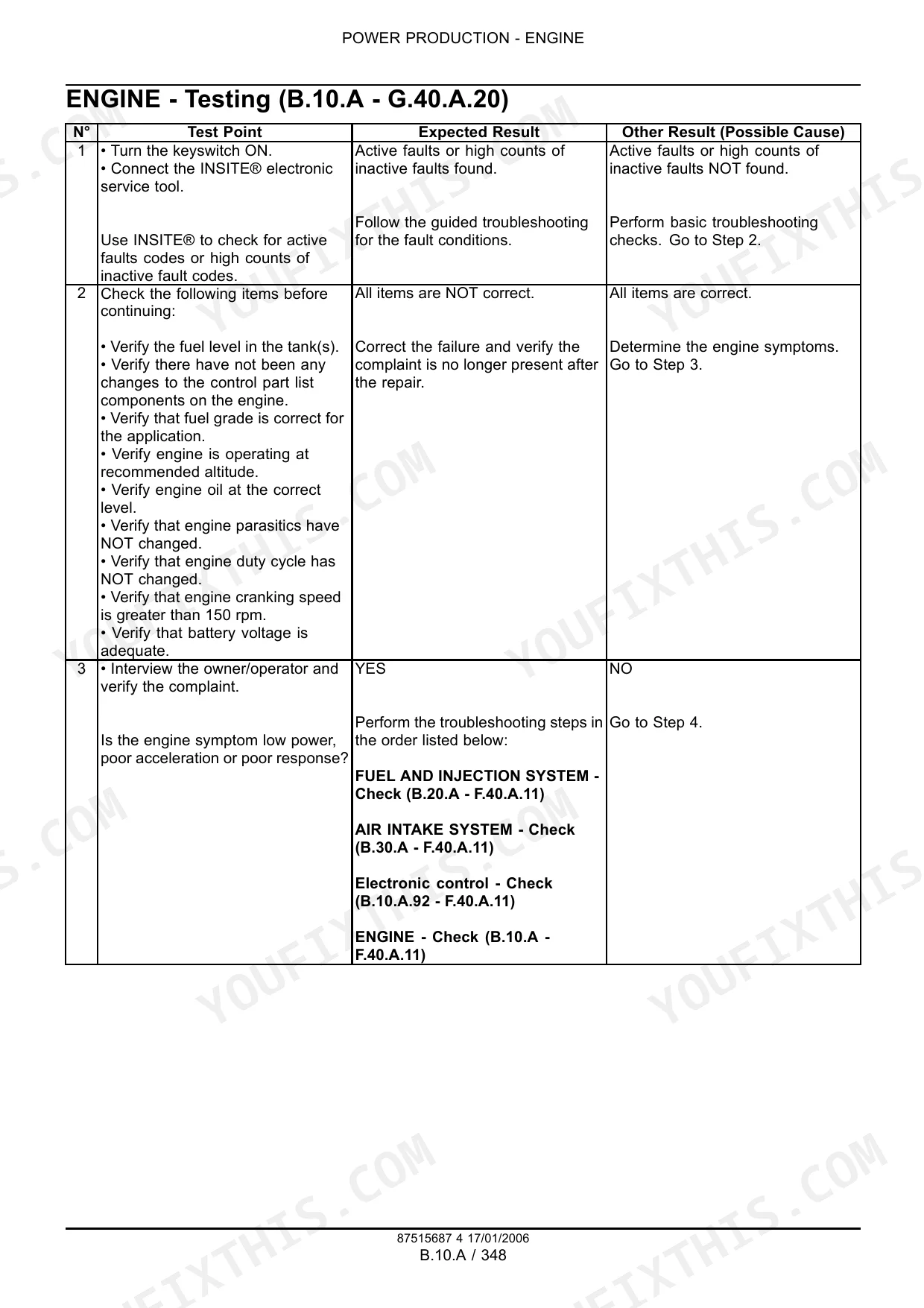

This 969-page Case IH Repair Manual (OEM #87515687) opens up the 8.3L and 9.0L, 6-cylinder, 24-valve High Pressure Common Rail Fuel System on the 6TAA-8304 and 6TAA-9004 engines built into the 2377, 2388, MX215, MX245, MX275, MX305, STX280, and STX330. Open it and you get full procedure write-ups for the injection system, turbocharger, air cooler, coolant circuit, lubrication system, and starting system, plus a dedicated troubleshooting section with error codes for chasing fuel pressure faults instead of swapping parts on a hunch. The torque tables don't round off: pressure regulator valve cap screws go 3 Nm then 6 Nm, the fuel rail pressure sensor torques to 50 Nm, and you replace the fuel rail if pressure deviates more than 200 bar. Your injection pump shouldn't be a guessing game. Bookmarked by section so you jump straight to fuel system work without flipping through 969 pages on a phone in the shop.
What's Inside This Case IH 6TAA-8304 / 6TAA-9004 Repair Manual
| System | Pages | Key Topics |
|---|---|---|

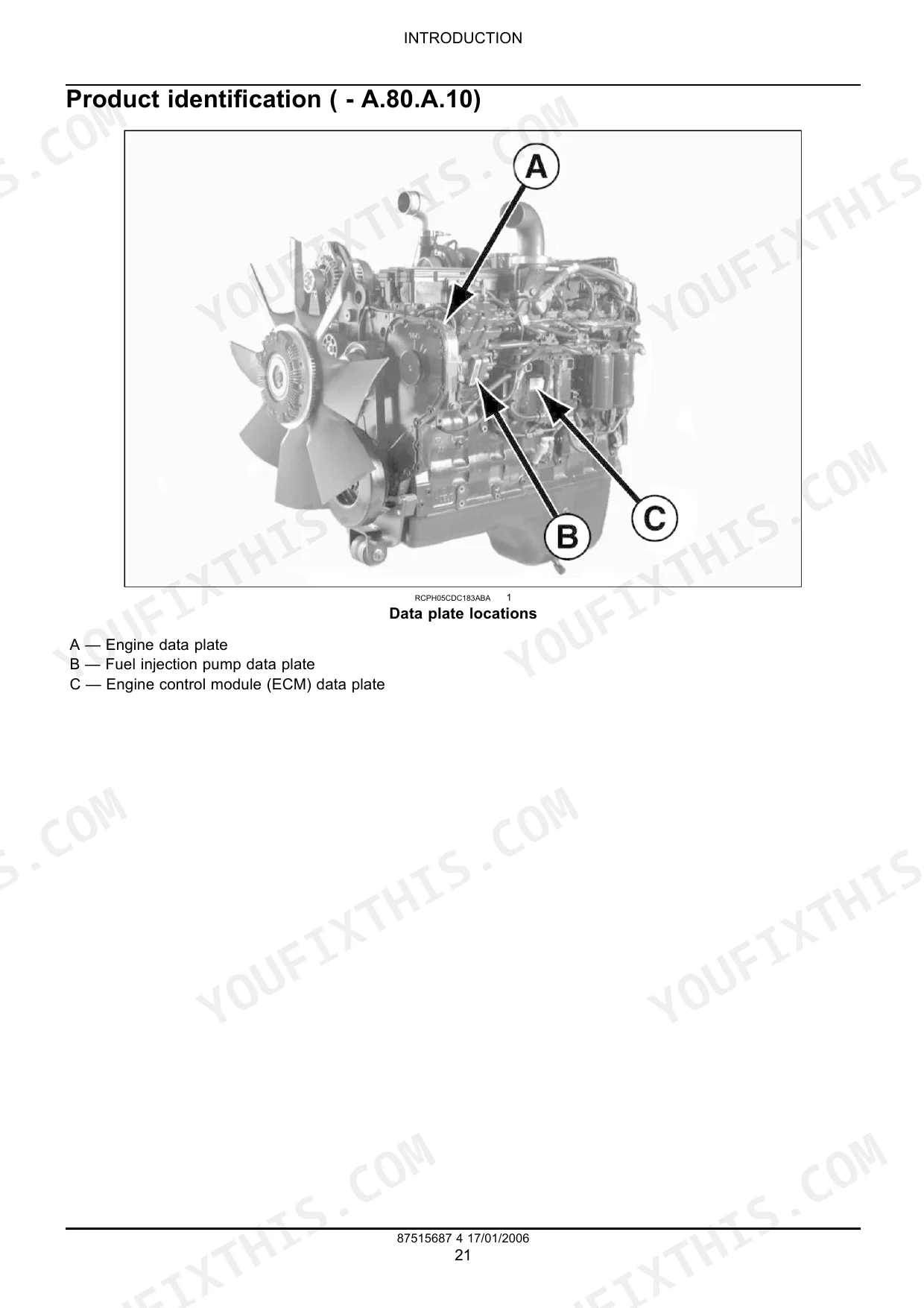

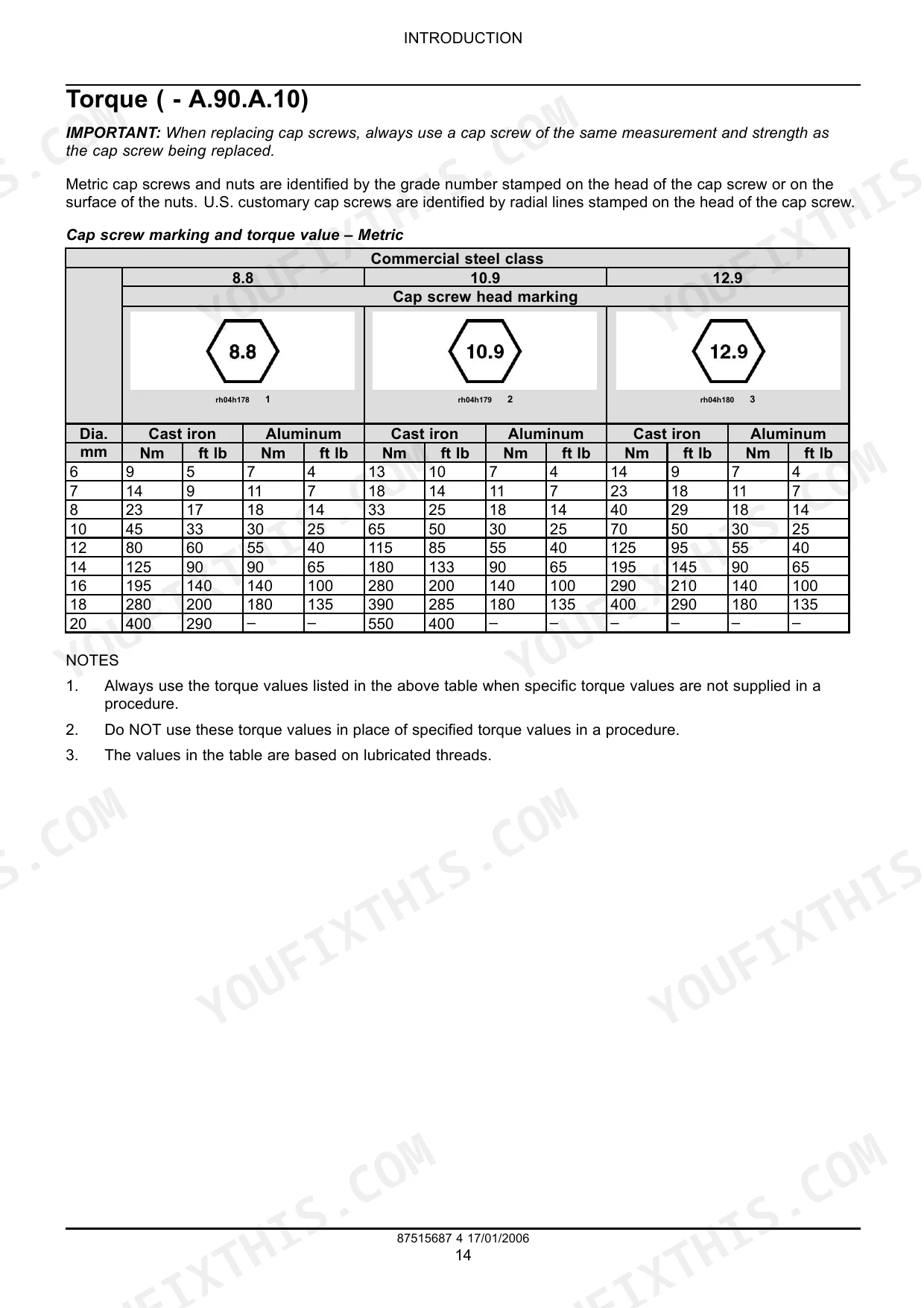

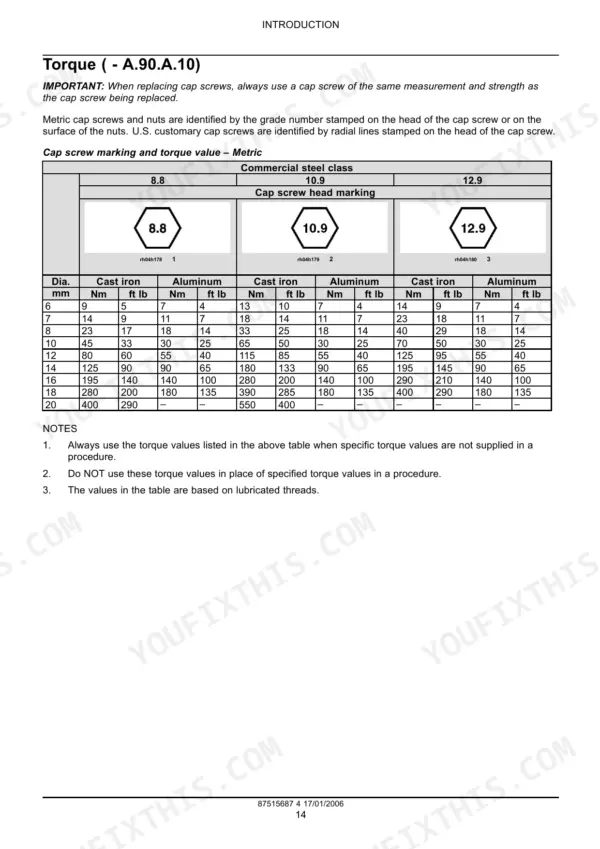

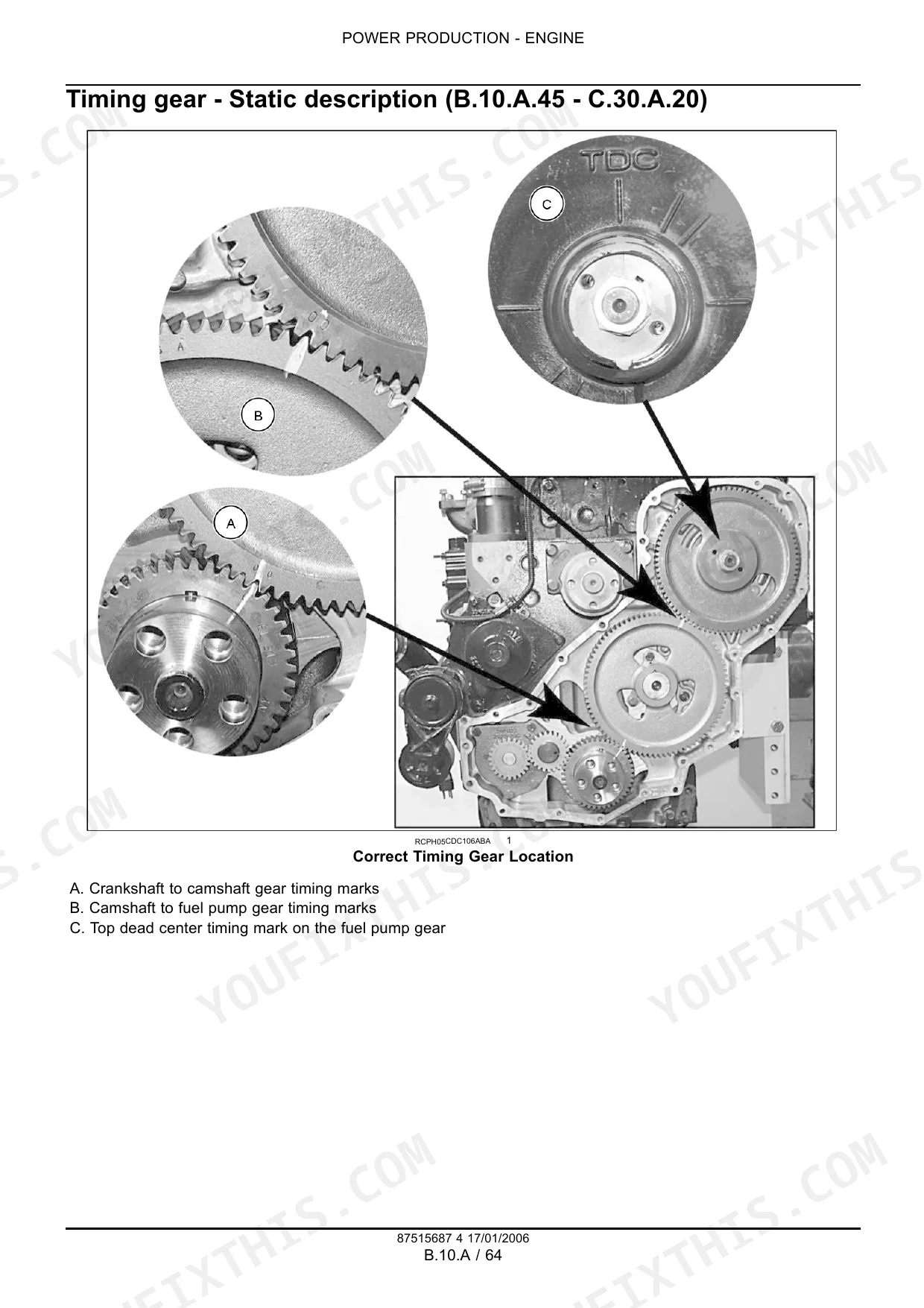

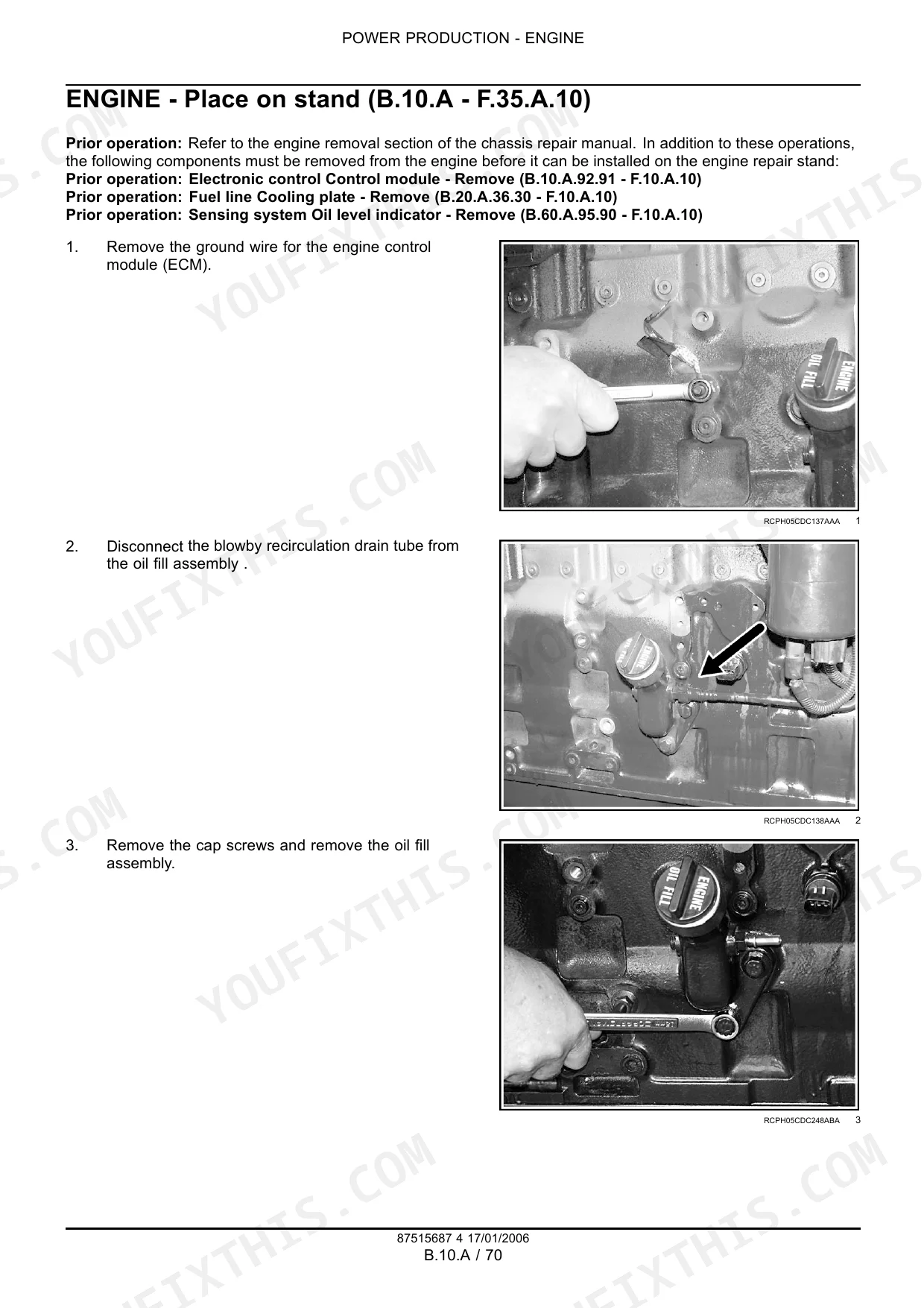

| Introduction | 4-29 | Foreword – How to Use This Manual, Safety Rules, Basic Instructions, Torque, Definition, Conversion Factors, Product Identification |
| Engine - 10.A | 30-391 | Engine - Special Tools, Engine - General Specification, Valve Drive, Crankshaft, Connecting Rod and Piston, Cylinder Head |
| Fuel and Injection System - 20.A | 392-647 | Fuel and Injection System - General Specification, Fuel and Injection System - Service Limits, Fuel and Injection System - Special Tools, Regulator Valve, Relief Valve |
| Air Intake System - 30.A | 648-739 | Air Intake System - Service Limits, Air Intake System - Special Tools, Air Intake System - General Specification, Turbocharger, Air Cooler, Air Intake Manifold |
| Exhaust System - 40.A | 740-753 | Ex |
| Engine Coolant System - 50.A | 754-831 | - |
| Lubrication System - 60.A | 832-935 | - |
| Starting System - 80.A | 936-969 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Torque (Pressure regulator valve cap screws) | 3 Nm (26.5 lb in) then 6 Nm (53 lb in) | p. 403 |
| Torque (Pressure regulator valve housing cap screws) | 34 Nm (25 lb ft) | p. 403 |
| Torque (Fuel rail pressure sensor) | 50 Nm (70 lb ft) | p. 430 |
| Replacement criteria (Pressure reading) | Replace if measured value is greater than 30 bar (435 psi) | p. 633 |
| Torque (ECM cap screws and nut) | 25 Nm (18 lb ft) | p. 90 |
| Torque (Connector hex head cap screws) | 2 Nm (18 lb in) | p. 90 |
| Torque (Injector clamp cap screws) | 10 Nm (89 lb in) | p. 410 |
| Torque (Fuel connector retaining nut) | 41 Nm (31 lb ft) | p. 410 |

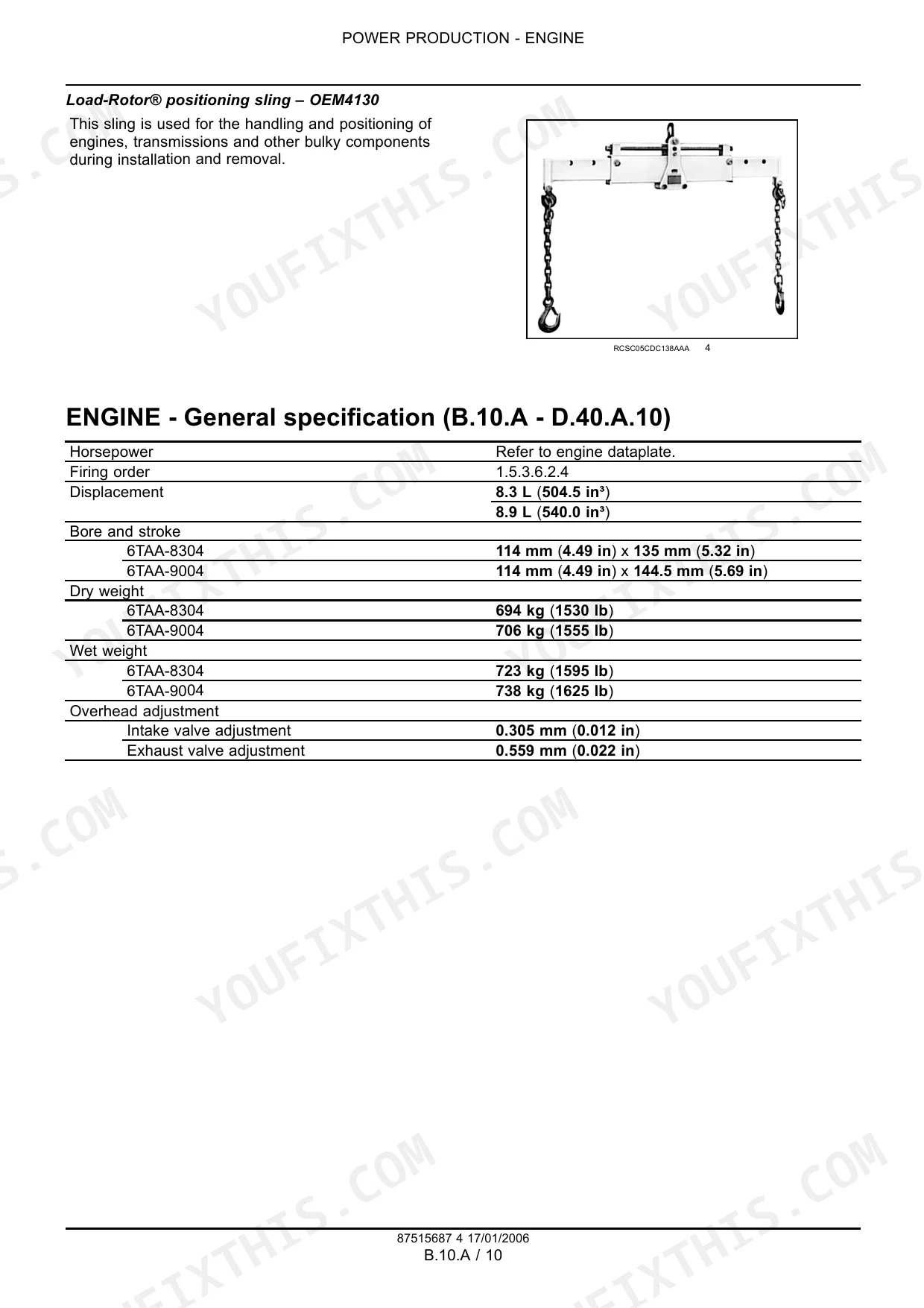

| Engine Firing Order | 1.5.3.6.2.4 | p. 39 |
| Rocker arm cap screws torque | 65 Nm | p. 40 |
| 6TAA-8304 | ||
| Engine Displacement | 8.3 L | p. 39 |
| 6TAA-9004 | ||
| Engine Displacement | 8.9 L | p. 39 |
Case IH 6TAA-8304 / 6TAA-9004 Common Problems This Manual Covers
Case IH 8.3L engine stalls when idling with no fault code stored in the ECU p. 476
Check fuel rail pressure deviation against the page 476 replacement criteria: replace the regulator if pressure swings more than 200 bar (2,900 psi). Measure regulator coil resistance, it should read 1.5 to 5.0K ohms per page 404. Torque the housing cap screws to 34 Nm (25 lb ft) per page 403.
Manual Section: Fuel and Injection System - 20.ALong cranking time over 4 seconds before the engine starts, even with a warm battery p. 633
Test the fuel rail pressure sensor output; replace it if the measured value exceeds 30 bar (435 psi) per the page 633 replacement criteria. Inspect the sensor connector and harness for corrosion, bent pins, or damaged seals per page 635. Torque the new sensor to 50 Nm (70 lb ft) per page 430 and recheck cranking pressure buildup.
Manual Section: Fuel and Injection System - 20.AIrregular duty cycle and unstable idle speed readings on the diagnostic service tool p. 90
Remove the ECM connector and inspect the pins for corrosion, bending, or push-back damage. Torque the ECM cap screws and nut to 25 Nm (18 lb ft) and the connector hex head cap screws to 2 Nm (18 lb in) on reassembly, per page 90. Check engine symptom codes against the troubleshooting chart before condemning the regulator.
Manual Section: Engine - 10.AEngine speed surges or hunts at idle and under light load conditions
Pull up the engine speed surge entry in the troubleshooting procedures and work the symptom tree before swapping parts. Verify battery voltage and check for stored fault codes per the error code reference. Confirm fuel rail pressure sensor torque is set to 50 Nm (70 lb ft) per page 430.
Manual Section: Engine - 10.ABlack smoke and rough running after replacing the high pressure fuel injectors p. 533
Check injector tip protrusion against the 2.25 to 2.80 mm (0.088 to 0.110 in) limit on page 533, and confirm sealing washer thickness is 2.5 mm plus or minus 0.05 mm per page 534. Torque the injector clamp screws to 10 Nm (89 lb in) and the fuel connector nut to 41 Nm (31 lb ft) per page 410.
Manual Section: Fuel and Injection System - 20.AFrequently Asked Questions
What are the torque specifications for the cylinder head bolts on 6.3L and 9.0L Case IH 6-cylinder turbo engines?
The cylinder head cap screws should be torqued in a four-step sequence: first to 150 Nm (111 lb ft), then loosened, then torqued to 110 Nm (81 lb ft), and finally advanced 120 degrees. For leak test fixture cap screws, the torque is 80 Nm (59 lb ft).
What are the replacement specifications for High pressure flow regulator?
The high pressure regulator valve should be replaced if there is any sign of scuffing, especially if accompanied by fault code 449. Additionally, if the resistance measured across the pigtail connector is not between 1.5 and 5.0K ohms, the valve needs to be replaced.
What are the replacement specifications for Fuel pressure sensor?
The fuel pressure sensor should be replaced if the measured fuel rail pressure is greater than 30 bar (435 psi) when monitored with INSITE® while the engine is running. There must also be continuity between pins 2 and 3 of the sensor connector, and no continuity between other pin combinations; if not, replace the sensor.
How do you fix case IH 8.3L engine stalls when idling with no fault code stored in the ECU?
Check fuel rail pressure deviation against the page 476 replacement criteria: replace the regulator if pressure swings more than 200 bar (2,900 psi). Measure regulator coil resistance, it should read 1.5 to 5.0K ohms per page 404. Torque the housing cap screws to 34 Nm (25 lb ft) per page 403.
How quickly can I access this Case IH 8.3L & variants manual after buying?
Immediate download of the complete 969-page searchable Repair Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this Case IH 8.3L & variants manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
