Need the exact factory operating instructions for your Case IH 895 or 995 Tractor? This 233-page Case IH 895 operator manual PDF (OEM #9-18860) lays out every daily maintenance routine, dashboard control, and fluid capacity requirement. Open it up to find complete three-point hitch preparation steps, remote hydraulic control operations, and detailed tire load capacity charts. You get a full breakdown of the digital instrument cluster, clear MFD front wheel tread positioning, and step-by-step run-in procedures for new components. Verify your engine oil pressure is holding between 40 and 60 PSI (275 to 414 kPa) and confirm the radiator cap pressure reads 9 to 12 PSI before heading into the field. Operating a machine blind leads to broken parts and wasted time. Download this bookmarked file right to your phone, jump straight to the maintenance chart, and keep your equipment out of the shop.
What's Inside This Case IH 895 / 995 Operator Manual
| System | Pages | Key Topics |
|---|---|---|

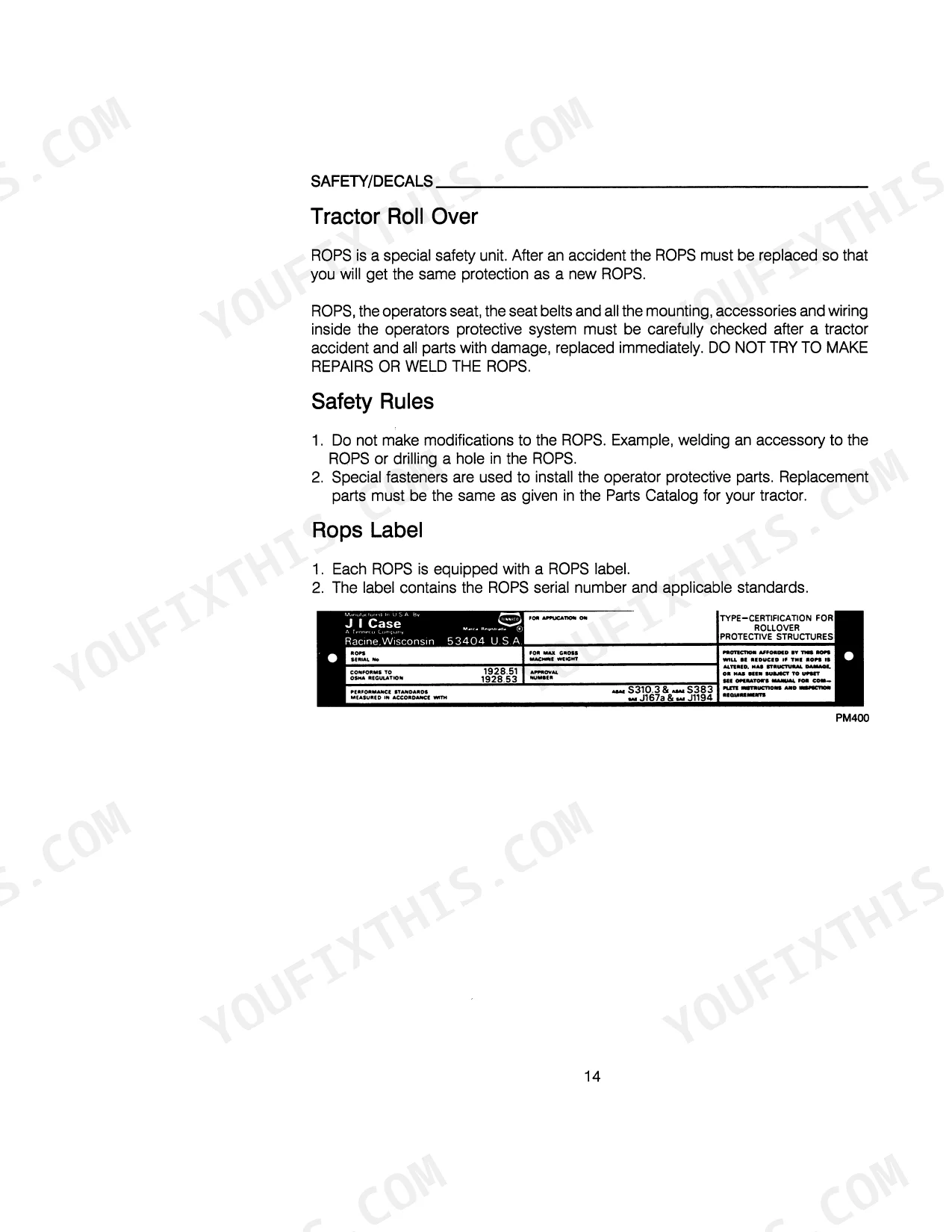

| Safety/ Decals | 8-16 | Safety Rules |
| Specifications | 17-41 | Diesel Engine, Engine Lubrication System, Fuel System, General Machine, Transmission, Power Takeoff |
| Instruments/ Controls | 42-64 | Standard Instrument Cluster, Digital Instrument Cluster, Engine RPM Push Button, PTO RPM Push Button, Instrument Panel Controls, Instrument Panel and Foot Pedals |
| Operating Instructions | 65-103 | Before Starting the Engine, Run-In Procedure, First Service Intervals, Normal Starting Procedure, Stopping the Engine, Operating the Transmission |
| Field Operation | 104-129 | Drawbar Preparation, Three Point Hitch System Preparation, Check Chains, Hitching an Implement, Rear Hitch Operation, Remote Hydraulic Control |

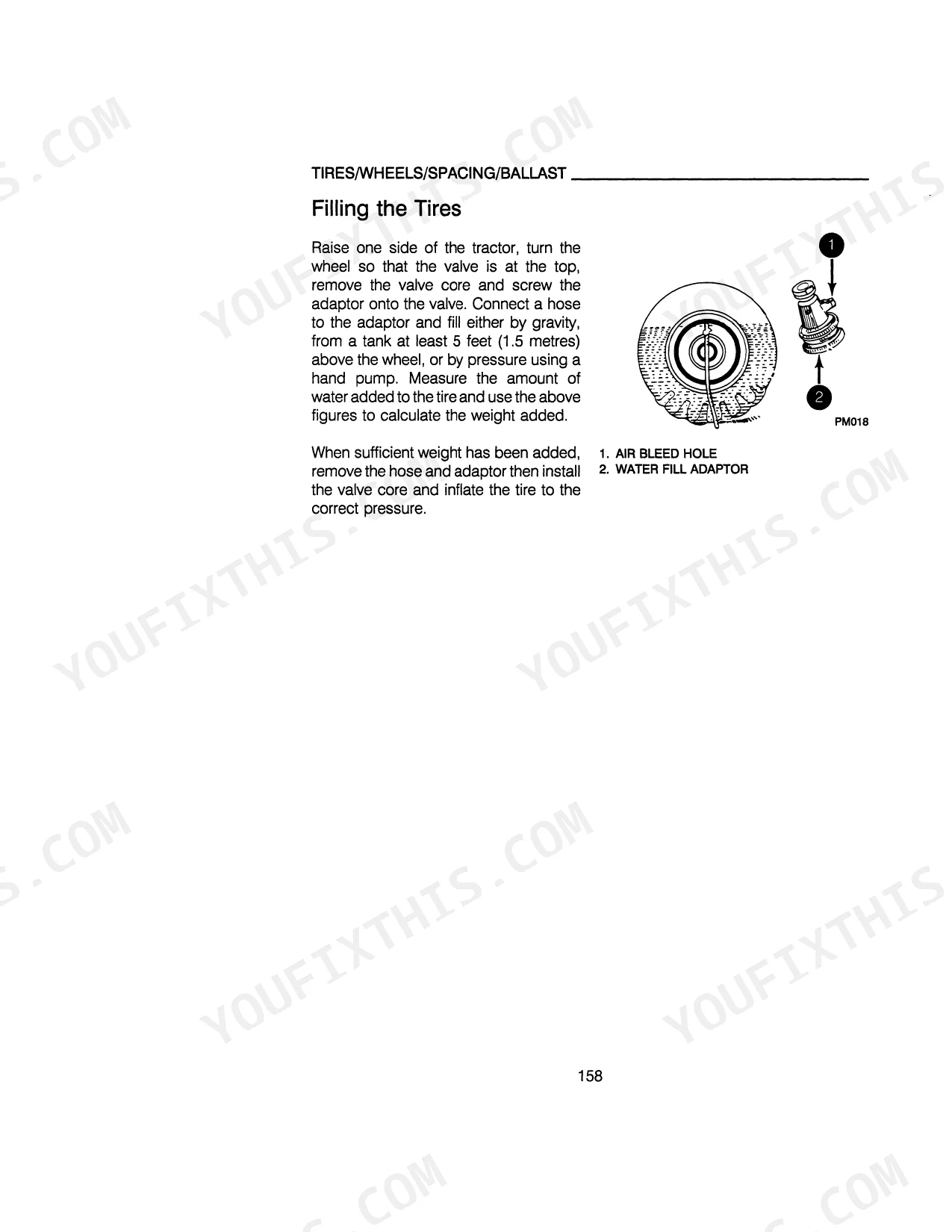

| Tires/ Wheels/ Spacing/ Ballast | 130-160 | Tire Inflation Specifications, Tire Load Capacity, Tire and Rim Service, Two Wheel Drive Front Axle Tread Positions, MFD Front Wheel Tread Positions, Tractor Ballast |
| Lubrication/ Maintenance/ Charts | 161-165 | Engine Hour Meter, Lubrication Maintenance Charts, System Lubrication Analysis Programme |

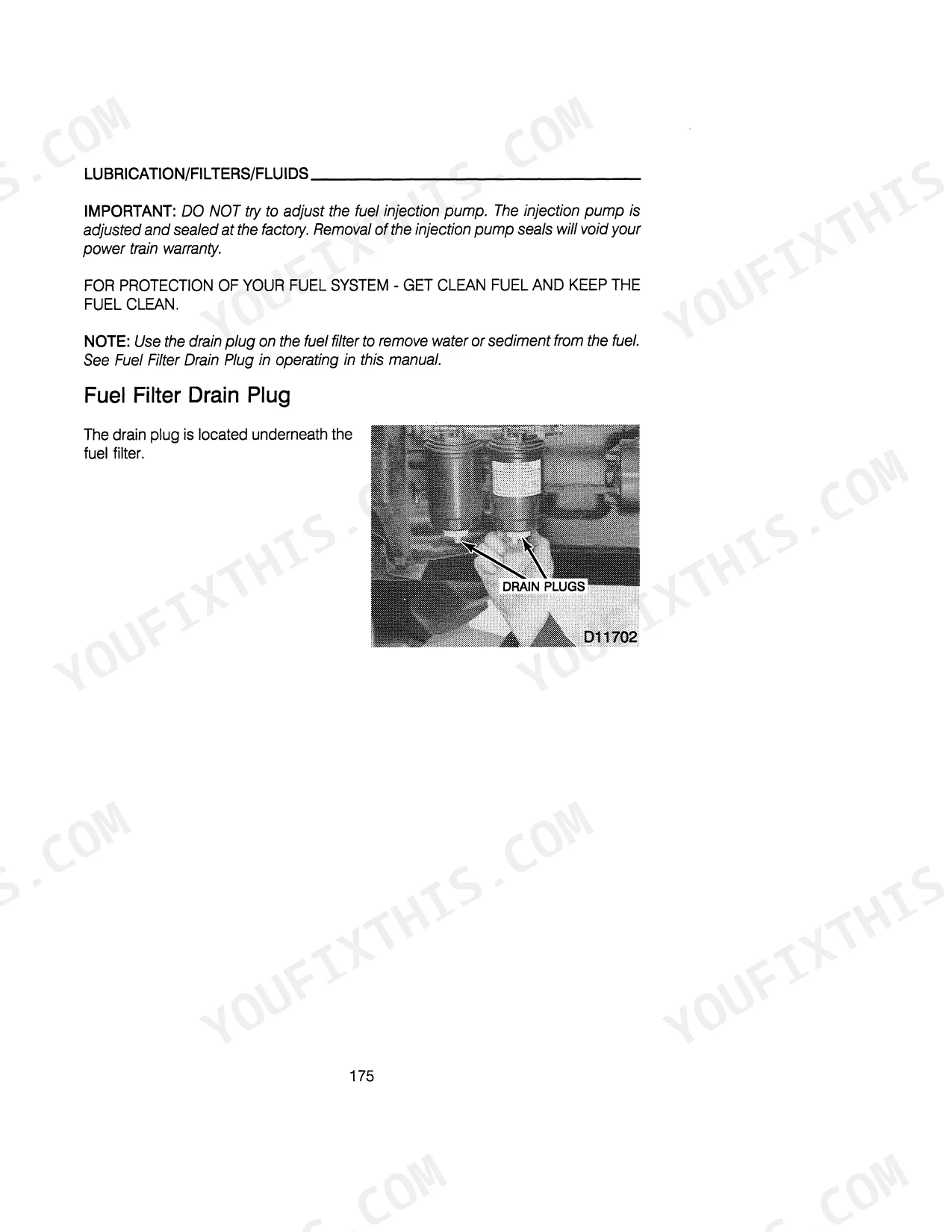

| Lubrication/ Filters/ Fluids | 166-197 | Hood and Side Covers, Capacities, Engine Oil Level, Fuel System, Transmission Lubrication, Mechanical Front Drive Axle (MFD) Differential Lubrication |
| Maintenance/ Adjustments | 198-212 | Cooling System, Fan/Alternator Belt and Compressor Belt, Operators Cab Preventative Maintenance, Operators Seat, Brake Pedal Height Adjustment |
| Electrical System | 213-227 | Alternator Charging Circuit, Batteries, Fuses and Relays, Bulb and Lamp Replacement, Instrument Cluster Lamps |
| Storage | 228-233 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Firing Order | 1-3-4-2 | p. 18 |
| Engine Piston Displacement | 268 Cubic Inches (4.39 litres) | p. 18 |
| Engine Rocker Arm to Valve Clearance (Engine Hot) | 0.012 inch (0.305 mm) | p. 18 |
| Radiator Cap Pressure | 9 to 12 PSI (0.62 to 0.82 bar) | p. 18 |
| Engine Oil Pressure | 40 to 60 PSI (275 to 414 kPa) | p. 19 |
| Fuel Tank Capacity (ROPS Tractor) | 20 U.S. Gallons (76 Litres) | p. 19 |
| Maximum Permitted Tractor Operating Weight | 12125 lb (5500 kg) | p. 41 |
| ROPS Bar Mounting Torque | 420 to 470 lb ft (569 to 637 Nm) | p. 129 |
| Front Wheel Mounting Bolt Torque (2WD) | 80 to 100 lb ft (108 to 136 Nm) | p. 142 |
| Engine Oil and Filter Change Interval | Every 100 hours of operation | p. 172 |
| Battery Electrolyte Level | 0.125 to 0.25 inch (3.2 to 6.4 mm) below vent well | p. 218 |
Case IH 895 / 995 Common Problems This Manual Covers
Case IH 895 tractor steering wheel extremely hard to turn when front loader is installed p. 142
Grease the steering spindle and thrust bearings regularly to prevent mechanical lock. Check the front wheel mounting bolt torque on page 142 and verify it is tightened to 80 to 100 lb ft (108 to 136 Nm). Ensure the total tractor weight does not exceed 12125 lb (5500 kg).
Manual Section: Tires/ Wheels/ Spacing/ BallastRed dashboard warning light flashes continuously after engine startup and warm up p. 47
Inspect the indicator cluster layout on page 47. Check the engine oil level with the dipstick. If the level is full, verify the engine oil pressure reads between 40 to 60 PSI (275 to 414 kPa) with the engine warm and operating at rated speed.
Manual Section: Instruments/ ControlsStarter motor turns over slowly or clicks rapidly during cold weather attempts p. 218
Remove the battery covers and clean the terminals with a wire brush. Check the battery electrolyte level on page 218 to ensure it sits 0.125 to 0.25 inch (3.2 to 6.4 mm) below the vent well. Add distilled water if the plates are exposed.
Manual Section: Electrical SystemEngine performance noticeably drops and exhaust smoke darkens after extended field operation p. 172
Drain the engine oil pan while the tractor is parked on level ground. Check the lubrication intervals on page 172 to confirm the 995 Tractor requires an engine oil and filter change every 100 hours of operation. Replace the oil filter and refill the crankcase.
Manual Section: Lubrication/ Filters/ FluidsFrequently Asked Questions
How do you fix tractor steering wheel extremely hard to turn when front loader is installed?
Grease the steering spindle and thrust bearings regularly to prevent mechanical lock. Check the front wheel mounting bolt torque on page 142 and verify it is tightened to 80 to 100 lb ft (108 to 136 Nm). Ensure the total tractor weight does not exceed 12125 lb (5500 kg).
How do you fix red dashboard warning light flashes continuously after engine startup and warm up?
Inspect the indicator cluster layout on page 47. Check the engine oil level with the dipstick. If the level is full, verify the engine oil pressure reads between 40 to 60 PSI (275 to 414 kPa) with the engine warm and operating at rated speed.
How do you fix starter motor turns over slowly or clicks rapidly during cold weather attempts?
Remove the battery covers and clean the terminals with a wire brush. Check the battery electrolyte level on page 218 to ensure it sits 0.125 to 0.25 inch (3.2 to 6.4 mm) below the vent well. Add distilled water if the plates are exposed.
How do you fix engine performance noticeably drops and exhaust smoke darkens after extended field operation?
Drain the engine oil pan while the tractor is parked on level ground. Check the lubrication intervals on page 172 to confirm the tractor requires an engine oil and filter change every 100 hours of operation. Replace the oil filter and refill the crankcase.
What do I get after purchasing this manual?
This is a 233-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Operator Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
