Part of the Case IH Operator Manuals.
Covering the Case IH 9150 tractor from the operator's seat outward, the 140 page Case IH 9150 operator manual PDF (OEM part number 9-12620) puts factory procedure behind every lever you touch. Hydraulic schematics trace the circuits feeding the remotes and the steering, so you can follow a pressure problem to its source instead of swapping parts. Service and maintenance claims the largest block of the book, with air cleaner service, cooling system work, and the interval charts that tell you when each one comes due; the troubleshooting chapter reads the driver's error code display and works through engine and hydraulic faults. Fill the hydraulic reservoir to 18.0 US gallons (68.0 L), plan your day around a 170 US gallon (643 L) tank, and torque the cab mount bolts to 592 lb ft (803 N.m). Bookmarked, text searchable, and ready to get the 9150 running again before the field dries.
What's Inside This Case IH 9150 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 13-18 | Safety Suggestions, Maintenance and Service Safety Practices |
| Specifications | 19-32 | Axle Specifications, Engine Specifications, Tire Inflation Specifications |

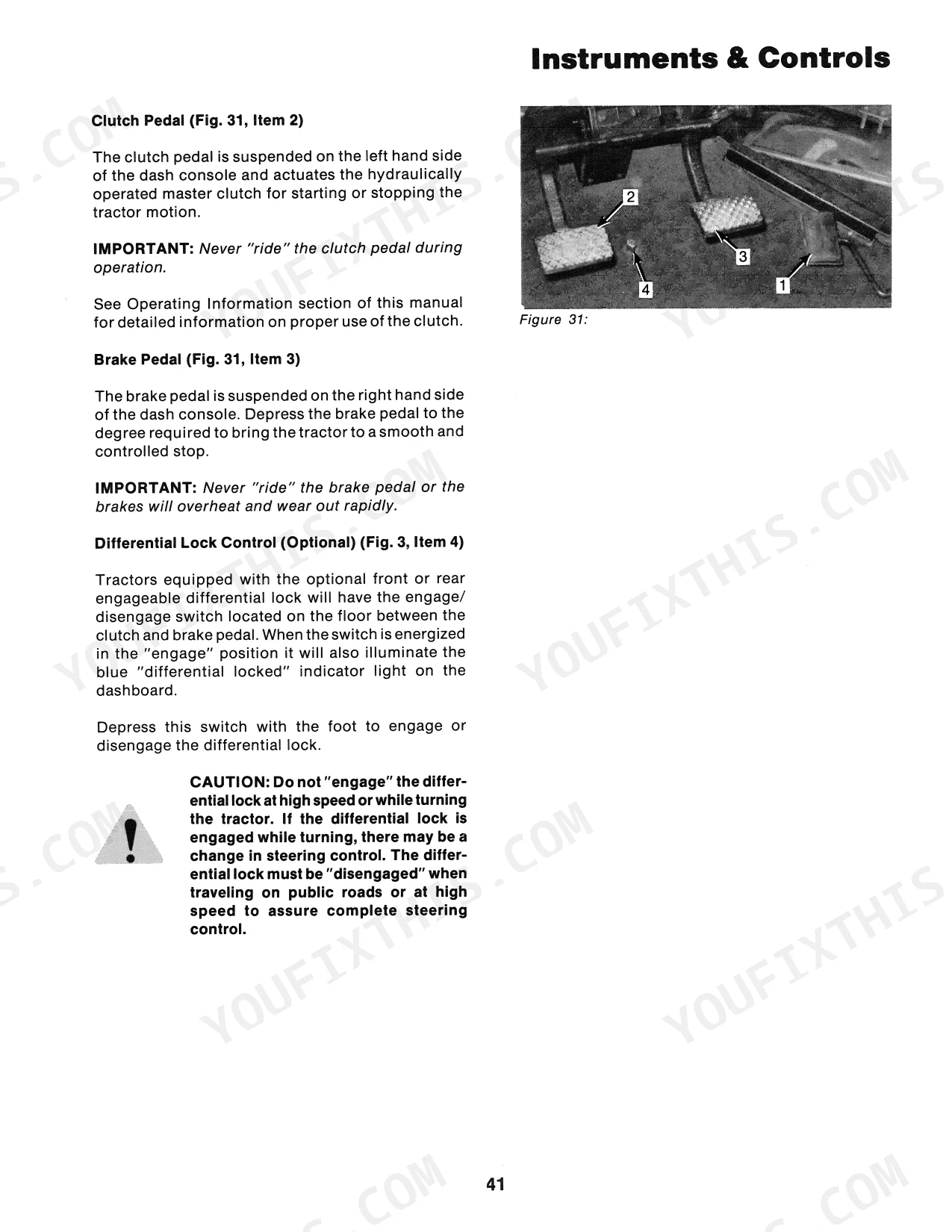

| Instruments and Controls | 33-56 | Operators Station, Cab HVAC System, Seat Adjustments |

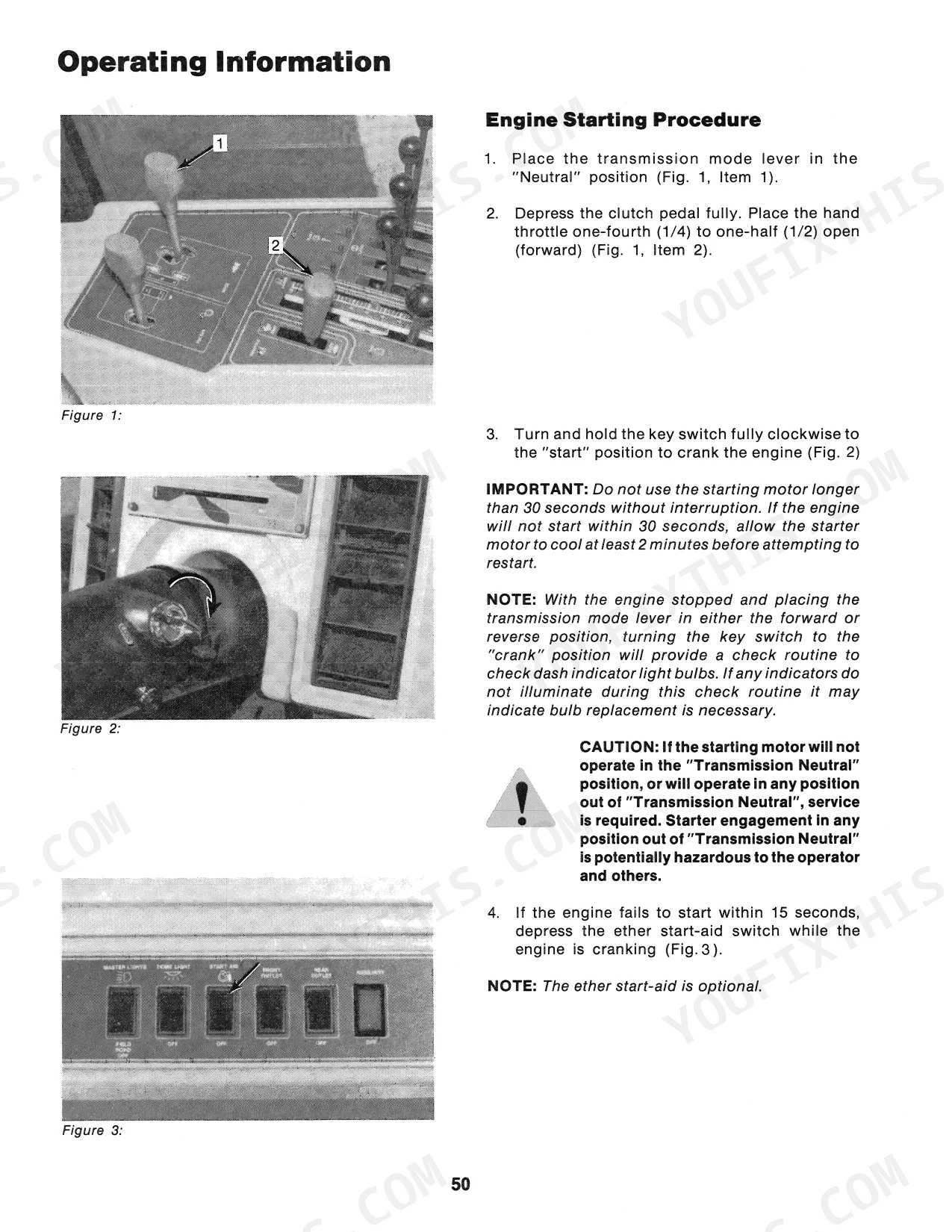

| Operating Information | 57-84 | Engine Operation, Transmission Operation, Hydraulic System Operation |
| Service and Maintenance | 85-126 | Engine Access, Engine Air Cleaner Service, Cooling System Maintenance |
| Troubleshooting | 127-134 | Drivers Error Code Display, Hydraulic System Troubleshooting, Engine Section Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Oil Capacity (including filters) | 9 US gal. (34.6L) | p. 24 |
| Transmission Oil Capacity | 9 US gal. (34.0L) | p. 22 |
| Hydraulic Reservoir Capacity | 18.0 US gal. (68.0L) | p. 21 |
| Fuel Tank Capacity | 170 US gals. (643L) | p. 20 |
| Cab Mount Bolts Torque | 592 lb ft (803 N.m) | p. 23 |
| Wheel Lug Bolts Torque | 600 lb ft (814 N.m) | p. 23 |
| Axle to Frame Bolts Torque | 695 lb ft (942 N.m) | p. 23 |
| Lower Vertical Hinge Pin Torque | 1200 lb ft (1627 N.m) | p. 23 |
| Drawbar Pivot Pin Torque | 1200 lb ft (1627 N.m) | p. 23 |
| 3-Pt Rockshaft Pillow Blocks Torque | 400 lb ft (542 N.m) | p. 23 |
| Engine Rated RPM | 1700-2100 rpm | p. 24 |
Case IH 9150 Common Problems This Manual Covers
Case IH 9150 powershift shifts sluggish, delayed, and noisy until the transmission warms up
Check transmission oil level cold on the dipstick before startup. Verify the fill matches the 9 US gal. (34.0L) capacity listed on page 22. Clean the transmission breather plug if the noise persists.
Manual Section: Operating Information p. 57Tractor starts then dies within seconds and the cab loses all electrical power
Work through the starting failure checks in the troubleshooting procedures on page 132.
Manual Section: Engine Section Troubleshooting p. 132Transmission controller error code showing on the display and gears will not engage
Record the E code before shutting down, then match it to the error code reference on page 129. Verify the transmission oil is clean and topped to the 9 US gal. (34.0L) capacity. If the controller has failed outright, run the override procedure on page 64 to limp the tractor out of the field.

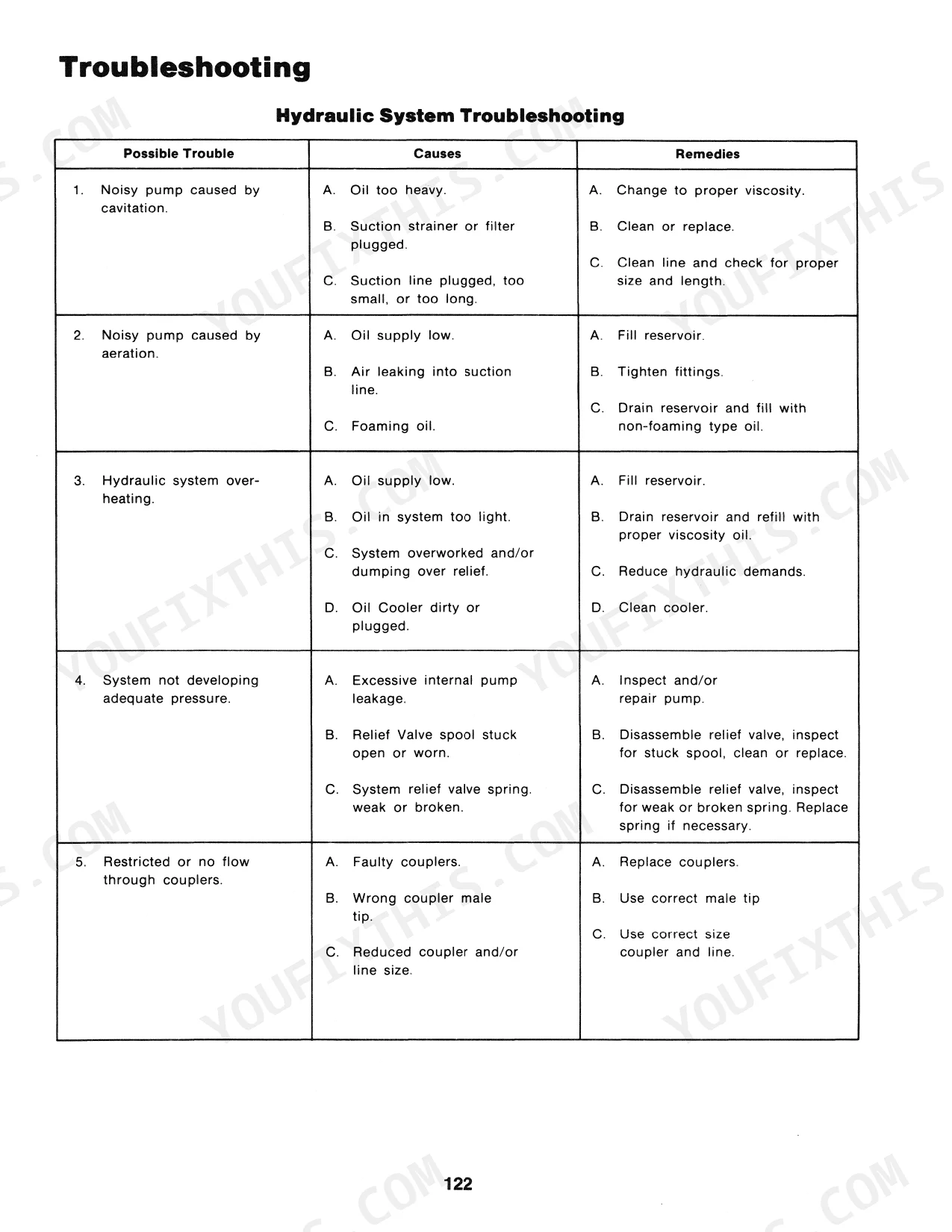

Manual Section: Drivers Error Code Display p. 129Loud hydraulic whine at idle and the remote hydraulics are slow to respond
Check the hydraulic reservoir level first: the system holds 18.0 US gal. (68.0L) and runs noisy when low. Clean or replace the transmission breather cloth plug so the case can vent. Then walk the noisy pump and low pressure checks in the hydraulic system troubleshooting on page 130.
Manual Section: Hydraulic System Troubleshooting p. 130Oil dripping from the planetary and axle area, worse in cold weather

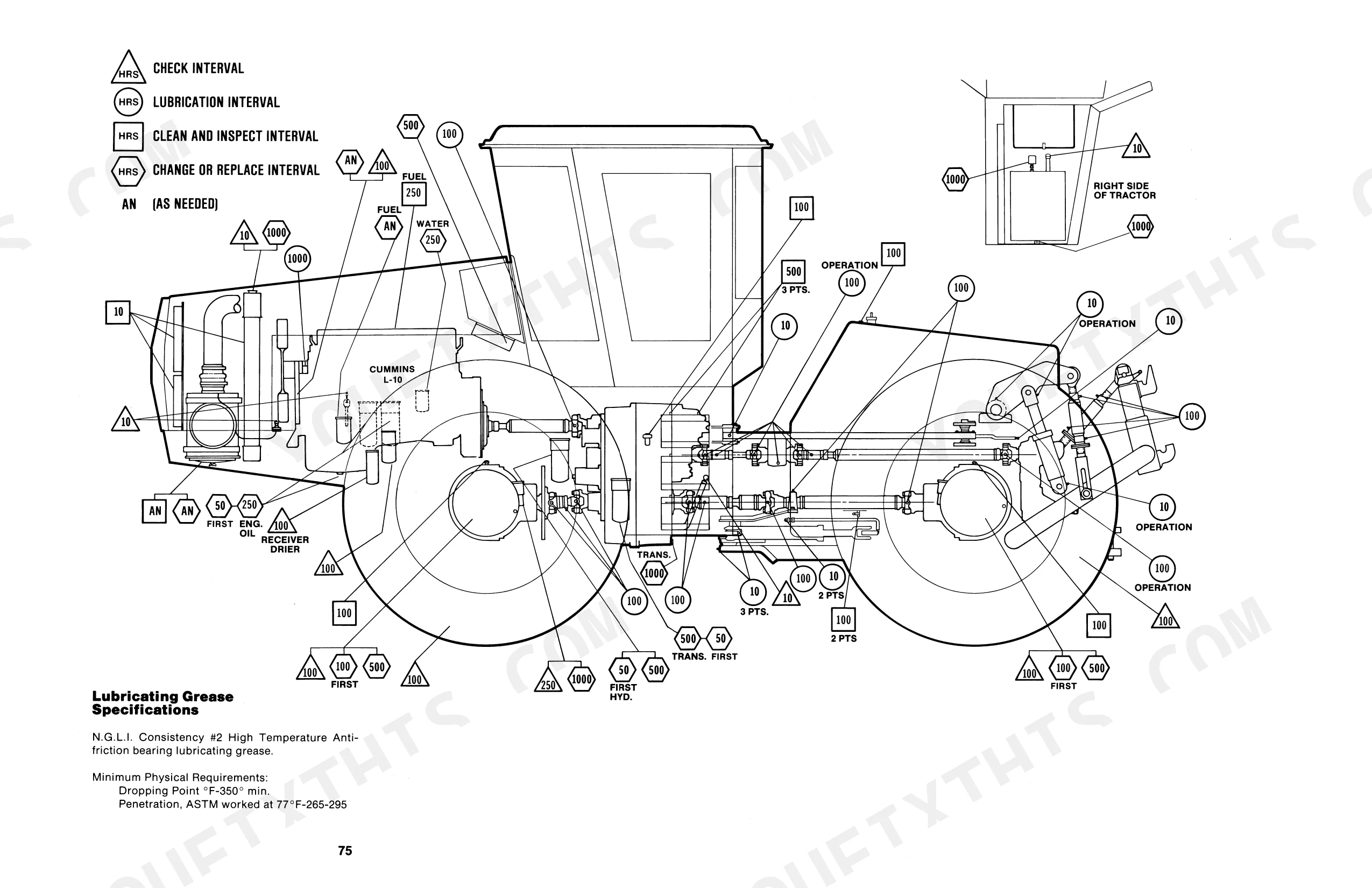

Clean the planetary housing with solvent, run the tractor, then look again to pinpoint the actual leak source. Check and clean the axle breather vent, since a plugged vent pressurizes the housing and forces oil past the seals. Verify axle oil level against the maintenance schedule on page 82.
Manual Section: Axle MaintenanceCab fan quits intermittently and the heater or air conditioning stops blowing

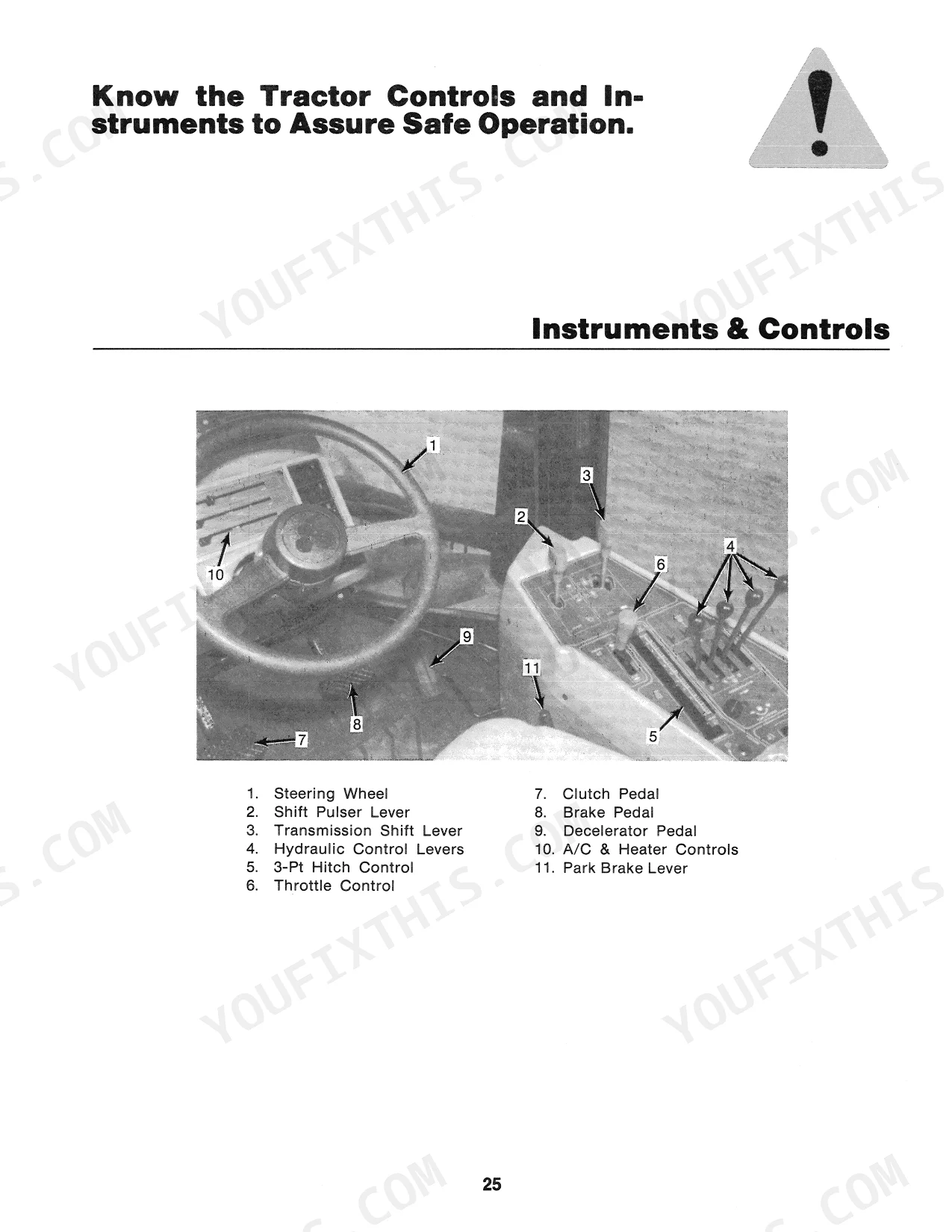

Clean the cab air filters, then review the HVAC control layout on page 33.
Manual Section: Instruments and Controls p. 33Frequently Asked Questions
How do I reset the transmission controller if it fails?
If the transmission controller fails (time-out), the dash displays will go blank and the tractor will stop moving. To reset the system, turn the key switch off, place the mode lever in neutral, and restart the engine in the normal manner. p. 63
What should I do if the engine oil pressure indicator light comes on in my Case IH 9150 tractor?
If the engine oil pressure indicator light illuminates, you must monitor the engine oil pressure bargraph LCD for safe operating limits. If no oil pressure is indicated, the tractor must be shut down immediately to prevent severe engine damage. p. 38
What is the torque specification for the wheel lug bolts on a Case IH 9150 tractor?
The wheel lug bolts must be tightened to 600 lb ft (814 N.m). This torque must be applied every 10 hours for the first 50 hours of operation, and whenever the wheels are removed and remounted. p. 118
What is the transmission oil and filter change interval on a Case IH 9150 tractor?
The transmission filter should be changed every 500 service hours (or 6 months), and the transmission fluid should be changed every 1000 service hours (or 12 months). p. 123
What is the correct torque for the cab mount bolts on a Case IH 9150 tractor?
The cab mount bolts should be checked every 500 service hours and torqued to 537-592 lb ft (728-803 N.m). p. 118
Do I get instant access to this Case IH 9150 Operator Manual?
Straight to your device: 140 pages of searchable Operator Manual, downloadable the moment payment goes through.
Can I print specific sections of this Case IH 9150 Operator Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
