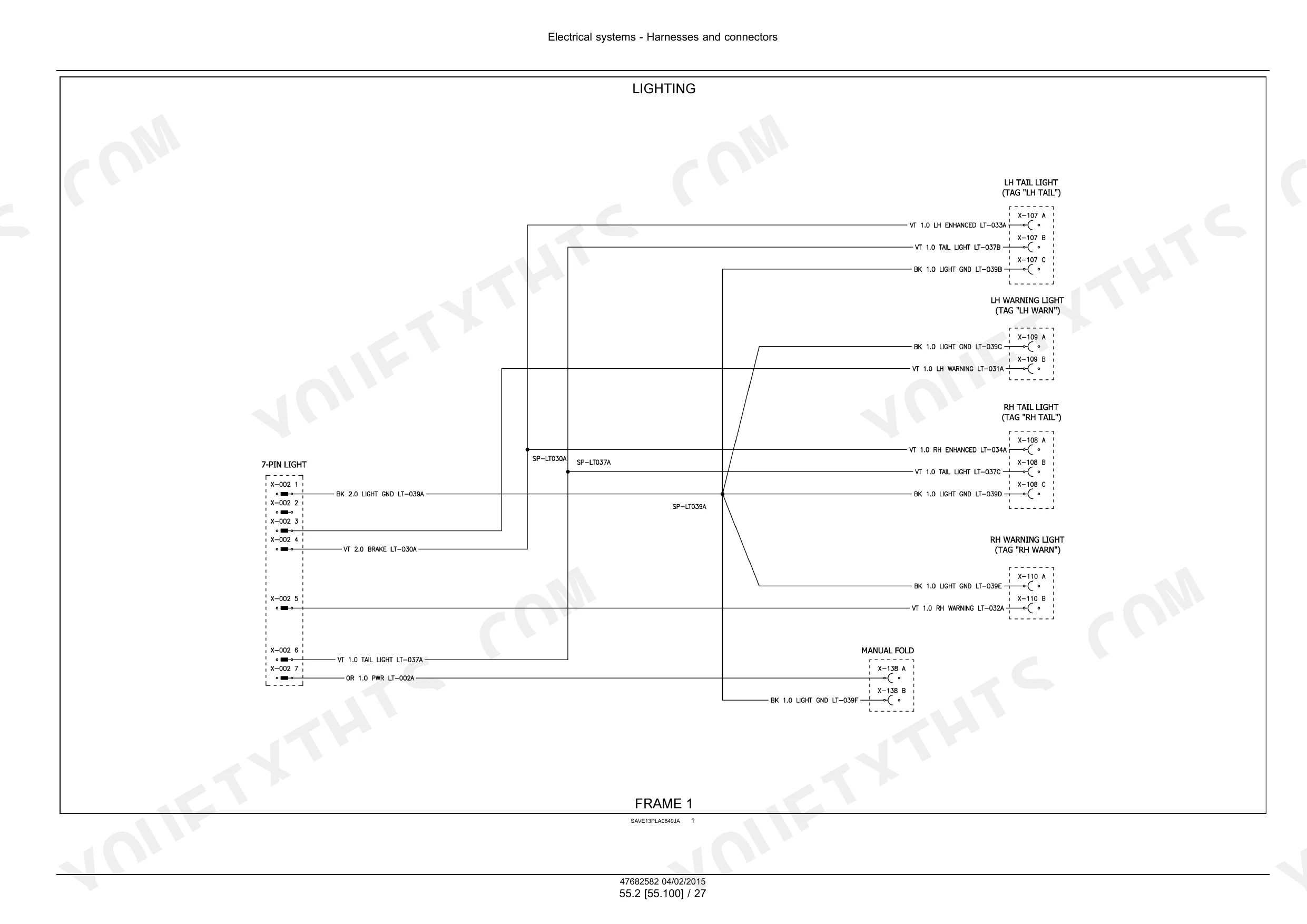

All 985 pages of this Case IH Early Riser 1225 Service Manual (OEM #47682582) focus on one machine: the rigid trailing planter that puts seed in the ground when everything else has to be right. Inside, you get a full hydraulic section covering the main control valve, frame lift circuit, vacuum, metering, and marking hydraulics — plus wiring schematics, connector pinouts, and harness diagrams spanning the seeding control and precision farming systems. A deep fault code and troubleshooting section walks you through electrical diagnosis the way the factory intended. Row unit work? Torque your parallel linkage pivot bolts to 79–98 Nm, replace any opener disk worn below 343 mm OD, and set total deflection before it hits 3.2 mm. Your planter is sitting idle while someone's guessing at specs. Pull up this bookmarked PDF on your tablet, search any procedure by keyword, and get back in the field.
What's Inside This Case IH Early Riser 1225 Manual
| System | Pages | Key Topics |
|---|---|---|

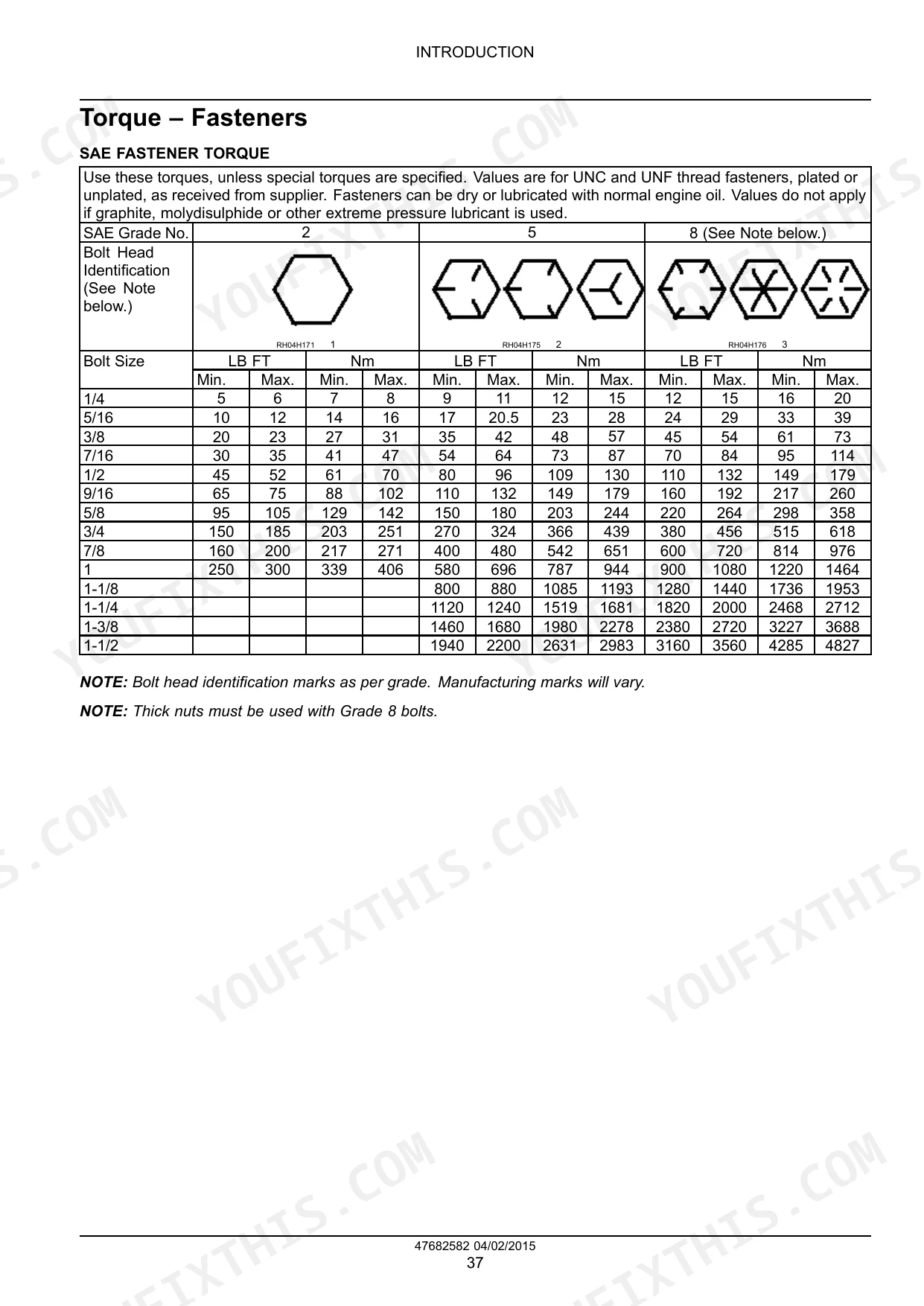

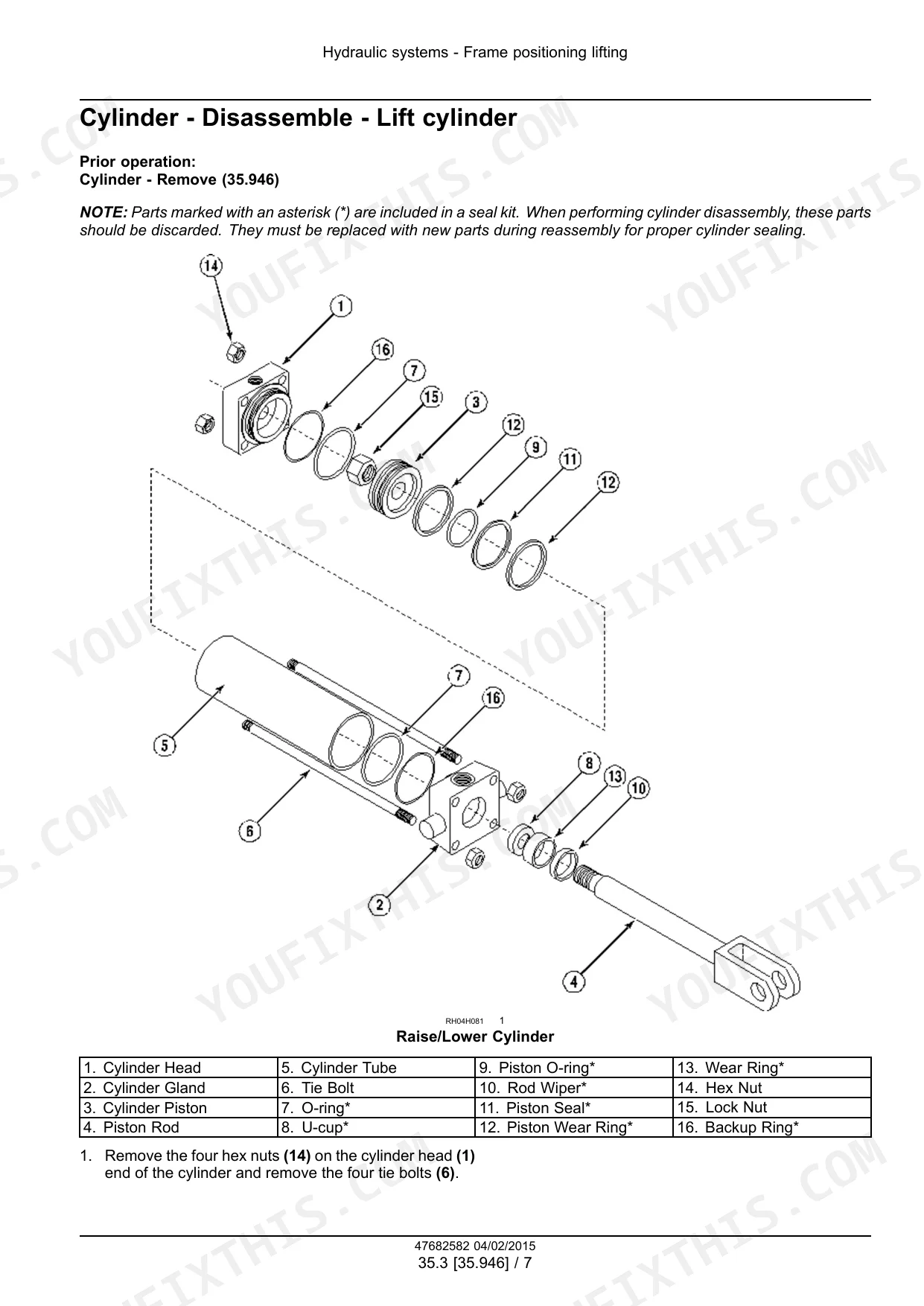

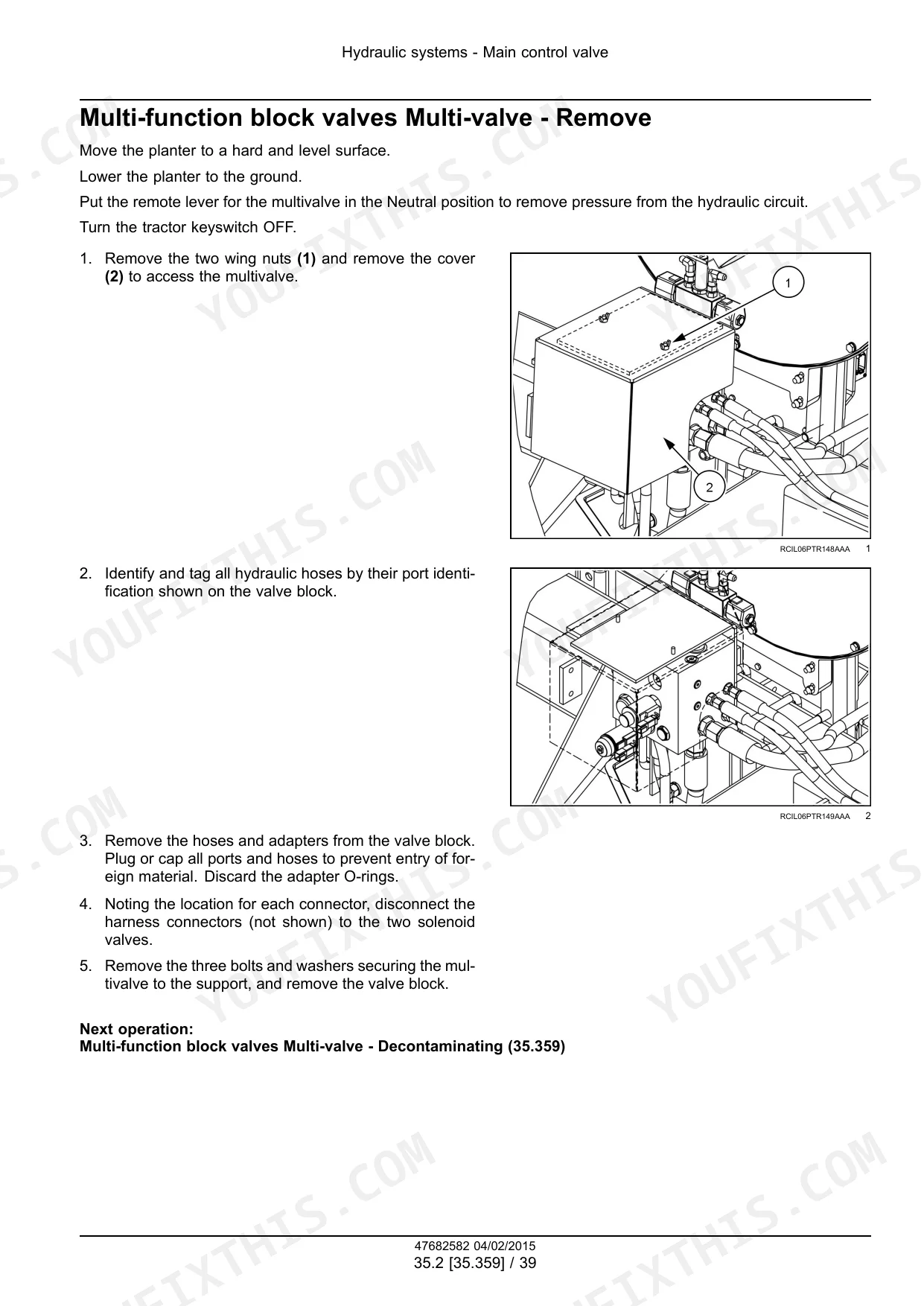

| Introduction | 7-58 | Measuring Voltages, Electrical Testing, Hydraulic Tubes and Fittings Torque, Fasteners Torque, Manual Toolbar Controller, Hydraulic Contamination |
| Hydraulic Systems - 35 | 59-228 | Hydraulic Systems, Main Control Valve, Frame Positioning Lifting, Vacuum System Hydraulic Circuit, Marking System Hydraulic Circuit, Metering System Hydraulic Circuit |
| Wheels - 44 | 229-248 | Carrying and Transport Wheels, Dual Arm Drive Wheel, Endwise Transport Wheel, Rear Axle, Optional Carrying Wheel Cover |
| Electrical System - 55.000 | 249-255 | Electrical System Overview, Theory of Operation, General Wiring Principles |
| Harnesses and Connectors - 55.100 | 256-457 | Harnesses and Connectors, Wiring Diagrams, Connector Locations, Cable Routing |
| Seeding Control System - 55.516 | 458-483 | Seeding Control System, Controller Diagnostics, Sensor Calibration |
| Precision Farming System - 55.785 | 484-539 | Precision Farming System, Gps Integration, Rate Controllers, Isobus |
| Fault Codes - 55.DTC | 540-822 | Fault Codes, Diagnostic Trouble Codes, Error Diagnosis, Fault Isolation |
| Metering System - 61 | 823-882 | Metering Mechanical Drive, Master Clutch, Drive System Tensioner, Drive Gear, Sprocket, Meter Roller |
| Chemical Applicators - 63 | 883-908 | Liquid Fertilizer System, Pump, Granular Chemical System, Chemical Meter, Clutch, Drive Chain |
| Planting - 79 | 909-983 | Product Handling and Delivery Drive System, Planting Vacuum System, Planting Marking System, Planting Tool |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Parallel linkage pivot bolts and nuts torque | 79 - 98 Nm (58 - 72 lb ft) | p. 943 |
| Tube Nuts for 37° Flared Fittings (Size 4, Tubing OD 1/4 inches) | 9 - 12 LB FT (12 - 16 Nm) | p. 62 |
| O-Ring Face Seal Fittings (Size 2, Tubing OD 1/4 inches) | 10 - 12 LB FT (14 - 16 Nm) | p. 62 |
| Opener disk OD (minimum) | 343 mm (13.5 in) | p. 967 |
| Opener disk total deflection (maximum) | 3.2 mm (0.125 in) | p. 967 |

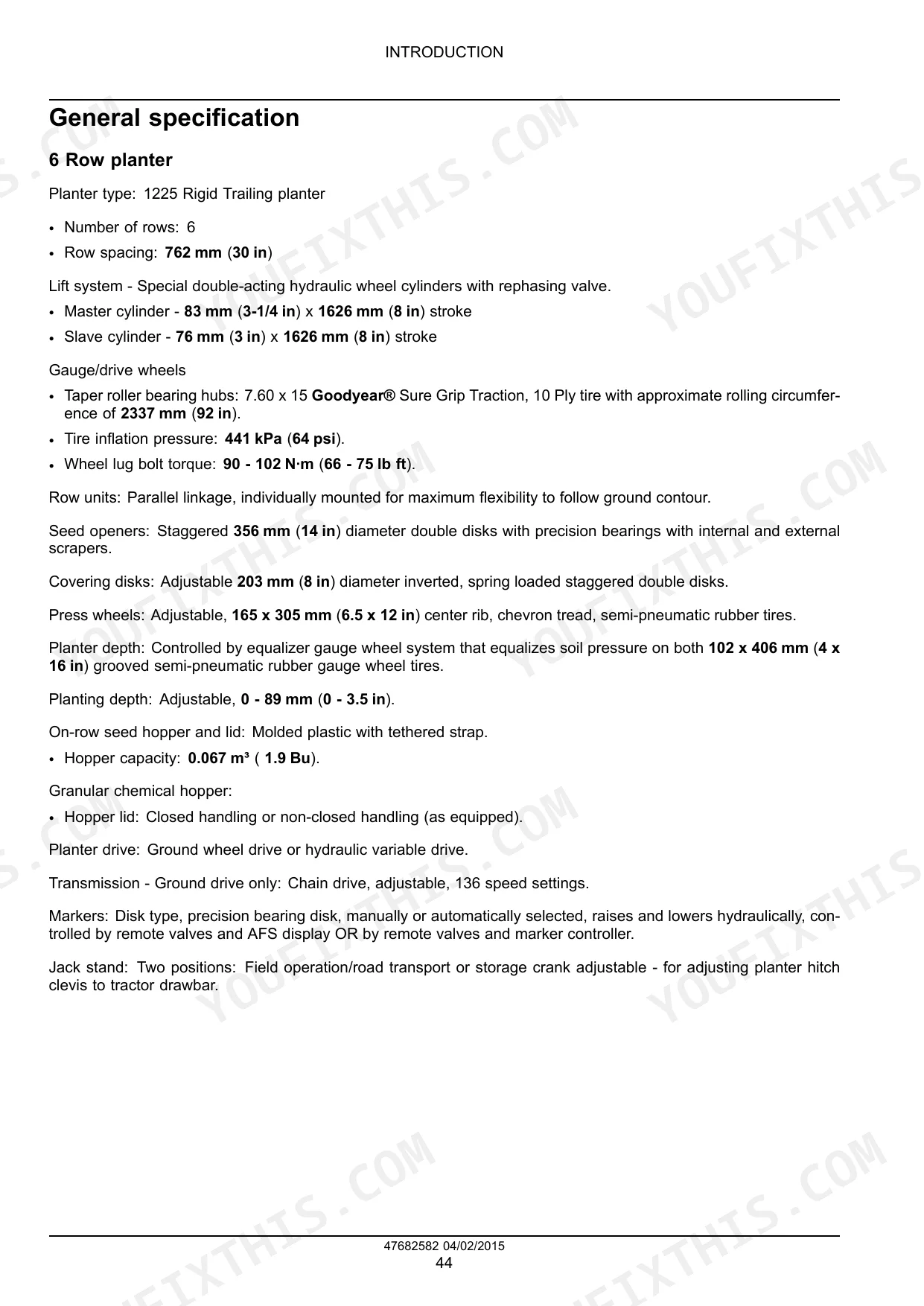

| Gauge wheel tire size | 102 x 406 mm (4 x 16 in) | p. 49 |
| Gauge wheel to opener disc maximum gap | 3 mm (0.118 in) | p. 959 |
| Furrow firming point replacement condition | If no point can be seen in the window of the gauge when the point is inserted, replace the firming point. | p. 972 |
| Seed shoe rear dimension | 28.6 mm (1.125 in) | p. 963 |
| Seed shoe front dimension | 22 mm (0.875 in) | p. 963 |
| Covering disks diameter | 203 mm (8 in) | p. 49 |
| Closing disk bolts torque | 203 - 244 Nm (150 - 180 lb ft) | p. 978 |
Case IH Early Riser 1225 Common Problems This Manual Covers
Case IH Early Riser 1225 hydraulic hoses dry-rotted or rubbing on frame, fluid seeping under pressure p. 13
Relieve all hydraulic pressure before touching any lines. Never probe for suspected leaks with your hand; use cardboard instead (page 11). Inspect every hose for cracking, abrasion, or frame contact. Replace any damaged or worn hose per page 13, then retorque fittings: 128-143 Nm (95-106 lb ft) for 3/4 OD tubing (page 41).
Manual Section: Hydraulic Systems - 35Opener disks worn below minimum diameter, seed furrow shallowing out and closing poorly p. 967
Measure each opener disk OD: replace any disk worn below 343 mm (13.5 in). Check total deflection with a straightedge; maximum is 3.2 mm (0.125 in) per page 967. Install new disks and torque the bolts to 200-220 Nm (148-162 lb ft) on page 969. Verify trailing-to-leading disk gap stays within 0-3 mm (page 970).
Manual Section: Planting - 79Gauge wheels worn or riding too far from opener disk, seed depth inconsistent row to row p. 959
Inspect gauge wheel tires (102 x 406 mm / 4 x 16 in) for flat spots and sidewall cracking. Set each gauge wheel tight against the opener disk: maximum allowable gap is 3 mm (0.118 in) per page 959. After adjustment, torque the pivot pin to 407-440 Nm (300-330 lb ft) and recheck depth setting across all rows.
Manual Section: Planting - 79Furrow firming points worn past service limit, seed placement erratic in the furrow p. 972
Insert each firming point into the gauge tool; if no point is visible in the gauge window, replace it immediately (page 972). After fitting a new point, set clearance above a level surface to 0.79 mm (0.030 in) per page 981. Inspect all rows before the season, not just the ones showing obvious surface wear.
Manual Section: Planting - 79Seed protection shoes notched on contact surface, seeds landing inconsistently at furrow bottom p. 963
Inspect each seed shoe for a notch worn into either the front or rear contact surface; any notch means replace the shoe (page 963). Reference dimensions are 28.6 mm (1.125 in) at the rear and 22 mm (0.875 in) at the front. Worn shoes misdirect seed at furrow bottom, so check all rows before the season starts.
Manual Section: Planting - 79Inverted closing disks misaligned or worn, furrow not closing properly over seed p. 978
Inspect each closing disk for wear: the covering disk diameter is 203 mm (8 in) per page 49. Set trailing-to-leading disk clearance within 0-3 mm (page 970) and torque the bolts to 203-244 Nm (150-180 lb ft) on page 978. Also verify disc and firming point clearance at 0.79 mm (0.030 in) above a level surface (page 981).
Manual Section: Planting - 79Frequently Asked Questions
How to reset Case IH Early Riser 1225 error codes?

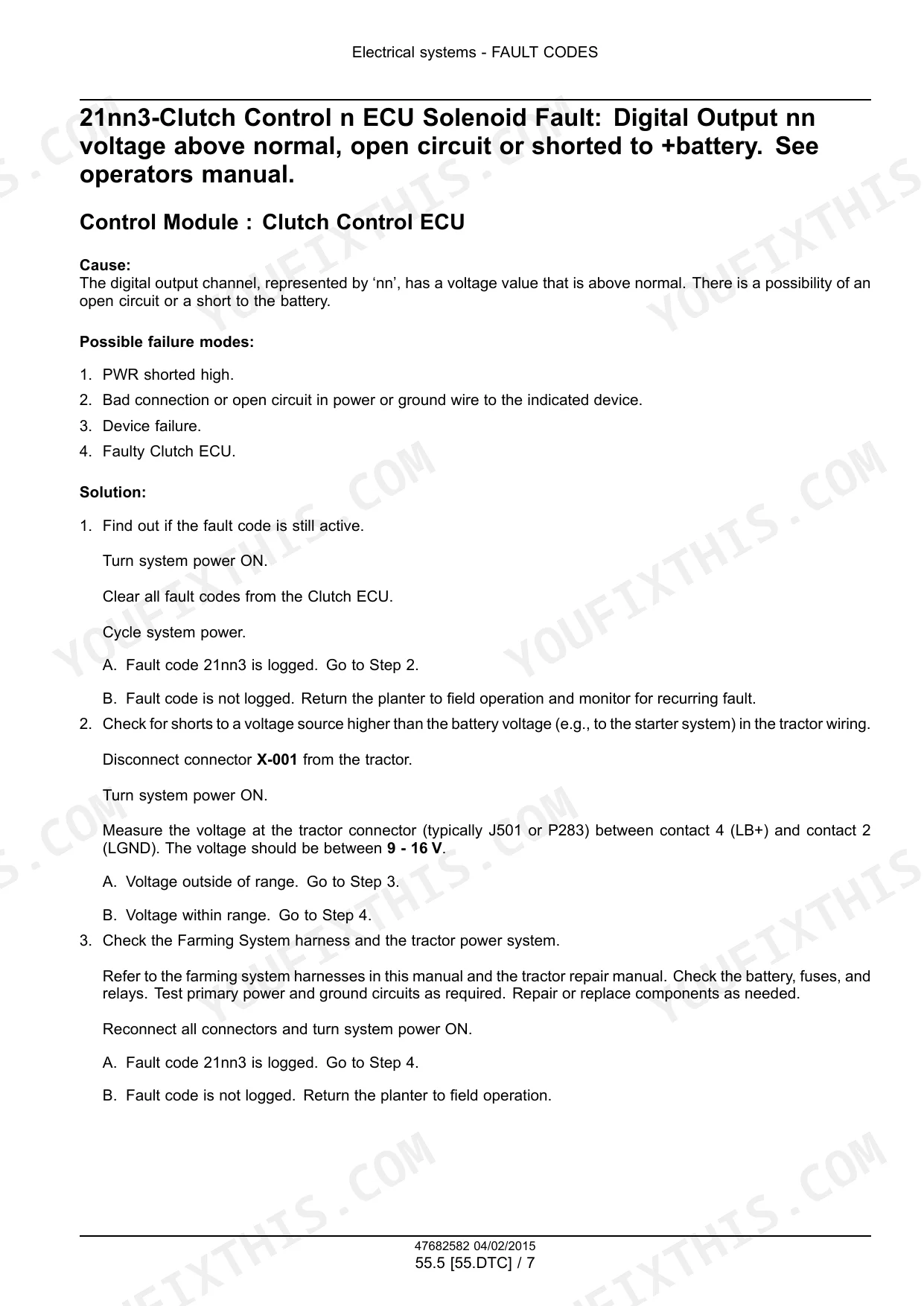

To reset error codes, first determine if the fault code is still active. Then, turn system power ON and clear all fault codes from the Clutch ECU or Rate ECU, followed by cycling system power. For example, for fault code 21nn3, after clearing, if the fault code is not logged, return the planter to field operation.
What are the torque specs for Case IH Early Riser 1225 row unit bolts?
The row unit parallel linkage pivot bolts and nuts should be torqued to 79 - 98 Nm (58 - 72 lb ft). This ensures proper assembly and function of the parallel linkage and row unit frame.
How to fix seed spacing accuracy on Case IH 1225 Early Riser planter?
To fix seed spacing accuracy, use the Seed Meter Alignment Tool (P/N 380002974) to adjust the seed meter. Ensure the pointer points to the black center section of the target for proper alignment, or adjust the assembly if it is 3 - 5 mm or more out of alignment.
How to switch seed disc from soybean to corn on Case IH 1225 Early Riser?
The service manual indicates that whenever a seed disk is changed, it may be necessary to adjust various planter settings. For specific instructions on switching seed disks and adjusting settings for different crop types like soybean or corn, refer to the Seed Meter Chart in the Operator's Manual.
What do I get after purchasing this Case IH Early Riser 1225 manual?
A 985-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this Case IH Early Riser 1225 Service Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this Case IH Early Riser 1225 Service Manual cover the hydraulic system?

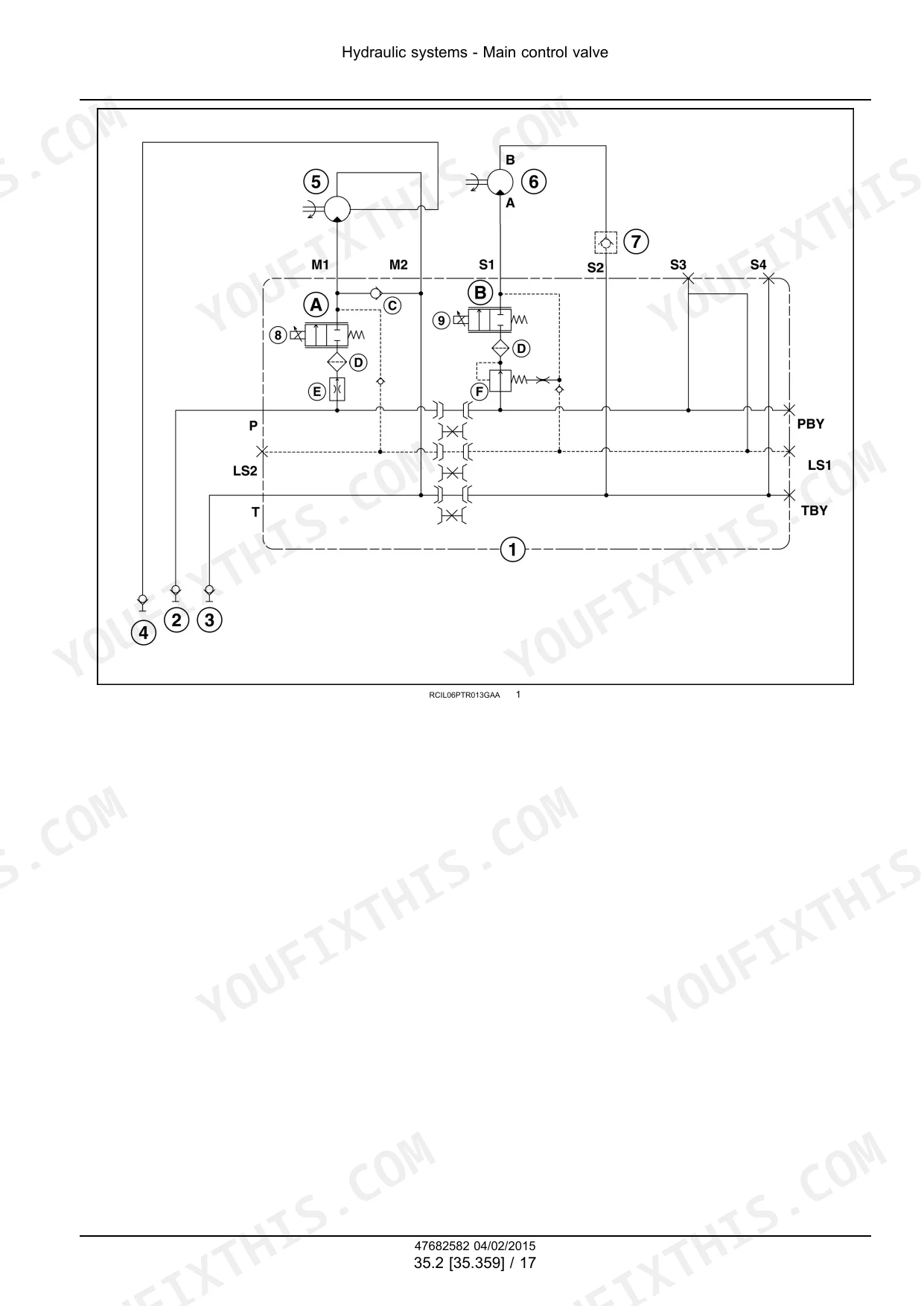

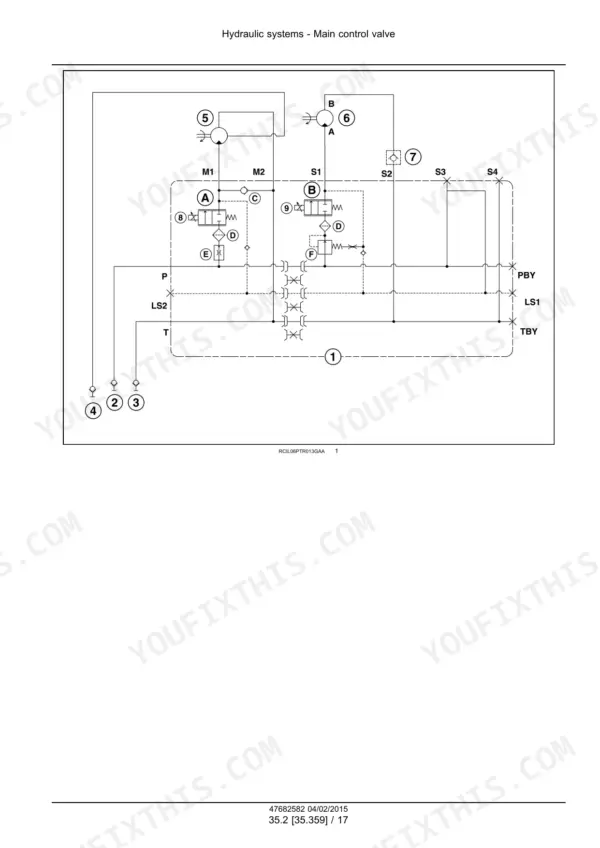

Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Case IH Early Riser 1225.
