Need the factory operator manual for your Case IH Farmall 75N, 85N, 95N, or 105N tractor? This 250-page PDF (OEM #84518062) is the reference Case IH ships with every machine. Packed with controls walkthroughs covering the full operator's platform layout, ROPS and machine stability safety sections, step-by-step PTO and hydraulic lift procedures, and a maintenance chart that maps every service task from the 10-hour daily check through the 300-hour interval. You also get a fault code resolution table and a troubleshooting section covering engine, electrical, and hydraulic systems — so when a warning pops on the display, you know exactly what it means and what to do next. Snug the fuel filter cartridge to 15 N·m (3/4 of a turn) and set 2WD front tires to 2.2 bar (31.9 psi) before the first field pass. No more hunting through a dog-eared photocopy. Grab the bookmarked PDF on your tablet, tap straight to the section, and run through the procedure right there on the platform.
What's Inside This Case IH Farmall 75N/85N/95N/105N Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-22 | Note to the Owner, Proposition 65, Noise Levels, Electro-Magnetic Interference (Emc), International Symbols, Introduction, Tractor Intended Use, Ecology and the Environment |
| Safety Information | 23-36 | Safety Rules and Signal Word Definitions, Air Conditioning Safety Regulations, Roll Over Protective Structure (ROPS), Machine Stability, Tractor Jacking Points, Safety Signs |

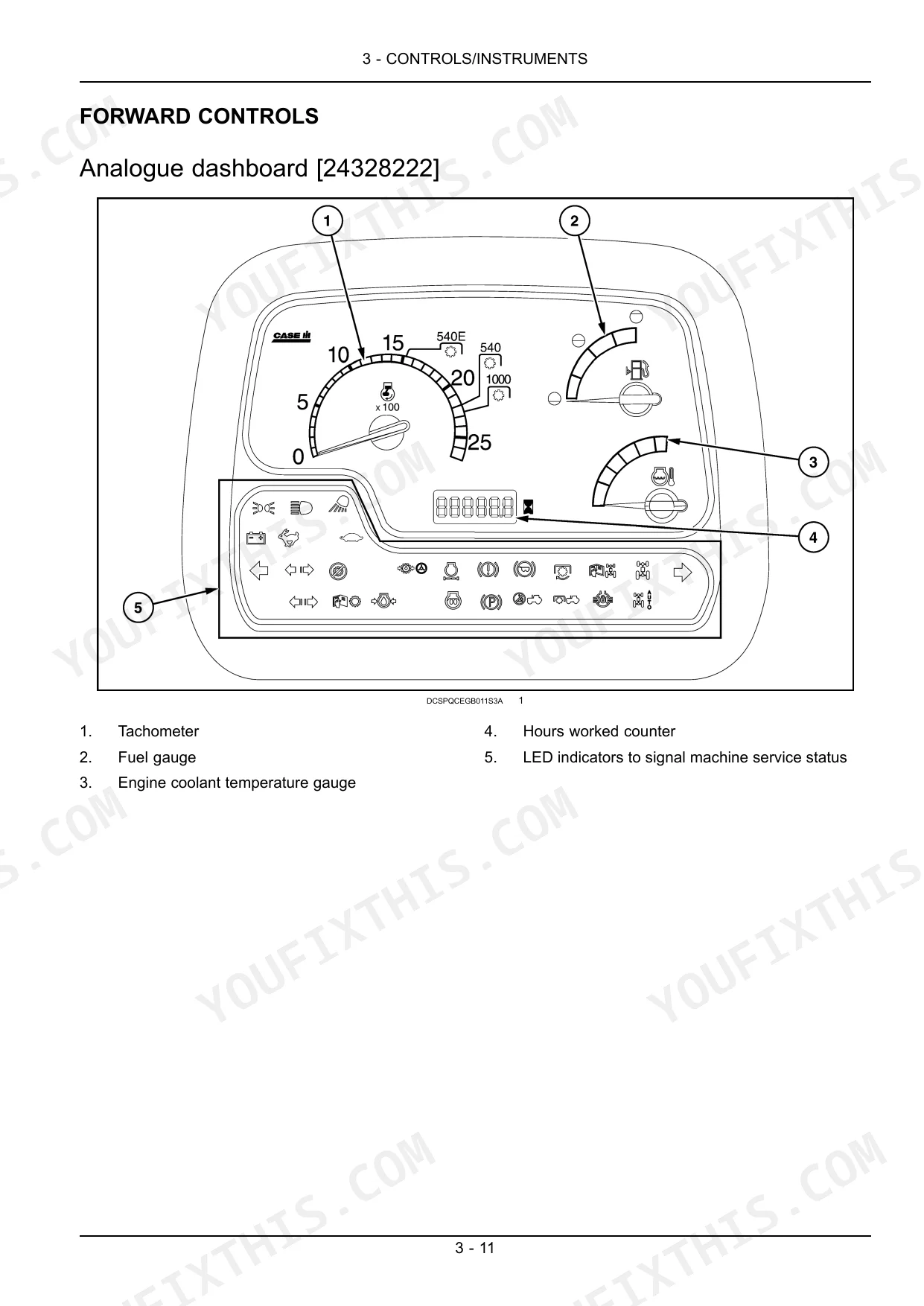

| Controls/Instruments | 37-86 | Access to Operator's Platform, Operator's Seat, Forward Controls, Left-Hand Side Controls, Parking Brake for Hydraulic Transmissions, Exterior Controls, Display Settings |
| Operating Instructions | 87-92 | Starting the Unit, Stopping the Unit, Moving the Unit |
| Transport Operations | 93-112 | Road Transport, Preparing for Road Transport, Recovery Transport |

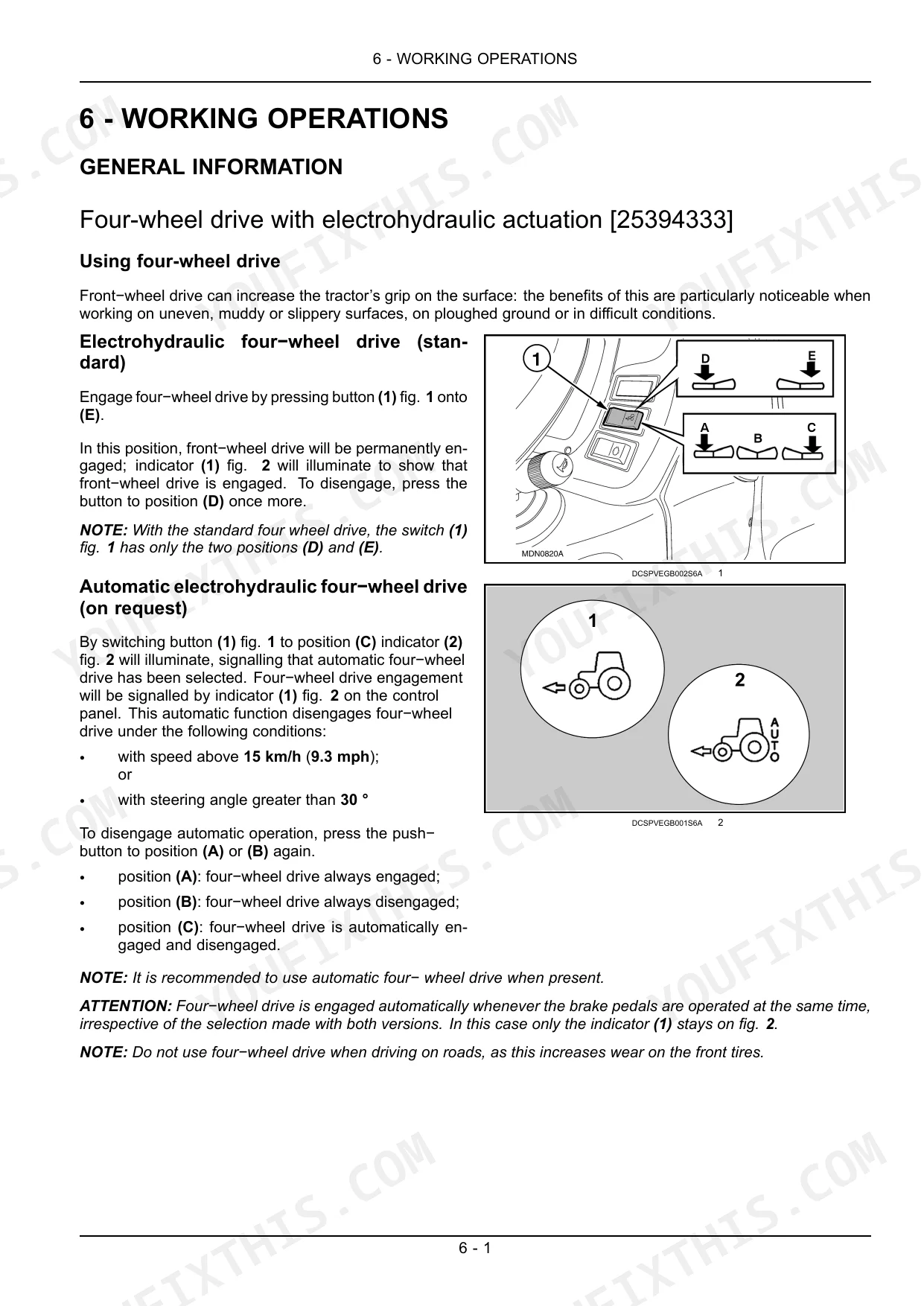

| Working Operations | 113-140 | Power Take Off (PTO), Hydraulic Lift, Hydraulic Lift with Electronic Control, Three-Point Linkage, Additional Equipment Attachment Points, Hydraulic Control Valves |

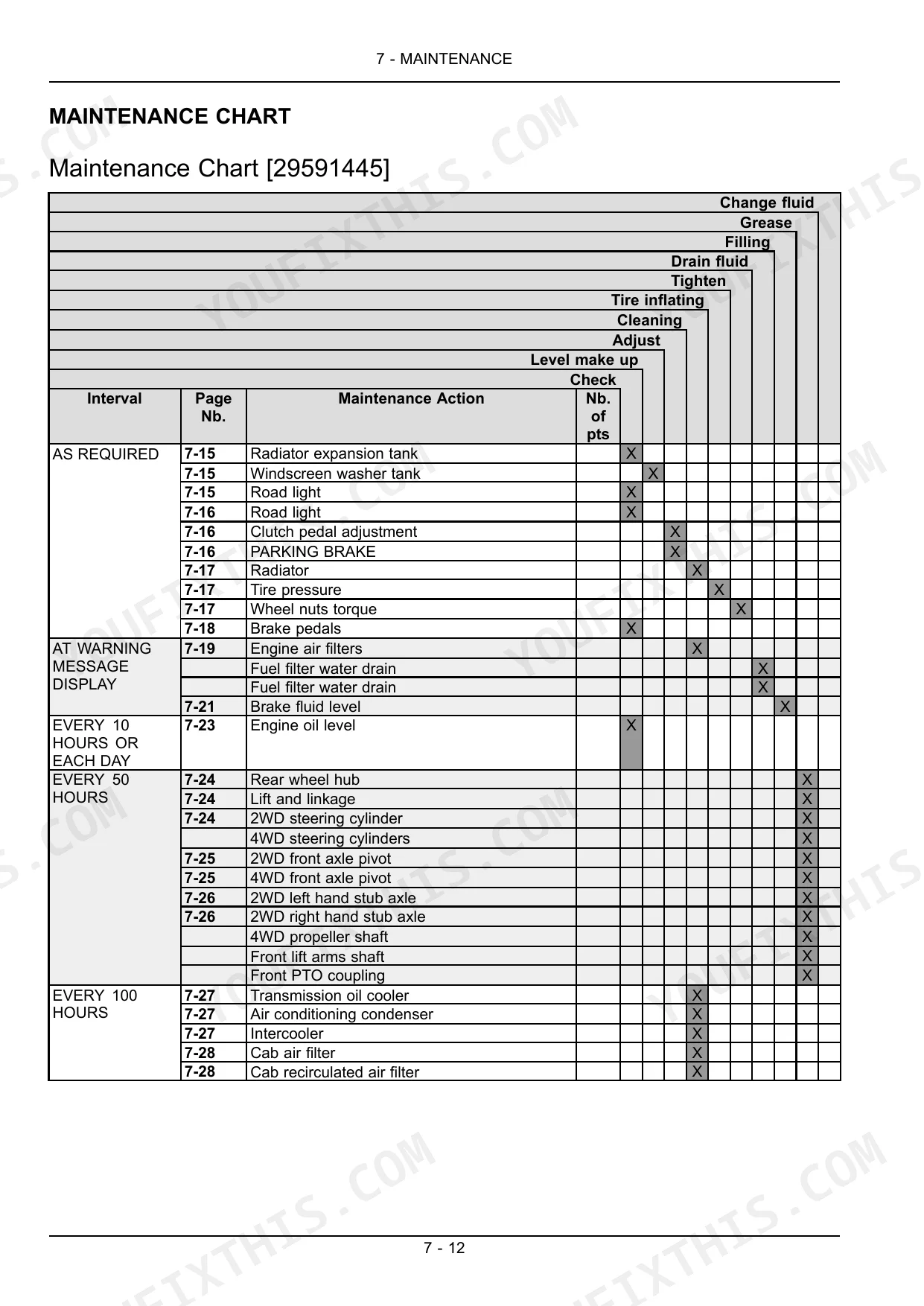

| Maintenance | 141-204 | Maintenance Chart, As Required, At Warning Message Display, Every 10 Hours or Each Day, Every 50 Hours, Every 100 Hours, Every 300 Hours |

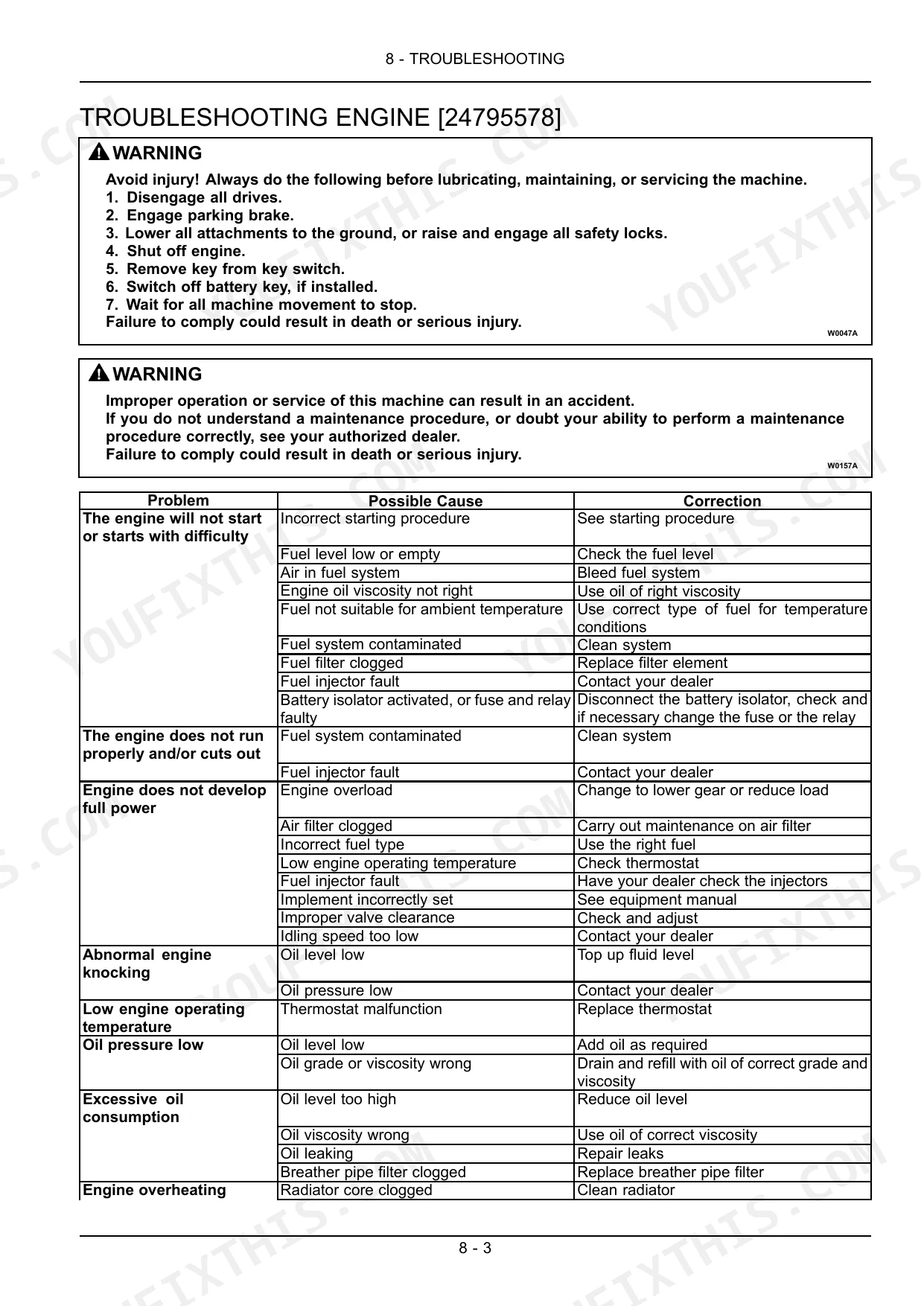

| Troubleshooting | 205-218 | Fault Code Resolution, Troubleshooting Engine, Electrical Power System - Troubleshooting Electrical System, Primary Hydraulic Power System - Troubleshooting Hydraulic System |

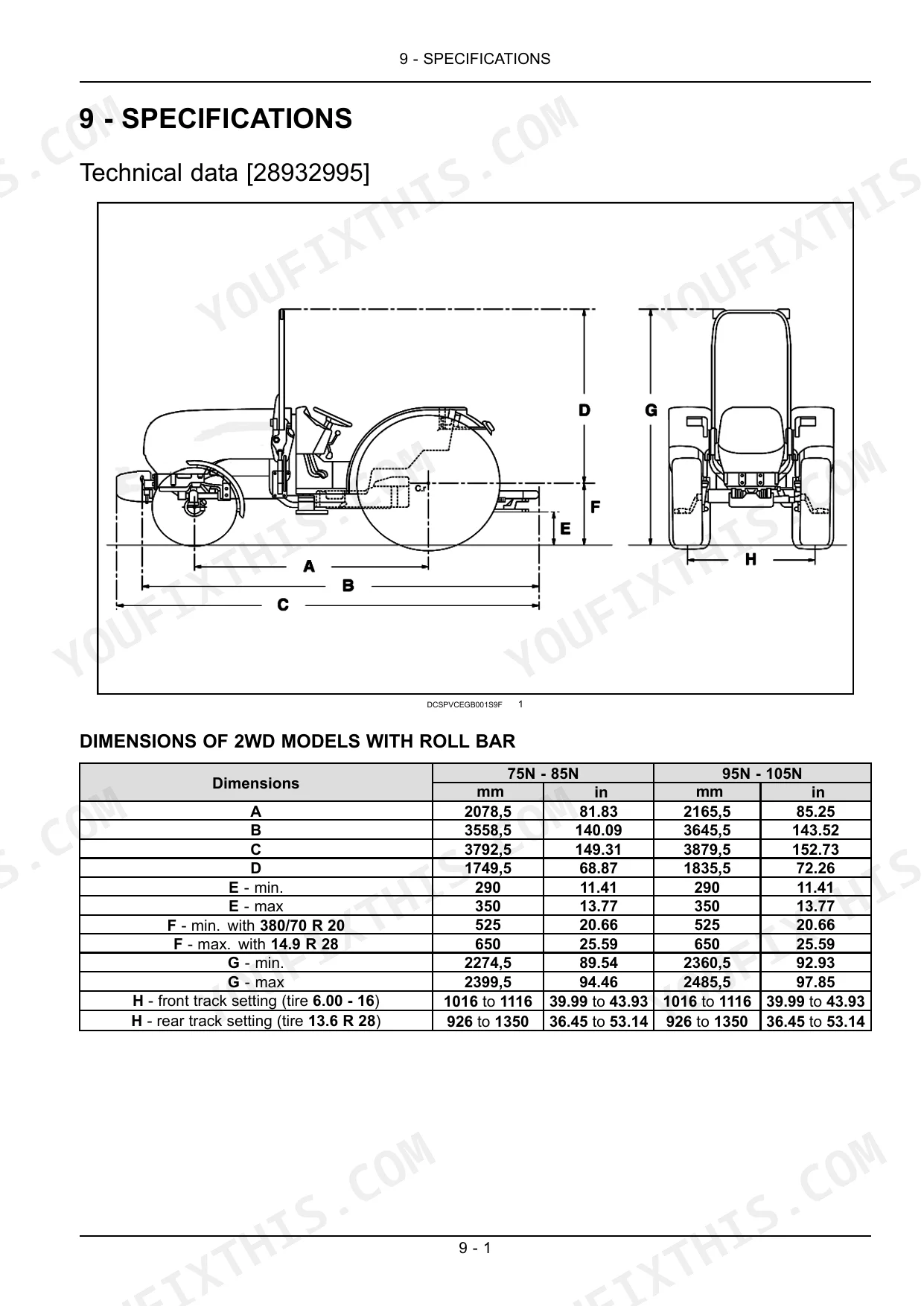

| Specifications | 219-228 | Technical Data |
| Accessories | 229-250 | Radio - Operating, Hydraulic Valve for Trailer Brakes Not Available on All Markets, Towing Equipment, Quick Coupling Three Point Linkage |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Lift arms reset procedure | Check that the fast up/down switch (3) fig. 2 is in position (B). Turn the knob (1) fig. 2 completely clockwise (lifting), then turn it slowly anticlockwise (lowering) until the indicator light (2) goes out; now the movements of the knob (1) will be in phase with the movements of the lower arms. | p. 124 |
| Engine air filter external cartridge replacement interval | every year or when cracks appear | p. 159 |
| Engine air filter internal safety cartridge replacement interval | every three times the external cartridge is cleaned | p. 159 |
| Tire replacement condition | Replace a tire if it has any defect(s). Replace a wheel rim that has cracks, wear, or severe rust. | p. 94 |
| Battery voltage for recharge | around 12.30 V | p. 187 |
| Battery charge current | 1/10 of the capacity in Ah | p. 187 |
| Max Electro-Magnetic Field | 24 V/m | p. 12 |
| Cab A/C Coolant Quantity | 1.2 kg (2.6 lb) | p. 42 |
| 2WD models | ||
| 2WD Front tire inflation pressure | 2.2 bar (31.9 psi) | p. 99 |
| Farmall 75N, Farmall 85N | ||
| Noise Level (Roll Bar, Farmall 75N-85N) | 84 dB (A) | p. 11 |
| Engine Oil Sump Capacity (Farmall 75N-85N) | 8.5 l (2.25 UK gal) | p. 149 |
| Farmall 95N, Farmall 105N | ||
| Engine Oil Sump Capacity (Farmall 95N-105N) | 9.5 l (2.51 UK gal) | p. 149 |
Case IH Farmall 75N/85N/95N/105N Common Problems This Manual Covers
Case IH Farmall 95N battery charge light stays on and starter motor turns over slowly p. 187
Measure the battery voltage directly at the terminals. If the reading is around 12.30 V, recharge the battery at a current equal to 1/10 of its capacity in Ah. Check page 187 for proper charging procedures and verify all cables are clean and tight.
Manual Section: MaintenanceRear implement lower arms refuse to lift or indicator warning light remains illuminated on the dashboard p. 124
Verify the fast up/down switch is in position B. Turn the main knob completely clockwise for lifting, then turn it slowly anticlockwise until the indicator light goes out. Check page 124 to confirm the lift arms reset procedure. Keep loads under the 2040 kg (4497 lb) maximum lift capacity.
Manual Section: Working OperationsEngine cuts out under heavy load and lacks power during normal field transport operations p. 174
Replace the primary fuel filter and inspect the lines for air leaks. Install the new filter and tighten it to exactly 3/4 of a turn (15 N·m) for 75N and 85N models. Review page 174 for the proper replacement interval to maintain engine efficiency and prevent fuel contamination.
Manual Section: MaintenanceFront end feels soft and steering wanders during road transport with a heavy rear implement p. 99
Check the 2WD front tire inflation pressure with a reliable gauge. Inflate the front tires to exactly 2.2 bar (31.9 psi) as specified on page 99. Inspect the wheel rim for cracks or severe rust and verify the hub disc nuts are torqued to 115 N·m (84.8 lb ft).
Manual Section: Transport OperationsFrequently Asked Questions
What are the replacement specifications for Fuel and air filters (to maintain engine efficiency)?
For engine air filters, the external cartridge should be replaced every year or when cracks appear. The internal safety cartridge must be replaced every three times the external cartridge is cleaned, or both external and internal filters should be replaced together every 1200 hours or annually. For fuel filters, replace if the warning light remains illuminated, and when installing, lightly oil the seal and tighten the new cartridge by hand by 3/4 of a turn (15 N·m). The fuel pre-filter should be replaced if it remains dirty after cleaning.
What are the replacement specifications for Tires (due to improper inflation or sidewall damage)?
Tires should be replaced if they have any defects, including cracks, swellings, or abrasions on the flanks. When fitting a new or used tire, inflate it to 3.5 bar (50.8 psi) to ensure correct bead positioning, then to its service pressure. Always maintain correct tire pressure and do not inflate above recommended pressure to prevent tire failure.
How do you fix case IH Farmall 95N battery charge light stays on and starter motor turns over slowly?
Measure the battery voltage directly at the terminals. If the reading is around 12.30 V, recharge the battery at a current equal to 1/10 of its capacity in Ah. Check page 187 for proper charging procedures and verify all cables are clean and tight.
How do you fix rear implement lower arms refuse to lift or indicator warning light remains illuminated on the dashboard?
Verify the fast up/down switch is in position B. Turn the main knob completely clockwise for lifting, then turn it slowly anticlockwise until the indicator light goes out. Check page 124 to confirm the lift arms reset procedure. Keep loads under the 2040 kg (4497 lb) maximum lift capacity.
How will I receive this Case IH Farmall 75N, 85N, 95N, 105N Operator Manual?
Instant PDF download. You get the full 250-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
