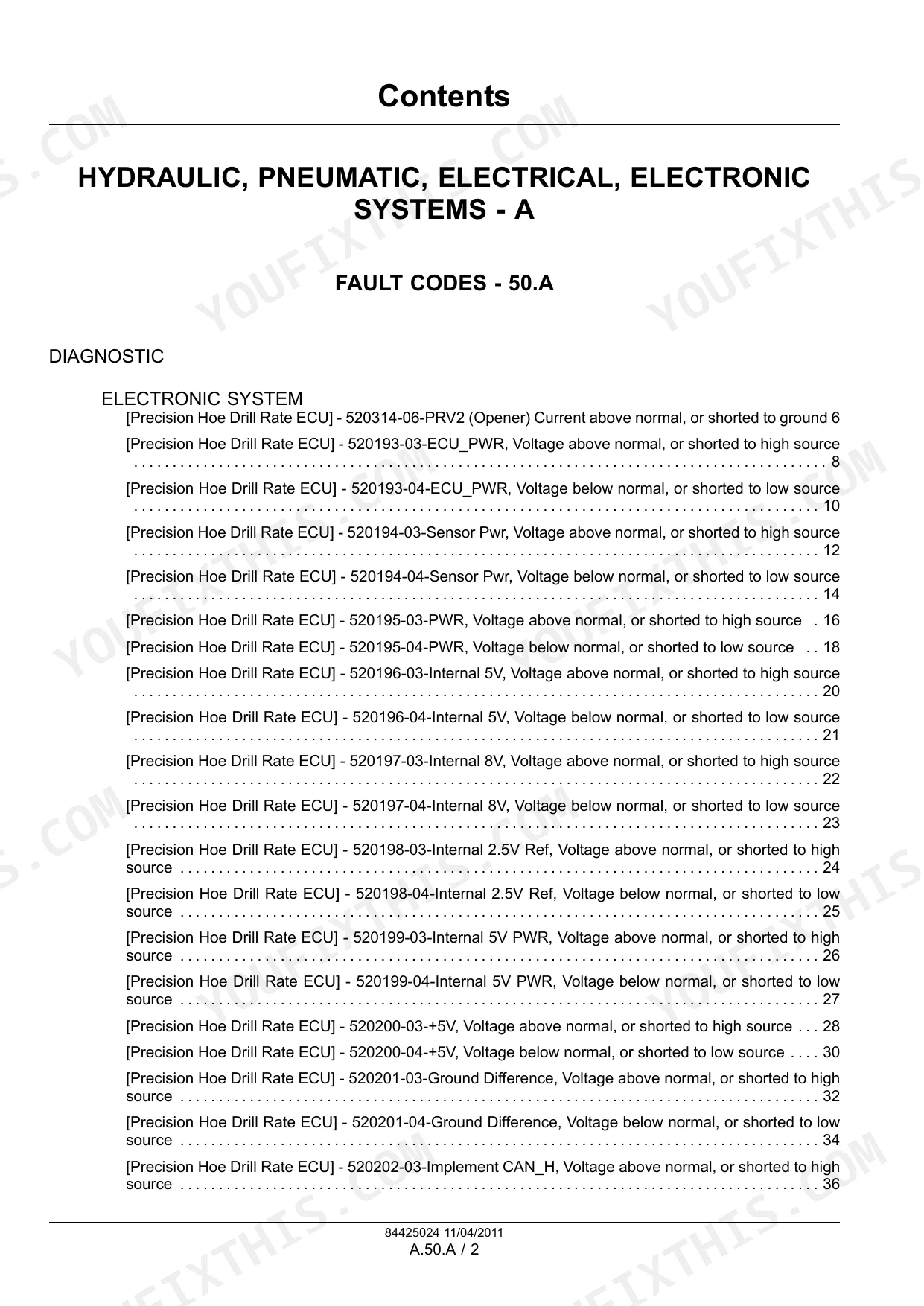

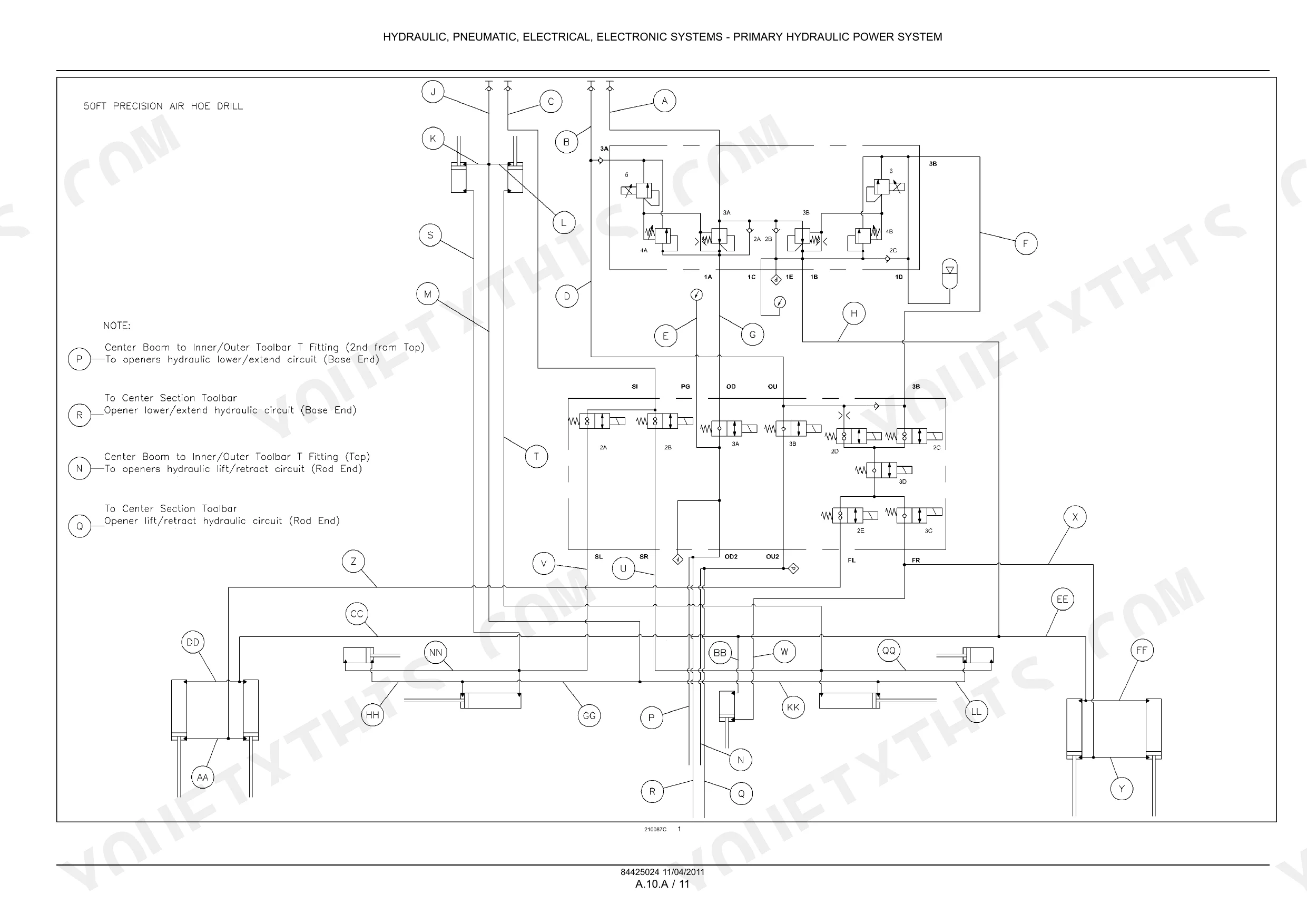

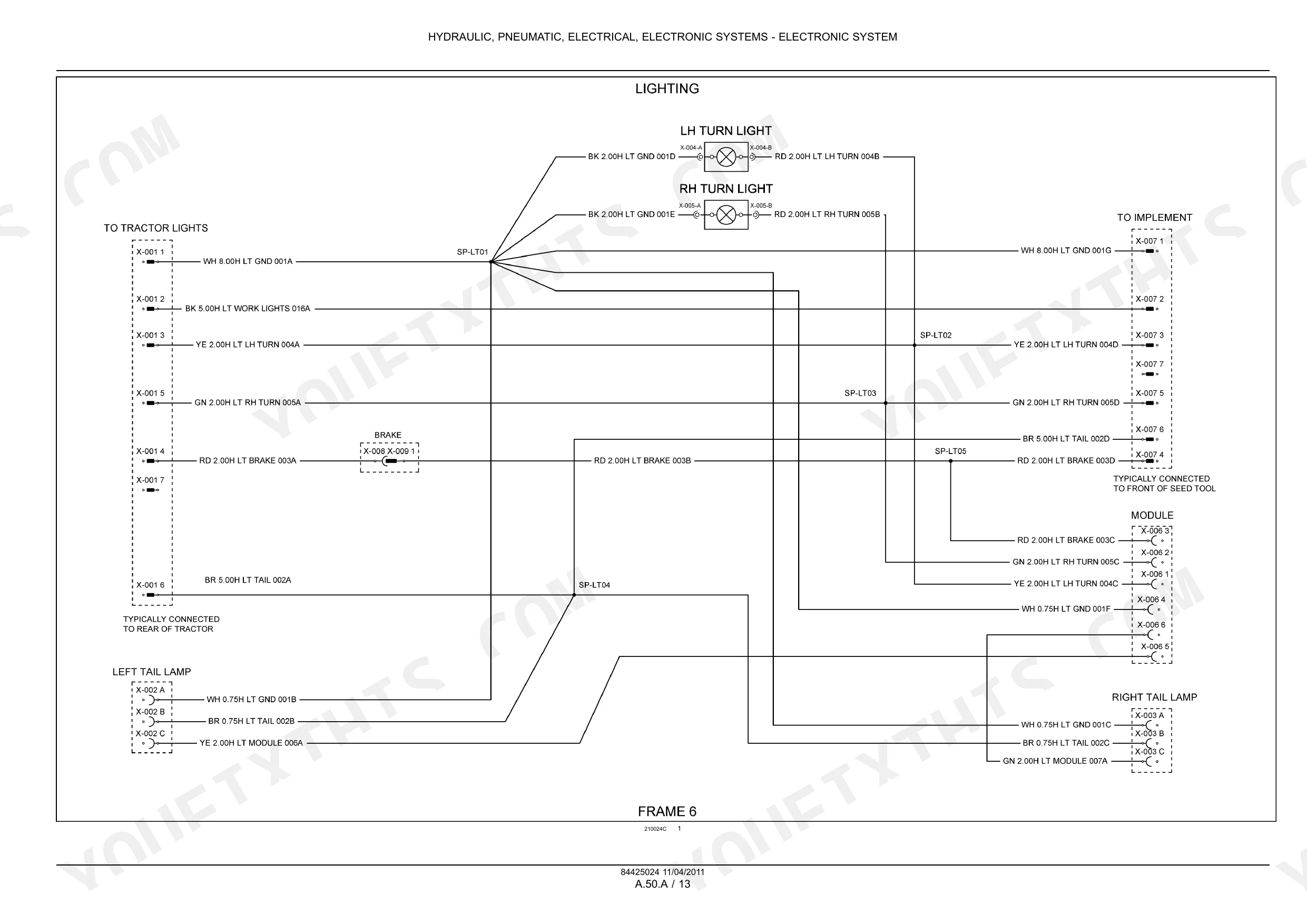

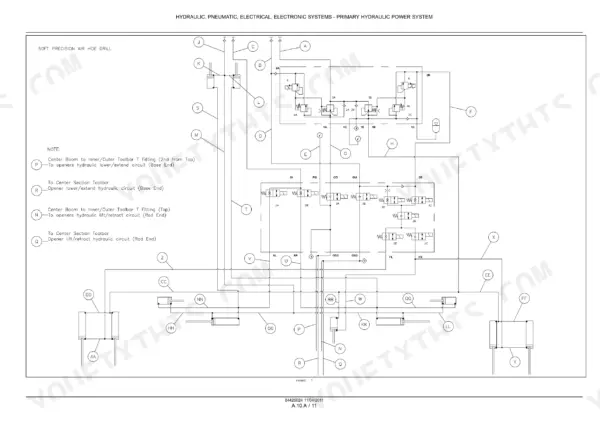

All 536 pages of this Case IH Precision Hoe 800 Air Hoe Drill Service Manual (OEM #84425024) zero in on one machine: the Precision Air Hoe Drill, from primary hydraulic circuits down to the air seeding system. Inside you get hydraulic schematics for the full primary power system, wiring diagrams for lighting and electronics, fault codes with diagnostics, and a torque section covering tubes, fittings, and every critical fastener. You'll also find frame folding and levelling procedures, front axle service, and all three seeding systems (mechanical, electronic, and air) in the Field Processing section. Torque the opener head bracket V-bolts to 122.0 N·m (90 lb ft) and run caster tires at 410 kPa (60 psi); both numbers come straight from factory spec. Your drill is down and every idle hour costs money. Grab the PDF, pull it up on your tablet, search by section bookmark, and start wrenching.
What's Inside This Case IH 800 Manual
| System | Pages | Key Topics |
|---|---|---|

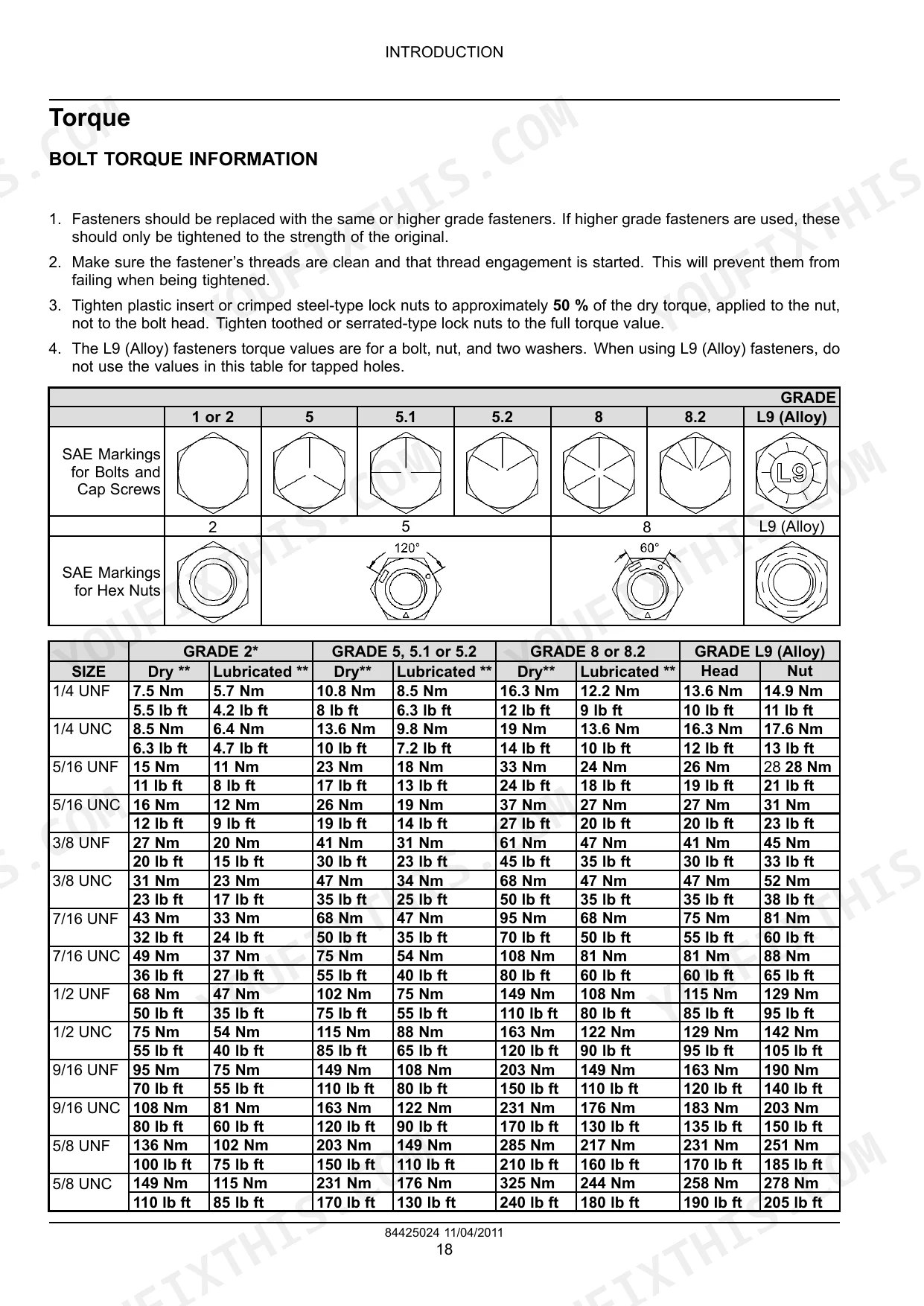

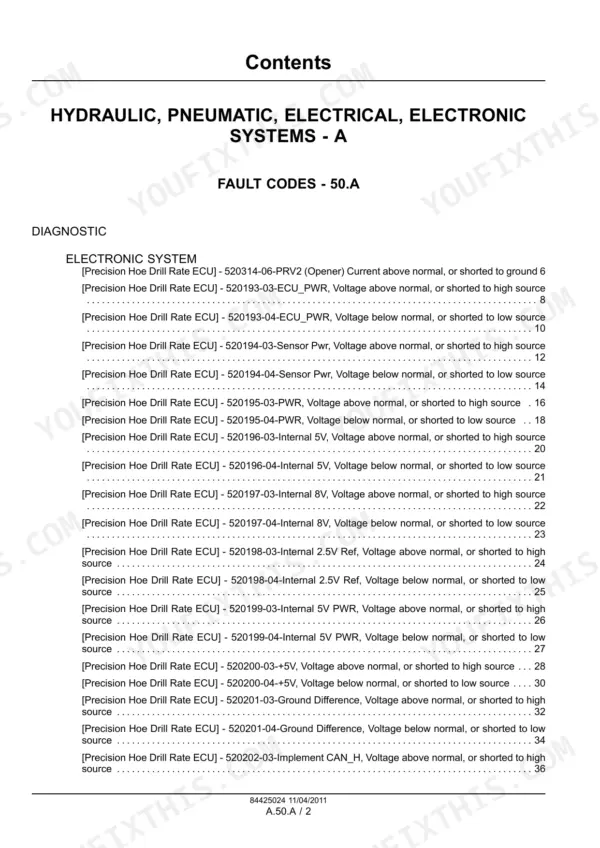

| Introduction | 4-29 | Advice, Foreword, Frame - Safety Signs, Basic Instructions, Torque, Torque - Hydraulic Tubes and Fittings, Dimension, Weight |
| Hydraulic, Pneumatic, Electrical,Electronic Systems - a | 30-329 | - |

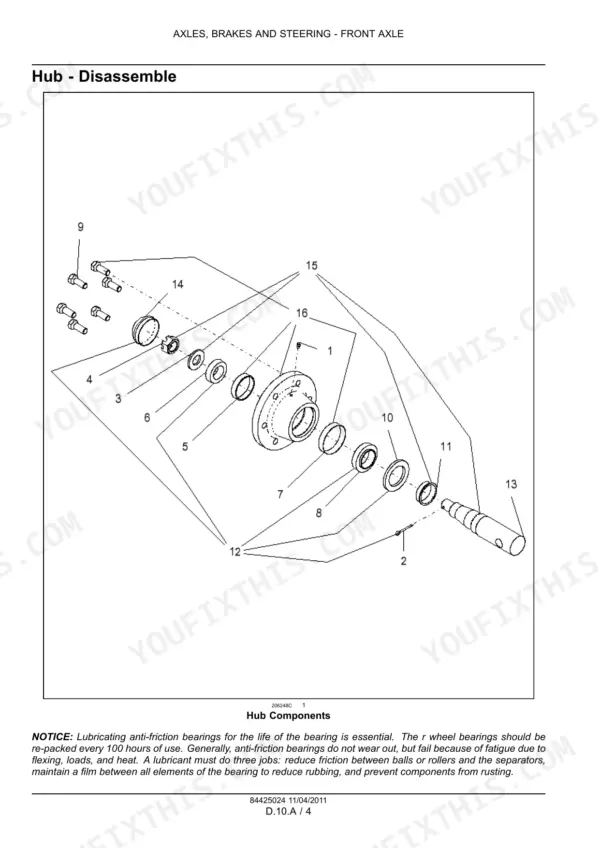

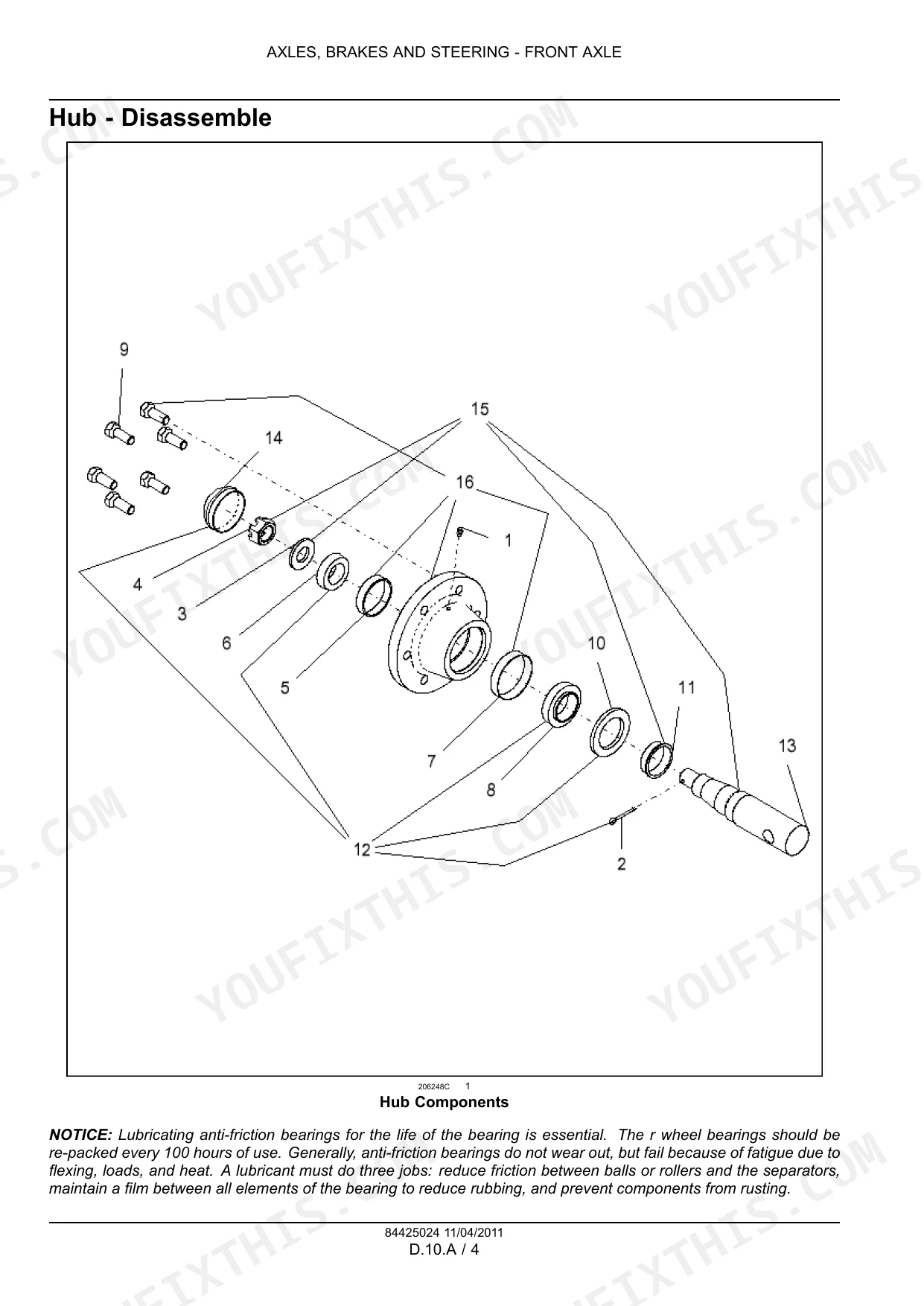

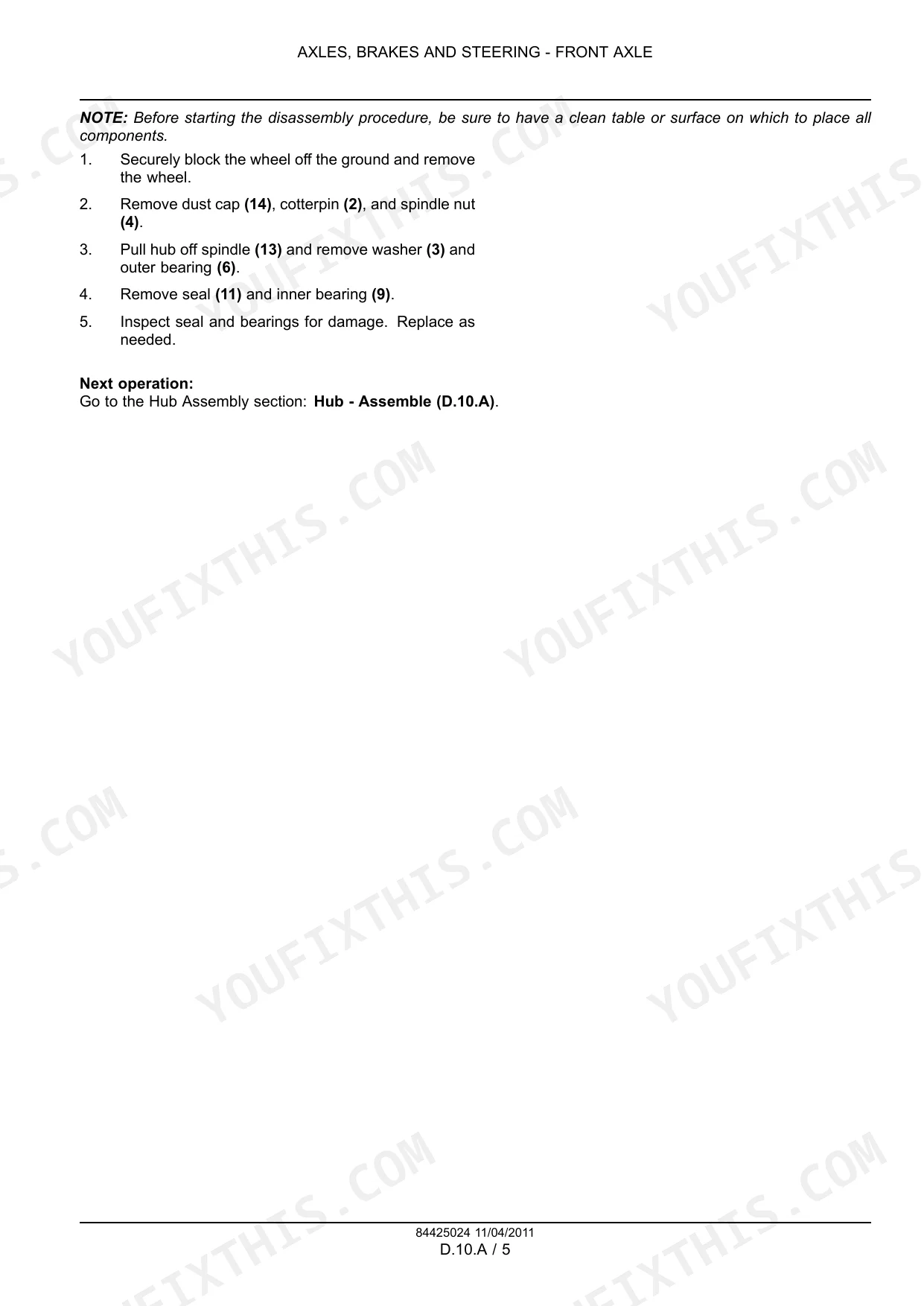

| Axles, Brakes and Steering - D | 330-385 | Front Axle, Wheels and Tracks Wheels |
| Frame and Cab - E | 386-395 | Frame Primary Frame |
| Frame Positioning - F | 396-473 | Travelling Folding, Frame Levelling |
| Field Processing - L | 474-536 | Seeding Mechanical System, Seeding Electronic System, Seeding Air System, Soil Preparation Planting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Installation torque for V-bolts on opener head bracket | 122.0 N·m (90 lb ft) | p. 534 |
| Tire pressure for 11L x 15FI (D) 6 bolt Single Caster Outer Wings | 410 kPa (60 psi) | p. 345 |
| Wheel bolt torque for 11L x 15FI (D) 6 bolt Single Caster Outer Wings | 170 Nm (125 lb ft) | p. 345 |
| Manual Part Number | 84425024 | p. 1 |
| Manual Publication Date | April 2011 | p. 1 |
| Hydraulic Solenoid PRV2 coil resistance | between 4 Ω and 8 Ω | p. 153 |
| ECU_PWR voltage at IBBC | between 12 - 16 V | p. 154 |
| +5V_EXT circuit voltage threshold | 5.2 V | p. 174 |
| Left Caster sensor nominal distance | 4 mm (0.16 in) | p. 457 |
| Right hand frame sensor nominal distance | 6 mm (0.20 in) | p. 457 |
| Maximum opener pressure | 1450 psi | p. 477 |
| Maximum wing frame pressure | 1250 psi | p. 478 |

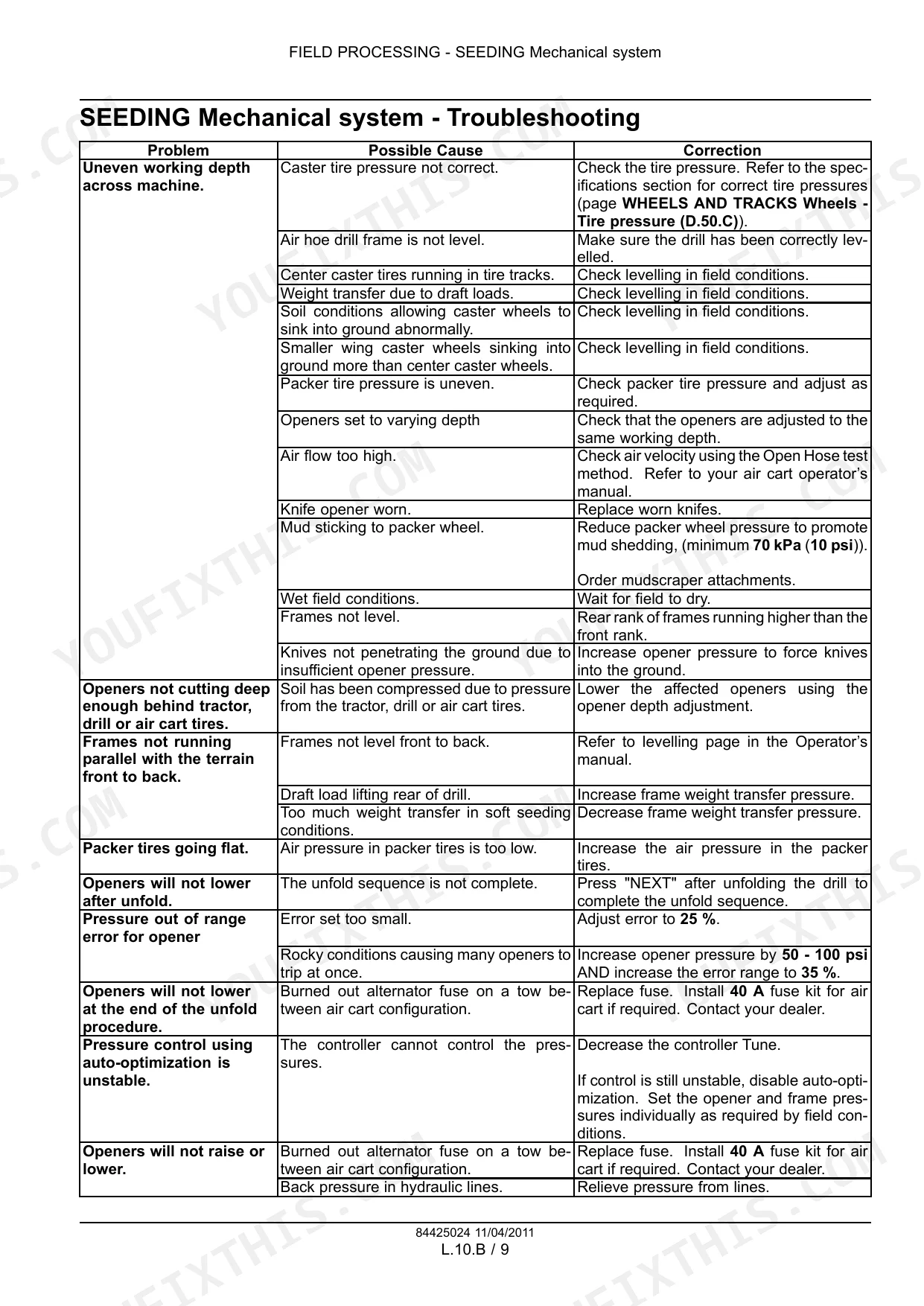

Case IH 800 Common Problems This Manual Covers
Case IH Precision Hoe 800 rows plug and drag up when drilling through corn stalks
Inspect opener shanks for corn stalk buildup wedged between the opener body and packer wheel. Clear all debris, then verify seed wing clears the packer wheel by 1.3 cm (1/2 in) per page 528. Check the mechanical troubleshooting procedures for opener angle and depth settings in heavy residue.
Manual Section: SEEDING Mechanical system - TroubleshootingShank bushings worn on 2-pin assembly, drill dragging up and leaving uneven seed depth p. 528
Remove each shank assembly and inspect all 7 bushings across both pins for wear and side play. Replace as a matched set per shank. After reinstallation, verify seed wing clears the packer wheel by at least 1.3 cm (1/2 in) per page 528. Check for depth variation diagnostics.
Manual Section: SEEDING Mechanical system - TroubleshootingOpener running too deep in field, multiple rows show poor or failed germination
Verify depth adjustment linkage is not binding and shank bushings show no lateral play. Check seed wing-to-packer wheel clearance: it should measure 1.3 cm (1/2 in) as shown on page 528. Review the seeding troubleshooting procedures for systematic depth diagnosis across individual row units.
Manual Section: SEEDING Mechanical system - TroubleshootingV-bolts on the opener head bracket snapping repeatedly under normal load, shanks coming loose p. 534
Inspect all V-bolts at the opener head bracket for proper seating before re-torquing. Torque each V-bolt to 122.0 N·m (90 lb ft) as specified on page 534. Review the seeding troubleshooting procedures for root causes of V-bolt failure, including misaligned opener components or side loading.
Manual Section: SEEDING Mechanical system - TroubleshootingHydraulic opener pressure spikes above limit and auto-optimization cycles unstable during seeding p. 477
Check the hydraulic schematic and verify opener circuit pressure stays below 1450 psi (page 477) and wing frame pressure stays under 1250 psi (page 478). Inspect for blocked return lines or a faulty PRV valve. Review auto-optimization instability steps to isolate the cycling fault.
Manual Section: SEEDING Mechanical system - TroubleshootingSeed Tool Frame in Unexpected State of Transition alarm fires, drill won't fold or unfold
Verify the left caster sensor gap is 4 mm (0.16 in) and the right-hand frame sensor is set to 6 mm (0.20 in) per specifications on page 457. Check all sensor targets for bending or debris. Follow the frame fold sequence exactly as described in Frame Positioning starting at page 396 before re-attempting the transition.
Manual Section: Electronic control - Detailed troubleshooting for "Seed Tool Frame in Unexpected State of Transition" AlarmFrequently Asked Questions
How to reset error codes on Case IH Precision Hoe 800?
To reset error codes, cycle the system power or reset the PHD Rate ECU. You can also navigate to the Main Screen, select UTIL, then FAULT to check active and inactive faults. The maximum number of faults stored is 10, with more recent faults overwriting older ones.
What are the torque specs for Case IH Precision Hoe 800 shank bolts?
For the nuts securing the knives to the openers, torque them to 122 N·m (90 lb ft). If V-bolts on the opener head bracket are over-tightened, reinstall them and torque to 122.0 N·m (90 lb ft).
How to troubleshoot ISO BUS communication errors on Case IH Precision Hoe 800?
To troubleshoot ISOBUS communication errors, specifically CAN_H and CAN_L circuit faults, first cycle system power or reset the PHD Rate ECU. Then, check if the CAN_H circuit voltage is greater than 3.7 V or if the CAN_L circuit voltage is less than 0.1 V. Inspect connectors X-101, X-107, X-111, X-129, and X-132 for shorts, open circuits, or intermittent connections, and replace terminators if necessary.
What are the replacement specifications for Shank pins?
The manual lists several pins related to the opener assembly. For example, there is a PIN 25.4 X 204 UL CHROME (REF 11 on page 523), a PIN CLEVIS .625 X 3.156 ZND (REF 27 on page 525), and a PIN CLEVIS .625 X 2.696 ZND (REF 30 on page 525).
How will I receive this Service Manual?
Instant PDF download. You get the full 536-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Case IH Precision Hoe 800, Air Hoe Drill Service Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Case IH Precision Hoe 800, Air Hoe Drill manual include wiring?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
