Need factory procedures for your 2010 Case IH Scout XL? This 436-page service manual (OEM #CLC103700627) spans all four configurations: two- and four-passenger gasoline and diesel utility vehicles. Inside: separate electrical troubleshooting chapters for gas and diesel variants, wiring diagrams for both engine types, and hydraulic brake schematics covering caliper rebuilds, line replacement, and brake bleeding. Exploded views and step-by-step procedures take you through the heavy work: drivetrain half shafts, front differential, transmission removal, clutch disassembly, and rack-and-pinion steering. Mount the master cylinder to 16 ft-lb (22 N·m) and snug the brake line fittings to 11 ft-lb (15 N·m). Factory numbers, not forum guesses. Your Scout is down. Bookmarked and keyword-searchable, this PDF opens on any device. Grab it now.
What's Inside This Case IH Scout XL, Scout XLT Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | - | - |

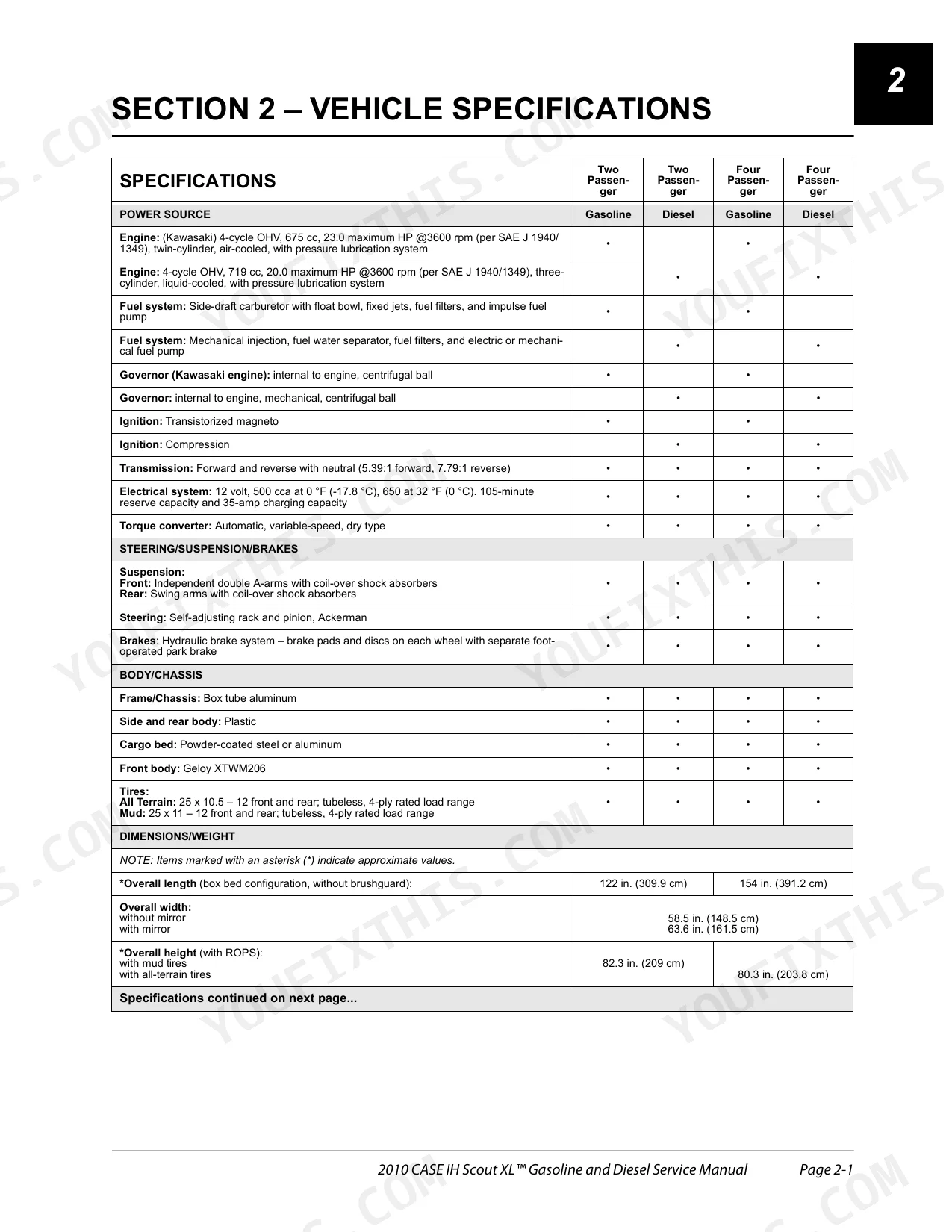

| Vehicle Specifications | - | Engine Hp, Fuel System, Suspension, Dimensions, Liquid Capacities, Tire Pressure |
| General Information | - | Model Identification, Serial Numbers, Extended Storage, Jump Starting |

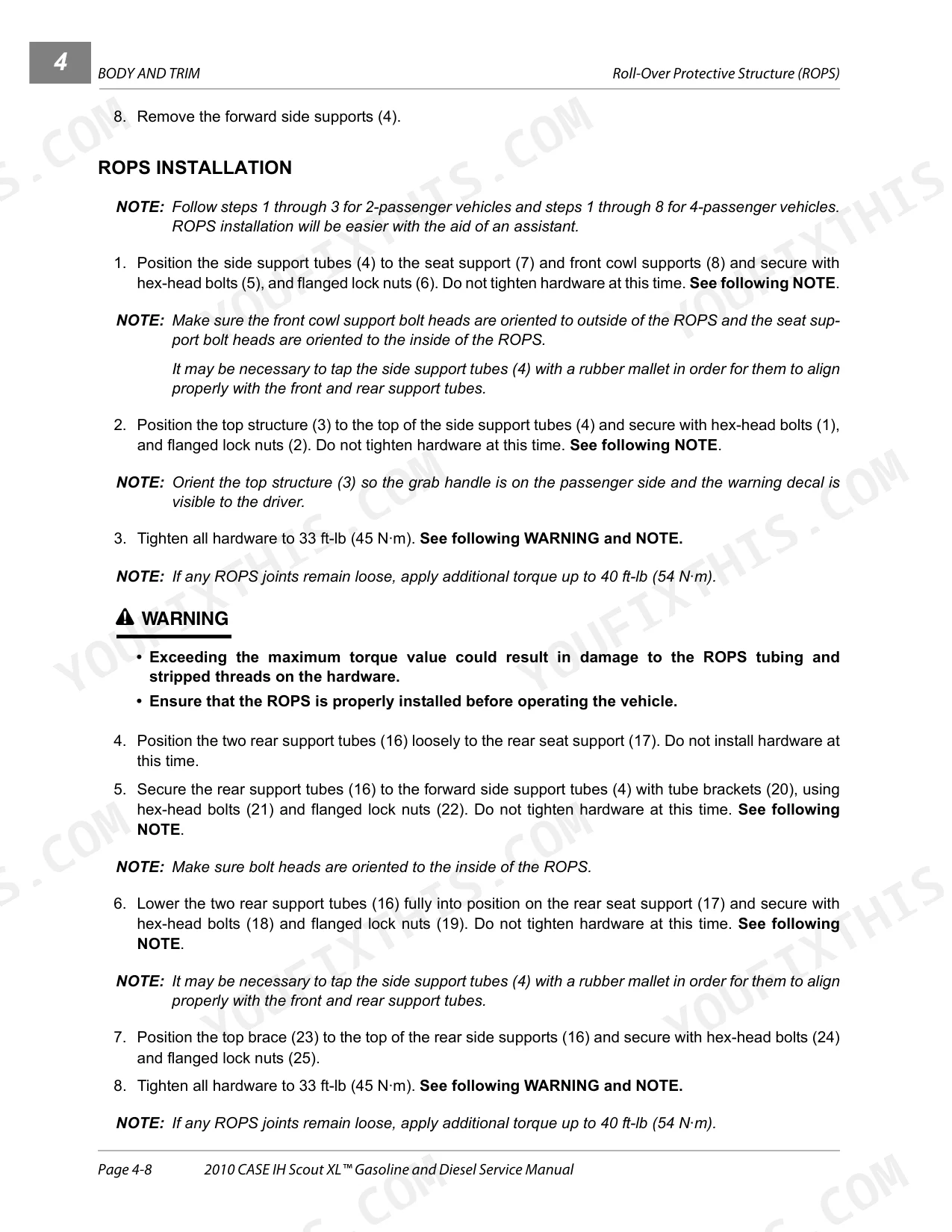

| Body and Trim | - | Vehicle Cleaning, Front Body Repair, ROPS Removal, Cargo Bed Lift, Safety Belts |
| Accelerator and Brake Pedal Assemblies | - | Accelerator Pedal Adjustment, Brake Pedal Adjustment, Park Brake Pedal Removal |
| Hydraulic and Park Brake Systems | - | Brake System Inspection, Troubleshooting, Brake Pads & Caliper, Hydraulic Line Replacement, Bleeding Brakes, Park Brake Adjustment |
| Steering and Front Suspension | - | Steering Wheel Removal, Rack and Pinion Disassembly, Wheel Alignment, Shock Absorber Installation |
| Wheels and Tires | - | Tire Rotation, Wheel Removal, Tire Installation, Tire Pressure |
| Rear Suspension | - | Rear Coil-Over Shock Absorber Removal, Swing Arm Installation |

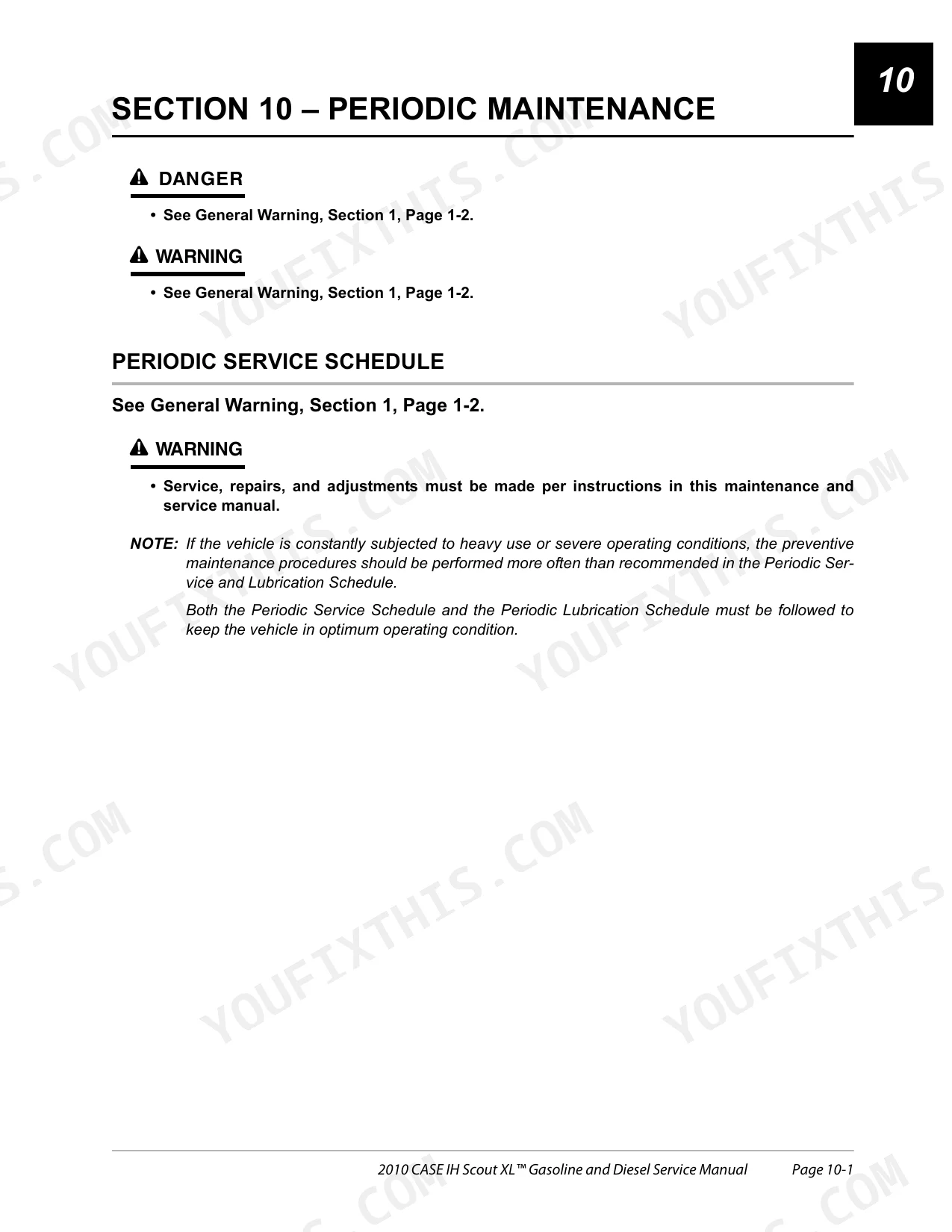

| Periodic Maintenance | - | Service Schedule, Lubrication Schedule, Engine Oil Change, Spark Plugs, Fueling Instructions, Battery Maintenance |

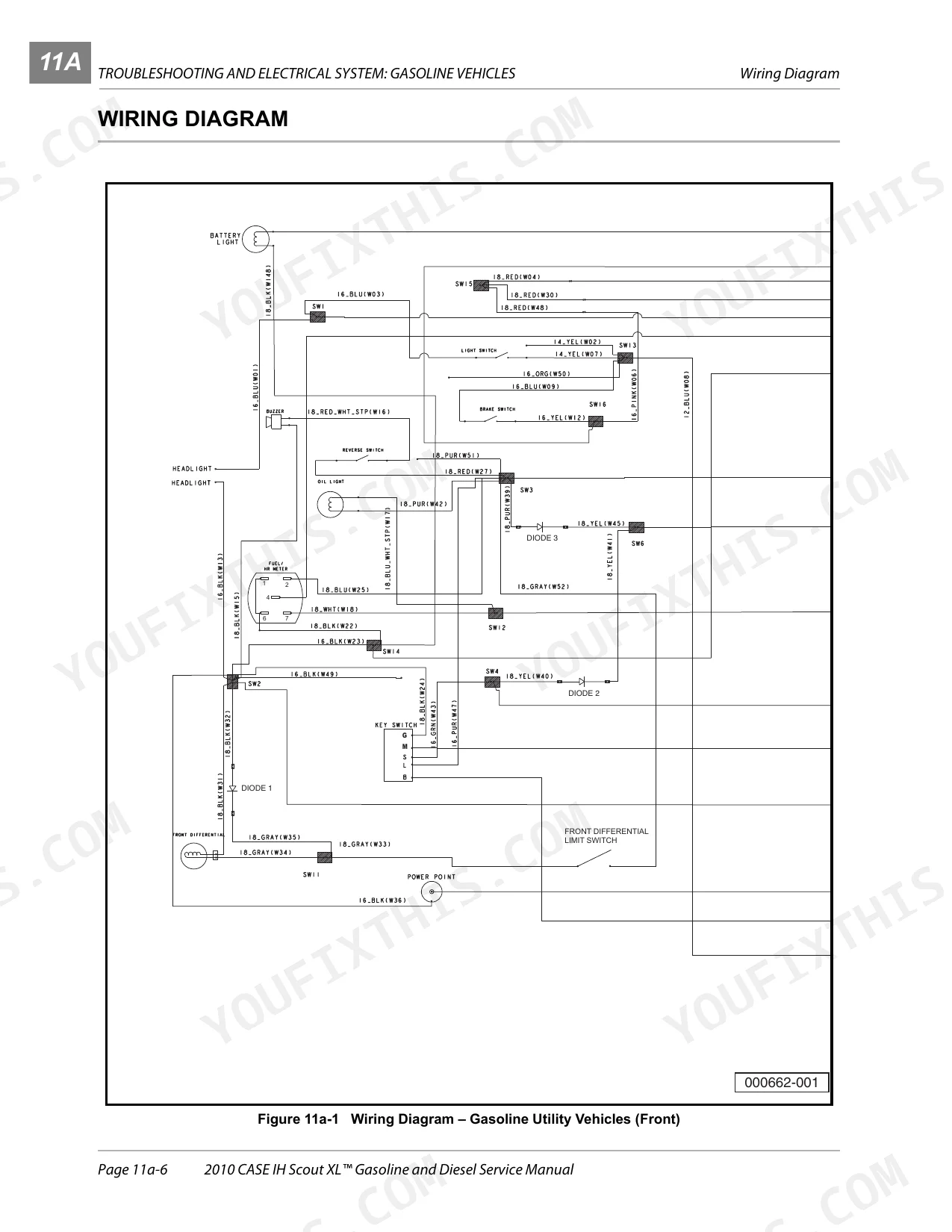

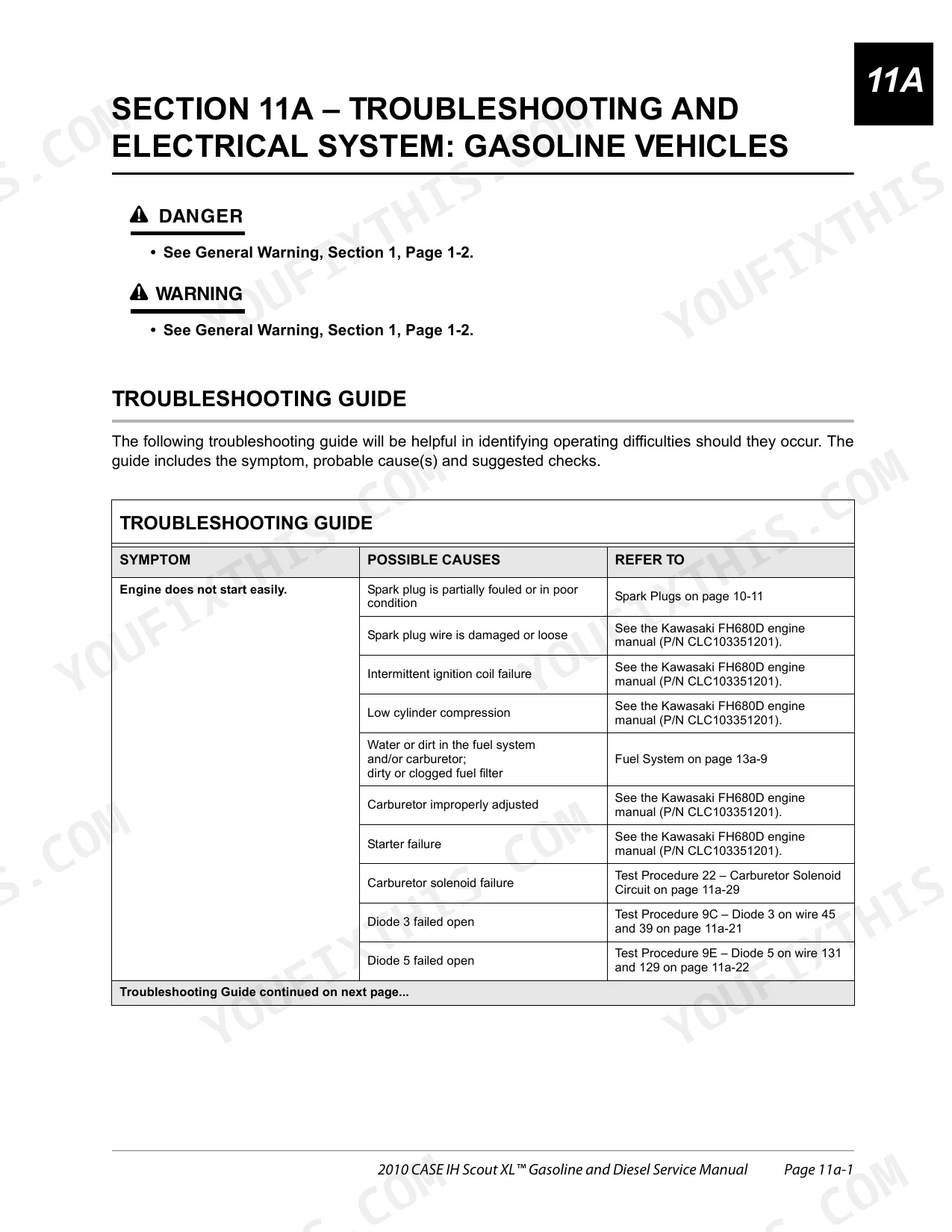

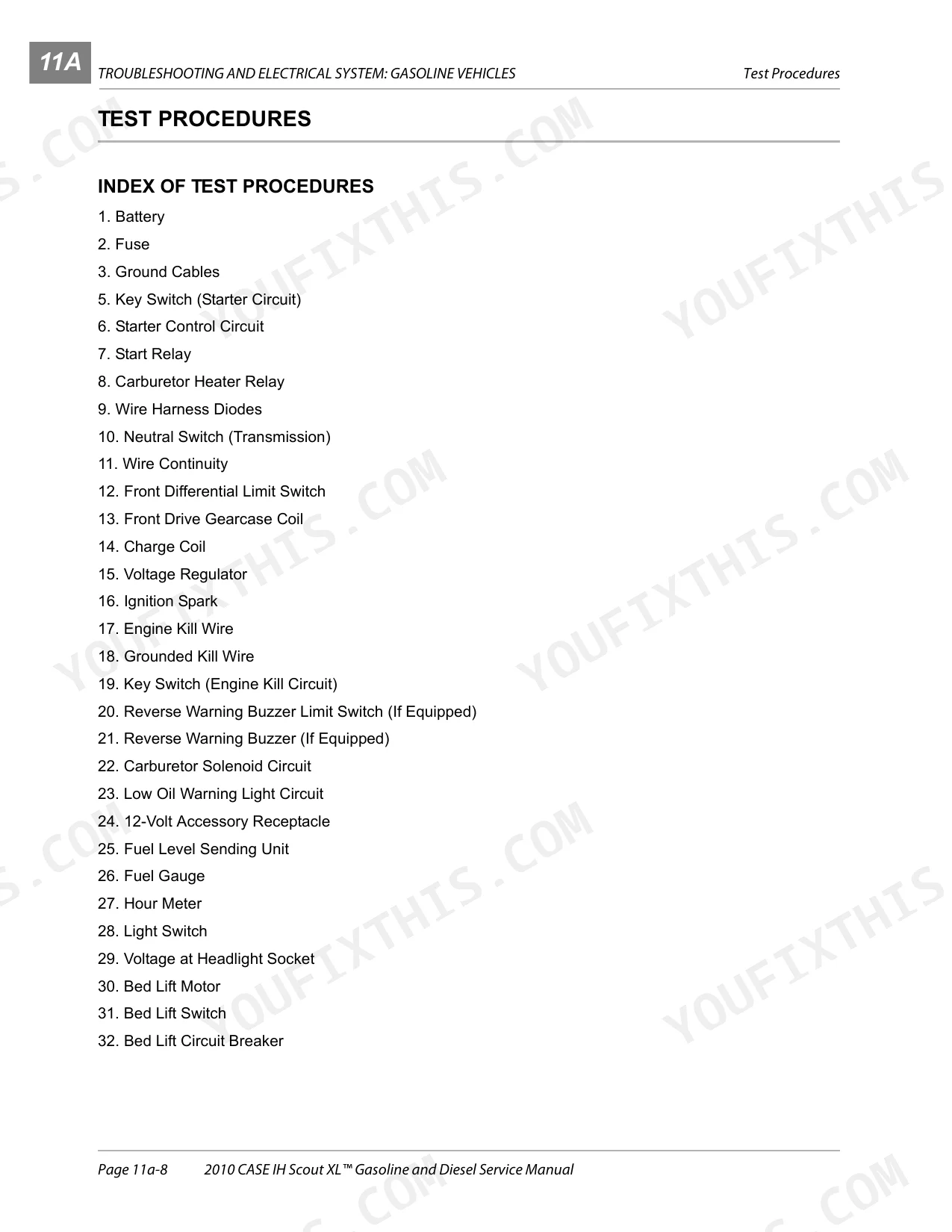

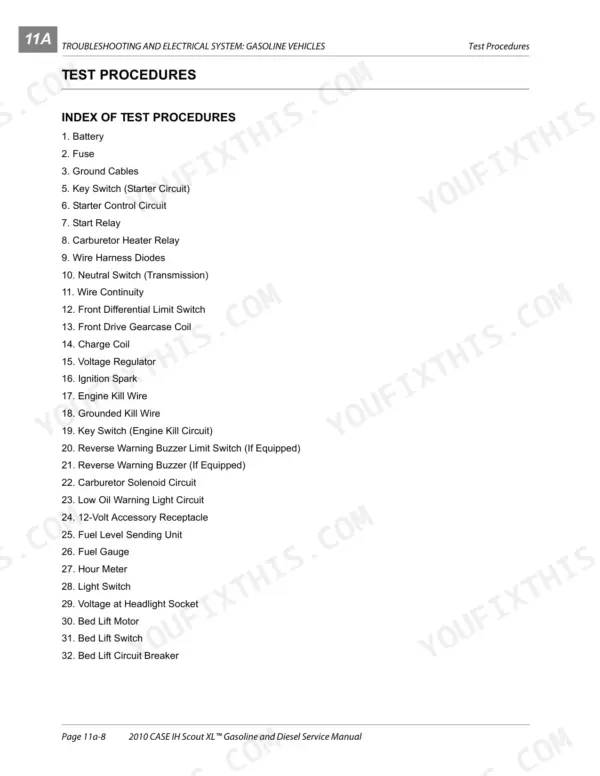

| A/12A – Gasoline Electrical & Troubleshooting | - | Troubleshooting Guide, Wiring Diagram, Battery Testing, Key Switch, Voltage Regulator, Bed Lift Motor |
| B/12B – Diesel Electrical & Troubleshooting | - | Troubleshooting Guide, Wiring Diagram, Alternator Testing, Thermostat Switch, Fuel Solenoid, Fusible Link |
| A – Gasoline Engine, Muffler, Fuel System, and Clutches | - | Engine Removal, Muffler Installation, Carburetor Jetting, Air Intake System, Clutch Troubleshooting |
| B – Diesel Engine, Muffler, Fuel System, and Clutches | - | Engine Removal, Exhaust System, Fuel System Bleeding, Air Filter Replacement, Clutch Disassembly |
| Drivetrain Components | - | Half Shaft Removal, Front Differential Installation, Rear Axle Removal, Transmission Removal, Shifter Cable Adjustment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel tank capacity (Gasoline) | 6.5 gallons (24.6 L) | p. 22 |
| Fuel tank capacity (Diesel) | 6.5 gallons (24.6 L) | p. 22 |
| Master cylinder mounting hardware torque | 16 ft-lb (22 N·m) | p. 74 |
| Brake line fittings to master cylinder torque | 11 ft-lb (15 N·m) | p. 74 |
| Steering system type | Self-adjusting rack and pinion, Ackerman | p. 21 |
| Cargo bed lift type | Electric Lift | p. 41 |
| Front differential lubricant capacity | 5 oz. (150 mL) | p. 22 |
| Rear differential lubricant capacity | 20 oz. (600 mL) | p. 22 |
| Transmission lubricant capacity | 20 oz. (600 mL) | p. 22 |
| 2-passenger Gasoline, 4-passenger Gasoline | ||
| Engine (Kawasaki) crankcase with filter capacity | 1 qt. and 19 oz. (1.5 L) | p. 22 |
| 2-passenger Diesel, 4-passenger Diesel | ||
| Engine crankcase with filter capacity | 3 qt. (2.8 L) | p. 22 |
| 2-passenger | ||
| Brake fluid capacity (2-passenger) | 8 oz. (240 ml) | p. 22 |
Case IH Scout XL, Scout XLT Common Problems This Manual Covers
Case IH Scout XL brake pedal pulsing and loss of holding power on steep grades. p. 74
Inspect the master cylinder internal seals and check for fluid contamination. Drain the system and refill with up to 8 oz (240 ml) of fresh brake fluid for 2-passenger models. Torque the master cylinder mounting hardware to 16 ft-lb (22 N·m) as shown on page 74.
Manual Section: Brake System TroubleshootingUnexpected gasoline engine shutdowns while towing heavy loads with no restart capability. p. 20
Test the battery voltage and inspect ground cables for corrosion. Clean all connections thoroughly. Tighten the battery terminals to exactly 80 in-lb (9 N·m) according to the specifications on page 20. Verify the fuel tank has sufficient fuel up to the 6.5 gallons (24.6 L) capacity.
Manual Section: A/12A – Gasoline Electrical & TroubleshootingCargo bed electric lift motor fails to raise after thirty minutes of continuous operation. p. 41
Inspect the bed lift switch and circuit breaker for thermal overload. Review the electrical specifications on page 41 to verify the electric lift components. Check the battery load and ensure tire pressure is maintained at 20 - 22 psi to prevent chassis sagging under heavy loads.
Manual Section: Body and TrimDiesel engine turns over slowly in cold weather and struggles to maintain a smooth idle. p. 22
Drain the crankcase and replace the oil filter. Fill the diesel engine crankcase with 3 qt. (2.8 L) of fresh oil as specified on page 22. Inspect the glow plug circuit and test the 60-amp fusible link for proper continuity before attempting to restart the engine.
Manual Section: B/12B – Diesel Electrical & TroubleshootingFrequently Asked Questions
How to remove the rear receiver hitch?
To remove the rear receiver hitch, first turn the key switch OFF, remove the key, set the park brake, and place the Forward/Reverse handle in NEUTRAL. Chock the rear wheels. Then, disconnect the battery cables as instructed (refer to General Warning, Section 1, Page 1-3). Remove the hydraulic line T-bracket from the passenger side of the receiver hitch, and detach the hydraulic line from the rubber grommets and hitch frame. Finally, remove the four bolts, washers, and flanged locknuts from the receiver hitch frame and swing arm mounting plates, then remove the receiver hitch.
How do you fix case IH Scout XL brake pedal pulsing and loss of holding power on steep grades?
Inspect the master cylinder internal seals and check for fluid contamination. Drain the system and refill with up to 8 oz (240 ml) of fresh brake fluid for 2-passenger models. Torque the master cylinder mounting hardware to 16 ft-lb (22 N·m) as shown on page 74.
How do you fix unexpected gasoline engine shutdowns while towing heavy loads with no restart capability?
Test the battery voltage and inspect ground cables for corrosion. Clean all connections thoroughly. Tighten the battery terminals to exactly 80 in-lb (9 N·m) according to the specifications on page 20. Verify the fuel tank has sufficient fuel up to the 6.5 gallons (24.6 L) capacity.
How do you fix cargo bed electric lift motor fails to raise after thirty minutes of continuous operation?
Inspect the bed lift switch and circuit breaker for thermal overload. Review the electrical specifications on page 41 to verify the electric lift components. Check the battery load and ensure tire pressure is maintained at 20 - 22 psi to prevent chassis sagging under heavy loads.
What do I get after purchasing this Case IH Scout XL manual?
Immediate download of the complete 436-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Does this Case IH Scout XL manual include hydraulic schematics?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Case IH Scout XL.
