Running a Case IH CM, KM, or SM series tractor and need the factory answer fast? This 130-page Operator Manual (OEM #37-123R1) covers the complete lineup: KM-225 through SM-360, Panther 1000, and CP/KP 1325 and 1360 configurations. Inside: a full safety section with pre-operation checklists, an Instruments and Controls chapter walking through every dashboard indicator and switch position, plus a dedicated troubleshooting guide. The Service and Maintenance chapter maps every fluid change interval, filter schedule, and lubrication point across the model range. Fill the main fuel tank to 267 gallons, confirm the hydraulic reservoir holds 33 gallons, and verify the SM-325 Panther engine oil at 34 US quarts before startup. Every hour your tractor sits is money. Bookmarked for instant navigation and searchable by keyword, this PDF pulls up on your phone or tablet right at the machine.

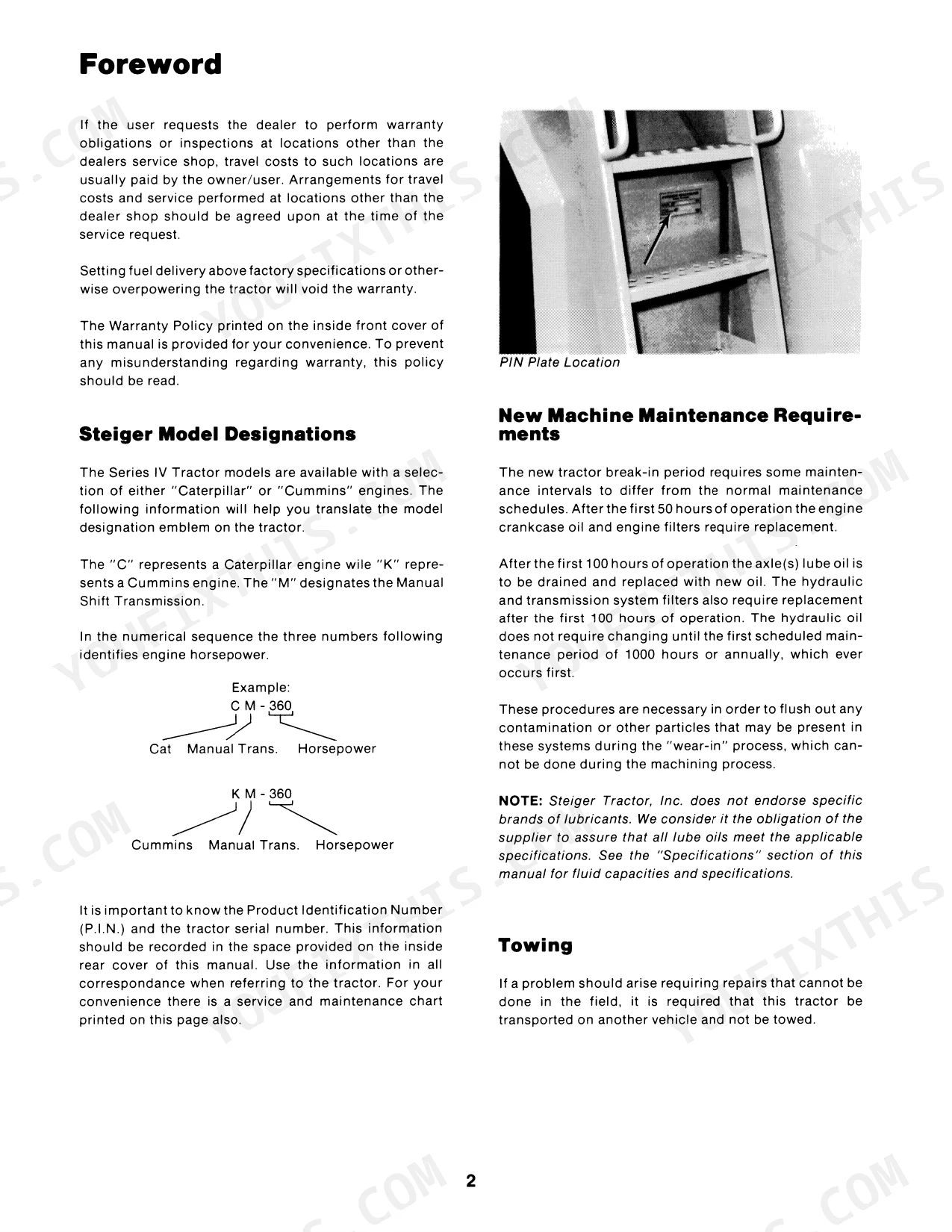

What's Inside This Case IH CM/KM/SM 225–360 Series Operator Manual

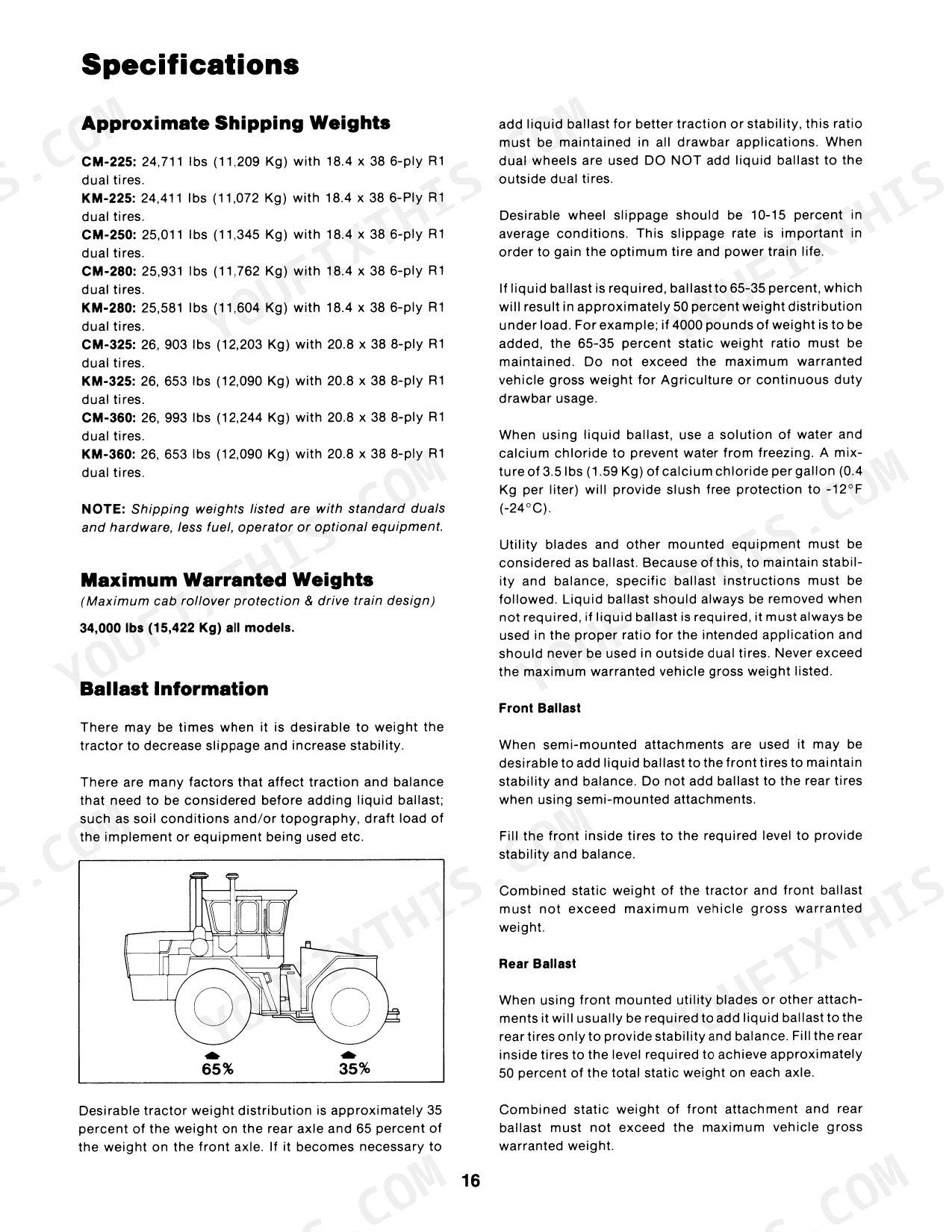

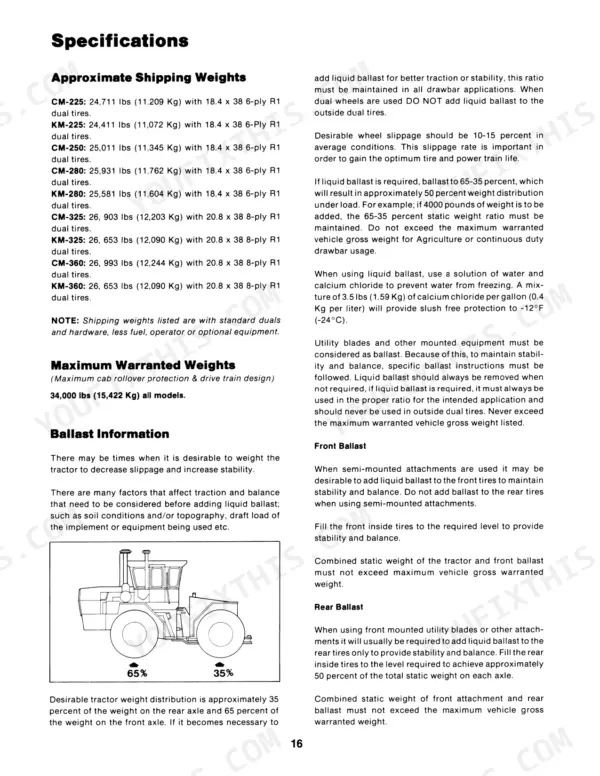

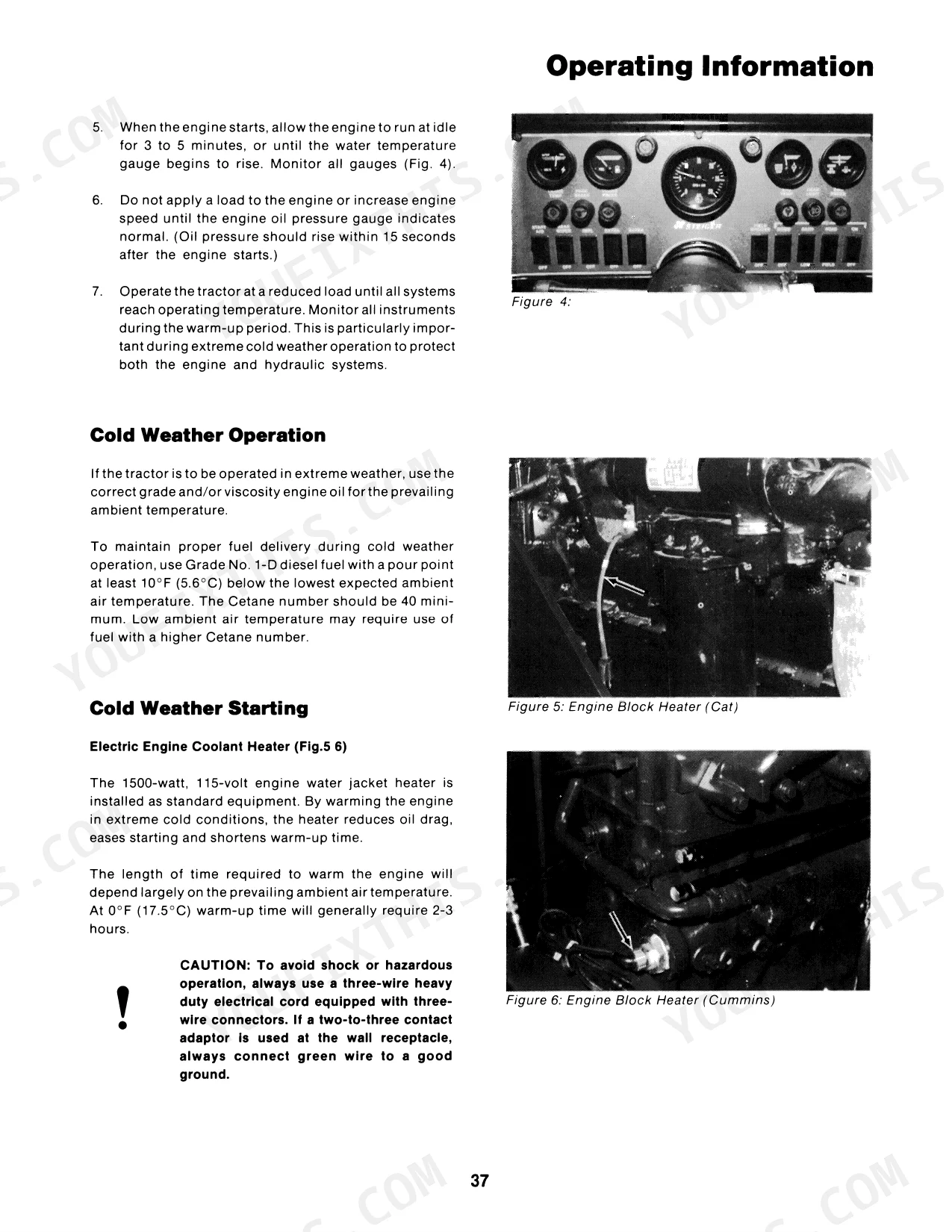

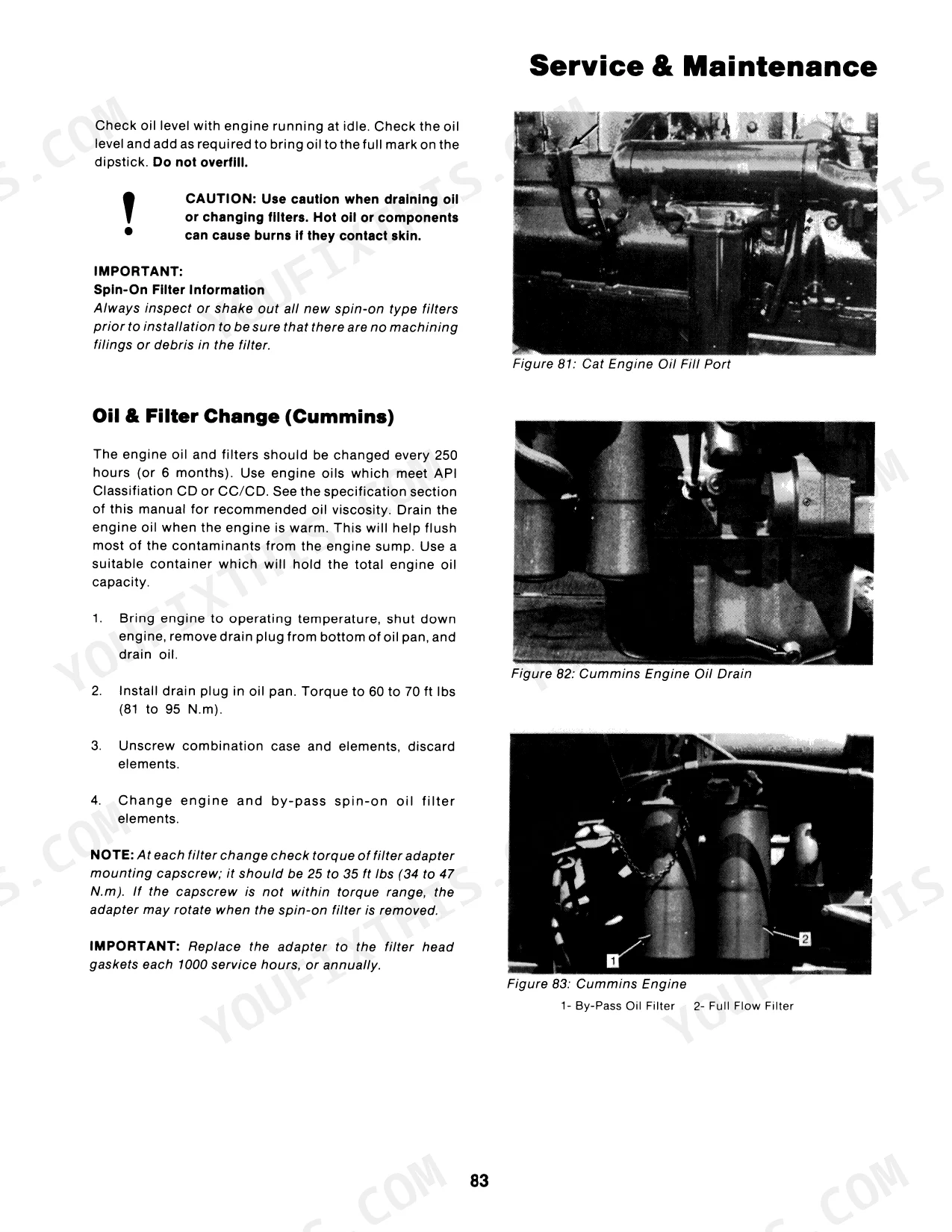

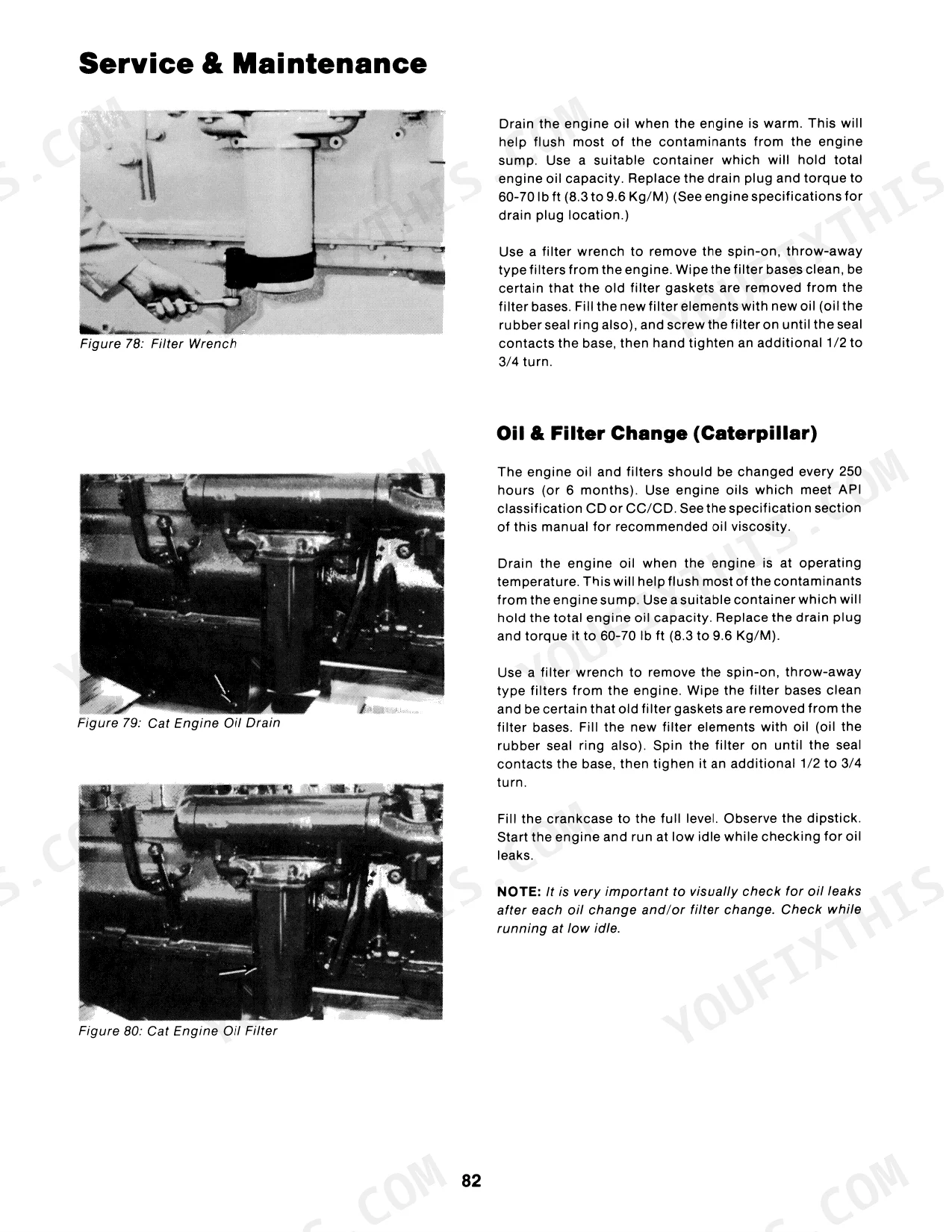

| System | Pages | Key Topics |
|---|---|---|
| Supplement to Series Iv Cm-Km-Sm Operation & Maintenance Manuals | 8-17 | Engine, Clutch, Transmission, Transfer Case, Axle |
| Safety | 24-27 | - |
| Specifications | 28-39 | Axle, Brakes, Cab, Clutch, Electrical, Fuel System, Hydraulic System, Transmission |
| Instruments and Controls | 40-53 | Tractor Controls, Instruments, Operators Station, Tractor Monitor System, Instrument Panel, Cab Controls, Seat and Suspension, Seat Operation |
| Operating Information | 54-73 | Engine, Transmission, Hydraulic System, Hydraulic Couplers, Implement, 3-Point Hitch, Climate Control System, Lights |
| Service and Maintenance | 74-115 | Air Filters (Cab), Recirculation Filter, Engine Air Cleaner, Compressor, A/C Drier Sight Glass, Axle Assembly (598 Axle), Axle Breather Vent, Battery Care |
| Troubleshooting | 116-125 | Clutch, Hydraulic System, Engine |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Oil Capacity | 34 US qts (32.1 L) | p. 10 |
| Coolant Capacity | 16 US gal. (60.5 L) | p. 10 |
| Fuel Capacity | 267 gal. (US) | p. 30 |
| Hydraulic Reservoir Capacity | 33 gal. (US) | p. 30 |
| Transmission/Transfer Case Oil Capacity | 37 qts (35L) | p. 31 |
| Wheel Bolt Torque | 600 lb ft (814 N.m) | p. 111 |
| Drawbar Pivot Pin Torque | 1200 lb ft (1627 N.m) | p. 113 |
| Axle To Frame Bolt Torque | 695 lb ft (942 N.m) | p. 114 |
| Brake Fluid Capacity | 1 qt (0.95L) | p. 28 |
Case IH CM/KM/SM 225–360 Series Common Problems This Manual Covers
Case IH CM/KM/SM tractor hydraulic system noisy, loader or implement lift slow p. 116
Check hydraulic reservoir oil level before operating; total capacity is 33 gal. (US) (125L). Inspect the fluid for foamy texture or milky color, both indicating air or water contamination. Tighten any loose fittings on the suction line. Review hydraulic troubleshooting steps starting at page 116 for pump noise, flow restrictions, and coupler blockages.
Manual Section: Hydraulic System TroubleshootingFuel system won't prime after tank ran dry, engine refuses to start
Open the fuel shut-off valve and verify the tank has fuel; total capacity is 267 gal. (US) (1011L). Drain any accumulated water from the fuel separator bowl. Operate the hand primer pump until resistance is felt, then crank the engine in short intervals. Consult engine troubleshooting starting at page 116 for systematic hard-starting steps.
Manual Section: Fuel System ServiceBrake pedal spongy or travels to floor before trailer or machine stops
Check the brake master cylinder fluid level; approved type and capacity (1 qt / 0.946L) are listed in specifications on page 28. Fill to the MAX mark. Inspect brake lines for cracks or seeping fittings. Bleed the system if the pedal stays soft after filling. Inspect the clutch master cylinder at the same service interval.
Manual Section: Brake & Clutch Master Cylinder CheckTransmission difficult to engage in field, gears grind or require excessive pedal force
Check transmission oil level on level ground with the engine at operating temperature; total system capacity including the transfer case is 37 qts (35L). Top off with the approved fluid grade per specifications on page 28. If fluid appears dark or smells burned, a fluid and filter change is overdue. Inspect clutch adjustment if the problem persists.
Manual Section: Transmission MaintenanceWheel lug bolts loosening after field work, vibration felt through steering wheel p. 111
Torque all wheel lug bolts to 600 lb ft (814 N.m) as noted on page 111. New and repositioned wheels need re-torquing every 10 hours through the first 50 hours of operation. Use a calibrated torque wrench. Inspect all wheel studs and nuts for damage or cross-threading while the wheels are accessible.
Manual Section: Service and MaintenanceFrequently Asked Questions
What are the recommended service intervals?
The manual provides a comprehensive service guide with recommended intervals for various components. For instance, every 10 hours, operators should check instruments, oil level, coolant, and grease points. Every 100 hours, checks include fluid levels and cleaning air filters. Longer intervals like 250, 500, 1000, and 2000 hours involve changing oil and filters, inspecting for damage, and adjusting components.
