All 222 pages of this Case C50–C100 Series Operator Manual (OEM #Don 9-80301) focus on one thing: keeping your C50, C60, C70, C80, C90, or C100 tractor running safely and on schedule. Inside, you get a full operating section covering cold-start procedures, transmission operation, PTO engagement, three-point hitch setup, MFD and differential lock use, plus remote hydraulics — everything from first key turn to field work. The maintenance chapter walks you through every service interval from 10 hours daily up through the 2000-hour mark, with a lubrication chart and fluid capacities spelled out clearly. Your transmission and hydraulic oil filter goes at 20 engine hours first, then every 500 — that's in here. The gear pump on C50 and C60 flows 53 l/min standard; the specs section has the full numbers for every variant. Your machine is down and the clock is running. Download now, search by keyword, find the answer, get back in the seat.
What's Inside This Case C50/C60/C70/C80/C90/C100 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 7-11 | Mechanical Front Drive (MFD) Tractor, Two Wheel Drive Tractor, How to Use This Manual, Official Justifying Documents, Emc - Supplementary Information, Declaration of Conformity |
| Identification Numbers | 12-15 | Product Identification Number, And Serial Numbers, Machine Components |
| Safety/Decals | 16-23 | Safety, Intended Use, Prevention Regulations, Transporting Passengers, Operation, Leaving the Tractor, Implements, PTO Operation |
| Instruments/Controls | 24-37 | Tractor Access, Operators Seat, Operating Controls |
| Operating Instructions | 38-72 | Before Starting the Engine, Run - in Procedure, Service Indicator Lamps and Gauges, Normal Starting Procedure, Cold Temperature Operation |
| Field Operation | 73-99 | Creeper Speed Transmission Operation, Power Takeoff, Rear Three Point Hitch Preparation, Three Point Hitch Operation, Differential Lock, MFD Operation, Remote Hydraulics Operation |
| Tires/Wheels/Spacing/Ballast | 100-138 | Tire and Wheel Equipment, Tire and Wheel Service, Front Axle and Front Tread Adjustments, Front to Rear Tire Size Combinations, Front Wheel Fenders, Rear Wheel Tread Adjustment |
| Lubrication/Maintenance | 139-189 | Environment, Plastic and Resin Parts, Service Parts, Hourmeter, Hood and Side Covers, Lubricants and Capacities, Lubrication/Maintenance Chart, 10 Hours or Daily |
| Electrical System | 190-199 | Battery, Bulb and Lamp Replacement |
| Machine Storage | 200-201 | Preparing the Tractor for Storage, Removing the Tractor From Storage, Lubrication, Fuel System, Cooling System, Battery Maintenance |
| Specifications | 202-222 | Diesel Engines, Electrical, Travel Speeds, Approximate Tractor Measurements, Approximate Tractor Weights, Noise Level |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Battery Type | One 12 volt Battery Group Size 27 Rated at 1.255 to 1.265 Specific Gravity Discharge Rate 605 Amperes at 0˚C (32˚F) | p. 204 |
| Transmission/Hydraulic Oil Filter Replacement Interval | First 20 Engine Hours, then every 500 Hours | p. 41 |
| Hydraulic Pump Type | Gear Pump | p. 205 |
| Rear Wheel Disc to Wheel Rim Nuts Torque | 280 to 340 Nm | p. 126 |
| Drive Belt Deflection | 19 mm | p. 159 |
| Hydraulic System Maximum System Pressure | 17 237 kPa | p. 208 |
| C50, C60 | ||
| Hydraulic Pump Flow Capacity (Standard) | 53 I/min (11.6 g/min) | p. 208 |
| 2WD models | ||
| Transmission/Hydraulic Oil Refill Capacity | 34.0 Litres | p. 203 |
| MFD | ||
| MFD Front Wheel Disc to Rim Bolts Torque | 280-340 Nm | p. 126 |
Case C50/C60/C70/C80/C90/C100 Common Problems This Manual Covers
Case C50 hydraulic system responding slowly or not lifting implements during heavy loader work p. 41
Check the filter replacement schedule on page 41. Replace the transmission and hydraulic oil filter after the first 20 engine hours, then every 500 hours. Verify the system maximum pressure reaches 17 237 kPa to ensure proper implement operation.
Manual Section: Operating InstructionsUnexpected engine overheating with steam or coolant warning gauge reaching the red zone during field operation p. 159
Inspect the cooling system and radiator fins for debris accumulation. Verify the drive belt deflection measures exactly 19 mm as specified on page 159. Adjust the belt tension if necessary and ensure the coolant reservoir is filled to the proper mark before starting.
Manual Section: Lubrication/MaintenanceEngine won't start or turns over extremely slowly when trying to operate in cold weather conditions p. 204
Inspect the battery terminals for corrosion and clean them thoroughly. Check the specific gravity on page 204; it must measure 1.255 to 1.265. Ensure your Group Size 27 battery delivers 605 Amperes at 0 degrees Celsius for reliable cold starting.
Manual Section: SpecificationsFront tires wearing unevenly or clunking noise coming from the front axle during transport p. 126
Inspect the front wheel hardware for looseness before driving. For MFD models, torque the front wheel disc to rim bolts to 280-340 Nm as directed on page 126. Check the tire pressures and adjust the front tread spacing if required.
Manual Section: Tires/Wheels/Spacing/BallastFrequently Asked Questions
What are the recommended service intervals?

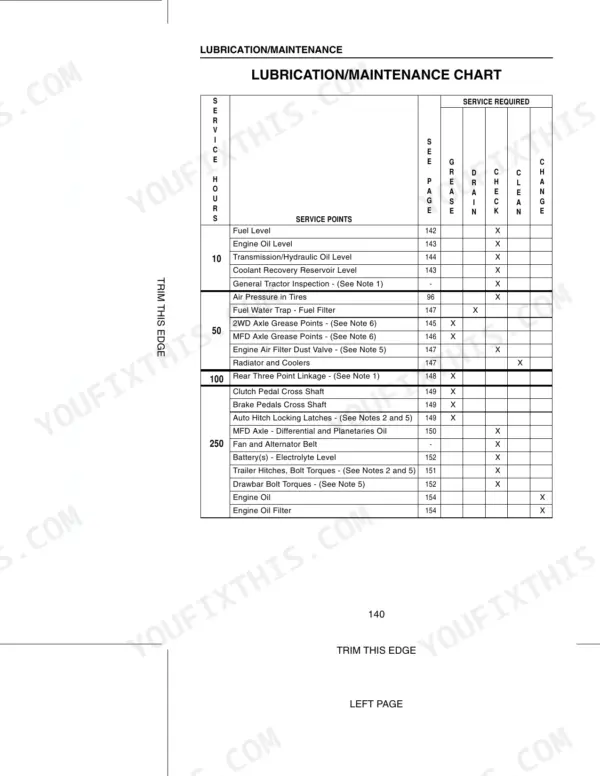

The manual outlines various service intervals, including daily or every 10 hours, weekly or every 50 hours, monthly or every 250 hours, six monthly or every 500 hours, annually or every 1000 hours, and bi-annually or every 2000 hours. For a detailed schedule of tasks, refer to the Lubrication/Maintenance Chart on pages 140-141.
What fluids and capacities does this machine require?
The machine requires Case No.1 Engine Oil, Multi Grade. MS1121 for the engine, with capacities of 6 Litres (10.5 UK Pints) for C50/C60 and 7 Litres (12.3 UK Pints) for C70/C80/C90/C100. The cooling system uses a 55% water and 45% ethylene glycol solution, with capacities of 11.4 Litres (20.0 UK Pints) for C50/C60 and 13.7 Litres (24.0 UK Pints) for C70/C80/C90/C100. The fuel tank capacity is 115 Litres (25.3 UK Gallons) of No.2 Diesel Fuel. The transmission/hydraulic system uses Case HY-TRAN PLUS® fluid, with approximately 34.0 Litres (7.5 UK Gallons) for 2WD models and 36.5 Litres (8.0 UK Gallons) for MFD models. MFD Axle requires Case SAE 85W - 140 EP Gear Oil to API GL-5 or MIL-L-2105D Specification (MS 1316), with 5.0 Litres (8.8 UK Pints) for differential and 0.6 Litres (1 UK Pints) per planetary.
How to troubleshoot engine won't start?
If the engine does not start, check the indicator lamps and gauges for normal indications; if they are not correct, stop the engine and check the cause (page 43). If using the Thermostart system, and the engine does not start in the first 15 seconds, repeat the procedure, pushing the thermostart button for only 10 seconds, and wait three minutes between starts if it still doesn't start (page 47). Additionally, the engine may not start if there is air in the fuel system, requiring an air removal procedure (page 162), or if fuel injectors are damaged (page 181).
What are the hydraulic system specifications?
The hydraulic system features a Gear type pump. For C50, C60 Tractors, the standard pump flow capacity is 53 l/min (11.6 g/min) and high capacity is 60 l/min (13.2 g/min) at 2200 rpm. For C70, C80, C90, C100 Tractors, standard flow is 59 l/min (13 g/min) and high capacity is 68 l/min (15 g/min) at 2200 rpm. The maximum system pressure is 17,237 kPa (2500 psi).
What torque specifications are listed?
Various torque specifications are provided throughout the manual. Front wheel mounting bolts for W/W5.50-16, W/W5.50-18, and W/W5.50F-20 require 81 to 108 Nm (60 to 80 lbs ft), while W/W8L-16 requires 108 to 136 Nm (80 to 100 lbs ft) (page 111). MFD disc to rim bolts should be torqued to 280-340 Nm (205-250 lbs ft), and disc to front axle hub nuts to 300 to 350 Nm (221 to 258 lbs ft) (page 111). Rear wheel disc to rim nuts are 210 to 270 Nm (155 to 199 ft lb) (page 120, 121). ROPS mounting bolts range from 100 to 637 Nm depending on the specific bolt and ROPS option (pages 98-99).
What format is this manual in?
Instant PDF download. You get the full 222-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
