Written for the Steiger STX275 and STX325 tractors, this 236-page Case IH STX275 operator manual PDF (OEM ID Rac 6-6231) runs from serial number identification and safety decals to field operation and scheduled service. Field operation chapters walk through PTO engagement, drawbar setup, Category III or IV-N hitch couplers and remote hydraulics, while the instrumentation section decodes critical, non-critical, diagnostic and information warning displays. Ballast and tire service get a chapter of their own. Fill the STX275 with 6.3 gal (23.8 L) of engine oil and 11.4 gal (43.0 L) of coolant; the STX325 takes 7.25 gal (27.4 L) of oil. If your next job is calibrating the radar sensor or the steering controller, both procedures are in the instrumentation chapter. Bookmarked chapters and a searchable text layer take you straight to the Lubricants and Capacities chart, so you order the right oil and coolant quantities the first time.
What's Inside This Case IH STX275, STX325 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 1-8 | Product Identification and Serial Numbers, Chemical Tank Mounting, Business Band Radios |
| Safety/Decals | 9-20 | Safety, Safety Decals, Roll Over Protective Structure, Seat Belts, Tractor Warning Lamps and SMV Symbol, Implement Warning Lamps and SMV Symbol, Safety Chain |

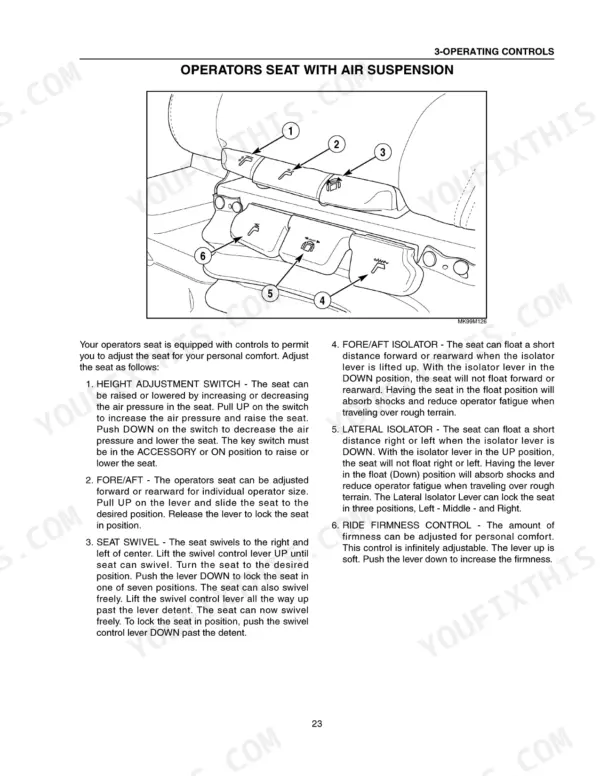

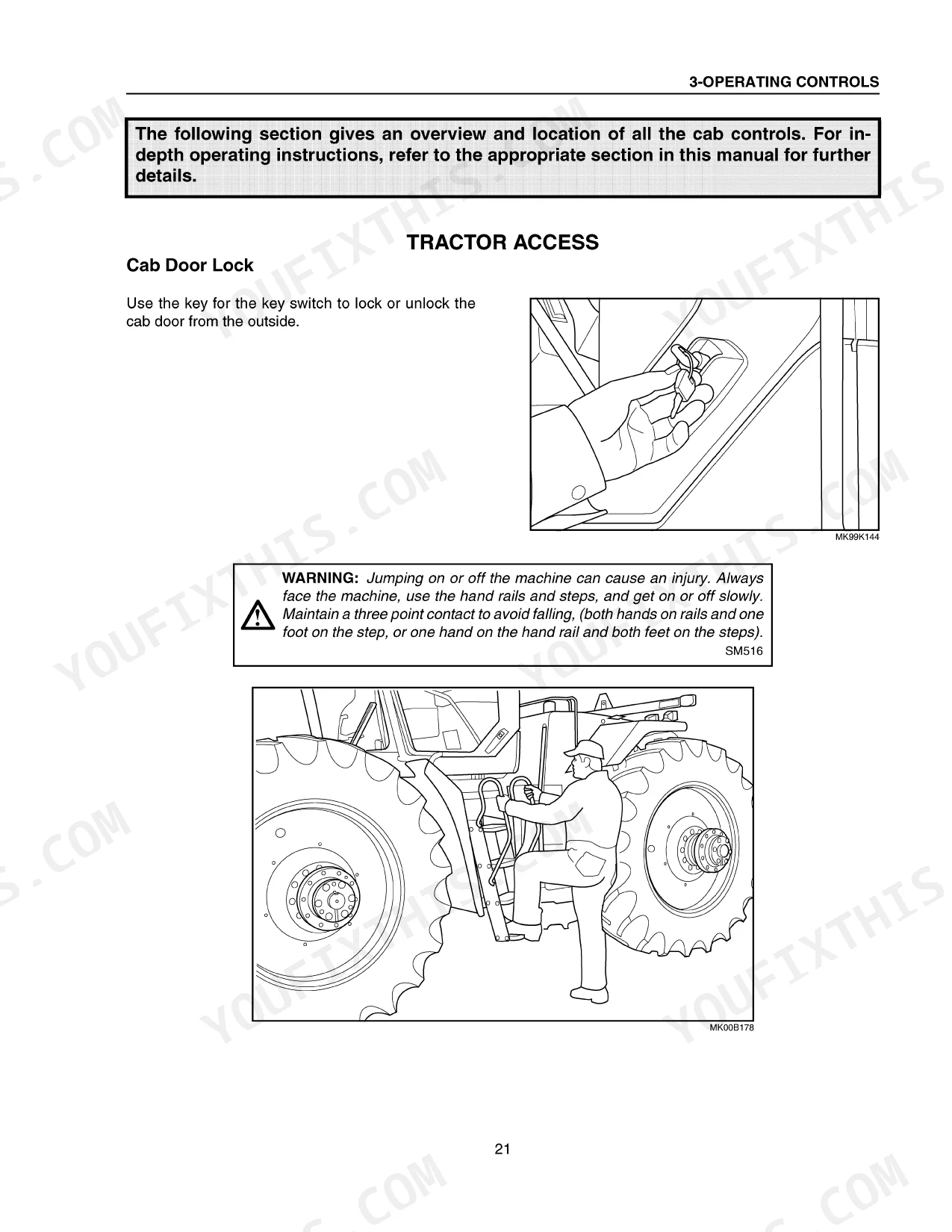

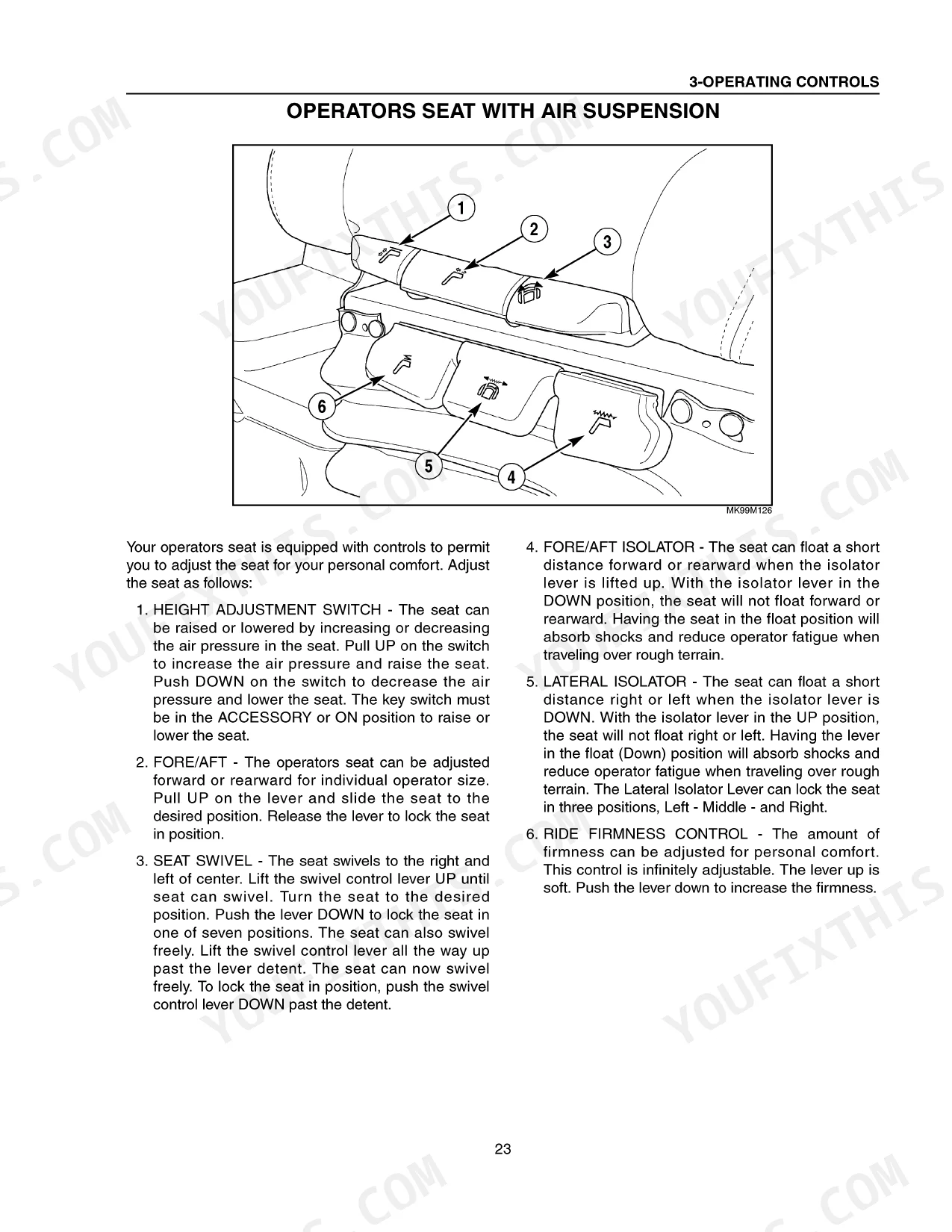

| Operating Controls | 21-52 | Tractor Access, Operators Seat with Air Suspension, Steering Column Controls, Steering Column Adjustment, Foot Pedals, Center Console Controls, RH Armrest Control Console |

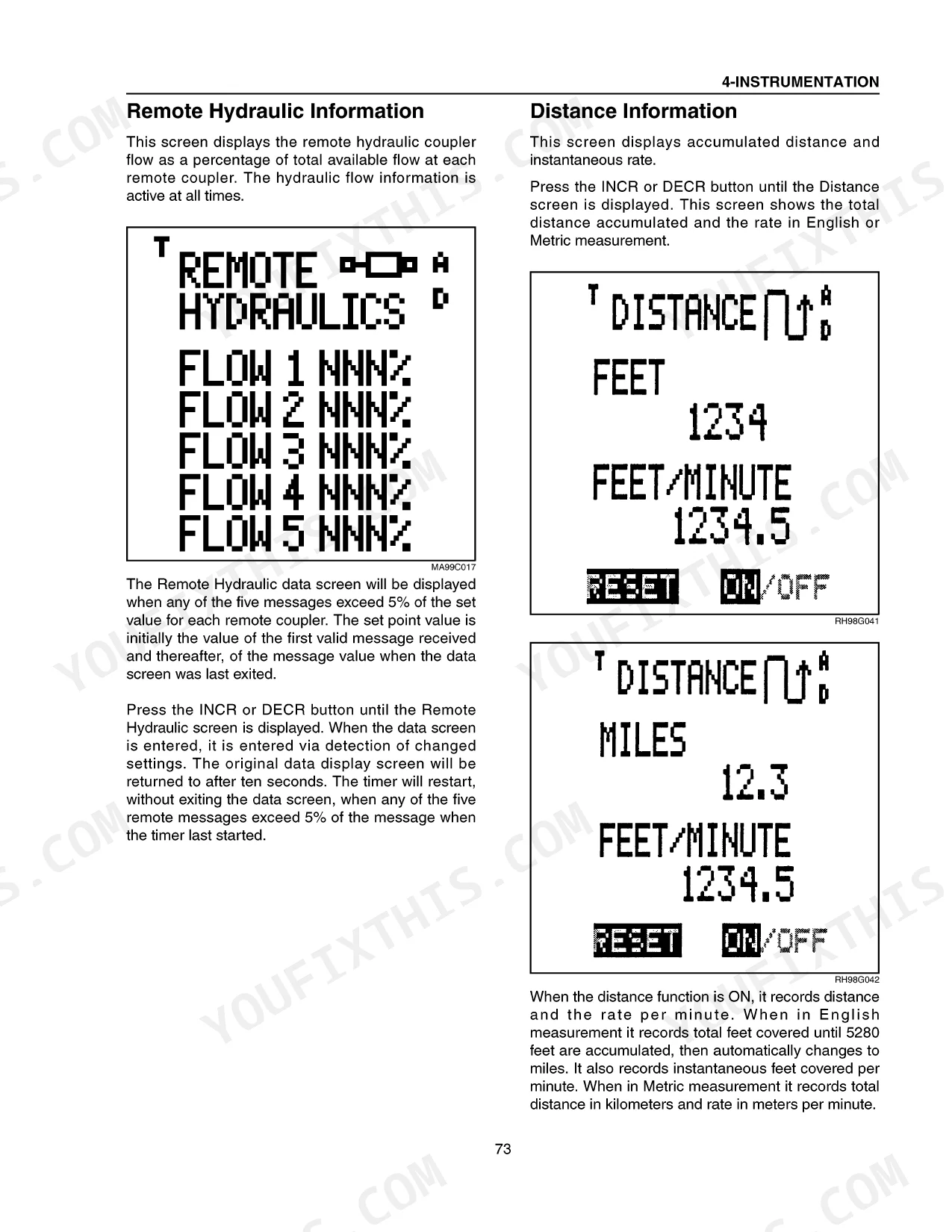

| Instrumentation | 53-76 | ROPS Post Instrument Cluster, Programming the Display Monitor, Instrument Panel Backlight Intensity, Changing the Remote Valve Extend/Retract Values, Changing Tire Radius |
| Operating Instructions | 77-96 | Before Starting the Engine, Run-In Procedure, Engine Overspeed, Seat Belt, Normal Engine Starting Procedure, Stopping the Engine, Cold Temperature Operation, Towing the Tractor |
| Field Operation | 97-136 | Operating the Power Takeoff, Standard Drawbar, Three Point Hitch Preparation, Hitch Coupler - Category III or IV-N, Hitch Operation, Remote Hydraulics |
| In Field Performance | 137-160 | Tractor Ballast, Front and Rear Suitcase Weights, Front Suitcase Weight, Tie Bolt and Clamp Installation, Wheel Weights, Wheel Weight Bolt Torque, Tire and Rim Service |

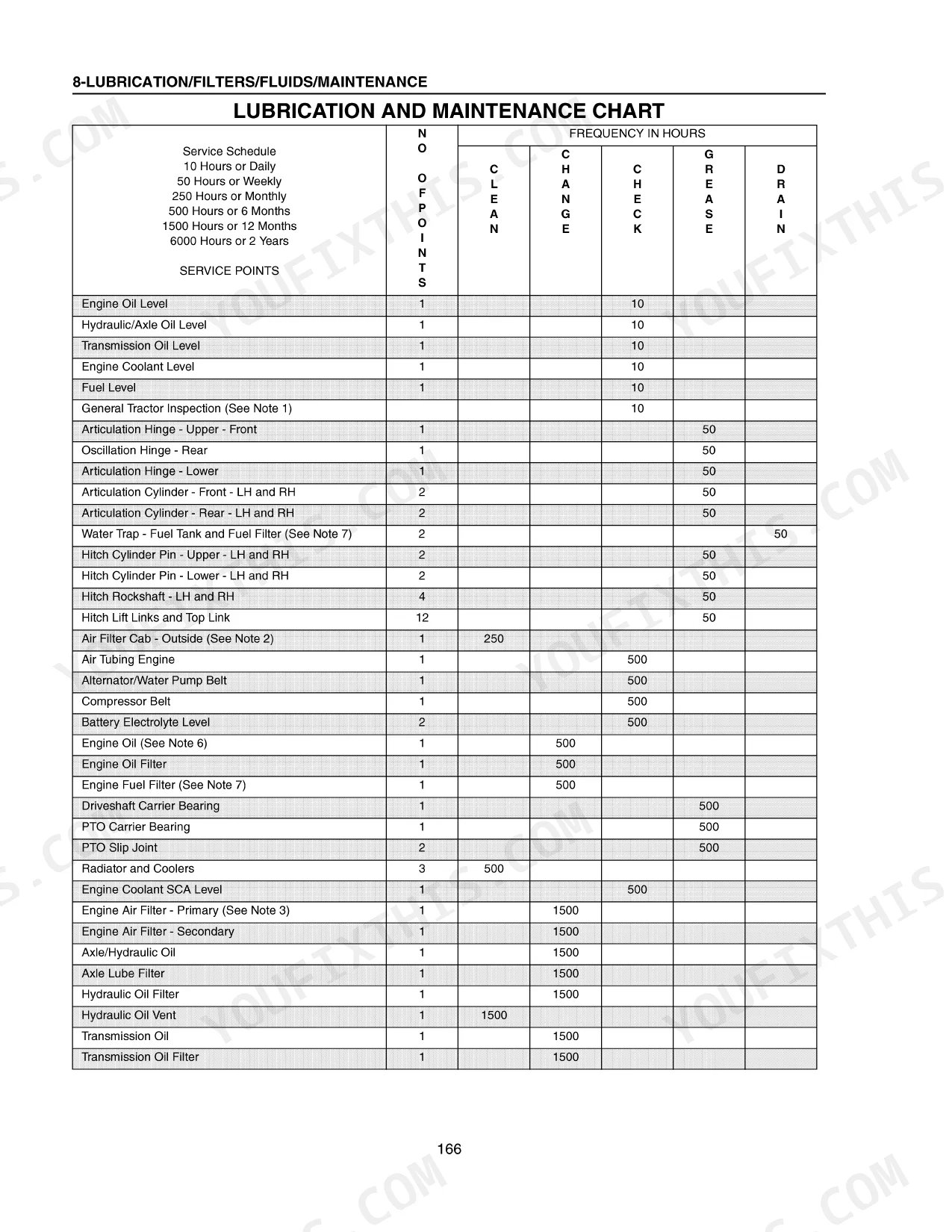

| Lubrication/Filters/Fluids/Maintenance | 161-208 | Lubrication and Maintenance, Plastic and Resin Parts, Lubricants and Capacities, Engine Lubrication, Grille and Hood Access, Lubrication and Maintenance Chart, Air Induction System |
| Electrical System | 209-216 | Diesel Engine |

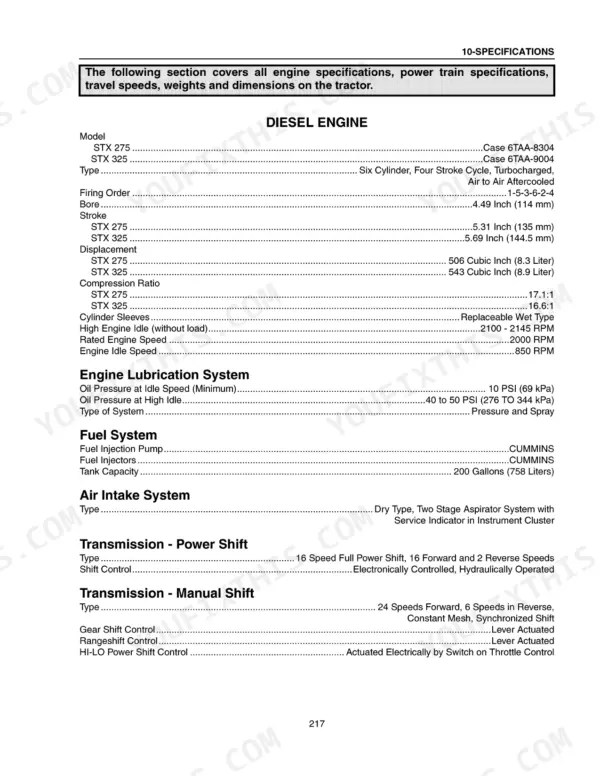

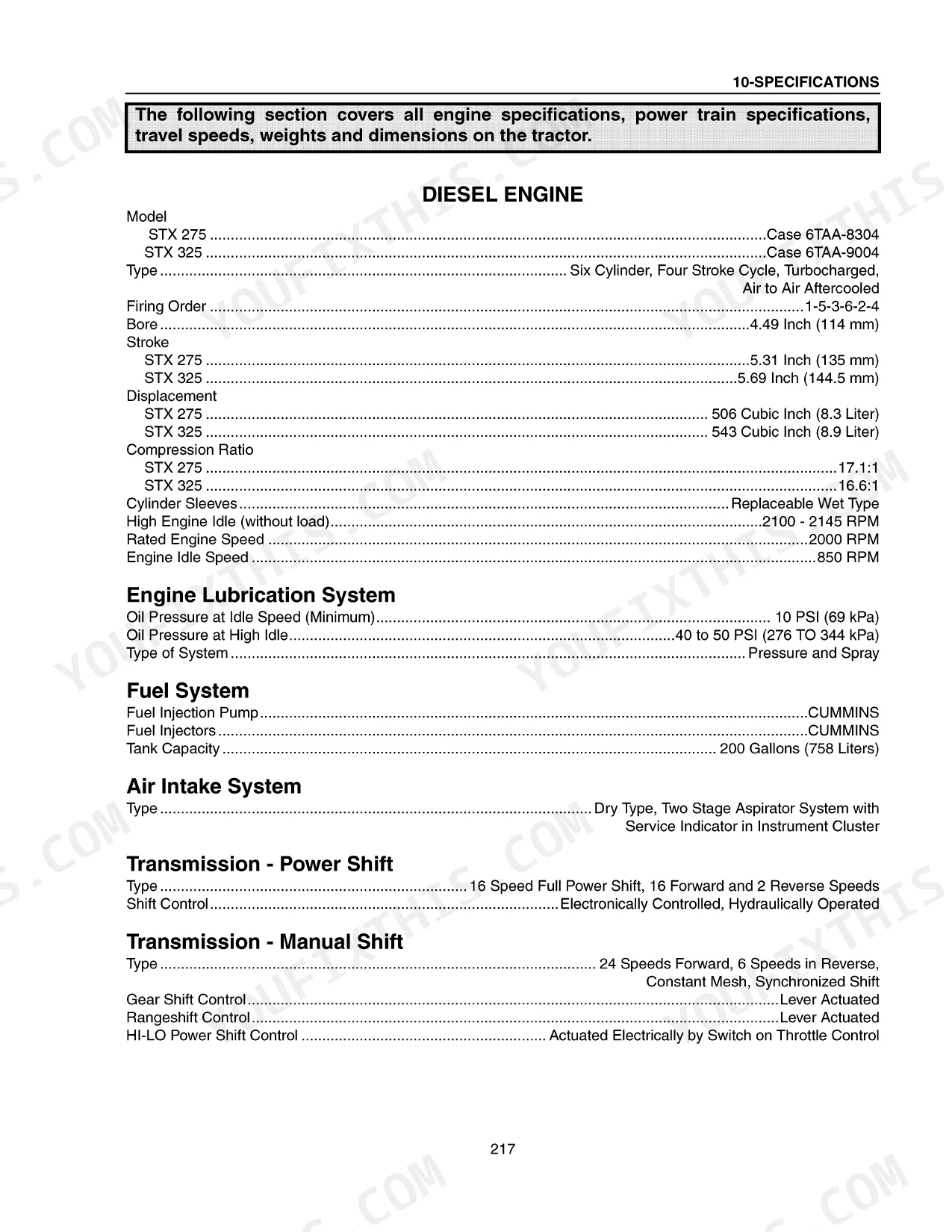

| Specifications | 217-224 | Tractor Weights, Travel Speeds, Approximate Travel Speeds, Approximate Overall Measurements |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Drawbar Pin Diameter | 2.0 Inch (51 mm) | p. 222 |
| Drawbar Pin Length | 8.7 Inch (220 mm) | p. 223 |
| Transmission Oil Capacity (with PTO) | 13.5 Gal. (76.0 Liters) | p. 165 |
| Transmission Oil Capacity (without PTO) | 13.0 Gal. (49.2 Liters) | p. 165 |
| Hammerstrap Retaining Bolt Torque | 540 to 610 lb ft (732 to 827 Nm) | p. 110 |
| Wheel Bolt Torque (M16 Grade 10.9) | 175 to 225 Nm (130-165 ft lb) | p. 150 |
| Bushing to Hub Bolts Torque | 220-260 lb ft (300-350 Nm) | p. 157 |
| Wheel to Hub Bolts Torque | 390-420 lb ft (530-570 Nm) | p. 157 |
| STX275 | ||
| Engine Oil Capacity (STX275) | 6.3 Gal. (23.8 Liters) | p. 165 |
| Coolant Capacity (STX275) | 11.4 Gal. (43.0 Liters) | p. 165 |
| STX325 | ||
| Engine Oil Capacity (STX325) | 7.25 Gal. (27.4 Liters) | p. 165 |
| Coolant Capacity (STX325) | 12.4 Gal. (47.0 Liters) | p. 165 |
Case IH STX275, STX325 Common Problems This Manual Covers
Case IH STX275 STX325 steering calibration shows CAL ERROR and steering reverts to rear articulation only
Verify the display reads CAL ERROR and not CAL FAILED, then contact your dealer for service. Page 65 treats CAL ERROR as a fault in some part of the steering system, and the controller falls back to rear articulation only steering. Before calling, open STEER VIEW and note the software revision code and the axle and articulation potentiometer positions.
Manual Section: Instrumentation p. 65Accusteer steering calibration STEER SET MENU will not open on the performance monitor
Check that the steering control switch on the armrest console is ON and COMBINATION shows on the performance monitor. Start the tractor, then hold PROG for three seconds within the first ten seconds of startup until a short beep and INST SET MENU appear (page 66). Press DECR to reach STEER SET MENU. Clear the area of people and allow room for full left and right turns, per the warning on page 66.
Manual Section: Instrumentation p. 66CAL FAILED screen appears at the ARTC CENTER or AXLE CENTER step during steering calibration
Verify the asterisk is on the display before pressing PROG, because recording off center gives CAL FAILED. Press PROG to return to the step. For ARTC CENTER, equalize the gap between front and rear frames on each side (page 66). For AXLE CENTER, center the articulation joint, then equalize front axle bar to rear axle bar distance on each side (page 67). Keep people clear and allow room for full turns (page 66).
Manual Section: Instrumentation p. 66After switching to dual wheels or changing wheel spacing, front tires show wheel interference at full steer
Adjust the front steer stops by recalibrating; page 65 calls for calibration after changing from single to dual wheels or changing wheel spacing. In STEER CAL, select AXLE LEFT and AXLE RIGHT alone, steer to the desired stop, wait for the asterisk, and press PROG (page 67). Turn the key OFF and back ON to finish. Keep people clear and allow room for full left and right turns (page 66).
Manual Section: Instrumentation p. 65Engine constant speed control switch stops increasing engine rpm when the top is pressed
Check the throttle lever position first. Page 47 states the constant speed control cannot set engine speed higher than the current throttle lever position, so move the throttle lever forward, then press the top of the switch again. Each press changes speed about 10 rpm. Verify the constant speed power switch is ON with the top of the rocker pressed.
Manual Section: Operating Controls p. 47Non-critical warning display shows a hitch or remote hydraulic controller communication failure message
Check the controller fuses against the deluxe cab fuse and relay chart for your transmission: page 214 for powershift, page 215 for 24 speed. Inspect fuse 40 (10 A, HYD AUX/RMT VALVES) and fuse 41 (10 A, TPH on powershift, TPH/MEGA-FLOW on 24 speed). Verify fuses 9 and 37 (10 A, ICU/PMU display). Then review the warning listing on page 68 before running the three-point hitch or remotes.
Manual Section: Non-Critical Warning DisplaysFrequently Asked Questions
How do you reset the transmission or hydraulic fault codes on a Case IH STX275?
To clear a fault, first correct the underlying issue, then depress the RESET button on the Programmable Display. Note that critical faults cannot be cleared by the RESET button and require immediate engine shutdown. p. 68
How do you calibrate the transmission on a Case IH STX275/STX325?
The transmission control system is managed by an electronic controller that monitors functions and identifies faults. While the manual describes steering and radar calibration, transmission fault codes are identified by the controller and displayed on the instrument cluster. p. 93
What are the torque specifications for the wheel and final drive bolts on a Case IH STX275?
The wheel to hub bolts and spacer to hub bolts require a torque of 390-420 lb ft (530-570 Nm). Always use a wet torque value and re-check the torque after the first 30 minutes of operation. p. 157
What are the replacement specifications for engine oil and fuel filters on the Case IH STX275, STX325?
Change the engine oil and filter every 500 hours or once a year. Fuel filters should also be changed at the recommended interval, and the primary fuel filter should be drained of water every 50 hours. p. 185
What are the replacement specifications for transmission and hydraulic filters on the Case IH STX275, STX325?
The transmission oil filter and hydraulic filters should be changed every 1500 hours. The transmission filter is located on the inside of the LH side front frame. p. 200
