A snapped sickle section or a growling pitman bearing halfway through first cutting is a cheap fix, as long as the replacement you order actually fits. That is the job this Gehl 2170 parts catalog PDF handles: 48 pages, form 906305, covering the 2140 and 2170 mower conditioners across four variants, MC models included. Exploded views take up most of the book and break down the pusharm hydraulics, forming chamber, conditioner rollers, gearbox, reel drive, pitman and wobble arm drive, sickle and guards, PTO towers and telescoping driveline, with each callout tied to a Gehl part number. A numerical index at the back works in reverse, so you can check what a number belongs to before you pay for it, and the options pages cover tongue positioners, tall crop dividers and narrow windrow guides. Sickle guards look alike until the wrong one arrives. Bookmarks and a live text layer get you the right part number on the first order, so the machine is cutting again this season.
What's Inside This Gehl 2140, 2170, MC2140, MC2170 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2 | Service Parts Ordering |
| Decal Locations | 4-5 | Decal Application Instructions, Paint Ordering Information, Safety Decals, Warning Decals, Danger Decals |
| Trailer Frame, Leg & Pusharm | 8-9 | Trailer Frame Assembly, Push Arm Pivot, Flotation Spring, Lift Assembly, Spindle, Latch |
| Pusharm & Hydraulics | 10-11 | Hydraulic Cylinder, Flotation Spring, Push Arm, Hydraulic Hose Assembly, Pivot Pin, Grommet |
| Forming Chamber | 12-13 | Fluffer Assembly, Connecting Rod, Side, Center Backing Plate, Side Backing Plate, Windrower |
| Header Frame & Conditioner Rollers | 14-15 | Header Frame, Conditioner Rollers, Belt Shield, Rock Shoe, Push Bar, Sickle End Shield |
| Wheel Assembly | 16 | Wheel Hub, Wheel Bolt, Wheel Nut, Bearing Cone, Bearing Cup, Grease Seal |
| Pitman Drive | 17 | Flange Bearing, Sprocket, Sheave, V-Belt |

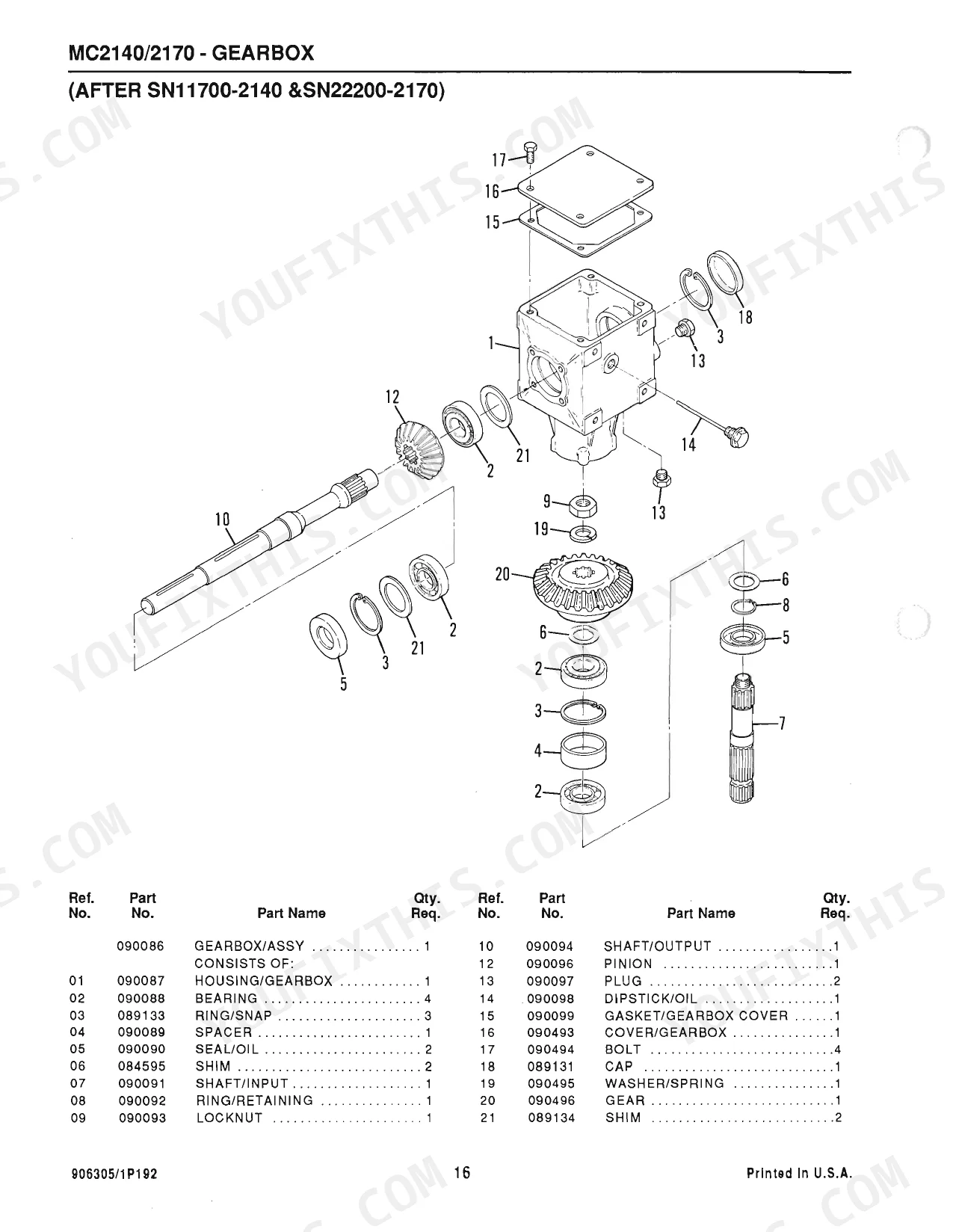

| Gearbox | 18-21 | Conditioner |
| Reel Variable Drive | 22 | Shim, Sprocket, Jackshaft, Flangette, Chain |
| Pitman & Wobble Arm Drive | 23 | Pitman Arm, Clamp, Socket, Bearing |

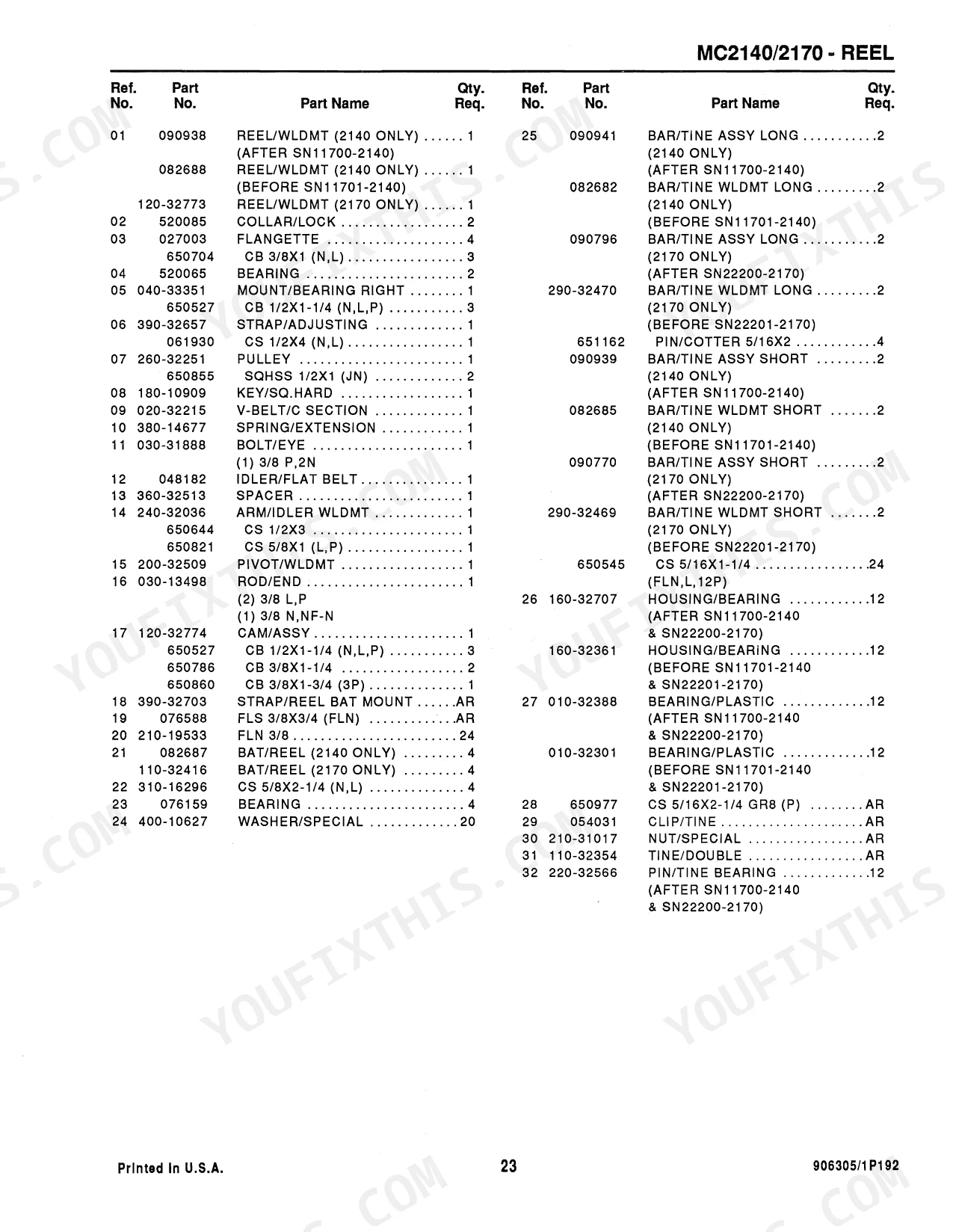

| Reel | 24-25 | Weldment, Collar, Flangette, Bearing, Strap, Bar Tine Assembly |
| Sickle & Guards | 26-29 | Guard, Sickle, Clip, Section, Rivet, Head |
| PTO Tower | 30 | Lock Collar, Bearing, Yoke |
| PTO Tower with CV Joint Kit | 31-32 | Shield, Driveline, Yoke, Bearing, Housing, Kit |
| Telescoping Drive | 33-34 | Joint, Yoke, Spring Lock, Kit, Retainer, Guard |
| Hitchjacks | 35 | Pin, Chain, Crank, Internal Parts |
| Options & Accessories | 36-40 | Mechanical Tongue Positioner, Hydraulic Tongue Positioner, Center Skid Shoe & Cutter Bar Wear Plate, Tall Crop Divider, Narrow Windrow Guides |
| Standard Hardware Torque Specifications | 47-48 | Bolt Size, Grade 2 Dry, Grade 2 Lubricated, Grade 5 Dry, Grade 5 Lubricated, Grade 8 Dry, Grade 8 Lubricated |
Gehl 2140, 2170, MC2140, MC2170 Common Problems This Manual Covers
Gehl 2140 or 2170 pusharm hydraulic cylinder leaking, need the correct seal kit part number for my serial
Check the Pusharm & Hydraulics parts list on page 10 and find your serial break. Cylinder 117086 (after SN12300-2140 and SN23500-2170) takes seal kit 093110, and the earlier 090584 takes seal kit 093105. The ref 13 cylinders, 117085 and 090871, both use seal kit 093110. Confirm your serial number before you order.
Manual Section: Pusharm & Hydraulics p. 10Lift cylinder hose assembly part number changes across serial ranges, not sure which hose fits my machine
Match your serial number to ref 14 on page 10. Hose 124127 fits after SN12300-2140 and SN23500-2170. Hose 097596 fits after SN12000-2140 and SN22800-2170 but before SN12301-2140 and SN23501-2170. Hose 090673 fits before SN12001-2140 and SN22801-2170. Units before SN12301-2140 and SN23501-2170 also list elbow 068938, three required.
Manual Section: Pusharm & Hydraulics p. 10Right pusharm flotation spring assembly broken, need the part numbers for the individual spring and plugs
Check ref 03 on page 10. The right flotation spring assembly is 380-32351. To order the pieces one at a time, the list gives 385-27865 top plug, 380-32350 spring and 385-27867 bottom plug. Then check the left side and pivot hardware in the Trailer Frame, Leg & Pusharm exploded view on page 8.
Manual Section: Pusharm & Hydraulics p. 10Decals faded or the machine was repainted, need the full decal set and matching paint part numbers

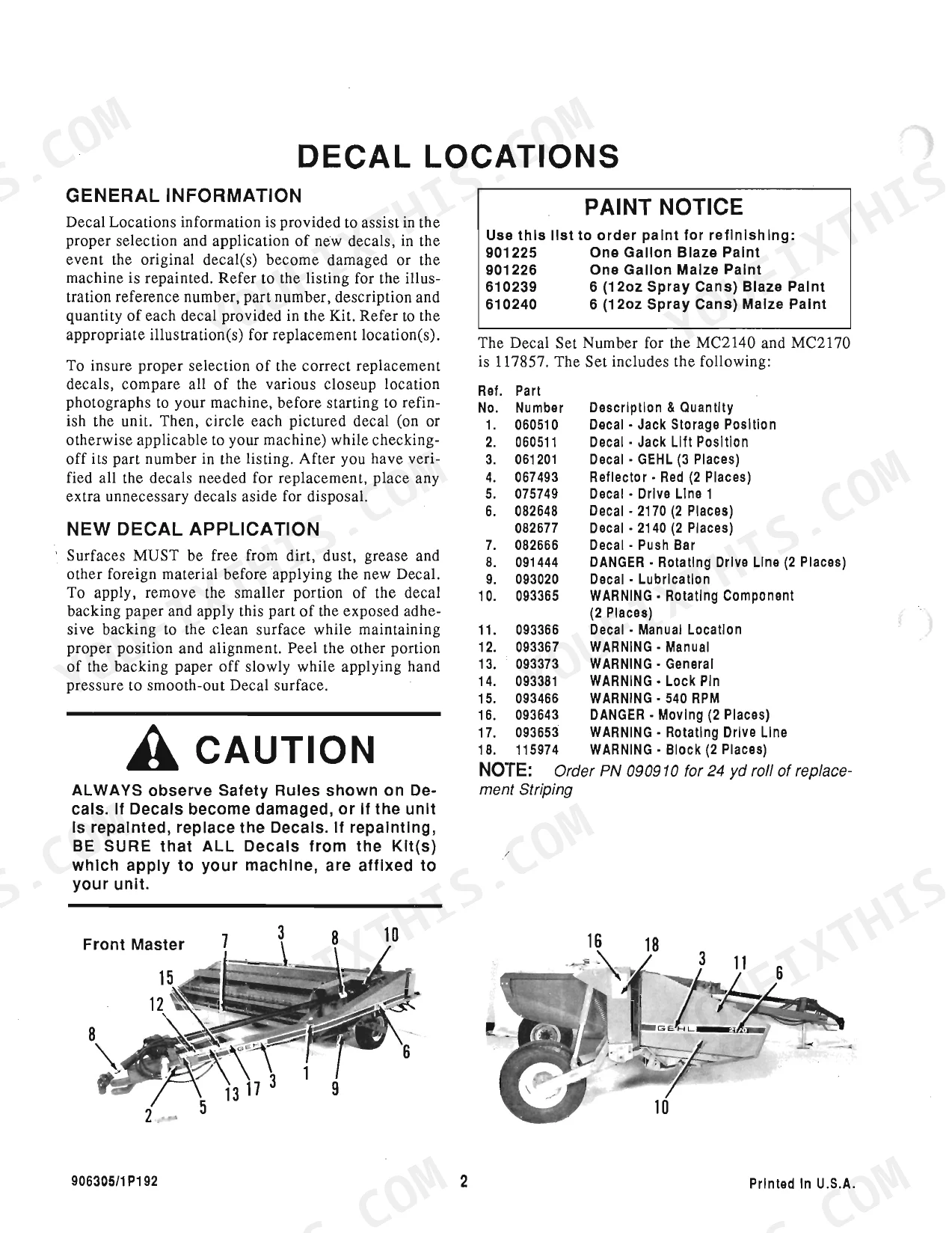

Order decal set 117857 for the MC2140 and MC2170 from the listing on page 4. Compare each closeup photo to your machine and check off every decal that applies, including the DANGER and WARNING rotating drive line decals. Page 4 cautions that damaged decals must be replaced. Paint comes as 901225 Blaze or 901226 Maize by the gallon. Striping is 090910 (24 yd roll).
Manual Section: Decal Locations p. 4Drawbar assembly or tongue jack worn out, need the correct replacement part number for my serial range

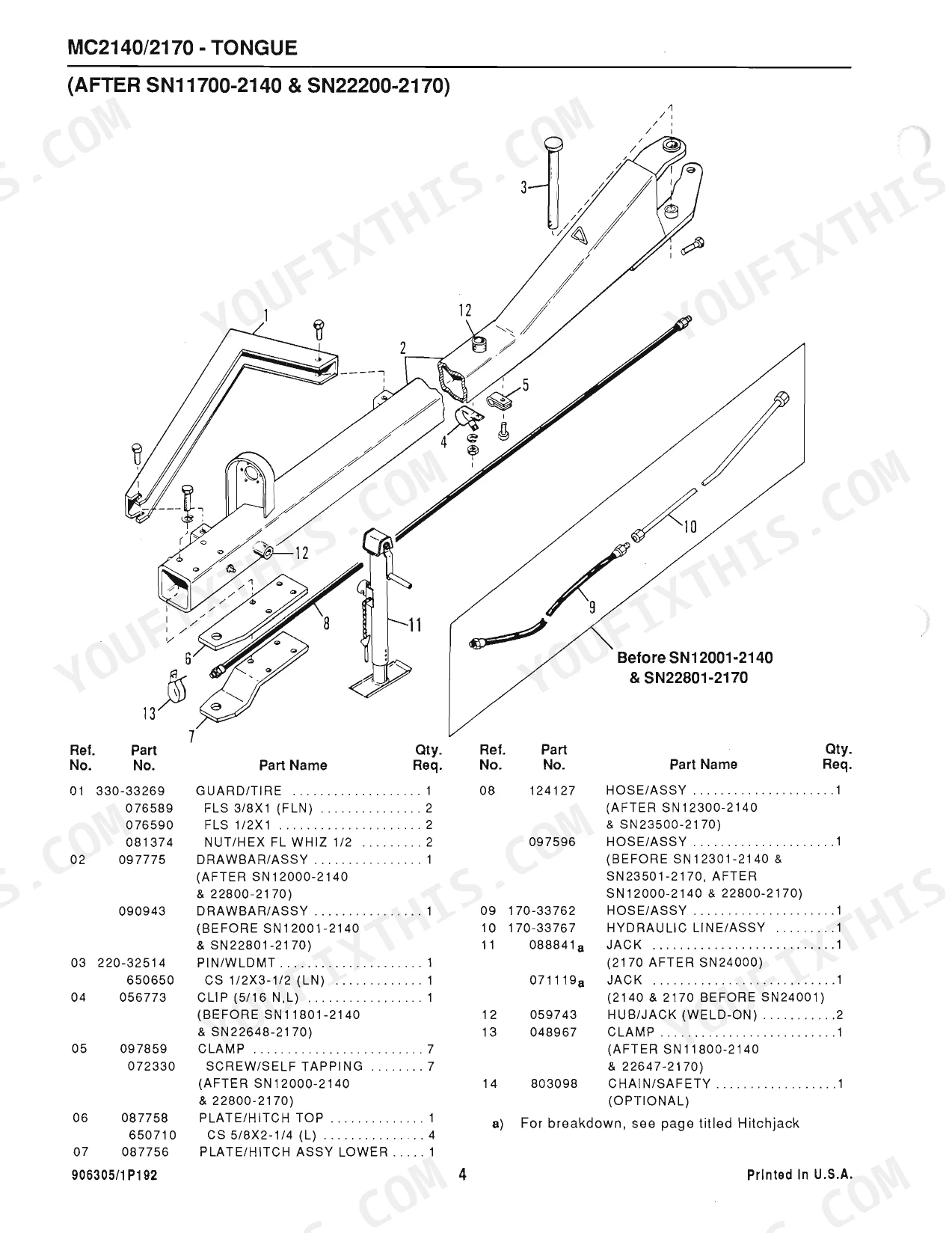

Check the tongue list on page 6, which covers units after SN11700-2140 and SN22200-2170. Drawbar 097775 fits after SN12000-2140 and 22800-2170. Drawbar 090943 fits before SN12001-2140 and SN22801-2170. Jack 071119 is listed for the 2140 and 2170 before SN24001. Internal jack parts are broken down on the Hitchjacks page 35.
Manual Section: Tongue and Hitch Assembly p. 6Sickle sections or guards broken, need part numbers for the guard, section, clip, rivet and head
Inspect the Sickle & Guards exploded views starting on page 26 and match each damaged piece to its reference number. The guard, sickle, section, clip, rivet and sickle head are each listed separately. Check your model and serial number against the parts list before ordering so the replacement matches the sickle on your machine.
Manual Section: Sickle & Guards p. 26Frequently Asked Questions
What are the torque specifications for standard machine hardware on the Gehl 2140 and 2170?
The torque specifications for standard machine hardware are provided in a table on the inside back cover. For example, a 1/2-13 Grade 5 bolt requires 75 Ft-Lbs (dry) or 55 Ft-Lbs (lubricated), while a 1/2-13 Grade 8 bolt requires 110 Ft-Lbs (dry) or 80 Ft-Lbs (lubricated). p. 47
What are the replacement specs for knife sections and knives on the Gehl 2140, 2170, MC2140, MC2170 mower conditioner?
Replacement knife sections are available in various types, such as under-serrated (part H7547A) or top-serrated (part 340-32015). For box quantities of 25, use part 083486 for under-serrated sections or 083597 for top-serrated sections. p. 27
What are the replacement specifications for knife guards, including double-prong guards?
The manual lists several guard options, such as the single guard (part 082724) and the stub guard (part 110-32330). Conversion kits are also available, such as part 088741 to install regular guards on the 2140. p. 27
What is the Gehl 2140, 2170, MC2140, MC2170 hydraulic cylinder seal kit part number for the pusharm and hydraulics?
For the pusharm and hydraulics cylinder, the seal kit is ordered using part number 093110. p. 10
Is this Gehl 2140 manual a PDF I download?
Instant PDF download. You get the full 48-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this Gehl 2140 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
