Part of the Hyundai Repair Manuals.
This 490-page Hyundai R210NLC-7A Service Manual PDF covers the crawler excavator from pump device to undercarriage, straight from the factory. You get full hydraulic schematics tracing main and pilot circuits through single and combined operation, wiring diagrams with connector pinouts and component locations, and a mechatronics section that decodes the self-diagnostic system, power boost, and auto-deceleration logic. Inside: a complete disassembly and assembly section for the pump, main control valve, swing and travel devices, plus mounting torque tables for every system on the machine. Set the pilot relief valve to 35 kgf/cm2, and check that drain oil pressure stays under 1.5 kgf/cm2 (21 psi) before you condemn a motor. Chasing a swing fault with forum guesses gets expensive fast. Bookmarked with a full text layer; jump to any section or search any spec right from the tablet in your cab.
What's Inside This Hyundai R210NLC-7A Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 12-40 | Safety Hints, Specifications |
| Structure and Function | 41-120 | Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Rcv Pedal |

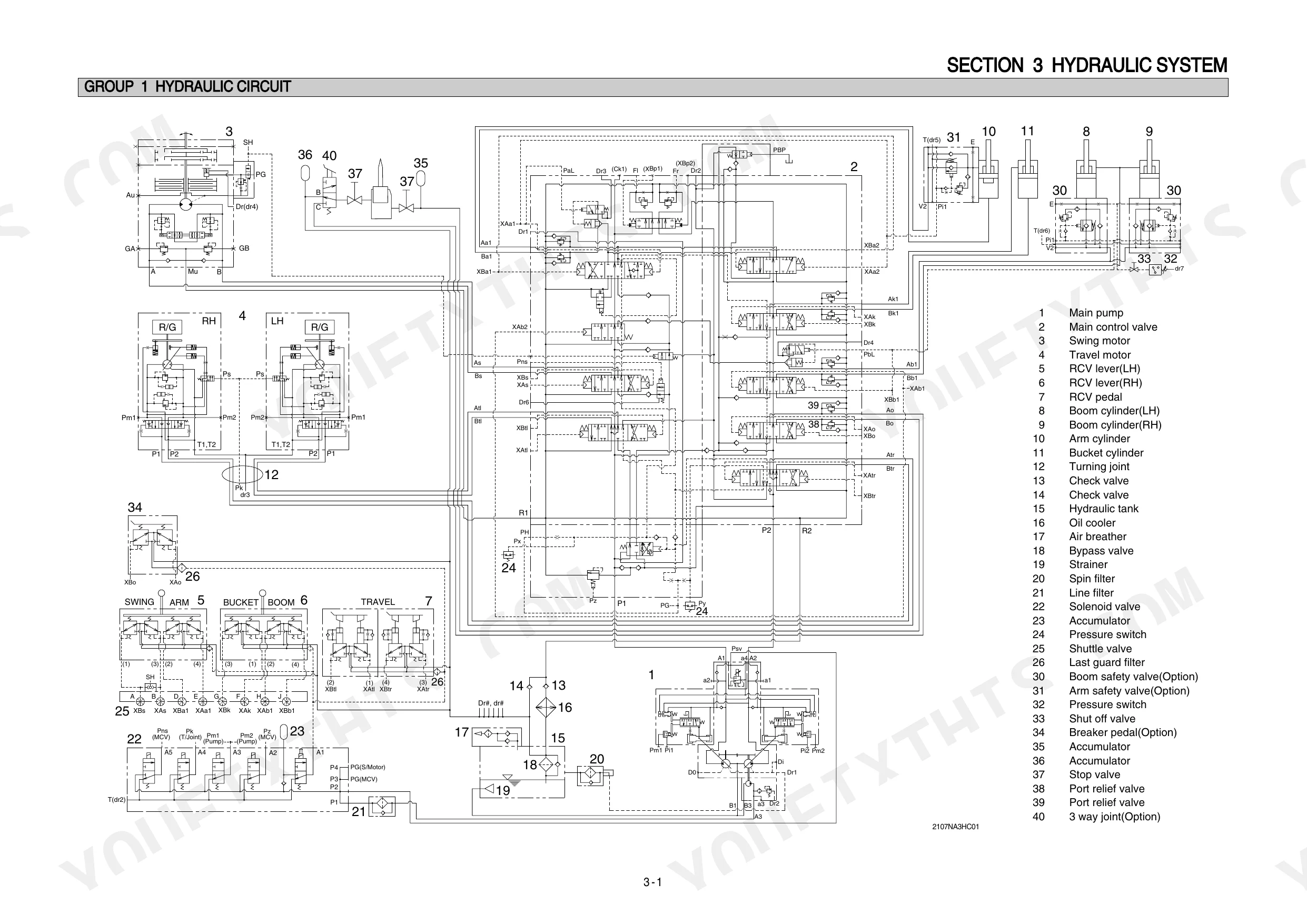

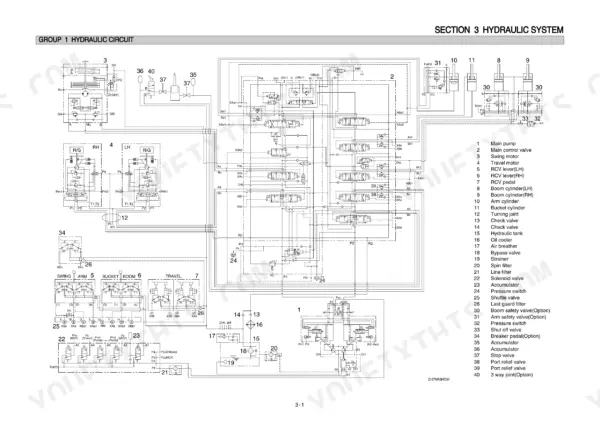

| Hydraulic System | 121-152 | Hydraulic Circuit, Main Circuit, Pilot Circuit, Single Operation, Combined Operation |

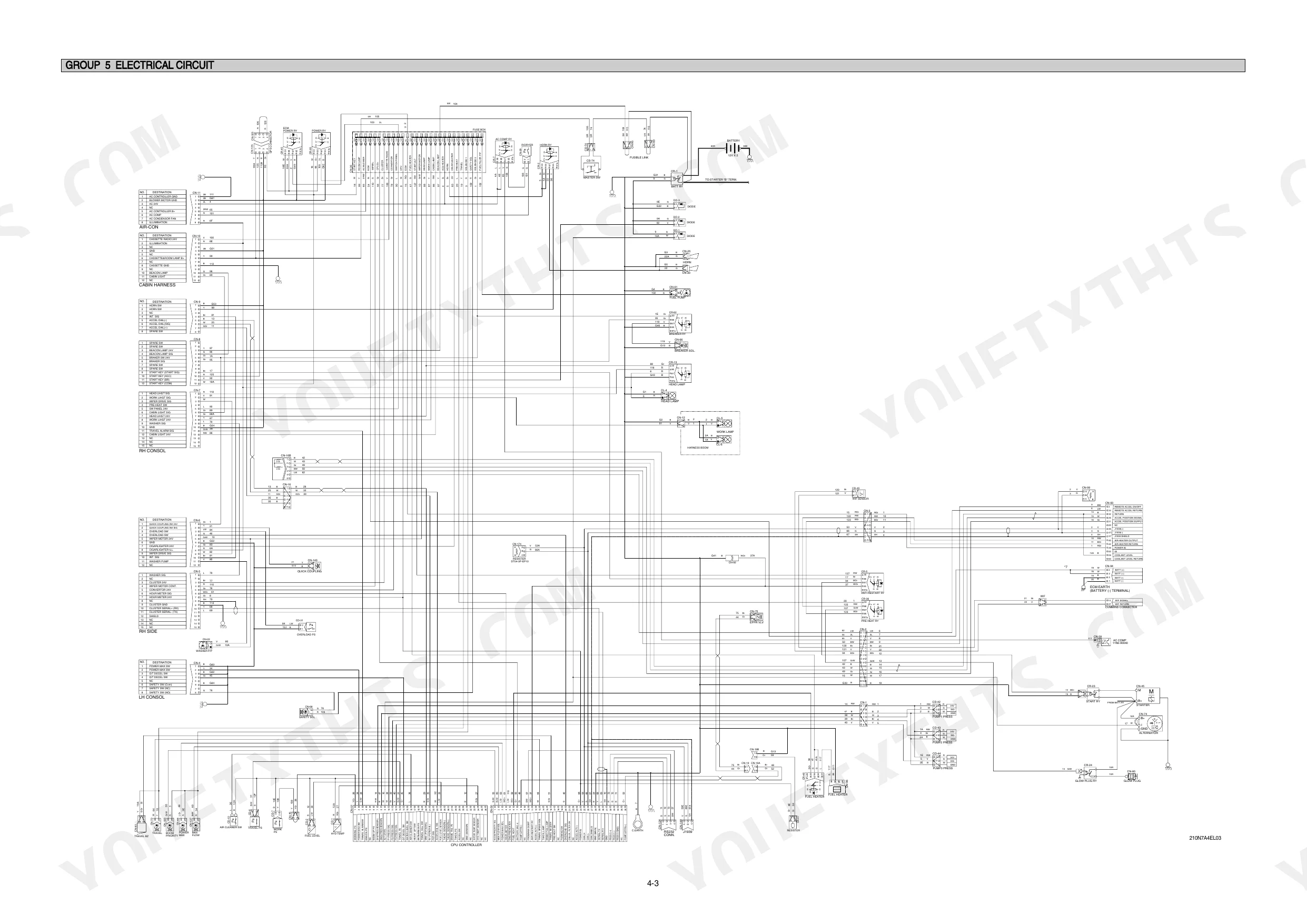

| Electrical System | 153-201 | Component Location, Electrical Circuit, Electrical Component Specification, Connectors |
| Mechatronics System | 202-231 | Outline, Mode Selection System, Automatic Deceleration System, Power Boost System, Travel Speed Control System, Automatic Warming Up Function, Engine Overheat Prevention Function |
| Maintenance Standard | 282-316 | Operational Performance Test, Major Components, Track and Work Equipment |
| Disassembly and Assembly | 317-475 | Precaution, Tightening Torque, Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Turning Joint |
| Component Mounting Torque | 476-490 | Introduction Guide, Engine System, Electric System, Undercarriage, Structure, Work Equipment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery | 2 x 12V x 100Ah | p. 36 |
| Starting motor | Nippon denso (24V-4.5kW) | p. 36 |
| Bypass relief valve opening pressure | 1.5kgf/cm2 (21psi) | p. 124 |
| Pilot relief valve setting pressure | 35kgf/cm2 | p. 128 |
| Drain oil pressure limit | 1.5kgf/cm2 (21psi) | p. 125 |
| Battery voltage | 12V X 2 | p. 155 |
| Starter | 24V 4.5kW | p. 178 |
| Carrier roller mounting bolt, nut | 29.7 ± 4.4 kgf·m | p. 322 |
| Track roller mounting bolt | 54.7 ± 5.0 kgf·m | p. 322 |
| Tightening torque for piston assembly to rod assembly | 100 ± 10.0 kgf·m (723 ± 72.3 lbf·ft) | p. 458 |
| Tightening torque for lock nut (20) - Bucket | 200 ± 20 kgf·m (1447 ± 145 lbf·ft) | p. 458 |

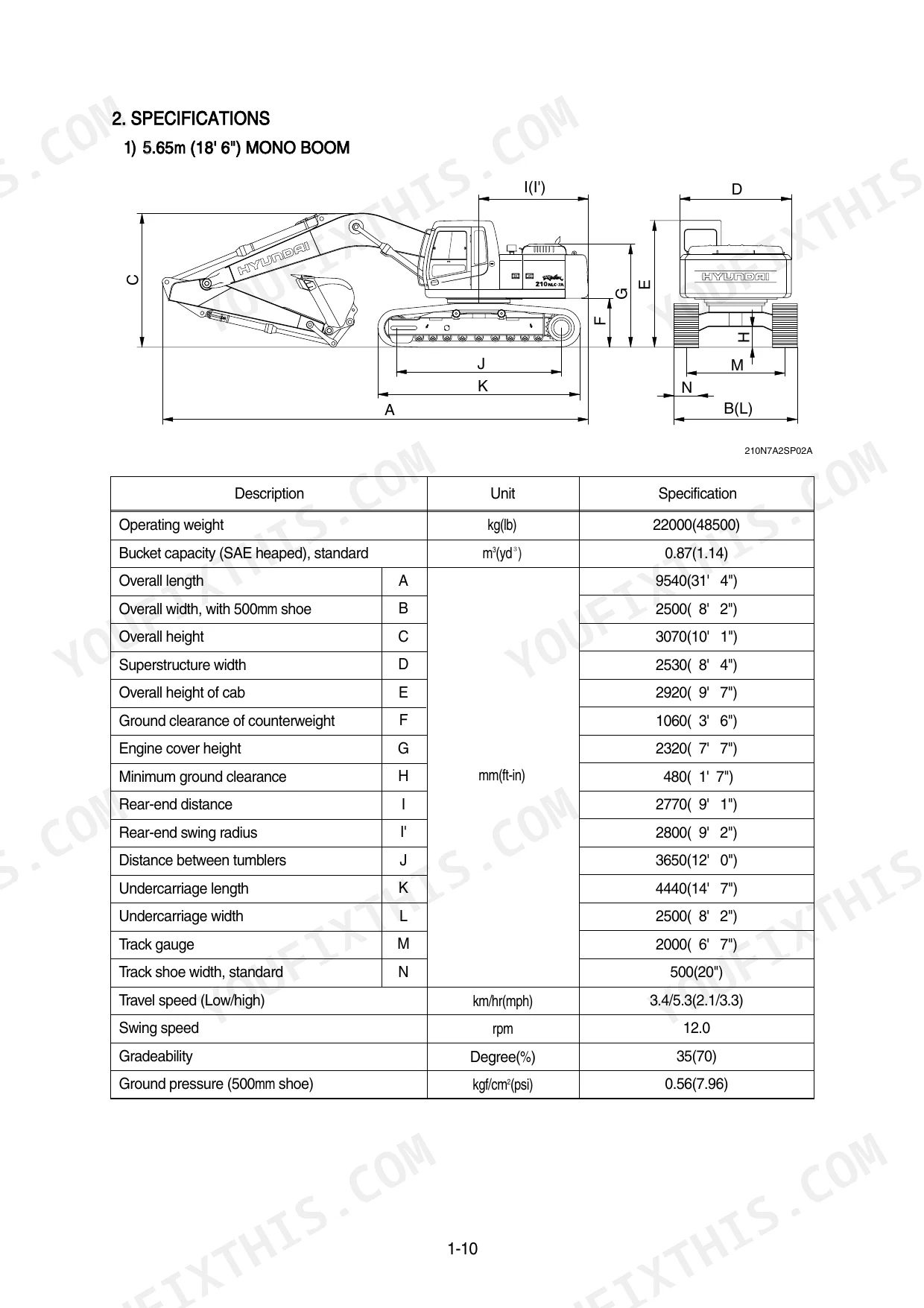

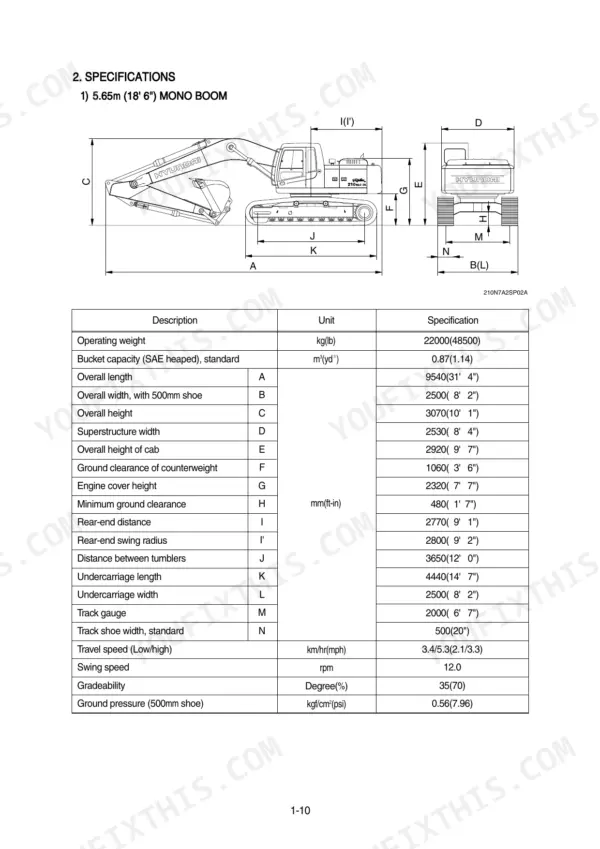

| Operating Weight | 22000 kg | p. 22 |
Hyundai R210NLC-7A Common Problems This Manual Covers

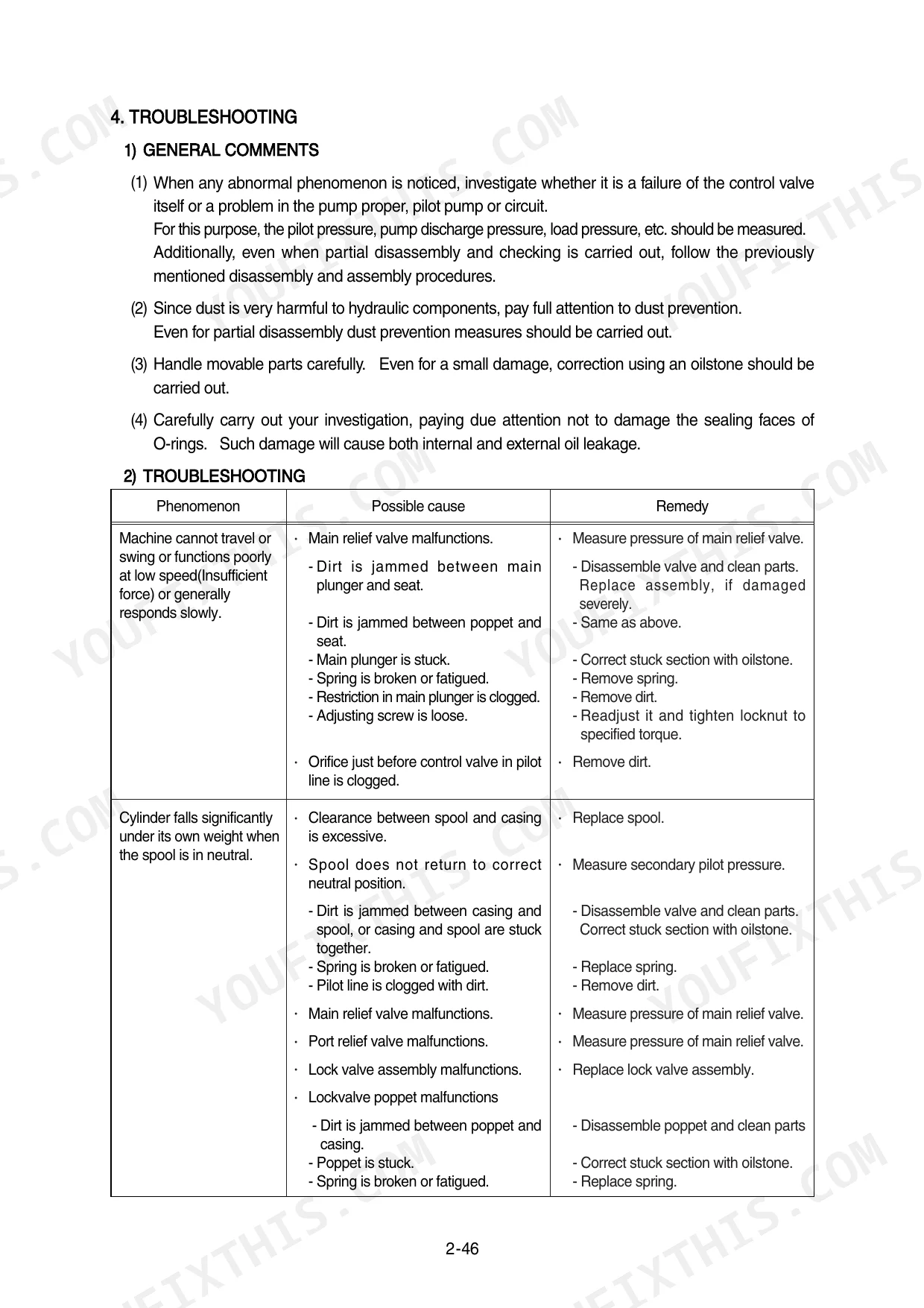

Hyundai R210NLC-7A boom lifts slowly, bucket digs weak, all functions sluggish once hydraulic oil warms up
Check hydraulic oil level and inspect the return filter; a clogged element opens the bypass relief at 1.5 kgf/cm2 (21 psi) and dumps unfiltered oil back to tank. Verify main pump delivery pressure against the 330 kgf/cm2 relief setting on page 37. If pressure tests low on all circuits, suspect pump wear before touching relief adjustment.
Manual Section: Hydraulic and Mechanical System Troubleshooting p. 37Engine cranks slowly or won't start in cold weather, sometimes starts then stalls after a few seconds
Test both 12V 100Ah batteries under load before condemning the starter; this machine runs two in series for 24V, and one weak battery drags cranking speed. Check the 24V 4.5kW starter draw against the specs on page 178, clean and tighten ground connections, then replace fuel filters and bleed air from the fuel system.
Manual Section: Electrical System p. 178Hydraulic oil seeping from cylinder rod seals and hose fittings, fresh drips under machine after shutdown
Clean suspect fittings and run each function to full pressure, then trace fresh oil back to its source. Replace hardened O-rings rather than overtightening fittings. When resealing a leaking cylinder, torque the piston assembly onto the rod to 100 ± 10.0 kgf·m (723 ± 72.3 lbf·ft), following the disassembly procedures starting.
Manual Section: Disassembly and Assembly p. 458Coolant temperature climbs into the red under heavy digging, overheat warning comes on
Clean the radiator and oil cooler cores with compressed air, working opposite normal airflow. Check coolant level cold and inspect fan belt tension. Verify engine oil sits at the full mark; capacity is 24 L per page 36. If overheating continues, check stored error codes against the table on page 215 before blaming the thermostat.
Manual Section: Mechatronics System p. 215Track shoes clunk and shift on the chain, shoe bolts keep backing out after long travel

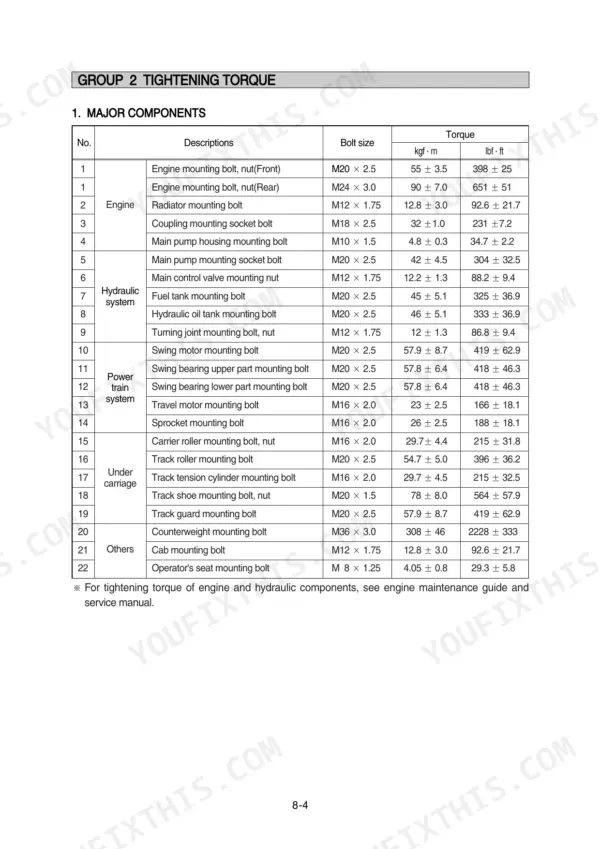

Torque track shoe bolts to 78 ± 8.0 kgf·m and never reuse stretched bolts once they have loosened. While under the machine, check track roller mounting bolts at 54.7 ± 5.0 kgf·m and carrier roller hardware at 29.7 ± 4.4 kgf·m, all listed on page 321. Work in a cross pattern, not around the circle.
Manual Section: Disassembly and Assembly p. 321Frequently Asked Questions

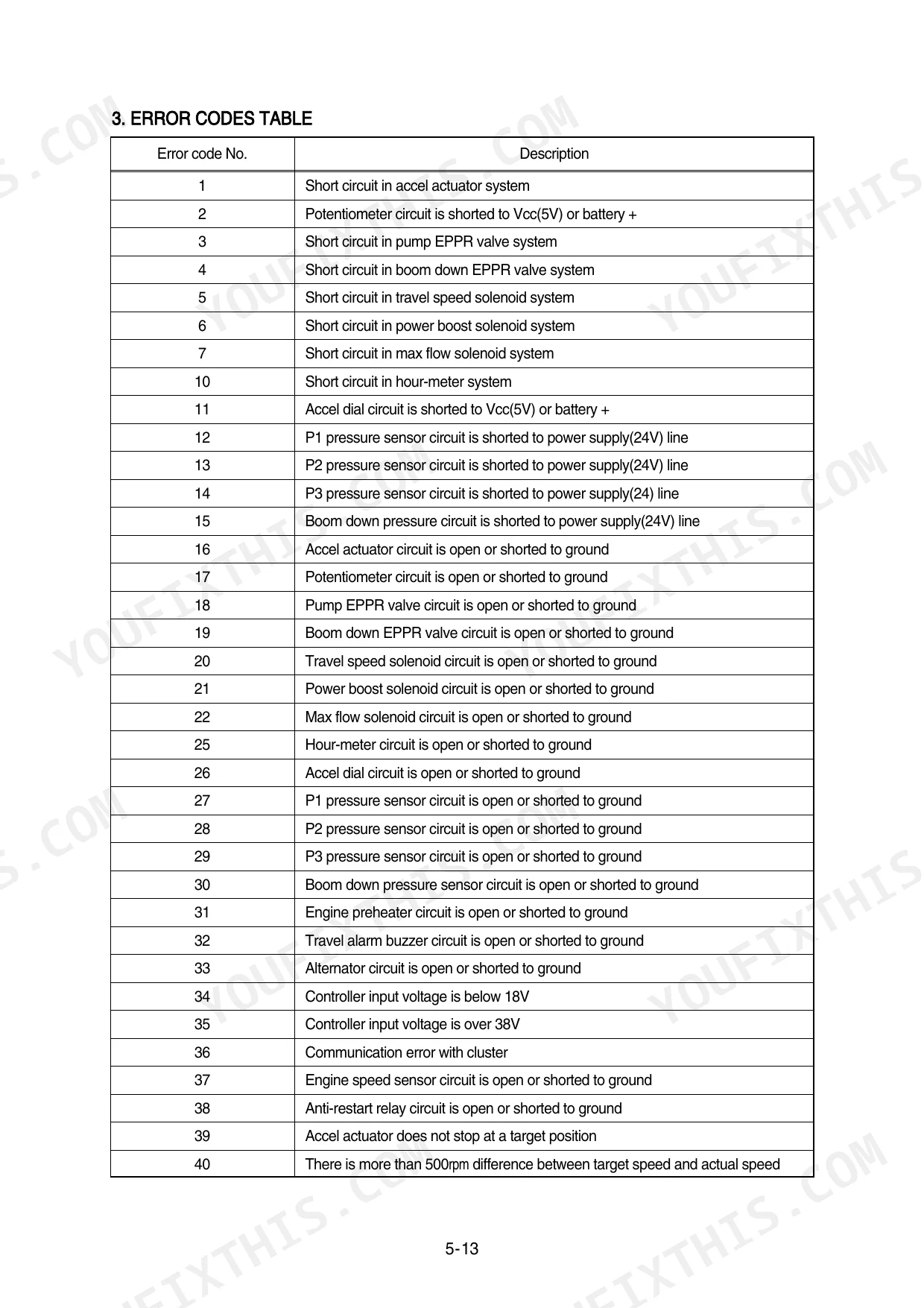

What does the Hyundai R210NLC-7A fault code 34 mean?
Fault code 34 indicates that the controller input voltage is below 18V. This is a critical electrical system fault that may affect machine operation. p. 215
How do I delete recorded error codes on the Hyundai R210NLC-7A monitor?
To delete recorded error codes, open the 'Diagnose' menu on the cluster. Select 'Recorded Error', then choose the option to delete all errors. The system will prompt you to confirm with 'Yes' or 'No'. p. 214
What is the replacement specification for the hydraulic return filter?
The hydraulic return filter is provided in the hydraulic tank. The bypass relief valve in the full-flow filter opens at a differential pressure of 1.5kgf/cm² (21psi) when the filter element is clogged. p. 124

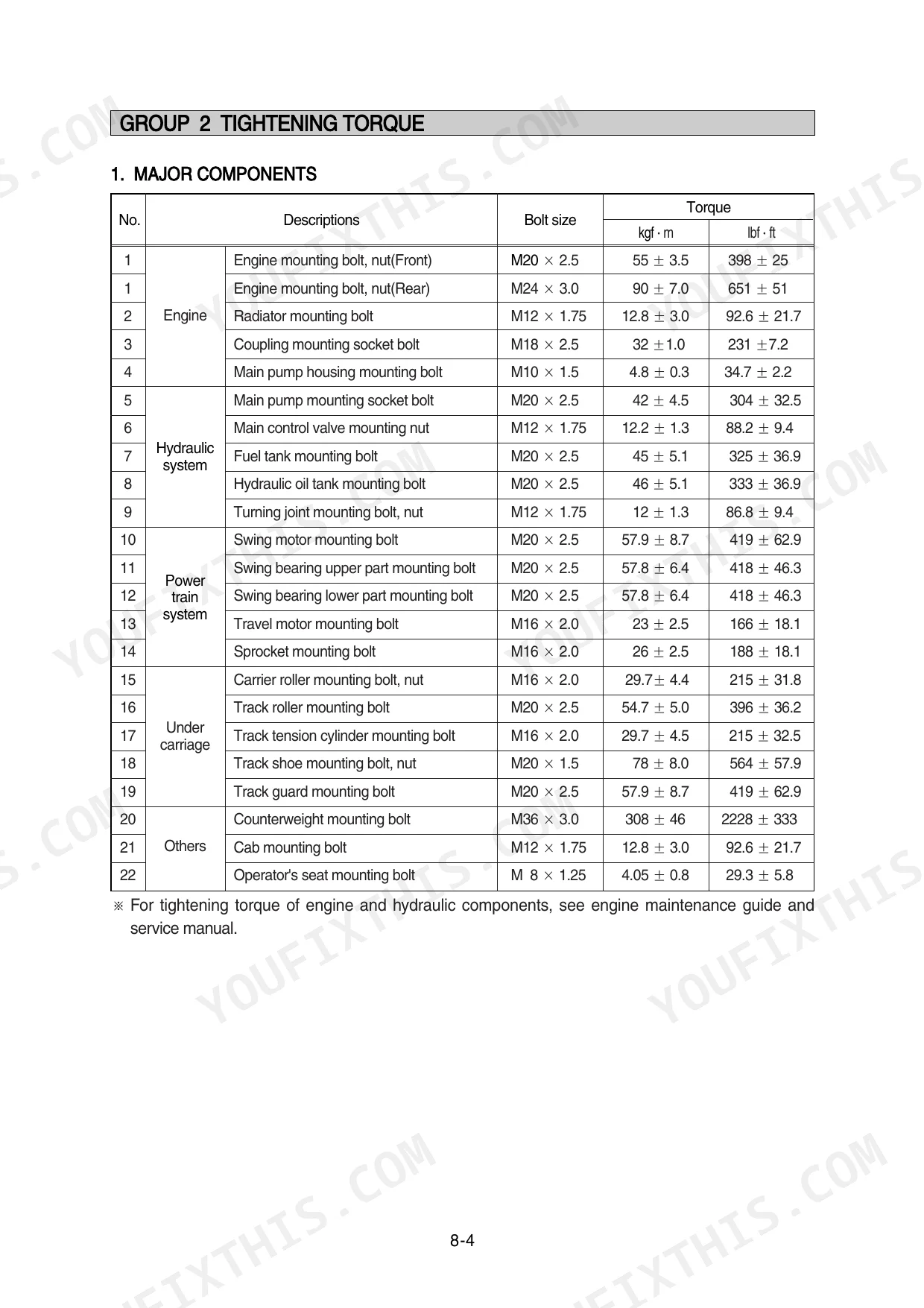

What is the standard torque for the engine mounting bolts (rear) on the R210NLC-7A?
The standard torque for the engine mounting bolt (rear) is 90 ± 7.0 kgf·m (651 ± 51 lbf·ft). p. 321

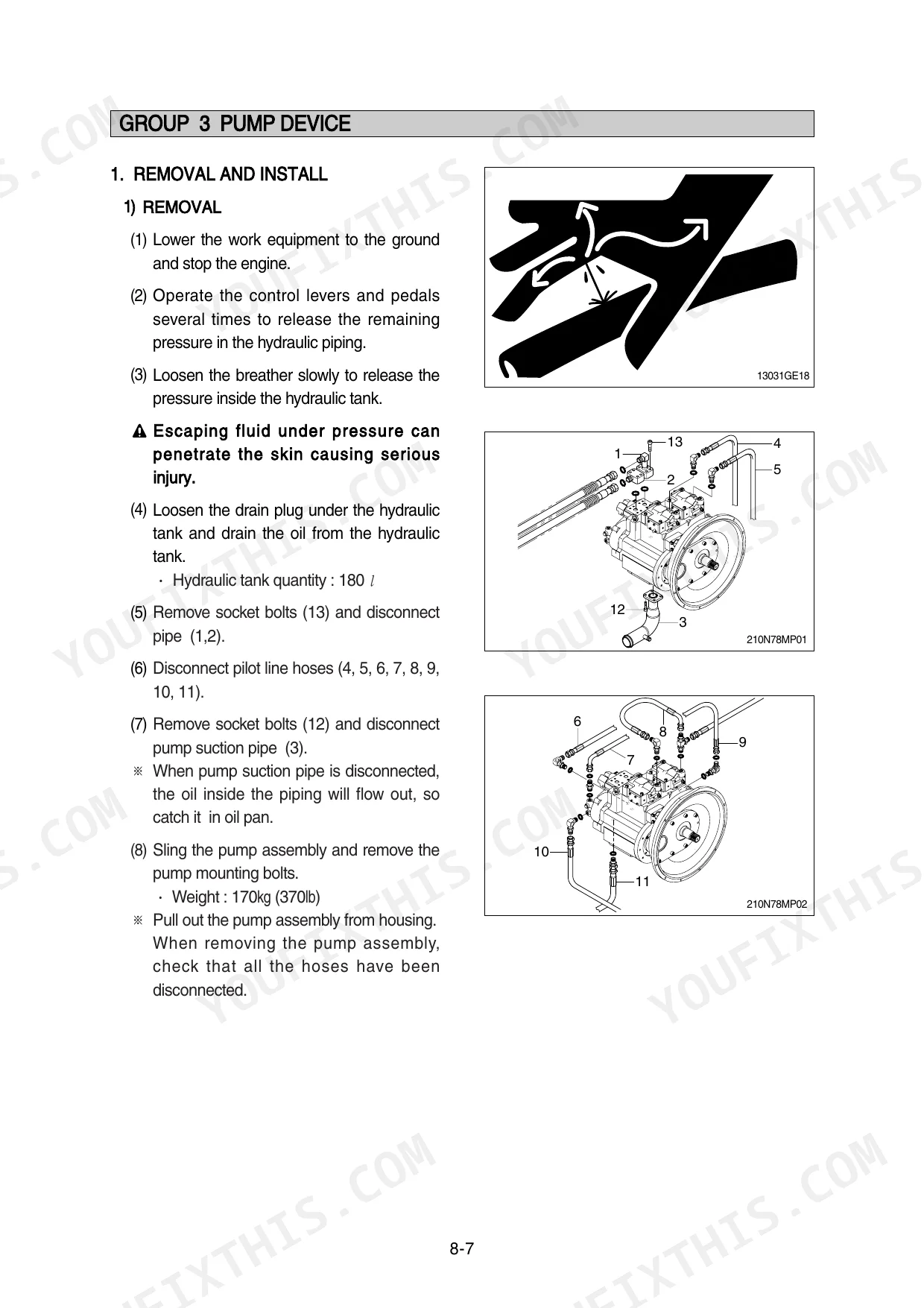

What is the procedure for bleeding air from the hydraulic pump after installation?
After installing the pump, remove the air vent plug (2EA), tighten it lightly, start the engine at low idling, and check that oil comes out from the plug. Once oil flows, tighten the plug fully. p. 325
Do I get instant access to this Hyundai R210NLC-7A Service Manual?
You download the Service Manual yourself: 490 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Can I print specific sections of this Hyundai R210NLC-7A Service Manual?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
