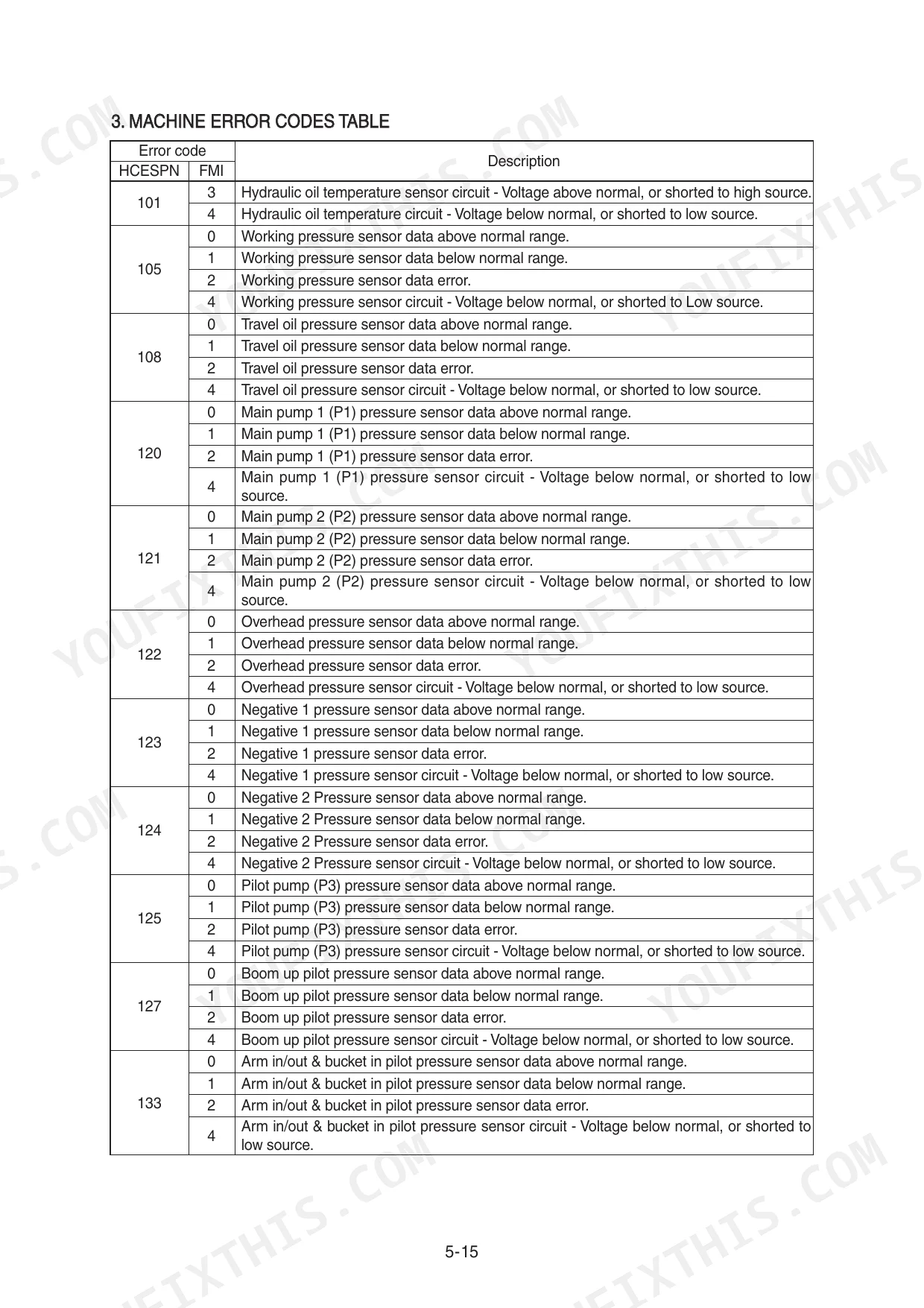

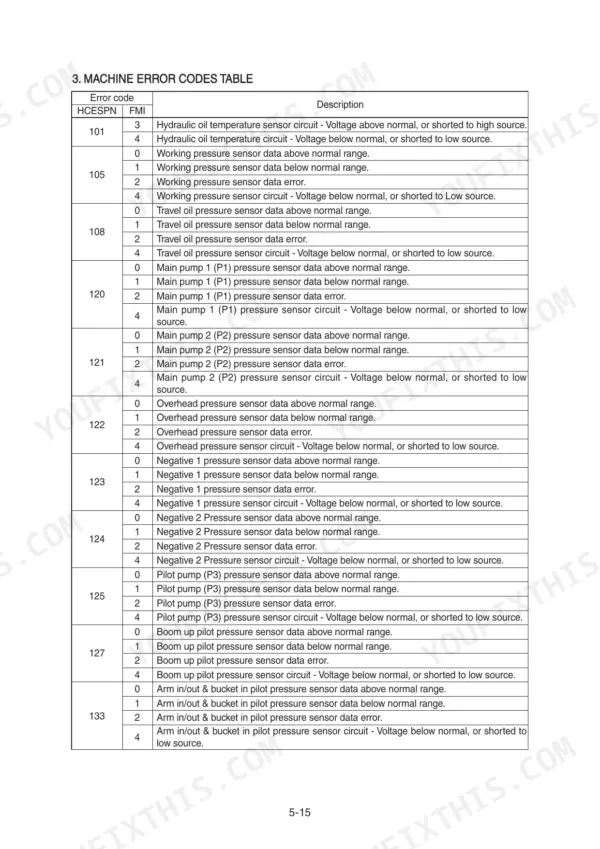

Wrenching on a Hyundai R250LC-9? This 531-page Hyundai R250LC-9, R250NLC-9 Shop Manual PDF covers both hydraulic excavators plus the High Walker variant, cover to cover. Inside: full electrical wiring circuits with connector pinouts, hydraulic schematics for the main and pilot circuits, and page after page of disassembly and assembly procedures for the pump device, main control valve, swing device, travel device, and turning joint. You also get a self-diagnostic section that decodes mechatronics error codes, plus operational performance tests to baseline your machine before and after repairs. Set the pilot relief valve at 40 kgf/cm2 and check pump EPPR current at 280 ± 30 mA in P mode. Quit chasing electrical gremlins with a test light and guesswork. Bookmarked with a full text layer; search any spec, jump straight to the section, and get back to digging.
What's Inside This Hyundai R250LC-9, R250NLC-9, R250LC-9 HIGH WALKER Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 12-46 | Safety Hints, Specifications |
| Structure and Function | 47-127 | Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Rcv Pedal |

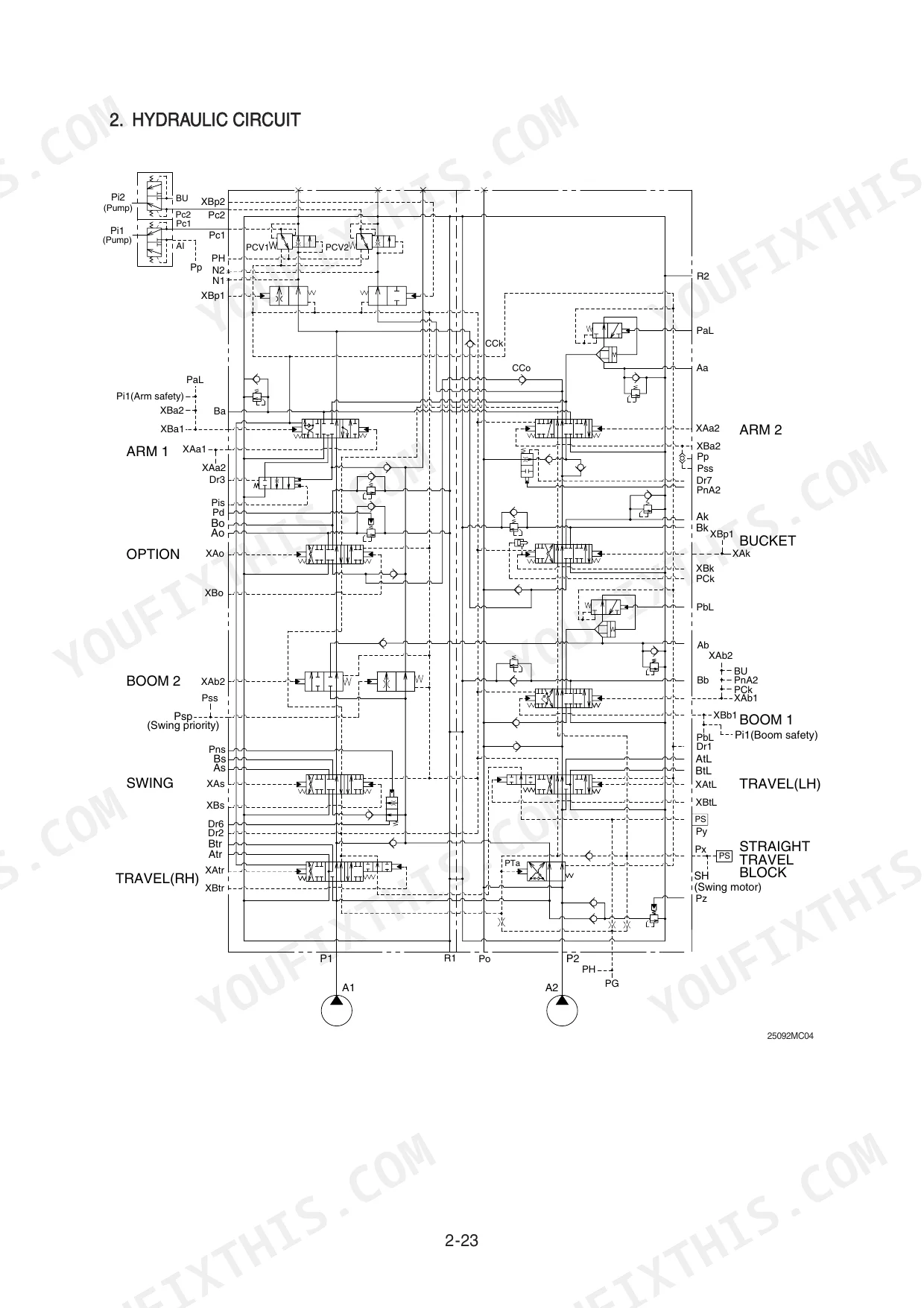

| Hydraulic System | 128-159 | Hydraulic Circuit, Main Circuit, Pilot Circuit |
| Electrical System | 160-211 | Component Location, Electrical Circuit, Electrical Component Specification |
| Mechatronics System | 212-268 | Outline, Mode Selection System |
| Maintenance Standard | 339-373 | Operational Performance Test, Major Components, Track and Work Equipment |
| Disassembly and Assembly | 374-515 | Precaution, Tightening Torque, Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Turning Joint |
| Component Mounting Torque | 516-531 | Introduction Guide, Engine System, Electric System, Undercarriage, Structure, Work Equipment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Bypass relief valve setting pressure | 1.5 kgf/cm2 | p. 131 |
| Check valve (1) setting pressure | 4.5 kgf/cm2 | p. 131 |
| Pump EPPR valve electric current (Standard Stage 1.0, P mode) | 280 ± 30 mA | p. 240 |
| Pump EPPR valve electric current (Standard Stage 1.0, S mode) | 320 ± 30 mA | p. 240 |
| Play between piston (1) & shoe caulking section (3) | 0-0.1 mm | p. 360 |
| Thickness of shoe (t) | 4.9 mm | p. 43 |

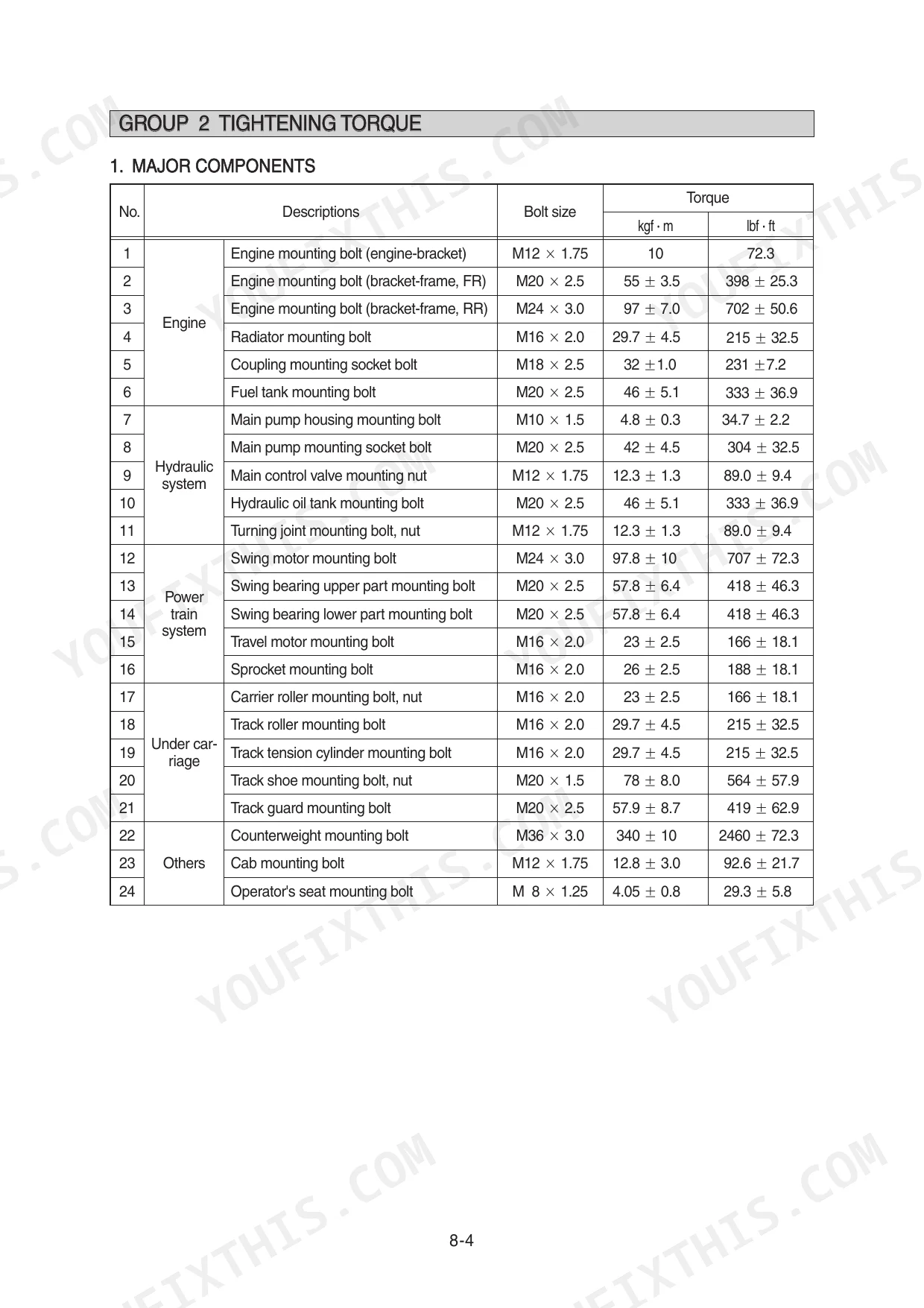

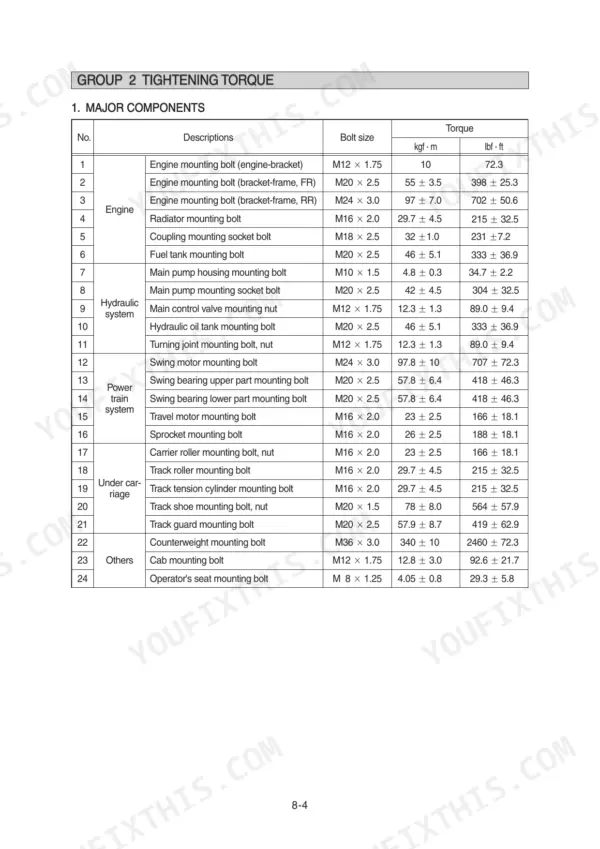

| Track shoe mounting bolt, nut | 78 ± 8.0 kgf·m | p. 378 |
| Swing bearing upper part mounting bolt | 57.8 ± 6.4 kgf·m | p. 378 |
| Swing bearing lower part mounting bolt | 57.8 ± 6.4 kgf·m | p. 378 |
| Bucket cylinder Piston torque | 150±15 kgf·m | p. 492 |
| Boom cylinder Piston torque | 150±15 kgf·m | p. 492 |

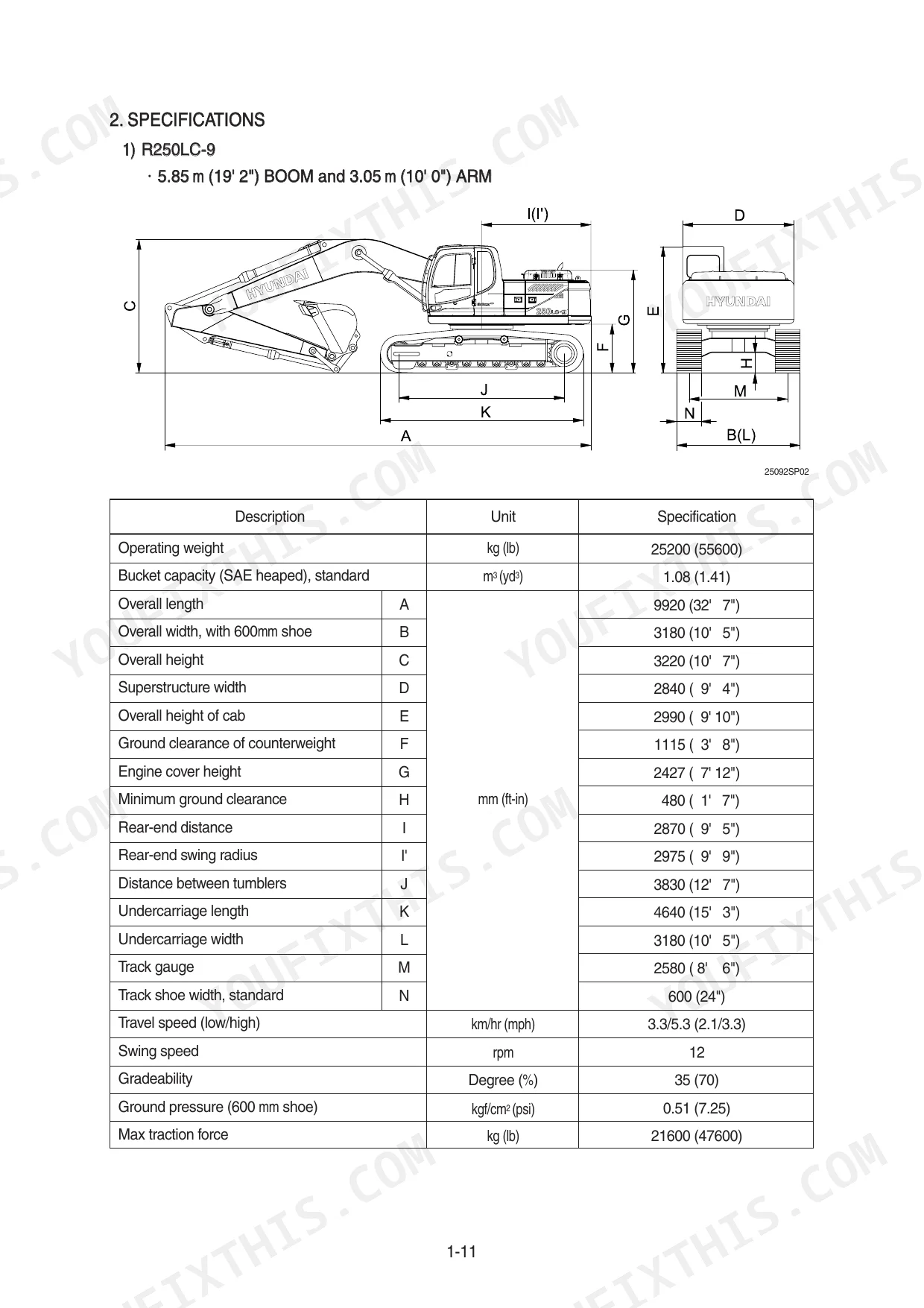

| Operating weight | 25200 kg | p. 23 |
Hyundai R250LC-9, R250NLC-9, R250LC-9 HIGH WALKER Common Problems This Manual Covers

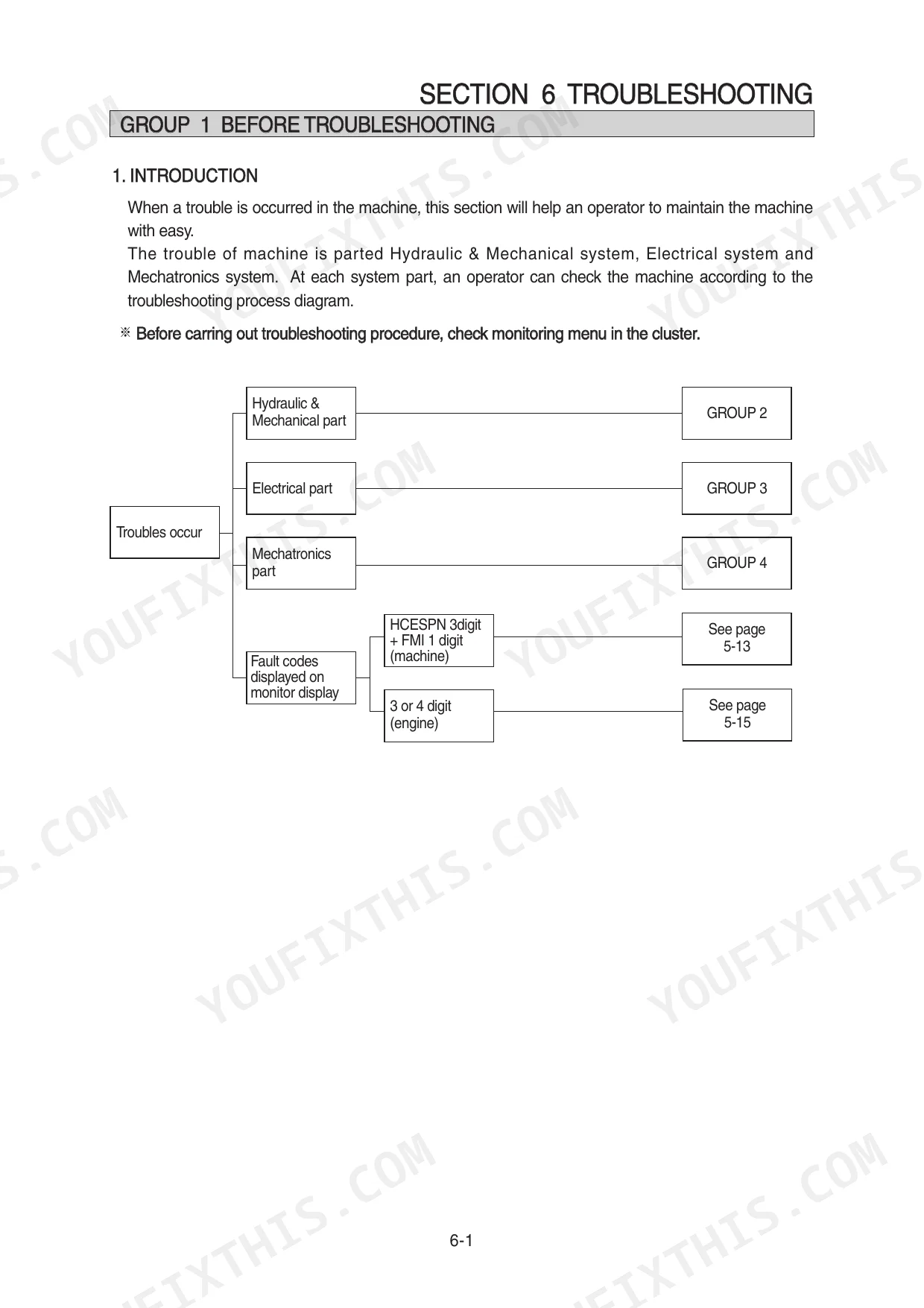

Hyundai R250LC-9 hydraulic functions slow and weak, poor digging force even at full throttle
Check main relief pressure first; compare it against the main relief setting in the General specifications. Adjust or replace the relief valve if pressure tests low. Then measure pump EPPR valve current: standard Stage 1.0 P mode should read 280 ± 30 mA per page 240. Low current points to wiring or controller trouble, not pump wear.
Manual Section: Hydraulic and Mechanical System Troubleshooting p. 44Boom and arm drift down slowly with all controls in neutral and engine running
Test cylinder internal leakage using the operational performance procedures starting on page 339. If a cylinder fails, replace the seal kit and reassemble to spec: boom and bucket cylinder pistons to 150±15 kgf·m per the chart on page 492, and the arm cylinder to its own chart value. Inspect rod surfaces for scoring before fitting new seals; a scored rod destroys them fast.
Manual Section: Maintenance Standard p. 339Engine runs fine but machine barely moves, all functions underpowered in every work mode
Verify pilot pressure before condemning the main pump; compare pilot pressure against the pilot circuit relief setting in the hydraulic system section. Low pilot pressure starves every spool in the main control valve. Inspect the pump EPPR valve wiring and connector next, and torque the valve to 2.5±0.5 kgf·m on reinstall per page 524.
Manual Section: Hydraulic System p. 133Whining or grinding noise from hydraulic pump, erratic response after oil or filter change

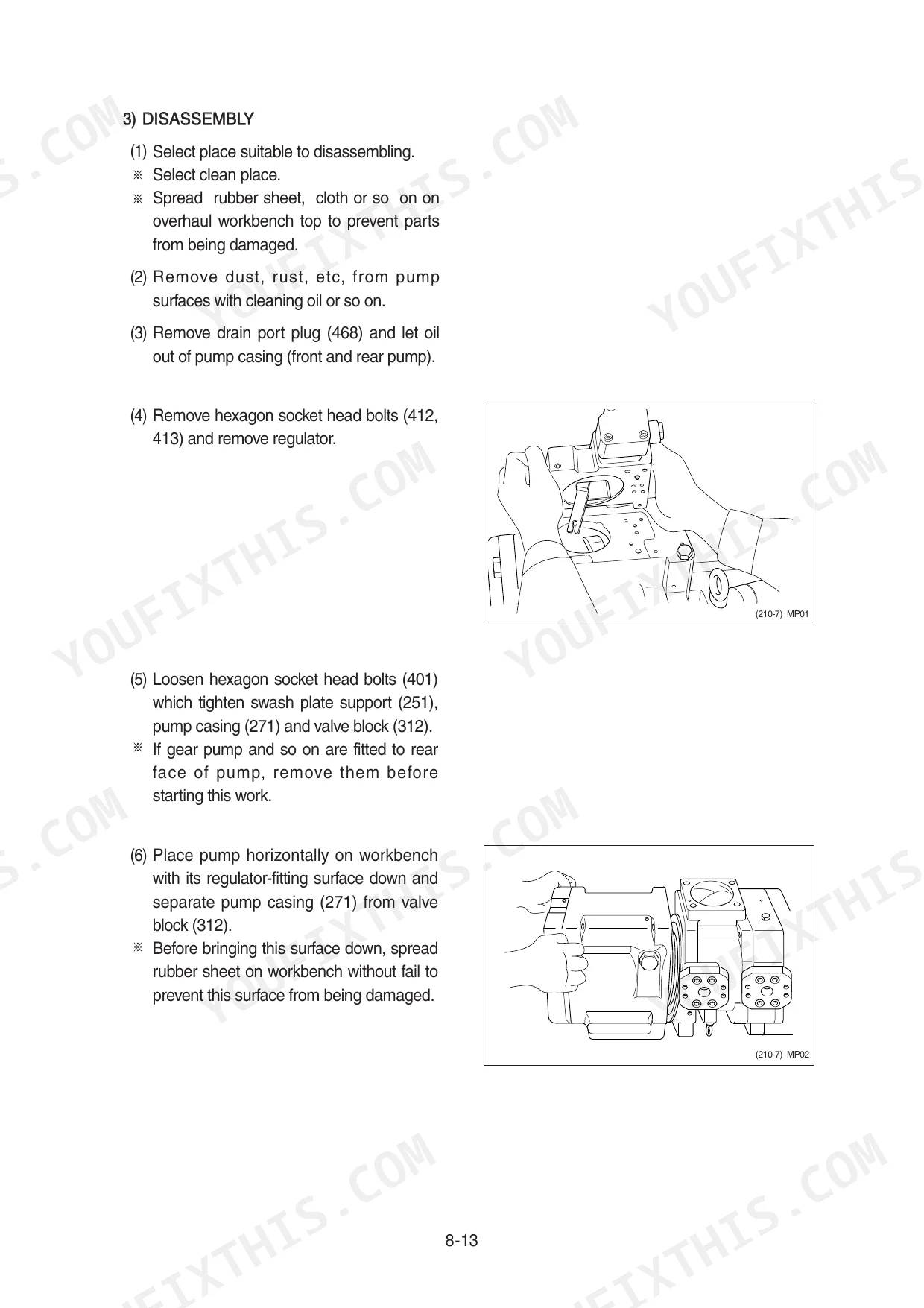

Drain a sample and check for aeration: milky oil means air is entering the suction side. Tighten suction fittings, bleed the system, and recheck. If the noise stays, tear the pump down per the procedures starting on page 374 and measure play between piston and shoe caulking section; anything beyond the 0-0.1 mm limit on page 360 means new rotating parts.
Manual Section: Maintenance Standard p. 360Track shoe bolts working loose and undercarriage components rattling after long travel on rough ground
Remove loose bolts and inspect threads; replace any that are stretched or galled. Torque track shoe mounting bolts and nuts to 78 ± 8.0 kgf·m using the torque table on page 378. While underneath, check swing bearing mounting bolts at 57.8 ± 6.4 kgf·m per the torque table on page 378, and recheck all fasteners after the next full shift.
Manual Section: Disassembly and Assembly p. 378Frequently Asked Questions
How do I reset the maintenance reminder on the Hyundai R250LC-9?
To reset the maintenance reminder, navigate to the 'Management' menu on the cluster, select 'Maintenance information', and then select the 'Replacement' option for the specific item. This will reset the elapsed time for that maintenance interval to zero. p. 261
What are the replacement specifications for the main relief valve?
The main relief valve should be replaced if it shows external rusting or damage, or if the contacting faces of the valve seat or poppet are damaged. O-rings and back-up rings should also be replaced in principle during maintenance. p. 361
What is the tightening torque for the engine mounting bolts (bracket-frame, FR)?
The tightening torque for the engine mounting bolts (bracket-frame, FR) is 55 ± 3.5 kgf·m (398 ± 25.3 lbf·ft). p. 378
What is the standard clearance between the piston and cylinder block bore for the main pump?
The standard clearance between the piston and cylinder block bore for the main pump is 0.039 mm, with a recommended replacement value of 0.067 mm. p. 360
What is the oil capacity for the hydraulic tank?
The hydraulic tank has a capacity of 165 liters (43.6 U.S. gallons). p. 46
Is this Hyundai R250LC-9 Shop Manual a digital download?
You get a 531-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Hyundai R250LC-9 Shop Manual?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
