All 620 pages of this Hyundai R305LC-7, R305NLC-7 shop manual PDF focus on one job: putting your R305-7 crawler excavator back to work. You get full hydraulic schematics for the main and pilot circuits, complete electrical wiring diagrams with connector pinouts, and a mechatronics section that walks you through the self-diagnostic system, EPPR valve, and mode selection logic. Step-by-step disassembly and assembly procedures cover the pump device, main control valve, swing and travel devices, and turning joint, backed by a full component mounting torque section. Set the pilot relief valve to 40 kgf/cm2, and confirm the twin 12V 160Ah batteries can spin that 24V, 7.5kW starting motor before you condemn the electronics. A dead excavator doesn't wait for forum answers. Bookmarked and keyword-searchable; pull it up on your phone right at the machine.
What's Inside This Hyundai R305LC-7, R305NLC-7 Manual
| System | Pages | Key Topics |
|---|---|---|

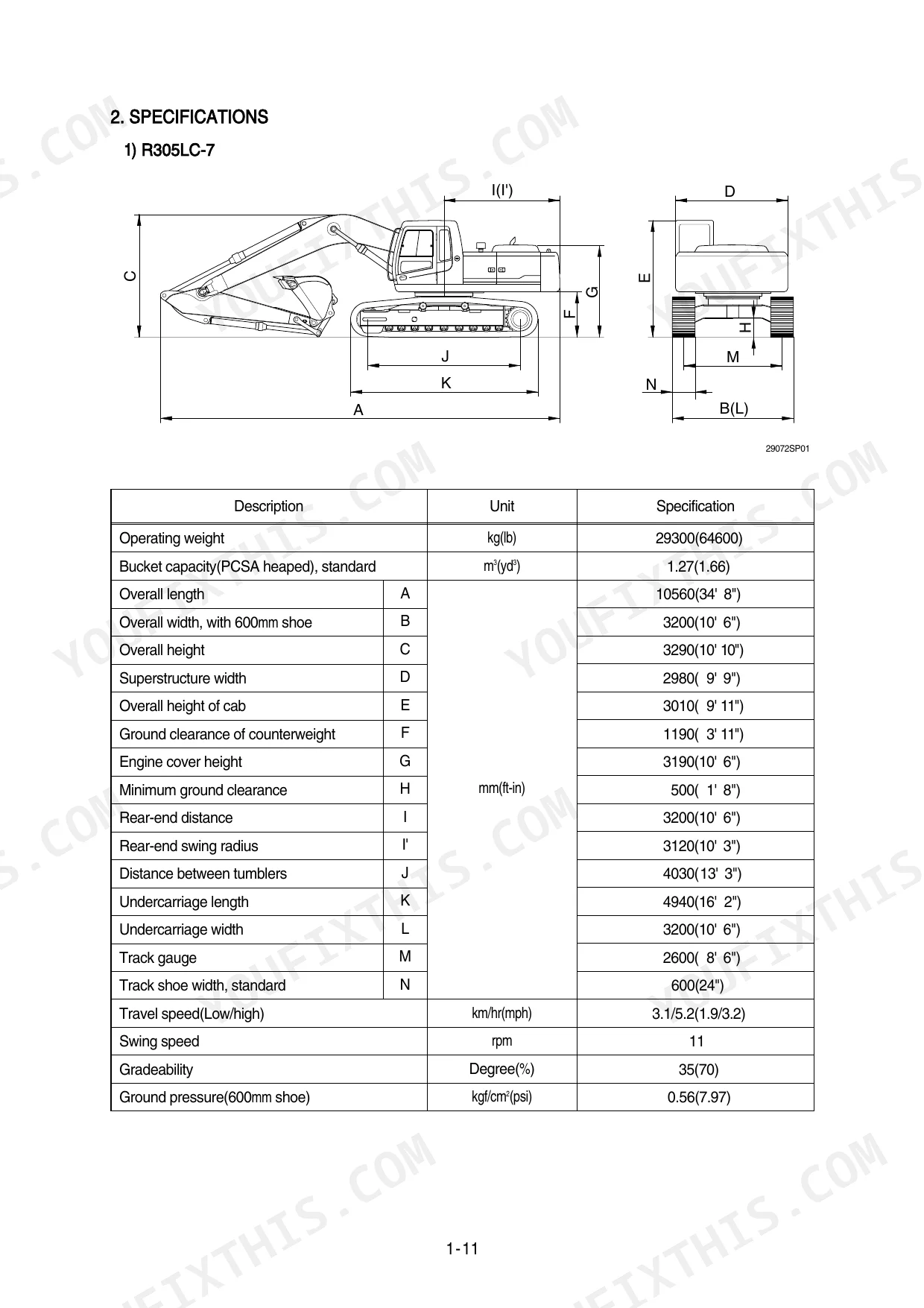

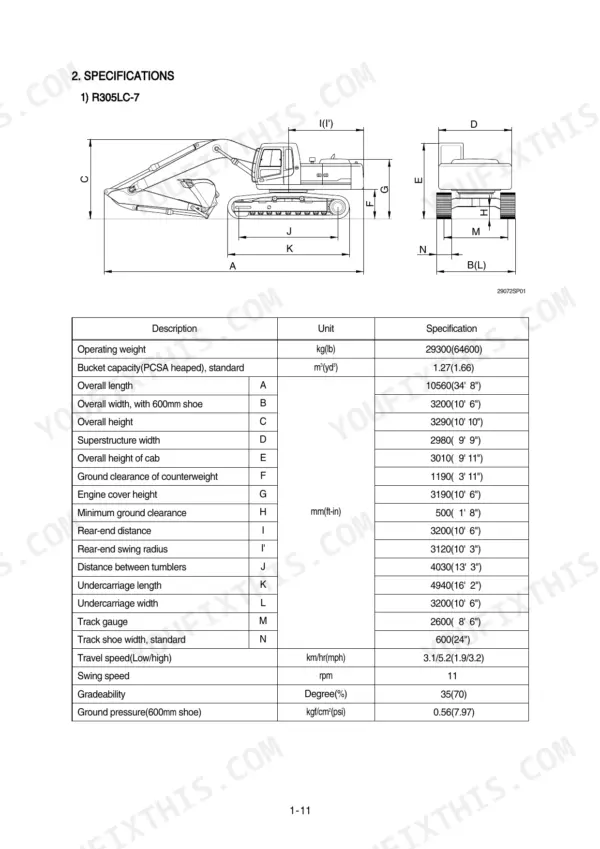

| General | 3-42 | Safety Hints, Specifications |

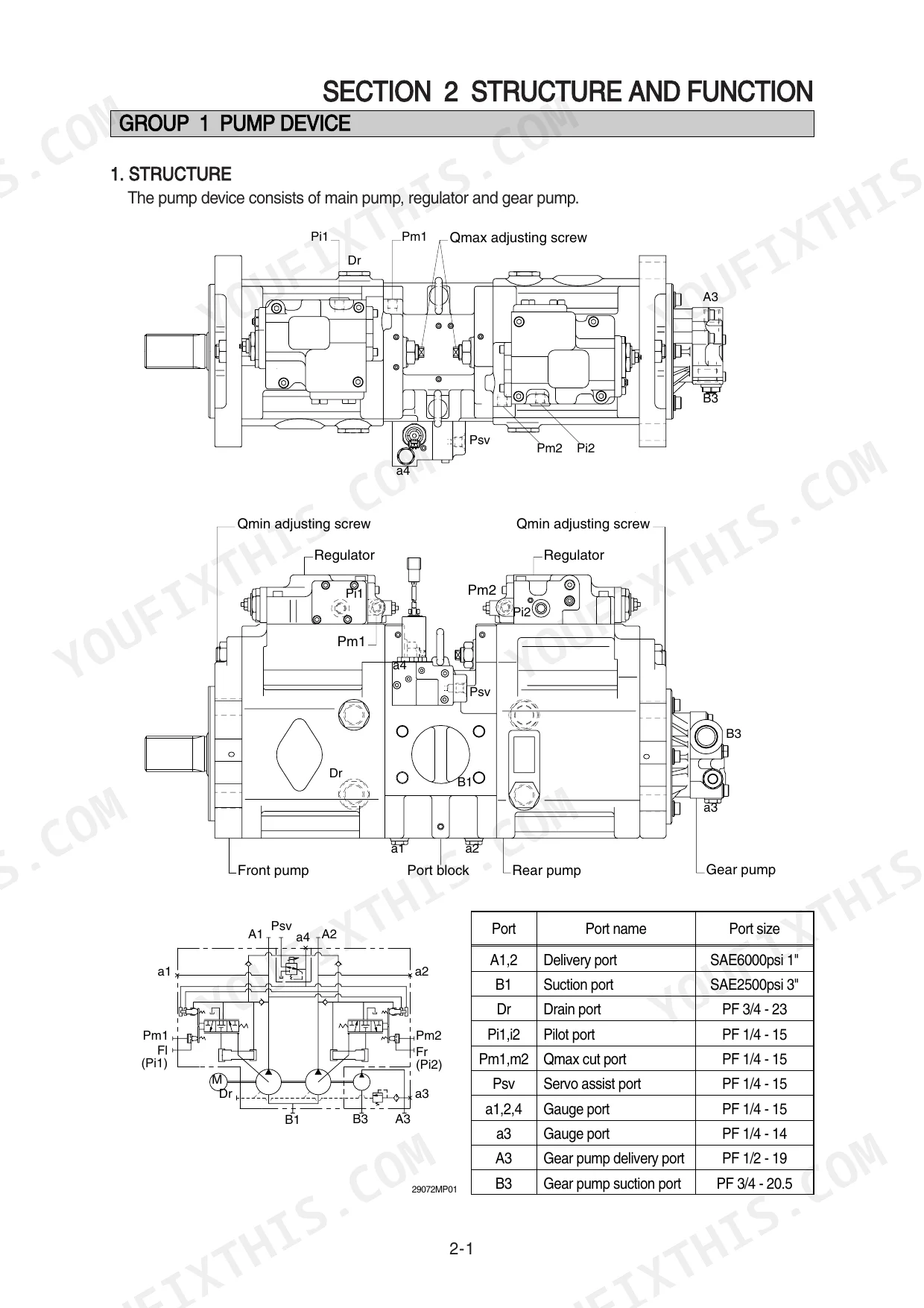

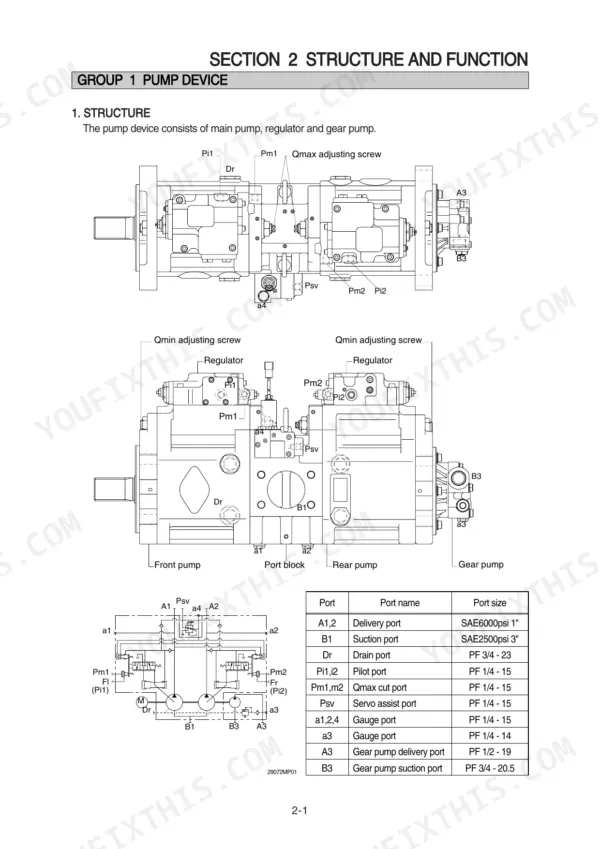

| Structure and Function | 43-160 | Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Rcv Pedal |

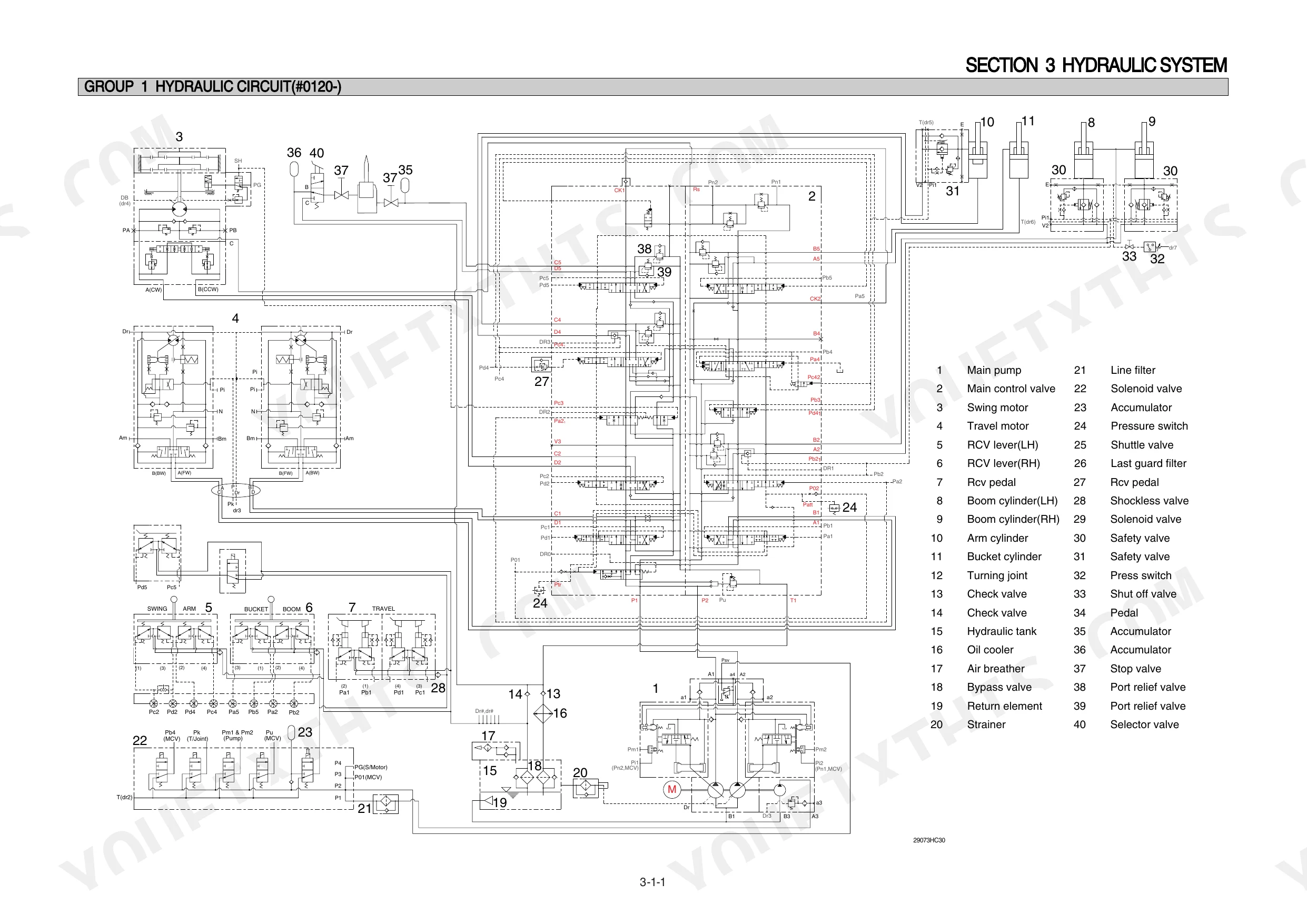

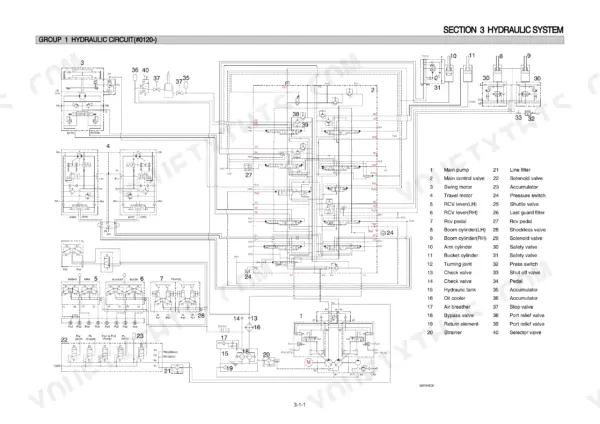

| Hydraulic System | 161-212 | Hydraulic Circuit, Main Circuit, Pilot Circuit |

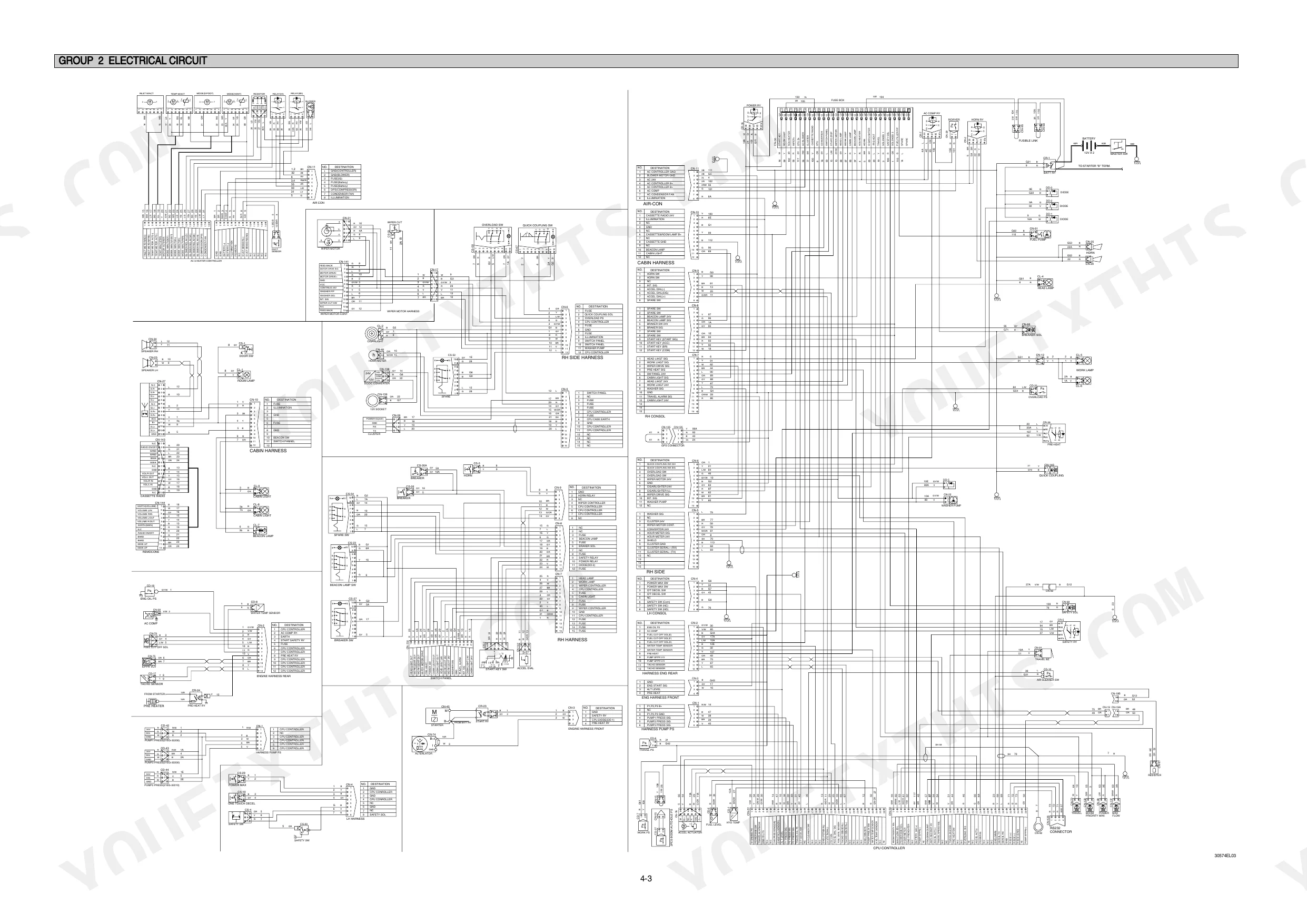

| Electrical System | 213-260 | Component Location, Electrical Circuit, Electrical Component Specification |
| Mechatronics System | 261-298 | Outline, Mode Selection System |
| Maintenance Standard | 353-389 | Operational Performance Test, Major Components, Track and Work Equipment |

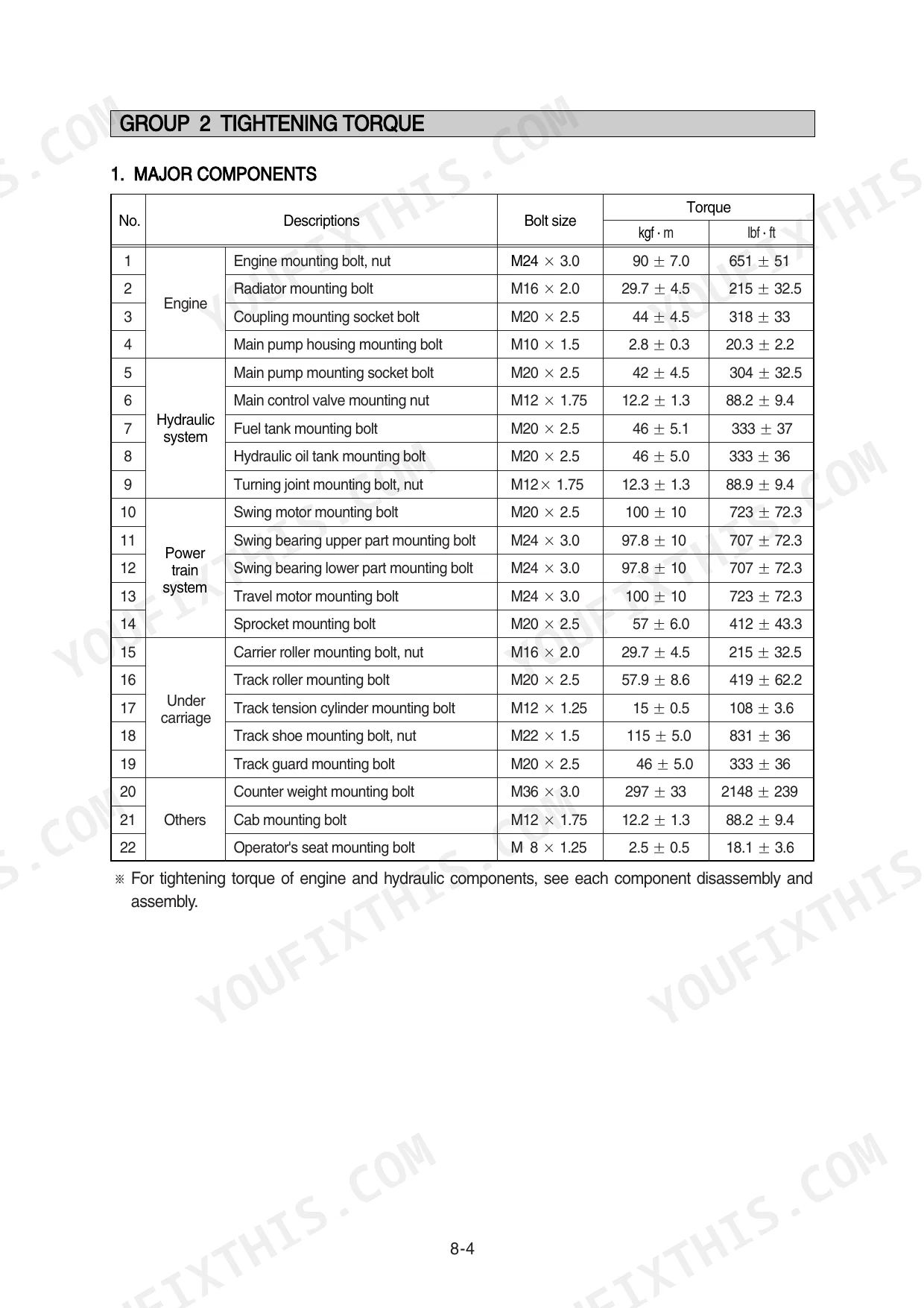

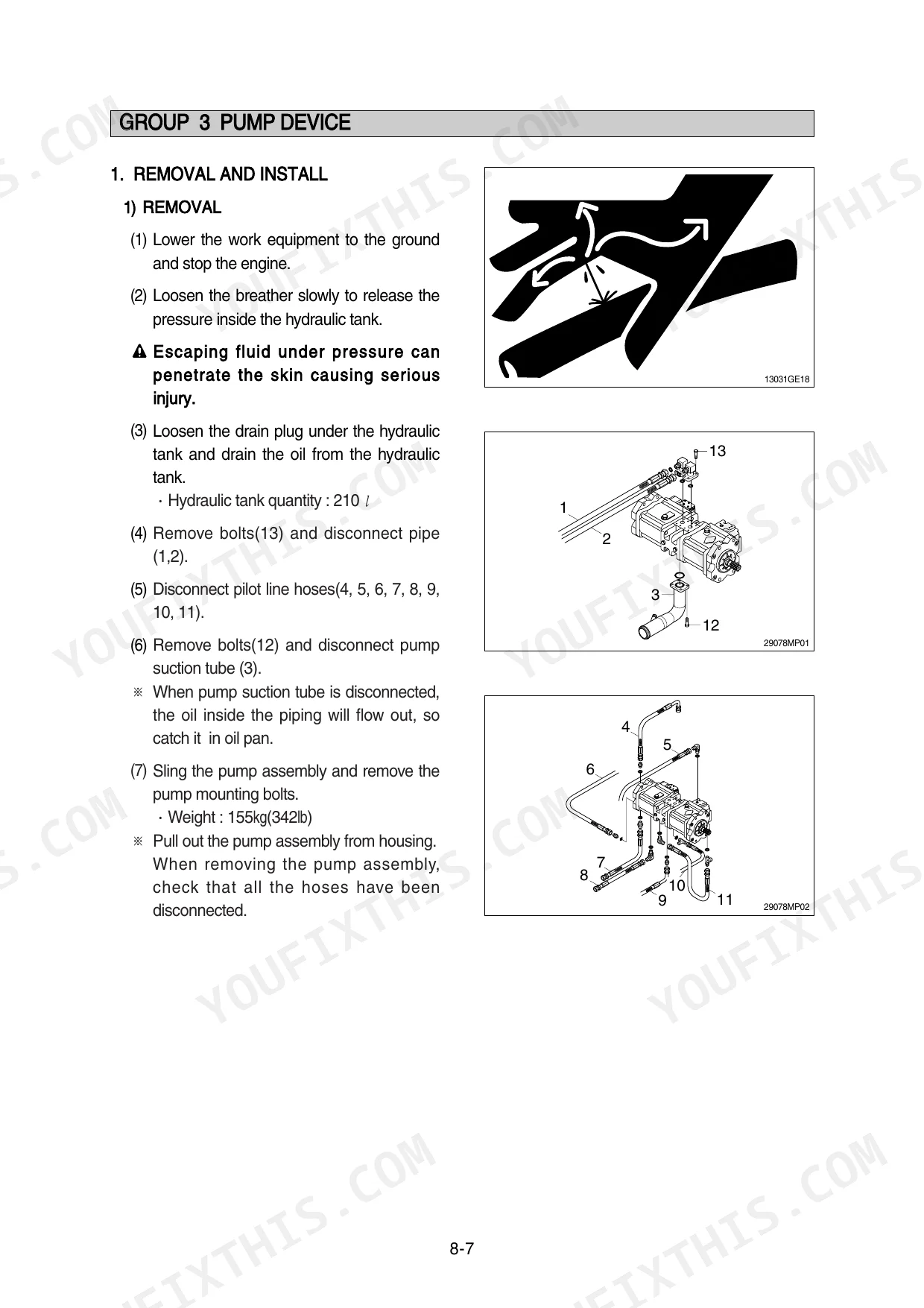

| Disassembly and Assembly | 390-596 | Precaution, Tightening Torque, Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Turning Joint |
| Component Mounting Torque | 597-620 | Introduction Guide, Engine System, Electric System, Undercarriage, Structure, Work Equipment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery | 2 x 12V x 160Ah | p. 37 |
| Starting motor | 24V-7.5kW | p. 38 |
| Pilot relief valve pressure | 40kgf/cm2 | p. 167 |
| Bypass relief valve opening pressure (full-flow filter) | 1.5kgf/cm2 | p. 165 |
| Bypass check valve setting pressure (return circuit) | 1.5kgf/cm2 | p. 165 |
| Fuse No. 1 | 20A | p. 218 |
| Fuse No. 2 | 5A | p. 218 |
| Battery capacity | 12V x 160Ah | p. 232 |
| Starter motor contact resistance | 0.1 Ω | p. 238 |
| Fuel filler pump connector CN-61 resistance | 1.0 Ω | p. 236 |
| Safety switch 1 contact resistance (Normal) | 0 Ω (terminal 1-2), ∞ Ω (terminal 1-3) | p. 236 |
| Pilot primary pressure | 35±5 kgf/cm2 | p. 369 |

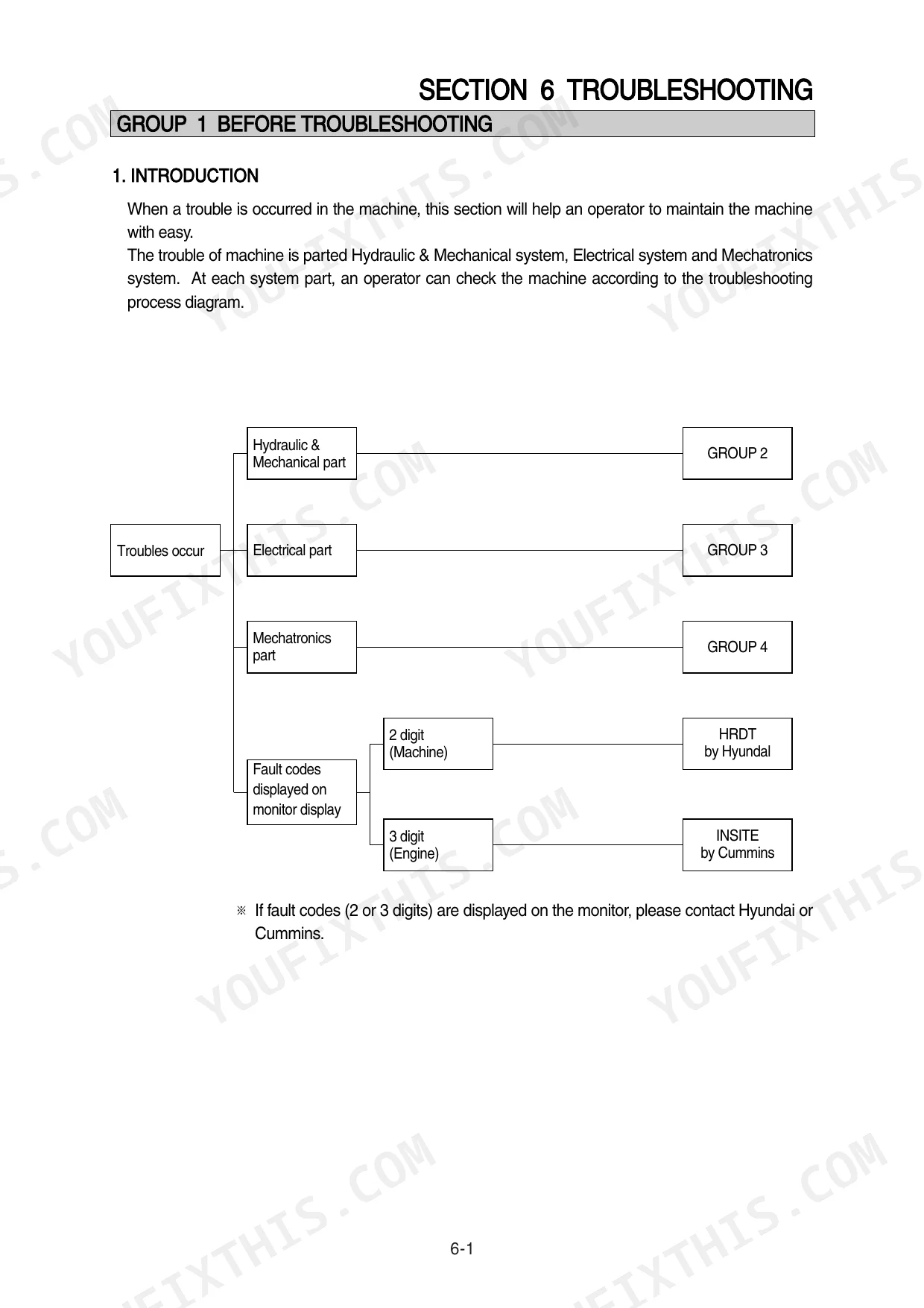

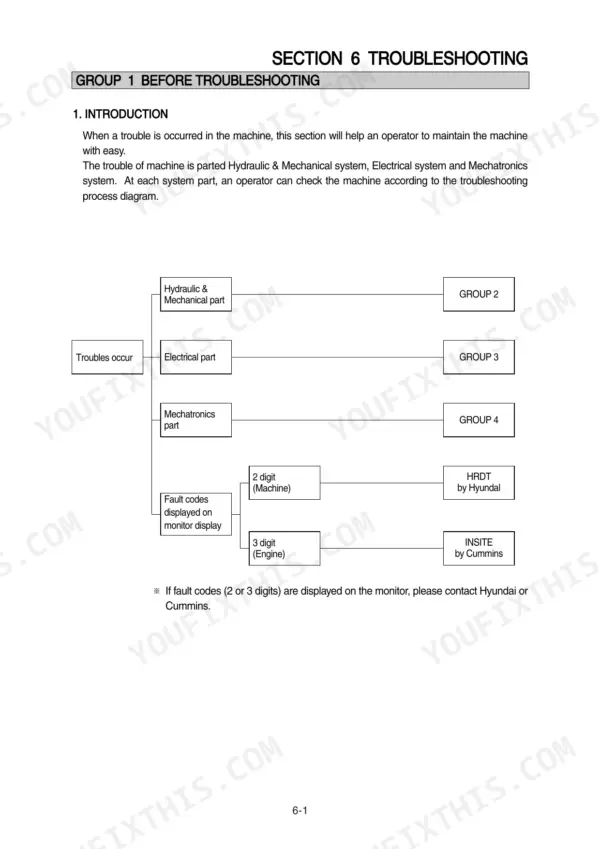

Hyundai R305LC-7, R305NLC-7 Common Problems This Manual Covers
Hyundai R305LC-7 hydraulic pump grinding noise at the coupling, bucket and boom feel weak
Check the coupling hub between engine and pump for worn splines and loose set screws. Verify hydraulic tank oil level; the tank holds 210 L and low oil pulls air into the suction line. Follow the noise diagnosis steps starting, then test pilot primary pressure against the 35±5 kgf/cm2 spec on page 369 before judging the main pump.
Manual Section: Hydraulic and Mechanical System Troubleshooting p. 397Engine won't crank or cranks slowly, dash powers up but starter just clicks
Test both 12V 160Ah batteries under load and clean the ground cables before pulling the starter. Measure starter motor contact resistance; anything above the 0.1 ohm spec on page 238 means burned contacts. Check start relay resistance against the electrical component specification, then work through the engine start troubleshooting.
Manual Section: Electrical System Troubleshooting p. 238All hydraulic functions slow and weak once oil warms up, engine sounds fine
Check pilot primary pressure at the test port first; it should read 35±5 kgf/cm2 per page 369, and low pilot pressure makes every function lazy. Drain a sample from the 210 L hydraulic tank and inspect for cloudy or contaminated oil, then replace the return filter if its 1.5 kgf/cm2 bypass valve has been dumping unfiltered oil.
Manual Section: Hydraulic and Mechanical System Troubleshooting p. 369Travel speed stuck in low, machine crawls with the speed switch on high
Verify travel speed selecting pressure at the travel motor against the values in the travel speed troubleshooting section on page 370. If pressure never rises, test the travel speed solenoid and its wiring back through the fuse box. Follow the travel speed troubleshooting procedure starting.
Manual Section: Electrical System Troubleshooting p. 370Swing won't move after parking, or upperstructure drifts when stopping on a slope
Measure swing parking brake release pressure; compare it against the brake release spec on page 371. Zero pressure there points to the pilot circuit or solenoid, not the swing motor. If swing stays weak, check the swing relief setting against the spec on page 373 before opening anything.
Manual Section: Hydraulic and Mechanical System Troubleshooting p. 371Track shoes loose or missing bolts, clanking from the undercarriage during travel
Torque track shoe bolts to 115±5 kgf·m per the chart on page 394; run them in a crossing pattern and recheck after a day of work. Inspect shoe contact faces for fretting; polished mating surfaces mean the bolts ran loose. Never reuse bolts that were run loose under load, replace them.
Manual Section: Disassembly and Assembly p. 394Frequently Asked Questions
How do I clear error codes on a Hyundai R305LC-7 excavator?
To delete all recorded error codes, select the recorded error (TIME Er) display on the cluster. Press the engine and select switches at the same time for 2 seconds or more. The display will change to 'TIME Er : 00', indicating that the CPU controller has deleted all recorded error codes from its memory. p. 273
What is the torque specification for track shoe mounting bolts on a Hyundai R305LC-7?
The tightening torque for the track shoe mounting bolt and nut (M22 x 1.5) is 115 ± 5.0 kgf·m (831 ± 36 lbf·ft). p. 394
What are the replacement specifications for the battery?
The battery specification is 12V x 160Ah (2EA). When checking, the specific gravity should be 1.280 or over for overcharged, 1.280 to 1.250 for normal, and 1.250 below indicates the battery needs recharging. p. 232
What is the standard engine speed for the H-mode on a Hyundai R305LC-7?
The standard engine speed for the H-mode is 1950 ± 50 rpm, measured with the accel dial set at the 10 (Max) position. p. 357
What is the tightening torque for the main relief valve on the main control valve?
The tightening torque for the main relief valve (81) is 7 to 8 kgf·m (50.6 to 57.8 lbf·ft) using a 32mm spanner. p. 431
Is this Hyundai R305LC-7 manual a download or a disc?
Immediate download of the complete 620-page searchable Shop Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this Hyundai R305LC-7 manual?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
Reviews
There are no reviews yet.
