Need the factory specs for your vibrating tandem roller? This 319-page JCB VMT260 Service Manual PDF (OEM #9803/9530-6) covers the VMT160, VMT260, VMT 160-90, VMT 260-100, and VMT 260-120 rollers with Kubota D722 engine variants. Inside, you get full hydraulic schematics detailing the exact routing for the propulsion, steering, and vibration circuits. Open up the electrical section to find complete wiring diagrams alongside step-by-step troubleshooting charts covering everything from the Kubota engine to the automatic vibration system. Lock down the ROPS structure mounting bolts to 210 Nm and secure the M16 drive motor bolts to 195-215 Nm before sending the roller back to the job site. Your crew is waiting on this machine. Grab the right numbers instead of relying on internet guesses. This file is fully bookmarked so you can pull it up on your tablet, jump straight to the correct spec, and get to work.
What's Inside This JCB VMT160 & variants Manual
| System | Pages | Key Topics |
|---|---|---|

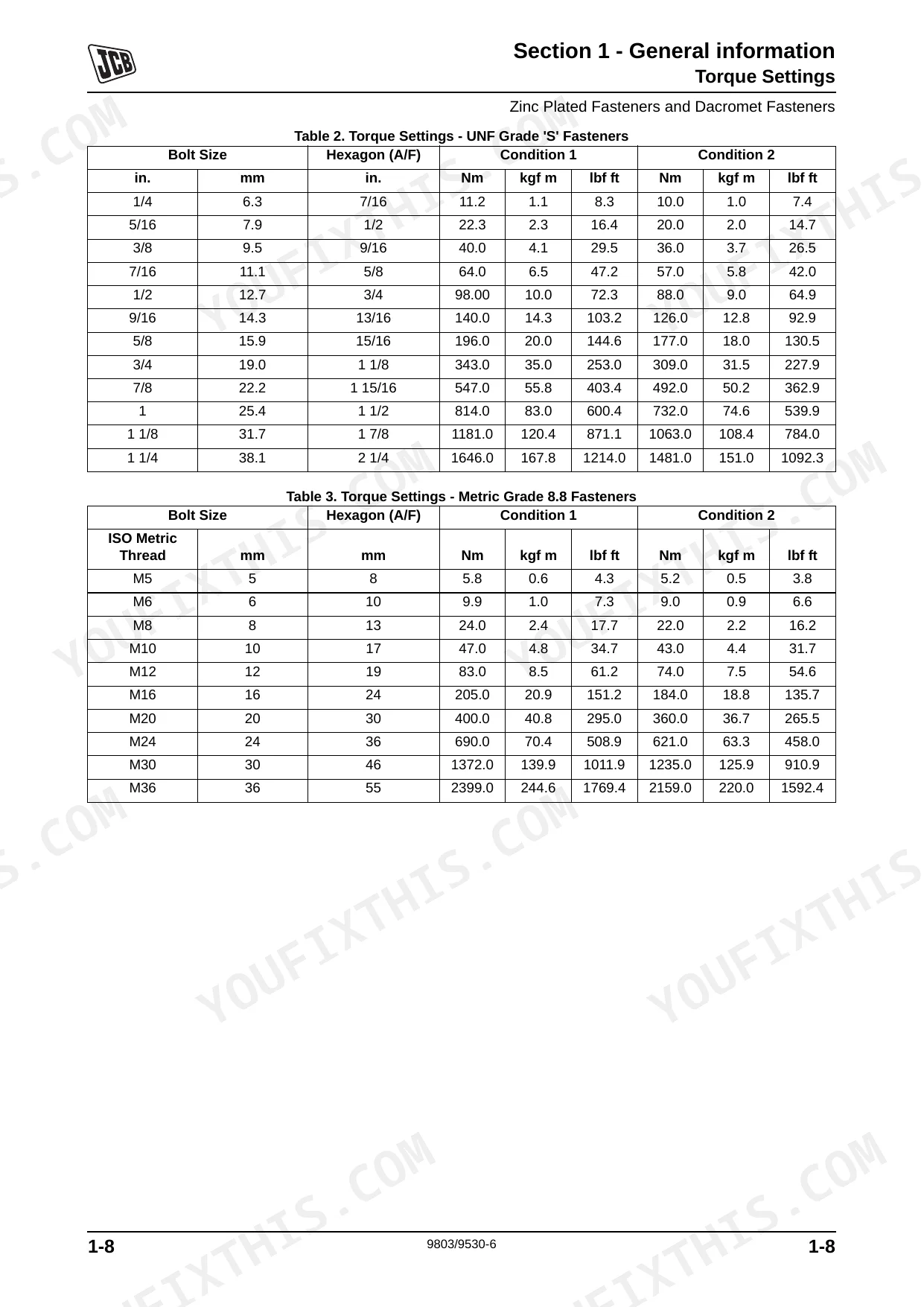

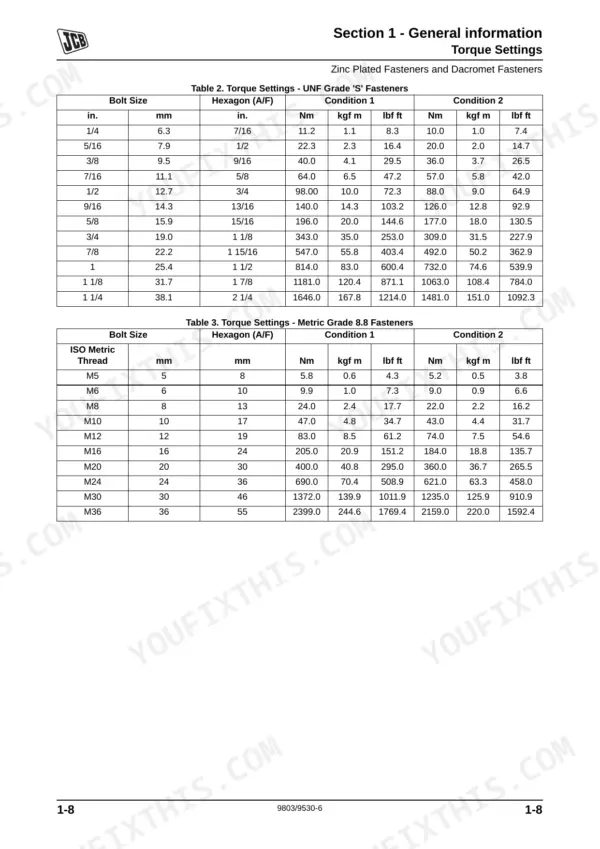

| General Information | 2-32 | Introduction, Torque Settings, Service Tools, Service Aids, Terms and Definitions |
| Care and Safety | 33-50 | Safety Notices, Safety Check List |
| Maintenance | 51-106 | Routine Maintenance (Service Requirements, Health and Safety, Service Schedules, Fluids, Lubricants and Capacities, Tools, Prepare the Machine for Maintenance, Cleaning the Machine, Check the Machine for Damage, Access Panels, Brakes, Electrical System, Engine) |

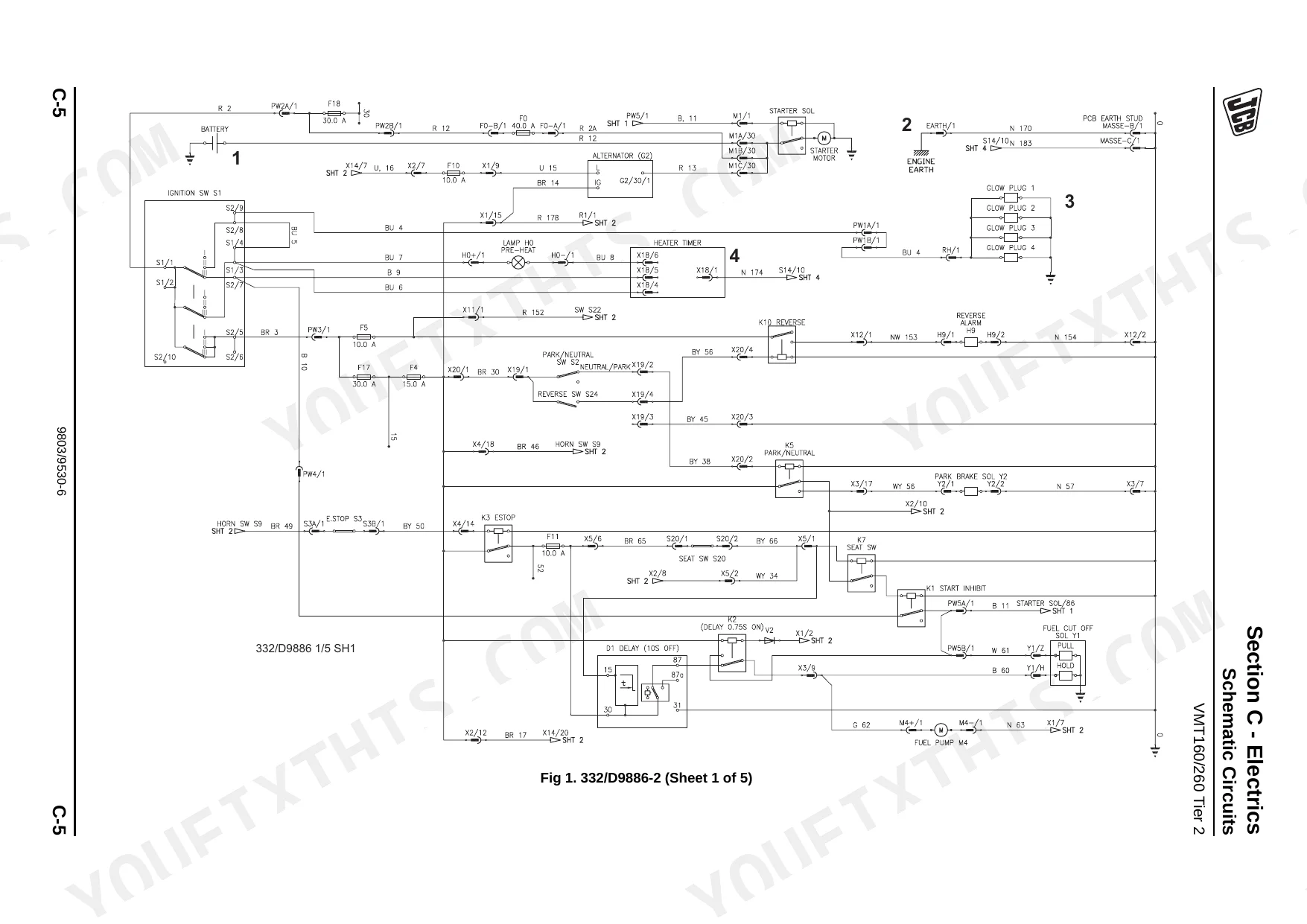

| Electrics | 107-164 | Technical Data, Schematic Circuits, Harness Data |
| Hydraulics | 165-242 | Technical Data, Basic Operation, Schematic Circuits and Circuit Descriptions, Service Procedures, Fault Finding, Hydraulic Hose and Pipework |
| Steering | 243-256 | Articulation Joint, Removal and Replacement, Replacement, Inspection and Re-Assembly, Fault Finding, Steering Hydraulic Pressure Testing |

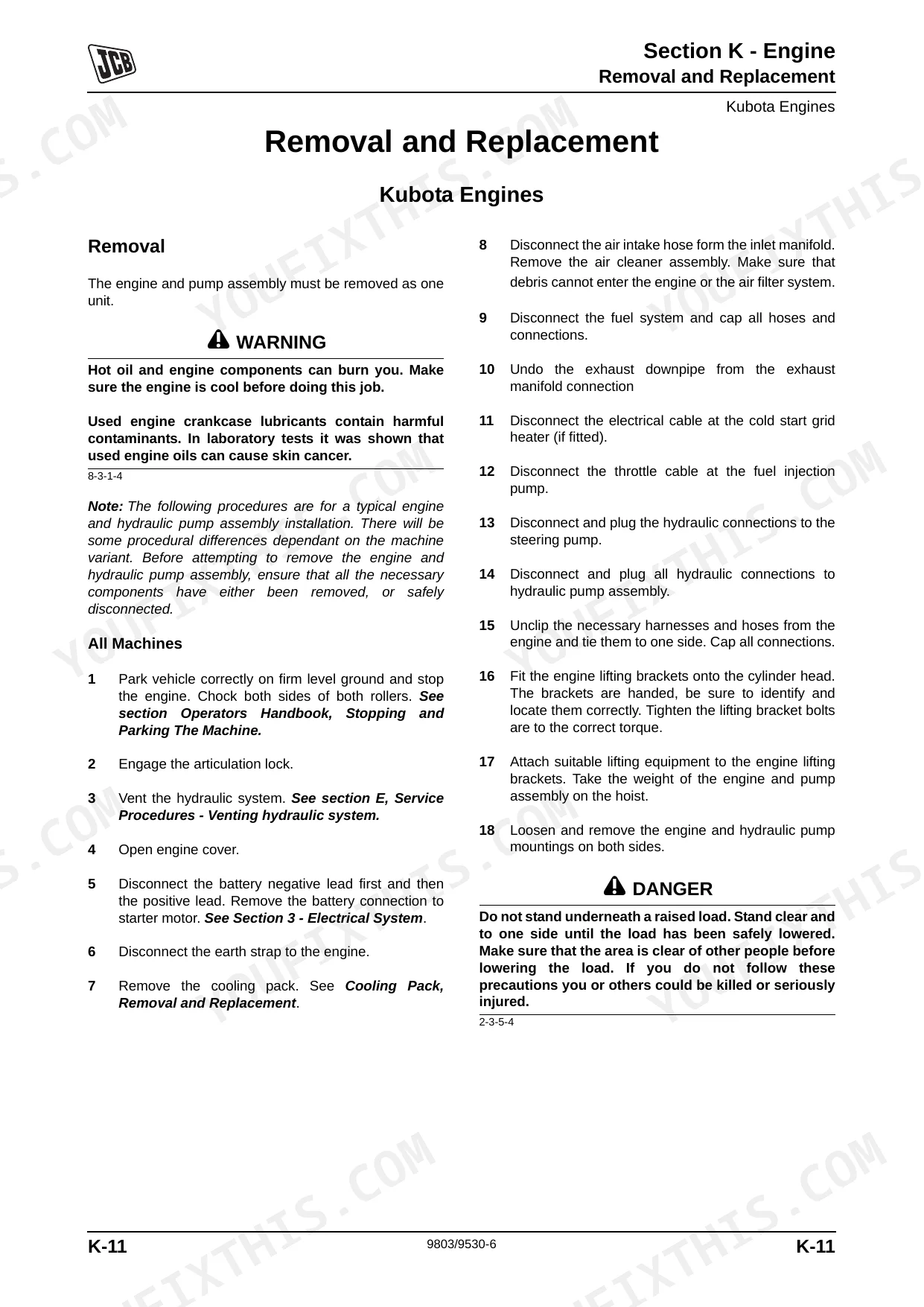

| Engine | 257-273 | Technical Data, Engine Cooling Pack, Engine Repair Procedures, Removal and Replacement (Engine Variants, Unit Identification, Specifications, Kubota Engines) |
| Vibration | 274-319 | Technical Data, Vibration System, Fault Finding, Drum, Vibration Motor |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| ROPS structure mounting bolts (item B) | 210 Nm (155 lbf ft) | p. 72 |

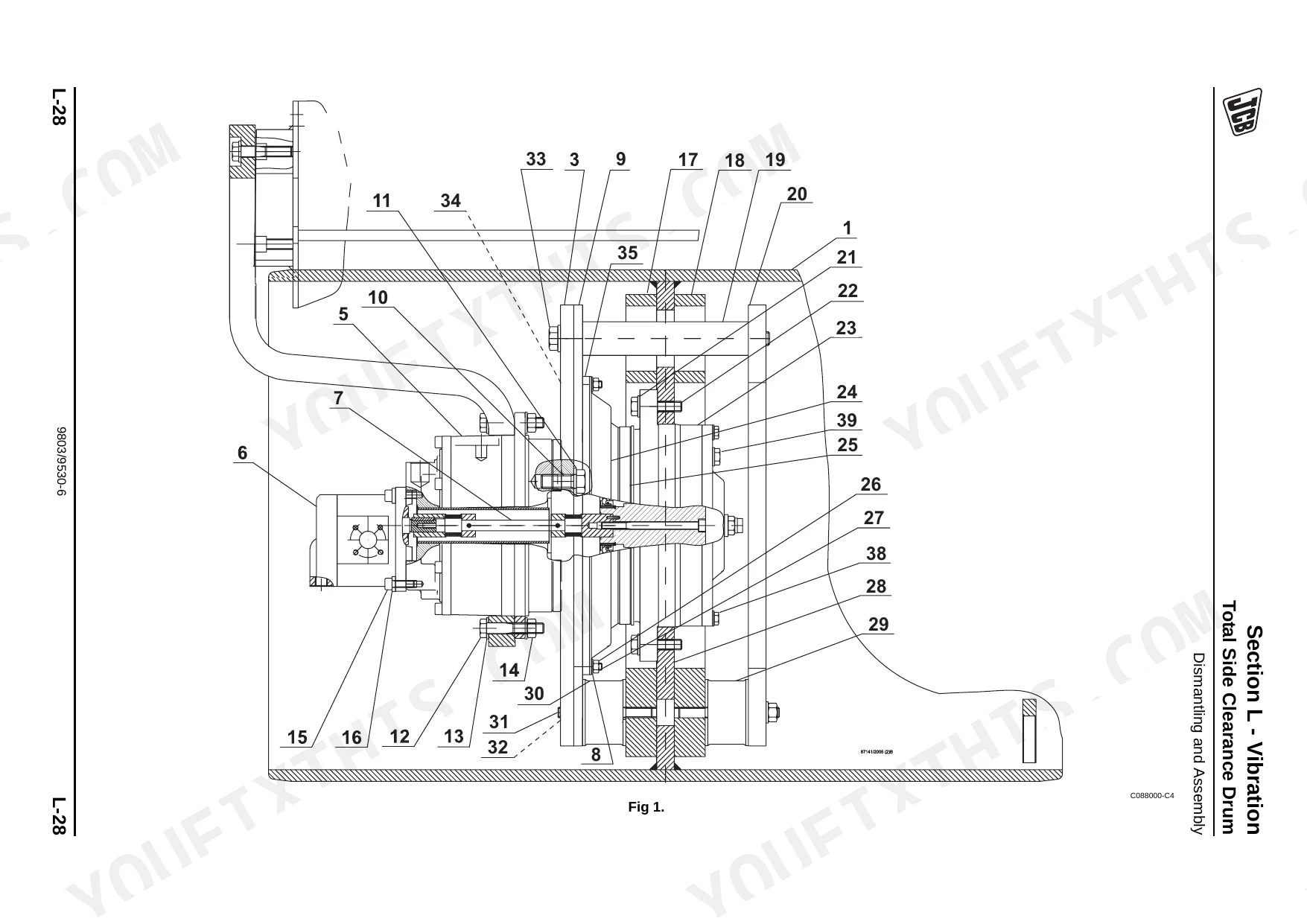

| Total Side Clearance Drum - Balance Ring Cap Screw (item 36, M12 Cap screw) | 80-88 Nm (59-65 lb./ft) | p. 311 |
| Hydraulic Drive Motor - Drive Motor (item 10, M16 bolt) | 195-215 Nm (144-158 lb./ft) | p. 316 |
| Oil seals replacement instruction | Renew whenever disturbed unless otherwise instructed | p. 45 |
| O-ring replacement instruction | Ensure that only JCB Genuine Parts are used | p. 217 |
| Gaskets replacement instruction | Renew whenever disturbed unless otherwise instructed | p. 45 |
| Bearing flange capscrews torque (with gasket) | 44 Nm (32 ft.lbs) | p. 290 |

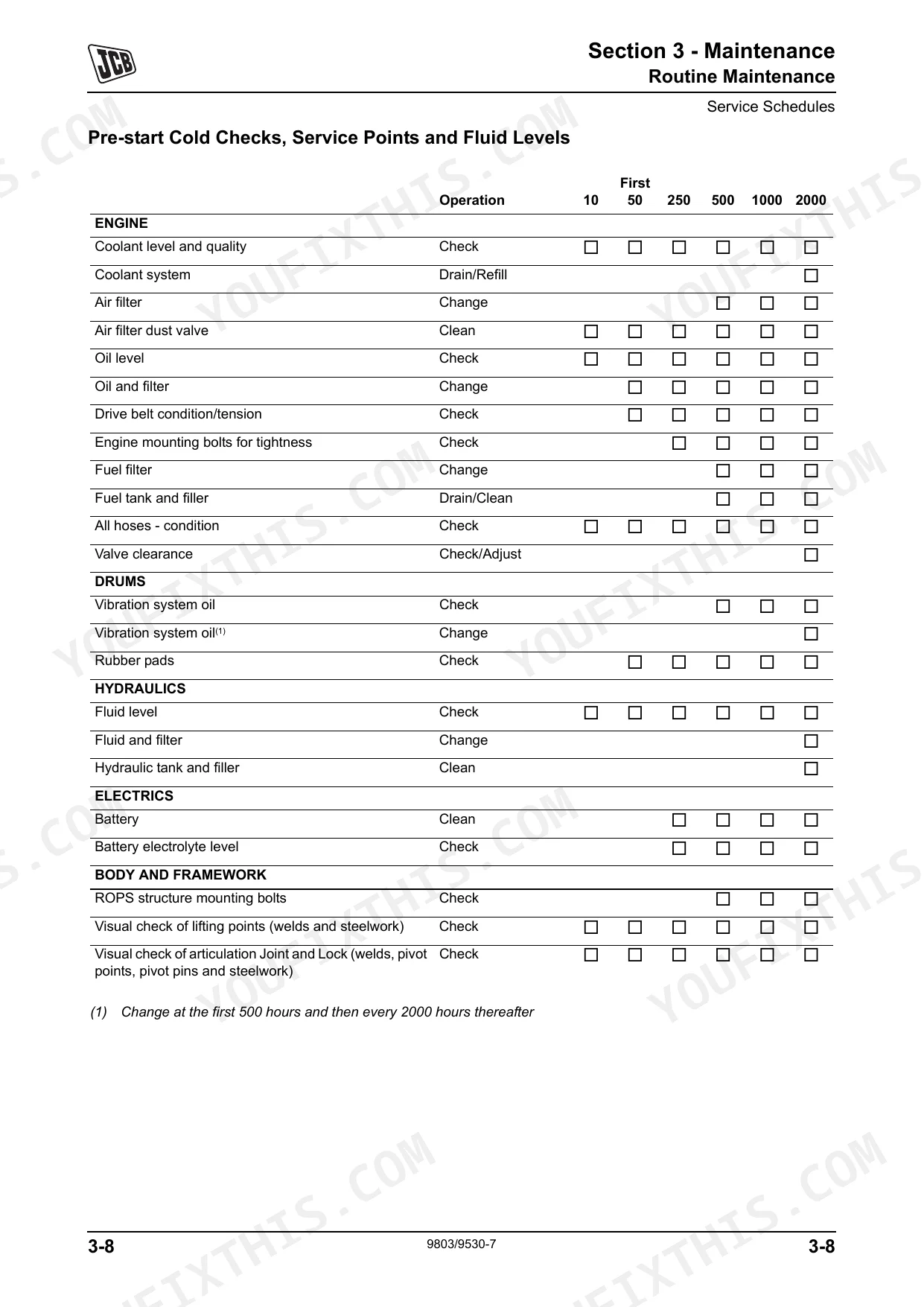

| Hydraulic fluid filter replacement interval | Change at 500 hours | p. 62 |
| Hydraulic filter replacement instruction | Stop the engine immediately and replace the hydraulic oil filter | p. 224 |
| Vibration switch S12 operation (manual vibration) | When closed, current enters the vibration stepping relay K6 | p. 124 |
| Vibration switch S11 operation (auto vibration) | When in auto position, current passes up to the vibration relay K4 contacts | p. 127 |
| Vibration solenoid Y4 operation | Energized when front vibration switch S13 is pressed | p. 125 |
JCB VMT160 & variants Common Problems This Manual Covers
JCB VMT160 drum engages vibration unexpectedly when moving the drive lever into forward or reverse. p. 127
Inspect vibration switch S11 on page 127. Verify that when in the auto position, current passes up to the vibration relay K4 contacts. Test the wiring harness splices at page 161 to ensure secure connections before returning the machine to service.
Manual Section: Electrical Service ProceduresFront or rear drum fails to vibrate or suffers reduced amplitude during compaction. p. 278
Test the overall vibration system performance as specified on page 278. Check the vibration solenoid Y4 on page 125 to ensure it energizes when you press the front vibration switch S13. Clean the electrical contacts if necessary.

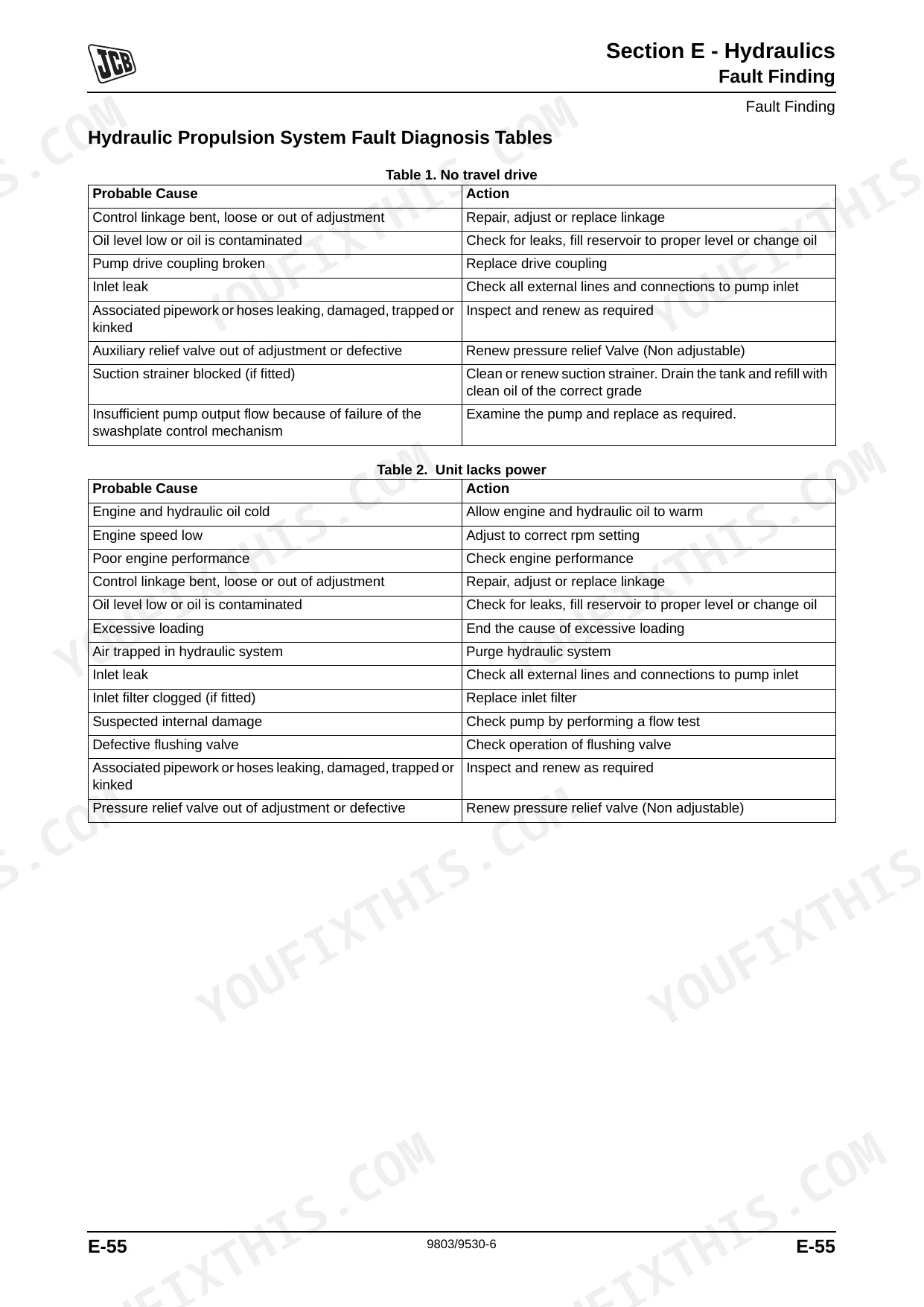

Manual Section: VibrationHydrostatic propulsion system feels weak or machine refuses to drive forward under heavy load. p. 223
Check the troubleshooting procedures on page 223 for low fluid or contamination. If the oil is degraded, drain the reservoir and refill to the specified hydraulic oil capacity on page 64. Stop the engine immediately and replace the hydraulic oil filter.
Manual Section: Hydraulic Fault FindingRecurring hydraulic oil leaks from the vibration motor shaft seal or drive motor housing. p. 293
Remove the bearing flange carefully to avoid damaging the shaft seal against the splined teeth, following the instructions on page 293. Install a new gasket and torque the bearing flange capscrews to 44 Nm (32 ft.lbs) as specified on page 290. Always renew gaskets whenever disturbed.
Manual Section: Vibration Motor Dismantling and AssemblyFrequently Asked Questions
What are the torque specs for JCB VMT160/VMT260 drum or bearing bolts?
For the exciter bearing, 16mm bolts should be torqued to 190 Nm (140 ft. lbs). Balance ring cap screws (M12) require 80 - 88 Nm (59 - 65 lb./ft), and vibrator housing securing screws (M12) also require 80 - 88 Nm (59 - 65 lb./ft). Drive assembly bolts (M16) should be torqued to 195 - 215 Nm (144 - 158 lb./ft), and vibrator drive motor M10 screws need 56 - 62 Nm (41-46 lb./ft).
What are the replacement specifications for oil seals?
For 'O' ring seals, the manual states that dimensions and shore hardness are critical, and only JCB Genuine Parts should be used for replacement. For pressure seals and shaft seals in the vibration motor, they should be replaced if damaged, with emphasis on careful removal to prevent damage to grooves and using clean hydraulic oil for lubrication during installation.
What are the replacement specifications for gaskets?
The manual specifies 'JCB Multi-Gasket' with Part No. 4102/1212, supplied in a 50 ml quantity, as a medium strength sealant suitable for gasket flanges of 25-65 mm diameter. It is generally expected that oil seals, gaskets, and any components showing obvious signs of wear or damage should be renewed as a matter of course.
How do you fix JCB VMT160 drum engages vibration unexpectedly when moving the drive lever into forward or reverse?
Inspect vibration switch S11 on page 127. Verify that when in the auto position, current passes up to the vibration relay K4 contacts. Test the wiring harness splices at page 161 to ensure secure connections before returning the machine to service.
What format is this manual in?
This is a 319-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

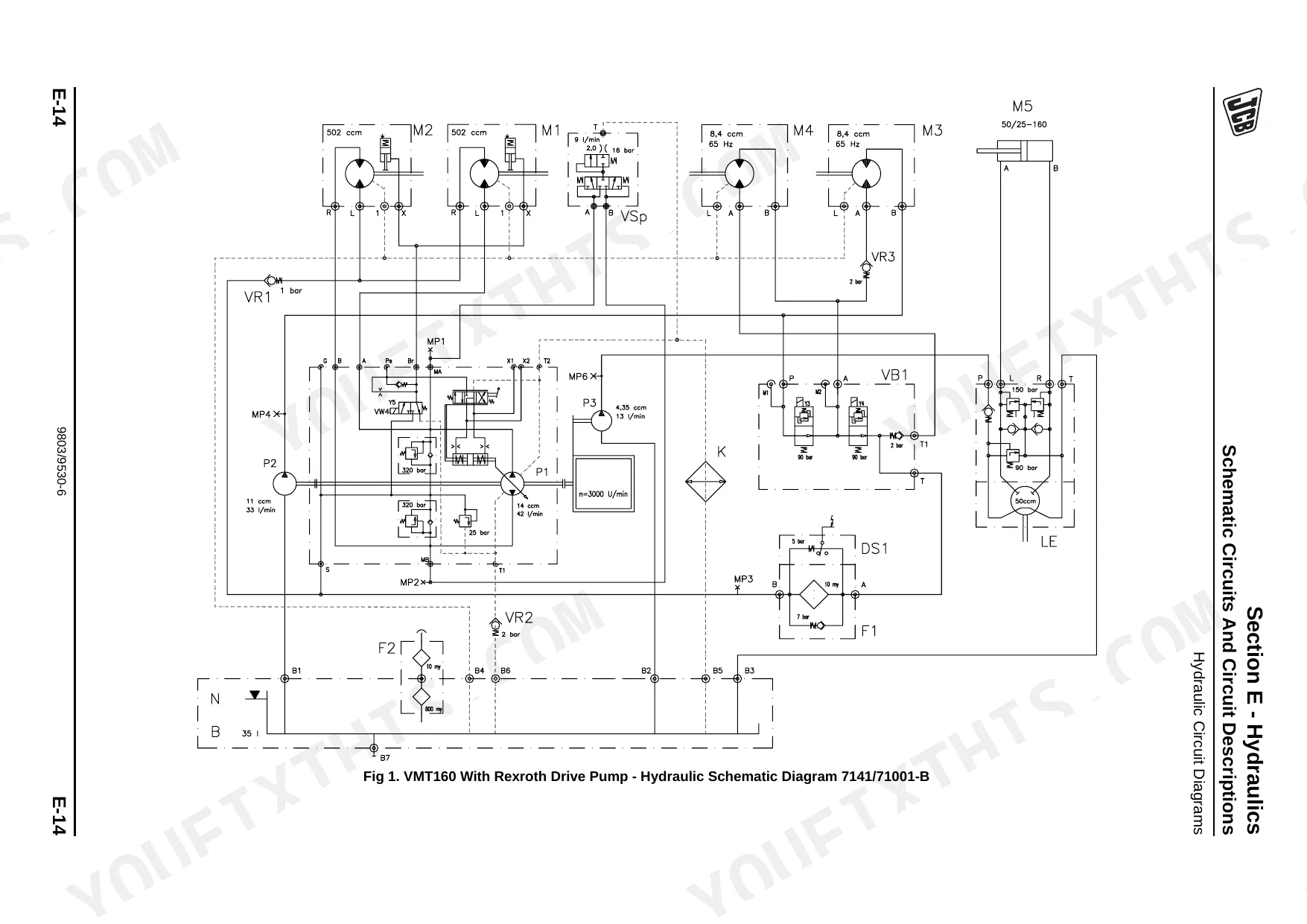

Are hydraulic system diagrams in this JCB VMT160 & variants Service Manual?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text throughout. The text quality is generally crisp and easy to read, with only minor pixelation on some headings when zoomed in. Diagrams are a mix of sharp vector drawings and raster images (photos); while labels on all diagrams are readable, the raster images can appear pixelated when magnified. The pages are clean with no notable scan artifacts, stains, or skewed content. There are several intentionally blank pages and blank contents pages included as filler.
