Part of the John Deere Repair Manuals.
This is TM406919, the factory repair technical manual for the John Deere 6145R, 6155R, 6155RH, 6175R, 6195R and 6215R premium 6R tractors, roughly 2015 to 2021 builds. It is the procedures book: component removal and installation, specifications, tests and adjustments. You get the PowerTech 6.8L engine out of the frame and back in, EGR and charge-air cooler service, all three transmissions (AutoPowr/IVT, PowrQuad, DirectDrive), MFWD and final drives, the load-sensing hydraulic pump and SCVs, wet brakes, TLS front suspension, cab suspension and the CommandCenter cab. Torque values, fluid capacities and clearances are printed where you need them, like the 0.48 mm intake / 0.53 mm exhaust valve lash. Searchable PDF, print what goes to the shop floor.
What's Inside This John Deere 6145R-6215R Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 8-51 | Safety Measures, Machine Runaway Prevention, Fluid Safety |

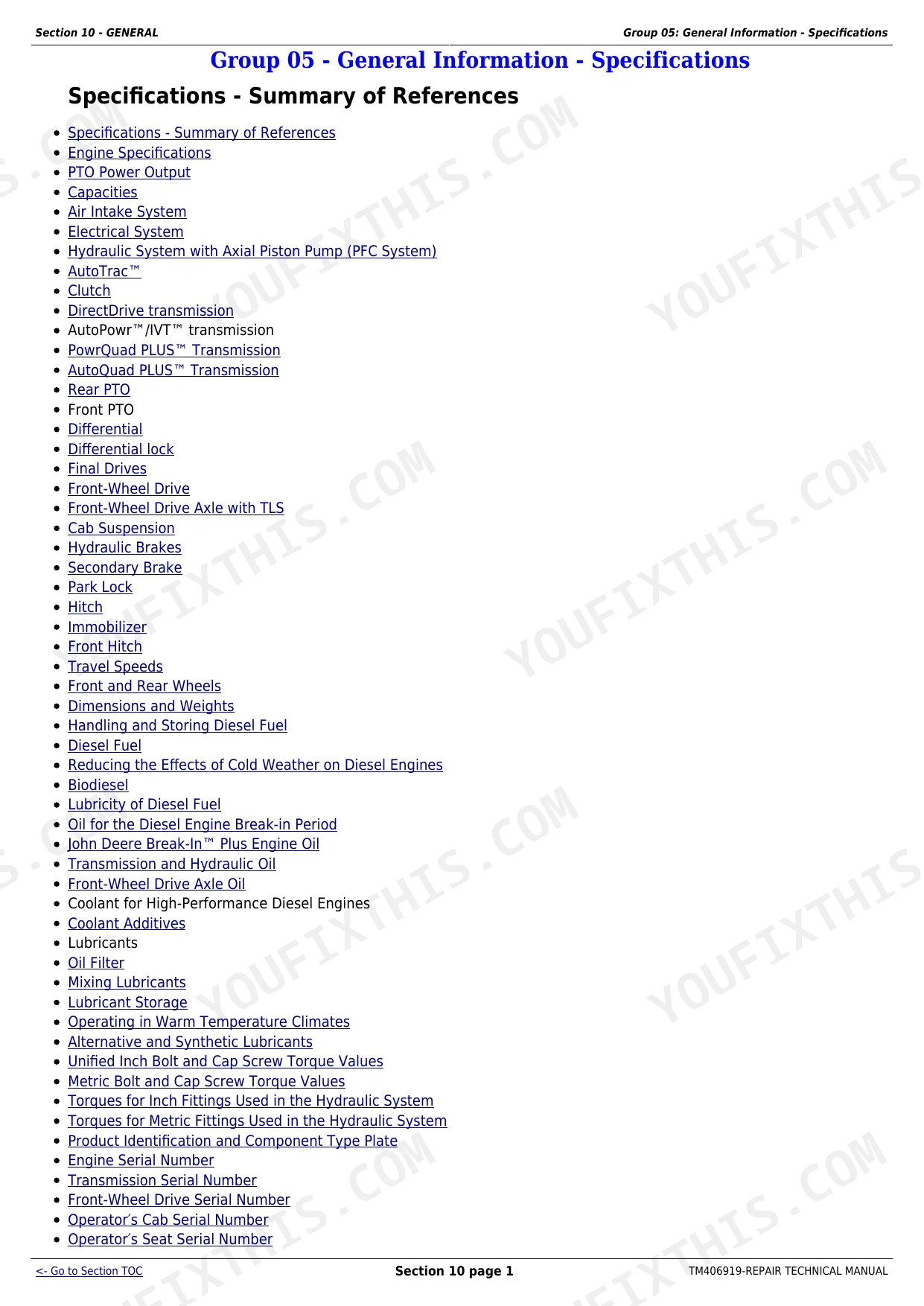

| General Information & Specifications | 52-93 | Model Specifications and Fluid Capacities, Predelivery Inspection, Torque Values |

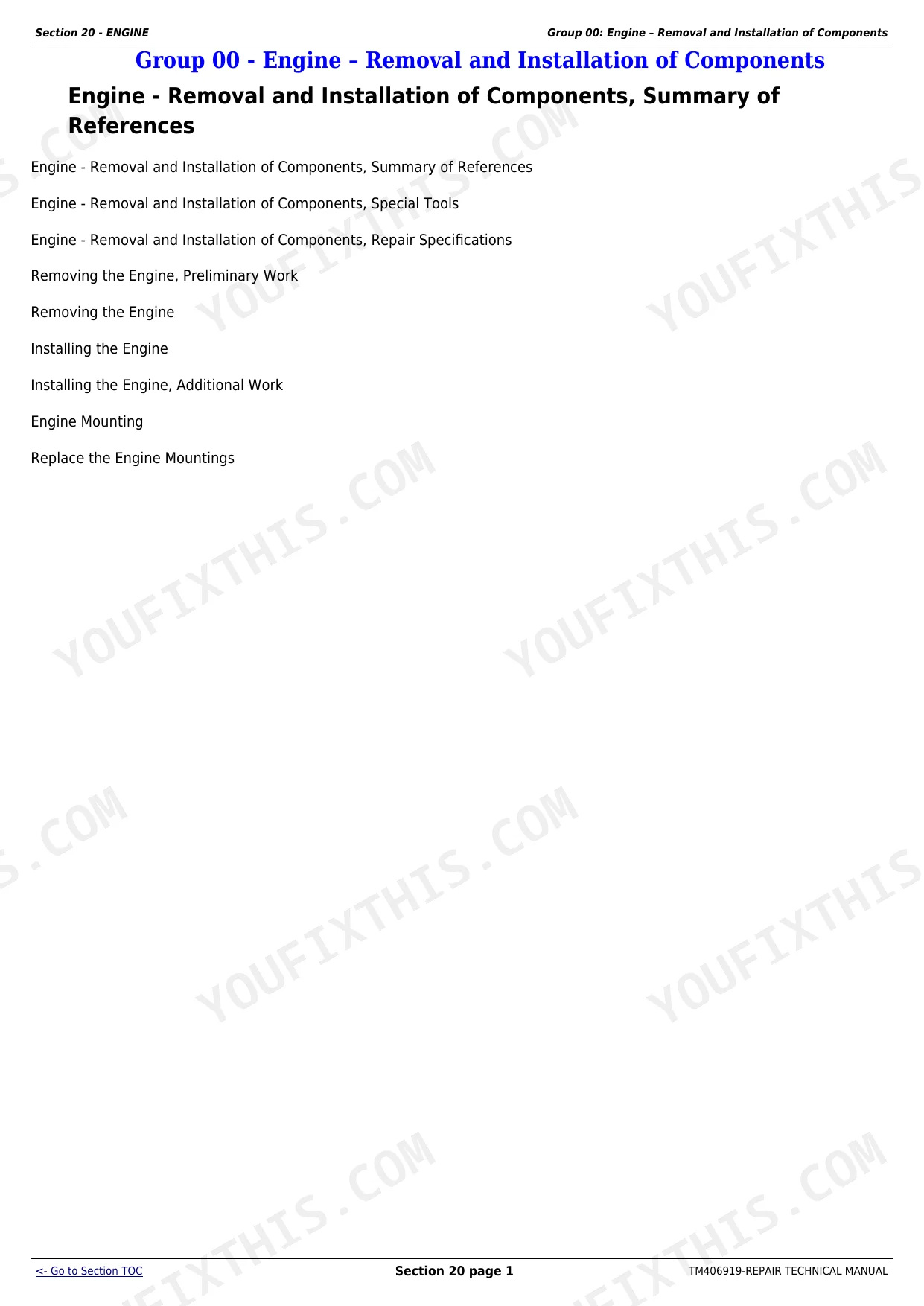

| Engine | 94-138 | PowerTech 6.8L Removal and Installation, EGR and Charge-Air Cooling, Engine Specifications |

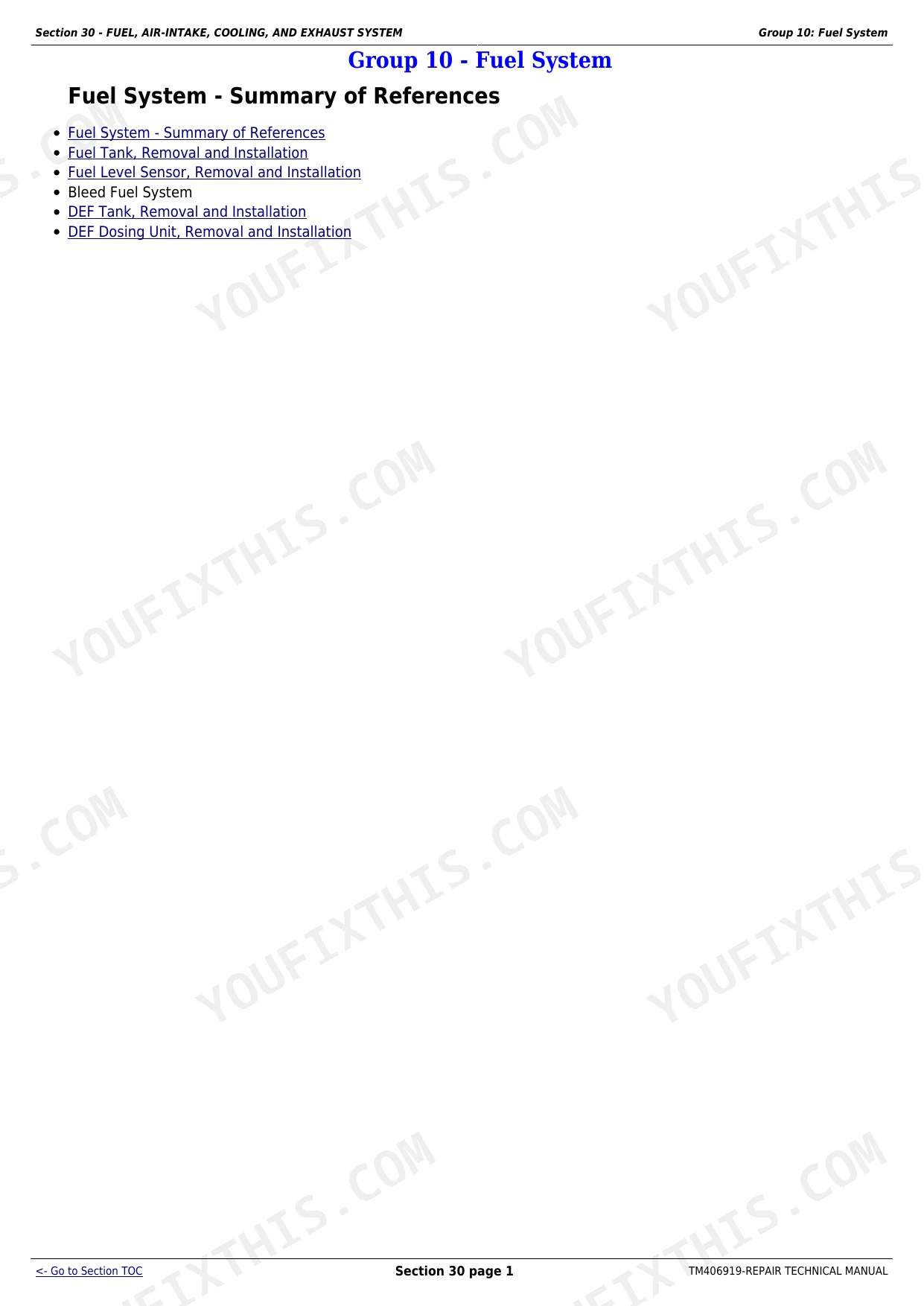

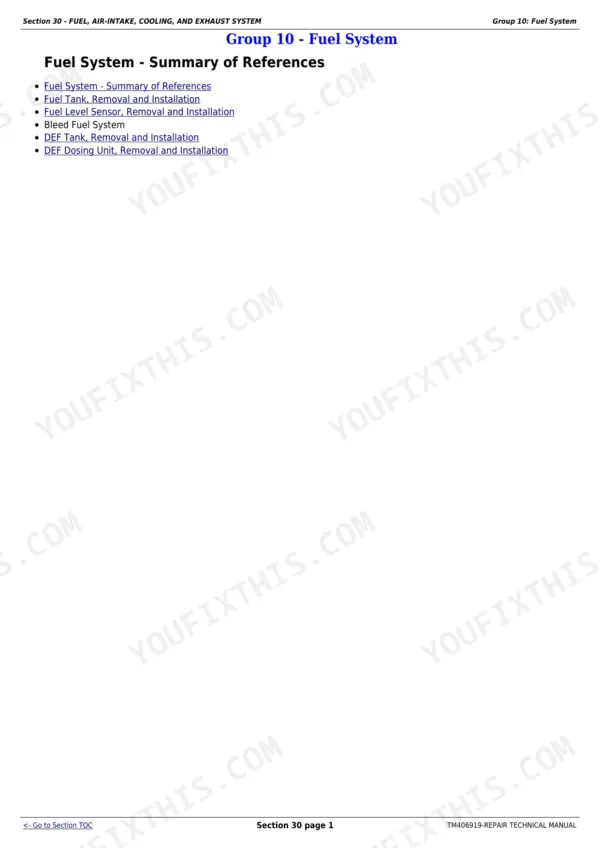

| Fuel, Air-Intake, Cooling and Exhaust | 139-180 | Fuel System Service, Air Intake and Turbo, Cooling and Exhaust After-Treatment |

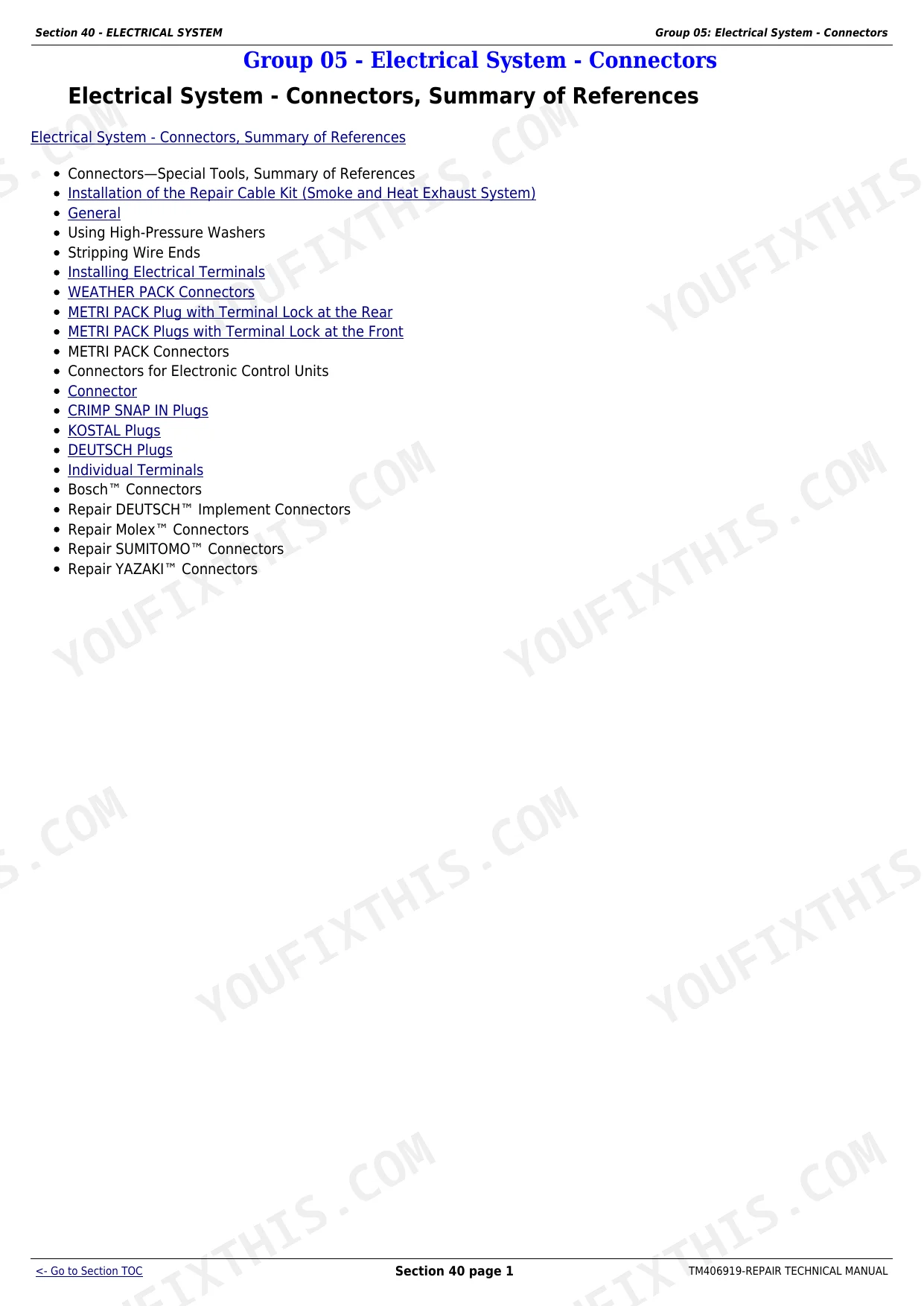

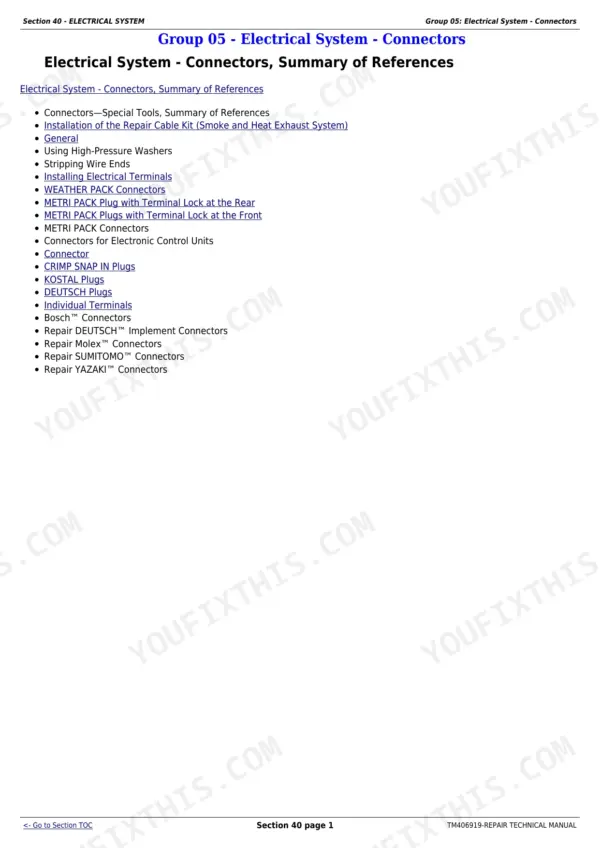

| Electrical System | 181-286 | Connector Information, Charging and Starting Circuits, Lighting |

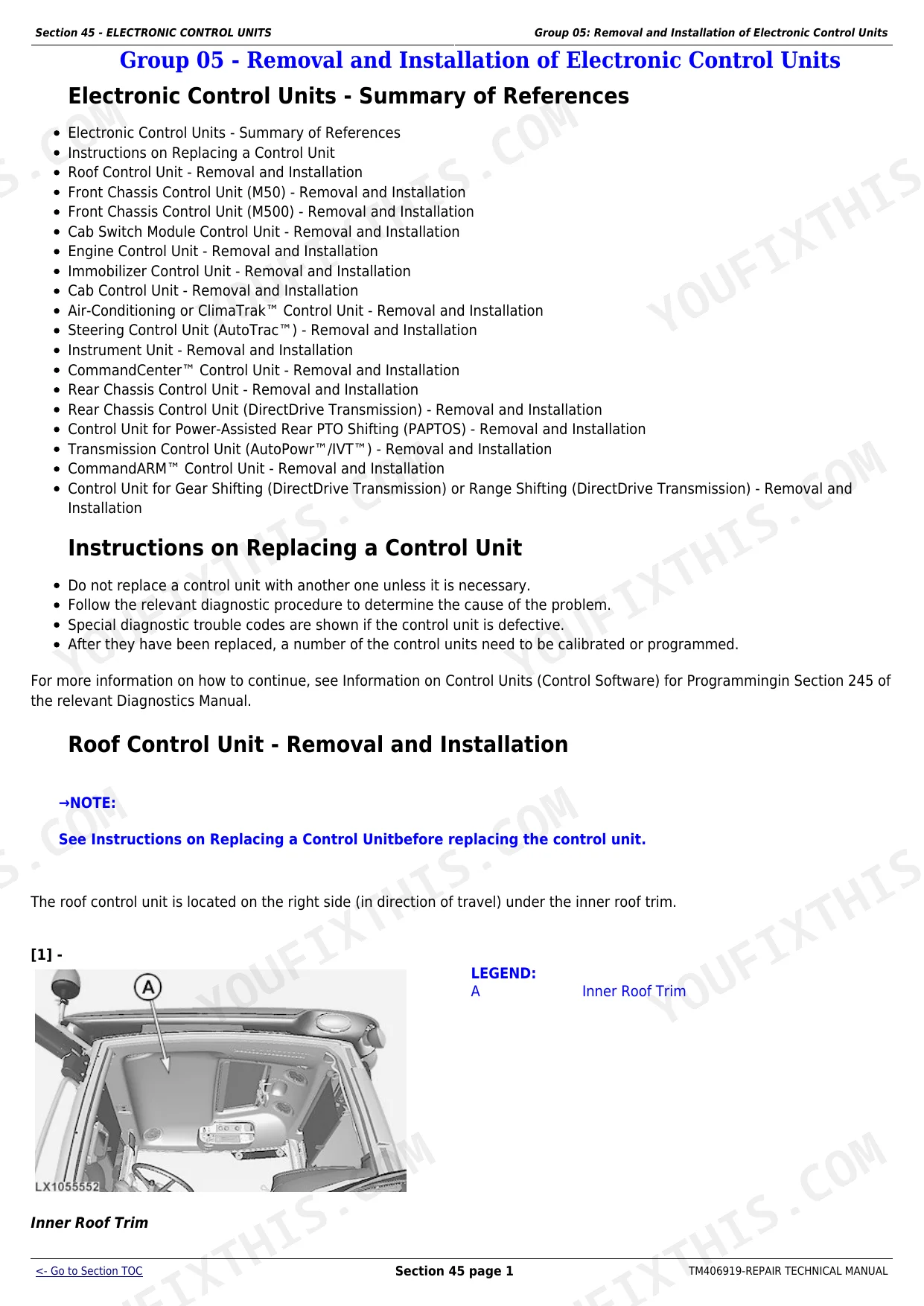

| Electronic Control Units | 287-324 | Control Unit Removal and Installation, Sensor and Actuator Service |

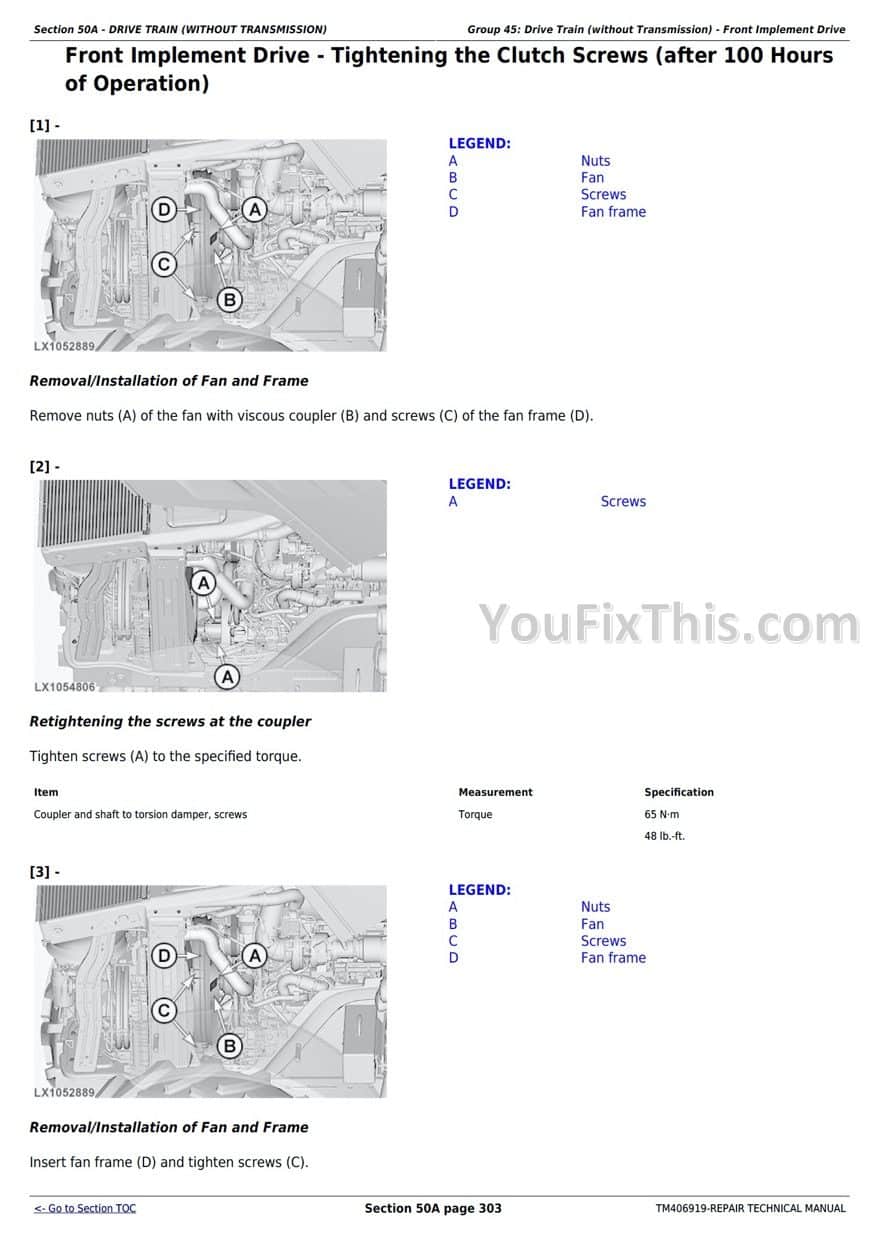

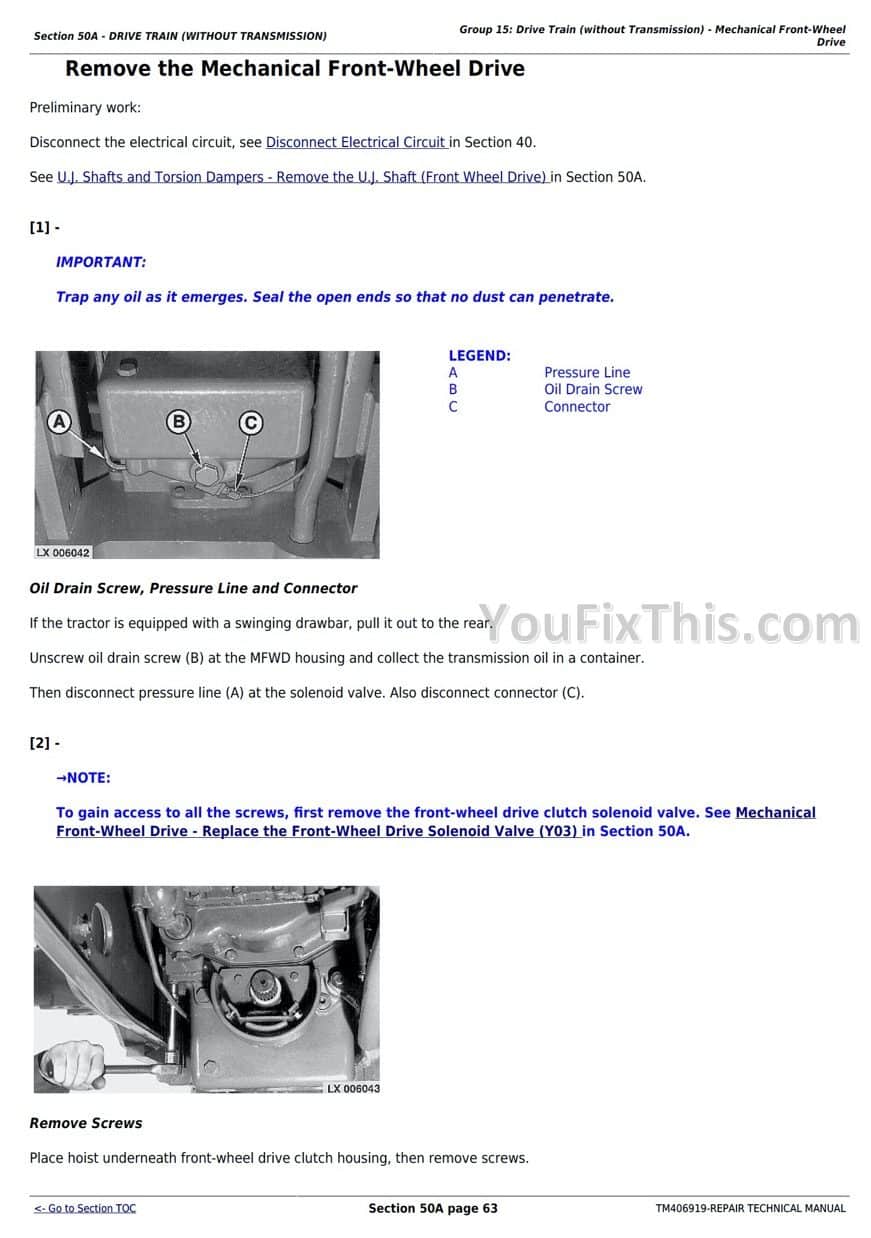

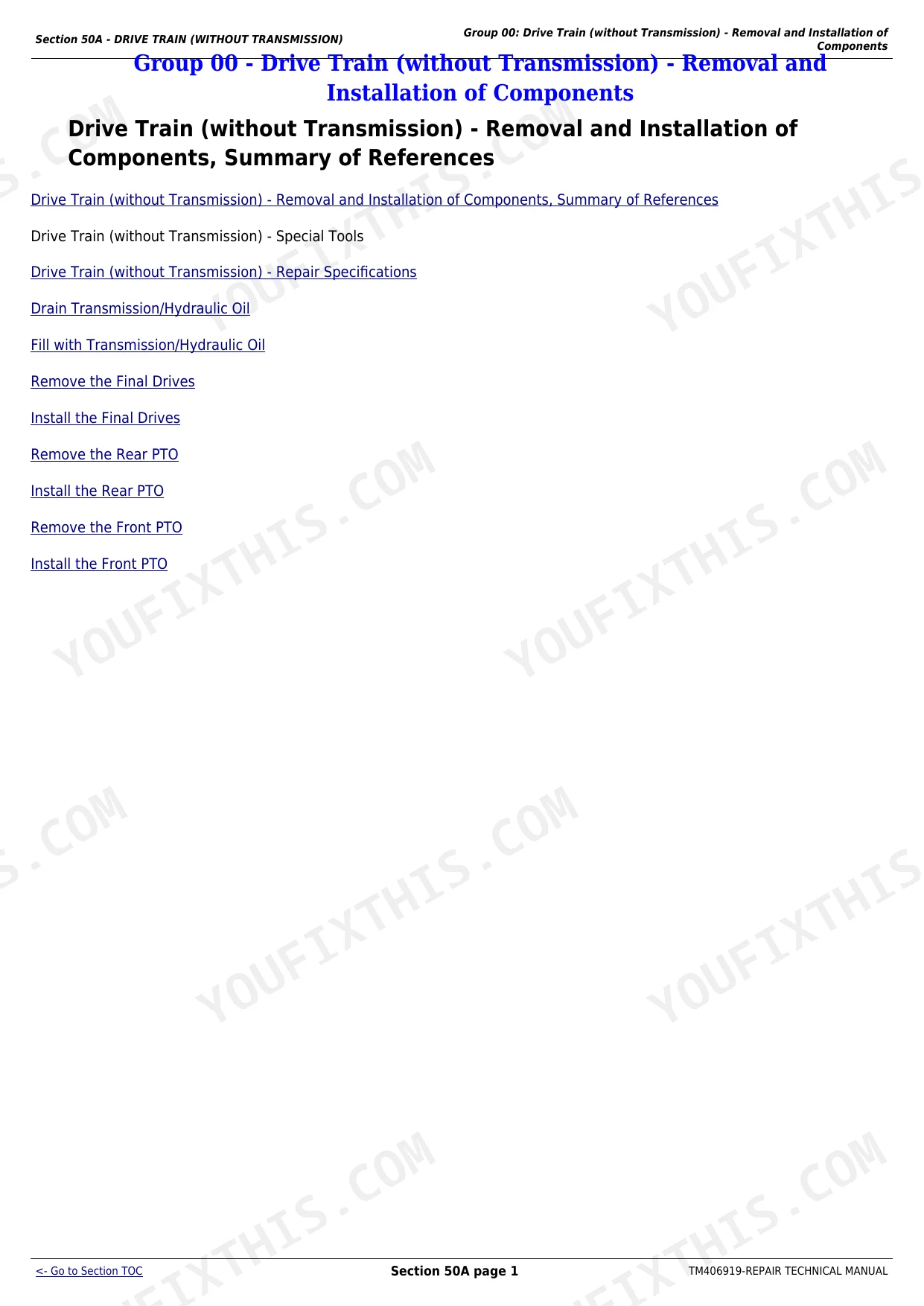

| Drive Train | 325-629 | Driveshaft, Mechanical Front-Wheel Drive, Differential and Final Drives |

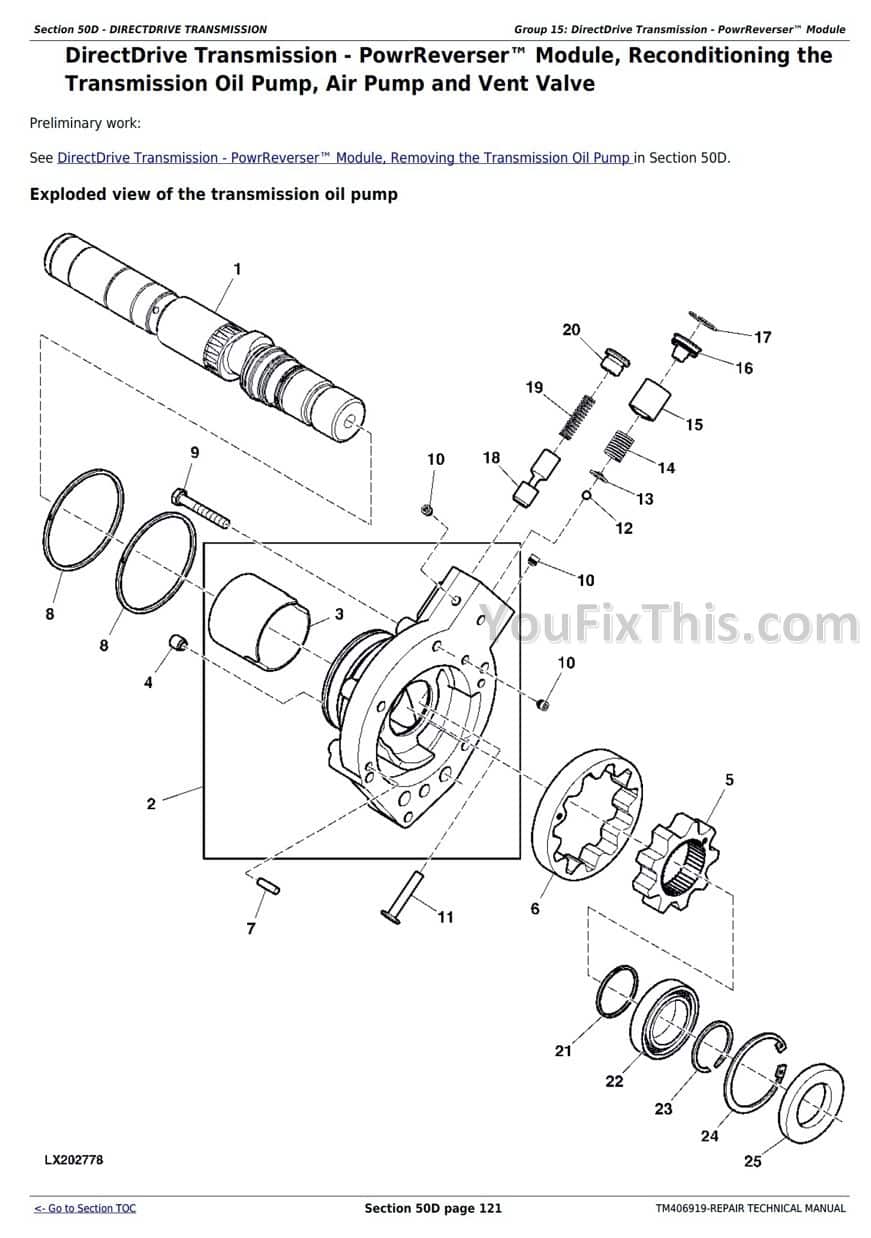

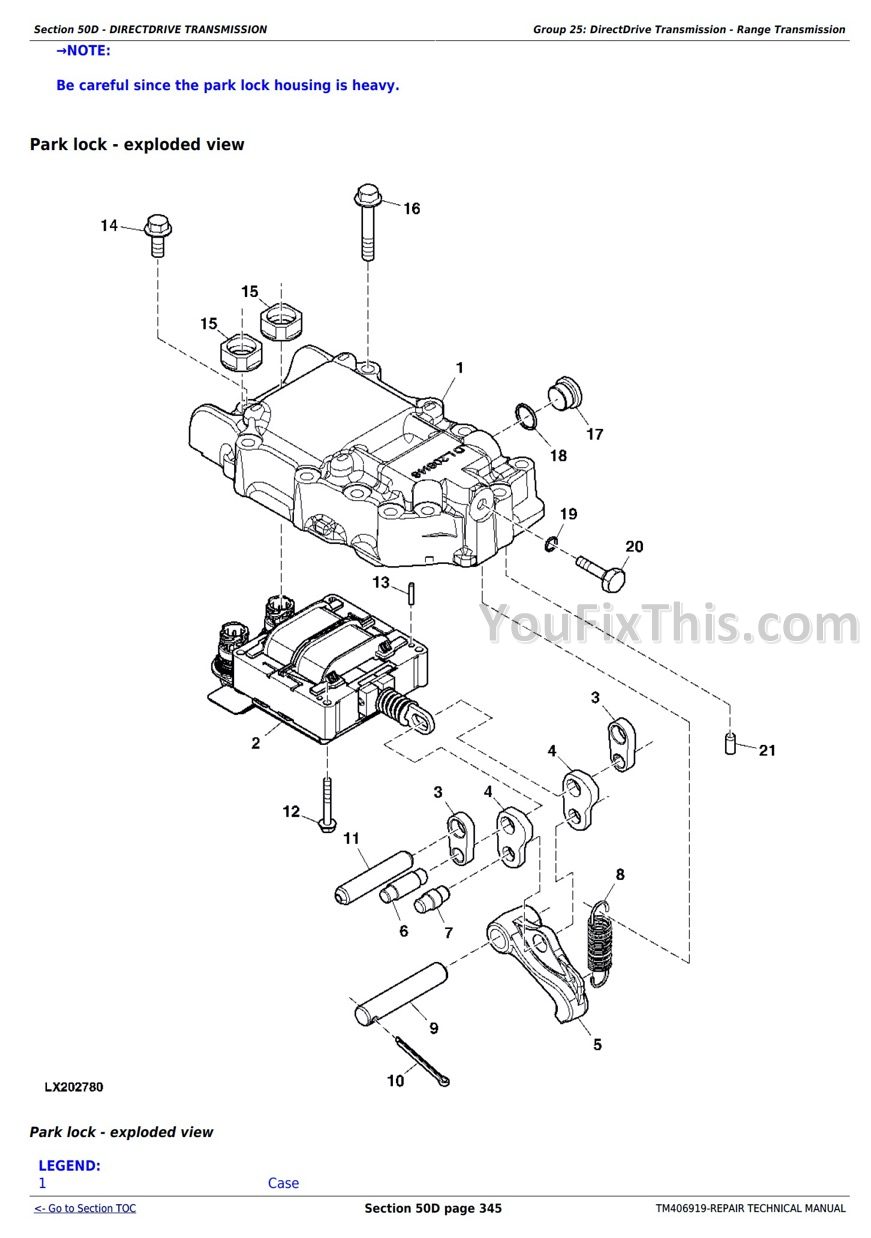

| Transmissions (AutoPowr/IVT, PowrQuad, DirectDrive) | 630-1296 | AutoPowr/IVT Continuously Variable Transmission, PowrQuad Transmission, DirectDrive Transmission |
| Steering | 1297-1327 | Hydrostatic Steering, Steering Valve and Cylinder |

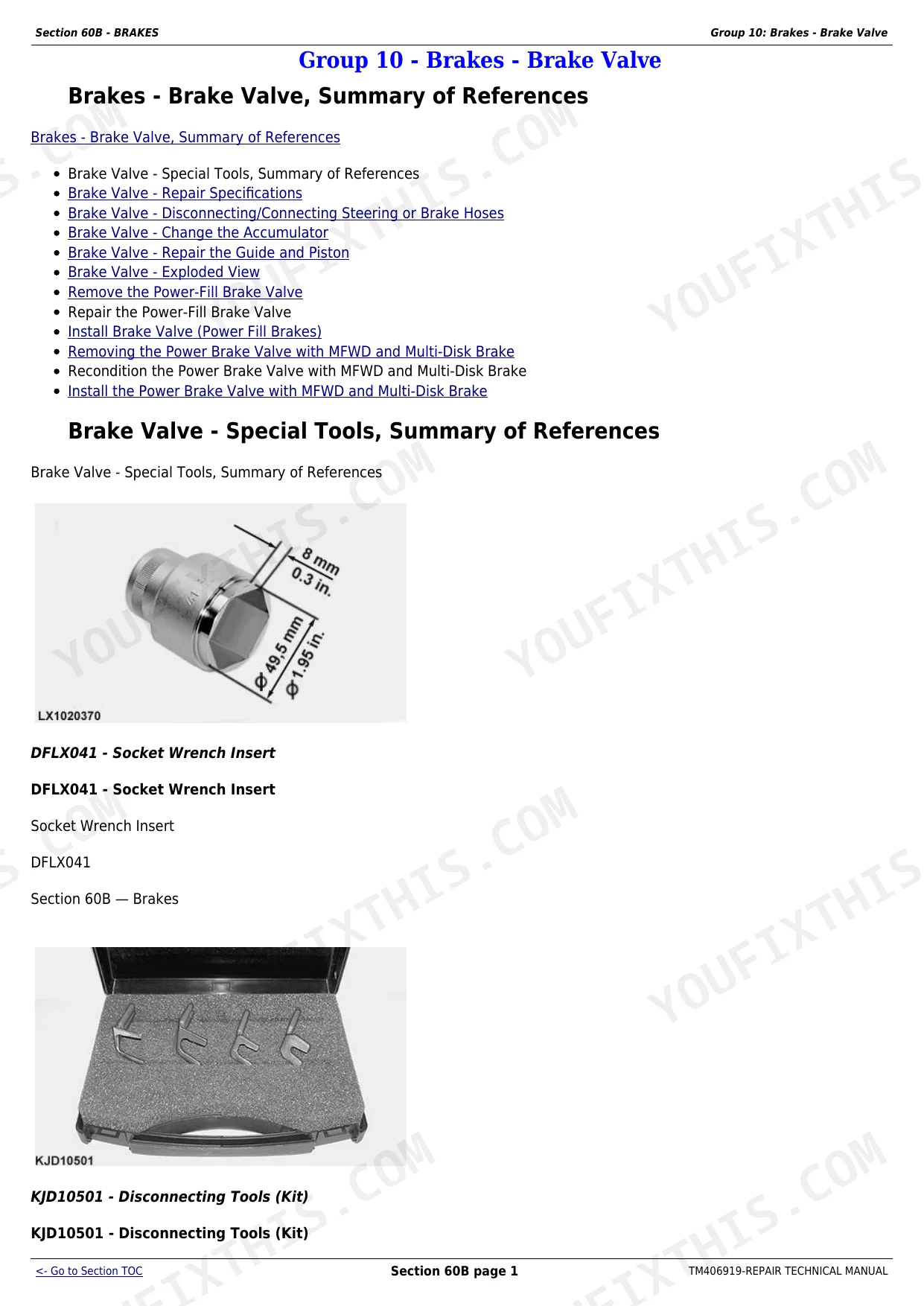

| Brakes | 1328-1430 | Brake Valve, Rear Wet Brakes, Trailer Brake |

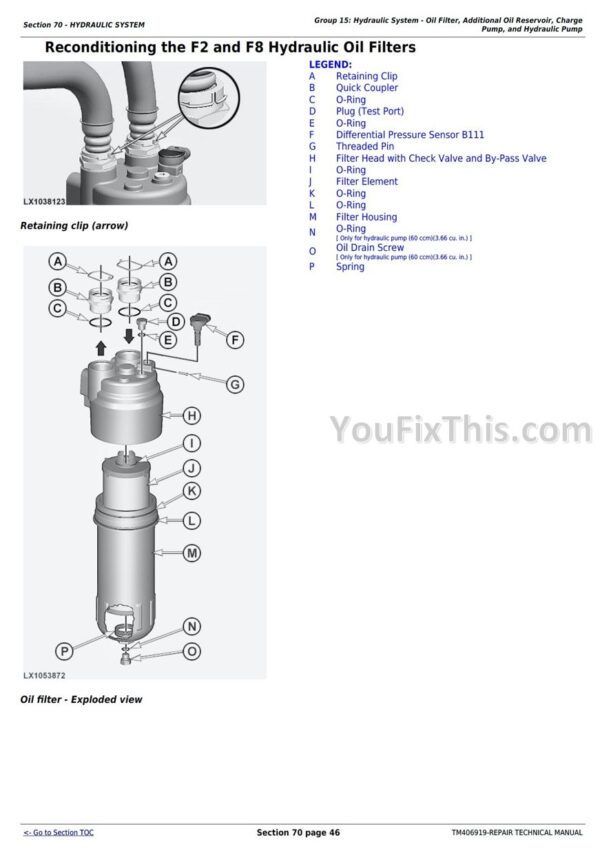

| Hydraulic System | 1431-1693 | Load-Sensing Pump, Control Valves and SCVS, Rockshaft and Hitch |
| Machine-Specific and Suspension Systems | 1694-1920 | Frame and Hitches, TLS Front Axle Suspension, Cab Suspension |
| Operator's Cab and Special Tools | 1921-2062 | CommandCenter Controls, Air Conditioning and Heating, Dealer-Fabricated Special Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 6175R, 6195R, 6215R | ||
| Number of cylinders | 6 | p. 54 |
| Bore | 106.5 mm (4.19 in.) | p. 54 |
| Stroke | 127 mm (5.00 in.) | p. 54 |
| Displacement | 6.8 l (414 cu. in.) | p. 54 |
| Firing order | 1-5-3-6-2-4 | p. 54 |
| Compression Ratio | 17.0:1 | p. 54 |
| Valve clearance (Intake) | 0.48 mm (0.0189 in.) | p. 54 |
| Valve clearance (Exhaust) | 0.53 mm (0.021 in.) | p. 54 |
| Thermostat Opening temperature | 83.5 °C (182.3 °F) | p. 54 |
| Low idle Speed | 845-855 rpm | p. 54 |
| High idle Speed | 2235-2265 rpm | p. 54 |
| Rated Engine Speed | 2100 rpm | p. 54 |
| 6175R | ||
| Engine power (Standard) | 129 kW (175 hp) | p. 54 |
| 6195R | ||
| Engine power (Standard) | 142 kW (195 hp) | p. 54 |
| 6215R | ||
| Engine power (Standard) | 158 kW (215 hp) | p. 54 |
John Deere 6145R-6215R Common Problems This Manual Covers
Air intake assembly leaking at the hose or seal, causing fan errors and reduced cooling
The Engine section covers the EGR and charge-air cooling plumbing with removal and installation steps for the intake assembly, hoses, clamps and seal kit, so you replace the failed seal instead of chasing the symptom with the fan.
Manual Section: Engine - EGR and Charge-Air CoolingEngine running hot or the cooling fan not behaving, traced to the fan solenoid pressure hose
A kinked or weeping pressure hose between the solenoid valve and fan starves the fan drive. The Hydraulic System section gives the removal, installation and test procedures for the valve circuit so you can replace the hose and verify operation afterward.
Manual Section: Hydraulic System - Control ValvesCracked or seeping fuel lines and fittings after years of heat cycling, a real fire risk near a hot engine
Do not patch fuel lines on one of these. The Engine section covers fuel system component removal and installation with the correct routing and torque on fittings, so replacement lines go back exactly as the factory ran them, away from hot surfaces.
Manual Section: Engine - Fuel System ComponentsAutoPowr/IVT needing internal service, which nobody should attempt from memory
The Transmissions section carries the full AutoPowr/IVT disassembly, assembly, specifications and the tests and adjustments to run after the work. This unit is the most expensive mistake on the tractor, and the manual is cheaper than one wrong shim.
Manual Section: Transmissions - AutoPowr/IVTFrequently Asked Questions
Does this manual have the diagnostic trouble code lists and wiring schematics?
No, and you should know that before you buy. TM406919 is the Repair manual: removal, installation, specifications, tests and adjustments. The fault code charts, functional schematics and step-by-step electrical diagnostics live in the separate companion Diagnosis and Tests manual for these same models. If you are chasing a code on the CommandCenter, you want that book. If you already know what has to come apart and go back together, this is the one.
Which transmissions are covered? Mine has the AutoPowr/IVT.
All three that came in these tractors: the AutoPowr/IVT continuously variable, the PowrQuad and the DirectDrive. The IVT section is the one most owners buy this book for, because that unit is expensive to guess at. You get disassembly and assembly procedures, specifications and the tests and adjustments needed after service. PowrQuad and DirectDrive get the same treatment, so the manual matches whatever spec your tractor left the factory with.
Will this help with the cooling fan and air intake leak problems these tractors are known for?
Yes, on the repair side. The intake hose and seal leaks that cause fan complaints and cooling loss on the 6R are a known sore spot, and the Engine section covers the charge-air cooling and EGR plumbing with the removal and installation steps to replace hoses, clamps and seal kits properly instead of just cinching a clamp tighter. For the electronic side of a fan fault you would pair it with the Diagnosis manual.
Can I pull the engine or split the tractor with this manual?
That is exactly what it is written for. The Engine section walks through PowerTech 6.8L removal and installation, and the Drive Train section covers the driveshaft, MFWD axle, differential and final drives. You get the specifications to reassemble to spec, the bore is 106.5 mm, stroke 127 mm, 17.0:1 compression, rated speed 2100 rpm, so machining and rebuild decisions are made from printed numbers, not forum guesses.
What format is it and can I use it in the shop?
PDF download, searchable, and you can print the pages you are about to get dirty. Keep it on a tablet at the bench or run off the torque chart and pin it above the vise. It covers 6145R, 6155R, 6155RH, 6175R, 6195R and 6215R in one book, so one purchase covers a mixed fleet of these models.
