Part of the Kubota Repair Manuals.
This is the factory service manual for the Kubota 4540 backhoe attachment, delivered as a downloadable PDF you can open on any phone, tablet, or computer. It covers the 4540 and 4540a, walking through backhoe specifications, nomenclature, hydraulic troubleshooting, control valve service, PTO pump overhaul, and full cylinder rebuilding.
Owners and independent mechanics use it to diagnose weak or erratic hydraulics, rebuild the lift, crowd, curl, swing, and stabilizer cylinders, and set the correct relief pressures and torque values. Removal and reinstallation procedures, lubrication intervals, and a parts listing for the mainframe, boom, dipper, and operator's platform are all included.
Because it is the same information a dealer technician would reference, you can work through a repair step by step instead of guessing, whether you are chasing a hydraulic fault or servicing the machine for the season.
What's Inside This Kubota 4540 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Decals | - | Representations of Decals, Individual Numbers, Usage Location, Complete Kit |

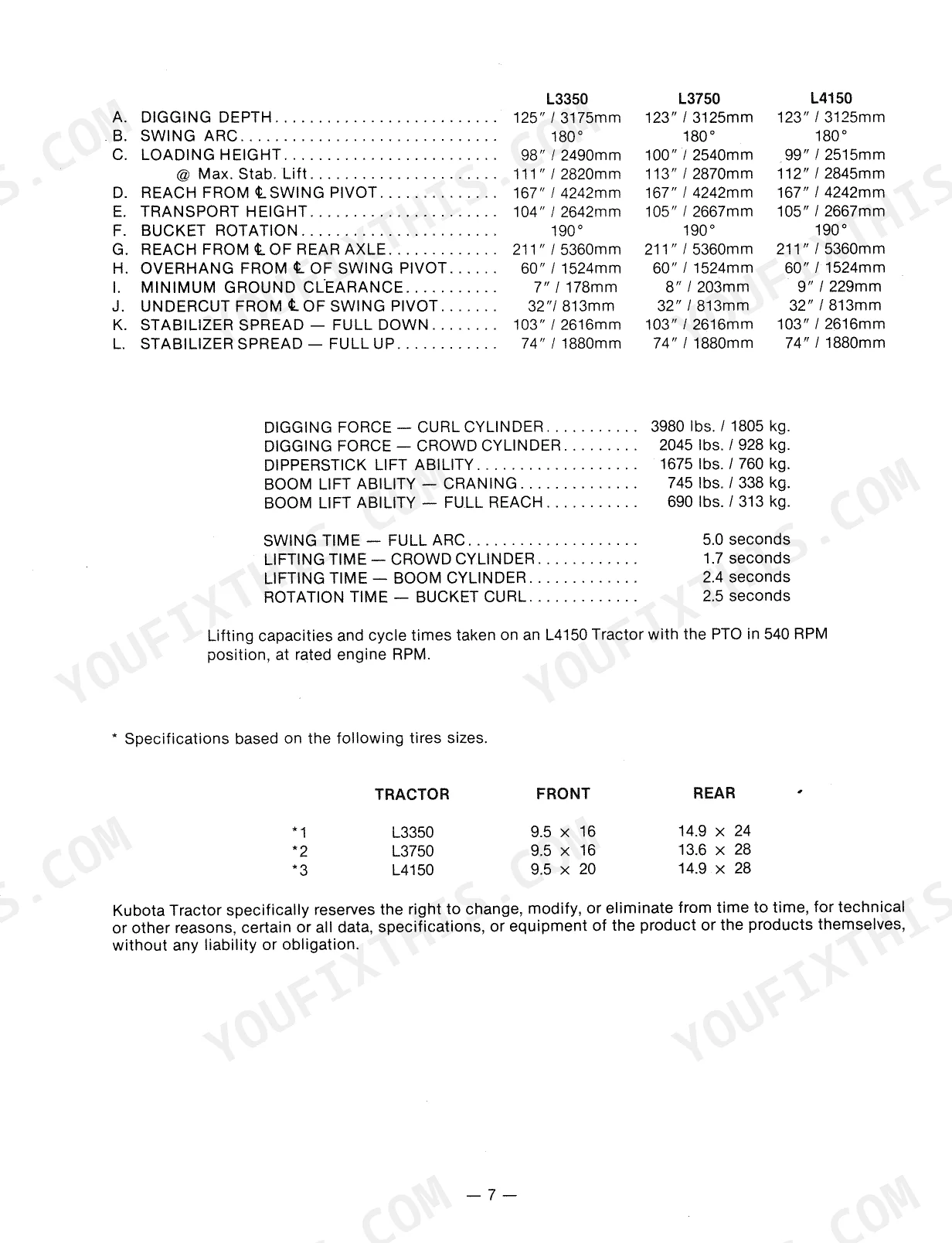

| Specifications | - | Digging Depth, Swing Arc, Loading Height, Reach, Digging Force, Lift Ability |
| Backhoe Nomenclature | - | Swing Frame, Boom, Dipperstick, Bucket, Cylinders, Controls |
| Torque Tightening Chart | - | U.S. Bolt Torque, Metric Bolt Torque, Special Torque Applications, Oil Filter Head, Hydraulic Pump Bracket, Control Valve Tie Rod Fasteners |

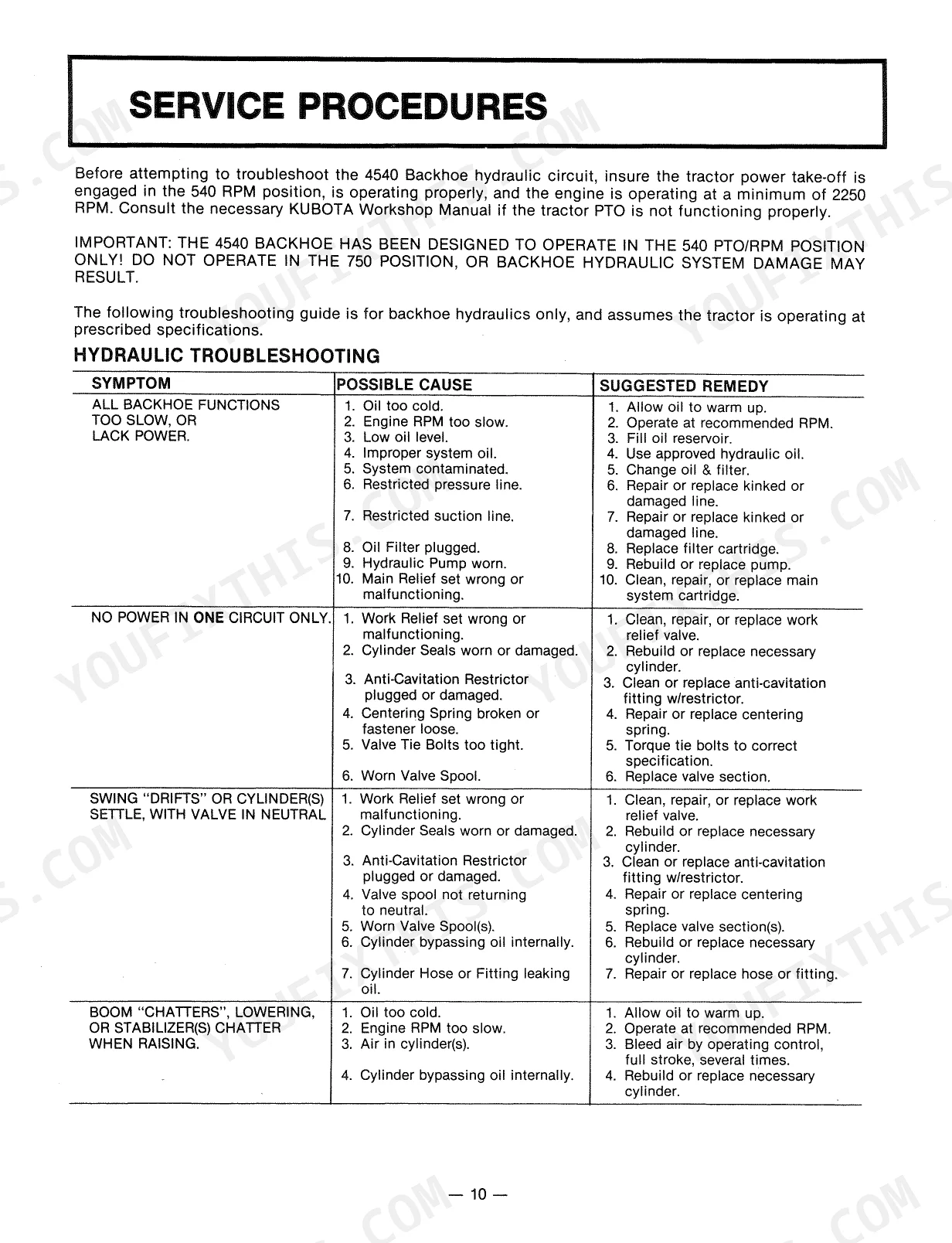

| Hydraulic Troubleshooting | - | System Flow, Main System Relief, Workport Relief, Control Valve Port Connections, Hose Connections, Anti-Cavitation Fittings |
| Backhoe Controls | - | Joystick System, Boom & Swing Lever, Crowd & Curl Lever, Stabilizer Control Levers |

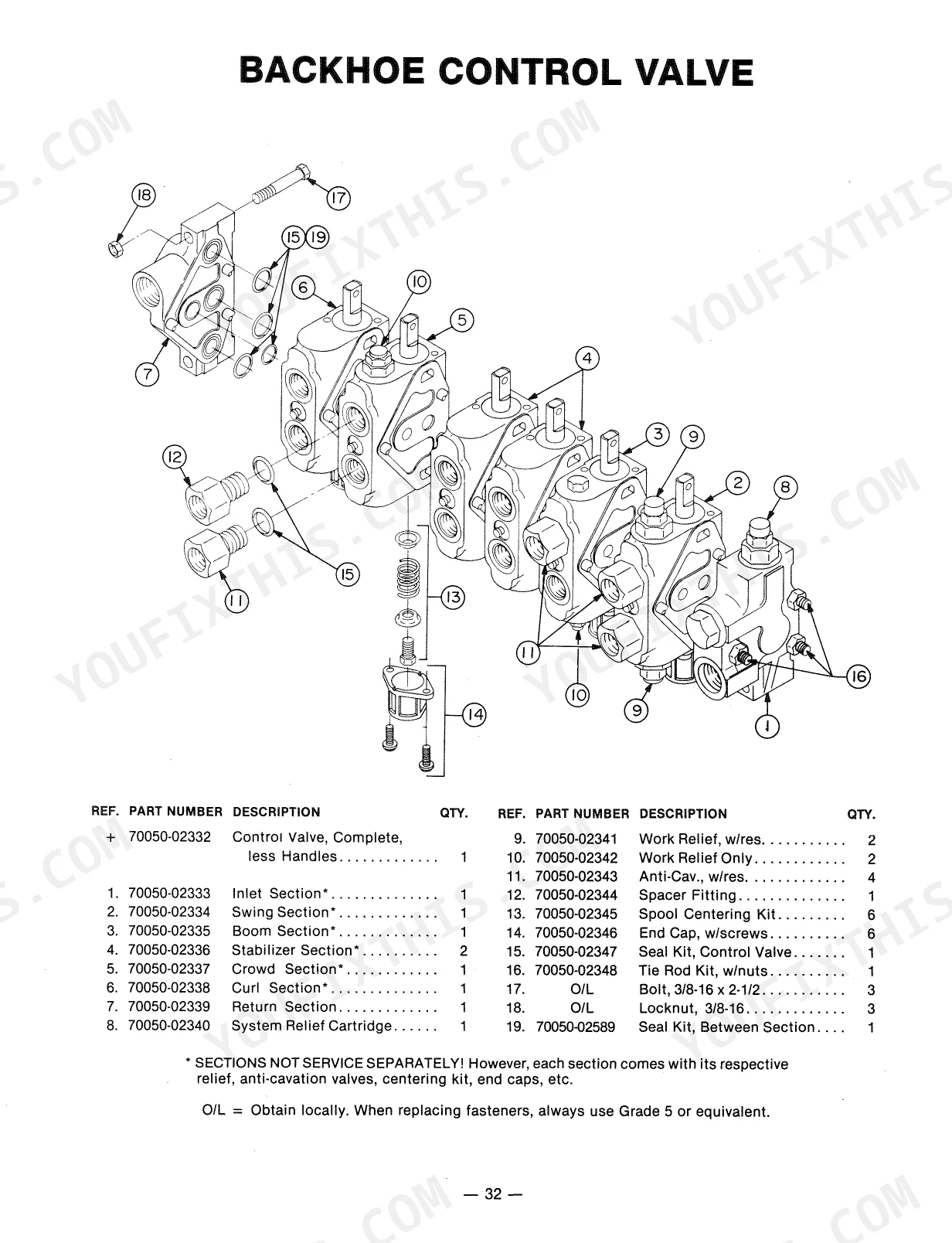

| Backhoe Control Valve | - | Open Center Valve, System Relief Valve, Workport Reliefs, Anti-Cavitation Fittings, Spools, O-Rings |
| PTO Pump Overhaul | - | Pump Body, Gears, Pressure Plate, Shafts, Bearings, O-Rings |
| Cylinder Service | - | Testing Cylinders, Internal Leakage, Swing Cylinders, Lift, Crowd, Curl & Stabilizer Cylinders, Rebuilding Procedures |
| Removing & Reinstalling the Backhoe | - | Removal Instructions, Reinstallation Instructions |
| Lubrication & Maintenance | - | Backhoe Lubrication Fittings, Backhoe Hydraulic System Service, Backhoe Bucket Service |
| Mainframe & Stabilizers | - | Mainframe, Hydraulic Tank, Stabilizer Arm, Stabilizer Cylinder, Stabilizer Pad, Mount Brackets |
| Swing Frame, Boom, Dipper & Bucket | - | Swing Frame, Boom, Dipperstick, Bucket, Lift Cylinder, Crowd Cylinder |
| Operator's Platform & Controls | - | Operator Seat, Platform, Hand Rail, Console, Joystick Controls, Stabilizer Control Levers |
| Hydraulic Pump & Hoses | - | PTO Pump, Pump Overhaul, Hydraulic Hoses, Oil Filter, Breather, Hydraulic Oil |
| Cylinders | - | Lift Cylinder, Crowd Cylinder, Curl Cylinder, Stabilizer Cylinder, Swing Cylinder, Seal Kit |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Control Valve Tie Rod Fasteners Torque | 15 ft. lbs. (20 N·m) | p. 10 |
| Main System Relief Pressure | 2000 psi | p. 12 |
| Oil Filter Head to Platform Mount Plate Fastener Torque | 7-9 ft. lbs. (9-12 N·m) | p. 10 |
| Backhoe Hydraulic System Capacity (excluding cylinders) | 11-1/2 gallons | p. 23 |
| Control Valve Tie Rod Nut Torque (Final) | 15 ft. lbs. (20 Nm) | p. 16 |
| Cylinder Piston Locknut Torque | 160-180 ft. lbs. (215-245 N·m) | p. 20 |
| Relief Valve and Anti-Cavitation Fitting Installation Torque | 10 to 15 ft. lbs. (13-20 N·m) | p. 15 |
| Swing Workport Relief Pressure | 1400 psi | p. 12 |
| Cylinder Rod Locknut Torque | 160-180 ft. lbs. (215-245 N·m) | p. 20 |
| Hydraulic System Flow | 12.5 gpm | p. 12 |
| Crowd Workport Relief Pressure | 2300 psi | p. 12 |
| Digging Force (Curl Cylinder) | 3980 lbs | p. 8 |
Kubota 4540 Common Problems This Manual Covers
Curl cylinder fails mid-dig
A rod-end nut that backs off can damage the rod and strip threads, killing the curl cylinder during a job. The manual walks through testing for internal leakage and rebuilding the cylinder correctly.
Manual Section: Cylinder Service p. 18Swing loses power intermittently
The backhoe swing weakens and stops or starts during operation, often from hydraulic restriction, air in the system, or a sticky valve. Follow the system flow and relief checks to isolate the cause.
Manual Section: Hydraulic Troubleshooting p. 11Weak or slow hydraulic functions
Functions that operate slowly usually trace back to a clogged filter, worn PTO pump, or aerated oil. The manual covers pump overhaul, hose routing, and filter service to restore full flow.
Manual Section: Hydraulic Pump & Hoses p. 35Sloppy or squeaky controls
Joystick and lever controls develop play or noise as linkages wear and dry out. The controls section shows correct operation and adjustment of the boom, swing, crowd, curl, and stabilizer levers.
Manual Section: Backhoe Controls p. 13Seal leaks at the valve stack
Weeping around the control valve points to worn O-rings, loose fittings, or damaged anti-cavitation seals. The manual details spool, O-ring, and relief valve service on the open center valve.
Manual Section: Backhoe Control Valve p. 14Stabilizers drift or leak down
Stabilizer arms that settle when parked indicate internal cylinder or seal leakage. The mainframe and stabilizer section covers the arm, cylinder, pad, and mount brackets for inspection and repair.
Manual Section: Mainframe & Stabilizers p. 27Frequently Asked Questions
Which machines does this manual cover?
It covers the Kubota 4540 backhoe attachment, including the 4540a variant. You get specifications, controls, hydraulic service, and a parts listing for the backhoe and its operator's platform.
Does it include torque specifications?
Yes. The Torque Tightening Chart lists U.S. and metric bolt torques plus special applications such as the control valve tie rod and oil filter head fasteners, so you can reassemble to factory values. p. 10
What hydraulic pressures does it specify?
The Hydraulic Troubleshooting section documents system flow and relief settings, including the main system relief pressure of 2000 psi, so you can test and adjust the circuit correctly. p. 11
Can I rebuild the cylinders with this manual?
Yes. The Cylinder Service section covers testing for internal leakage and rebuilding the swing, lift, crowd, curl, and stabilizer cylinders, with piston locknut torque values for reassembly. p. 18
How will I receive this Service Manual?
Instant PDF download. After payment you receive the full 40-page searchable Service Manual immediately. Open it on a laptop, tablet, or phone right in the shop.
