Kubota's B6100E-P Parts Catalog (OEM #11043) splits your tractor into 50-plus labeled assemblies across 128 pages, from the Crankcase and Piston Crankshaft Groups through the Hydraulic System, 3-Point Linkage, and Front Axle. Exploded views and parts lists cover every group, including the Control Valve, Oil Pressure, and Oil Pressure Pipe Groups. Serial-number applicability columns and I/C interchangeability codes (New-for-Old, Old-for-New) tell you which part number fits your specific build before you place an order. Need a replacement battery? Cross-reference 66704-55430 at 9.3 kgf, one of hundreds of part numbers tied to exact serial ranges. Bookmarked by system group and keyword-searchable, the file opens on your tablet so you can tap straight to the assembly you need and order right the first time.
What's Inside This Kubota B6100E-P Parts Manual
| System | Pages |
|---|---|

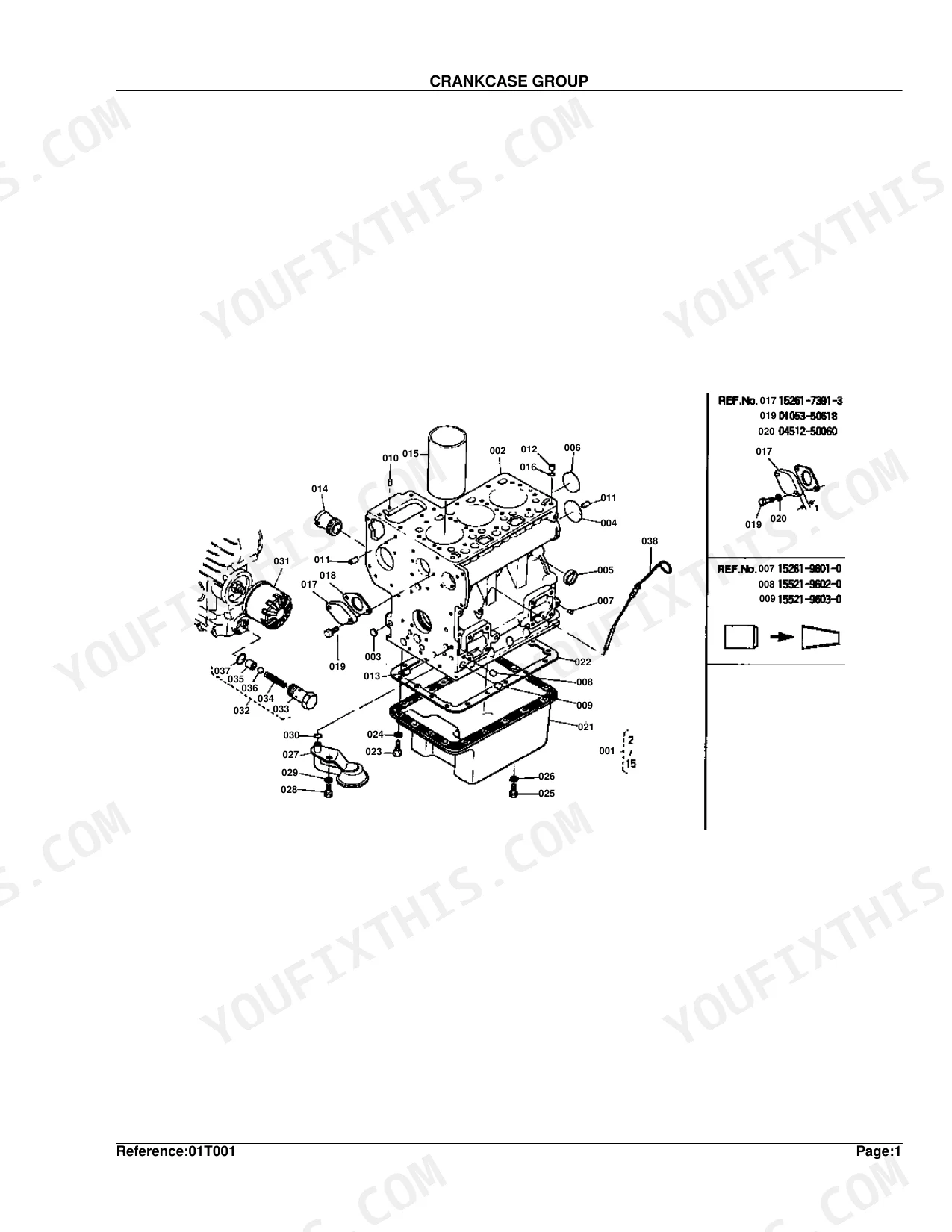

| Crankcase Group | 5-6 |
| Cylinder Head Group | 7-8 |
| Gear Case Group | 9-10 |
| Bearing Case Group | 11-12 |
| Breather Group | 13-14 |
| Inlet Manifold Group | 15-16 |
| Valve Rocker Arm Group | 17-18 |
| Head Cover Group | 19-20 |
| Camshaft Group | 21-22 |
| Piston Crankshaft Group | 23-24 |
| Flywheel Group | 25-26 |
| Nozzle Holder Group | 27-28 |
| Injection Pump Group | 29-30 |
| Speed Control Plate | 31-32 |
| Governor Group | 33-34 |
| Dynamo Group | 35-36 |
| Clutch Group | 37-38 |
| Name Plate Group | 39-46 |
| Starter Group | 47-48 |
| Oil Pressure Pump Group | 49-50 |

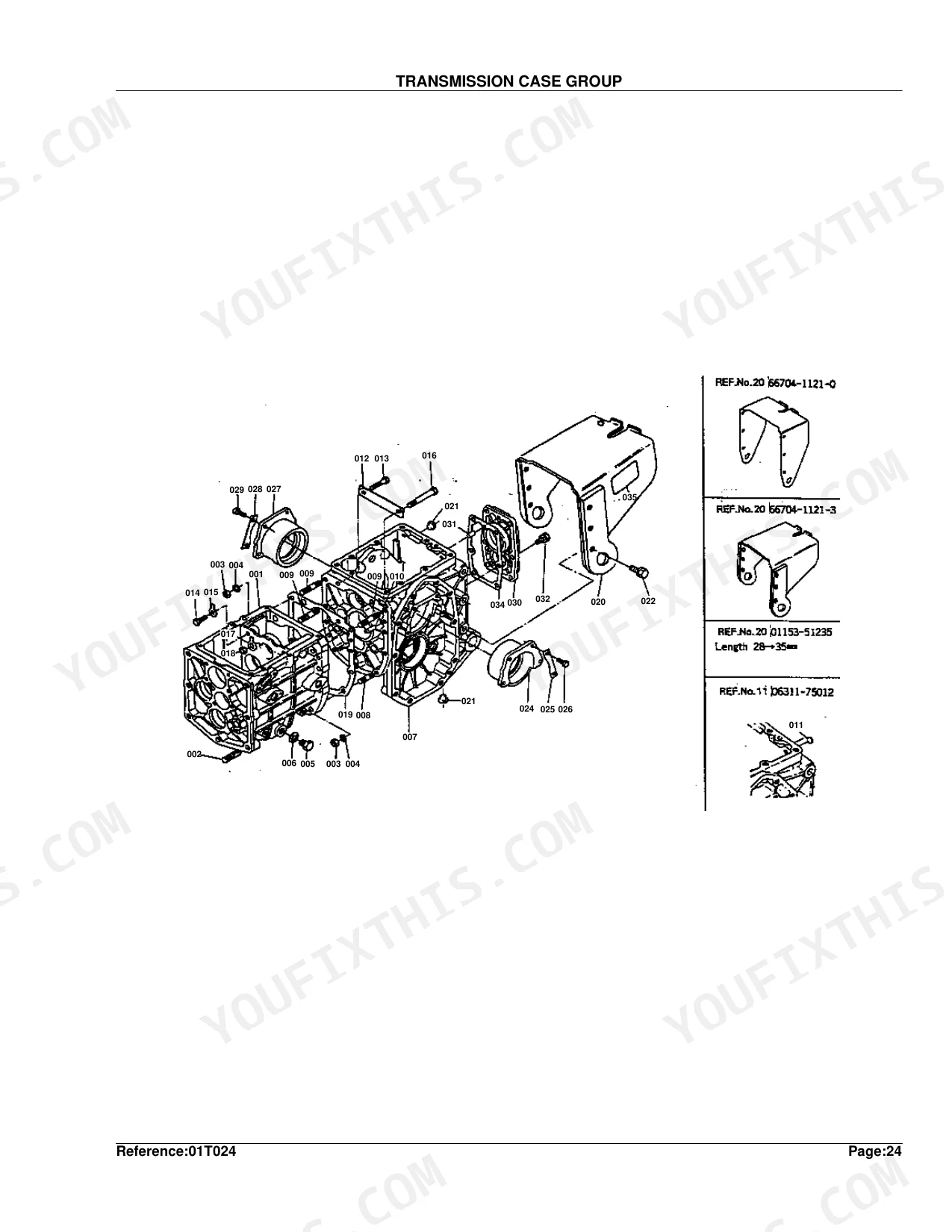

| Transmission Case Group | 51-52 |
| Case Cover Group | 53-54 |
| Axle Case Group | 55-56 |
| Rear Wheel Group [America] | 57-58 |
| Clutch Rod Group | 59-60 |
| 1st Shaft 4th Shaft Group | 61-62 |
| 2nd Shaft Reverse Shaft Group | 63-64 |
| 3rd 5th PTO Shaft Group | 65-66 |
| Differential Group | 67-68 |
| Main Speed Change Group | 69-70 |
| Aux.Speed Change Group | 71-72 |
| Rotary Speed Change Group | 73-74 |

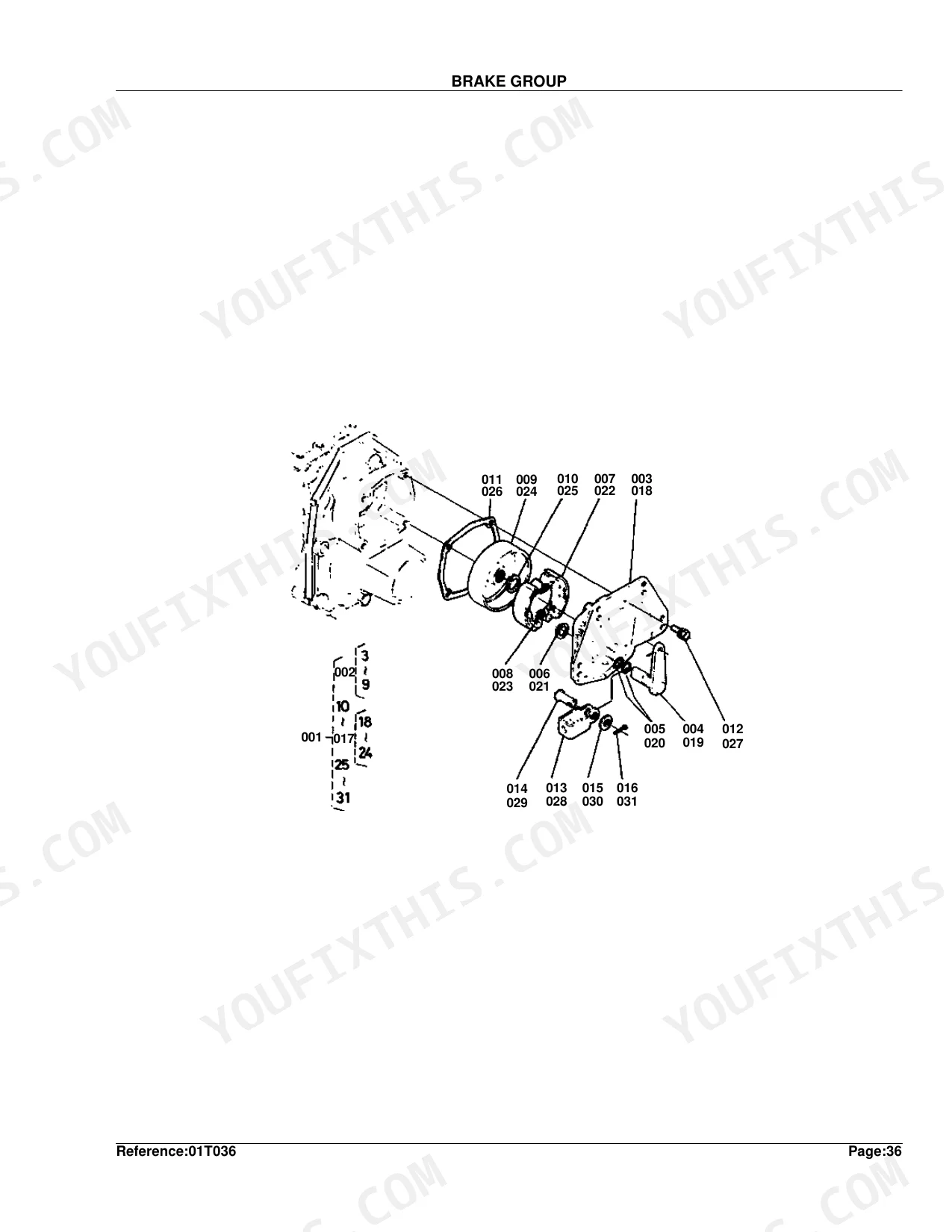

| Brake Group | 75-76 |
| Oil Pressure Pipe Group | 77-78 |

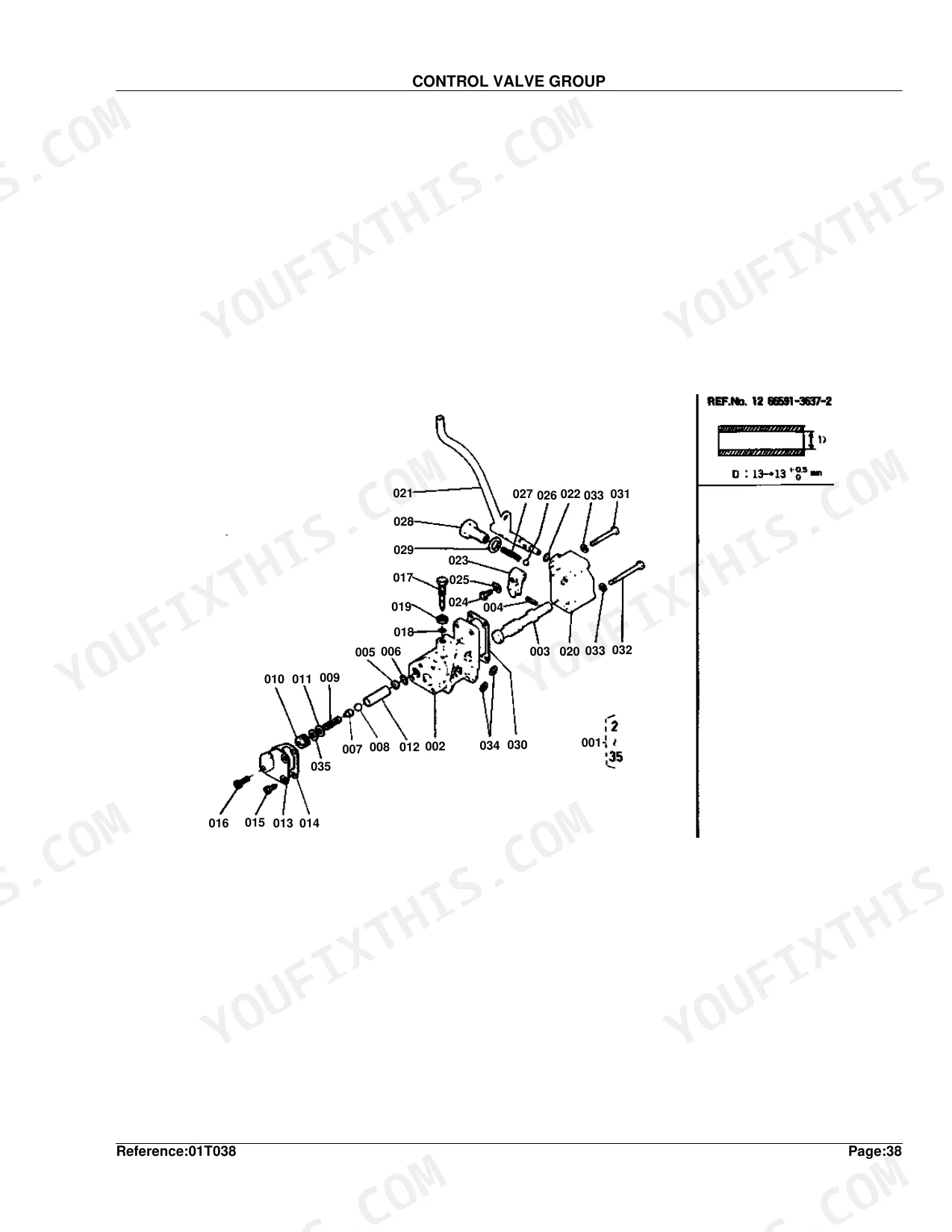

| Control Valve Group | 79-80 |
| Oil Pressure Group 1 | 81-82 |
| Oil Pressure Group 2 | 83-84 |
| Steering Group | 85-86 |
| Brake Rod Group | 87-88 |
| Accelerator Pedal Group | 89-90 |

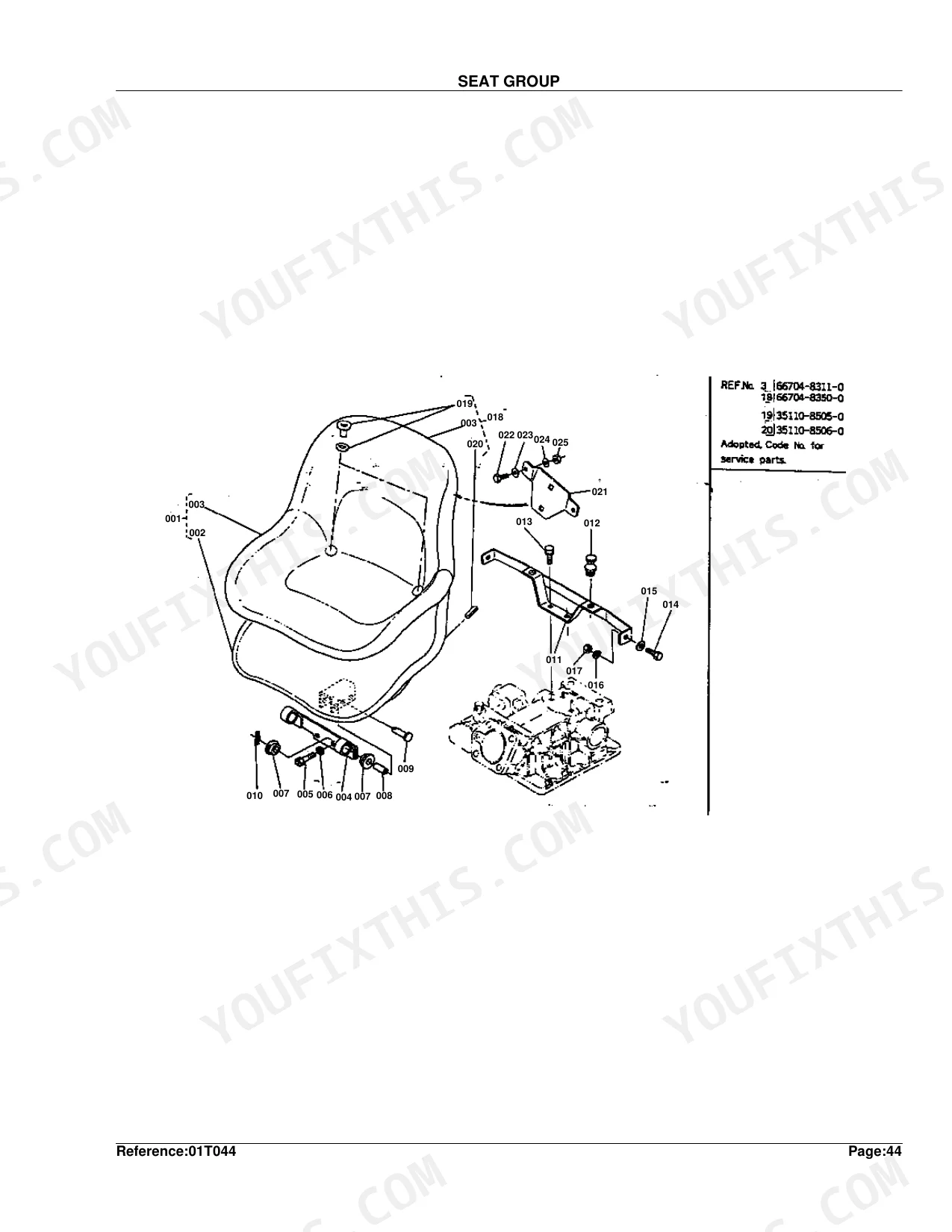

| Seat Group | 91-92 |
| Clutch Housing Group | 96-97 |
| Front Wheel Support Group | 98-99 |
| Radiator Group | 100-101 |
| Fender Group | 102-104 |
| Bonnet Group | 105-106 |
| Muffler Group | 107-108 |
| Fuel Tank Group | 109-110 |
| Battery Group | 111-112 |
| Panel Group | 113-115 |
| Air Cleaner Group Except[Overseas] | 116-117 |
| Fuel Filter Group | 118-119 |
| 3-Point Linkage Group | 120-122 |
| Front Axle Group B6100E[America Canada] | 123-124 |
| Front Wheel Group B6100E[America Canada] | 125-127 |

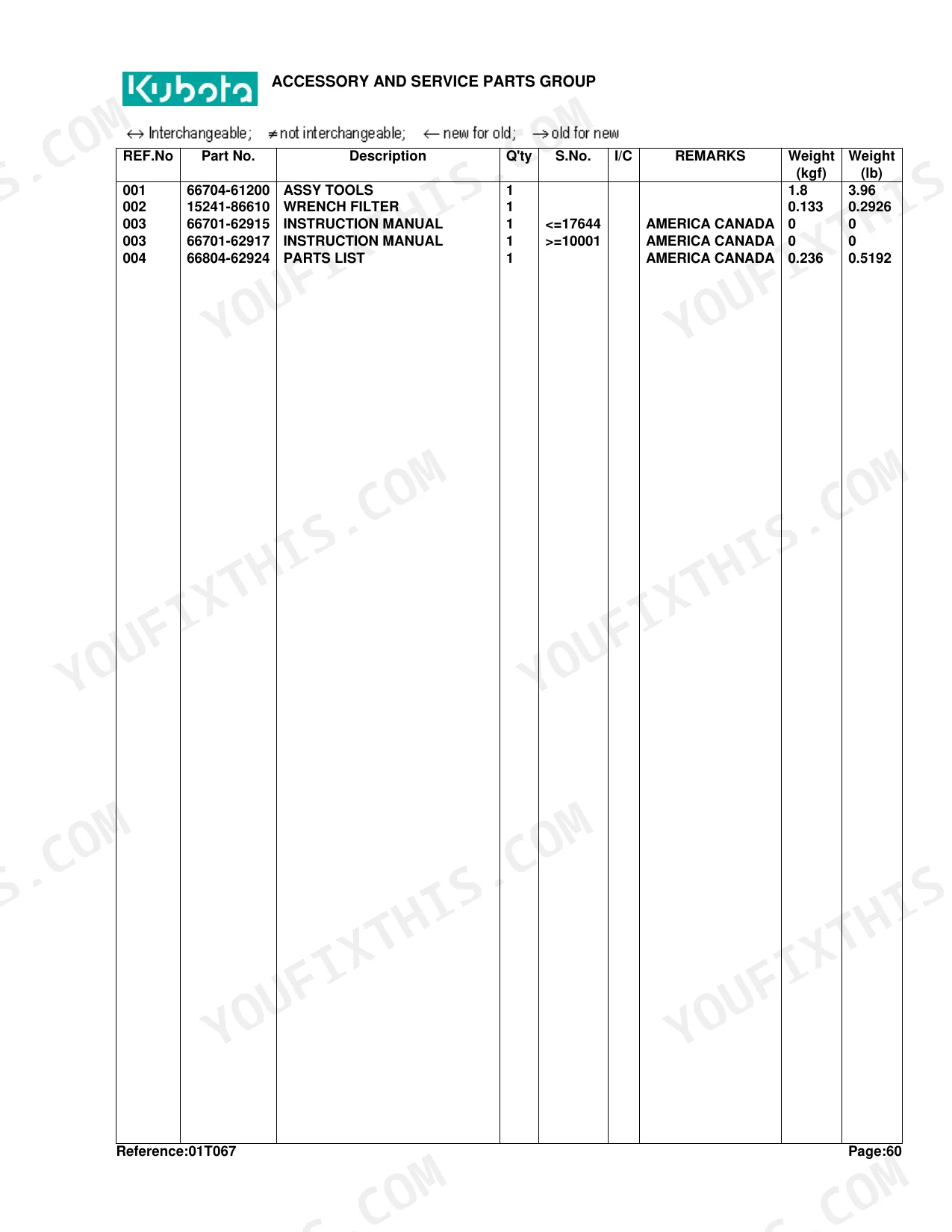

| Accessory and Service Parts Group | 128 |
Every system also includes assembly and ordering information, a parts list, and an exploded view.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery weight (kgf) | 9.3 kgf | p. 112 |
| Battery weight (lb) | 20.46 lb | p. 112 |
| Starter assembly weight (lb) | 0 lb | p. 48 |
| Fuel filter assembly weight (kgf) (S.No. >=10001) | 0.37 kgf | p. 119 |
| Fuel filter assembly weight (lb) (S.No. >=10001) | 0.814 lb | p. 119 |
| Air cleaner element weight (kgf) | 0.344 kgf | p. 117 |
| Air cleaner element weight (lb) | 0.7568 lb | p. 117 |
| Clutch disk assembly weight (kgf) | 0.9 kgf | p. 38 |
| Clutch disk assembly weight (lb) | 1.98 lb | p. 38 |
| Assy Crankcase Weight | 27 kgf | p. 6 |
| Assy Cylinder Head Weight | 9.5 kgf | p. 8 |
Kubota B6100E-P Common Problems This Manual Covers
Kubota B6100E-P starter won't crank or turns over slowly, tractor won't start p. 111
Pull the Battery Group diagram on page 111 and confirm the correct replacement. The catalog lists battery part #66704-55430 (9.3 kgf / 20.46 lb). Cross-reference the Starter Group on page 47: starter assembly part #15231-63010. Check both numbers against your serial range before ordering, since the Name Plate Group on page 39 identifies your exact variant.
Manual Section: Battery GroupCan't identify the correct fuel filter element part number for the injection system p. 118
Open the Fuel Filter Group on page 118. The replacement filter element is part #15231-43560 (0.03 kgf). For the complete filter assembly, that's part #19204-43010, listed for serial numbers 10001 and up (0.37 kgf). Verify your serial number on the Name Plate Group before ordering the assembly, since earlier production units use a different configuration.
Manual Section: Fuel Filter GroupAir cleaner element part number unknown, need to match correct filter for engine intake p. 116
Check the Air Cleaner Group on page 116. The replacement element is part #15222-11220, weighing 0.344 kgf (0.7568 lb). This section covers domestic and North American variants only; overseas units are excluded from the diagram, so confirm your build code on the Name Plate Group before placing the order.
Manual Section: Air Cleaner Group Except[Overseas]Clutch disc part number needed after wear, unsure which disk fits transmission p. 37
Reference the Clutch Group exploded view on page 37. The clutch disk assembly is part #66591-13300, listed at 0.9 kgf (1.98 lb). Cross-check the Clutch Rod Group on page 59 and Clutch Housing Group on page 96 so you catch any related linkage components that may need replacing at the same time.
Manual Section: Clutch Group3-point hitch lift weak, need to identify hydraulic control valve and linkage parts p. 120
Start with the 3-Point Linkage Group on page 120, which covers the hitch arms and attachment hardware. From there, cross-reference the Control Valve Group on page 79 for the hydraulic valve assembly parts, and Oil Pressure Group 1 and 2 on pages 81 and 83 for pump-side components. Match each part number against the Oil Pressure Pipe Group on page 77 to confirm you have the full set of fittings and lines.

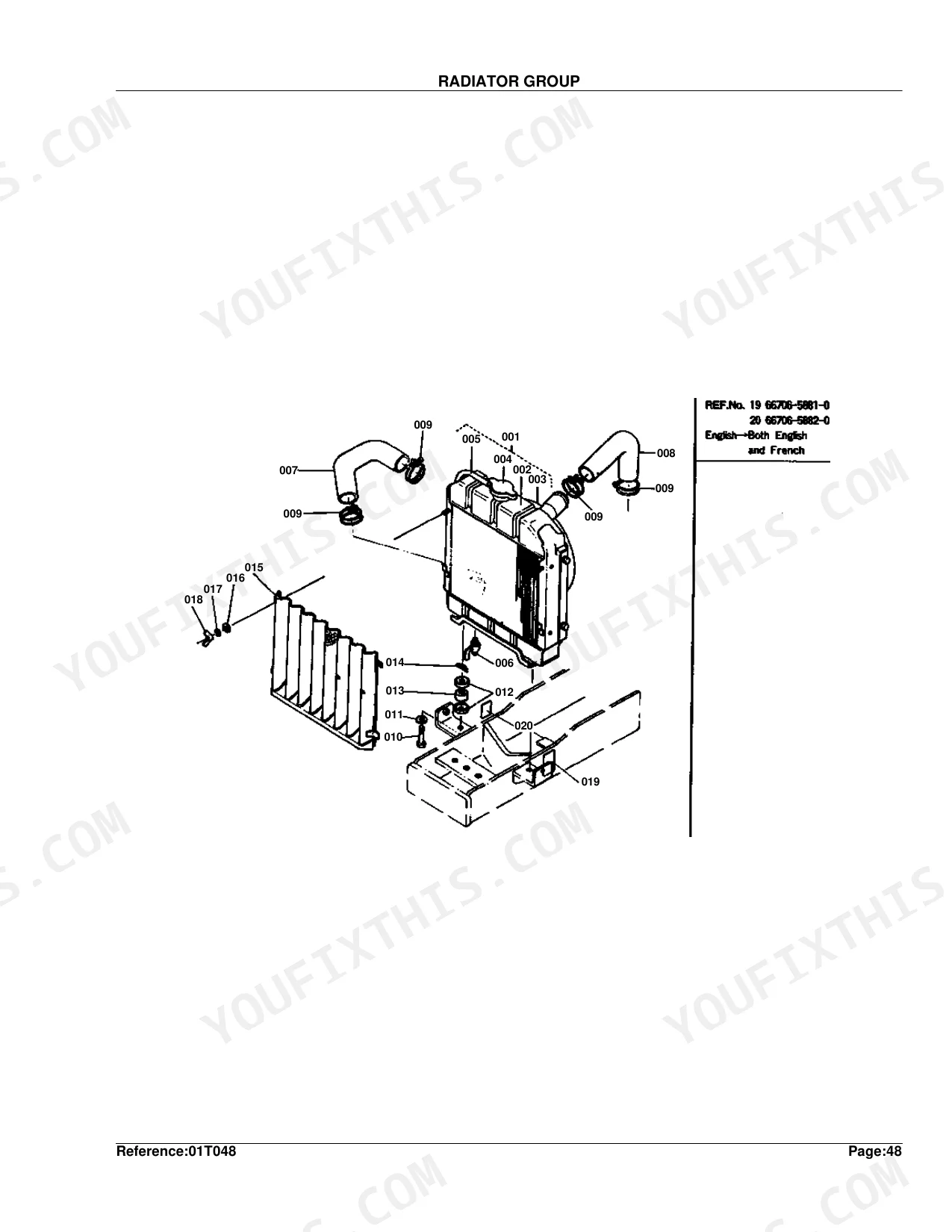

Manual Section: 3-Point Linkage GroupRadiator or cooling hose part number needed, overheating after coolant loss p. 100
Locate the Radiator Group on page 100. The complete radiator assembly weighs 6 kgf; use the exploded view there to identify individual hose and fitting part numbers. If you only need the upper or lower hose, find it in that same diagram. Rule out the Fuel Tank Group on page 109 if the leak location is ambiguous, then confirm your part selection against the serial number on the Name Plate Group.
Manual Section: Radiator GroupFrequently Asked Questions
What are the replacement specifications for battery?
Battery replacement on the Kubota B6100E-P uses part number 66704-55430. That battery weighs 9.3 kgf, or 20.46 lb.
What are the replacement specifications for starter?
Part number 15231-63010 identifies the replacement starter for the Kubota B6100E-P, listed in the catalog as an ASSY STARTER.
What format is this Kubota B6100E-P manual in?
This is a 128-page searchable PDF, available the moment your checkout clears. It opens on a laptop, tablet, or phone, so you can carry it straight to the shop floor.
Are there any print restrictions on this Kubota B6100E-P manual?
None at all. The PDF is DRM-free, so print whatever sections you want to take out to the shop. Standard letter or A4 paper both work.
Does this Kubota B6100E-P manual include hydraulic schematics?
This is a parts catalog, so it shows exploded parts diagrams rather than circuit schematics. It includes detailed exploded views of the hydraulic components, pump, control valve, cylinder, and oil lines, with OEM part numbers, not wiring-style circuit diagrams.
Document Quality
This document appears to be a scanned copy with an optical character recognition (OCR) layer, allowing you to search and copy most of the text. The text is generally crisp and easy to read, although some symbols in the OCR layer are misinterpreted, appearing as different characters. Diagrams and illustrations are raster images, which means they may pixelate when zoomed in, but their labels are mostly readable. The pages are clean with no significant scan artifacts or skewed content, but page 127 explicitly states "IMAGE NOT AVAILABLE" as a filler page.
