Part of the Kubota Operator Manuals.
This is the operator manual for the Kubota GCK60-BX grass catcher, the rear-mounted collection system built for BX-series compact tractors running the RCK54-22BX or RCK60B22BX mower decks. It walks through setting up the blower, installing the bag frame, and connecting the discharge boot to your deck, plus day-to-day operation and upkeep.Inside you get the full setup sequence, safety sign locations, a bolt tightening chart with torque values, operating steps for bagging and clearing plugged ducts, and scheduled lubrication intervals for the gearbox and driveline. A parts list with exploded views covers the blower drive, gearbox, boot and hose, driveline, and grass bag components.Owners and mechanics use it to install the catcher correctly, keep airflow strong, and order the right replacement parts by number. The file is a downloadable PDF you can read on any device or print for the shop.
What's Inside This Kubota GCK60-BX Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | - | Before Operation, During Operation |
| Safety Signs | - | Awarning to Avoid Personal Injury, Awarning to Avoid Injury, Awarning Shield Missing, Danger Rotating Driveline, Awarning to Avoid Possible Injury |

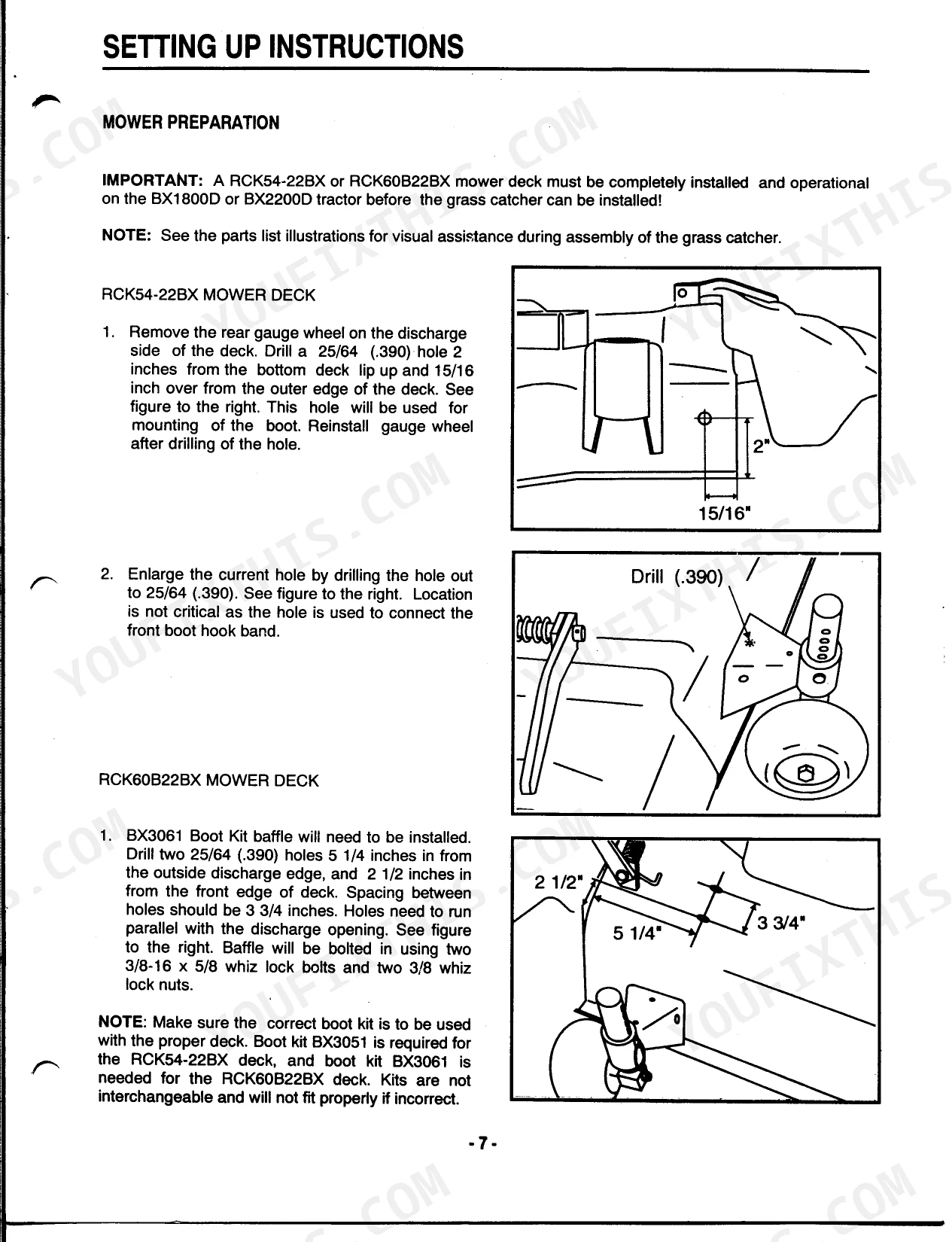

| Setting-Up Instructions | - | Mower Preparation (RCK54-22BX Mower Deck, RCK60B22BX Mower Deck), Discharge Boot Kits, Tractor Preparation, Blower Installation, Bag Frame Installation |
| Bolt Tightening Chart | - | Standard Torque Values, Sae Grade 5, Metric Grade 8.8 |

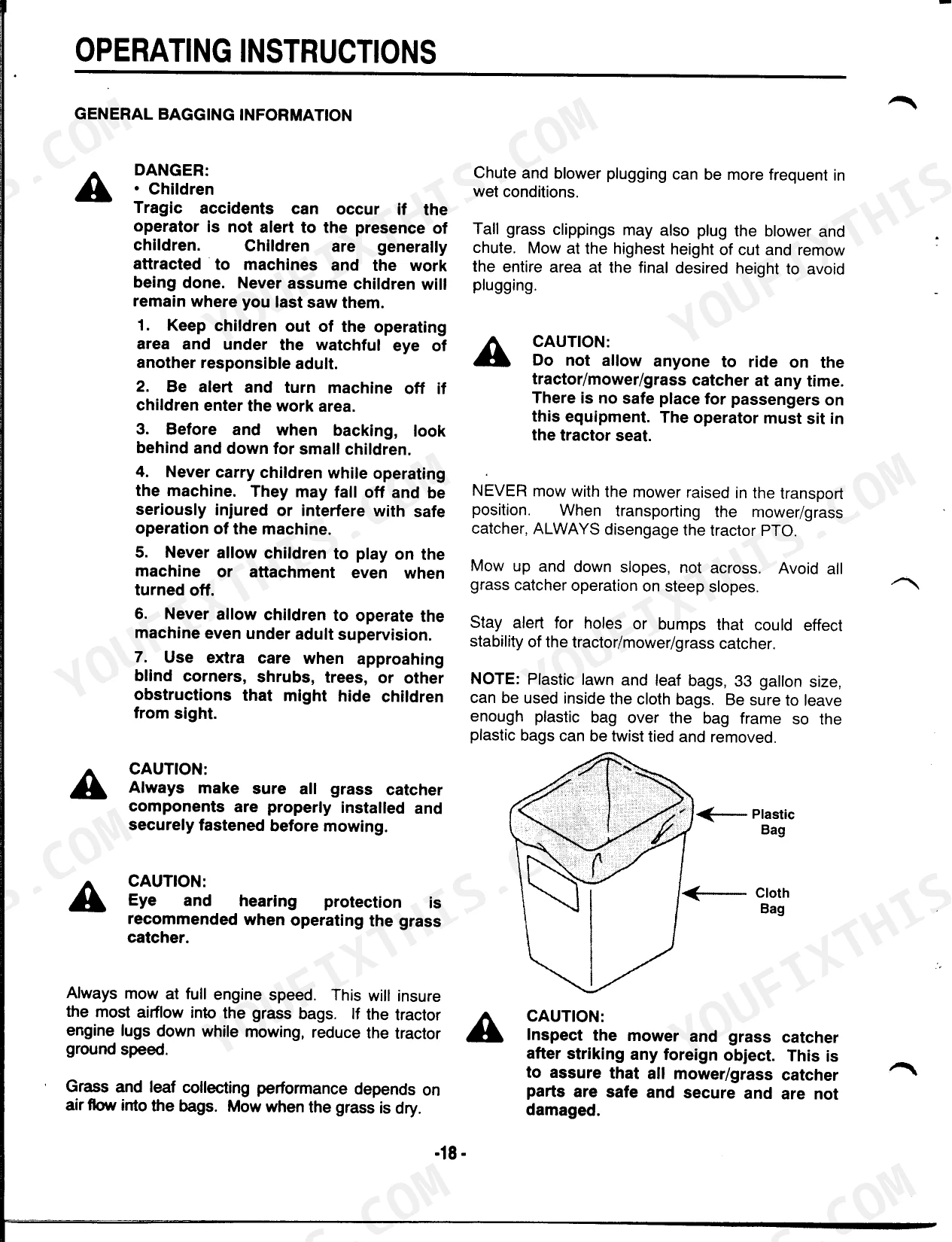

| Operating Instructions | - | Operating the Grass Blower, Clearing Plugged Ducts, Emptying Grass Bags |
| Maintenance | - | Scheduled Lubrication, Cleaning Procedures, Replacing the Cloth Grass Bag |

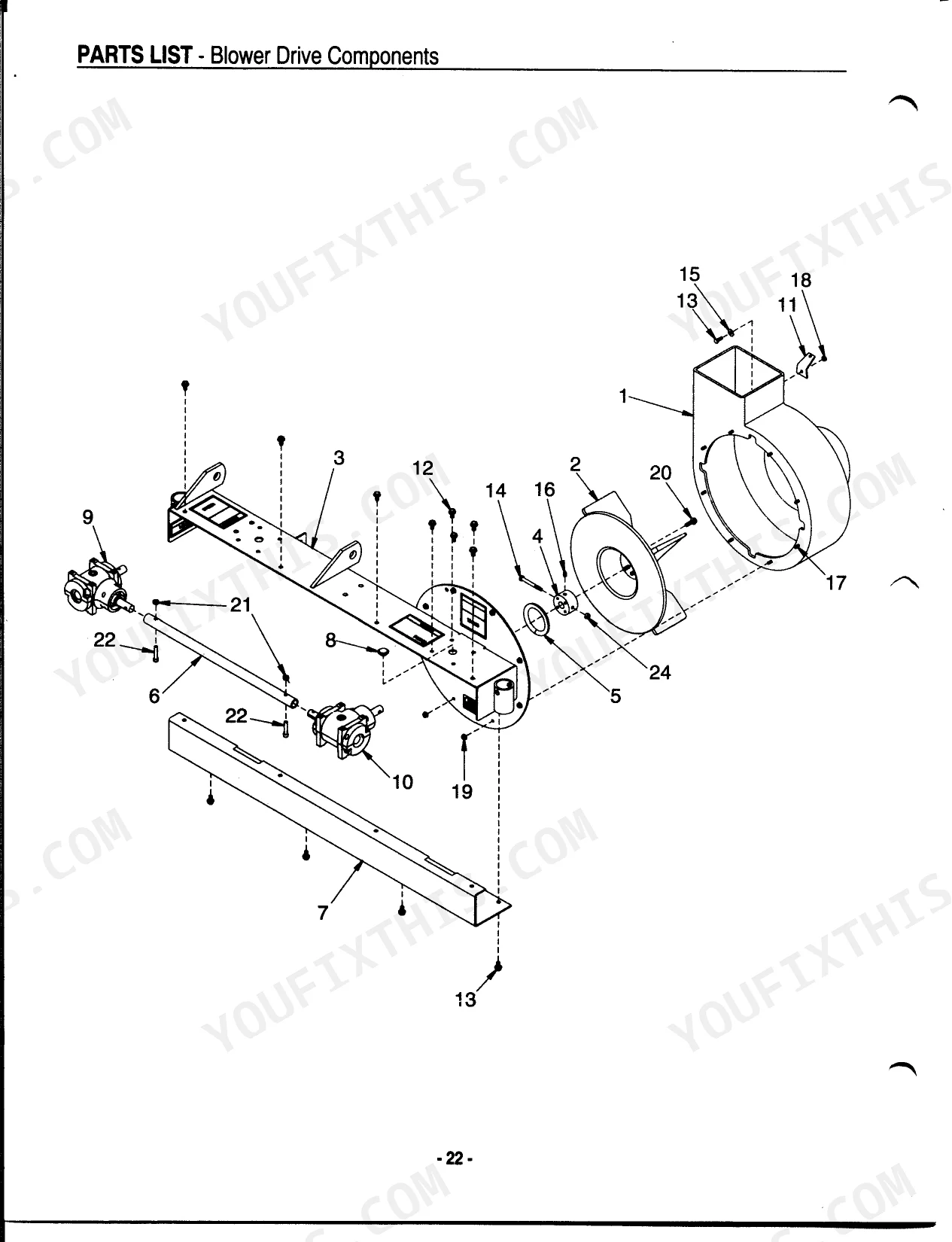

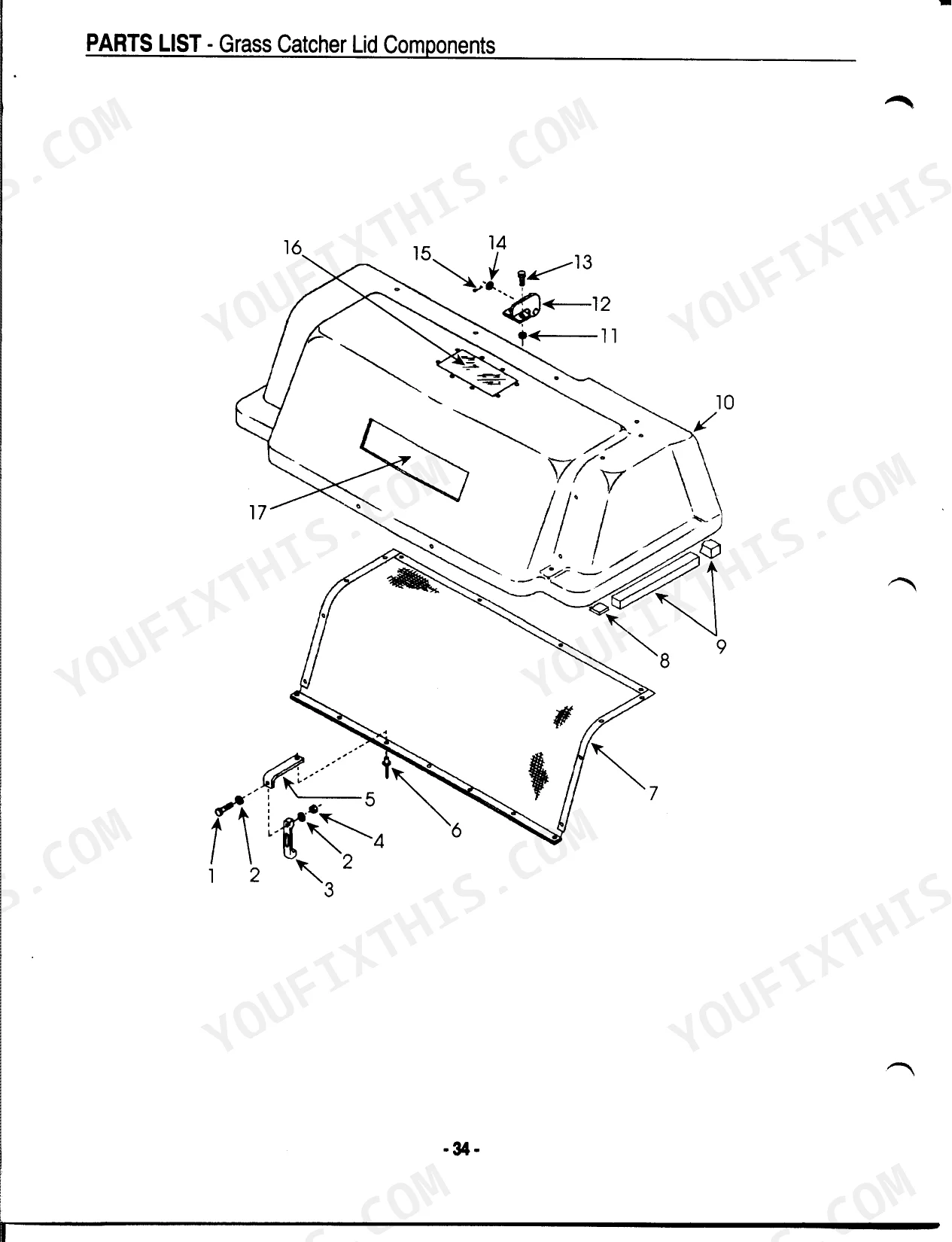

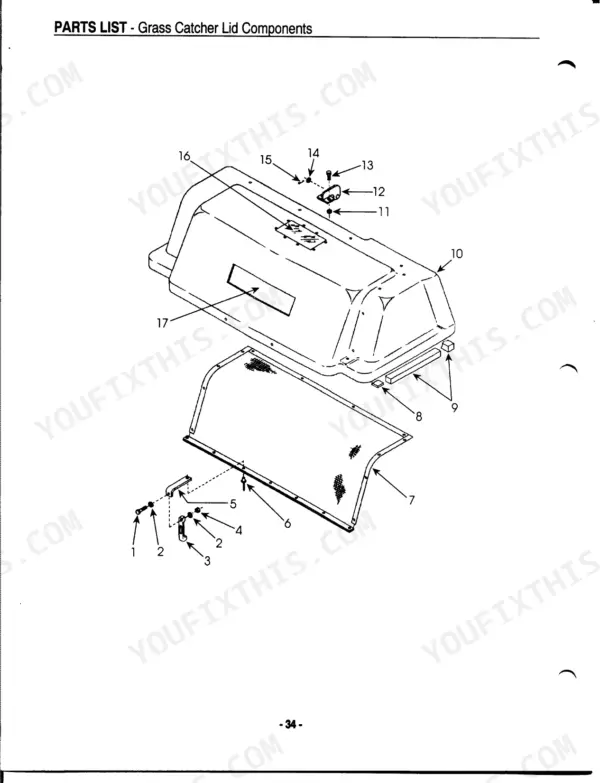

| Parts List | - | Blower Drive Components, Blower Components, Boot & Hose Components, Gearbox Components, Driveline Components, Grass Bag & Frame Components, Grass Catcher Lid Components |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Torque for 5/16-18 bolts securing fan/hub (SAE Grade 5) | 17-20.5 ft.lbs | p. 19 |
| Torque for 5/16-18 bolts (SAE Grade 5) | 17-20.5 ft.lbs | p. 19 |
| Torque for 1/4-20 bolts (SAE Grade 5) | 9-11 ft.lbs | p. 19 |
| Gearbox Oil Capacity | 5oz. | p. 22 |
| Gearbox Initial Oil Change Interval | 100 hrs. | p. 22 |
| Gearbox Subsequent Oil Change Interval | 200 hr. | p. 22 |
| Driveline U-Joint Lubrication Interval | 25 hrs. | p. 22 |
| SAE Grade 5 Bolt Torque (1/4") | 9-11 ft.lbs | p. 19 |
| SAE Grade 5 Bolt Torque (1/2") | 80-96 ft.lbs | p. 19 |
| Metric Grade 8.8 Coarse Bolt Torque (M8-1.25) | 20-26 ft.lbs | p. 19 |
| Metric Grade 8.8 Fine Bolt Torque (M12-1.25) | 62-75 ft.lbs | p. 19 |
| RCK54-22BX Mower Deck Boot Mounting Hole Drill Size | 25/64 (.390) inch | p. 9 |
Kubota GCK60-BX Common Problems This Manual Covers
Weak suction or poor grass pickup
Owners report the catcher losing airflow so clippings are not carried into the bags, often from a packed chute or plugged duct. The Operating Instructions cover clearing plugged ducts and correct bagging technique.
Manual Section: Operating Instructions p. 20Mounting hardware works loose
Fasteners into the aluminum gearbox housing can loosen over time, and owners note the limited thread depth at these points. The Bolt Tightening Chart lists the correct torque values for the catcher's hardware.
Manual Section: Bolt Tightening Chart p. 19Neglected gearbox and driveline lubrication
Skipping the scheduled gearbox oil change or U-joint greasing shortens driveline life. The Maintenance section gives the lubrication schedule, including gearbox oil capacity and change intervals.
Manual Section: Maintenance p. 22Worn or torn cloth grass bag
The cloth grass bags wear and deteriorate with use and eventually need replacing. The Maintenance section covers replacing the cloth grass bag along with cleaning procedures.
Manual Section: Maintenance p. 22Difficult blower and boot installation
Fitting the blower, bag frame, and discharge boot can be awkward, and setup varies with the mower deck. The Setting-Up Instructions walk through blower installation and boot fitment step by step.
Manual Section: Setting-Up Instructions p. 9Grass bags fill unevenly
Bags can pack to one side when engine speed, PTO setup, or airflow is off during operation. The Operating Instructions explain proper bagging technique to keep material flowing evenly.
Manual Section: Operating Instructions p. 20Frequently Asked Questions
Which machines does the Kubota GCK60-BX grass catcher fit?
It is the collection system for BX-series compact tractors running the RCK54-22BX or RCK60B22BX mower decks. This operator manual covers setup and use of the GCK60-BX on those decks.
Does the manual include torque specifications?
Yes. The Bolt Tightening Chart lists standard torque values for SAE Grade 5 and Metric Grade 8.8 hardware used on the catcher, so you can tighten fasteners to spec. p. 19
What gearbox service information is included?
The Maintenance section gives the gearbox oil capacity, the initial and subsequent oil change intervals, and the driveline U-joint greasing interval, along with cleaning procedures. p. 22
Does it show the parts breakdown for ordering?

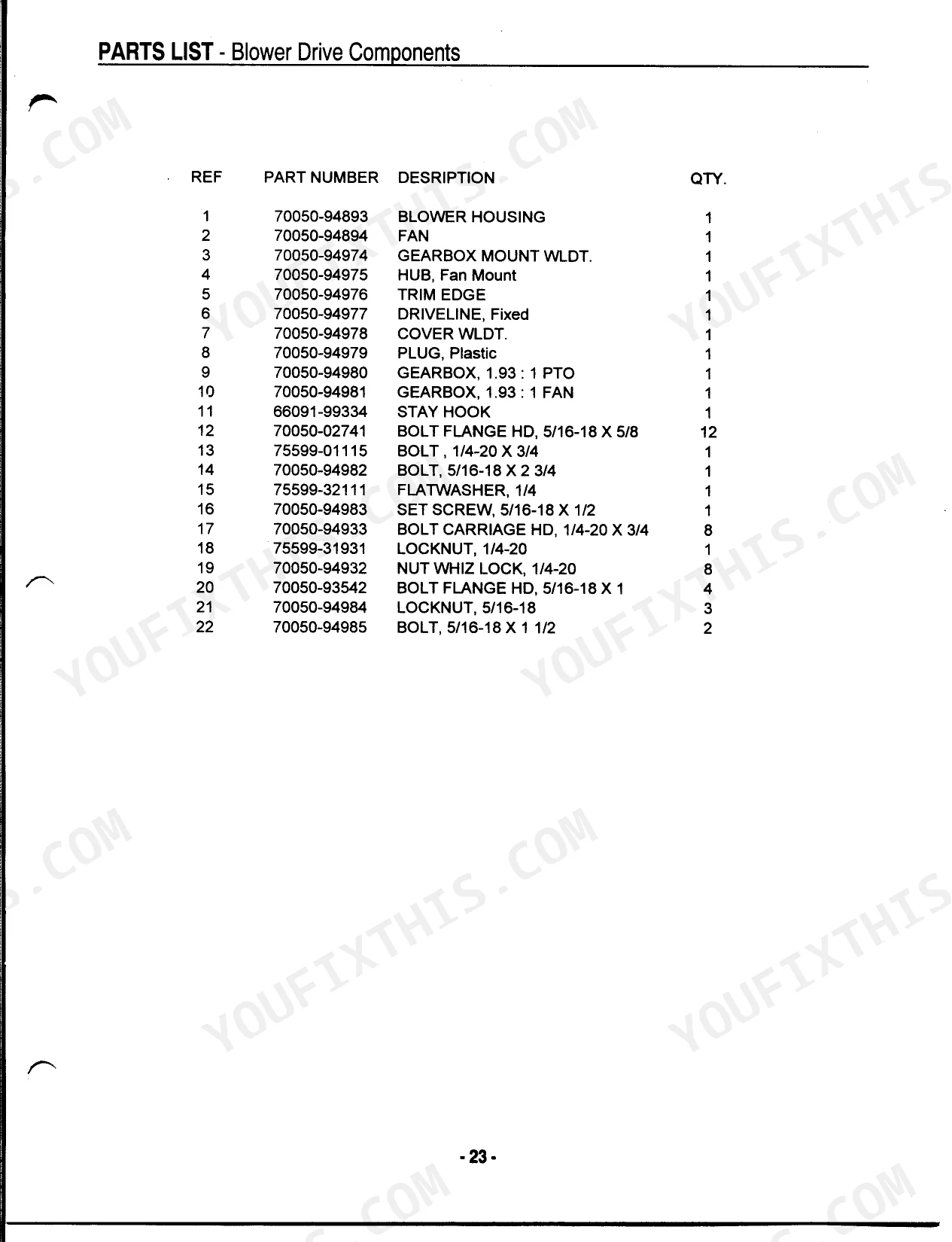

Yes. The Parts List has exploded views and part numbers for the blower drive, blower, boot and hose, gearbox, driveline, and grass bag components. p. 23
Is this Kubota GCK60-BX Operator Manual a digital download?
It's a 44-page searchable PDF, and the download starts instantly after checkout. Open it on a laptop, tablet, or phone, and take it straight to the shop floor.
Are there any print restrictions on this manual?
Yes. Print as many copies as you like; there are no restrictions. Plenty of mechanics just print the section they need and keep it at the workbench.
