Need the factory procedures for your Kubota GZD21 Zero-Turn Mower? This 268-page workshop manual (OEM #9Y011-15261) is the complete Kubota GZD21 service manual PDF source, covering everything from the hydrostatic transaxle and front axle to engine rebuild and mower deck service. Inside: full hydraulic circuit schematics tracing pump, control valve, and lift cylinder fluid routing, plus wiring diagrams for the starting and charging systems including starter, glow plug, safety switches, and AC dynamo. Fault-by-fault troubleshooting covers engine, transaxle, hydraulic, and mower faults, backed by interval-based maintenance schedules running from daily checks through every 400-hour service. Cylinder head screws torque to 37-42 N·m; top off the transmission case and both rear axle gear cases with 10.0 L of fluid before you button it back up. Your machine is down. Download this bookmarked PDF, search any spec by keyword, and start wrenching.
What's Inside This Kubota GZD21 Manual

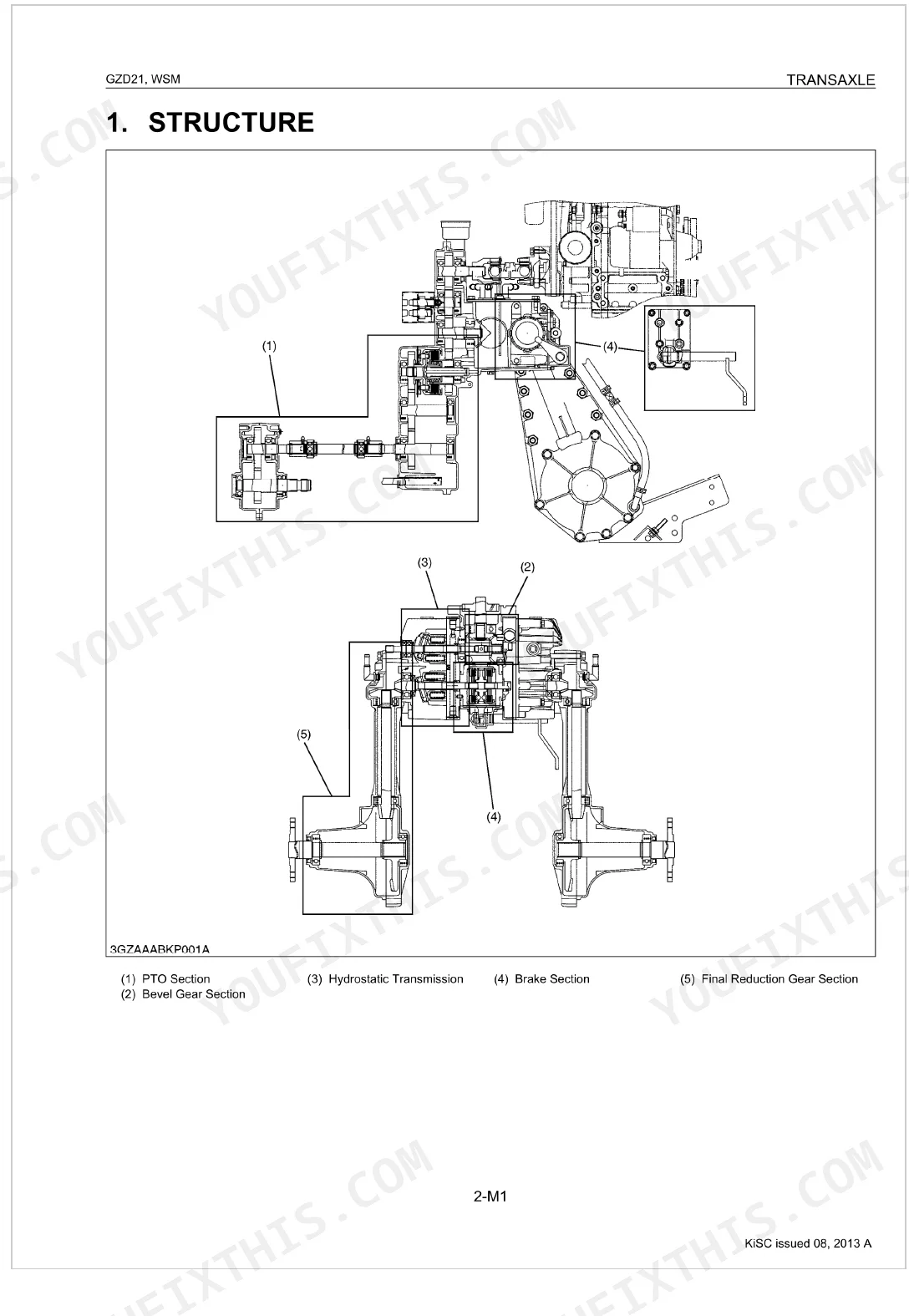

| System | Pages | Key Topics |
|---|---|---|
| Safety Information | - | Safety First, Danger, Warning, Caution, Important, Note, Before Servicing and Repairing, Safety Starting |
| Specifications | - | Dimensions, GZD21-Hd |
| General | - | Identification, General Precautions, Lubricants, Fuel and Coolant, Check and Maintenance, Special Tools, Machine Identification Plate, Machine Serial Number, Engine Serial Number |
| Engine | - | Separating Engine, Draining Coolant and Engine Oil, Engine Body, Lubricating System, Cooling System, Fuel System |
| Transaxle | - | Travelling System, Hydrostatic Transmission, Pump and Motor, Check and High Pressure Relief Valve, Power Trains Operation, Motion Control Linkage, Final Reduction Gear Section, PTO System |
| Front Axle | - | Separating Floor Cover and Front Axle, Disassembling Front Wheel and Wheel Bracket |

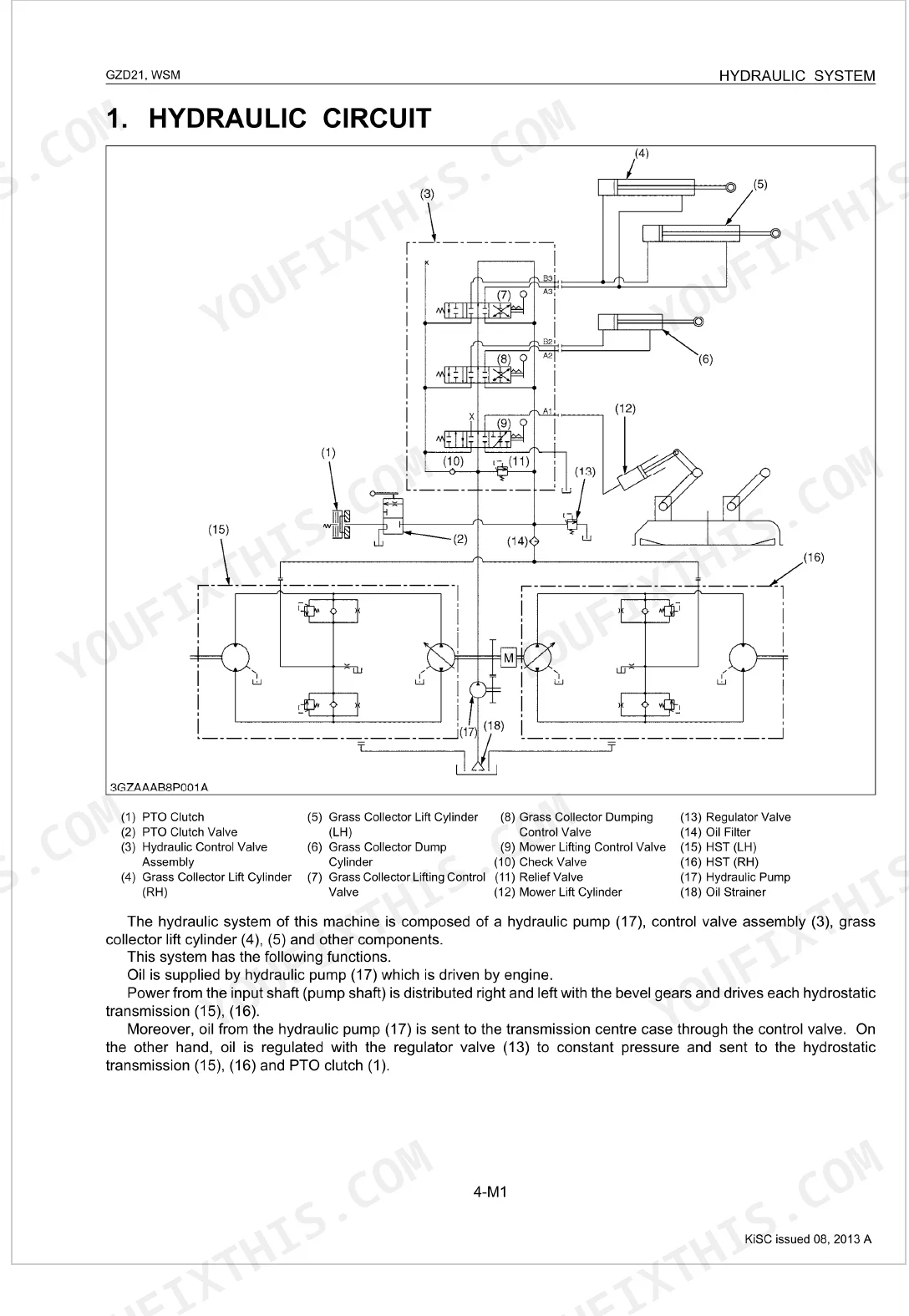

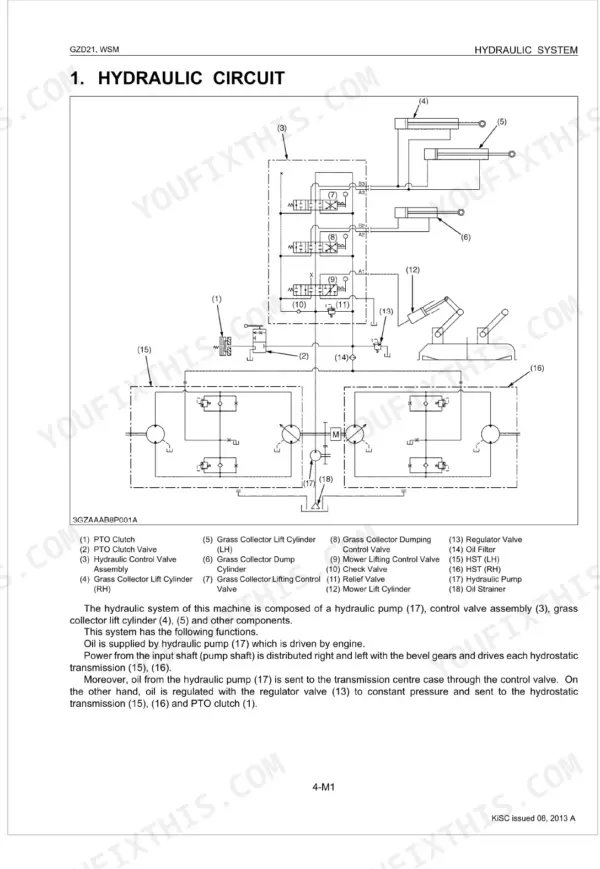

| Hydraulic System | - | Hydraulic Circuit, Hydraulic Pump, Hydraulic Control Valve, Lift Cylinder, Mower Linkage, Grass Collector Control Mechanism, Mower Lift Cylinder, Hydraulic Control Valve and Pump |
| Electrical System | - | Wiring Diagram, Starting System, Charging System, Starter, Glow Plug, Safety Switch (Limit Switch), Fuel Pump, Engine Stop Solenoid |
| Mower | - | Power Transmission, Lifting Mechanism |
Quick Reference Specifications

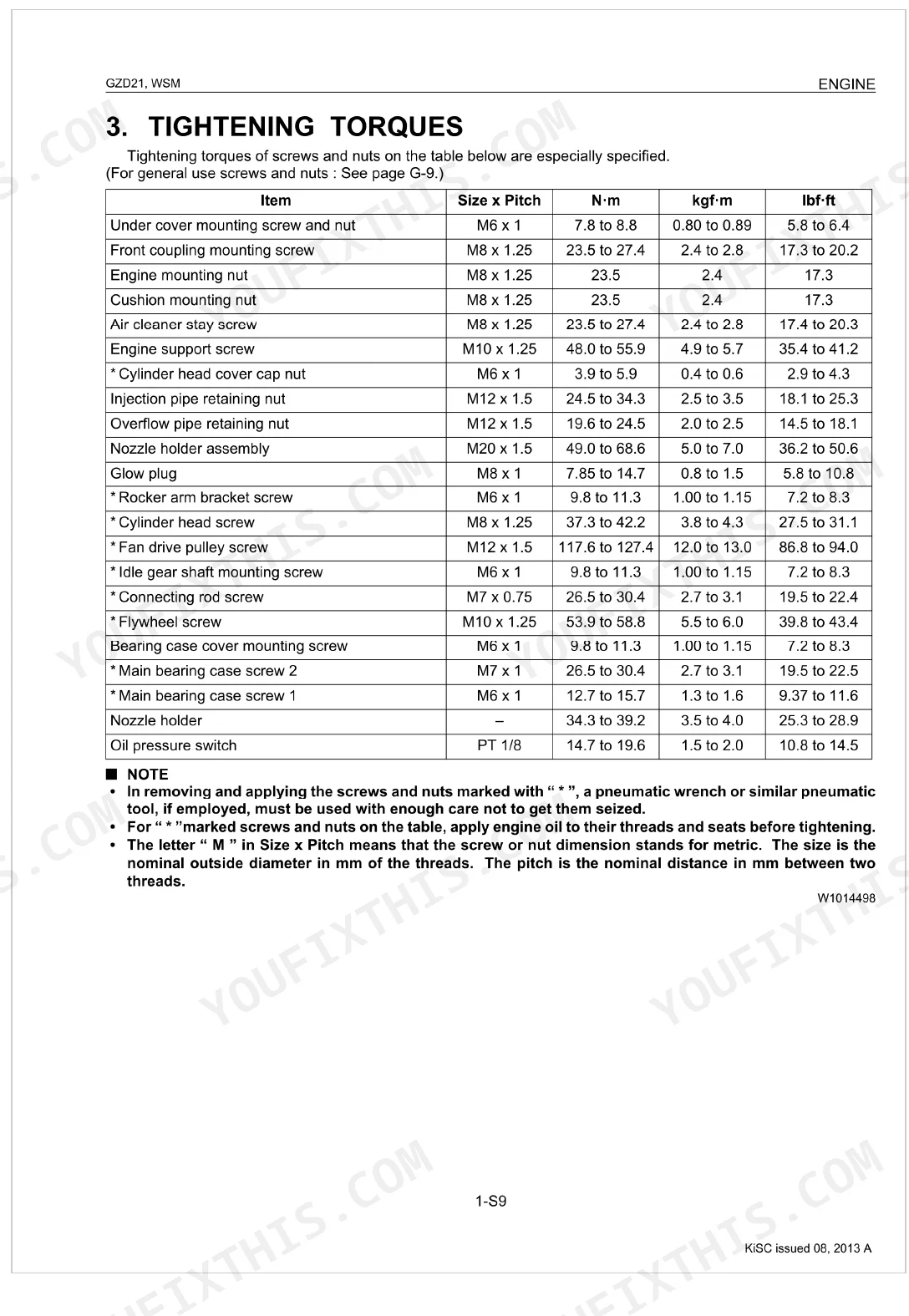

| Specification | Value | Page |
|---|---|---|
| Cylinder head screw tightening torque | 37 to 42 N·m | p. 90 |
| Air cleaner element replacement interval | every 1 year | p. 26 |
| Engine crankcase oil capacity | 2.8 L | p. 22 |
| Coolant capacity | 1.7 L | p. 22 |
| Transmission case and rear axle gear case (RH and LH) fluid capacity | 10.0 L | p. 22 |
| Motion control lever boss greasing points | 2 greasing points | p. 23 |
| Radiator cleaning interval | Clean every 1 year | p. 27 |
| Reamer bolt tightening torque | 48.1 to 55.9 N·m | p. 262 |
| Mower blade screw tightening torque | 98 to 118 N·m | p. 254 |
| Anti-freeze mixing ratio | anti-freeze mixing ratio must be less than 50 % | p. 52 |

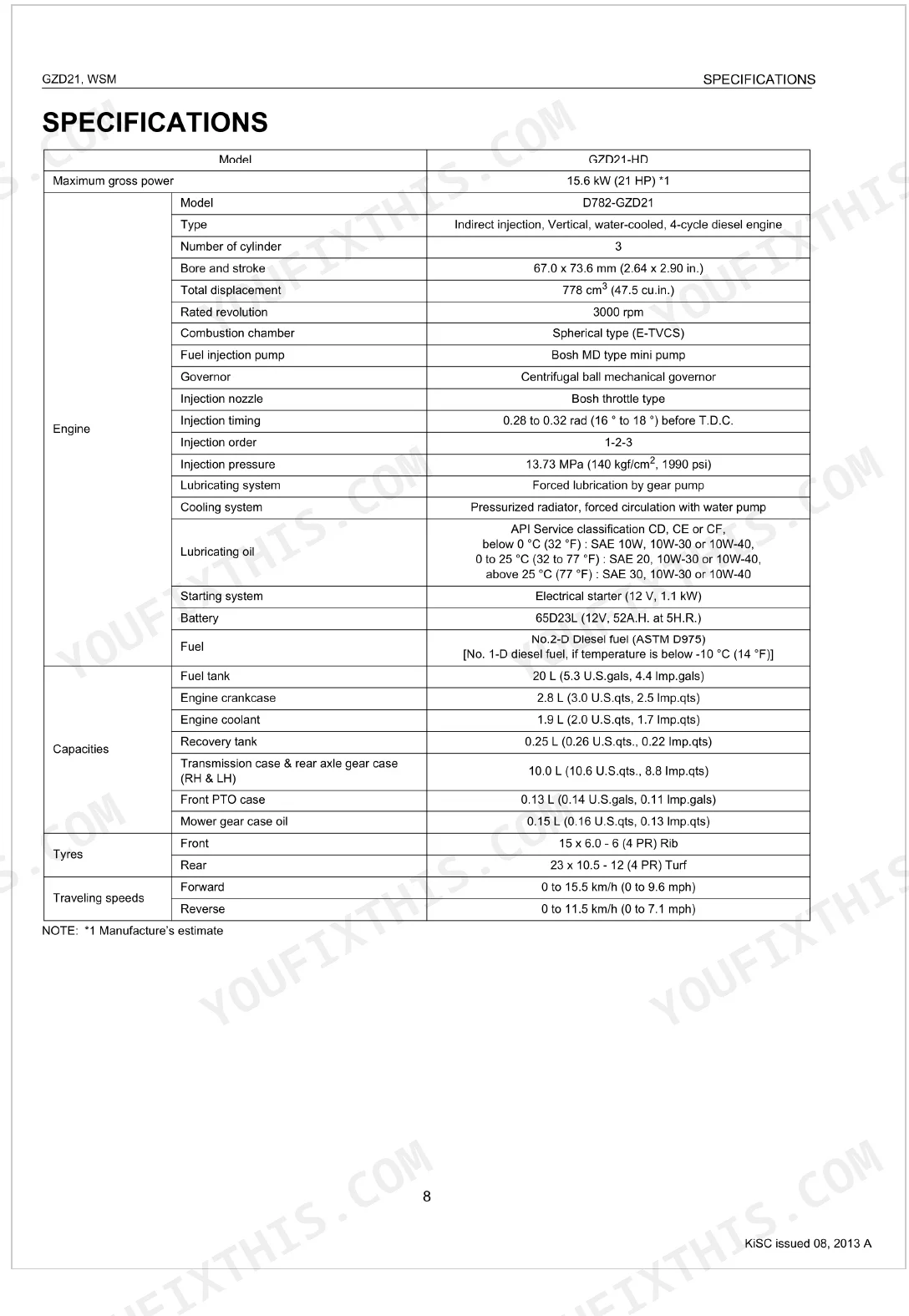

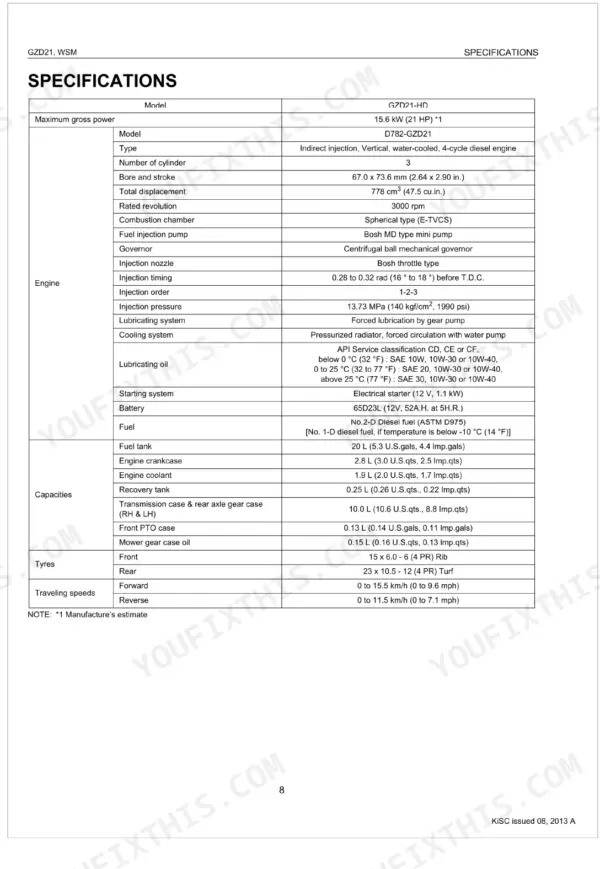

| Engine Max Gross Power | 15.6 kW (21 HP) | p. 11 |
| Fuel Tank Capacity | 20 L (5.3 U.S.gals) | p. 11 |
Kubota GZD21 Common Problems This Manual Covers
Kubota GZD21 engine overheats or loses cooling performance under heavy mowing load
Clean the radiator fins and surrounding engine bay with compressed air; debris buildup is the most common cause. Check coolant level, total system capacity is 1.7 L (page 22). Keep anti-freeze mixing ratio below 50% (page 52). Inspect fan belt deflection, target is approximately 10 mm (page 46). Schedule full radiator service annually per the maintenance schedule on page 26.
Manual Section: Engine TroubleshootingHydrostatic transmission feels weak, jerky, or completely loses drive on flat ground p. 134
Check the transaxle fluid level first; total capacity is 10.0 L (2.6 U.S. gals) split across the transmission case and both rear axle gear cases (page 11). Drain and refill if the fluid is contaminated or overdue. Refer to the transaxle troubleshooting procedures in the section starting on page 134 for jerky movement and loss-of-drive fault paths.
Manual Section: Transaxle TroubleshootingEngine cranks slowly or won't start, battery voltage reads below 12 volts p. 215
Measure battery voltage with a multimeter; it must exceed 12 V (page 232). If voltage is low, charge or replace the battery before diagnosing further. Check all safety interlock switches, as they will prevent starting even with good voltage. Trace the full no-start fault path in the electrical system section starting on page 215.
Manual Section: Electrical System TroubleshootingAfter striking a rock or debris, blades vibrate and leave an uneven cut p. 254
Stop immediately and remove all power before inspecting. Check blades, spindle housing, and deck shell for bends or cracks. Replace any damaged blade and torque the blade screws to 98 to 118 N·m (page 254) before restarting. Consult the mower section starting on page 247 for a full poor-cutting diagnosis once the deck is repaired.
Manual Section: Mower TroubleshootingFront axle pivot and mower deck pivot grease fittings missed during routine service p. 26
Work through the full greasing checklist in the maintenance schedule on page 26. Pay particular attention to the front axle pivot and mower deck pivot points, both are easy to skip. The motion control lever boss area has 1 greasing point (page 23). Apply fresh grease until it purges from the fitting seal before moving on.
Manual Section: GeneralZero-turn loses stability or becomes uncontrollable on slopes during sharp high-speed turns p. 4
Read the slope operation warnings in the safety section on page 4 before operating on any grade. Slow to a walking pace on inclines and never attempt sharp zero-turns on a slope. Verify front tire pressure is at 207 kPa (30 psi) per page 30; underinflation worsens handling and increases tip-over risk on uneven ground.
Manual Section: Safety InformationFrequently Asked Questions

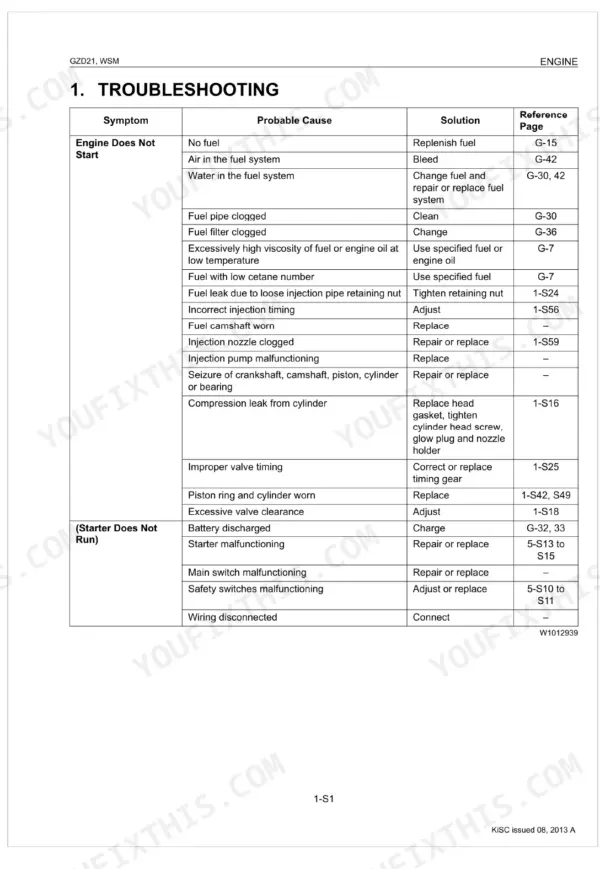

What causes a Kubota GZD21 hard-start condition?

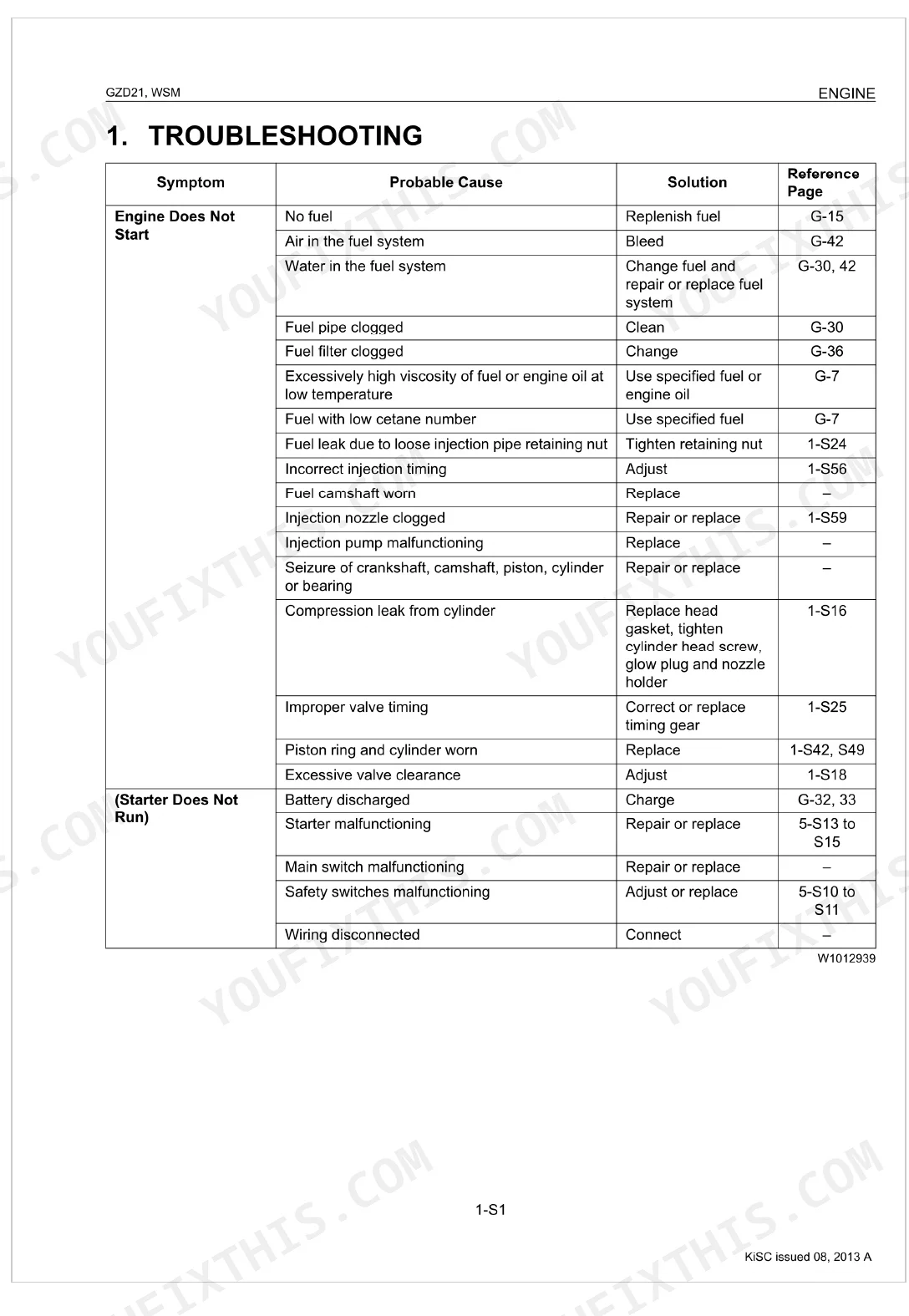

A Kubota GZD21 hard-start condition can be caused by various issues including no fuel, air or water in the fuel system, clogged fuel pipes or filters, excessively high viscosity of fuel or engine oil at low temperatures, or incorrect injection timing. Other causes may involve a worn fuel camshaft, clogged injection nozzle, or a defective engine stop solenoid or combination box. For a comprehensive list of causes, refer to the troubleshooting sections on pages 74 and 230.
Why does a Kubota GZD21 overheat?
A Kubota GZD21 may overheat due to insufficient coolant, a clogged radiator net or fins, corroded radiator interior, or a corroded coolant flow rate. Other reasons include a defective radiator cap, damaged radiator hose, or an improperly tensioned or broken fan belt. Overload running, a defective head gasket, incorrect injection timing, or unsuitable fuel can also lead to overheating. For more details, refer to the 'Engine Overheated' section on page 76.
What are the replacement specifications for Air filter?
The air cleaner element for the Kubota GZD21 should be replaced once a year. This is a scheduled maintenance item to ensure proper engine function. For the replacement procedure, refer to page 51.
What are the replacement specifications for Engine oil?

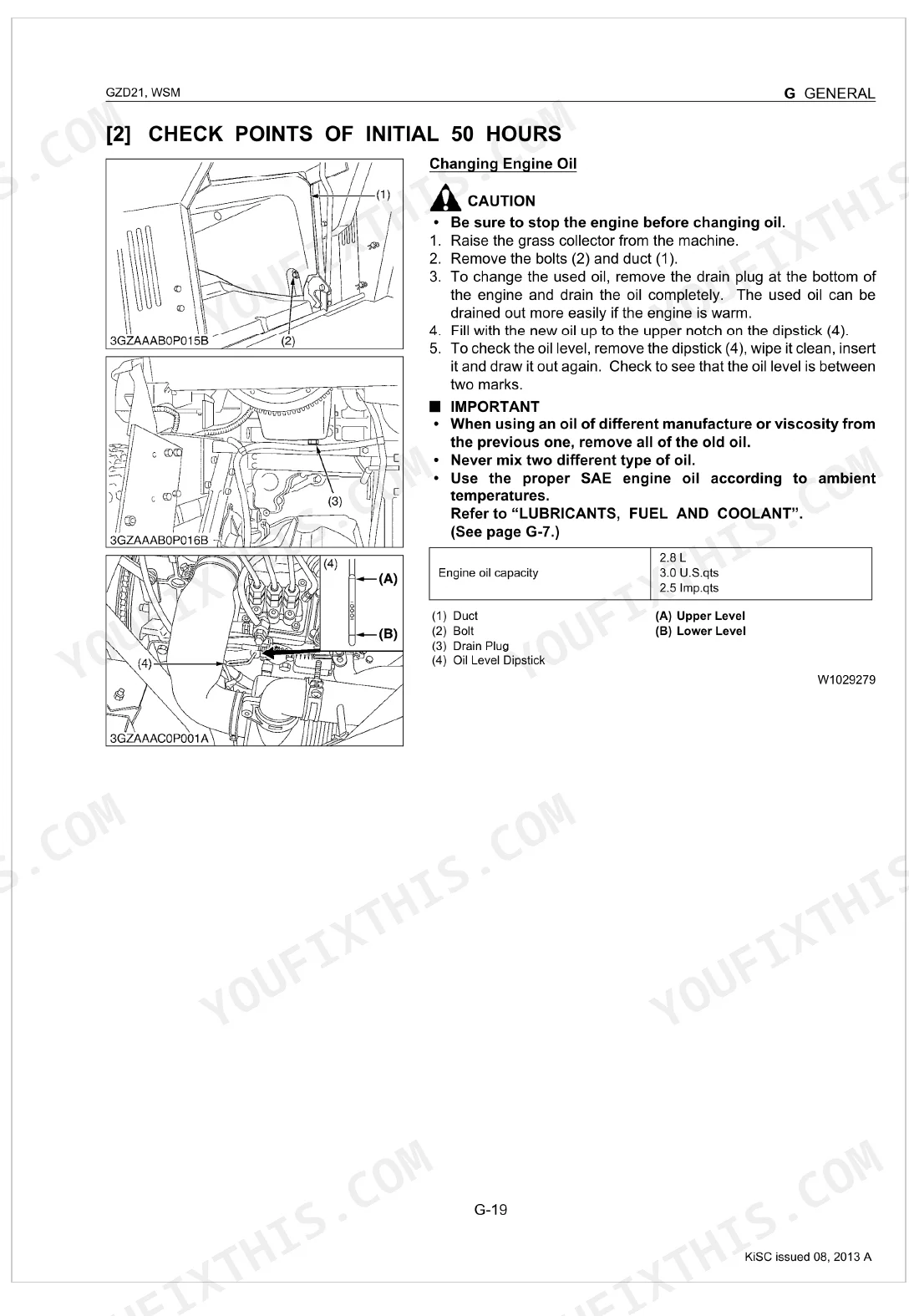

Engine oil for the Kubota GZD21 should be changed every 50 hours. The capacity is 2.8 L (3.0 U.S.qts, 2.5 Imp.qts). Use API Service Classification CD, CE or CF oil, with SAE 10W-30 or 10W-40 for temperatures between 0 to 25 °C, SAE 30 or 10W-40 for above 25 °C, and SAE 10W-30 or 10W-40 for below 0 °C. For more details, refer to pages 22 and 26.
How quickly can I access this manual after buying?
This is a 268-page searchable PDF ready for immediate download. Works on any device, pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this manual?
Yes. The PDF has no DRM restrictions, print any page or section you need for your shop. Works with any standard printer.

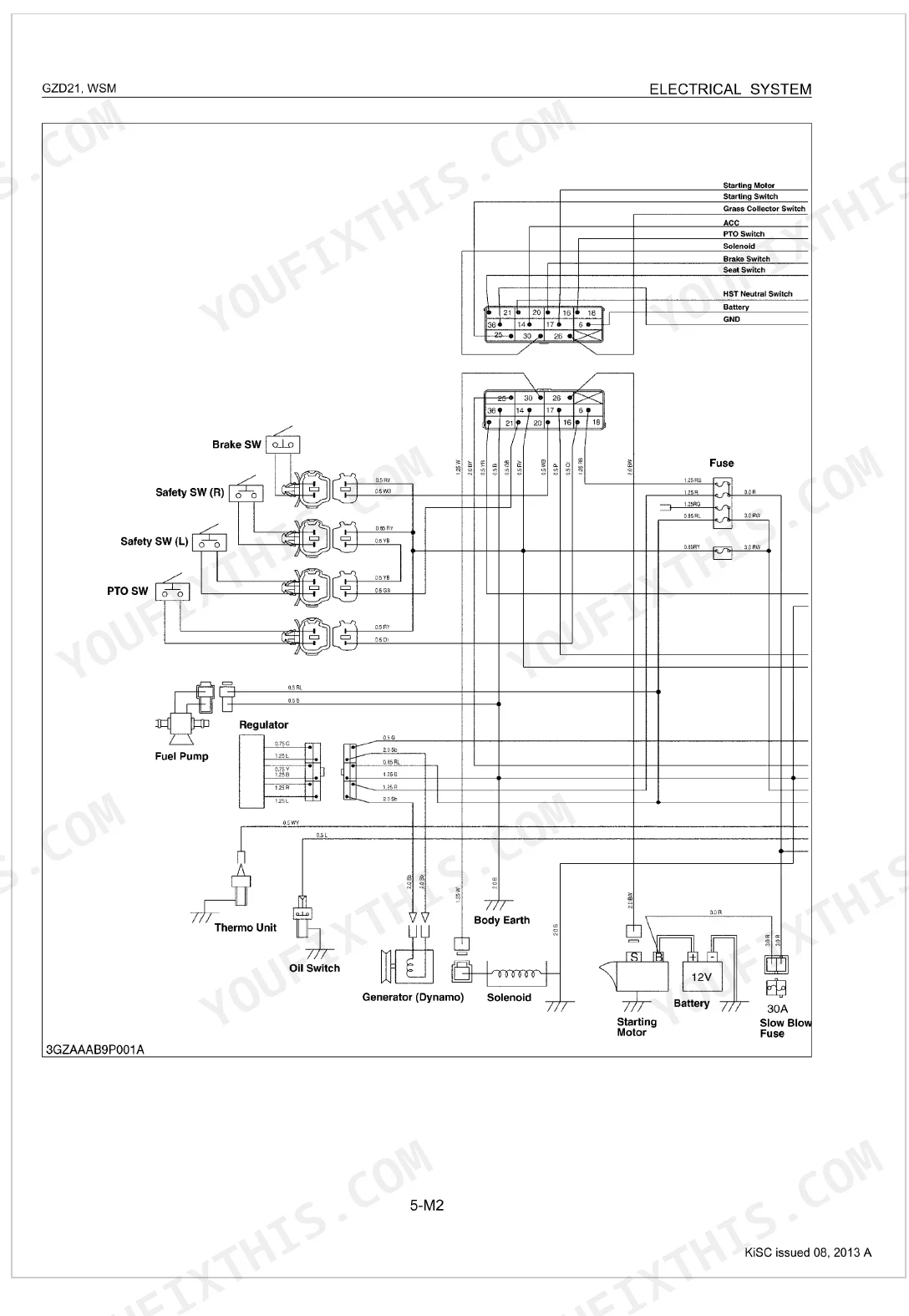

Are electrical wiring diagrams included in this Kubota GZD21 Service Manual?
Included. The Kubota GZD21 Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
