This Kubota Operator Manual covers the LA482 and LA682 front loaders in 37 pages. It is the factory handbook for owners and mechanics who need to mount, operate, and service these two loaders by the numbers rather than by trial and error.The manual walks through loader and bucket specifications, full setting-up and installation instructions, pre-operation checks, and operating technique for filling the bucket, lifting, carrying, dumping, and using float control. It also documents maintenance and lubrication, main frame and brace torque values, and the complete removal, storage, and reinstallation procedures.Because the LA482 and LA682 differ in hydraulic flow, lift height, and weight, the specification tables give you the correct figure for your model. Use it to bleed the hydraulics after hose work, set tire pressures, or torque the mounting hardware. It downloads as a PDF and prints cleanly for shop use.
What's Inside This Kubota LA482, LA682 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 5-7 | Safe Operation Instructions, Danger, Warning and Caution Labels, Care of Danger |
| Servicing of Loader | 8 | Servicing of Loader Introduction, Kubota Loader Information, Serial Number Location |

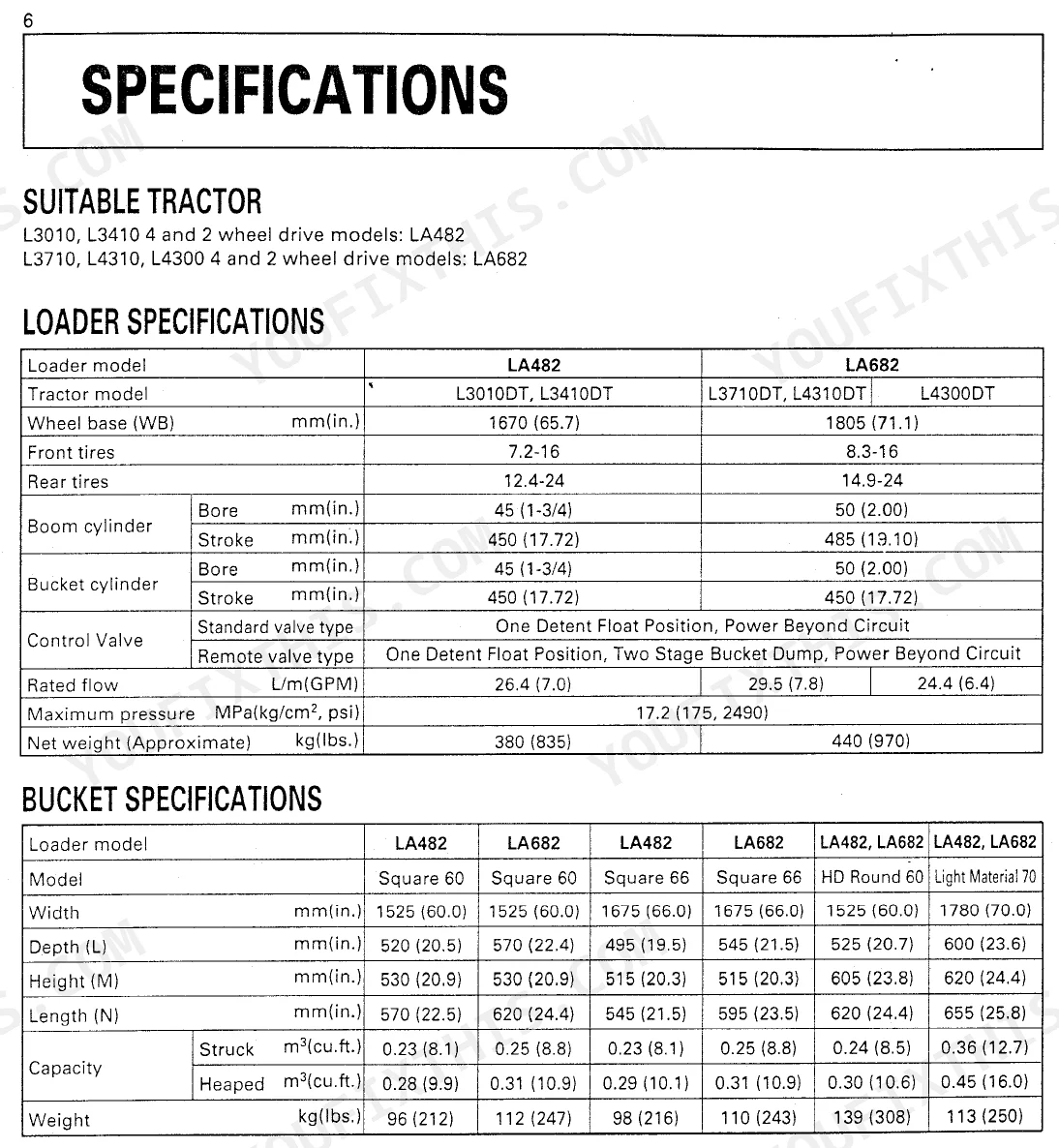

| Specifications | 9-12 | Suitable Tractor, Loader Specifications, Bucket Specifications (Dimensional Specifications, Operational Specifications), Dimensional Specifications |

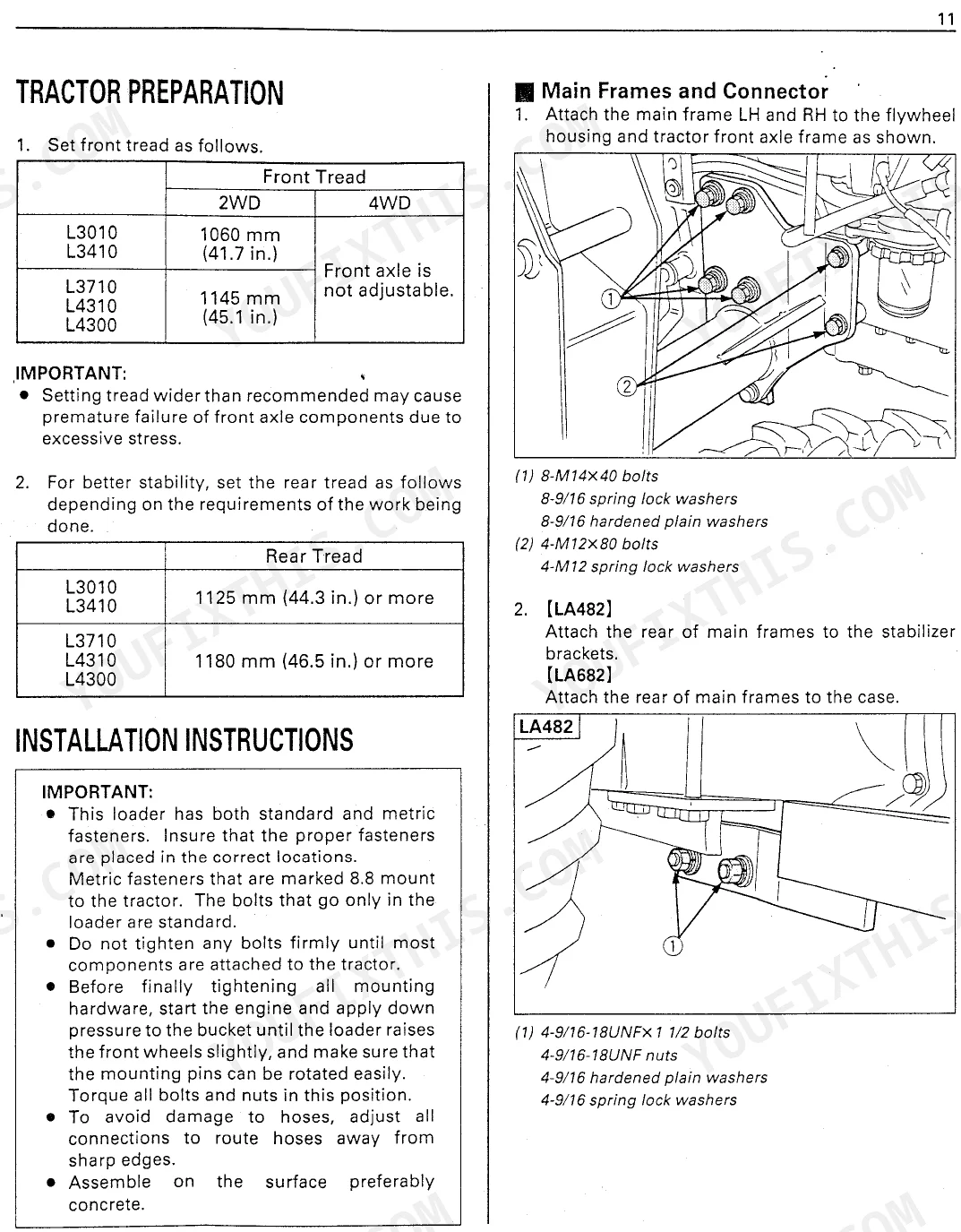

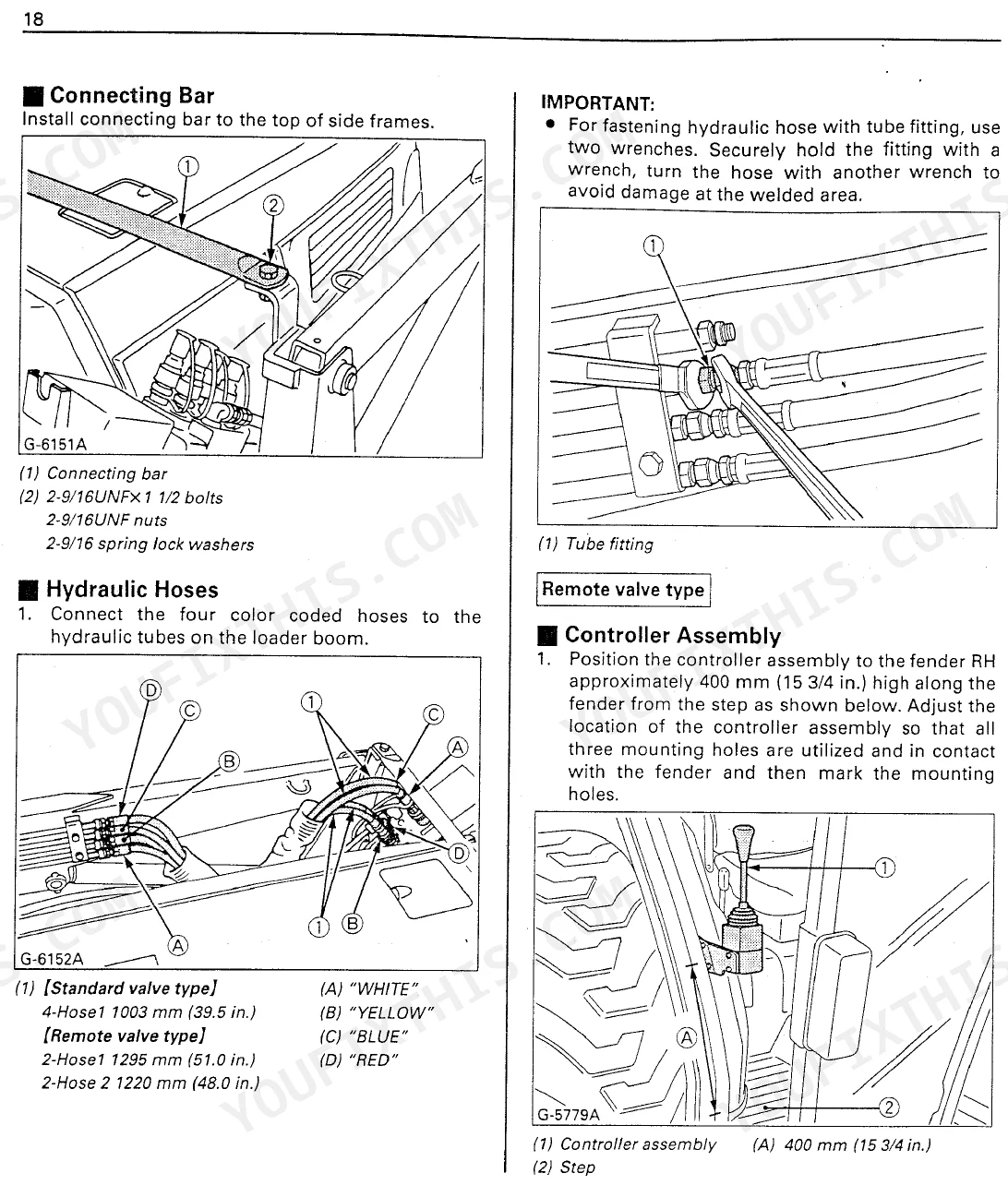

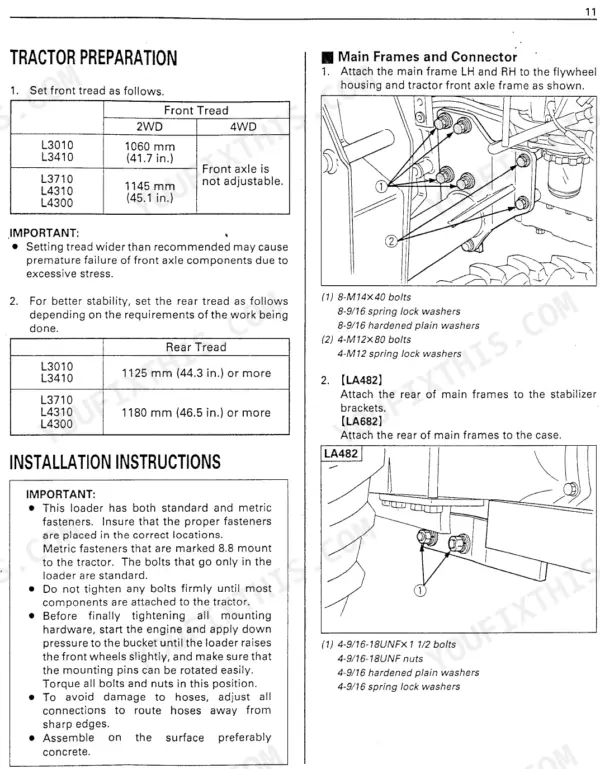

| Setting-Up Instructions | 13-23 | Pre-Assembly (Tractor Preparation, Installation Instructions), Tractor Preparation (Main Frames and Connector) |
| Pre-Operation Check | 24-25 | Lubrication, Liquid Ballast in Rear Tires, Transmission Fluid, Rear Ballast (Tire Inflation, Test Operation, Removing Air From Hydraulic System), Tire Inflation |

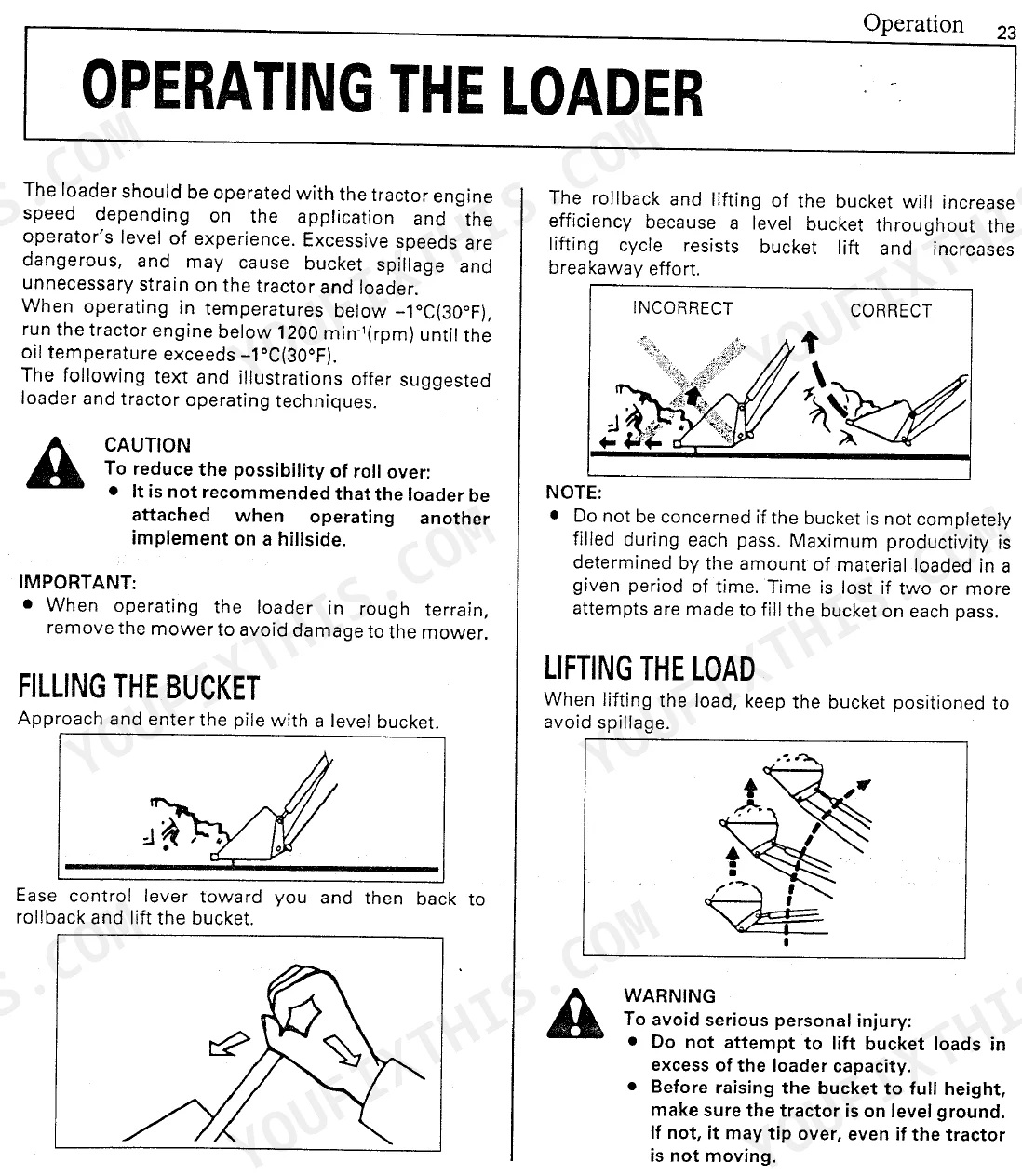

| Operating the Loader | 26-30 | Filling the Bucket, Lifting the Load (Carrying the Load, Dumping the Bucket, Lowering the Bucket, Operating with Float Control), Carrying the Load |

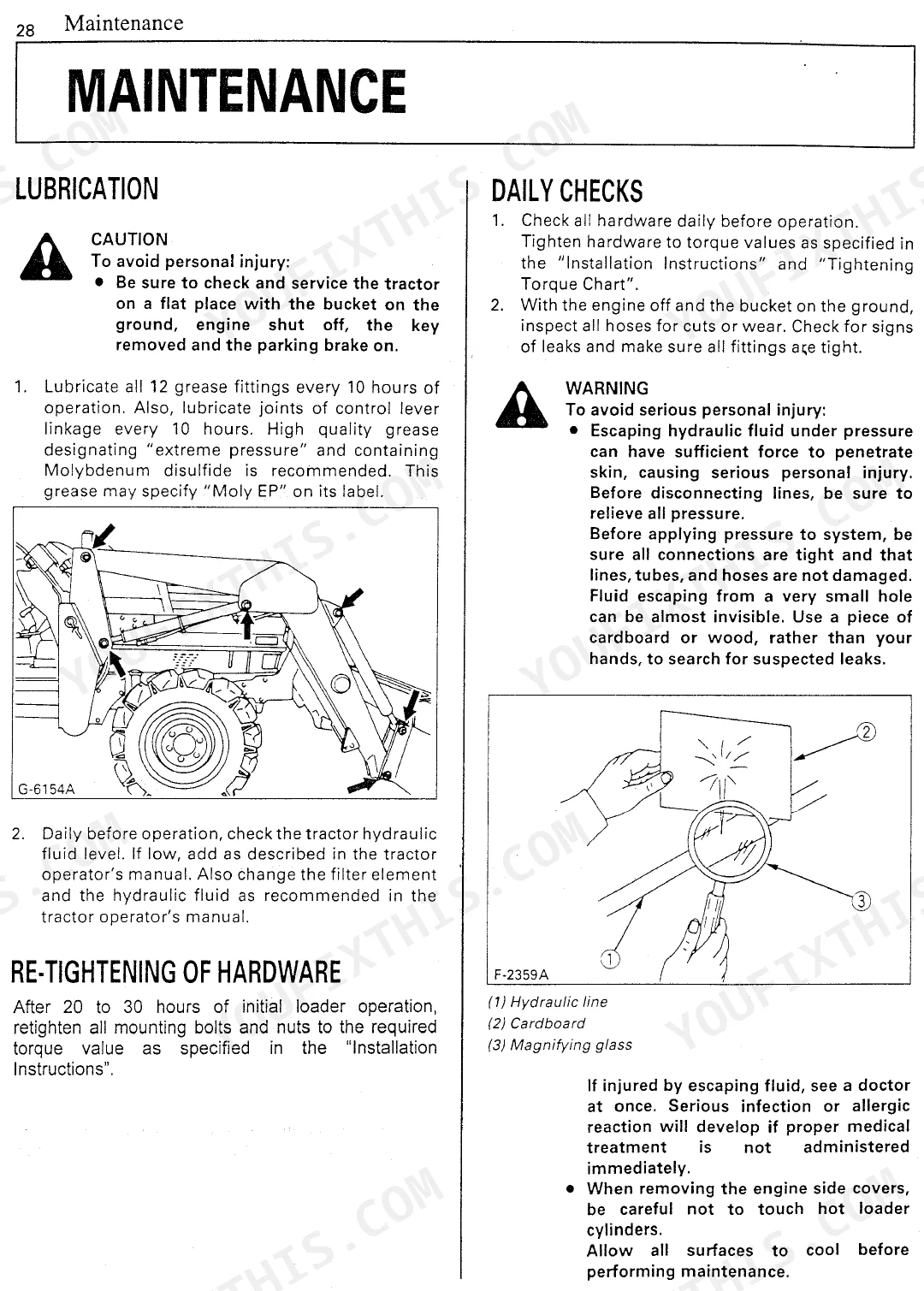

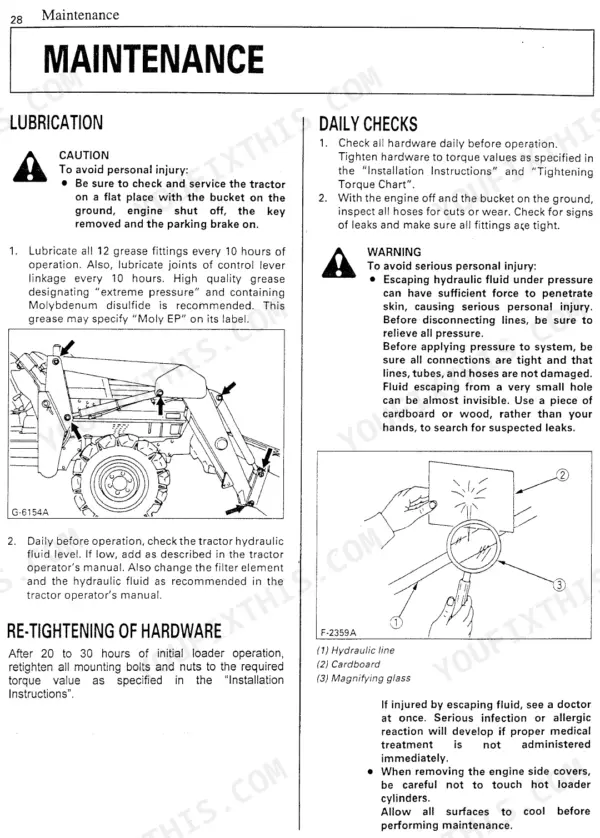

| Maintenance | 31-32 | Lubrication, Daily Checks, Re-Tightening of Hardware |
| Removing the Loader | 33 | Prepare for Removal, Disconnect Stands, Disconnect Main Frame, Disconnect Hydraulic Hoses, Back Away Tractor |
| Storing the Loader | 34 | Storage Location, Support Loader, Protect Couplers, Check Hydraulic Hoses, Repair Parts, Lubricate Loader, Protect Cylinder Rods and Pins, Repaint Parts |
| Reinstalling the Loader | 35 | Position Tractor, Connect Hoses, Engage Side Frames, Reinstall Mounting Pins, Store Stands, Level Bucket |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| LA482 | ||
| Hydraulic block type outlet max flow | 26.4 L/min. (7.0 U.S. gals./min.) | p. 15 |
| LA482 Rated Hydraulic Flow | 26.4 L/m (7.0 GPM) | p. 9 |
| LA482 Net Weight (Approximate) | 380 kg (835 lbs) | p. 9 |
| LA482 Maximum Lift Height to Pivot Pin | 2435 mm (95.9 in.) | p. 10 |
| LA682 | ||
| Hydraulic block type outlet max flow | 29.5 L/min. (7.8 U.S. gals./min.) | p. 15 |
| LA682 Rated Hydraulic Flow (L3710, L4310DT) | 29.5 L/m (7.8 GPM) | p. 9 |
| LA682 Net Weight (Approximate) | 440 kg (970 lbs) | p. 9 |
| LA682 Maximum Lift Height to Pivot Pin | 2560 mm (100.8 in.) | p. 10 |
| All Models | ||
| Lubrication frequency for grease fittings | every 10 hours | p. 31 |
| Loader Maximum Hydraulic Pressure | 17.2 MPa (175 kgf/cm², 2490 psi) | p. 9 |
| Rear Tire Inflation Pressure (12.4-24, 4PR) | 140 kPa (1.4 kgf/cm², 20 psi) | p. 25 |
| Front Tire Inflation Pressure (7.2-16, 4PR) | 180 kPa (1.8 kgf/cm², 26 psi) | p. 25 |
Kubota LA482, LA682 Common Problems This Manual Covers
Boom rises slowly while curl still works
Owners commonly report the loader arms lifting slowly even though bucket curl is normal, which points to trapped air or a low fluid level. The pre-operation checks cover fluid level, test operation, and removing air from the system.
Manual Section: Pre-Operation Check p. 24Hydraulic leaks at hoses and fittings
Worn hoses, deteriorated seals, or loose fittings weep oil at the connections. The maintenance section has you inspect hoses for cracks and wear and re-tighten hardware on a set schedule.
Manual Section: Maintenance p. 31Mounting bolts loosen after use
The main frame and brace bolts can back off under load if they were not set correctly at install. The setting-up instructions give the mounting sequence and the torque each bolt and nut needs.
Manual Section: Setting-Up Instructions p. 13Pins hard to align on reattachment
When remounting the loader, misalignment or a wrong bucket angle makes the pins difficult to seat. The reinstallation steps set the order for engaging the side frames and inserting the pins.
Manual Section: Reinstalling The Loader p. 35Rod and seal damage during storage
A loader parked outside without protection lets cylinder rods corrode and seals dry, leading to leaks later. The storage procedure covers supporting the unit, protecting couplers, and coating the rods and pins.
Manual Section: Storing The Loader p. 34Loader will not detach cleanly
Residual hydraulic pressure and hoses left connected make the loader awkward or unsafe to drop off. The removal procedure has you relieve pressure and disconnect the hoses in the right order before backing away.
Manual Section: Removing The Loader p. 33Frequently Asked Questions
Which models does this manual cover?
It covers the Kubota LA482 and LA682 front loaders. The specification tables call out where the two differ in rated hydraulic flow, lift height, and net weight.
What is the maximum hydraulic pressure?
Both loaders are rated at 17.2 MPa (175 kgf/cm2, 2490 psi). The specifications section also lists rated flow of 26.4 L/m for the LA482 and 29.5 L/m for the LA682. p. 9
How do I bleed air from the hydraulics?
The pre-operation check section explains cycling the loader through its full travel to purge trapped air after hose work, which restores a slow or weak boom. p. 24
What torque do the main frame bolts need?
The main frame 8-M14 bolts torque to 18.0 kgf-m (130 ft-lbs) and the 2-M16 brace bolts to 23.0 kgf-m (166 ft-lbs), as listed in the setting-up instructions. p. 23
Is this Kubota LA482 manual a download or a disc?
This is a 37-page searchable PDF ready for immediate download. It works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. It works with any standard printer.
