Part of the Kubota Operator Manuals.
This Kubota Operator Manual covers the LA463 front loader in 40 pages. It is the factory operator handbook for owners and independent mechanics who want to mount, run, and maintain the LA463 correctly on their own tractor.The manual documents suitable tractor and loader specifications, bucket and dimensional data, pre-operation checks, and the full range of operating technique: filling the bucket, lifting, carrying, dumping, float control, backfilling, and loading from a bank. Maintenance, lubrication, hardware re-tightening, general torque specifications, and the removal, storage, and reinstallation procedures are all included.If your LA463 lifts slowly, has air in the hydraulics after a hose change, or needs its mounting bolts torqued to spec, this manual gives you the exact procedure and numbers. It downloads instantly as a PDF and you can print any page for the shop or the field.
What's Inside This Kubota LA463 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 7-12 | Before Operating the Loader, Danger, Warning and Caution Labels, Care of Danger |
| Servicing of Loader | 13 | Servicing of Loader Introduction, Kubota Loader Information Table, Serial Number Location |

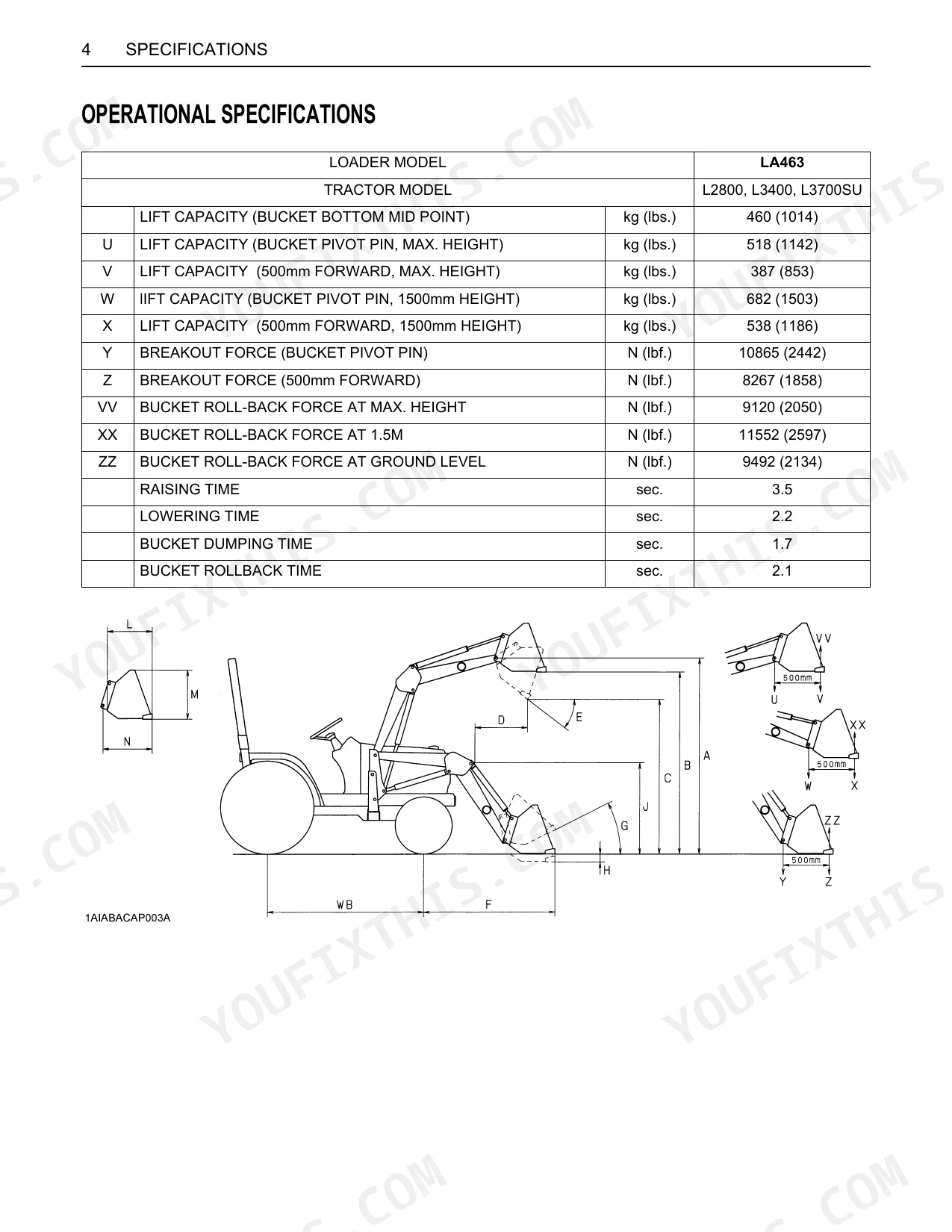

| Specifications | 14-18 | Suitable Tractor, Loader Specifications, Bucket Specifications, Dimensional Specifications, Operational Specifications, Loader Terminology |
| Pre-Operation Check | 19-22 | Lubrication, Transmission Fluid, Tread, Rear Ballast (Liquid Ballast in Rear Tires), Tire Inflation (Inflation Pressure), Test Operation (Position Bucket Control Valve Type) |

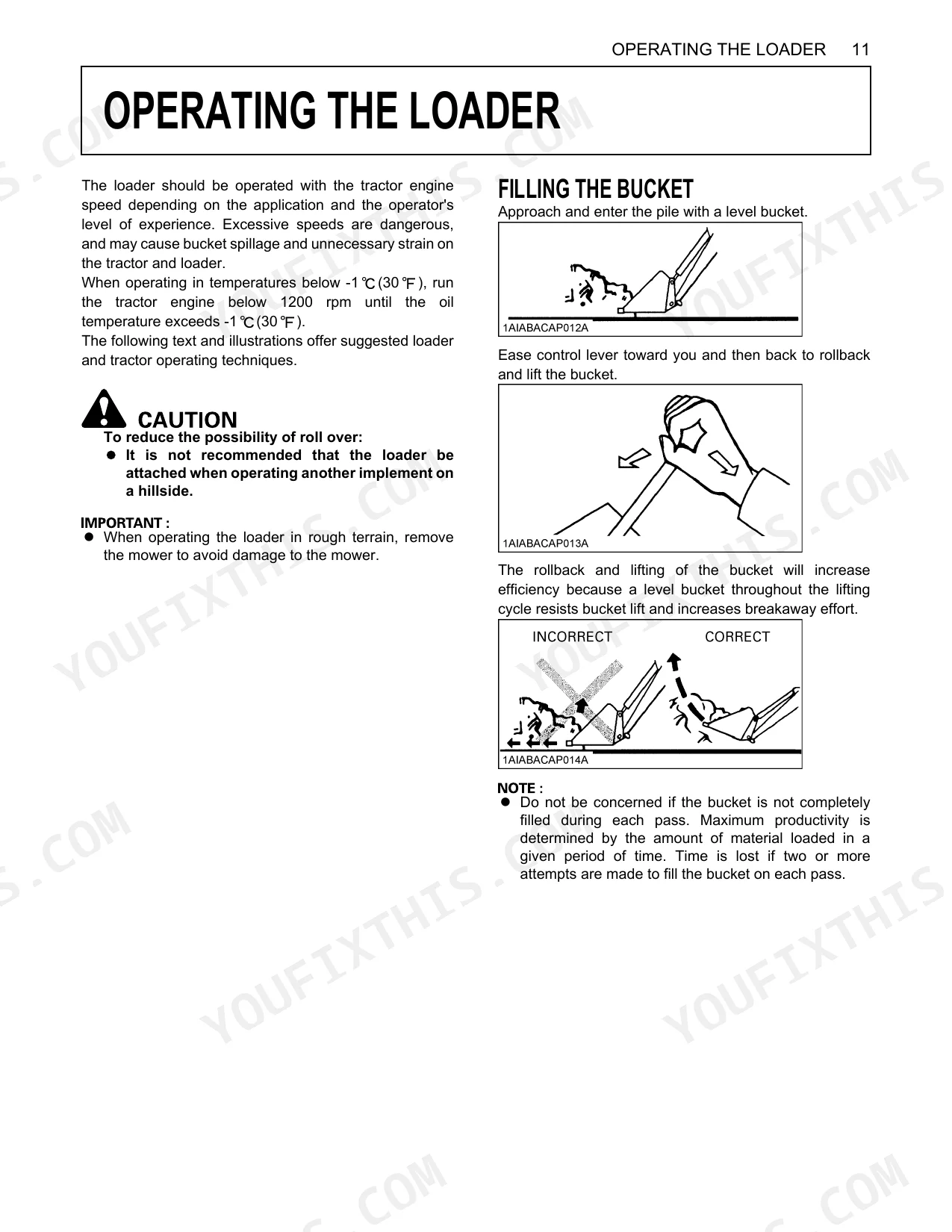

| Operating the Loader | 23-31 | Filling the Bucket, Lifting the Load, Carrying the Load, Dumping the Bucket, Lowering the Bucket, Operating with Float Control, Loading From a Bank, Peeling and Scraping |

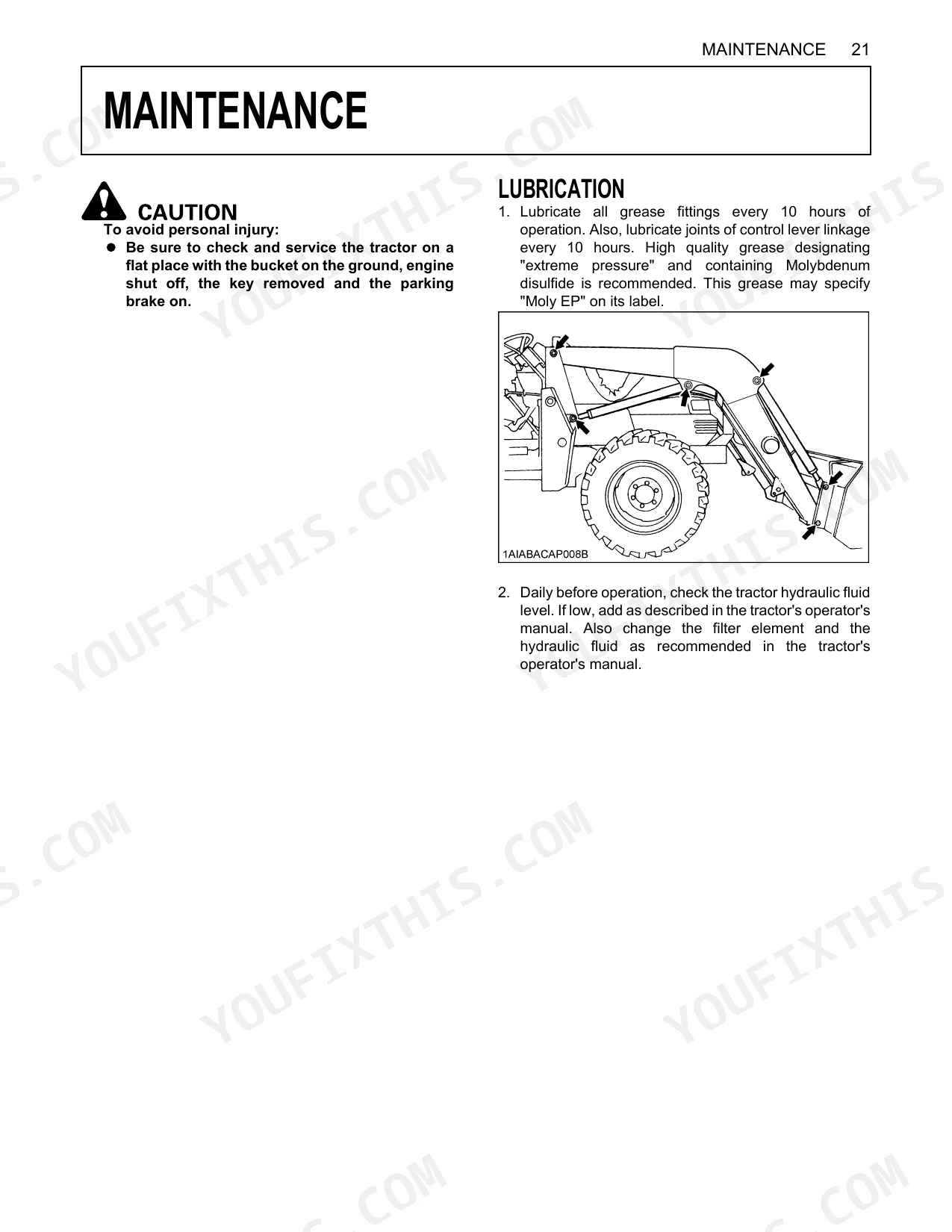

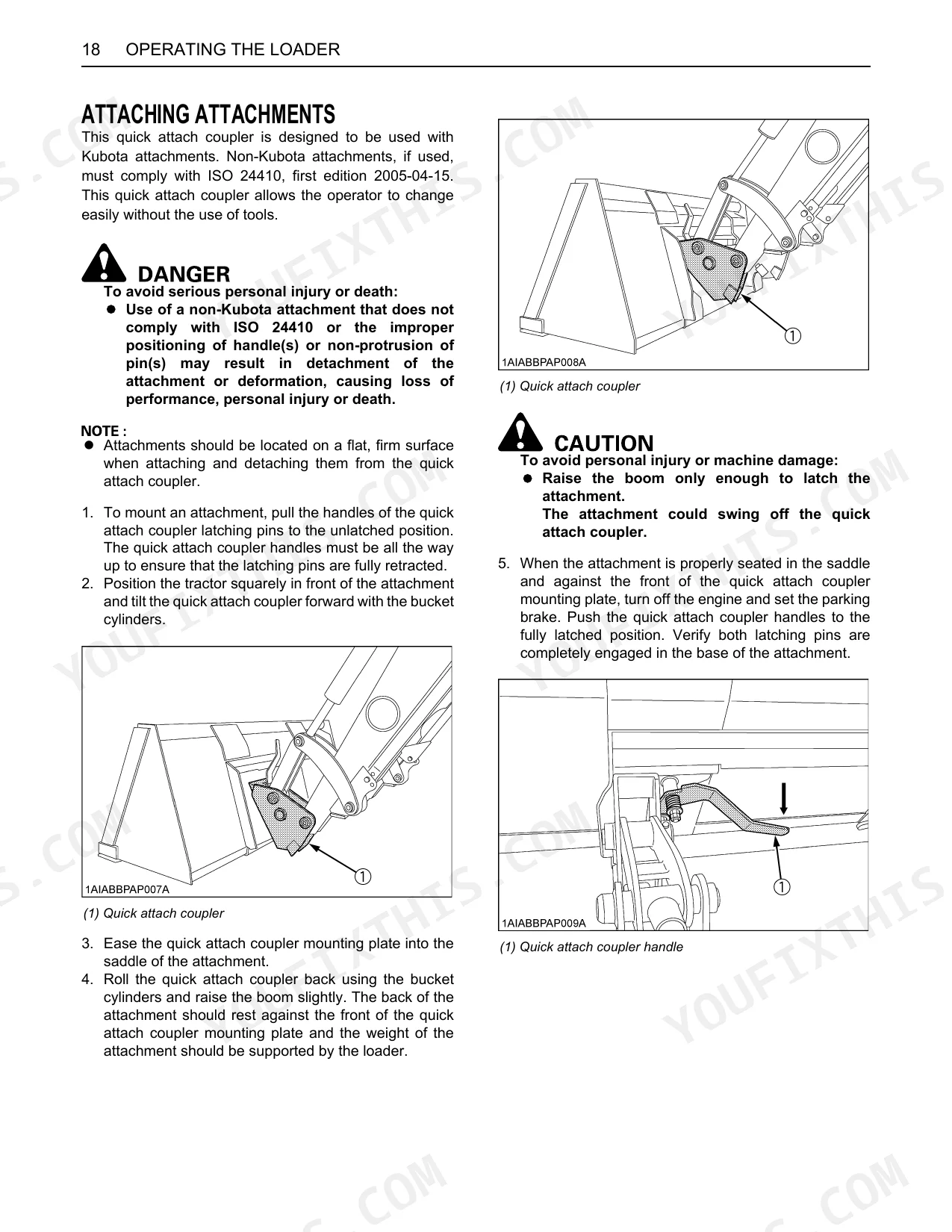

| Maintenance | 32-35 | Detaching Attachments, Lubrication, Re-Tightening of Hardware, General Torque Specification |

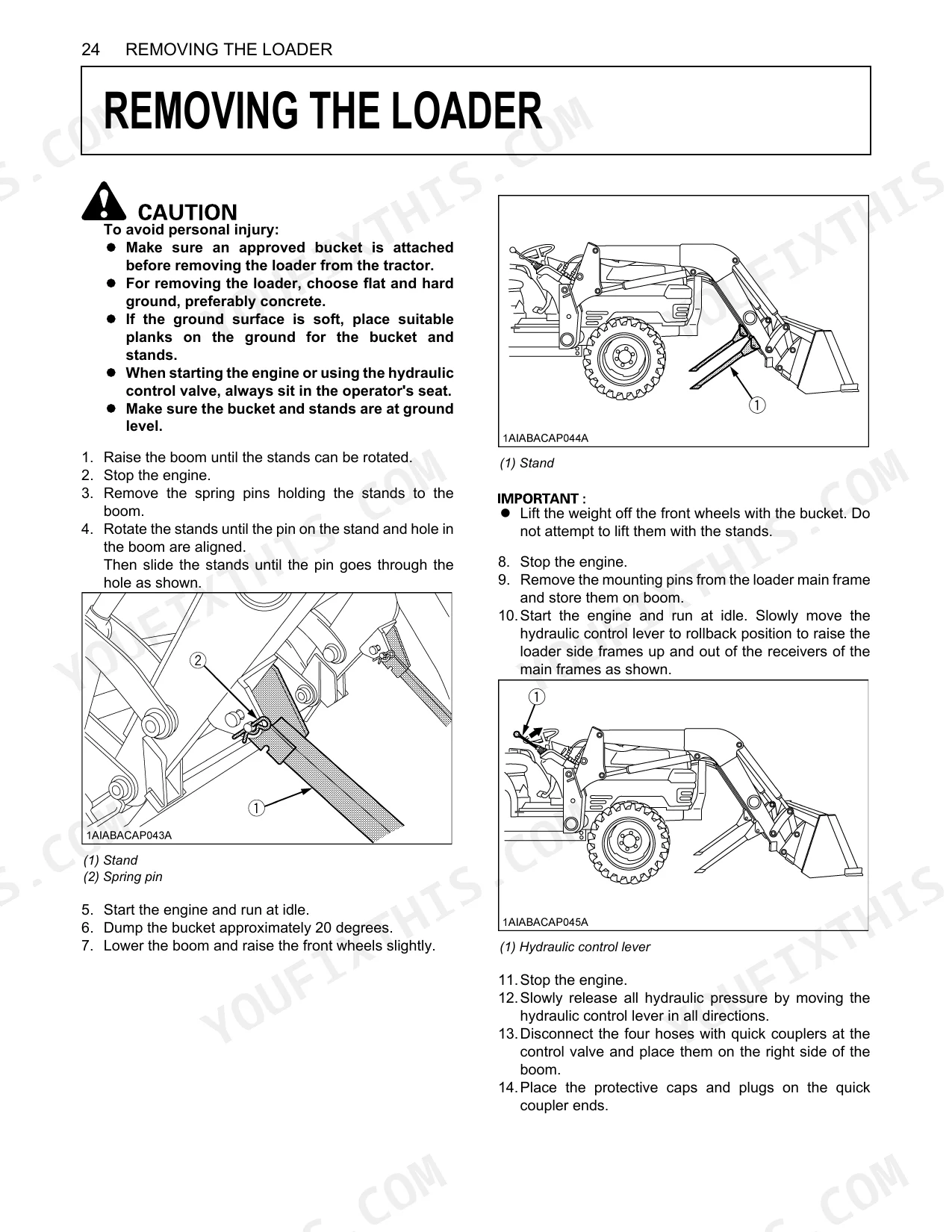

| Removing the Loader | 36-37 | Removing the Loader Procedure, Stand Illustration, Hydraulic Control Lever Illustration, Protective Plug Illustration |
| Storing the Loader | 38 | Storing the Loader Procedure, Loader Storage Illustration, Storage Maintenance Checks |
| Reinstalling the Loader | 39-40 | Reinstalling the Loader Procedure, Hoses Route Adjustment, Side Frame and Main Frame Connection, Hoses Connection, Hydraulic Control Lever Operation, Stand and Spring Pin Storage |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main frames (Front axle frame) M16 bolts torque | 23 kgf-m (166 ft-lbs) | p. 34 |
| Main frames (Rear brackets) M16 nuts torque | 23 kgf-m (166 ft-lbs) | p. 34 |
| General torque specification for M16 Metric cap screws (property class 8.8) | 196 to 225 N-m (20.0 to 23.0 kgf-m, 145 to 166 ft-lbs) | p. 35 |
| Safety label part numbers | 7J246-5643-1, 7J246-5641-1, 7J266-5649-2, 7J246-5642-1, 7J246-5645-1, 7J246-5644-2, 7J802-3648-5 | p. 9 |
| Wheel Base (WB) | 1610 mm | p. 14 |
| Maximum Hydraulic Pressure | 16.2 MPa | p. 14 |
| Bucket Capacity (Heaped) | 0.28 m³ | p. 15 |
| Max. Lift Height (To Bucket Pivot Pin) | 2420 mm | p. 15 |
| Max. Dump Angle | 40 deg. | p. 15 |
| Raising Time | 3.5 sec. | p. 16 |
| Rear Tread (minimum) | 1020 mm | p. 19 |
| Front Tire Inflation (7-16, 6PR) | 180 kPa | p. 21 |
Kubota LA463 Common Problems This Manual Covers
Loader lifts slowly or drifts
Low fluid, trapped air, or contamination leaves the LA463 lifting weakly or settling after a lift. The pre-operation checks cover fluid level, test operation, and removing air from the hydraulic system.
Manual Section: Pre-Operation Check p. 19Hydraulic hose wear and leaks
Hoses that are cut, chafed, or aged can weep or, under load, rupture and spray oil. The maintenance section has you inspect every hose for wear and confirm the fittings are tight before operating.
Manual Section: Maintenance p. 32Mounting bolts loosen over time
Vibration works the main frame and axle frame hardware loose if it was not torqued correctly. The maintenance section includes hardware re-tightening and the general torque specification for the mounting bolts.
Manual Section: Maintenance p. 32Pins hard to align on reattachment
Rust or misalignment makes the mounting pins tough to seat when remounting the loader. The reinstallation procedure sequences the hose routing, frame engagement, and pin installation.
Manual Section: Reinstalling the Loader p. 39Loader will not detach cleanly
Hoses left under pressure make the loader awkward and unsafe to drop off the tractor. The removal procedure walks through relieving pressure and disconnecting the lines in order.
Manual Section: Removing the Loader p. 36Jerky or uneven boom under load
Rough or inconsistent lift often comes down to control valve handling and float use rather than a hardware fault. The operating section covers lifting, lowering, float control, and the valve lock.
Manual Section: Operating the Loader p. 23Frequently Asked Questions
Which model does this manual cover?
It covers the Kubota LA463 front loader, including suitable tractor data and the loader, bucket, and dimensional specifications.
What is the maximum hydraulic pressure?
The LA463 is rated at 16.2 MPa maximum hydraulic pressure. The specifications section also lists a 0.28 cubic meter heaped bucket and a 2420 mm maximum lift height to the bucket pivot pin. p. 14
How do I bleed air from the hydraulics?
The pre-operation check section explains cycling the loader to remove air from the hydraulic system after a hose change, which cures a slow or spongy lift. p. 19
What is the loader mounting bolt torque?
The main frame front axle frame M16 bolts and rear bracket M16 nuts torque to 23 kgf-m (166 ft-lbs). The maintenance section gives the general torque specification for the mounting hardware. p. 34
What do I get after purchasing this Kubota LA463 manual?
A 40-page operator manual in searchable PDF, ready the moment checkout completes. Open it on a computer, tablet, or phone. No shipping wait.
Am I able to print pages from this manual?
Print as much as you need. The PDF ships DRM-free, so print whatever sections you want to carry out to the shop. Standard letter or A4 paper both work.
Reviews
There are no reviews yet.
