Part of the Kubota Repair Manuals.
This Kubota Workshop Manual covers the V3 series diesel engines, including the V3-E3B, V3-E3CB, V3300-E3BG, V3600-E3B, V3600-T-E3B, V3800DI-T-E3B and the other E3 variants built between 2001 and 2014. Across 217 pages it moves from engine identification and the full maintenance schedule through mechanism descriptions to detailed servicing of every major system.The servicing chapters walk through the cylinder head, timing gears, pistons and connecting rods, crankshaft, cylinder block, oil pump, starter and alternator, with the wear limits, clearances and tightening torques you need to measure and reassemble correctly. Fuel, cooling and turbocharger systems are described alongside their settings.Whether you are rebuilding a tired engine or diagnosing a running fault, this PDF gives you the factory procedures and specifications for these engines in one downloadable file.
What's Inside This Kubota V3–V3800 Series Manual
| System | Pages | Key Topics |
|---|---|---|

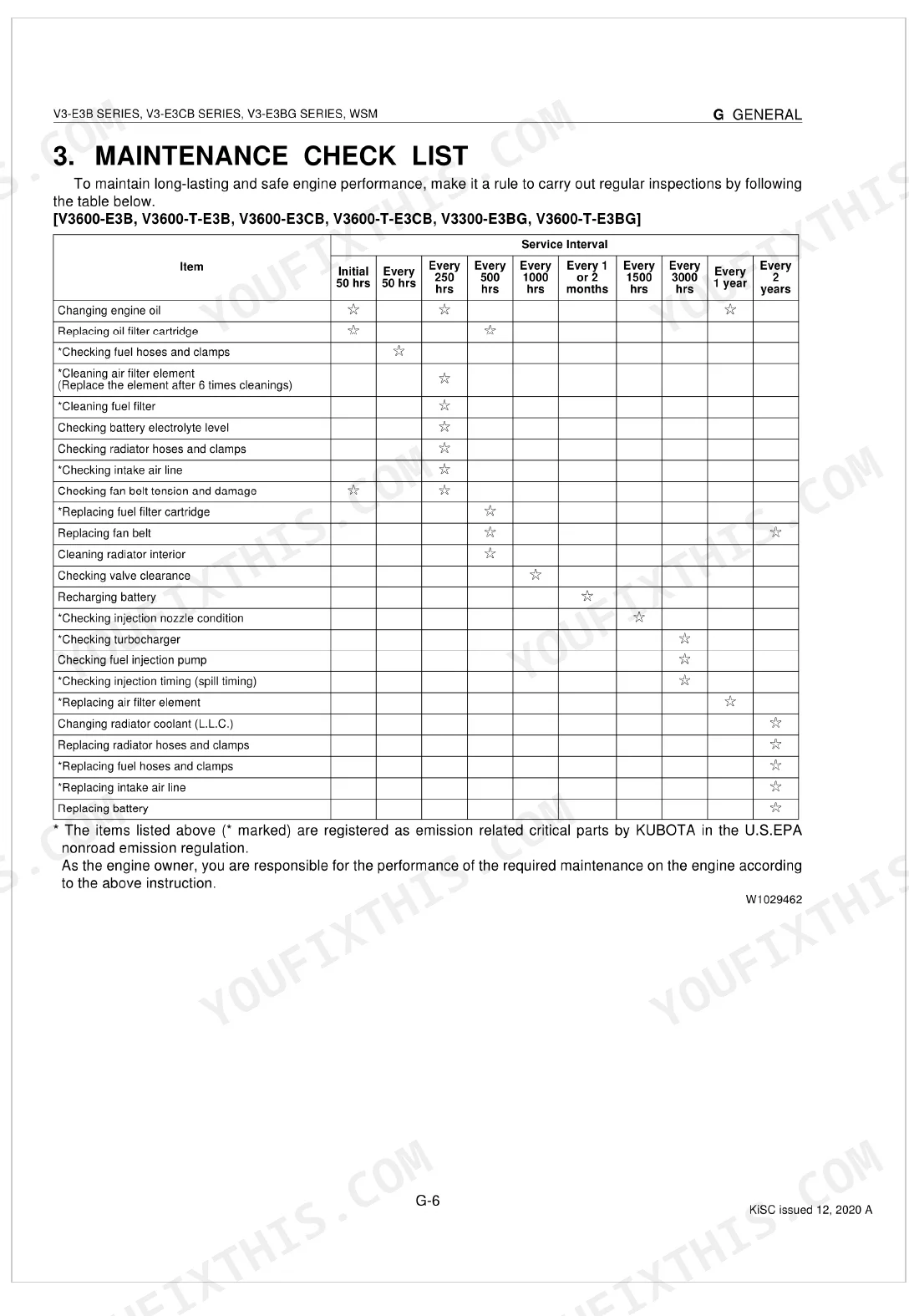

| General | 13-61 | Engine Identification (Model Name and Old Engine Serial Number, Model Name and New Engine Serial Number, Cylinder Number), Maintenance Check List |

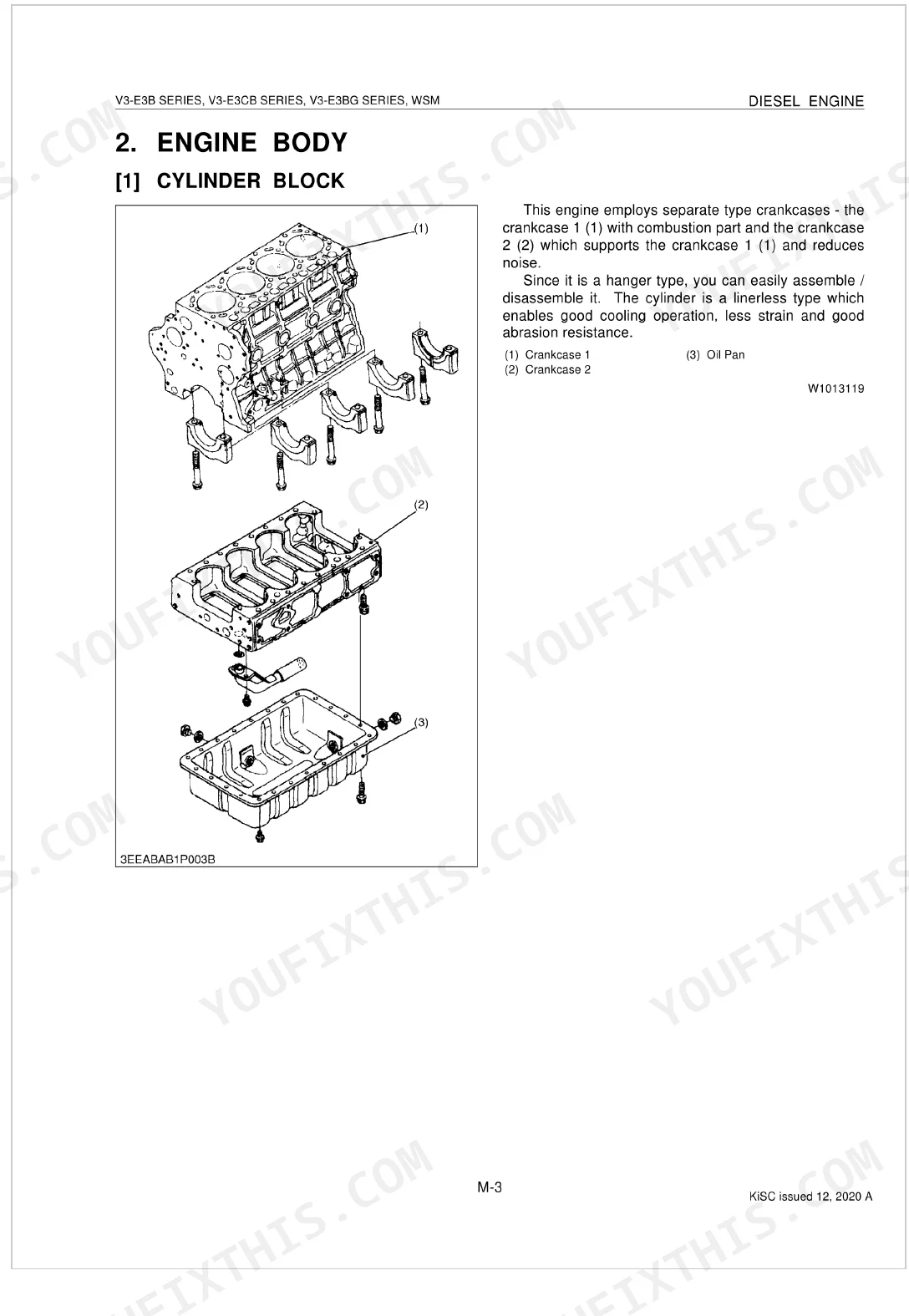

| Mechanism | 62-94 | Engine Body, Cylinder Block, Gear Train, Half-Floating Head Cover, Cylinder Head, Tvcs, V3600-E3B, V3600-T-E3B |

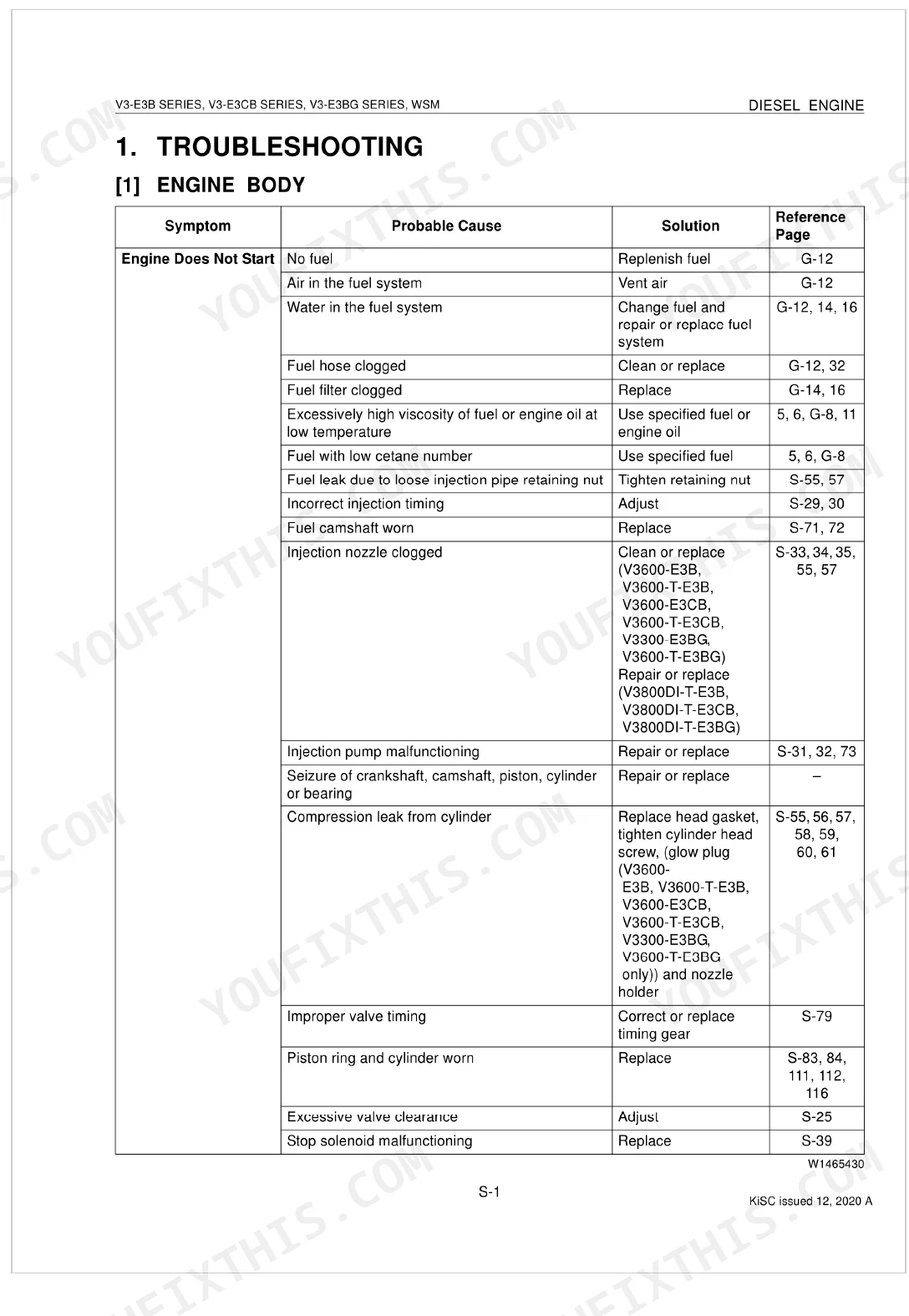

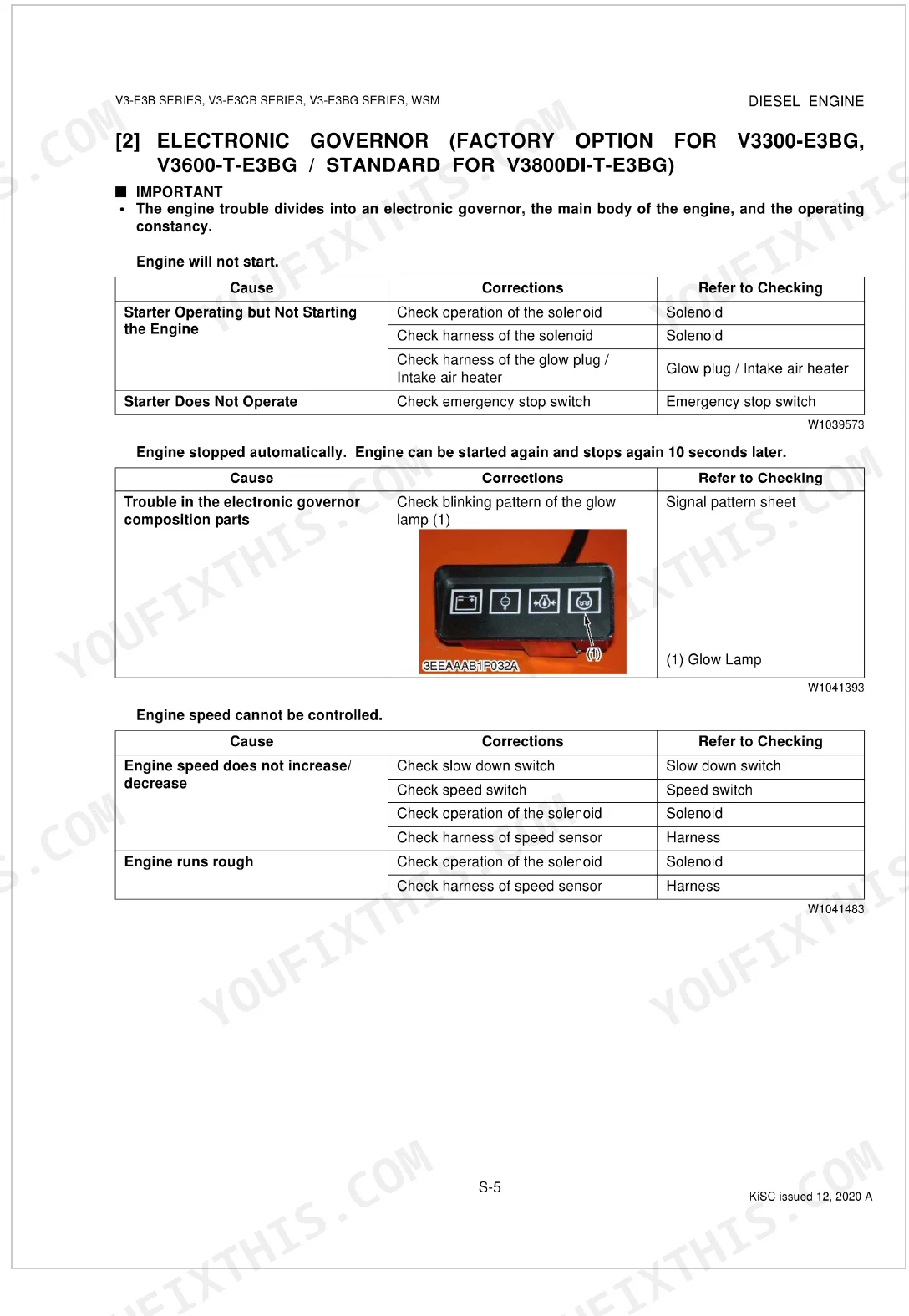

| Troubleshooting | 97-103 | Engine Body, V3600-T-E3BG, Standard for V3800DI-T-E3BG) |
| Servicing Specifications | 104-115 | - |
| Tightening Torques | 116-118 | Tightening Torques for General Use Screws, Bolts and Nuts, Tightening Torques for Special Use Screws |

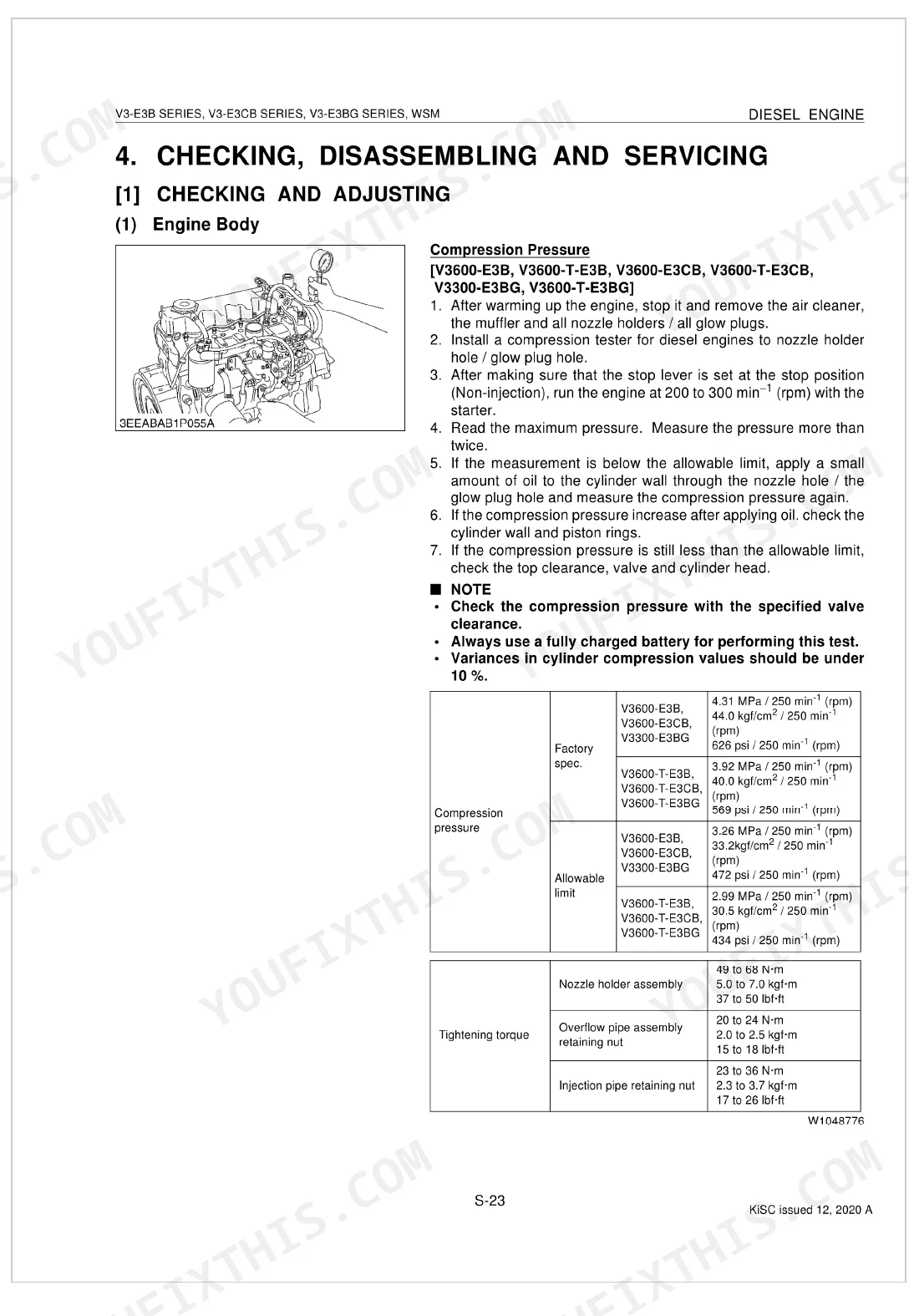

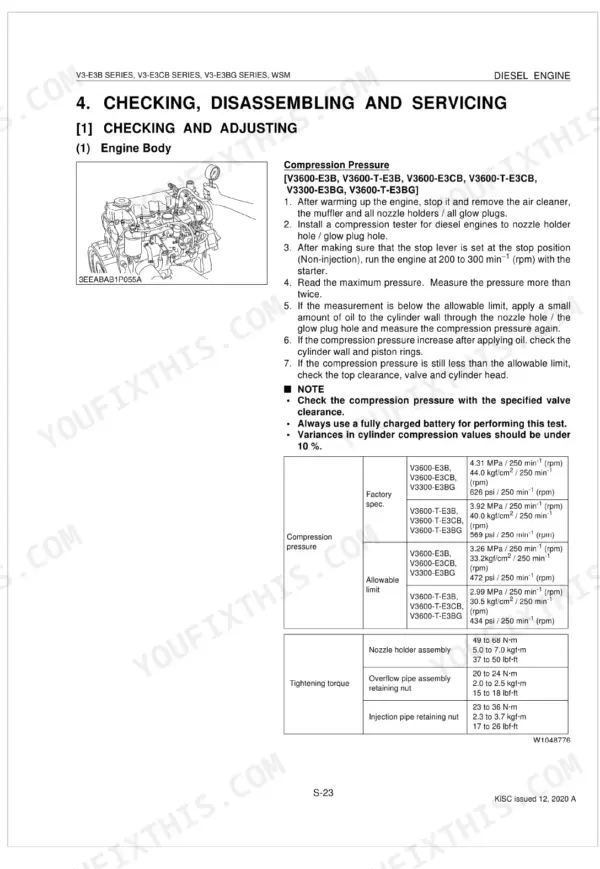

| Checking, Disassembling and Servicing | 119-187 | EGR System |
| Servicing | 188-217 | Cylinder Head, Timing Gears, Piston and Connecting Rod, Crankshaft, Cylinder, Oil Pump, Starter, Alternator |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine oil capacity | 13.2 L (3.49 U.S.gals) | p. 24 |

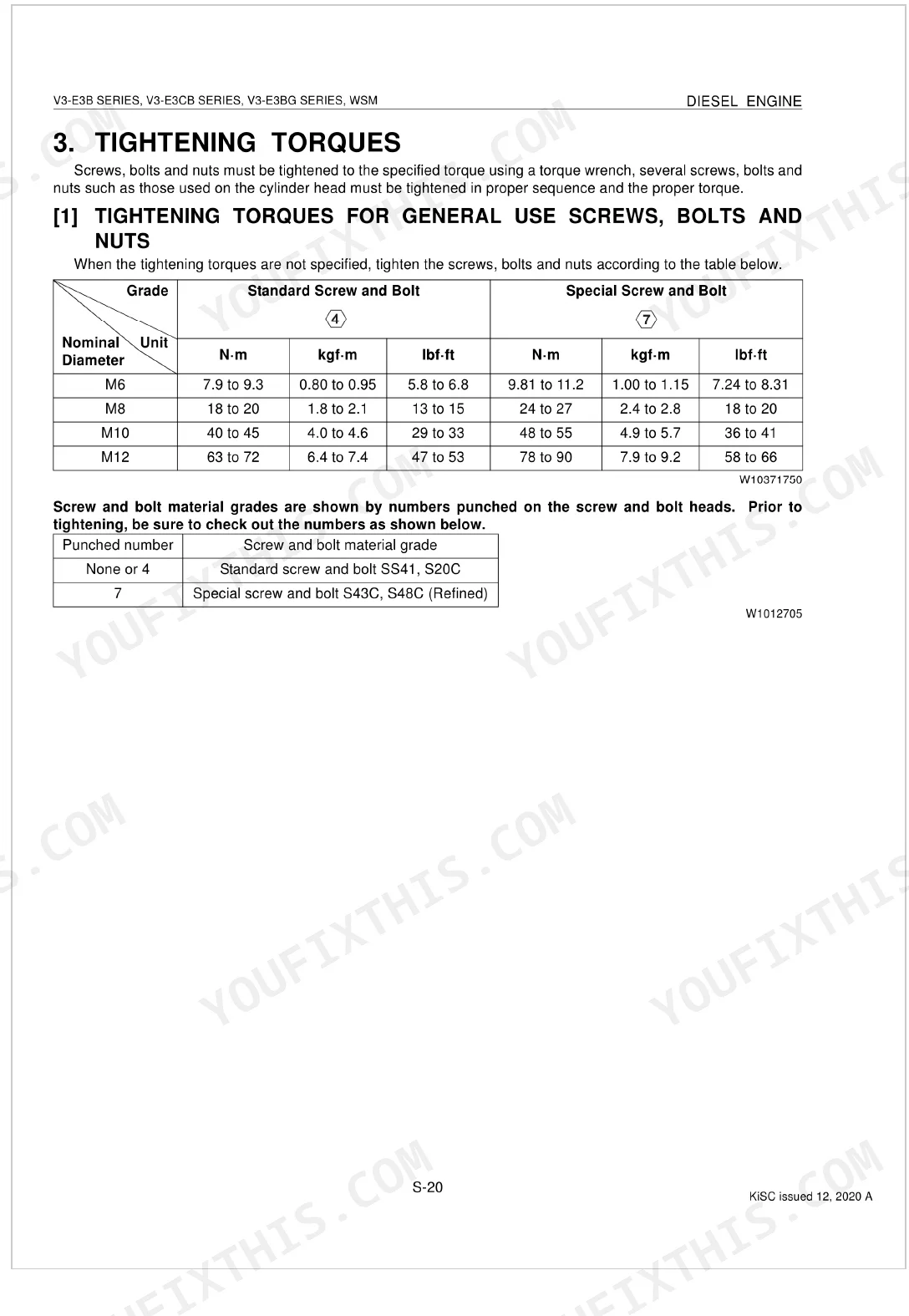

| Tightening torque (M6, Standard Screw) | 7.9 to 9.3 N·m (0.80 to 0.95 kgf·m, 5.8 to 6.8 lbf·ft) | p. 116 |
| Fan Belt Tension (Deflection) | 10 to 12 mm | p. 25 |
| Valve Clearance | 0.23 to 0.27 mm | p. 32 |
| Thermostat Valve Opening Temperature | 74.5 to 78.5 °C | p. 113 |

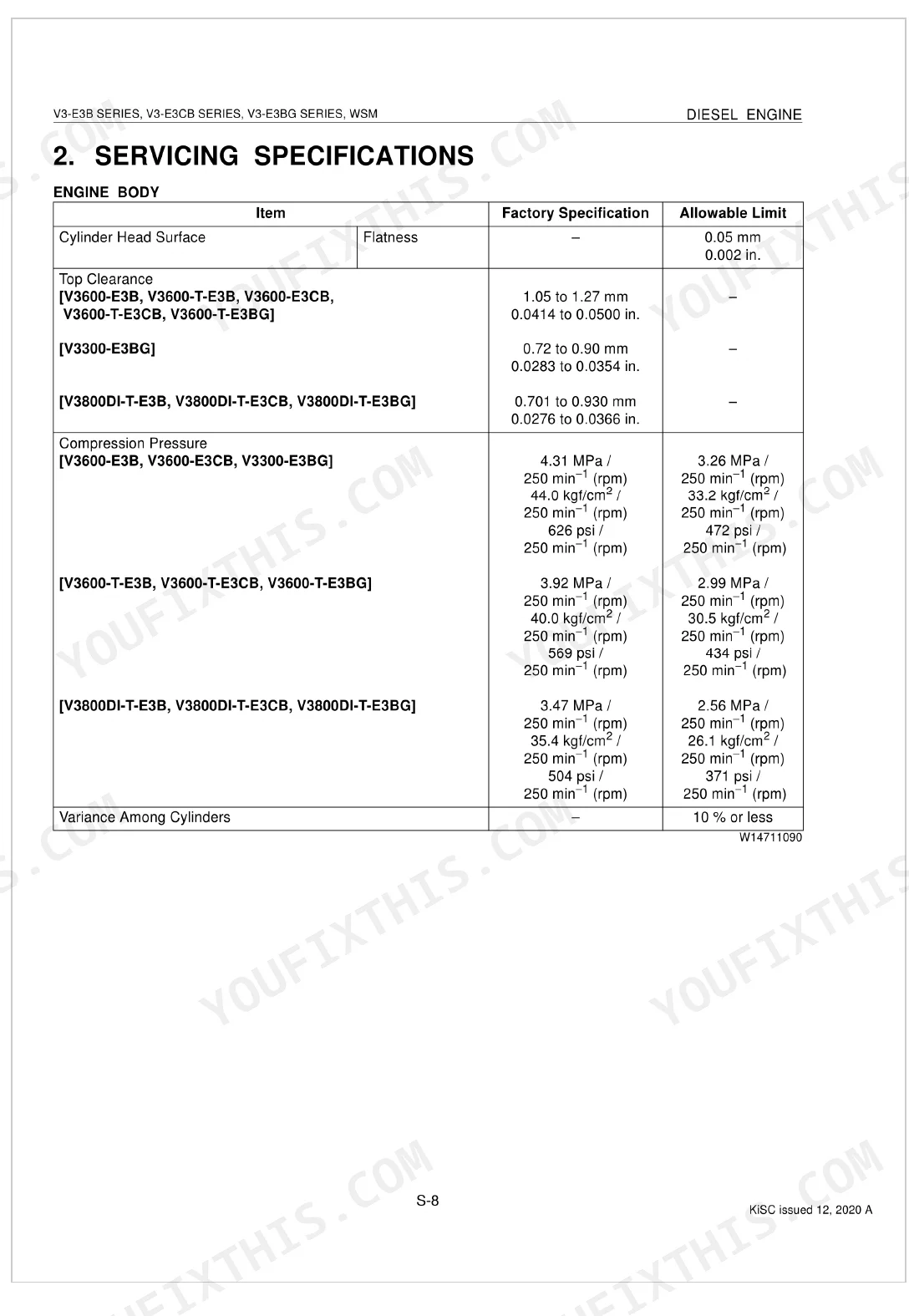

| Cylinder Head Surface Flatness (Allowable Limit) | 0.05 mm | p. 104 |
| Cylinder Head Cover Screw Torque | 98.1 to 107 N·m | p. 116 |
| V3-E3B, V3-E3CB, V3-E3BG, V3600-E3B, V3600-T-E3B, V3600-E3CB, V3600-T-E3CB, V3600-E3BG, V3600-T-E3BG | ||
| Main Bearing Case Screw Torque | 255 to 274 N·m | p. 117 |
| V3800DI-T-E3B, V3800DI-T-E3CB, V3800DI-T-E3BG | ||
| Main Bearing Case Screw Torque | 138 to 147 N·m | p. 184 |
| Compression Pressure | 3.47 MPa at 250 min⁻¹ (rpm) | p. 104 |
| V3600-E3B, V3600-T-E3B, V3600-E3CB, V3600-T-E3CB, V3600-E3BG, V3600-T-E3BG | ||
| Compression Pressure | 4.31 MPa at 250 min⁻¹ (rpm) | p. 104 |
| V3600-E3B, V3600-E3CB | ||
| Injection Timing | 0.127 to 0.152 rad before T.D.C. | p. 39 |
Kubota V3–V3800 Series Common Problems This Manual Covers
Hard starting and low compression
Worn valves, seats or a leaking head gasket drop cylinder compression and make these diesels hard to start. The servicing chapter gives the compression test procedure and cylinder head service limits.
Manual Section: Servicing p. 95Oil consumption and blue smoke
Worn piston rings or cylinder bores let oil past into the combustion chamber, showing as blue smoke and rising oil use. Piston, ring and cylinder wear limits are in the servicing section.
Manual Section: Servicing p. 95Low engine oil pressure
A worn oil pump or relief valve drops oil pressure and can trigger the warning lamp. Oil pump inspection and clearances are covered under servicing.
Manual Section: Servicing p. 95Engine will not crank
A failed starter, worn brushes or a weak solenoid leaves the engine dead when the key is turned. Starter teardown and testing is in the servicing section.
Manual Section: Servicing p. 95Battery not charging
A faulty alternator or regulator leaves the battery flat and the charge lamp lit. The alternator test and overhaul steps are in the servicing chapter.
Manual Section: Servicing p. 95Overheating and coolant loss
A stuck thermostat or failed bottom bypass upsets coolant flow and pushes temperatures up on these engines. The cooling system layout and thermostat details are in the mechanism section.
Manual Section: Mechanism p. 62Frequently Asked Questions
Which engines does this manual cover?
It covers the Kubota V3 series diesel engines: the V3-E3B, V3-E3CB, V3-E3BG, V3300-E3BG, V3600-E3B, V3600-E3CB, V3600-T-E3B, V3600-T-E3CB, V3600-T-E3BG, V3800DI-T-E3B, V3800DI-T-E3CB and V3800DI-T-E3BG, spanning model years 2001 to 2014.
Does it include tightening torques and service limits?
Yes. The servicing section lists standard and special screw torques along with the wear limits and clearances for the cylinder head, crankshaft and bearings needed for reassembly. p. 95
What is the valve clearance for these engines?
The manual specifies a valve clearance of 0.23 to 0.27 mm, set with the engine cold. The general and maintenance section covers the check and adjustment. p. 13
How do I get the file after buying?
After checkout you download the PDF straight away, with no waiting for shipping. Save a backup copy so you always have it on hand.
How will I receive this Kubota V3–V3800 Series Workshop Manual?
Immediate download of the complete 217-page searchable Workshop Manual. Access it on any device, laptop at your desk or phone in the field.
Is this Kubota V3–V3800 Series Workshop Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
