Worn crankpin metals on a V3307 are easy to spot on the bench and much harder to reorder without the right number; this 101-page Kubota V3307-DI-T-E3B-TLTU1 parts catalog PDF is the factory lookup for that turbocharged, EGR-equipped diesel engine. Exploded views run from crankcase and cylinder head through the injection pump, governor, EGR cooler, turbocharger oil lines and oil cooler, each keyed to a parts list carrying Kubota numbers, so a push rod or glow plug cord is identified by reference rather than guesswork. Optional kits close out the book: upper and lower gasket sets, a piston kit with rings, pins and circlips, and a metal kit listing crankshaft, crankpin and side metals. Check the STD crankshaft metal listing against your journal readings before the order goes in. A guessed number means a bearing shell that doesn't fit. Bookmarks reach each figure and the text layer finds any part number, so your first order is the right one.
What's Inside This Kubota V3307-DI-T-E3B-TLTU1 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

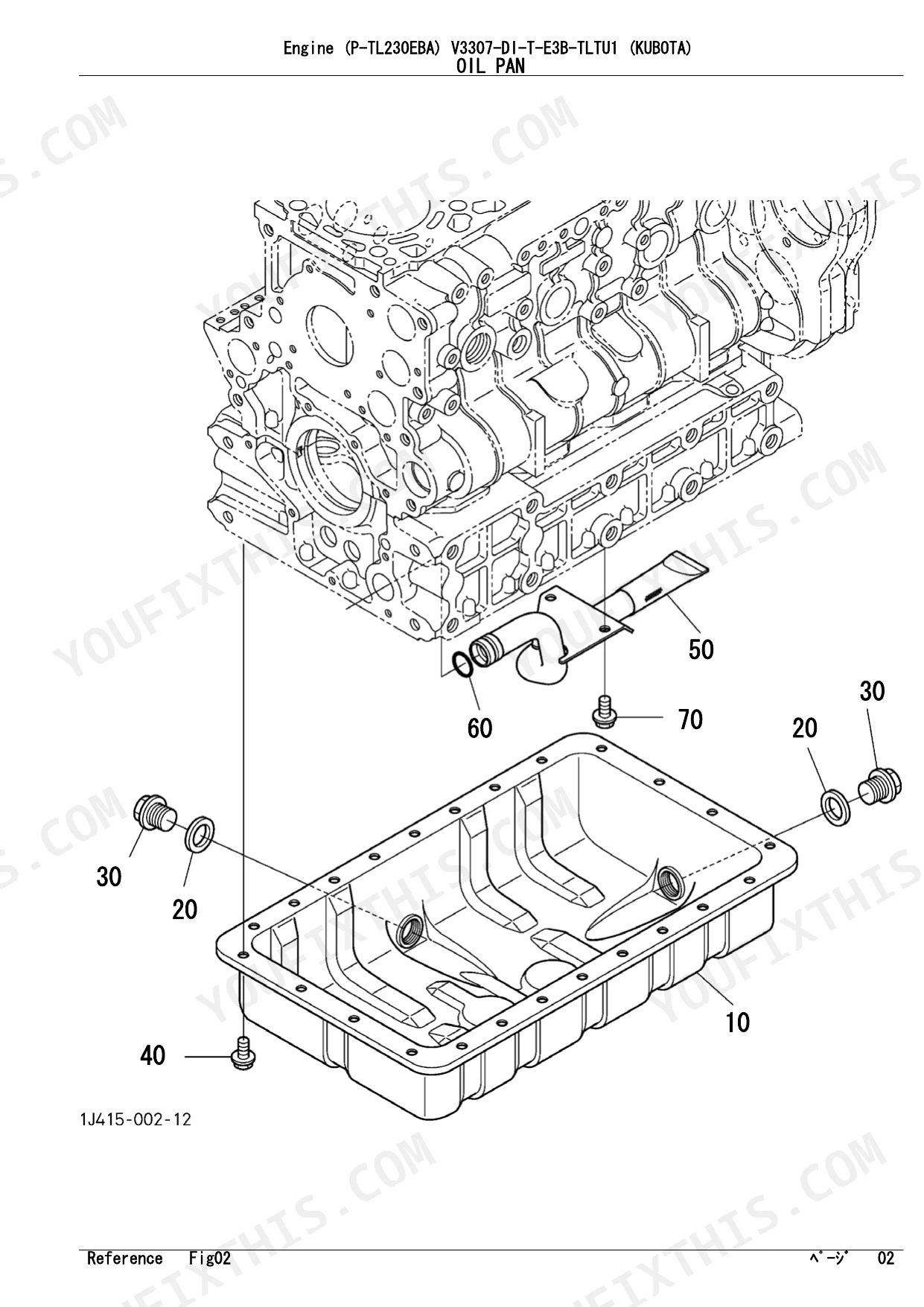

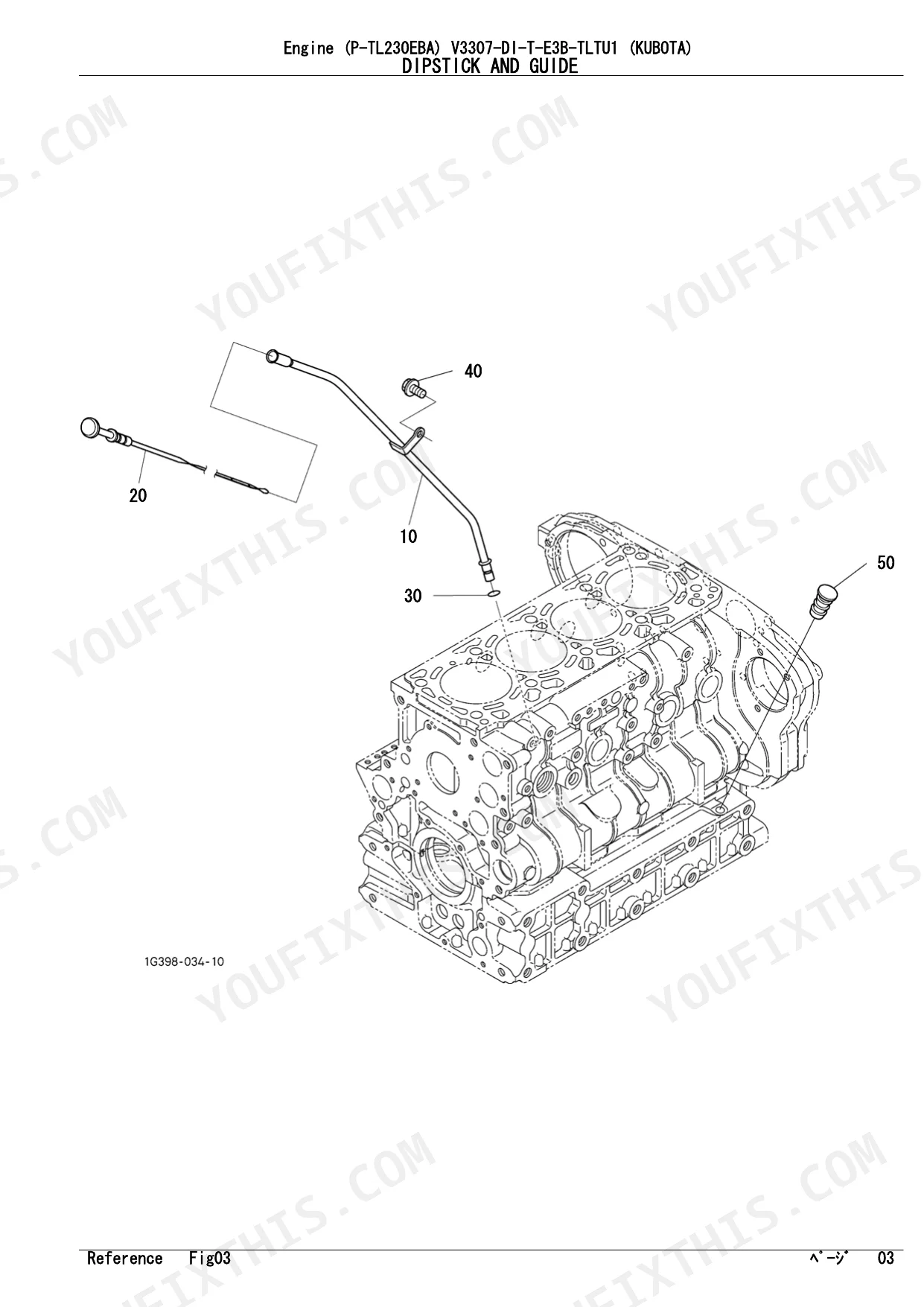

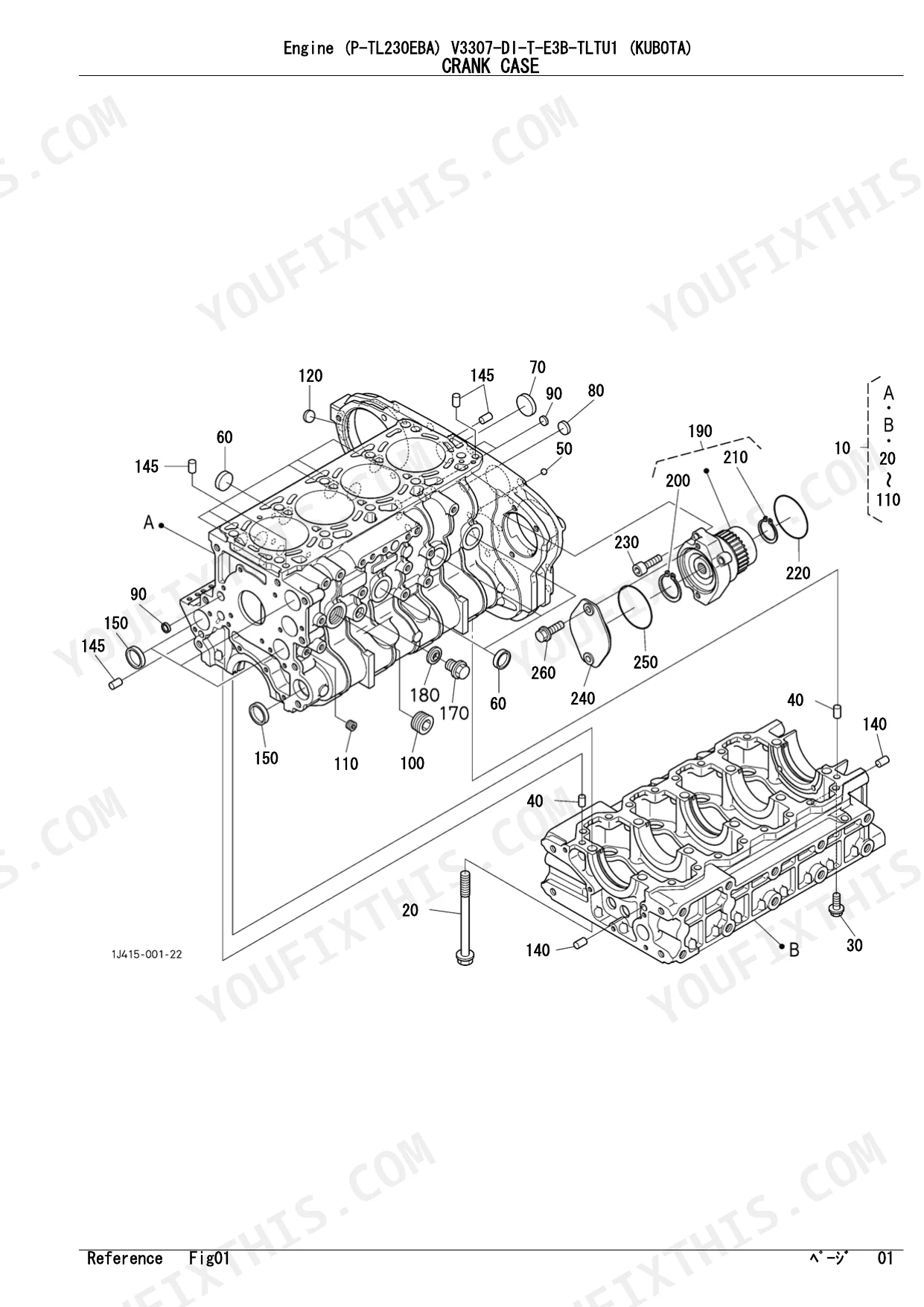

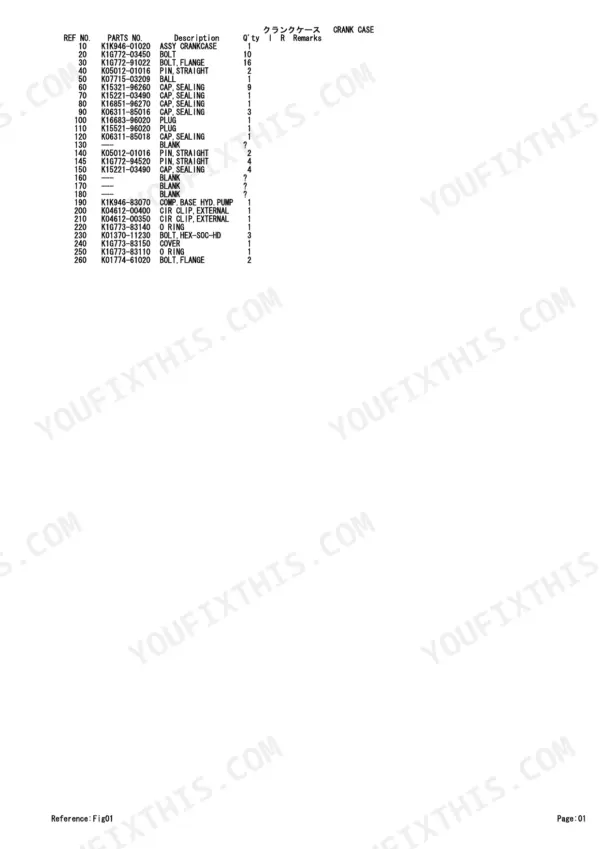

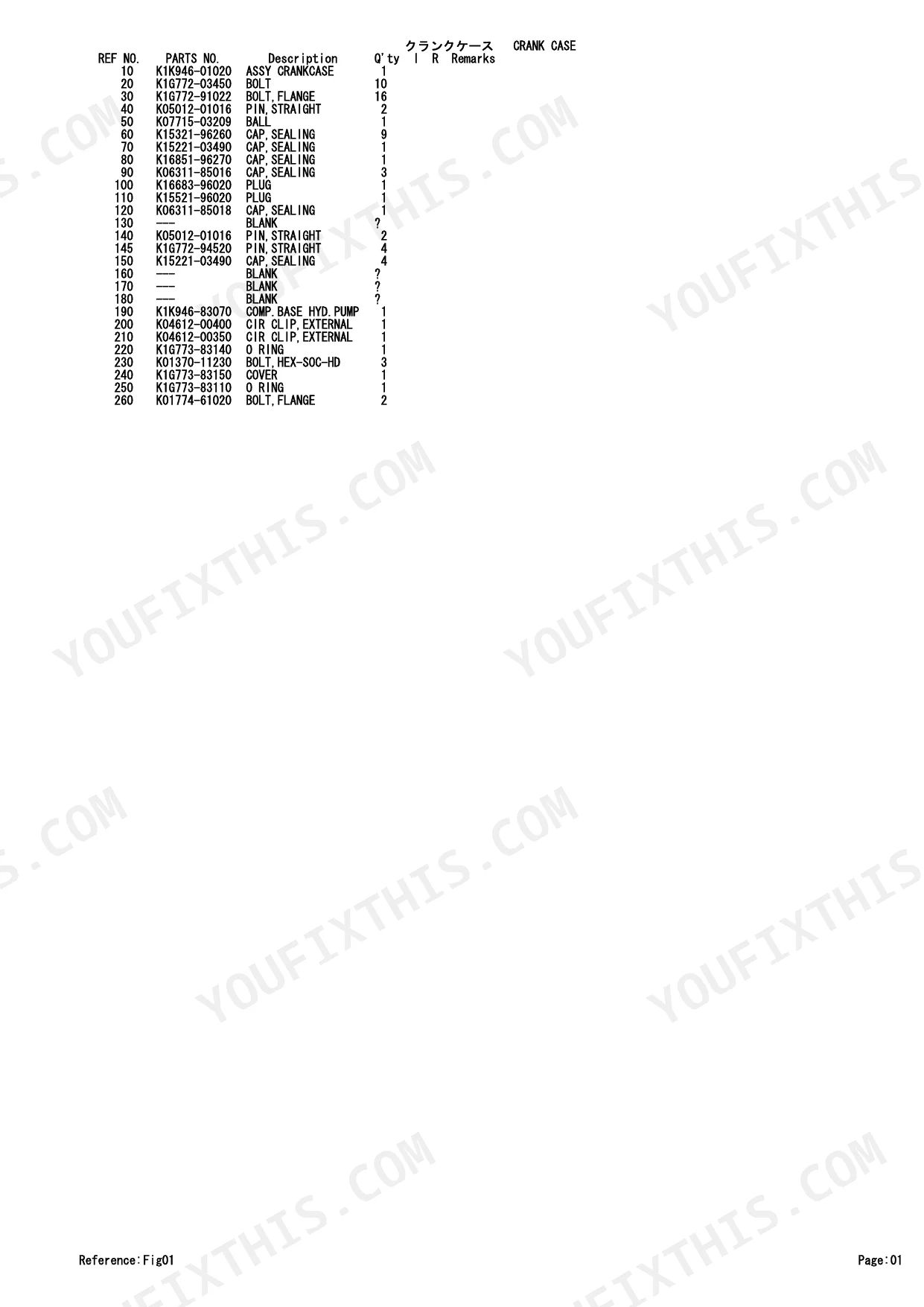

| Crank Case, Oil Pan and Dipstick | 4-9 | Crankcase, Bolt, Flange Bolt, Straight Pin, Ball, Sealing Cap, Plug, Base, Gasket, Drain Plug, Oil Filter, O Ring, Oil Gauge Guide, Oil Gauge, Oil Gauge Plug |
| Cylinder Head and Valve Train | 10-17 | Engine Hook, Flange Bolt, Assembly, Sealing Cap, Plug, Bolt, Gasket, Drain Plug, Cylinder Head Assembly, Inlet Valve Guide, Exhaust Valve Guide, Inlet Valve, Exhaust Valve, Valve Spring, Spring Retainer, Valve Spring Collet, Rocker Arm Bracket, Spring Pin, Washer, Plain Washer, Spring Washer, Rocker Arm Spring, Rocker Arm Assembly, Breather Tube, Hose Clamp, Pipe Tube, Breather Valve Assembly |
| Front Cover, Piston and Crankshaft | 18-25 | Piston, Piston Ring Assembly, Piston Pin, Internal Cir Clip, Connecting Rod Assembly, Piston Pin Bush, Connecting Rod Bolt, Crankpin Metal, Camshaft, Tappet, Push Rod, Idle Gear Shaft, Idle Gear, Bearing, Ring Gear, Housing, Oil Seal, Roller Bearing |
| Injection Pump and Fuel System | 26-49 | Injection Pump Kit, Injection Pump Gear, Oil Pipe, Eye Joint Bolt, Pump Bracket, Stud, Straight Pin, Air Bleeder Screw, Eye Joint, Shim, Cover, Gasket, Flange Nut, Bearing, Stopper, Weight, Sleeve, Housing, Lever, Speed Control Lever, Engine Stop Lever, Shaft, Spring, Cir Clip, Washer, Adjusting Bolt, Nut, Cap, Solenoid Assembly, O-Ring, Hex-Soc-Hd Bolt, Filter Assembly, Filter Element |
| Alternator, Starter and Oil Switch | 50-59 | Alternator Assembly, Dynamo Stay, Dynamo Spacer, Dynamo Support, Mounting Bolt, Plain Washer, Pulley, Rotor, Bearing, Brush Holder, Brush Spring, Regulator Assembly, Stud, Nut, Bolt, Washer, Bracket, Shaft, Clutch, Gear, Lever, Switch |
| Water Flange, Thermostat and Cooling System | 60-69 | Cover, Joint, Ball, Gasket, Bolt, Flange, Plug, Sensor, Pump, Pipe, Clamp, Band, Tank, Cap, Stay, Tube, Pulley, Fan, Collar, Belt |
| Inlet Manifold, Exhaust, EGR and Turbo | 70-81 | Manifold, Screw, Gasket, Bolt, Stud, Nut, Shield, Housing, Valve, Reed Valve, Cooler, Base, Pipe, Clamp, Flange, Hose, Pin, O-Ring |
| Oil Pipe (Side PTO) and Oil Cooler | 82-85 | Pipe, Bolt, Gasket, Stay, Joint, Cartridge, Cooler, O-Ring, Clamp |
| Glow Lamp and Timer | 86-87 | Relay, Controller, Timer, Solenoid |
| Accessories, Service Parts and Gasket Kits | 88-101 | Fuel Pump, Filter, Cup, Element, Float, Label, Cylinder Head Gasket, Valve Stem Seal, Head Cover Gasket, Inlet Manifold Gasket, Exhaust Manifold Gasket, EGR Valve Gasket, Front Cover Gasket, Oil Seal, Housing Gasket, Fuel Pump Gasket, Water Pump Gasket, Governor Housing Gasket, Crankshaft Metal, Crankpin Metal, Side Metal, Piston, Piston Ring, Piston Pin, Cir Clip, Bush |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Metal, Crankshaft STD | K1G777-23402 | p. 21 |
Kubota V3307-DI-T-E3B-TLTU1 Common Problems This Manual Covers
Kubota V3307-DI-T-E3B-TLTU1 upper gasket kit contents unclear for cylinder head gasket and valve stem seal

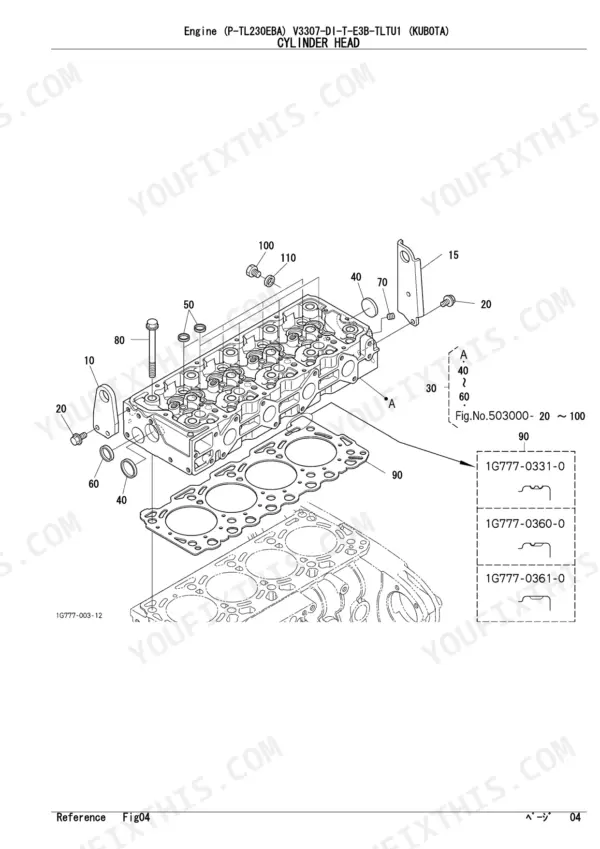

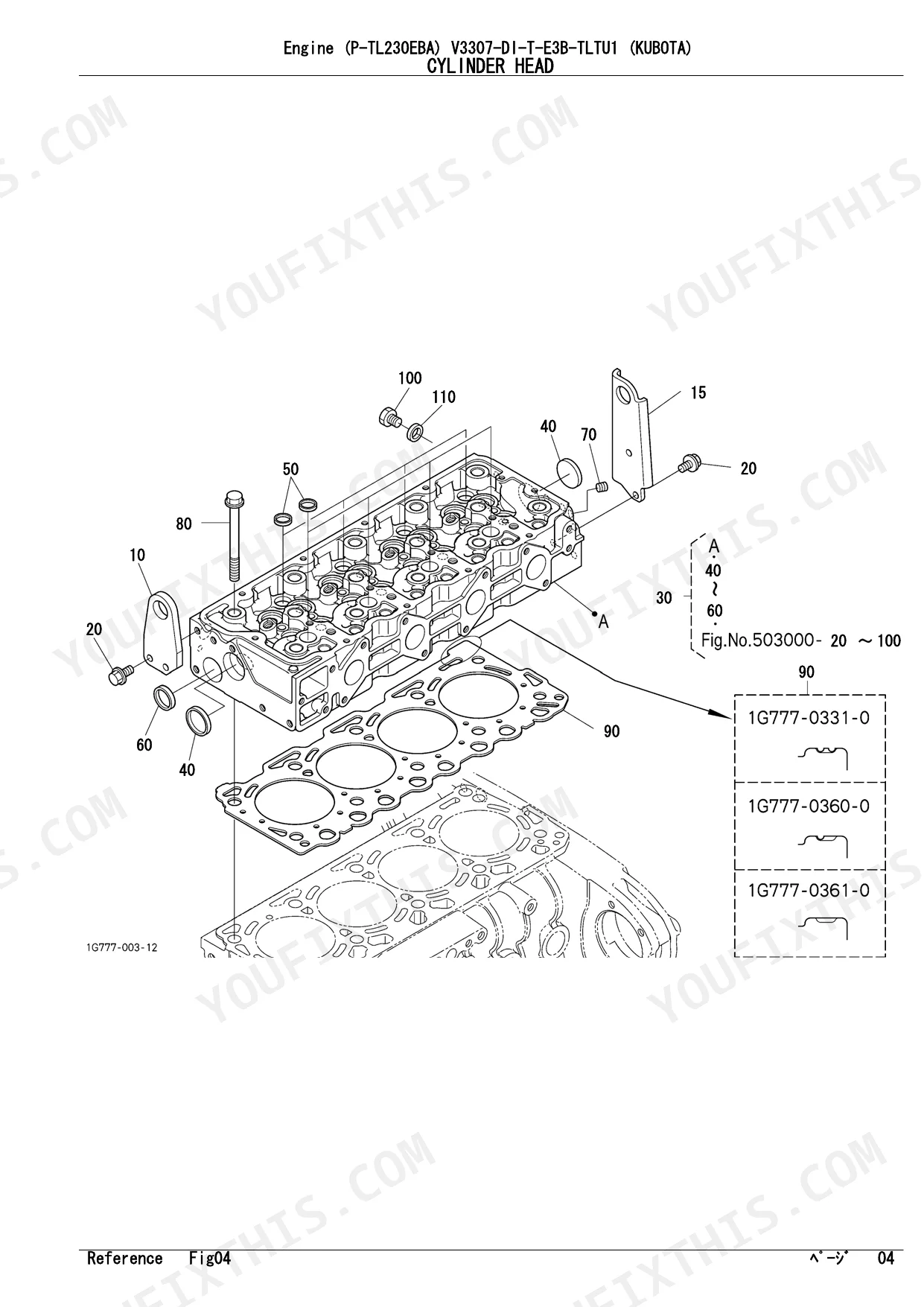

Check the Upper Gasket Kit listing on page 90 before ordering loose gaskets. It groups the cylinder head gasket, valve stem seals, head cover gasket, inlet and exhaust manifold gaskets, and EGR valve gasket. Compare it against the Cylinder Head parts list on page 11 so you only buy separate pieces the kit leaves out.
Manual Section: Upper Gasket Kit [Option] p. 90Lower gasket kit part number needed for front cover gasket, seal (listed as SEAL,OIL) and water pump gasket
Check the Lower Gasket Kit list on page 92 and confirm it carries the front cover gasket, SEAL,OIL, housing gasket, fuel pump gasket, water pump gasket and governor housing gasket. If you only need the water pump gasket, pull its number from the Water Pump list on page 62 instead of buying the full kit.
Manual Section: Lower Gasket Kit [Option] p. 92Crankshaft metal and crankpin metal part numbers needed for bottom end rebuild with engine on stand
Check the Metal Kit listing on page 94, which bundles crankshaft metal, crankpin metal and side metal in one order. Verify each metal against the Piston and Crankshaft exploded view on page 20, where the connecting rod assembly, connecting rod bolt and crankpin metal are called out, before the crank goes back into the crankcase.
Manual Section: Metal Kit [Option] p. 94Piston kit contents unclear for piston rings, piston pin, circlip and pin bush replacement
Check the Piston Kit pages starting on page 96, which list the piston, piston ring, piston pin, cir clip and bush together. Cross check the Piston and Crankshaft exploded view on page 20 to confirm the piston ring assembly and piston pin bush match what you pulled out of each bore.
Manual Section: Piston Kit [Option] p. 96Nozzle holder, injection nozzle clamp and glow plug seal part numbers hard to identify
Check the Nozzle Holder and Glow Plug exploded view on page 46 to match the nozzle holder, injection nozzle clamp, overflow pipe, glow plug, glow plug seal and glow plug cord to their reference numbers. Verify injection pipe clamps and mounting screws on page 48 while the top end is apart.
Manual Section: Nozzle Holder and Glow Plug p. 46Fuel filter element, filter base and fuel check valve part numbers needed for replacement
Check the Fuel Filter exploded view on page 44 for the filter assembly, filter element, filter base, fuel tube, pipe clip and fuel check valve. Verify service filter elements and cups against the Accessories and Service Parts list on page 88 before ordering spares for the engine.
Manual Section: Fuel Filter p. 44Frequently Asked Questions
What are the replacement specifications for the fuel filter element on the Kubota V3307-DI-T-E3B-TLTU1?
The replacement fuel filter element for the V3307-DI-T-E3B-TLTU1 engine is part number K16631-43560 or KHH166-43560. p. 45
What is the part number for the cylinder head gasket?

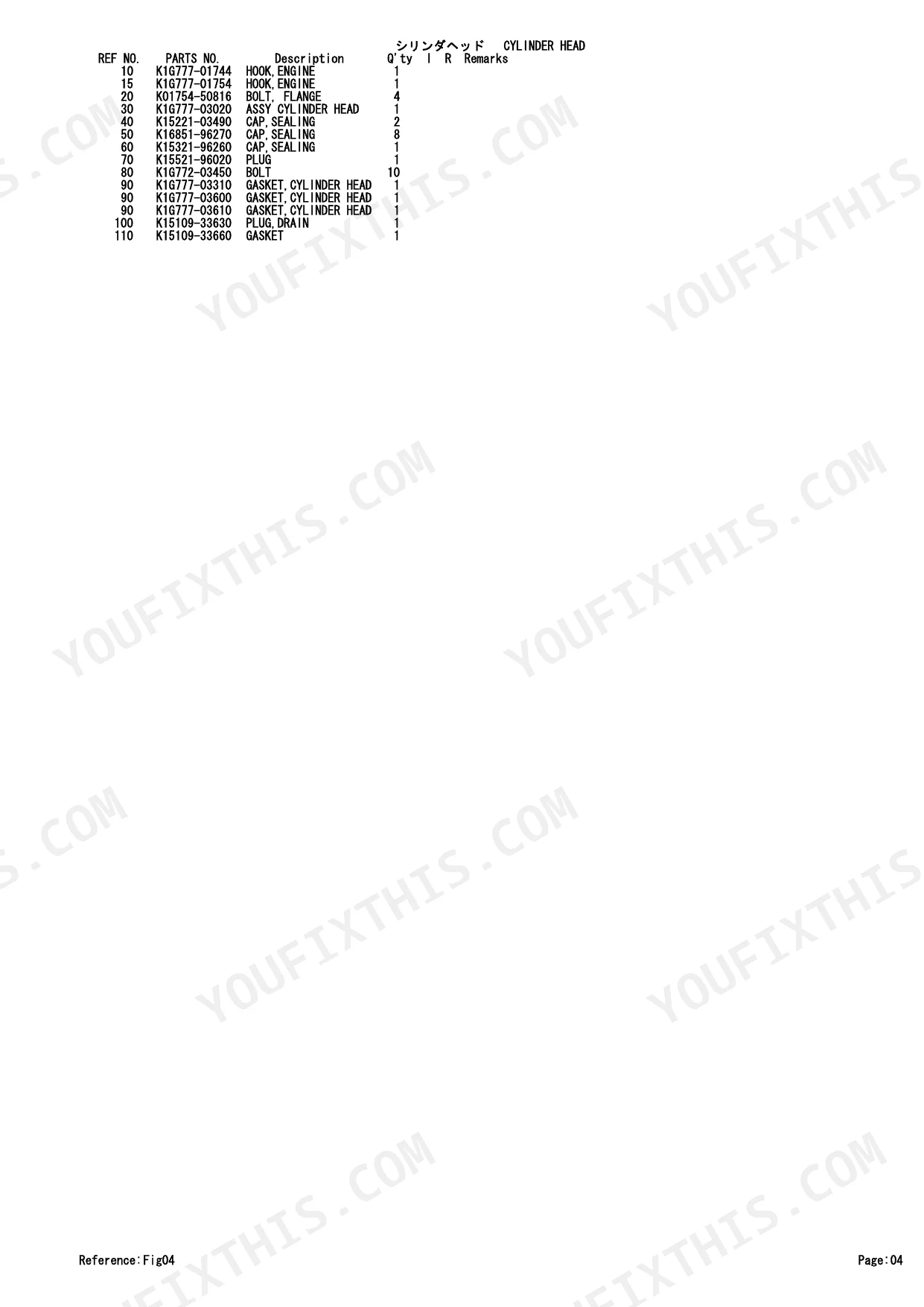

There are three options for the cylinder head gasket depending on the specific engine configuration, with part numbers K1G777-03310, K1G777-03600, and K1G777-03610. p. 11
What is the part number for the fan belt?
The replacement fan belt for this engine is part number K1K946-97010. p. 69
What is the part number for the oil filter cartridge?
The oil filter cartridge for the V3307-DI-T-E3B-TLTU1 engine is part number K1C020-32430. p. 85
What is the part number for the glow plug?
The glow plug for this engine is part number K1G777-65512. p. 47
What do I get after purchasing this Kubota V3307-DI-T-E3B-TLTU1 manual?
Straight to your device: 101 pages of searchable Parts Catalog, downloadable the moment payment goes through.
Can I print this Kubota V3307-DI-T-E3B-TLTU1 manual?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
