This Kubota V3307-DI-T-E3B-WLTC1 Parts Catalog (OEM #93304-00110) documents a single diesel engine: the turbocharged, EGR-equipped V3307-DI-T-E3B-WLTC1 fitted to the 45ZV-2. Of its 64 pages, 50 hold exploded-view parts lists covering every major assembly: crankcase, oil pan, cylinder head, piston and crankshaft, the fuel injection pump unit with governor and solenoid, nozzle holders, starter, dynamo, water pump, EGR valve and cooler, turbocharger, and the upper and lower gasket kits. Every diagram ties component names to OEM part numbers with full interchangeability callouts, so you confirm the right piece before ordering. The 12V/80A dynamo assembly splits into individual rotor, stator, rectifier, and bracket parts, each carrying its own REF number. With your machine idle and the dealer quoting list price, look up the exact OEM number yourself. Bookmarked by assembly and keyword-searchable: find the part, check the cross-reference, place the order.
What's Inside This Kubota V3307-DI-T-E3B-WLTC1 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| 集録型式・使用色 | 4 | Model Name, Product Code No., Color Name, Paint Type |
| Notice・Instructions | 5 | Fig. No., Components, Ref. No., Model Name, Interchangeability |
| 目 次 | 6 | クランクケース, オイルパン, シリンダヘッド, 燃料噴射ポンプ, ウォータポンプ, ターボチャージャ |

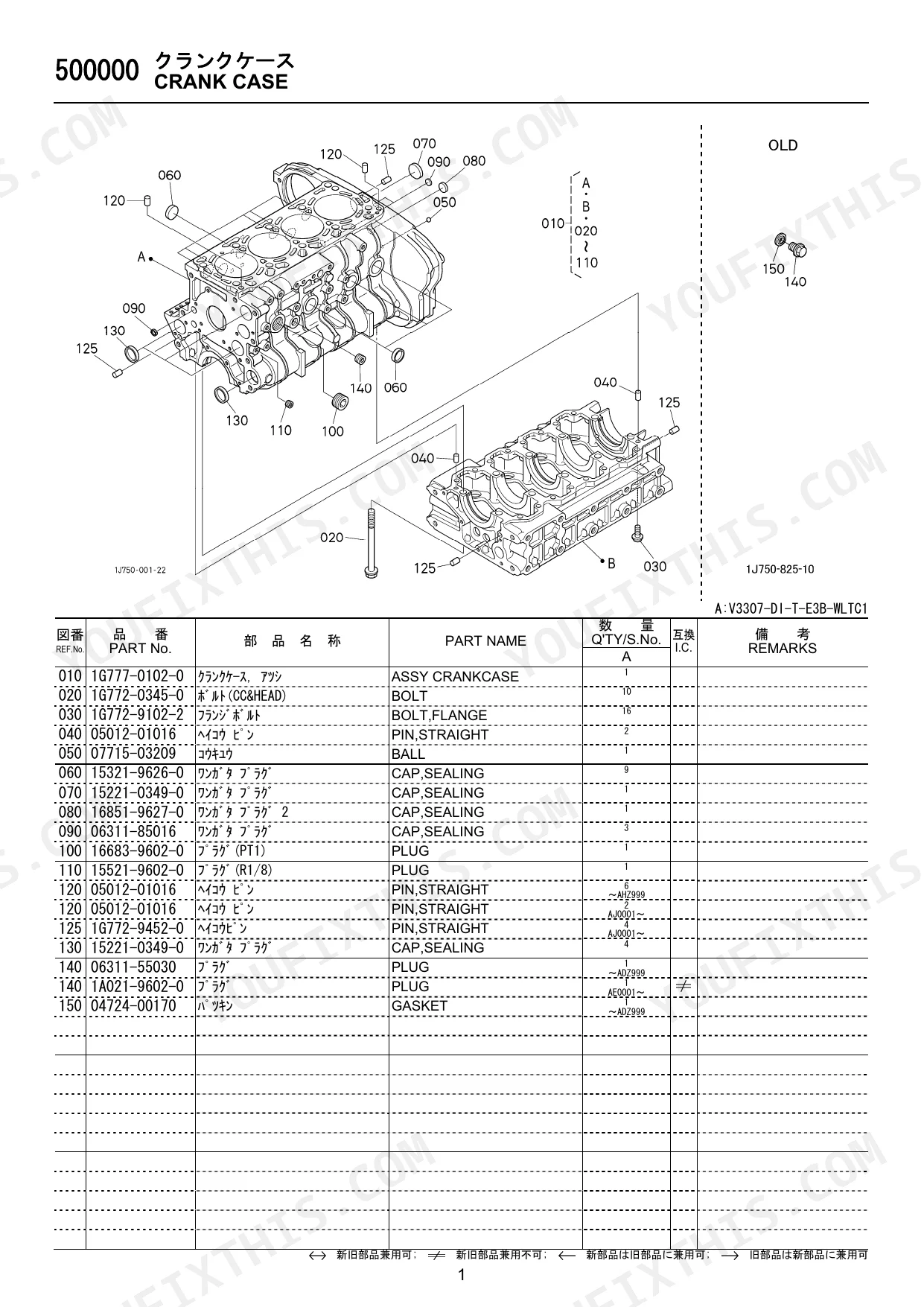

| クランクケース | 8 | Assy Crankcase, Bolt, Pin, Cap, Sealing, Gasket |
| オイルパン | 9 | Comp.Oil Pan, Gasket, Plug, Bolt, Filter, O Ring |
| オイルゲージ | 10 | Gauge, Oil, Guide, O Ring, Bolt |
| シリンダヘッド | 11 | Hook, Bolt, Assy Cylinder Head, Cap, Sealing, Plug, Gasket |
| インレットバルブ・エキゾーストバルブ | 12 | Valve, Guide, Spring, Retainer, Seal, Shaft |
| ロッカアーム軸 | 13 | Shaft, Rocker Arm, Bracket, Pin, Spring, Washer |
| ヘッドカバー | 14 | Tube, Breather, Clamp, Hose, Gasket, Head Cover, Assy Cover, Cyl.Head |
| フロントカバー | 15 | Assy Cover, Front, Valve, Relief, Assy Rotor, Oil Pump, Cover |

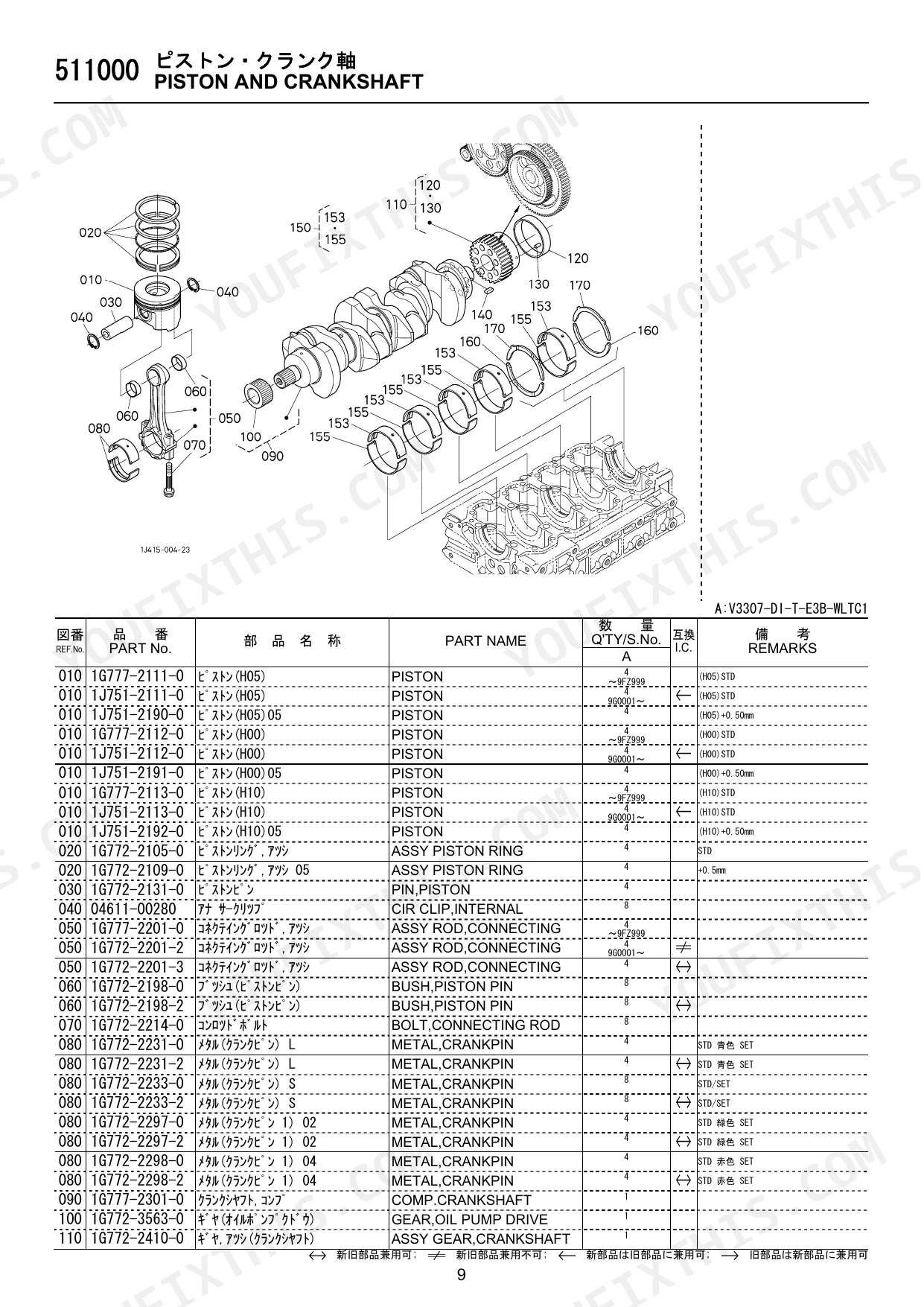

| ピストン・クランク軸 | 16-18 | Piston, Assy Piston Ring, Pin, Assy Rod, Connecting, Metal, Crankpin |
| カム軸・アイドル軸 | 19 | Cover, Camshaft, Assy Camshaft, Bearing, Ball, Gear, Cam, Shaft |
| フライホイール | 20 | Comp.Flywheel, Gear, Ring, Bolt, Flywheel, Housing, Seal |

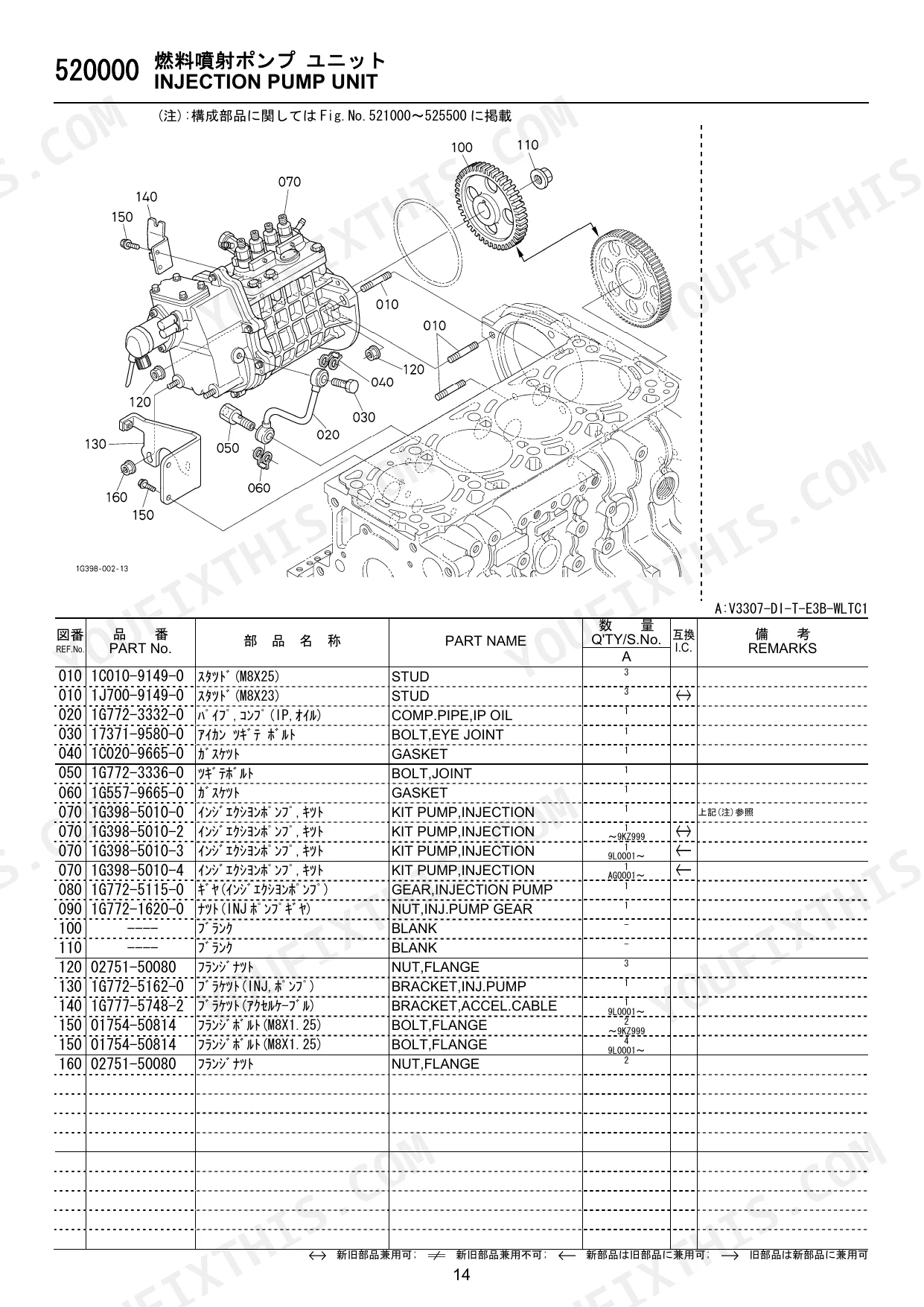

| 燃料噴射ポンプ ユニット | 21 | Stud, Comp.Pipe, Ip Oil, Kit Pump, Injection, Gear, Injection Pump, Nut |
| 燃料噴射ポンプハウジング | 22 | Assy Housing, I/P, Stud, Pin, Straight |
| 燃料噴射ポンプ | 23 | Assy Pump, Injection, Bolt Joint, Gasket, Screw Air Bleeder, Nut Flange, Shim Injection Pump |
| 燃料ポンプカバー | 24 | Cover, Gasket Fuel Pump, Nut Flange |
| 燃料カム軸 | 25 | Camshaft Fuel, Collar F/Cam Bearing, Bearing Ball, Stopper, Key Woodruff, Gasket Inj.Pump |
| ガバナ | 26 | Cover Governor Rod, Assy Weight Governor, Sleeve Governor, Housing Governor, Assy Lever Governor, Gasket Gov.Housing |
| フォークレバー (ガバナ) | 27 | Assy Lever Fork, Cir Clip External, Shaft Fork Lever, Spring Governor, Nut Lock |
| 制限調整ボルト | 28 | Assy Bolt Adjustment, Spring, Nut, Gasket, Bolt Adjusting, Cap |
| 停止ソレノイド | 29 | Assy Solenoid, O Ring, Bolt Hex-Soc-Hd |
| 燃料フィルタ | 30 | Joint, Bolt Eye Joint, Gasket, Tube Fuel, Valve Fuel Check, Assy Filter Fuel |
| セパレｰタ | 31 | Assy Filter, Cup, Retaining Ring, Element, Spring, Float |
| ノズルホルダ・グロープラグ | 32 | Assy Pipe, Over Flow, Assy Holder, Nozzle, Clamp, Inj.Nozzle, Glow Plug, Seal |
| 燃料噴射パイプ | 33 | Pipe, Injection, Clamp, Screw, With Washer |
| ダイナモ・プーリ | 34 | Assy Dynamo, Stay, Dynamo, Support, Bolt, Flange, Washer |
| ダイナモ分解 | 35 | Assy Dynamo, Assy Bracket, Front, Bearing, Assy Rotor, Assy Stator, Assy Rectifier |

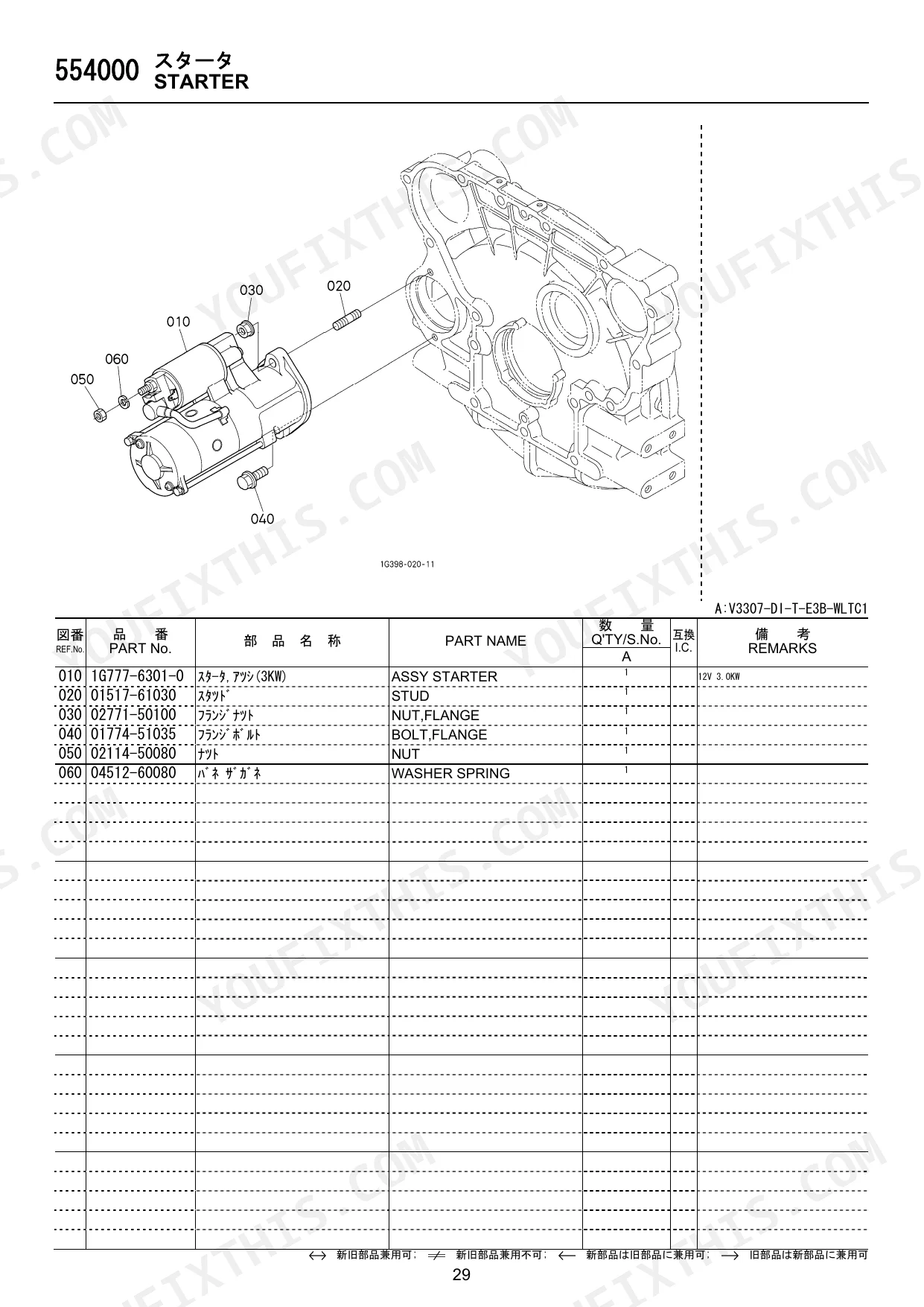

| スタータ | 36 | Assy Starter, Stud, Nut, Flange, Bolt, Washer Spring |
| スタータ分解 | 37 | Assy Starter, Set, Bearing, Assy Shaft, Clutch, Assy Gear, Set Pinion, Assy Switch |
| オイルスイッチ・水温センサ | 38 | Switch, Oil, Sensor, Revolution, Bolt, Flange |
| ウォータフランジ・サーモスタット | 39 | Cover, Thermostat, Gasket, Bolt, Flange, Comp.Flange, Water, Plug |

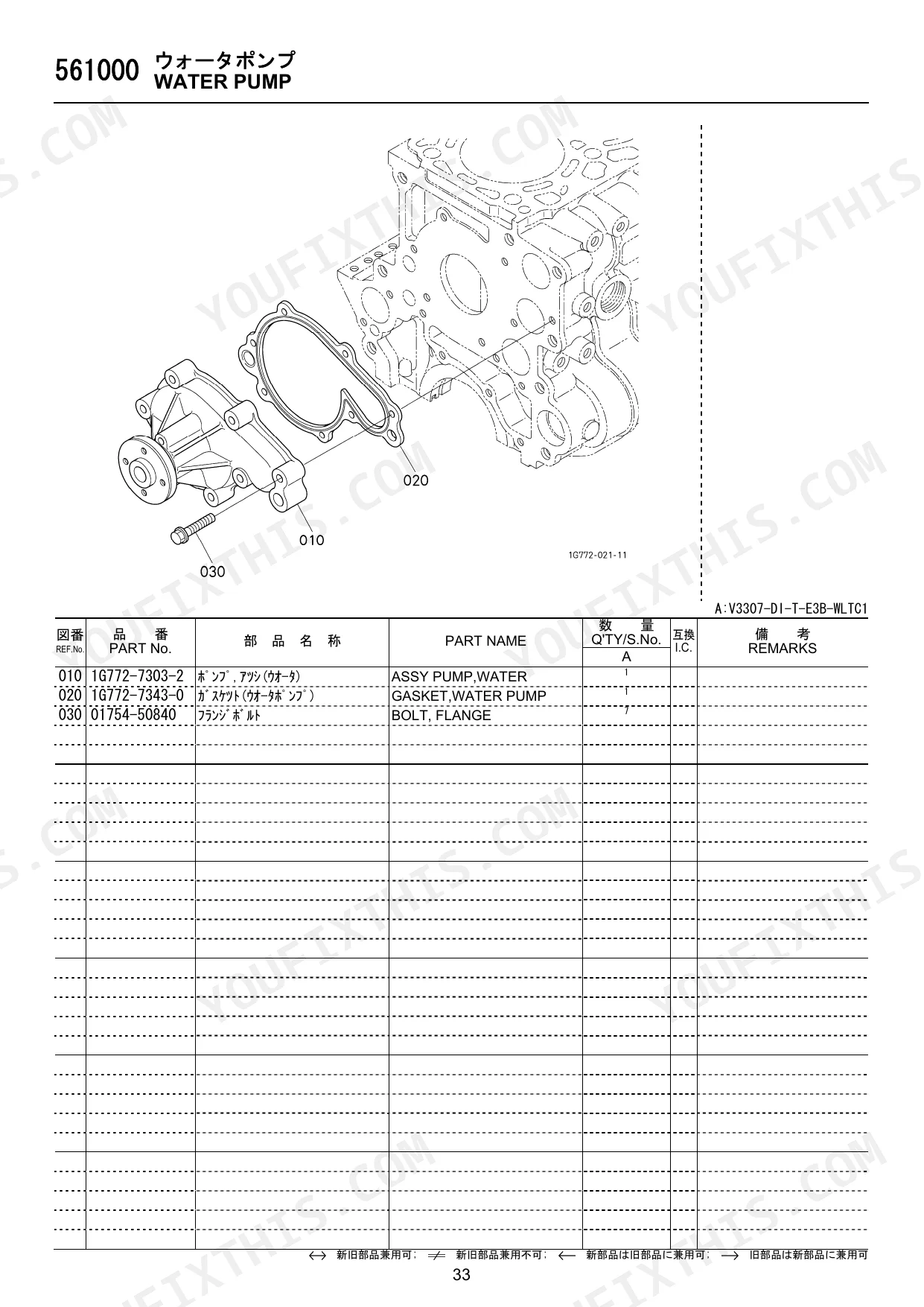

| ウォータポンプ | 40 | Assy Pump, Water, Gasket, Water Pump, Bolt, Flange |
| ウォータパイプ | 41 | Pipe, Boost, Band |
| 冷却ファン・プーリ | 42 | Pulley, Fan, Bolt, Flange, Collar |
| 吸気マニホールド | 43 | Assy Manifold, Inlet, Screw Air Bleeder, Gasket, Stud, In-Manifold, Bolt |
| 排気マニホールド | 44 | Manifold, Exhaust, Gasket, Ex-Manifold, Bolt, Flange, Stud, Shield |
| ＥＧＲバルブ | 45 | Housing, Gasket, EGR Valve, Bolt, Flange, Inlet, Valve |
| ＥＧＲクーラ | 46 | Assy Cooler, EGR, Bolt, Flange, Comp.Base, Gasket, EGR Cooler |

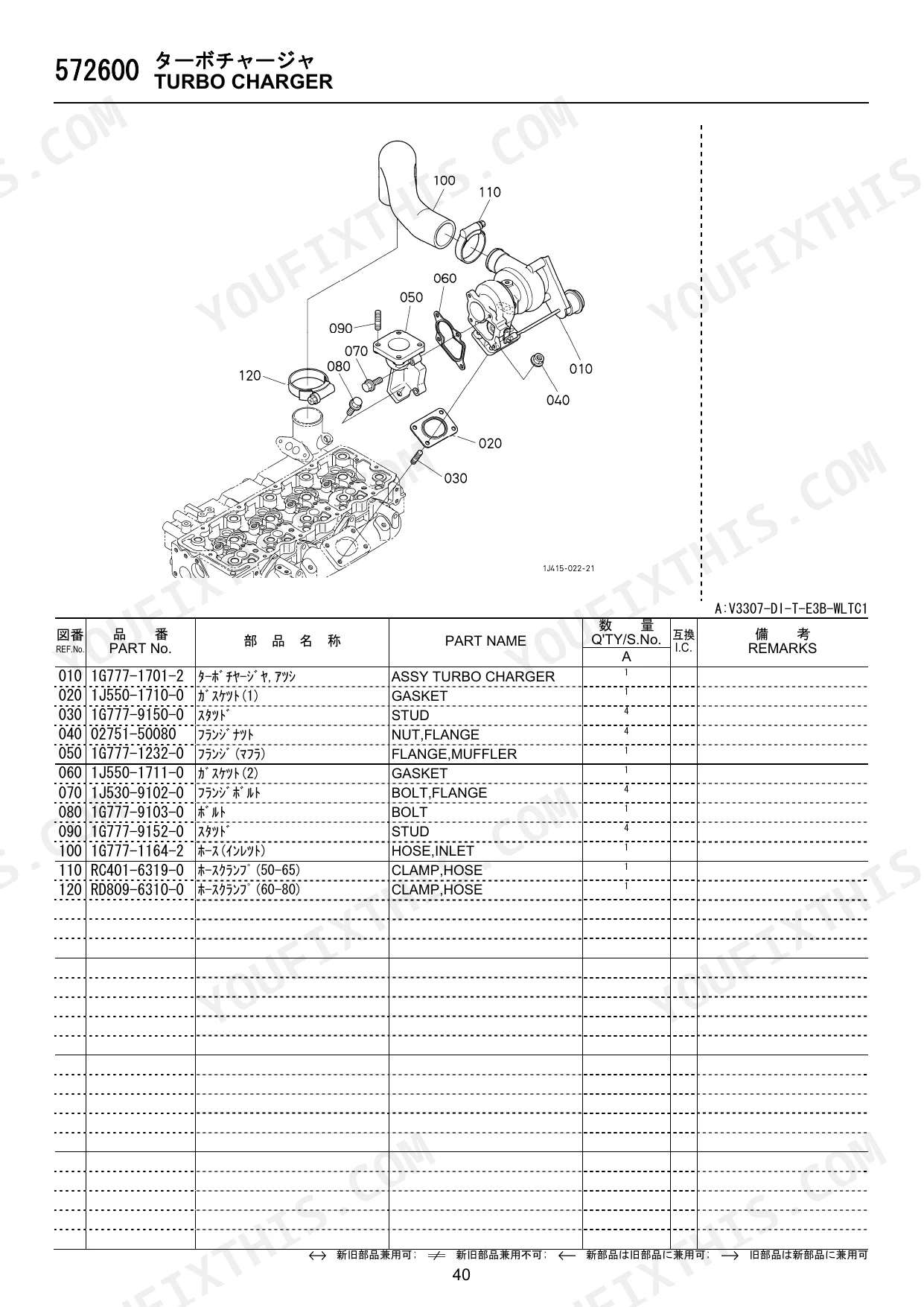

| ターボチャージャ | 47 | Assy Turbo Charger, Gasket, Stud, Nut, Flange, Hose |
| オイルパイプ（ターボチャージャ） | 48 | Comp.Pipe, Oil, Bolt, Eye Joint, Gasket, Pin, Band, Clamp |
| オイルクーラ | 49 | Joint, Water Pipe, Cartridge, Oil Filter, Assy Cooler, Oil, O Ring |
| グローランプ・タイマ | 50 | Controlar, Relay, Starter, Glow |
| 付属品・サｰビス部品 | 51 | Assy Pump, Fuel, Cushion, Rubber, Gasket, Screw, Air Bleeder, Joint |
| 銘板・取扱説明書 | 52 | - |

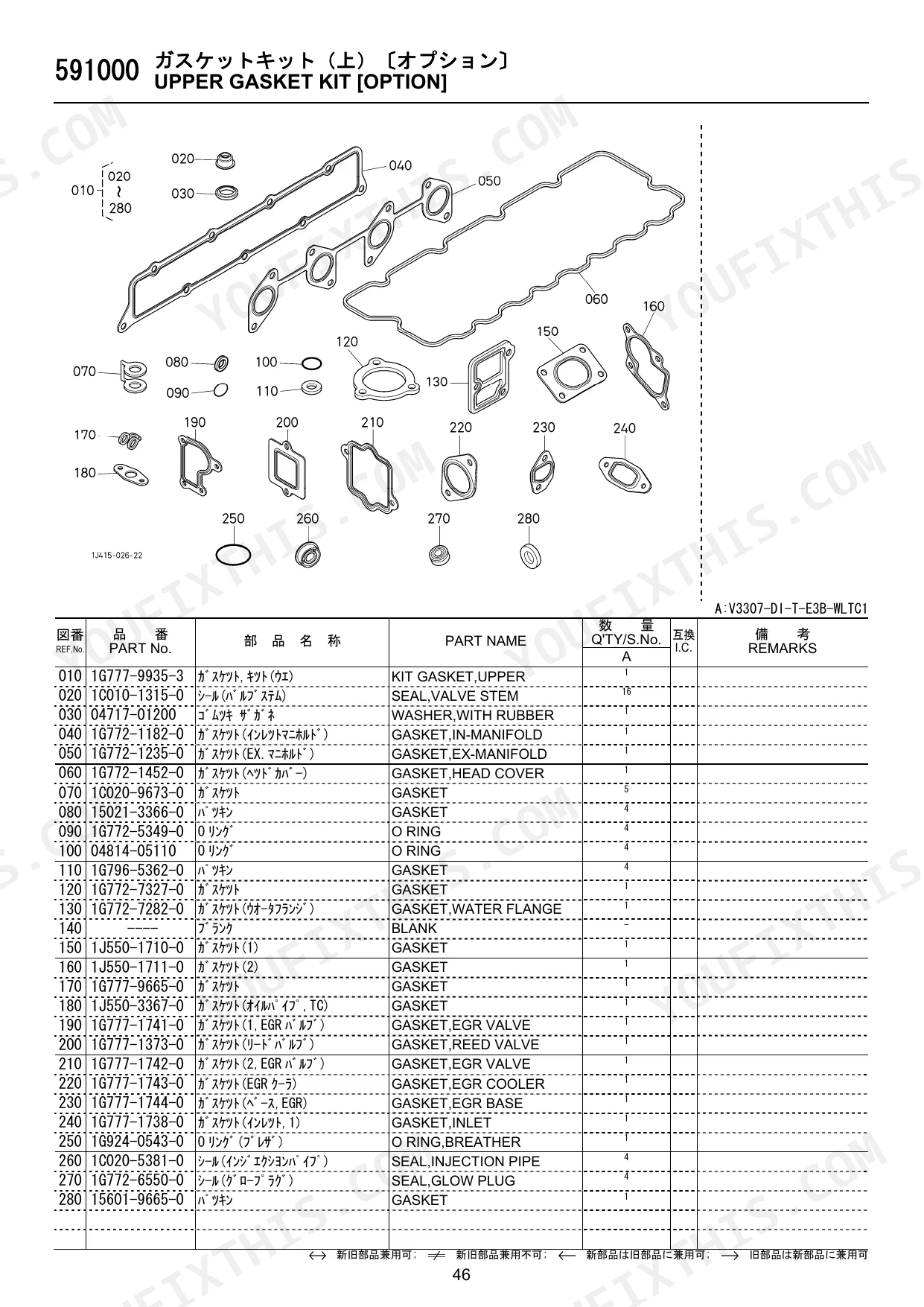

| ガスケットキット（上）〔オプション〕 | 53 | Kit Gasket, Upper, Seal, Valve Stem, Washer, With Rubber, Gasket, In-Manifold |
| ガスケットキット（下）〔オプション〕 | 54 | Kit Gasket, Lower, Gasket, Seal, Oil, Front Cover |
| メタルキット〔オプション〕 | 55-56 | Kit Metal, Engine, Crankshaft, Metal, Crankpin |
| ピストンキット〔オプション〕 | 57 | Kit Piston, Piston, Assy Piston Ring, Pin, Cir Clip, Internal, Bush |
| 品 番 索 引 | 58-60 | - |
| Cover 4(E) | 61-64 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel Tube (040 09661-40030) dimension | $4×48×30L | p. 30 |
| Pipe Clip (060 14971-4275-0) quantity | 4 | p. 30 |
| Injection Pump Shim (090 1G790-5216-2) thickness | 0.35mm | p. 23 |
| Injection Pump Shim Thickness | 0.35mm | p. 23 |
| Dynamo Voltage and Current | 12V 80A | p. 34 |
| Starter Voltage and Power | 12V 3.0KW | p. 36 |
| Piston Oversize (H05) | +0.50mm | p. 16 |
| Piston Oversize (HOO) | +0.50mm | p. 16 |
| Piston Oversize (H10) | +0.50mm | p. 16 |
| Crankshaft Metal Undersize | -0.20mm | p. 17 |
| Side Metal Oversize | +0.20mm | p. 17 |
| O-Ring Dimension (Filter Cup) | 73.5X3.1 | p. 49 |
Kubota V3307-DI-T-E3B-WLTC1 Common Problems This Manual Covers
Kubota V3307-DI-T-E3B-WLTC1 engine will not crank or only cranks weakly in cold weather p. 36
Inspect the starter assembly exploded view on page 36 and note the part number for the 12V 3.0KW starter motor. Match the flange nuts and spring washers shown so the mounting hardware suits your serial number.
Manual Section: 554000 スタータEngine requires starting fluid to run due to suspected injection pump component failure or poor fuel delivery p. 23
Review the injection pump components list on page 23 and locate the 0.35mm injection pump shim by part number. Cross-reference the joint bolts, flange nuts, and air bleeder screws in the index to build a complete replacement order.
Manual Section: 521000 燃料噴射ポンプLow power with heavy black smoke traced to restricted exhaust or EGR cooler leaks p. 46
Check the EGR cooler exploded diagram on page 46. Locate the correct part numbers for the base components and cooler gaskets. Find the replacement 50-65 hose clamps and flange bolts required to reassemble the exhaust system properly before returning the machine to service.
Manual Section: 572400 ＥＧＲクーラOil pressure lamp remains on after start requiring immediate oil cooler component identification p. 49
Examine the oil cooler parts breakdown on page 49 for the cartridge and joints. The 73.5X3.1 O-ring seals this assembly, so grab its part number, and confirm the water pipe joint components match your engine configuration.
Manual Section: 582000 オイルクーラSevere engine misfire and heavy crankcase blowby requiring identification of oversize piston replacement parts p. 16
Pull the engine parts diagram on page 16. Locate the +0.50mm oversize piston kit and matching piston ring assembly part numbers. Identify the correct connecting rod assembly, piston pins, and crankpin metals required for a complete lower end rebuild on this machine.
Manual Section: 511000 ピストン・クランク軸Frequently Asked Questions
How do I find the correct starter motor part number for the Kubota V3307-DI-T-E3B-WLTC1?
The starter assembly exploded view on page 36 lists the 12V 3.0KW starter motor with its part number. Match the flange nuts and spring washers shown in the diagram to confirm the correct hardware for your serial number.
Which injection pump shim thickness does the V3307-DI-T-E3B-WLTC1 use?
The injection pump components list on page 23 specifies a 0.35mm shim (part number 1G790-5216-2). Cross-reference the joint bolts, flange nuts, and air bleeder screws in the index to build a complete replacement order.
What parts are needed to address EGR cooler leaks causing black smoke on the V3307-DI-T-E3B-WLTC1?
Check the EGR cooler exploded diagram on page 46. Locate the part numbers for the base components and cooler gaskets, and find the replacement 50-65 hose clamps. Ordering gaskets and clamps together avoids a second disassembly if the base seal is also weeping.
What are the replacement specifications for battery?
As an illustrated parts list, this manual gives no replacement specs for the battery itself. It does list the dynamo (alternator) as part number 1G398-6401-0 rated 12V 80A, which indicates the electrical system's voltage and alternator output.
Is this Kubota V3307-DI-T-E3B-WLTC1 Parts Catalog a digital download?
This is a 64-page searchable PDF ready for immediate download. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this manual?
Yes. Print as many copies as you want; there are no restrictions. Plenty of mechanics print just the section they need and carry it onto the shop floor.
Document Quality
This document is a scanned PDF, meaning the text is clear and readable but not as crisp as a native digital file. An OCR layer is present, so you can search and copy the full text content. All diagrams and illustrations are raster images, which will show pixelation if you zoom in significantly, though labels within them are generally legible. The pages are clean and free from notable scan artifacts, stains, or skewed content, but please note there are two blank filler pages included.
