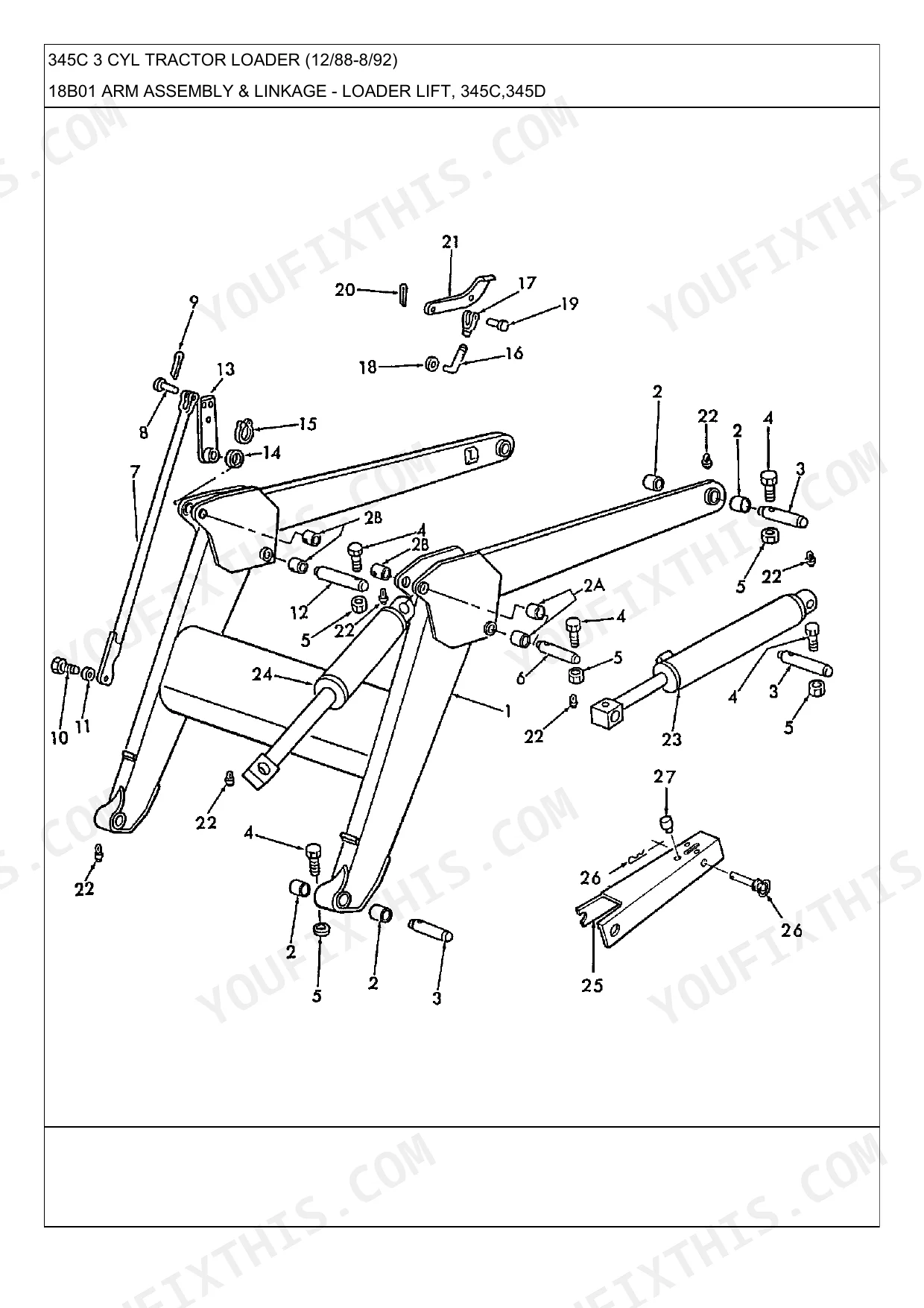

Looking for a Ford 445C parts catalog PDF that also covers its siblings? This 349-page factory parts catalog identifies every component on the 1988-1992 Ford 345C, 345D, 445C, 445D, 545C, and 545D tractor loaders, including the 3-cylinder 345C. Inside: exploded views of the loader arm, bucket cylinders, 8x8 and 4x4 transmissions, 4WD front axle, and hydraulic lift, each keyed to factory part numbers so you order right the first time. You get full breakdowns for the DPA rotary injection pump, power steering cylinders (TRW and Cascade), clutch packs, and every decal on the machine. Confirm your setup before ordering: the loader hydraulics run a 1600 PSI pump, and the non-emissionized fuel tank holds 16 gallons. Quit playing part-number roulette at the dealer counter. Bookmarked with a text layer you can search; find the diagram, read the number, place the order.
What's Inside This Ford New Holland 345C–545D Series Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Sedimenter & Filter Assembly, Non-Emmissionized, Fuel Injector Assembly, Fuel Injection Pump, Dpa Rotary, Upper Half, Lower Half, Air Cleaner Assembly for Non-Emissionized Engine | |
| Cooling System | Radiator & Fan, Water Pump | |

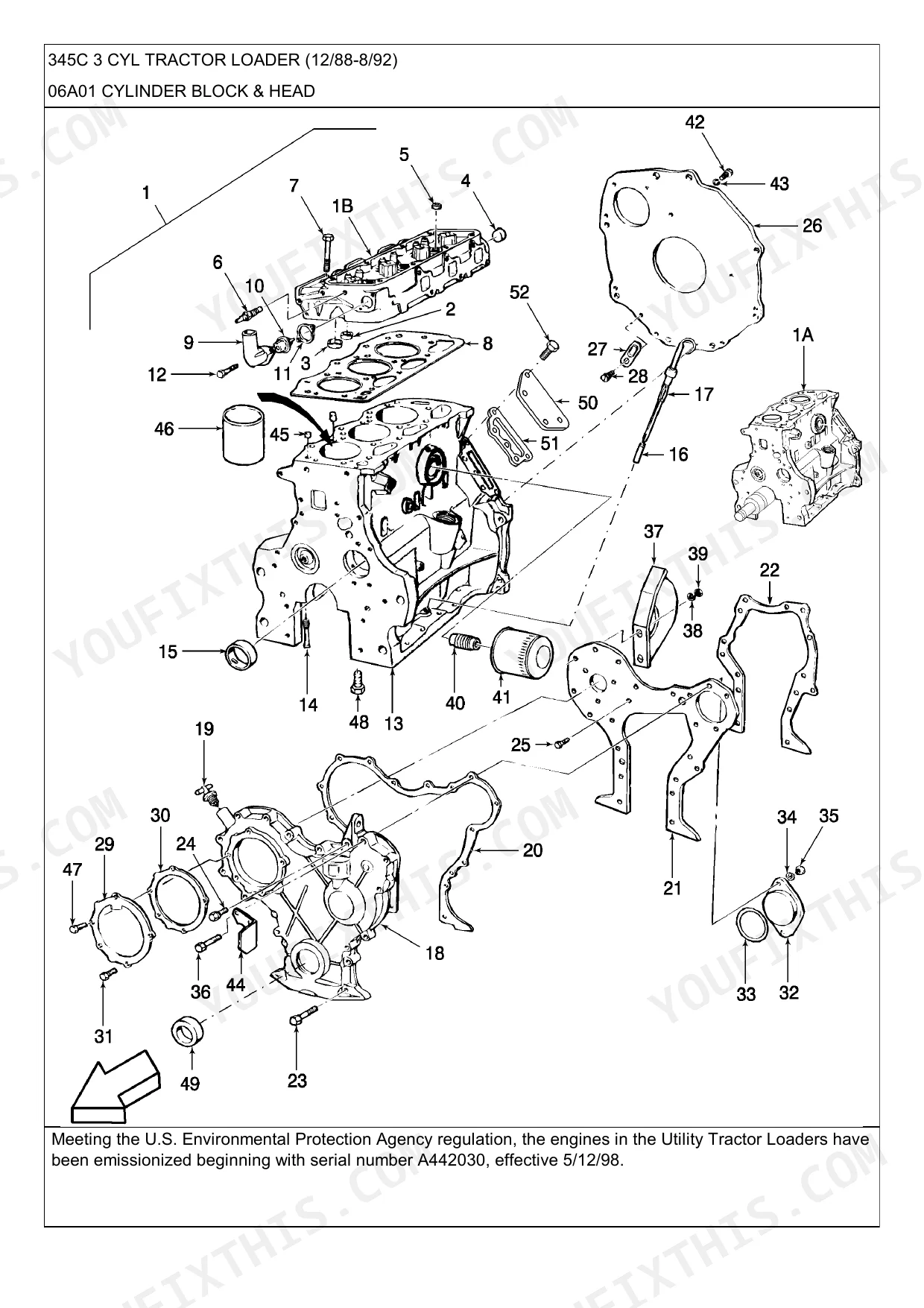

| Engine | Hydraulic Reservoir & Pump Drive, Non-Emissionized Engine, Cylinder Block & Head, Crankshaft & Flywheel, Camshaft, Rocker Arm & Valves, Pistons & Connecting Rods, Oil Pump & Pan, Transmission Oil Cooler, Battery & Support, Engine Hood, Engine Grille, Non-Emissionized Engines, Lubricants - Lubrication Equipment, Engine Coolant Heater Kit, Accessory, Loader Hydraulics, Non-Emmisionized Engines | |
| Electrical System | Switch, Transmission Control Valve Pedal & Rel, Headlamp Assembly, Front Mounted L/Cab - N.a. Only, Flat Top Fender L/Cab - N.a. Only, Rear Lamps L/Cab - N.a. Only, Lamp Assembly, Emergency Warning L/Cab - N.a. Only, Flasher Warning L/Cab - N.a. Only, Implement Lamp Assembly L/Cab - N.a. Only, Implement Lamp, L/Cab, Na Only, Alternator Assembly, Horn Accessory Kit, D.i.a., Stop & Tail Lights, Stop & Tail Lamp, W/four Post ROPS, Lamp Assembly - License Plate | |

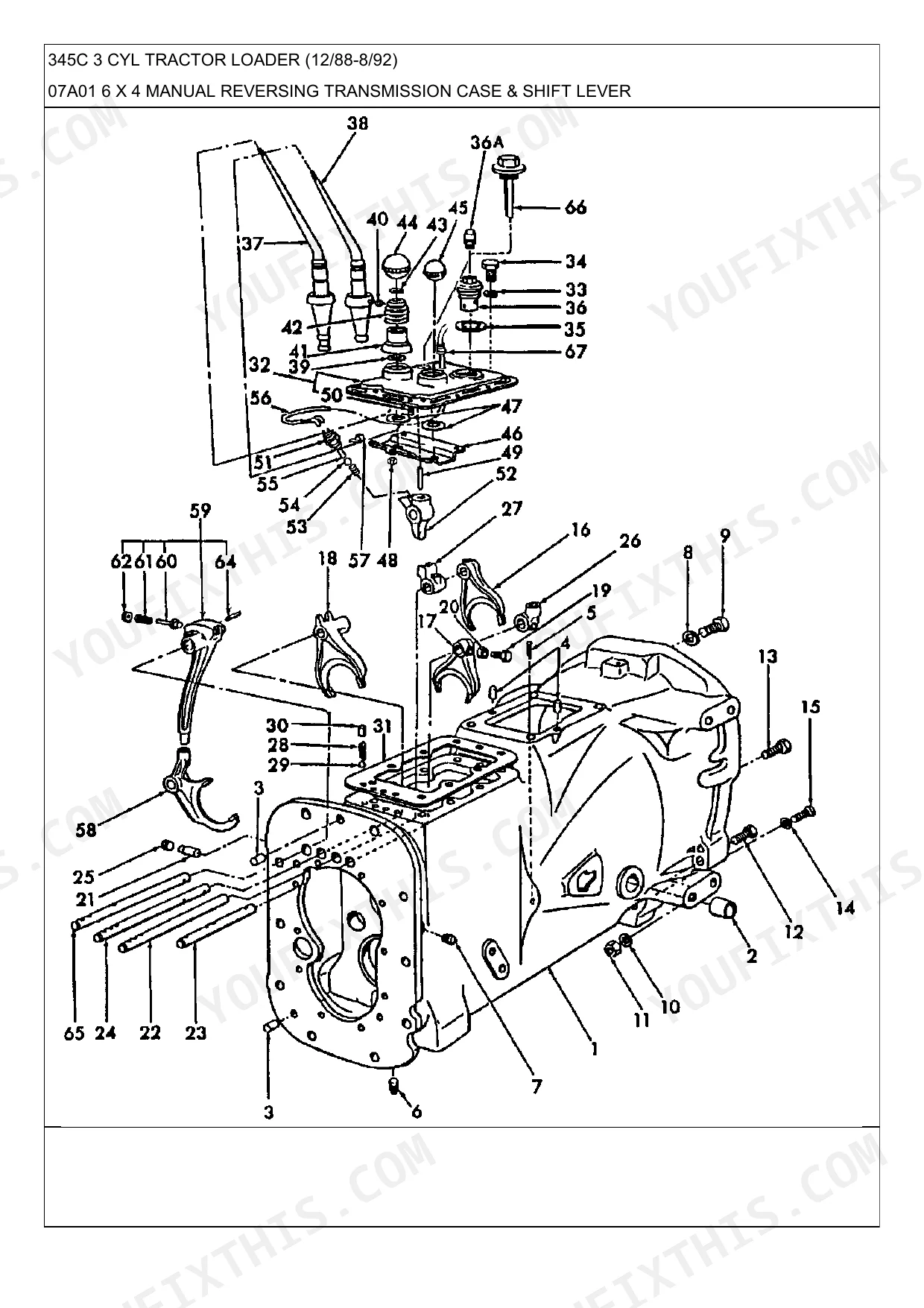

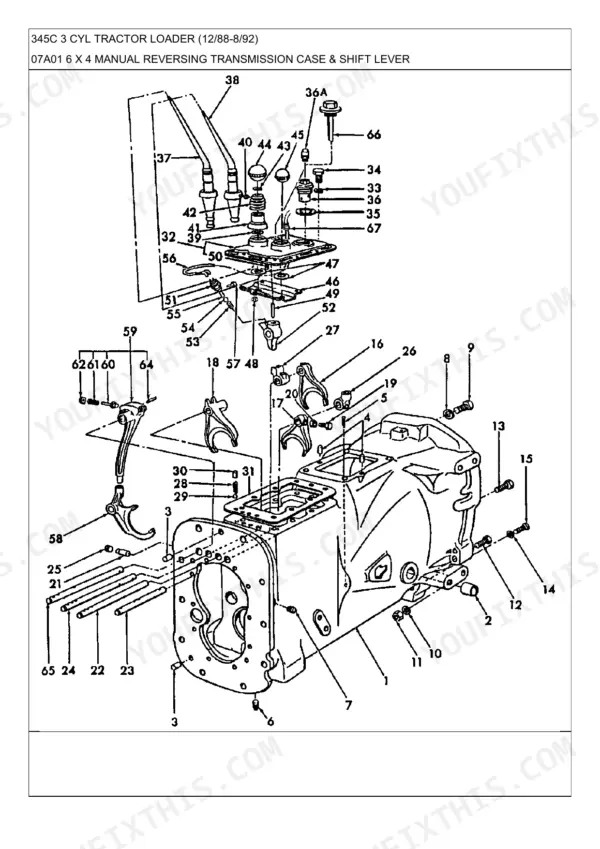

| Clutch & Transmission | Brake Controls - L/8x8 Transmission, Brake Controls - W/8x8 Transmission, Clutch Controls, Single Clutch Assembly, 13", Transmission Valve, Tubes & Fittings, 4 X 4 & 8 X 8, Transmission Case, 4 X 4, Transmission Rear Cover, Transmission Front Cover, Transmission Valve & Housing, Transmission Clutch & Input Shaft, Transmission Countershaft & Gears - 4 X 4, Transmission Output Shaft & Gears, Shift Fork & Rail, 1 & 2, W / 4 X 4, 3 & 4, W/4 X 4, Transmission Shift Lever & Dipstick, 8 X 8 | |
| PTO | Differential Lock & PTO Control, W/Cab, Independent PTO Assembly, FWD Related Parts L/pto, PTO Guard, PTO Shaft & Gears, 8 X 8 | |
| Rear Axle, Differential & Brakes | Standard Rear Wheels, Handbrake Lever W/twin Cable, Rear Axle, Differential, W/4wd, Differential Lock Linkage, Manifold Assembly, Rear Axle Hydraulic | |
| Front Axle & Steering | Front Axle, Steering, 2WD, 4WD, Steering Column & Motor, 12/88-4/98, Power Steering Pump & Reservoir, Power Steering Cylinder Assembly - Trw, Power Steering Cylinder Assembly - "Cascade" | |
| Hydraulics & 3-Point Hitch | Hydraulic Lift Cover, Hydraulic Lift Shaft & Related Parts, Hydraulic Lift Cylinder, Flow Control Valve Piping, Flow Control Valve, Hydraulic Lift Linkage, Swinging Drawbar Assembly, Valve Assembly, Loader Control, Lift & Draft Control - W/Cab, Hydraulic Lift Control, Remote Controls, W/Cab, Remote Control Valve & Coupler, Coupling Assembly - Remote Control, Unload Valve, Hydraulic Pump Assembly, Gear Type, Mounted in Center Housing | |
| Loader, Backhoe & Attachments | Stabilizer Kit - W/loader, Decals - Loader, Bucket Assemblies | |

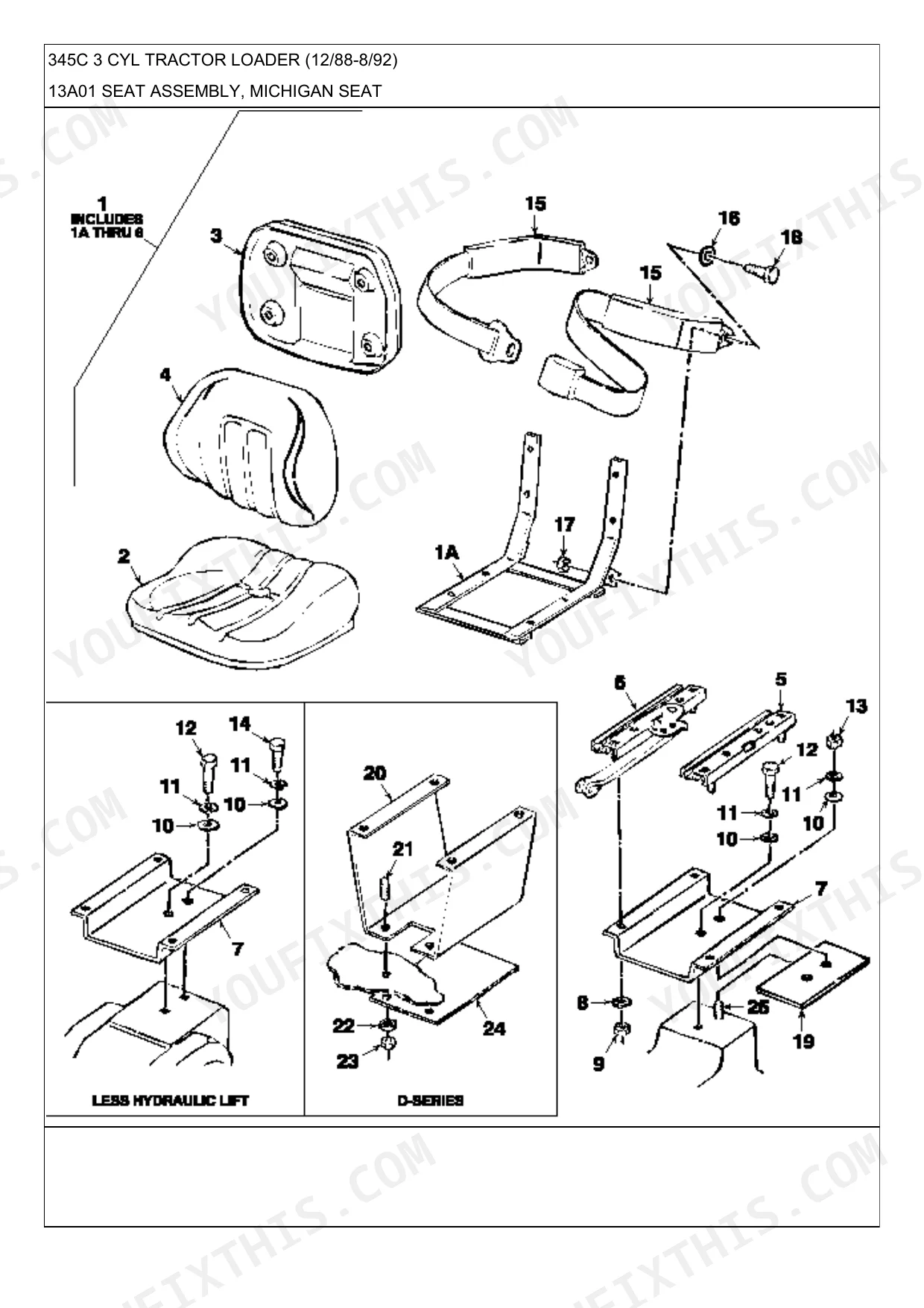

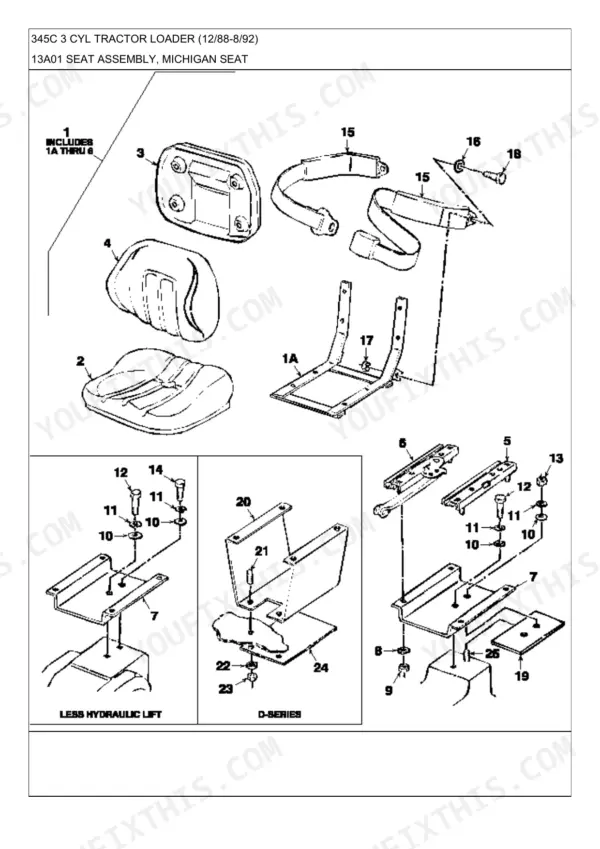

| Body & Operator Station | Throttle Controls, L/Cab, W/Cab, Kit, Turn Signal, Dia, Na Only, Seat Assembly, Michigan Seat, Grammer, Fenders, Mirror Assembly - Rear View - L/Cab - D.i.a., Subframe Assembly | |
| Decals & Accessories | Decals, Identificaton, Instructions, Warning & Caution, Shift Pattern Decals | |
| Other Components | Front End Weights, Center Housing, Box Assembly - Lift Leveling, Plugs - Block, Manifold & Exhaust System, Non-Emissionized, Reverse Idler Shaft & Gear, 4 X 4 & 8 X 8, Water Filter, Diesel Cold Start, Starting Motor Assembly, D.i.a., Back-Up Alarm, Instrument Cluster, Platform, Reflectors, Roof, Rollbar Kits, Safety, Paints |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Pump Pressure | 1600 PSI | p. 25 |
| Fuel Tank Capacity | 16 Gallon | p. 299 |
Ford New Holland 345C–545D Series Common Problems This Manual Covers
Ford 345C loader lift cylinder weeping oil past the rod, need the correct seal and gland kit
Check the lift cylinder exploded view starting on page 342. Match the gland, piston seal, and rod wiper to the numbered callouts, then pull part numbers from the adjacent parts list. Order the complete seal kit rather than loose seals; these seals work against the 1600 PSI pump pressure spec listed on page 25.
Manual Section: Lift Cylinder Assembly p. 342Bucket cylinder drifting under load, need the repair kit part number before teardown
Pull up the bucket cylinder breakdown on page 345; the parts list groups the seals, gland packing, and O-rings into a single repair kit. Order the kit, not individual seals, and verify the listing against your model and serial range first, since this book covers seven models. System pump pressure is 1600 PSI per page 25.

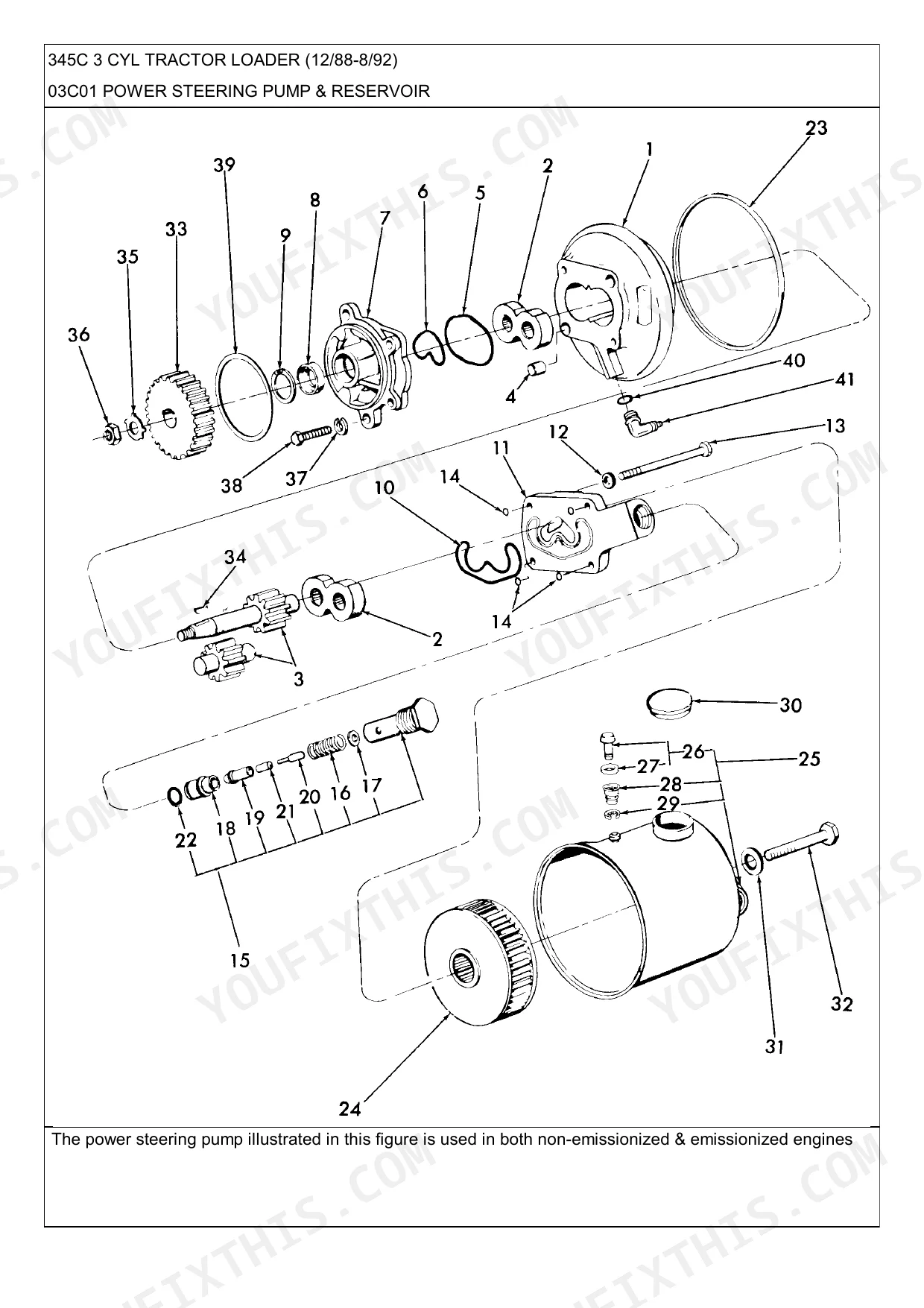

Manual Section: Bucket Cylinder p. 345Power steering pump growling, not sure which pump assembly and filter fit this serial range
Check the power steering pump and reservoir breakdown starting on page 24. Identify your pump assembly by the exploded view callouts, then match the valve and filter from the same parts list. Quote the 1600 PSI pump pressure spec from page 25 when ordering so the parts counter confirms the correct pump for your serial range.
Manual Section: Power Steering Pump & Reservoir p. 24Fuel sedimenter bowl cracked and dripping diesel, can't tell which sedimenter assembly to order
Check the fuel system listings starting on page 21, covering the tank, sedimenter, injection pump, and lines. Match the sedimenter bowl and gasket to the exploded view callouts and pull the assembly number from the parts list. Note the 16 gallon fuel tank capacity on page 299 applies to non-emissionized engines only; verify your engine before ordering tank parts.
Manual Section: 09 p. 21Frequently Asked Questions
What is the torque specification for the cylinder head bolts on the Ford 345C?
The cylinder head bolts for the Ford 345C engine are specified to be tightened to 9/16"-12 x 5 1/32". Please refer to page 119 for the part number 87802206. p. 119
What is the capacity of the hydraulic reservoir on the Ford 345C?
The hydraulic pump and reservoir assembly for the Ford 345C has a capacity of 2.74 U.S. gallons at 1000 RPM. p. 25
What is the correct oil filter part number for the engine on a non-emissionized Ford 345C?
For a non-emissionized Ford 345C, the correct engine oil filter part number is 86546614. p. 120
What is the part number for the standard rear wheel disc on the Ford 345C?
The part number for the standard rear wheel disc (24" for 16.9 x 24 tire, 8 bolt) is C5NN1036G. p. 2
What is the part number for the 560 lb front end weight on the Ford 345C?
The part number for the 560 lb front end weight is 82947222. p. 4
What format is this Ford 345C & variants manual in?
You get a 349-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Ford 345C & variants Parts Catalog printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
