Covering Ford tractor loaders built from 1975 to 1978, this 499-page Ford New Holland 535 tractor loader parts catalog PDF spans the 335, 420, 515, 532, and 535 loader models and their Ford tractor base units (2600, 3900, 4100, 4600, 5600, 5700, 6600, 6700, 7600, 7700). You get exploded views with factory part numbers for every system: brakes and handbrake linkage, front axle and steering gear, differential and planet gear carriers, hydraulic lift covers and remote control valves, pistons, connecting rods, and oil pumps. Wiring harness parts and full parts lists make component identification simple, right down to washers and O-ring kits. Ordering a power steering pump for your loader? It is listed against the 1250 PSI system, with hose assemblies called out by exact length (26-1/4 inch, 666.75 mm). No more squinting at a corroded casting hoping the number matches. Bookmarked with a live text layer; search a part name, find the number, place the order.
What's Inside This Ford New Holland 535 Tractor Loader Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Distributor Drive & Governor Assembly, Diesel, W/rotor Injection Pump - Except, Gasoline, Single Fuel Filter, Dual Fuel Filter Assembly, Air Cleaner Assembly, Dry Type, Throttle & Foot Accelerator Controls, Fuel Injection Pump, Rotor - Except, Fuel Injector Assembly - Diesel, Carburetor Assembly, Holley, Fuel Pump Assembly, Electric Fuel Pump, Fuel Filter Kit, Accessory, All Tractors, Nhna | |
| Cooling System | Radiator & Related Parts, Water Pump & Related Parts | |

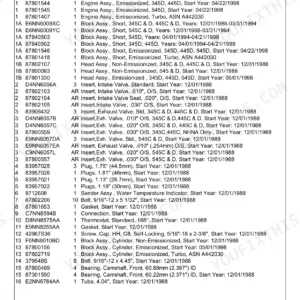

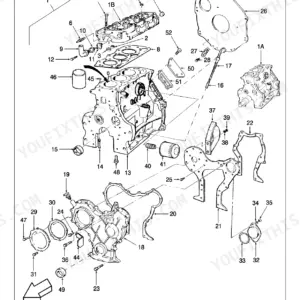

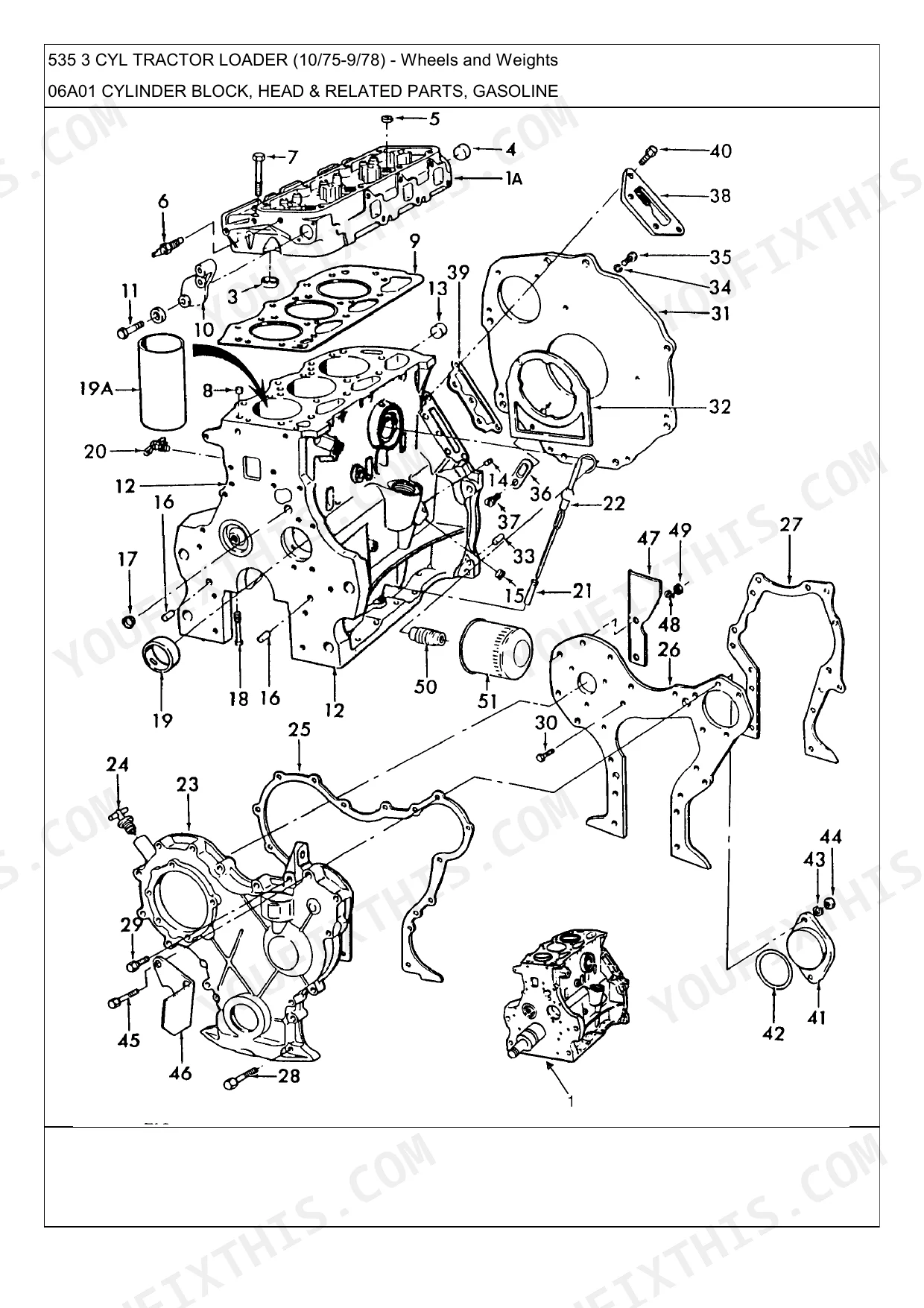

| Engine | Cylinder Block, Head & Related Parts, Gasoline, Cylinder, Diesel, Engine Block Kit, Stepped Stud, Crankshaft, Flywheel & Related Parts, Cylinder Engine, Camshaft, Rocker Arm, Valves & Related Parts, Pistons & Connecting Rods, Diesel - Except, Oil Pump & Pan, Manifold & Exhaust System, Engine Gasket Kits, 3-Cylinder Gasoline & Diesel, Engine Overhaul Kits, Nhna, Torque Converter Transmission - Oil Distributor, Oil Pump & Related Parts, Hydraulic Pump Assemblies, Engine Mounted, Piston Type, Engine Hood, Grille & Related Parts, Lubrication Equipment, Accessory, Engine Coolant Heater Kits | |
| Electrical System | Headlamp Assembly, Nhna, Front Mounted, Head & Utility Lamps, Fender or Cab Mounted - Except, Front Mounted Ece, Nh-E - Except, Side Mounted Headlamps, Duplo, Nh-E, Rear Wiring, W/flat Top Fenders, W/stop Lamps & Flashers, Rear Lamps, W/Cab, Flasher Lamps & Turn Signal, Stop & Flasher, W/flat Fenders, L/Cab, Nh-E & Nhna Imports, Parking Lamps, Side & Flasher, Lamp Assembly, Parking, Stop, W/wide Fenders, Parking & Rear Lamps, Italy, Emergency Warning, Battery & Battery Support Assembly, Gasoline | |
| Clutch & Transmission | Transmission Handbrake, Torque Converter Transmission - Case, Shift Lever & Related Parts, Torque Converter Transmission - Clutch & Gears, Torque Converter Transmission - Control Lever, Manual Reversing Transmission - Gears & Related Parts, Power Take-Off Assembly, W/8-speed & Manual Reversing Transmission, Clutch Controls, Single Clutch Assembly, 13", Reduction Gear Box Assembly, Cylinder, Transmission Shift Pattern Decals, Nhna, Nh-E | |
| PTO | Independent Power Take-Off Assembly, W/7 & 8-Speed & Manual Reversing, PTO Guard Kit & Assembly, Accessory, PTO Gear Housing & Pulley W/guard | |

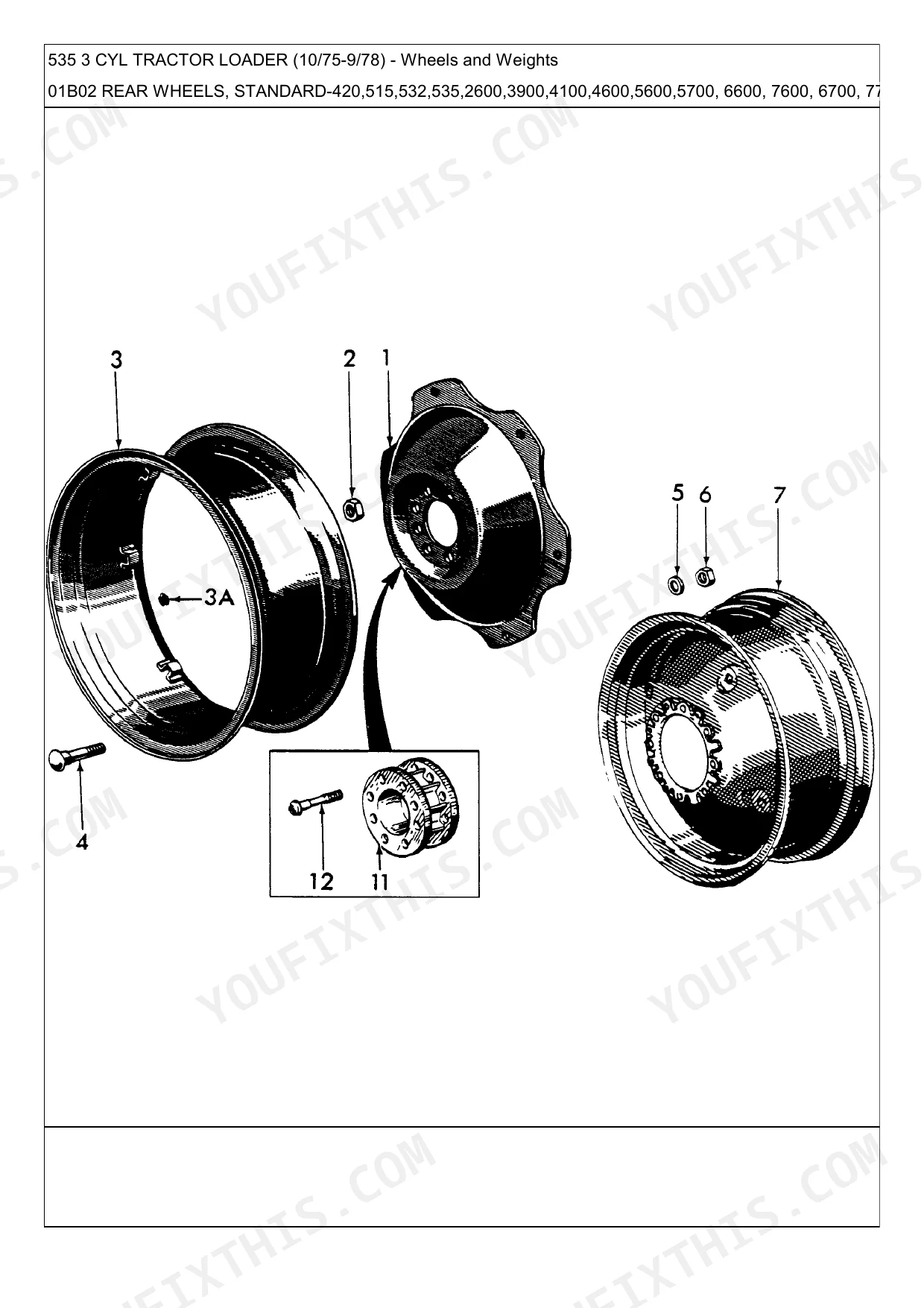

| Rear Axle, Differential & Brakes | Rear Wheels, Standard, Rear Wheel Weights, 24", Accessory, Manual Adjust, Brakes & Brake Controls, Handbrake Lever & Cable, W/Cab, 4-76/; W/ or L/Cab, 8-76/, Rear Axle, Differential & Related Parts, Differential Lock Linkage | |

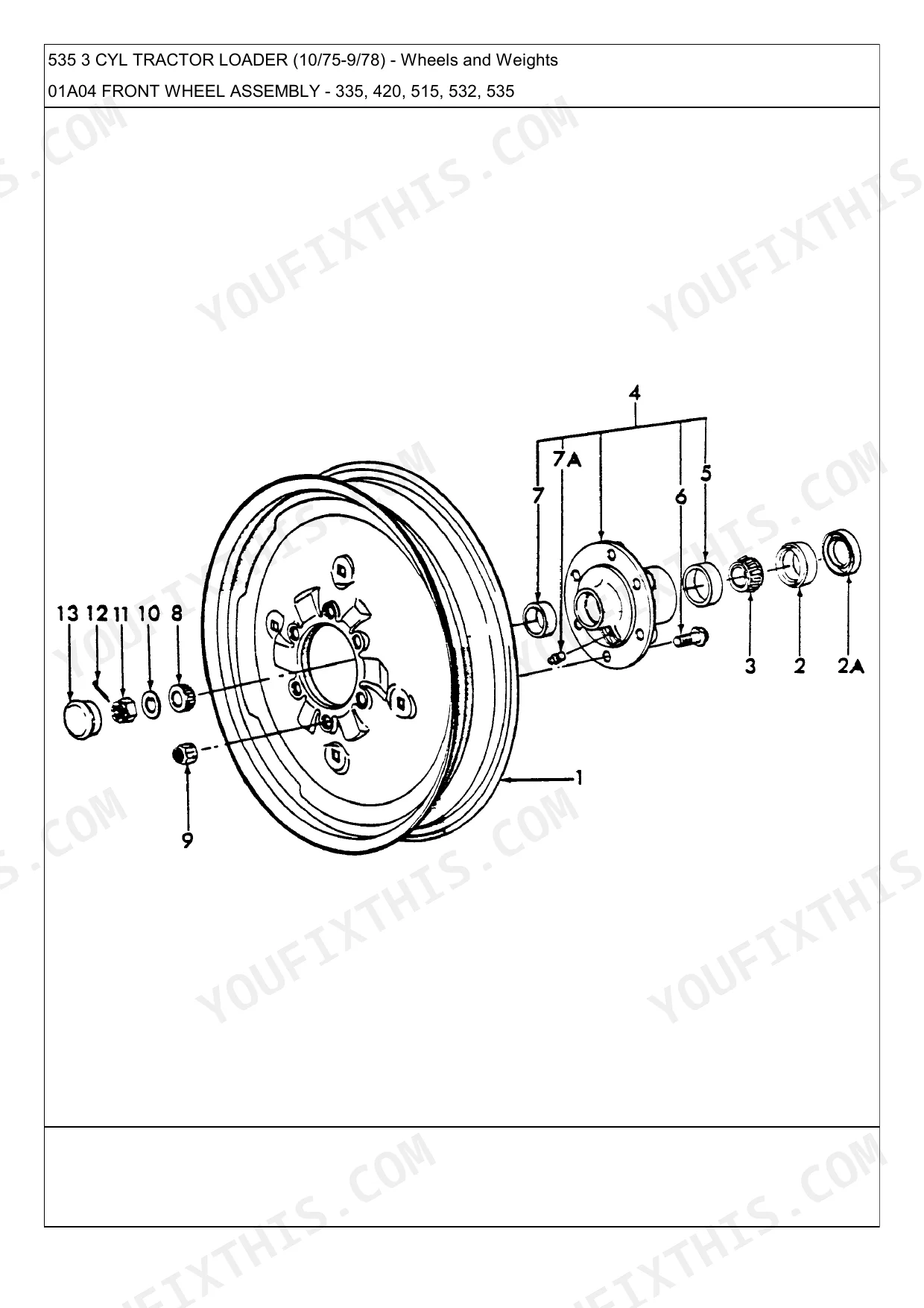

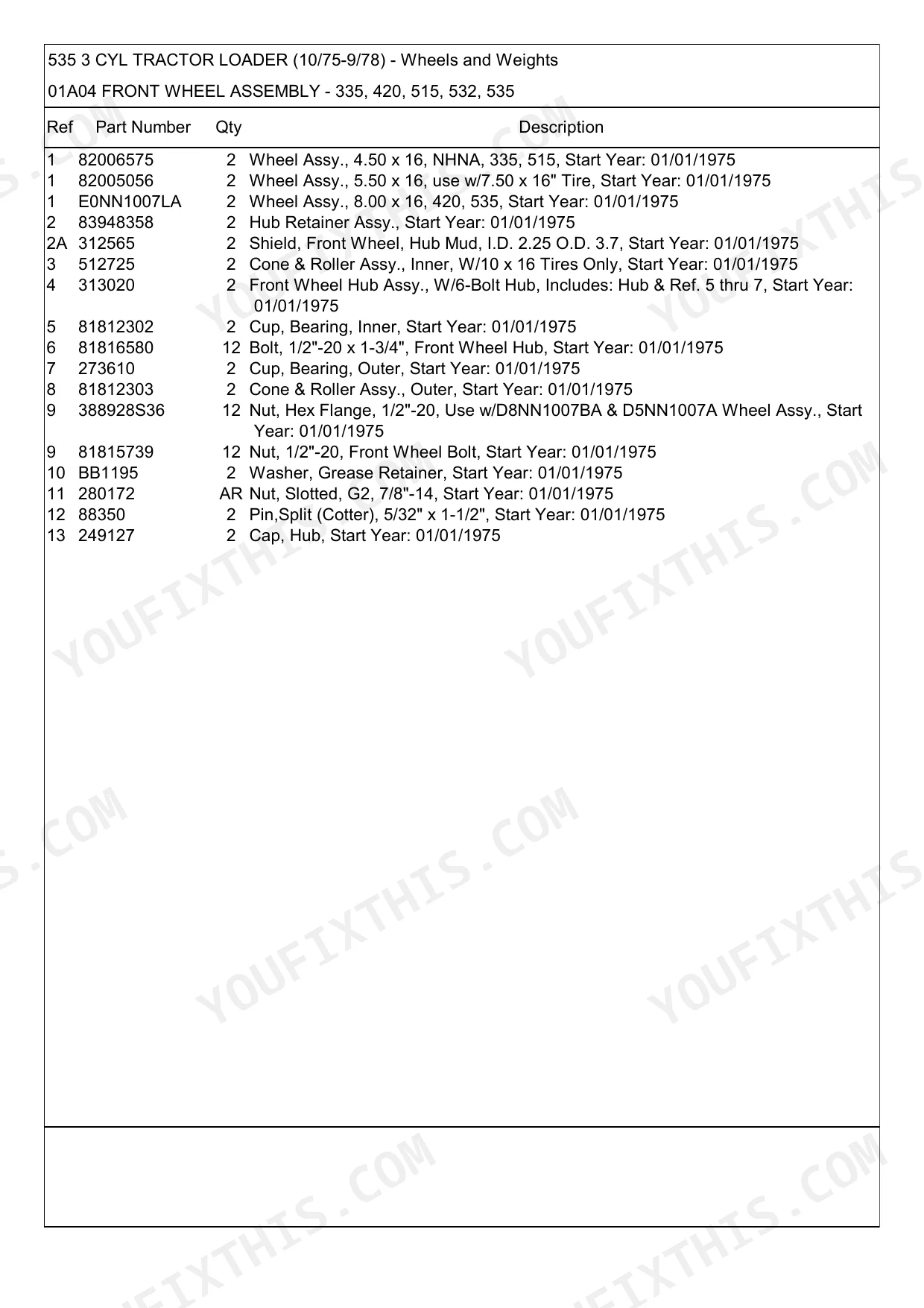

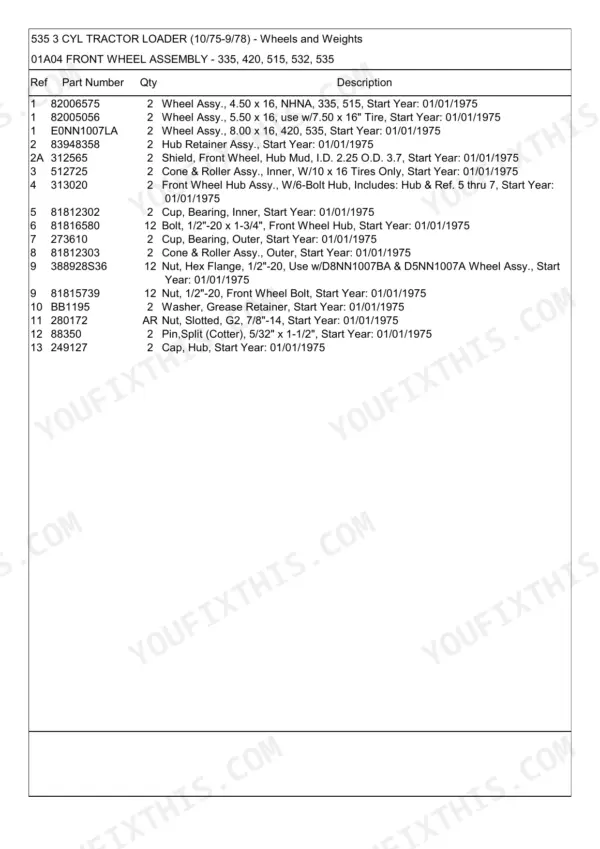

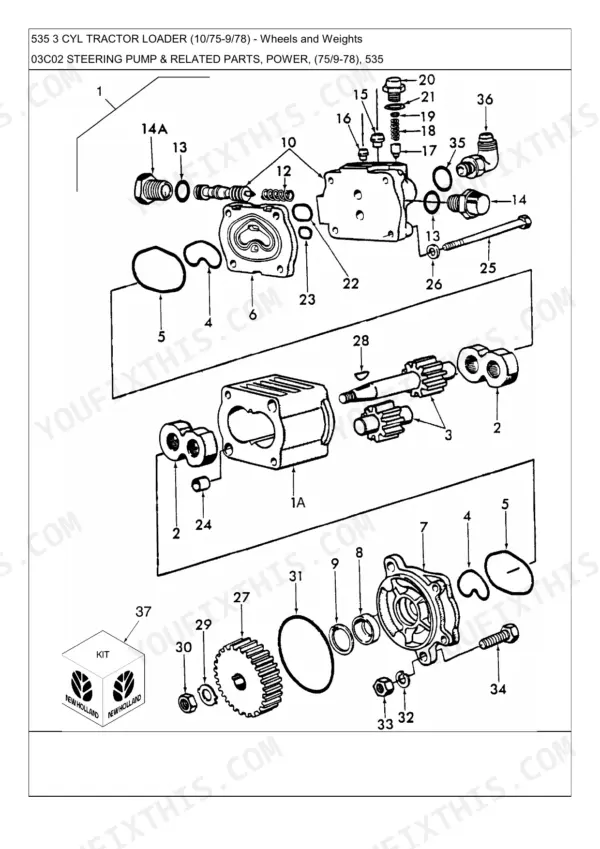

| Front Axle & Steering | Front Wheel Assembly, Front Wheel Weights, Accessory, Front Axle, Steering & Related Parts, Steering Gear Assy., Steering Pump & Related Parts, Power, Steering Cylinder | |
| Hydraulics & 3-Point Hitch | Hydraulic Lift Cover & Related Parts, Hydraulic Lift Shaft & Related Parts, Hydraulic Lift Cylinder & Related Parts, Hydraulic System, Frame & Related Parts, Flow Control Valve Assemblies, Hydraulic Lift Linkage, Swinging Drawbar, Hanger & Related Parts, Remote Control Valve O-Ring Kit, Hydraulics, Remote Control Valves, Single & Double Spool, Remote Control Valve Handles, W/Cab - Except, Remote Cylinder Coupling Kits, Double Acting, Accessory, Automatic Pick-Up Hitch & Swinging Drawbar Kits, Nh-E, Throttle Controls & Related Parts, Diesel, Cylinder, Hydraulic Pumps, Mounted in Center Housing, Gear Type, Hydraulic Pump Assembly, Hydraulic Remote Control Cylinder Assembly, Nhna | |
| Loader, Backhoe & Attachments | Quick Attach Hitch - Series | |
| Body & Operator Station | Super Comfort Seat Assembly, Steel Pan Seat & Related Parts, Seat, Reversible, Crown Fenders, Platform, Tool Box & Related Parts, Flat Top Fenders, Nhna, Radio & Related Parts, Cab Mounted | |
| Decals & Accessories | Front End Weights, Accessory, Front End Wafer Weights, Identification Decals, Identification Decals & Plates, Identification Decal Kits, Decals, Instruction, Safety, Nh-E, Nhna, Kit, Tools, Safety Emblem Parts | |
| Other Components | Center Housing & Related Parts, Pipe & Coupling Kits, Single & Double Acting, Manifold & Exhaust System, Gasoline, Throttle Controls & Related Parts, Diesel Cold Start, Electrical System, Nh-E, Starting Motor & Related Parts, Diesel, 5" Dia., Starting Motor Assembly, Trailer Sockets, Pole/7 Pole, Instrument Cluster Assembly & Related Parts - Except, Reflectors & Related Parts, Nhna, Paints, Nhna Only, Rear Tow Hooks, Except |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Power Steering Pump Pressure | 1250 PSI | p. 36 |
| Hose, 22.25" | 57.15mm | p. 67 |
| Hose, 3.00" | 76.20mm | p. 67 |
| Spring, 2.157" (54.79mm) Free Length | 2.157 in (54.79 mm) | p. 84 |
| Valve, Pressure Relief | 16mm | p. 127 |
| Pump Assy., 5.6 G.P.M. flow rate | 5.6 G.P.M. | p. 254 |
| Pump Assy., 4.5 G.P.M. flow rate | 4.5 G.P.M. | p. 254 |
Ford New Holland 535 Tractor Loader Common Problems This Manual Covers
Ford 535 loader hydraulic pump quit building flow, not sure which replacement pump and pistons fit
Measure your pump piston diameter before ordering anything. Check the parts list on page 254: the 5.6 G.P.M. pump uses piston NCA615C at 5/8 inch (15.875 mm) diameter, while the 4.5 G.P.M. pump takes C5NN615A at 9/16 inch (14.287 mm). Match your serial number range in the exploded view before you buy.
Manual Section: Hydraulic Pump (Piston Type) p. 254Loader lift hoses weeping at the crimp fittings, not sure which replacement hose lengths to order
Match hose length to your valve setup before ordering. Check the parts list on page 94: the single spool lift and drop hose assembly runs 30-1/4 inches (768.35 mm) and the lift hose runs 17-1/4 inches (438.15 mm). Compare against page 95, where the single and double spool assembly measures 22-1/2 inches (571.5 mm).
Manual Section: Hose Assembly p. 94Power steering feels jerky and hunts under load, need the reservoir filter element part number
Drain the reservoir and pull the old filter element before ordering. Check the power steering tubes and reservoir breakdown on page 30 for the filter element, cover, and cap parts. Inspect the outlet elbow while the reservoir is open. If pressure still hunts after the filter swap, note the pump relief setting of 1250 PSI on page 36.
Manual Section: Power Steering Tubes and Cooler p. 30Loader control valve spool sticks and won't return to neutral, need the centering spring part number
Measure the free length of your old spring before ordering a replacement. Check the valve parts list on page 84, which shows the spring at 2.157 inches (54.79 mm) free length. Order the O-ring kit in the same job so the valve seals fresh, and verify the spool stem against your serial number range.
Manual Section: Valve Assembly p. 84Frequently Asked Questions
What are the replacement specifications for the hydraulic filter on a Ford 535 tractor?
The hydraulic filter element for the Ford 535 tractor is part number C5NNN832B, as listed on page 72. This filter is used in the hydraulic system and should be replaced according to the maintenance schedule. p. 72
What is the correct replacement part for the hydraulic suction screen on a Ford 535 tractor?
The hydraulic suction screen for the Ford 535 tractor is part number D5NN6623A, which is used in the oil pump and sump assembly as described on page 127. p. 127

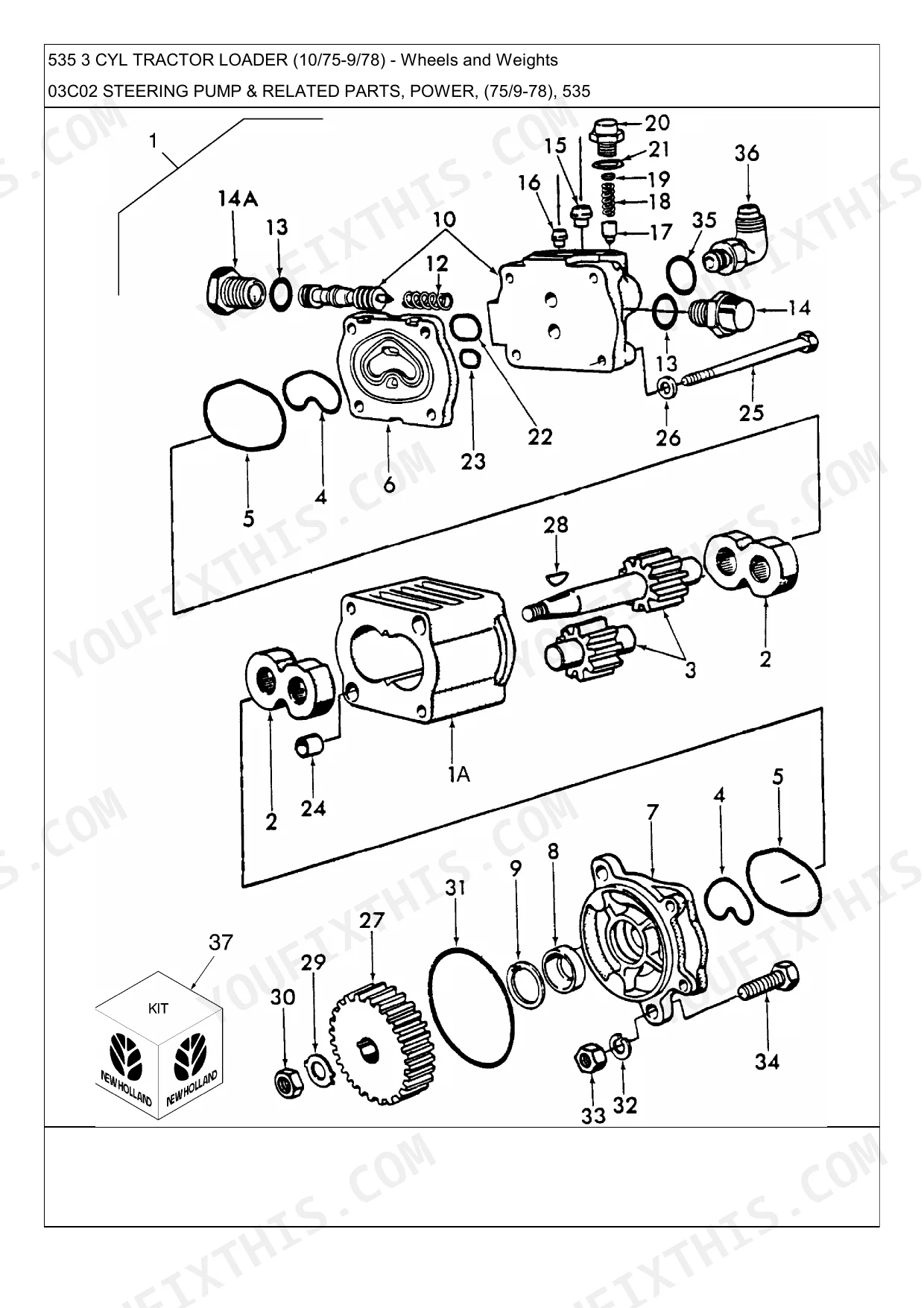

What is the capacity of the power steering pump on a Ford 535 tractor?
The power steering pump assembly for the Ford 535 tractor has a capacity of 4.2 U.S. gallons and operates at 1250 PSI, as specified on page 36. p. 36
How will I receive this Ford 335 & variants Parts Catalog?
A 499-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this Ford 335 & variants manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

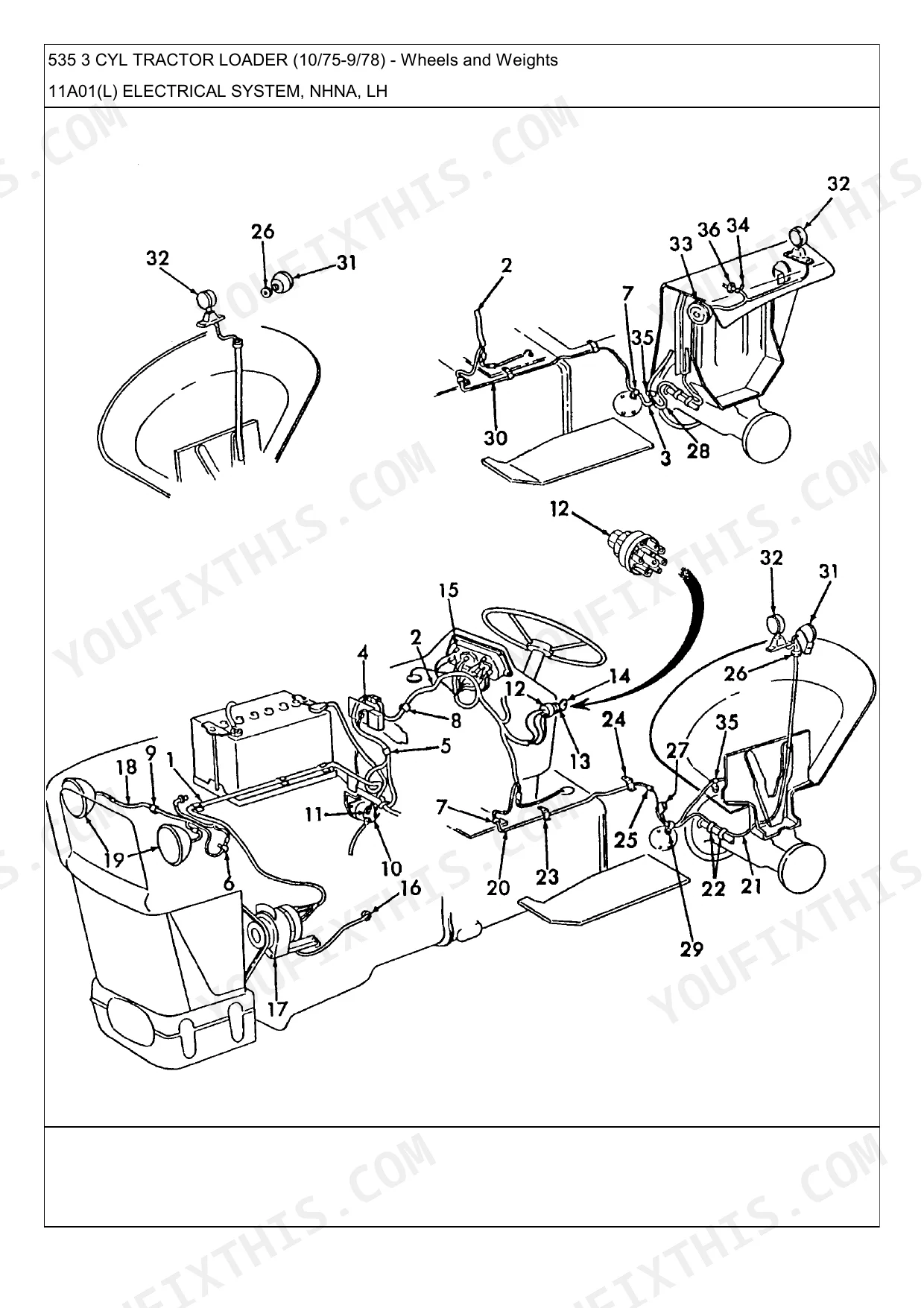

Does this catalog include wiring harness parts for the Ford 535 loaders?
Yes. As a parts catalog it shows the wiring harnesses, connectors, and related electrical parts as exploded views with factory part numbers (for example the rear wiring harness figures). It lists parts for ordering; it does not contain electrical schematic diagrams.
